Model MA TOW Tractor. Manual - part 68

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 157

44-

----- ----------------

T6-2001-101wb

drive axle and reduction gear assembly, Solid mount

1

As Req’d

----- ----------------

T6-2001-101sr

drive axle and reduction gear assembly, Spring mount

1

“

44-1

171 a25-3800-d-654 T6-2001-139

differential and axle housing assembly, rh

1

001-4019

171 a623800d654

T6-2001-602

differential and axle housing assembly, rh

1

4020 & Up

44-2

171 a55-3800-x-570 T6-2001-133

differential and axle housing assembly, lh

1

001-4019

----- ----------------

T6-2001-601

differential and axle housing assembly, lh

1

4020 & Up

44-3

171 1199t3842

T6-2001-157

gasket, oil seal (rtv sealant)

1

001 & Up

44-4

171 s-1714-1

T6-2001-145

hex head bolt

11

"

44-5

171 1229-e-1513

T6-2001-147

flat washer

11

"

44-6

171 nl17-1

T6-2001-149

locknut

11

"

44-7

171 p-112

T6-2001-143

lubricant fill plug, differential housing

1

"

44-8

171 1250-s-123

T6-2001-137

lubricant drain plug, differential housing

1

"

44-9

171 1246-d-134

T6-2001-153

pin, bevel gear thrust block

1

"

44-10

171 2297-s-175

T6-2001-155

thrust block, bevel gear

1

"

44-11

62 3920

T6-2001-151

cup, differential bearing

2

"

44-12

62 3984

T6-2001-107

differential bearing

2

"

44-13

171 a-3235-f-214

T6-2001-109

flange

1

"

44-14

171 a40498-7

T6-2001-111

gear and pinion set

1

"

44-15

171 3278-t-72

T6-2001-123

spider

1

"

44-16

171 2233-m-429

T6-2001-125

pinion gear

4

"

44-17

171 1229-u-1061

T6-2001-127

pinion thrust washer

4

"

44-18

171 2234-k-427

T6-2001-121

side gear

2

"

44-19

171 1229-v-412

T6-2001-119

thrust washer

2

"

44-20

171 946

T6-2001-291

bolt kit (note 1)

1

"

44-21

171 s-2822-1

T6-2001-131

cap screw, differential and gear assembly

8

"

44-22

171 2808-f-942

T6-2001-193

gasket, bevel pinion cage

1

"

44-23

171 1229-y-1299

T6-2001-195

lock ring

1

"

44-24

141 u1305tm

T6-2001-197

bevel pinion pilot bearing

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Bolt kit T6-2001-291 (item 20) is used to replace rivets when rivets are removed.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 158

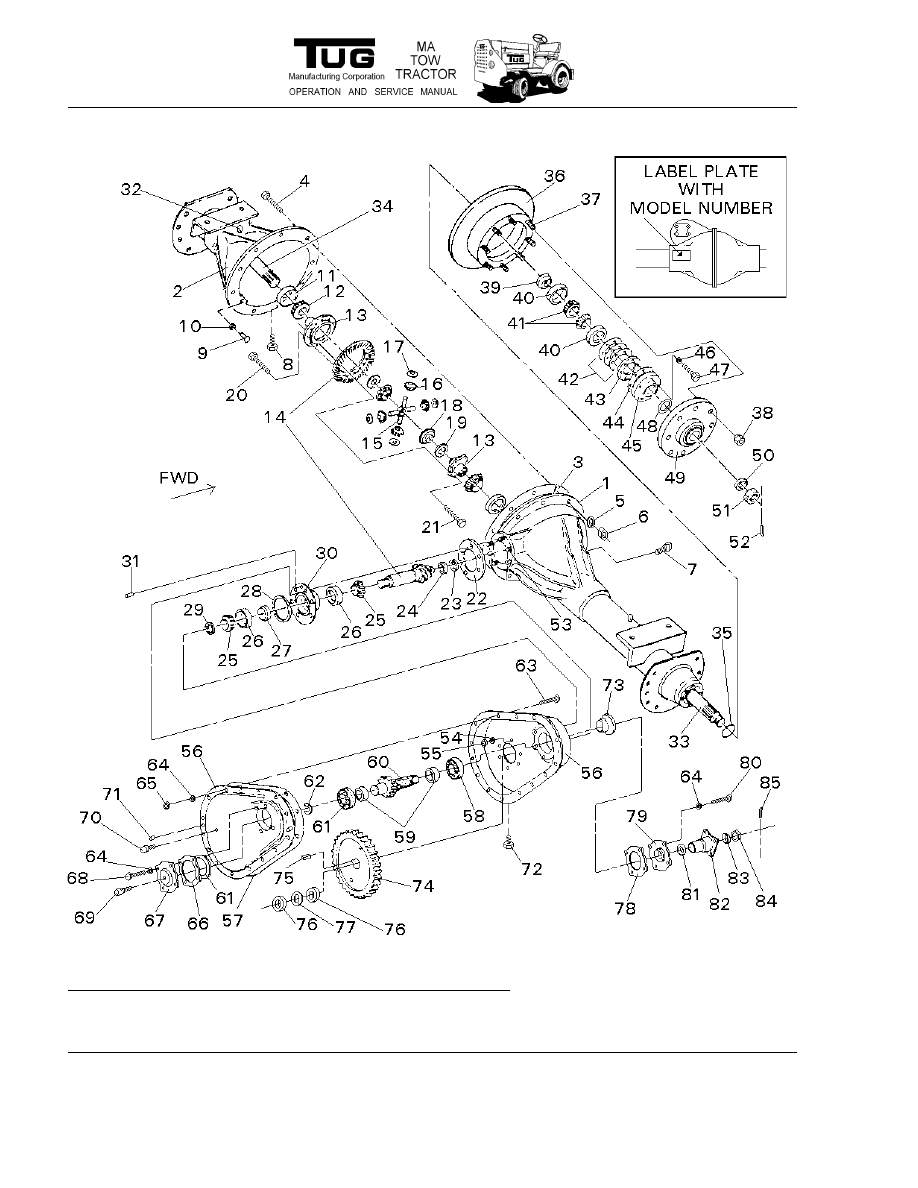

Figure 44: Rockwell Drive Axle and Reduction Gear Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 159

44-25

171 hm-803149

T6-2001-199

pinion bearing

2

001 & Up

44-26

171 hm-803110

T6-2001-201

cup, pinion bearing

2

"

44-27

----- ----------------

T6-2001-209

spacer, bearing (obsolete)

1

As Req'd

44-28

171 5x424

T6-2001-207

gasket, oil seal

1

001 & Up

44-29

171 1129-g-813

T6-2001-211

washer, key way

1

"

44-30

171 mps-2260

T6-2001-203

cage assembly, pinion bearing

1

"

44-31

171 1246-c-211

T6-2001-205

dowel

1

"

44-32

171 a-1199-j-166

T6-2001-135

breather

1

"

44-33

171 a-3802-d-1252 T6-2001-161

long axle shaft (r/h)

1

001-4019

171 a3202z9152

T6-2001-604

long axle shaft (l/h)

1

4020 & Up

44-34

171 a-3802-c-1251 T6-2001-163

short axle shaft

1

001-4019

171 a3202x9150

T6-2001-603

short axle shaft

1

4020 & Up

44-35

171 3780-c-185

T6-2001-608

o-ring

2

"

44-36

----- ----------------

T6-8009-101

rotor

2

001-4019

171 a3218c1069

T6-2001-605

rotor

2

4020 & Up

44-37

----- ----------------

T6-8015-103

serrated wheel stud

16

001-4019

----- ----------------

T6-8015-103a

long serrated wheel stud

16

As Req'd

171 20x2085

T6-2001-607

wheel stud

16

4020 & Up

44-38

204 1/2-20

T6-3003-105

lug nut

16

001 & Up

44-39

171 1874-e-187

T6-2001-165

collar, bearing spacer

2

"

44-40

62 18720

T6-2001-167

bearing cup

4

"

44-41

62 18790

T6-2001-169

axle bearing

4

"

44-42

171 2803-t-2100

T6-2001-171

shim set, axle

2

"

44-43

171 1244-a-261

T6-2001-173

bearing retainer

2

"

44-44

171 2808-v-672

T6-2001-175

gasket, oil seal retainer

2

"

44-45

171 a-1805-n-560

T6-2001-177

retainer, oil seal

2

"

44-46

171 wa-16

T6-2001-179

lock washer

12

"

44-47

171 s26101

T6-2001-181

cap screw, bearing retainer

12

"

44-48

----- ----------------

T6-2001-185

spacer

2

001-2116

44-49

171 311q511

T6-8003-601

hub, wheel rotor

2

001-4019

171 311j1024

T6-2001-606

hub

2

4020 & Up

44-50

171 1829-u-775

T6-2001-187

washer, axle nut

2

001 & Up

44-51

171 1227-b-496

T6-2001-189

axle nut

2

"

44-52

171 k-2418

T6-2001-191

cotter pin

2

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

2. Spacer T6-2001-185 (item 48) is original equipment on axle models TA-267NX1 through TA-267NX4 with

original hubs (prior to serial number 2000). It is not used with replacement hub T6-8003-601.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 160

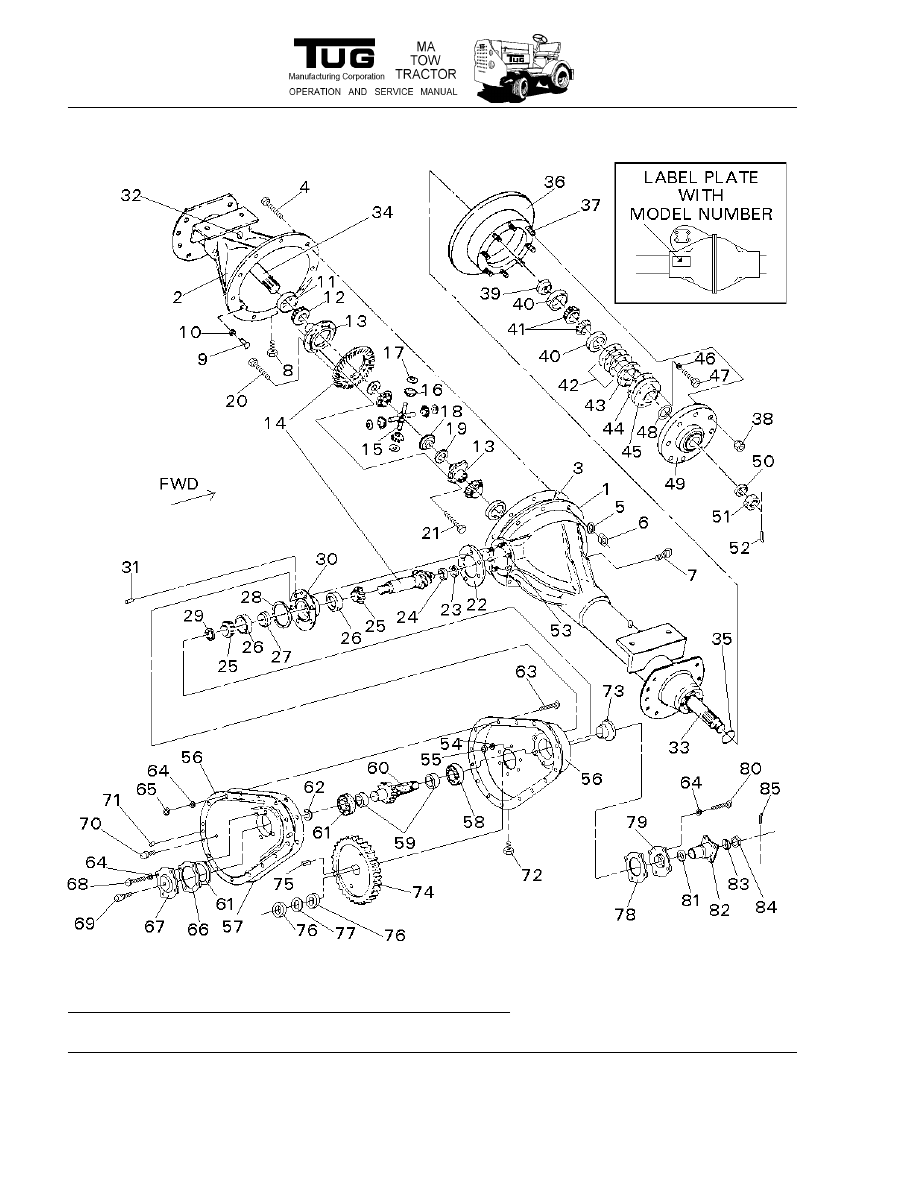

Figure 44: Rockwell Drive Axle and Reduction Gear Assembly
