Model MA TOW Tractor. Manual - part 66

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 149

41-14

----- ----------------

T6-3001-600-14

jamb nut, 3/4-16nf, lh (NOTE 1)

1

001 & Up

41-

----- ----------------

T6-3001-600-16

jamb nut, 3/4-16nf, rh (note 1)

1

"

41-

----- ----------------

T6-3001-600-18

tie rod assembly, without brakes (note 1)

1

As Req'd

41-15

----- ----------------

T6-3001-600-25

hub

2

001 & Up

41-16

----- ----------------

T6-3001-600-22

grease seal

2

"

41-17

----- ----------------

T6-3001-600-23

cone, inner bearing

2

"

41-18

----- ----------------

T6-3001-600-24

cup, inner bearing

2

"

41-19

----- ----------------

T6-3001-600-27

cone, outer bearing

2

"

41-20

----- ----------------

T6-3001-600-26

cup outer bearing

2

"

41-21

----- ----------------

T6-3001-600-28

spindle washer

2

"

41-22

----- ----------------

T6-3001-600-29

spindle nut

2

"

41-23

----- ----------------

T6-3001-600-30

cotter pin

2

"

41-24

----- ----------------

T6-3001-600-31

grease cap

2

"

41-25

----- ----------------

T6-3001-600-21

hex head bolt, #10-24

8

"

41-26

----- ----------------

T6-3001-600-20

wheel stud

10

"

41-

----- ----------------

T6-3003-105

lug nut

10

"

41-

----- ----------------

T6-3002-101-13

brake drum

2

As Req'd

41-

----- ----------------

T6-3002-101-14

brake, 8-1/2"x2-1/4"

2

"

41-

----- ----------------

T6-3002-103

bolt, brake line

2

"

41-

----- ----------------

T6-3002-105

connector, brake line

2

"

41-

----- ----------------

T6-3002-107

washer, brake line

4

"

41-

----- ----------------

T6-3001-600-40

hub assembly, complete (note 2)

2

"

41-

----- ----------------

T6-3001-600-50

hub kit (note 3)

2

"

1. Tie rod assembly for axle without brakes T6-3001-600-18 includes tie rod ends T6-3001-600-13 (item 13)

and T6-3001-600-17, jamb nuts T6-3001-600-14 (item 14) and T6-3001-600-16, and tie rod tube T6-3001-
600-15 (item 12).

2. Complete hub assembly T6-3001-600-40 includes items 41-15 through 41-26.
3. Hub kit T6-3001-625K includes items 41-16 through 41-23.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 150

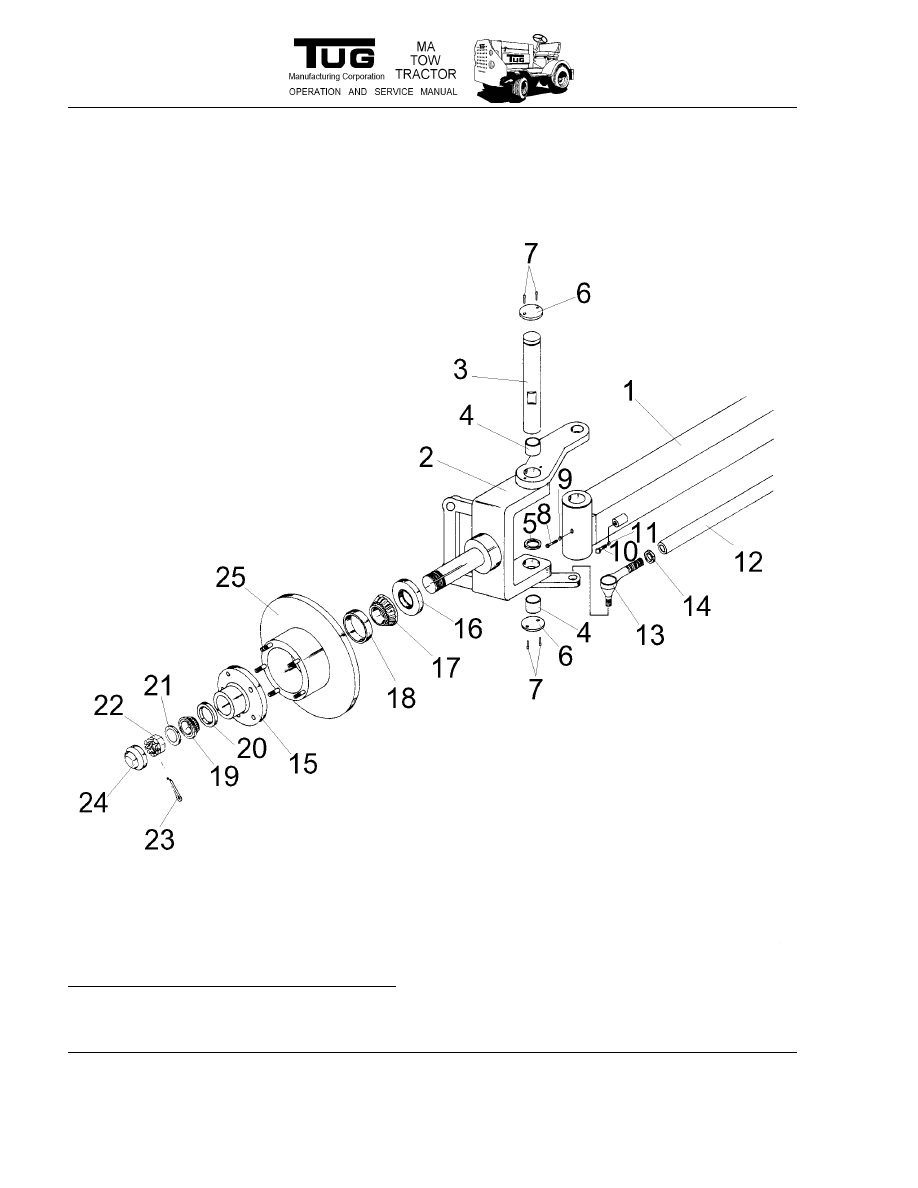

Figure 41A: Steer Axle Assembly, Disk Brakes

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 151

41a-

----- ----------------

T6-3002-102

Axle Assembly w/front disc brakes

1

As Req'd

41a-1

----- ----------------

T6-3002-102-1

Axle Tube

1

"

41a-2

----- ----------------

T6-3002-102-4

Knuckle, LH

1

"

41a-

----- ----------------

T6-3002-102-3

Knuckle, rH

1

"

41a-3

----- ----------------

T6-3001-600-7

king pin

2

"

41a-4

----- ----------------

T6-3001-600-8

king pin bushing

4

"

41a-5

----- ----------------

T6-3001-600-4

thrust bearing

2

"

41a-6

----- ----------------

T6-3001-600-5

king pin cap

4

"

41a-7

----- ----------------

T6-3001-600-6

king pin cap screw

8

"

41a-8

----- ----------------

T6-3001-600-9

set screw, 5/16"

2

"

41a-9

----- ----------------

T6-3001-600-10

jam nut

2

"

41a-10 ----- ----------------

T6-3001-600-11

hex head bolt

2

"

41a-11 ----- ----------------

T6-3001-600-12

nut

2

"

41a-12 ----- ----------------

T6-3002-102-2

tie rod tube

1

"

41a-13 ----- ----------------

T6-3001-600-13

tie rod end, lh

1

"

41a-

----- ----------------

T6-3001-600-17

tie rod end, rh

1

"

41a-14 ----- ----------------

T6-3001-600-14

jam nut, 3/4-16, lh

1

"

41a-

----- ----------------

T6-3001-600-16

jam nut, 3/4-16, rh

1

"

41a-15 ----- ----------------

T6-3001-600-25

hub

2

"

41a-16 ----- ----------------

T6-3001-600-22

grease seal

2

"

41a-17 ----- ----------------

T6-3001-600-23

cone, inner bearing

2

"

41a-18 ----- ----------------

T6-3001-600-24

cup, inner bearing

2

"

41a-19 ----- ----------------

T6-3001-600-27

cone, outer bearing

2

"

41a-20 ----- ----------------

T6-3001-600-26

cup, outer bearing

2

"

41a-21 ----- ----------------

T6-3001-600-28

spindle washer

2

"

41a-22 ----- ----------------

T6-3001-600-29

spindle nut

2

"

41a-23 ----- ----------------

T6-3001-600-30

cotter pin

2

"

41a-24 ----- ----------------

T6-3001-600-31

grease cap

2

"

41a-25 ----- ----------------

T6-3002-102-5

rotor

2

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 152

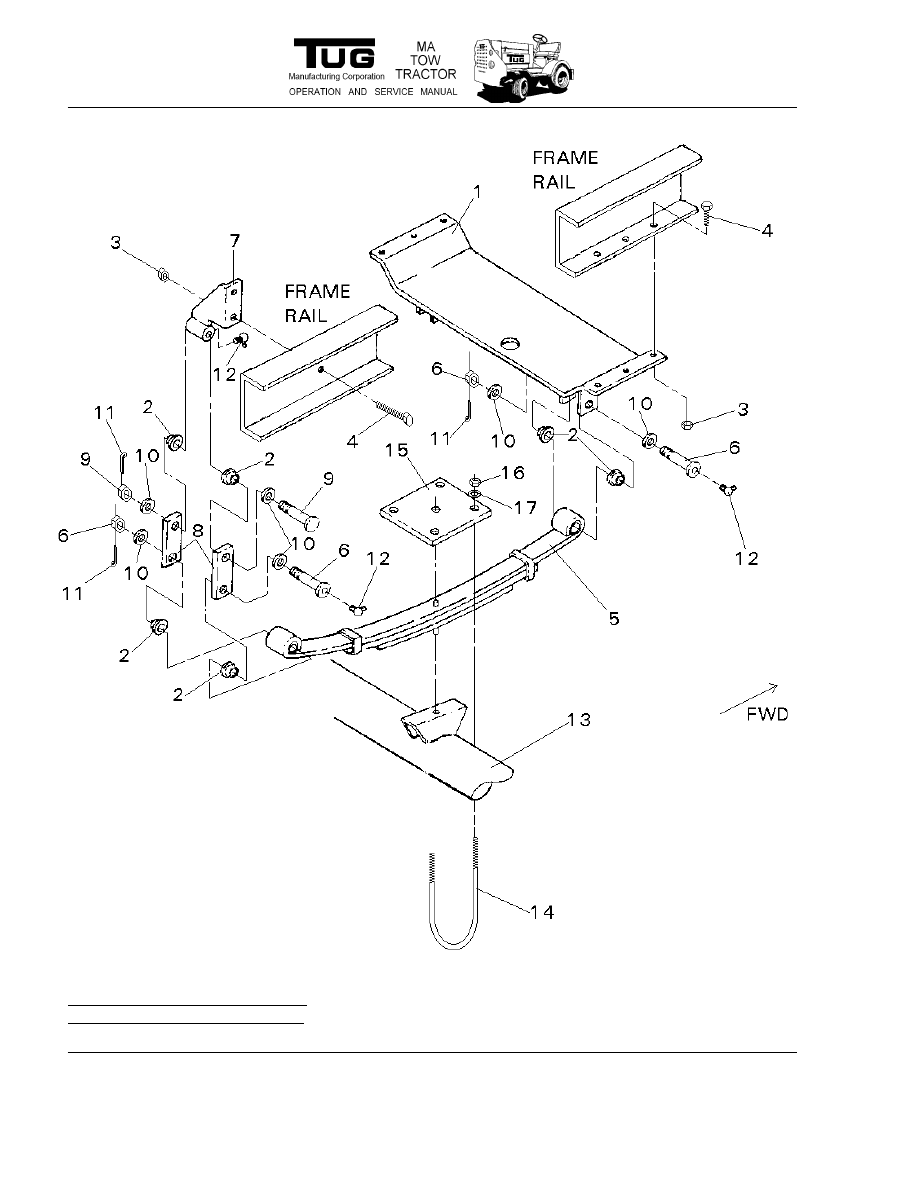

Figure 42: Steer Axle Installation,
Serial Numbers 001 Through 134
