Model MA TOW Tractor. Manual - part 64

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 141

39a-1

----- ----------------

T6-5207-101

Power Steer Bracket

1

As Req’d

39a-2

----- ----------------

T6-5207-103

Power Steer Bracket, Rear

1

“

39a-3

245 ----------------

MH-1-542

Belt Adjuster, Power Steer Pump

1

“

39a-4

625 7450

660-ND-1646

Belt

1

“

39a-5

364 14023172DA

T6-5011-108

Power Steering Pulley, GM

1

“

39a-6

----- ----------------

T6-4206-106

Side Panel, Diesel

1

“

39a-7

264 7818044-B

T6-5011-101

Power Steering Pump Assembly

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 142

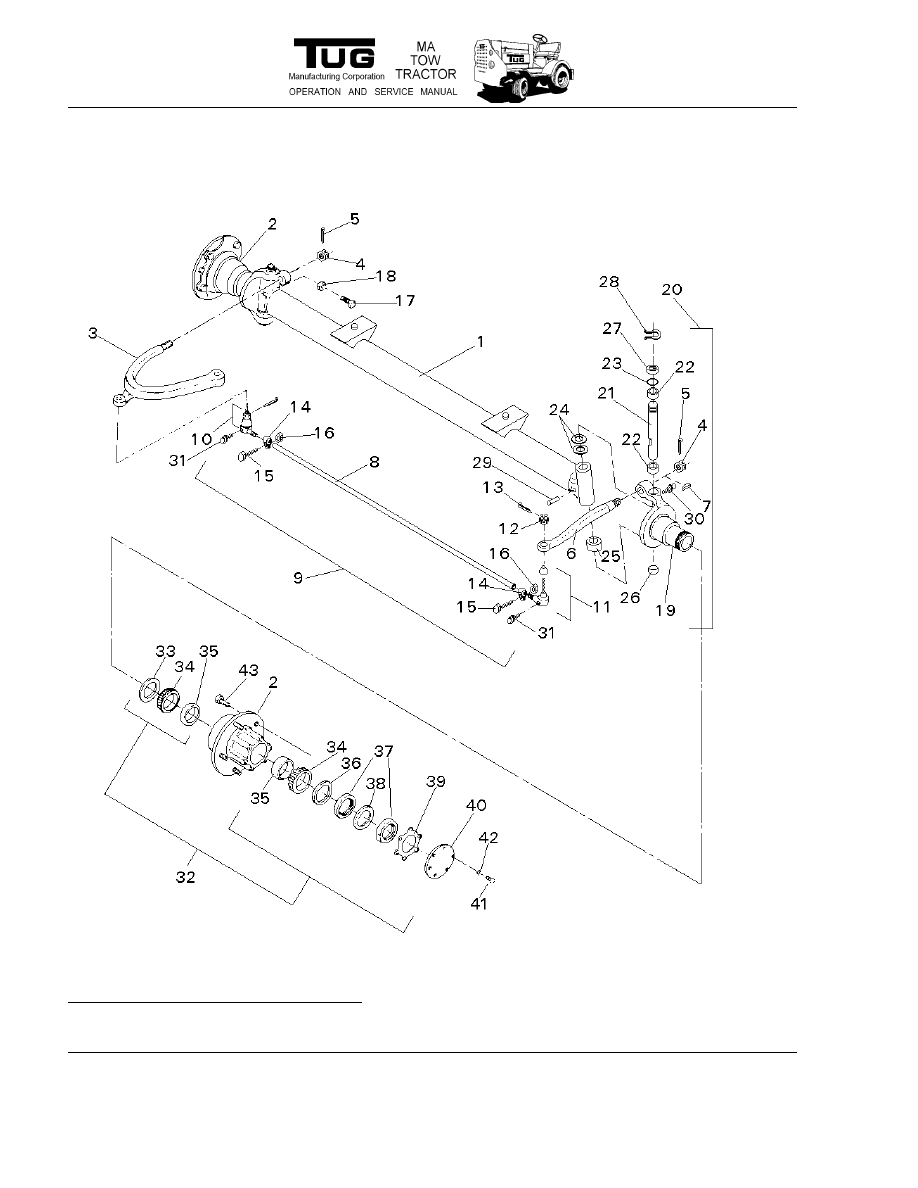

Figure 40: Rockwell Steer Axle Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 143

40-

171 fae951nx29

T6-3001-101

axle assembly, rockwell

1

001 & Up

40-1

171 a3100t-3530

T6-3001-127

axle shaft assembly

1

"

40-2

171 a1333c-1563

T6-3001-153

hub assembly, complete

2

"

40-3

171 3122e-733

T6-3001-137

spindle arm, lh, manual steering

1

As Req'd

----- ----------------

T6-3001-137ps

spindle arm, lh, power steering

1

"

40-4

171 1227r-18

T6-3001-133

castellated nut, steer arm

2

001 & Up

40-5

----- ----------------

1/8x2"

cotter pin, steer arm

2

"

40-6

171 3133t-2932

T6-3001-129

spindle arm, rh

1

"

40-7

171 x654

T6-3001-131

key, steer arm

2

"

40-8

----- ----------------

T6-3001-141

tie rod

1

"

40-9

----- ----------------

T6-3001-139

tie rod assembly

1

"

40-10

215 es262l

T6-3001-143

tie rod end, lh

1

"

40-11

215 es262r

MD-501-140

tie rod end, rh

1

"

40-12

----- ----------------

5/8-18nf

castellated nut

2

"

40-13

----- ----------------

1/8X1"

COTTER PIN

2

"

40-14

----- ----------------

T6-3001-147

CLAMP, CONNECTING ROD

2

"

40-15

----- ----------------

5/16-18NCX1-1/2"

hex head bolt

2

"

40-16

----- ----------------

5/16-18nc

locknut

2

"

40-17

----- ----------------

T6-3001-109

stud, turn angle adjustment

2

"

40-18

----- ----------------

T6-3001-111

nut, turn angle adjustment

2

"

40-19

171 a13111u1139

T6-3001-104

spindle assembly, rh

1

"

40-

171 a13111t1138

T6-3001-103

spindle assembly, lh

1

"

40-20

22 2621476

T6-3001-183k

spindle bolt kit (note 1)

1

"

40-21

171 3101b106

T6-3001-113

spindle bolt

2

"

40-22

171 1225k531

T6-3001-115

bushing, spindle bolt

4

"

40-23

171 5x45r

T6-3001-181

oil seal

2

"

40-24

22 262-7035

T6-3001-121

shim set

2

"

40-25

141 t113

T6-3001-125

spindle bearing

2

"

40-26

22 219-1012

T6-3001-107

grease plug

2

"

40-27

171 1205e109

T6-3001-117

grease retainer

2

"

1. Spindle bolt kit T6-3001-183K (item 20) contains parts for both (left and right) spindle assemblies.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 144

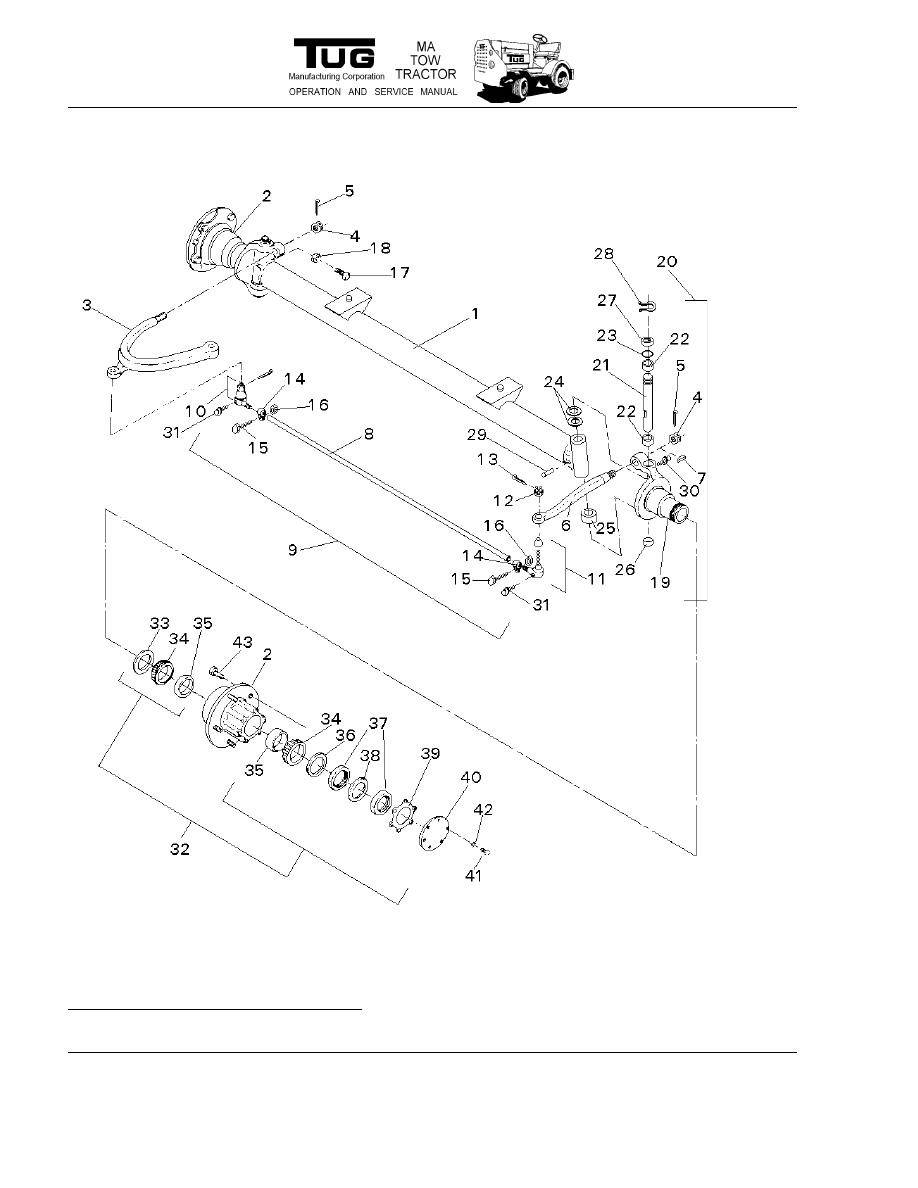

Figure 40: Rockwell Steer Axle Assembly
