Model MA TOW Tractor. Manual - part 63

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 137

38-14

----- ----------------

3/8-24nf

castellated nut, standard power steering

1

As Req'd

----- ----------------

T6-5010-209

castellated nut, rear, heavy-duty power steering

1

"

38-15

----- ----------------

T6-5009-103

cylinder rear support angle, standard power steering

1

"

----- ----------------

T6-5010-205

cylinder rear support angle, heavy-duty power steering

1

"

38-16

----- ----------------

3/8-16ncx1-1/2"

hex head bolt

2

"

38-17

----- ----------------

3/8-16nc

locknut

2

"

38-18

----- ----------------

T6-5014-101

drag link, power steering, gasoline engine

1

"

----- ----------------

T6-5204-105

drag link, power steering, diesel engine

1

"

38-19

----- ----------------

T6-5008-109

power steering mounting bracket, without front brakes

1

"

----- ----------------

T6-5011-109

power steering mounting bracket, with front brakes

1

"

38-20

----- ----------------

T6-3001-137ps

spindle arm, lh, power steering

1

"

38-21

----- ----------------

5/16-18ncx2"

hex head bolt

2

"

38-22

----- ----------------

5/16-18nc

locknut

2

"

38-

----- ----------------

T6-5010-101kg

power steering conversion kit, gasoline engine

1

"

38-

----- ----------------

T6-5010-101kd

power steering conversion kit, diesel engine

1

"

38-

----- ----------------

T6-5004-103

bushing, spindle arm-drag link, tapered

1

001-030

----- ----------------

T6-5004-105

bushing, spindle arm-drag link, straight

1

031-329

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 138

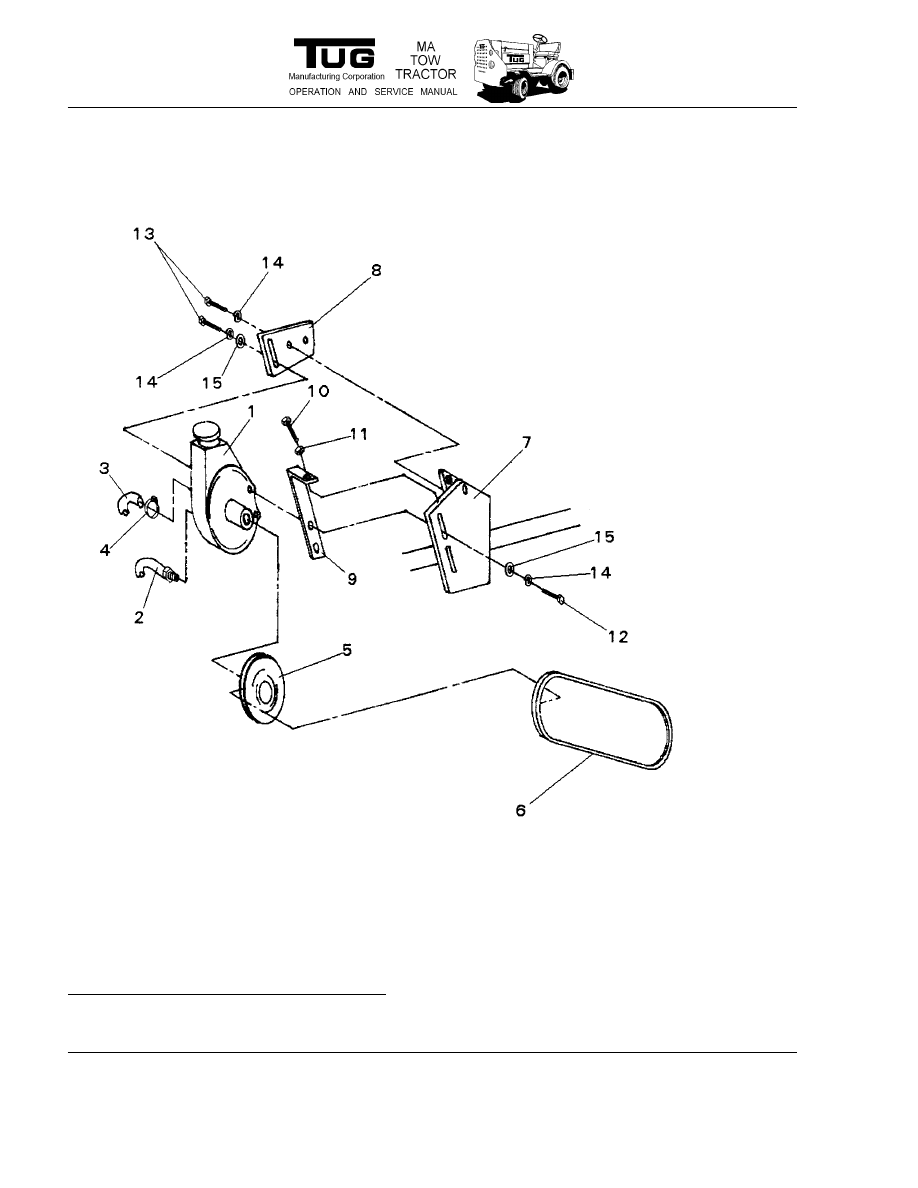

Figure 39: Power Steering Pump Installation

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 139

39-1

436 7818044

T6-5011-101

power steering pump

1

001 & Up

39-2

----- ----------------

T6-6012-103

hose, power steering supply to valve

1

"

39-3

----- ----------------

T6-6012-105

hose, power steering return to pump

1

"

39-4

----- ----------------

#6

hose clamp

1

"

39-5

324 14025192

T6-5011-107

pulley, power steering pump

1

Note 1

----- 14023172DA

T6-5011-108

pulley, Power steering -GM

1

As Req’d

256 d9bz-3a733a

x2001-205

pulley, power steering pump

1

Note 2

39-6

127 15430

T6-5209-101

belt, power steering, perkins diesel engine

1

As Req'd

127 15415

T6-6015-101

belt, power steering, gasoline engine, high-mount fan

1

001-2867

127 15295

T6-6016-201

belt, power steering, gasoline engine, low-mount fan

1

2868 & Up

127 15435

MH-1-539

belt. hi mount

1

As Req'd

39-

315 lk0060a

T6-1202-103

harmonic pulley, perkins diesel engine (note 3)

1

“

39-7

----- ----------------

T6-5207-101

front bracket, power steering pump, perkins diesel engine

1

"

----- ----------------

MH-3-590

front bracket, power steering pump, gasoline engine

1

"

39-8

----- ----------------

T6-5207-103

rear bracket, power steering pump, perkins diesel engine

1

"

----- ----------------

MH-3-592

rear bracket, power steering pump, gasoline engine

1

"

39-9

----- ----------------

mh-1-542

power steering adjuster

1

As Req'd

39-10

----- ----------------

3/8-16ncx2-1/2"

adjusting bolt

1

"

39-11

----- ----------------

3/8-16nc

locknut

1

"

39-12

----- ----------------

3/8-16ncx1-1/4"

hex head bolt

2

"

39-13

----- ----------------

3/8-16ncx1"

hex head bolt

3

"

39-14

----- ----------------

3/8

lock washer

5

"

39-15

----- ----------------

3/8

flat washer

3

"

----- ----------------

T6-5011-117

P/S Heat Shield (Option)

1

“

1. As required in all units through serial number 2868 (including units equipped with gasoline engines with

high-mount fans) and units equipped with diesel engines from serial number 2869.

2. As required in units equipped with gasoline engines with low-mount fans (units equipped with gasoline

engines from serial number 2869).

3. Harmonic pulley T6-1202-103 includes fasteners.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 140

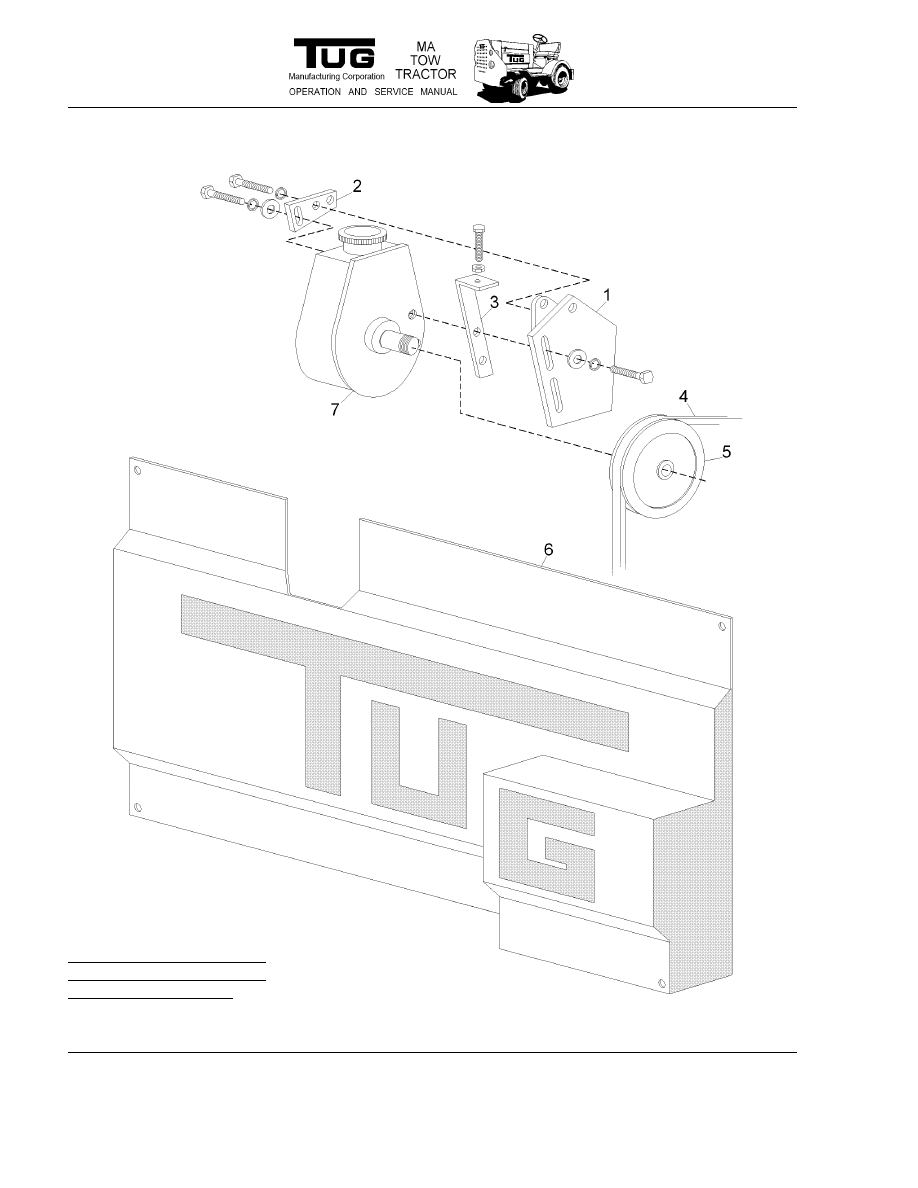

Figure 39A: Power Steering
Pump,Alternator, Panel and
Brackets -Perkins 1004
