Model MA TOW Tractor. Manual - part 65

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 145

40-28

171 1229w115

T6-3001-119

clip, grease retainer

2

001 & Up

40-29

171 7x8

T6-3001-123

pin, spindle bolt

2

"

40-30

79 81500

-----------------

grease fitting

4

"

40-31

79 81511

-----------------

grease fitting

2

"

40-32

----- ----------------

T6-3001-501

bearing and seal kit, hub

2

"

40-33

127 40566-s

T6-3001-155

inner seal

2

"

40-34

141 18590

T6-3001-157

wheel bearing

4

"

40-35

141 18520

T6-3001-159

bearing cup

4

"

40-36

171 1229z-1924

T6-3001-167

outer washer

2

"

40-37

171 1227l-636

T6-3001-169

bearing adjustment nut

4

"

40-38

171 1229a-1925

T6-3001-171

washer, keyed

2

"

40-39

171 2208f-604

T6-3001-173

gasket

2

"

40-40

----- ----------------

T6-3001-175

cover plate, hub

2

"

40-41

----- ----------------

3/8-16ncx1-1/4"

hex head bolt

12

"

40-42

----- ----------------

3/8

lock washer

12

"

40-43

127 610-126

T6-3001-165

wheel stud

10

"

40-

----- ----------------

T6-3003-105

lug nut

10

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 146

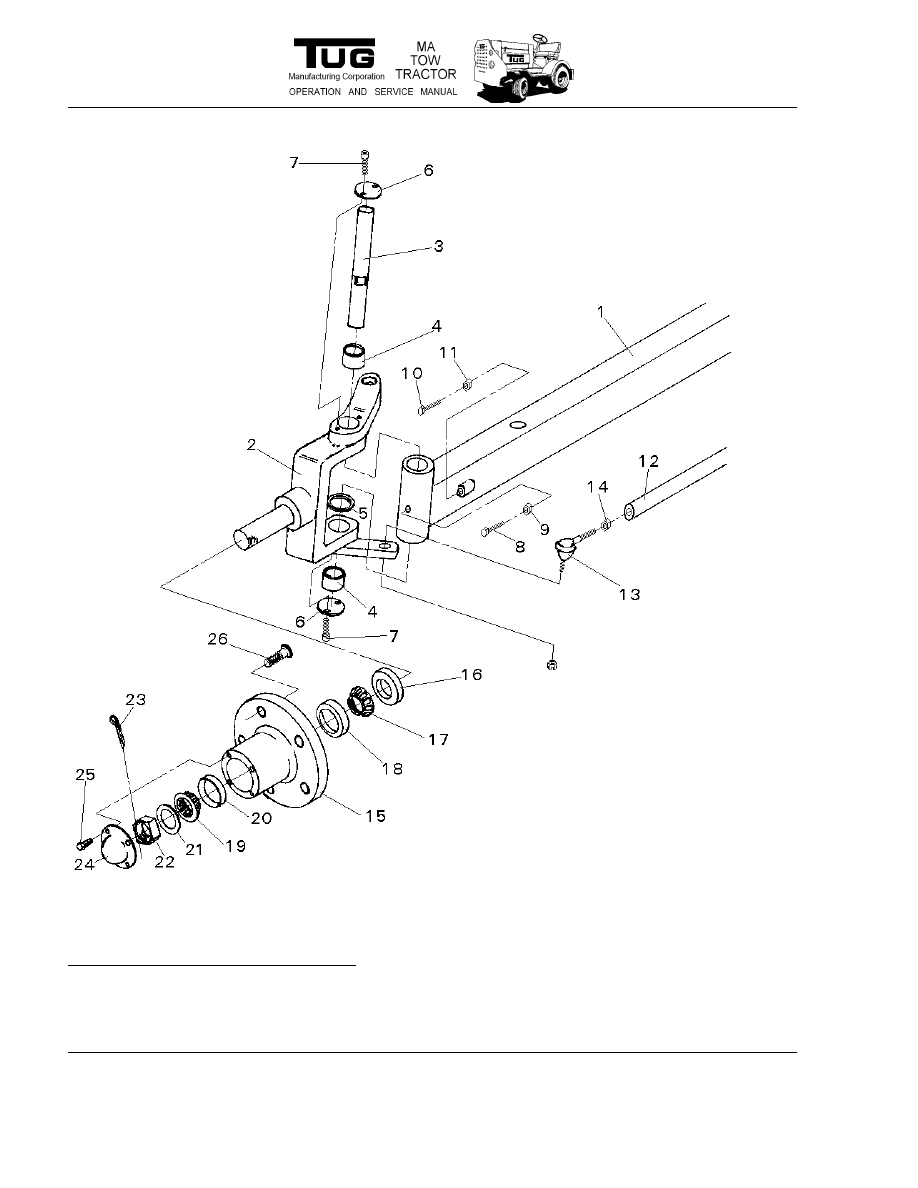

Figure 41: Brierton Steer Axle Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 147

41-

----- ----------------

T6-3001-600

axle assembly, brierton, without brakes

1

As Req'd

----- ----------------

T6-3002-101

axle assembly, brierton, with brakes

1

"

41-1

----- ----------------

T6-3001-600-1

axle tube assembly, without brakes

1

"

----- ----------------

T6-3002-101-21

axle tube assembly, with brakes

1

"

41-2

----- ----------------

T6-3001-600-2

knuckle assembly, lh, without brakes

1

"

----- ----------------

T6-3002-101-19

knuckle assembly, lh, with brakes

1

"

41-

----- ----------------

T6-3001-600-3

knuckle assembly, rh, without brakes

1

"

----- ----------------

T6-3002-101-20

knuckle assembly, rh, with brakes

1

"

41-3

----- ----------------

T6-3001-600-7

king pin, without brakes

2

"

----- ----------------

T6-3002-101-18

king pin, with brakes

2

"

171 3101B106

T6-3001-113

king pin

2

“

41-4

----- ----------------

T6-3001-115B

bushing, king pin, without brakes

4

"

----- ----------------

T6-3002-101-17

bushing, king pin, with brakes

4

"

41-5

----- ----------------

T6-5001-125

thrust bearing

2

001 & Up

41-6

----- ----------------

T6-3001-600-5

cap, king pin

4

"

41-7

----- ----------------

T6-3001-600-6

socket head cap screw

8

"

41-8

----- ----------------

T6-3001-600-9

set screw, hex head, 5/16"

2

"

41-9

----- ----------------

T6-3001-600-10

jamb nut, 5/16"

2

"

41-10

----- ----------------

T6-3001-600-11

hex head bolt

2

"

41-11

----- ----------------

T6-3001-600-12

nut

2

"

41-12

----- ----------------

T6-3001-600-15

tube, tie rod, without brakes (note 1)

1

As Req'd

----- ----------------

T6-3002-101-24

tube, tie rod, with brakes

1

"

41-13

----- ----------------

T6-3001-600-13

tie rod end, lh (note 1)

1

001 & Up

41-

----- ----------------

T6-3001-600-17

tie rod end, rh (note 1)

1

"

1. Tie rod assembly for axle without brakes T6-3001-600-18 includes tie rod ends T6-3001-600-13 (item 13)

and T6-3001-600-17, jamb nuts T6-3001-600-14 (item 14) and T6-3001-600-16, and tie rod tube T6-3001-
600-15 (item 12).

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 148

Figure 41: Brierton Steer Axle Assembly
