Model MA TOW Tractor. Manual - part 70





Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 165

45-

----- ----------------

T6-2011-800

complete drive axle assembly

1

001 & Up

45-1

193 o70ch130-x

T6-2011-801

axle and differential housing

1

Note 1

193 o70ch265-x

T6-2011-873

axle and differential housing

1

Note 2

45-2

----- ----------------

note 3

drive gear and pinion

1

001 & Up

45-3

193 706060-x

T6-2011-803

inner pinion bearing     (note 4)

1

"

45-4

----- ----------------

note 3

shim, drive pinion adjusting

Ref.

"

45-5

----- ----------------

note 3

baffle, pinion bearing

1

"

45-6

----- ----------------

note 3

spacer, flat

1

"

45-7

----- ----------------

note 3

Shim, pinion bearing adjusting

Ref.

"

45-8

193 706045-x

T6-2011-807

outer pinion bearing and cup (note 4)

1

"

45-9

193 30275

T6-2011-811

washer, pinion nut (note 4)

1

"

45-10

193 30271

T6-2011-812

pinion nut (note 4)

1

"

45-11

----- ----------------

note 3

carrier cover

1

"

45-12

193 34685

-----------------

gasket, carrier cover   (notes 4,5)

1

As Req'd

45-13

193 38615

-----------------

rtv sealant (notes 4,5)

1

"

45-14

193 36472

T6-2001-816

carrier cover plug (note 4)

1

001 & Up

45-15

193 34822

T6-2011-817

bolt, carrier cover (note 4)

10

"

45-16

193 500400-20

T6-2011-819

bolt, differential bearing (note 4)

2

"

45-17

193 706070-x

T6-2011-820

differential bearing and cup (note 4)

1

"

1. Used on all units equipped with Dana drive axles through serial number 6967. These tractors are equipped

with Dana drive axle model 070-AF-109-4 with spur-type gears. See insert, FIGURE 45 for location of
model number on axle.

2. Used on all units equipped with Dana drive axles from serial number 6968. These tractors are equipped

with Dana drive axle models 070-AF-109-5 and 070-AF-138-1 with helical gears. See insert, FIGURE 45
for location of model number on axle.

3. These parts are not available individually. See service kits T6-2011-858 through T6-2011-866 for parts

availability.

4. See service kits T6-2011-858 through T6-2011-866 for additional parts availability.
5. Service ribbed cover with gasket 34685 (item 12); service smooth cover with RTV sealant 38615 (item

13).

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 166

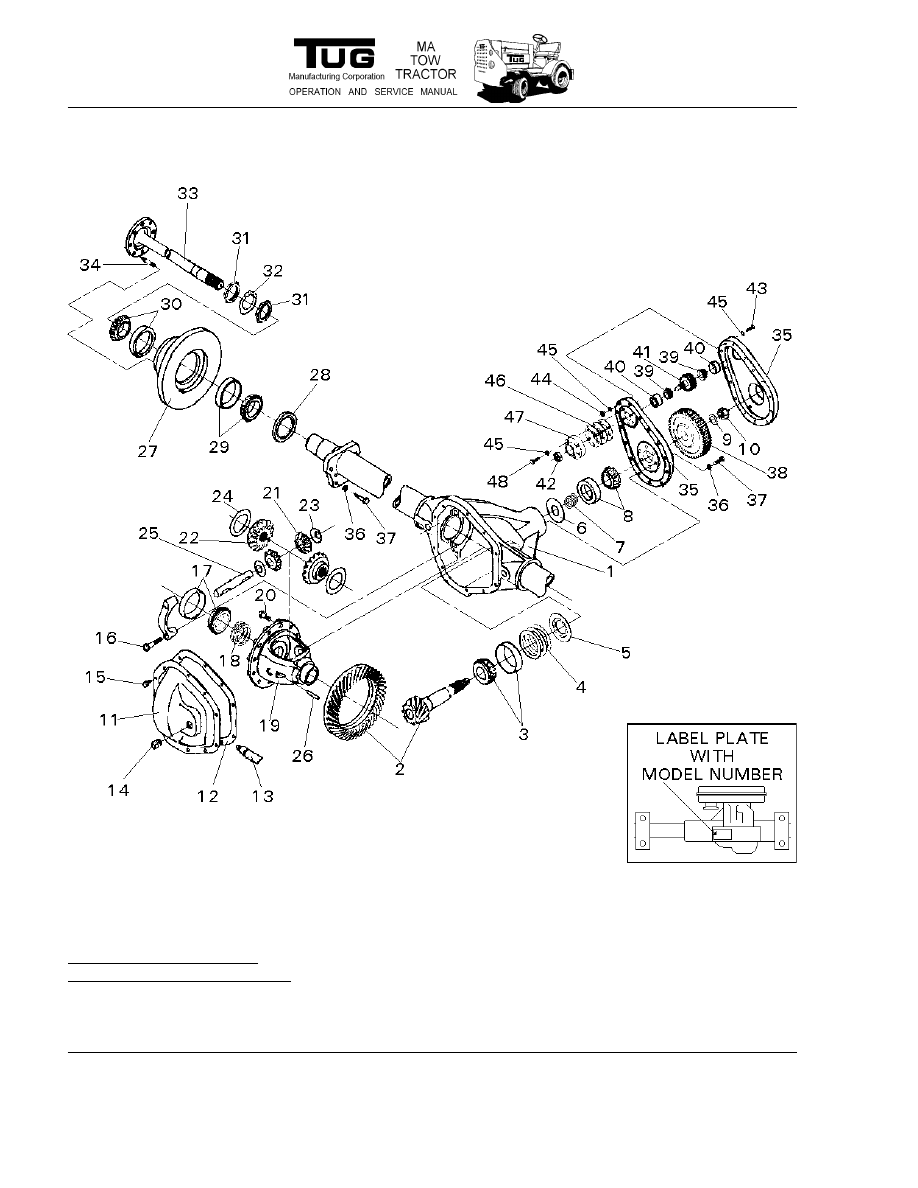

Figure 45: Dana Drive Axle
 and Reduction Gear Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 167

45-18

----- ----------------

note 3

shim, differential bearing

Ref. 001 & Up

45-19

193 o7cb108-x

T6-2011-822

case, differential (note 4)

1

"

45-20

193 40683

T6-2011-823

bolt, drive gear (note 4)

12

"

45-21

----- ----------------

note 3

pinion, differential

2

"

45-22

----- ----------------

note 3

gear, differential

2

"

45-23

----- ----------------

note 3

thrust washer, differential pinion

2

"

44-24

----- ----------------

note 3

thrust washer, differential gear

2

"

45-25

----- ----------------

note 3

shaft, differential

1

"

45-26

----- ----------------

note 3

lock, differential shaft

1

"

45-27

193 070hu140-x

T6-2051-136

hub with rotor (note 6)

2

"

45-28

193 o77hh106

T6-2011-832

oil seal

2

"

45-29

193 o77hc103-x

T6-2011-833

inner wheel bearing and cup

2

"

45-30

193 706074-x

T6-2011-834

outer wheel bearing and cup

2

"

45-31

193 35270

T6-2011-837

spindle nut

4

"

45-32

193 35269

T6-2011-838

lock washer, spindle nut

2

"

45-33

193 35091-8a

T6-2011-840r

axle shaft, flanged, rh

1

Note 1

193 35091-37

T6-2011-870r

axle shaft, flanged, rh

1

Note 2

45-

193 35091-25

T6-2011-840l

axle shaft, flanged, lh

1

Note 1

193 35091-36

T6-2011-870l

axle shaft, flanged, lh

1

Note 2

45-34

193 36847

T6-2011-836

stud, hub

16

001 & Up

45-35

----- ----------------

T6-2011-839

cover, reduction gear

1

"

1. Used on all units equipped with Dana drive axles through serial number 6967. These tractors are equipped

with Dana drive axle model 070-AF-109-4 with spur-type gears. See insert, FIGURE 45 for location of
model number on axle.

2. Used on all units equipped with Dana drive axles from serial number 6968. These tractors are equipped

with Dana drive axle models 070-AF-109-5 and 070-AF-138-1 with helical gears. See insert, FIGURE 45
for location of model number on axle.

3. These parts are not available individually. See service kits T6-2011-858 through T6-2011-866 for parts

availability.

4. See service kits T6-2011-858 through T6-2011-866 for additional parts availability.
5. Service ribbed cover with gasket 34685 (item 12); service smooth cover with RTV sealant 38615 (item

13).

6. Two-piece hub and rotor assembly is no longer available. Existing two-piece hub and rotor assemblies

should be replaced with single-piece hub and rotor T6-2051-136 (item 27).

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 168

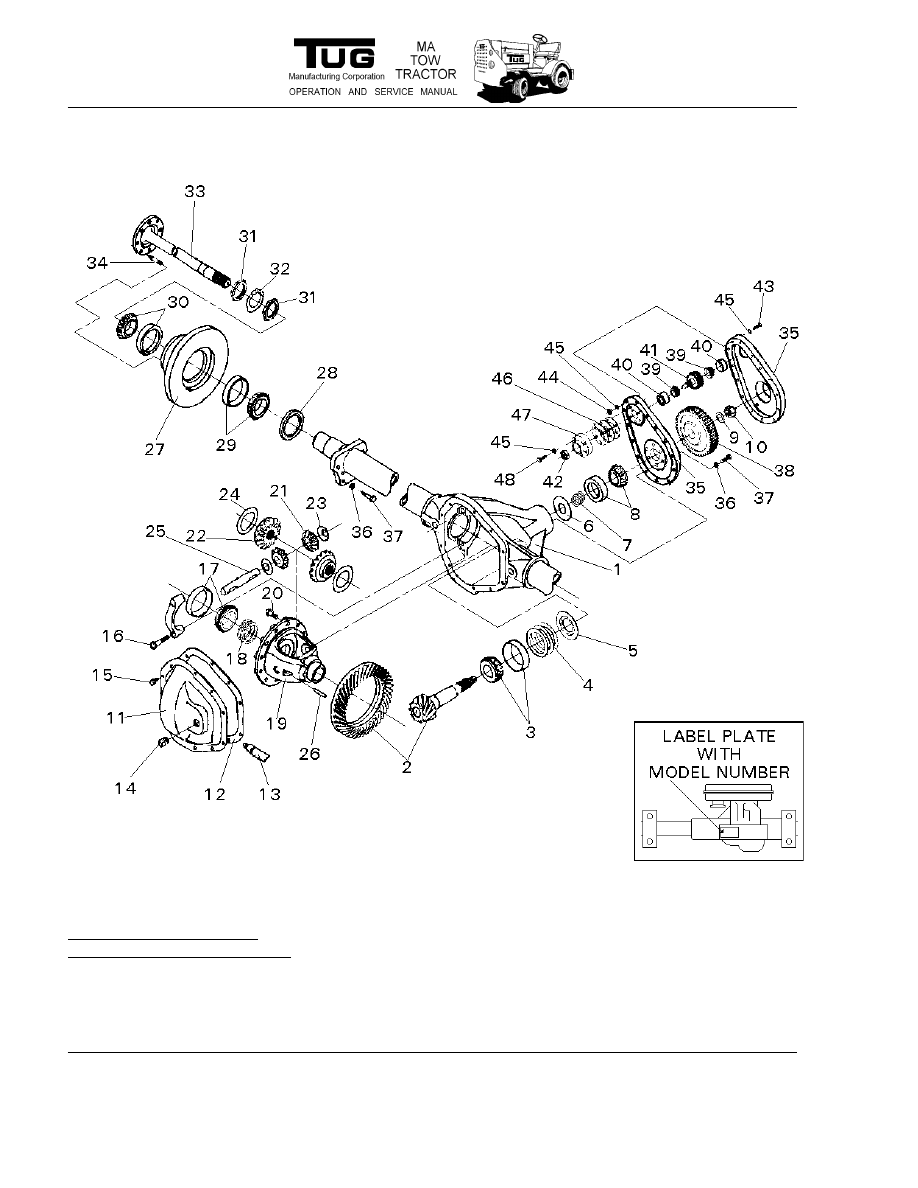

Figure 45: Dana Drive Axle
 and Reduction Gear Assembly
