HOWO 6x4, 8x4, 4x2. Каталог запчастей (2005-2007 год) - часть 5





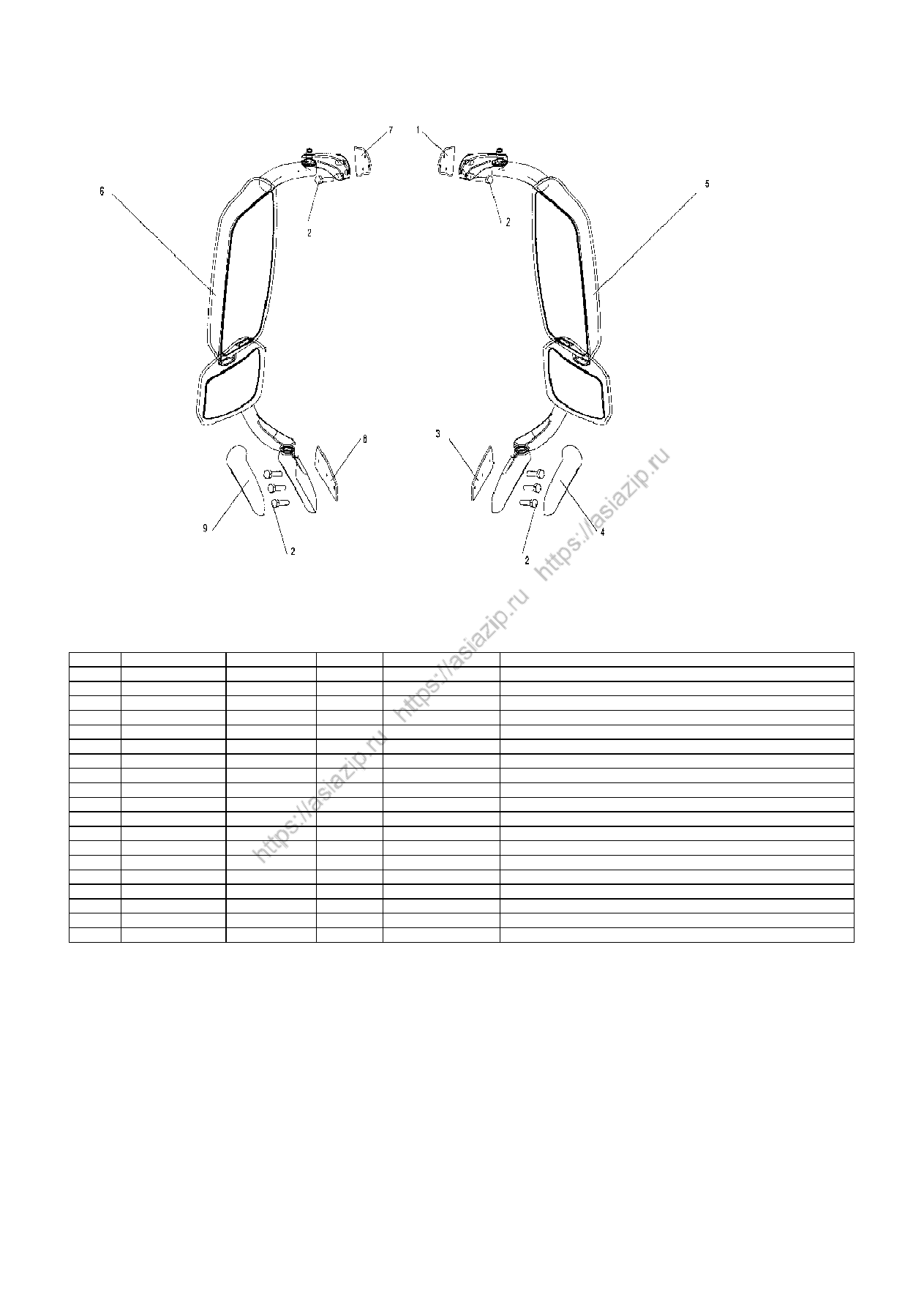

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642610001

1

For long cab

Roof plate

1

WG1641610001

For standard cab

Roof plate

1

WG1644610005

For high-roof cab

Roof plate

2

WG1642610018

1

For long,standard cab

Protecting frame

3

AZ1642610014

4

For long,standard cab

Nut-plate

4

Q2713519

4

For long,standard cab

Screw

5

WG1642610032

1

Front guide for window cloth

6

WG1642610003

1

For long,hight-roof cab

Right guide for window cloth

6

WG1641610003

1

For standard cab

Right guide for window cloth

7

WG1642610004

1

For long,hight-roof cab

Left guide for window cloth

7

WG1641610004

1

For standard cab

Left guide for window cloth

8

Q2713519

13

Screw

9

WG1642610016

4

For long,standard cab

Bearing

10

Q2714219

8

For long,standard cab

Screw

11

WG1642610017

4

For long,standard cab

Cover

12

AZ1642610015

2

Window cloth

13

AZ1644610008

1

For high-roof cab

Guide

14

WG1642610034

1

For high-roof cab

Stop block for guide

15

AZ1644610009

1

For high-roof cab

Window cloth

16

WG1644610007

2

For high-roof cab

Bearing for read-lamp

17

WG1644610002

1

For high-roof cab

Front internal lining for high-roof

18

WG1644610003

1

For high-roof cab

Left internal lining for high-roof

19

WG1644610001

1

For high-roof cab

Right internal lining for high-roof

20

WG1644610006

1

For high-roof cab

Rear internal lining for high-roof

21

WG1642610021

1

For high-roof cab

Air nozzle

22

116000770023

2

Hook for clothing

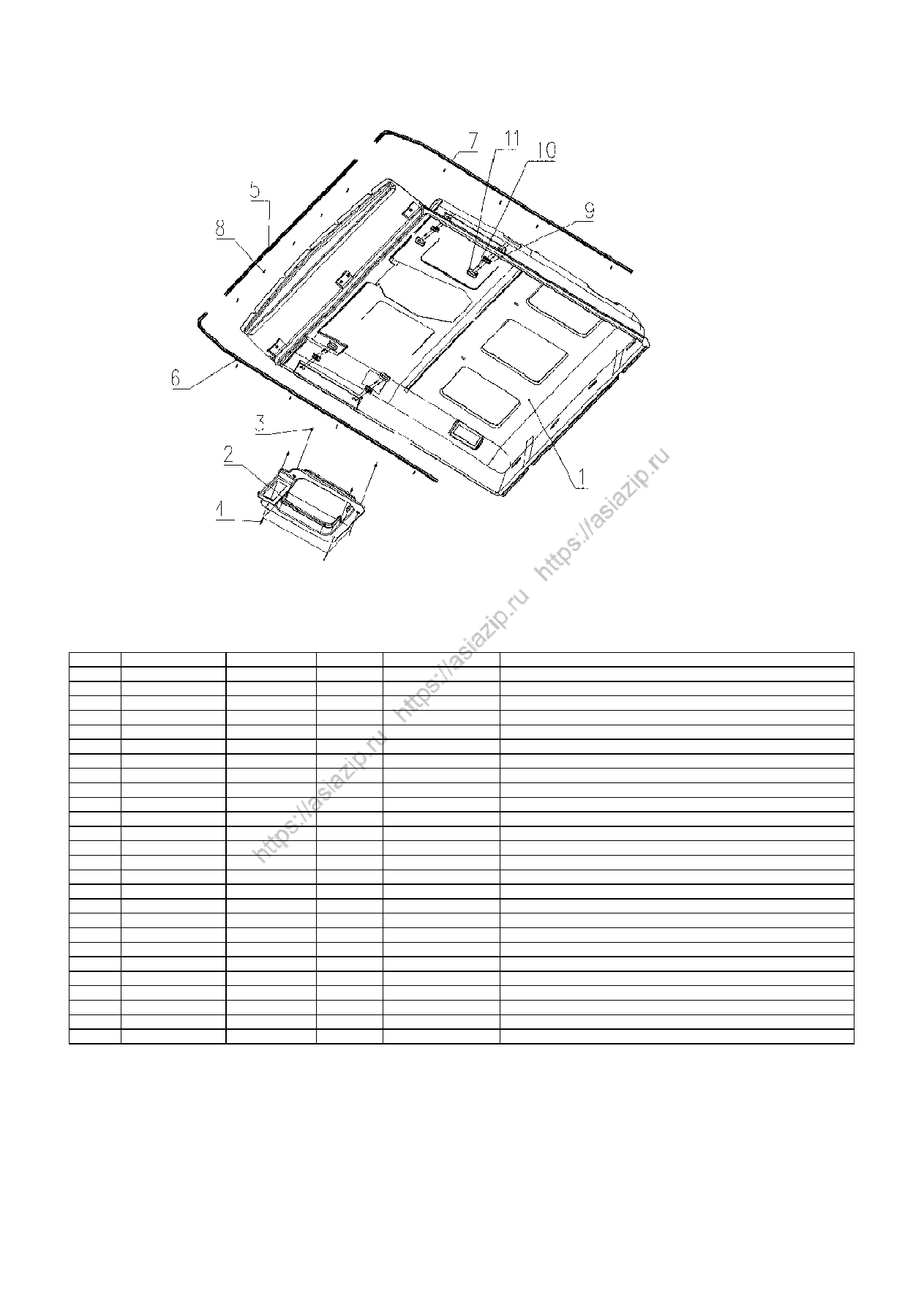

C12-9                    INTERNAL LINING ON ROOF/顶盖内饰件                      Fig.C12-10

C12-9                    INTERNAL LINING ON ROOF/顶盖内饰件

JINAN SHUNHE AUTO PARTS CO.,LTD

130

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642610006

1

For long,standard cab

Rear panelling

1

WG1644610011

1

For high-roof cab

Rear panelling

2

WG1642610009

1

For long,high-roof cab

Right panelling

2

WG1641610005

1

For standard cab

Right panelling

3

WG1642610007

1

For long,high-roof cab

Left panelling

3

WG1641610006

1

For standard cab

Left panelling

4

WG1642610010

1

For long,high-roof cab

Strip right

4

WG1642610010

2

For standard cab

Strip right

5

WG1642610008

1

For long,high-roof cab

Strip left

6

WG1642610029

1

For long,high-roof cab

Door strip right

6

WG1642610029

2

For standard cab

Door strip right

7

WG1642610028

1

Door strip left

8

WG1642610012

1

Panelling for A pole right

9

WG1642610011

1

Panelling for A pole left

10

190003172951

2

Plastic rivet

11

WG1642610019

1

Strap

12

WG1642610013

2

Seal strip for door

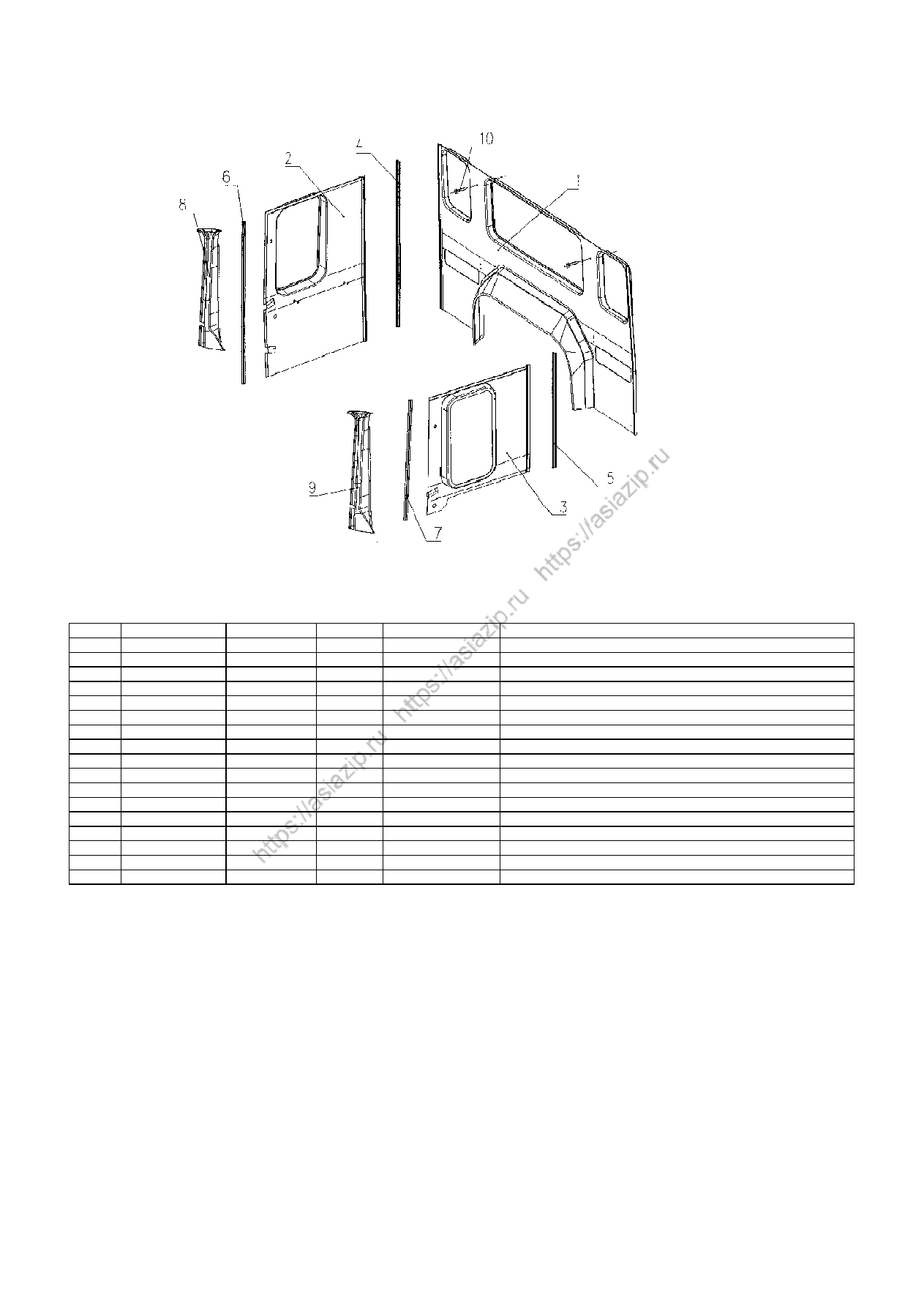

C12-10                  INTERNAL LINING ON WALL/周围内饰件                   Fig.C12-11

C12-10                  INTERNAL LINING ON WALL/周围内饰件

JINAN SHUNHE AUTO PARTS CO.,LTD

131

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ1643570001

1

Sleeper

2

Q150B0825

4

Screw

3

Q40008

4

Washer

4

WG1643570008

2

Support right

5

Q150B0825

4

Screw

6

Q40008

4

Washer

7

WG1643570010

1

Support

8

Q150B0625

3

Screw

9

Q40006

3

Washer

10

Q150B0420

3

Screw

11

Q40004

3

Washer

C12-11                    SLEEPER FOR LONG CAB/中长驾驶室卧铺                  Fig.C12-12

C12-11                    SLEEPER FOR LONG CAB/中长驾驶室卧铺

JINAN SHUNHE AUTO PARTS CO.,LTD

132

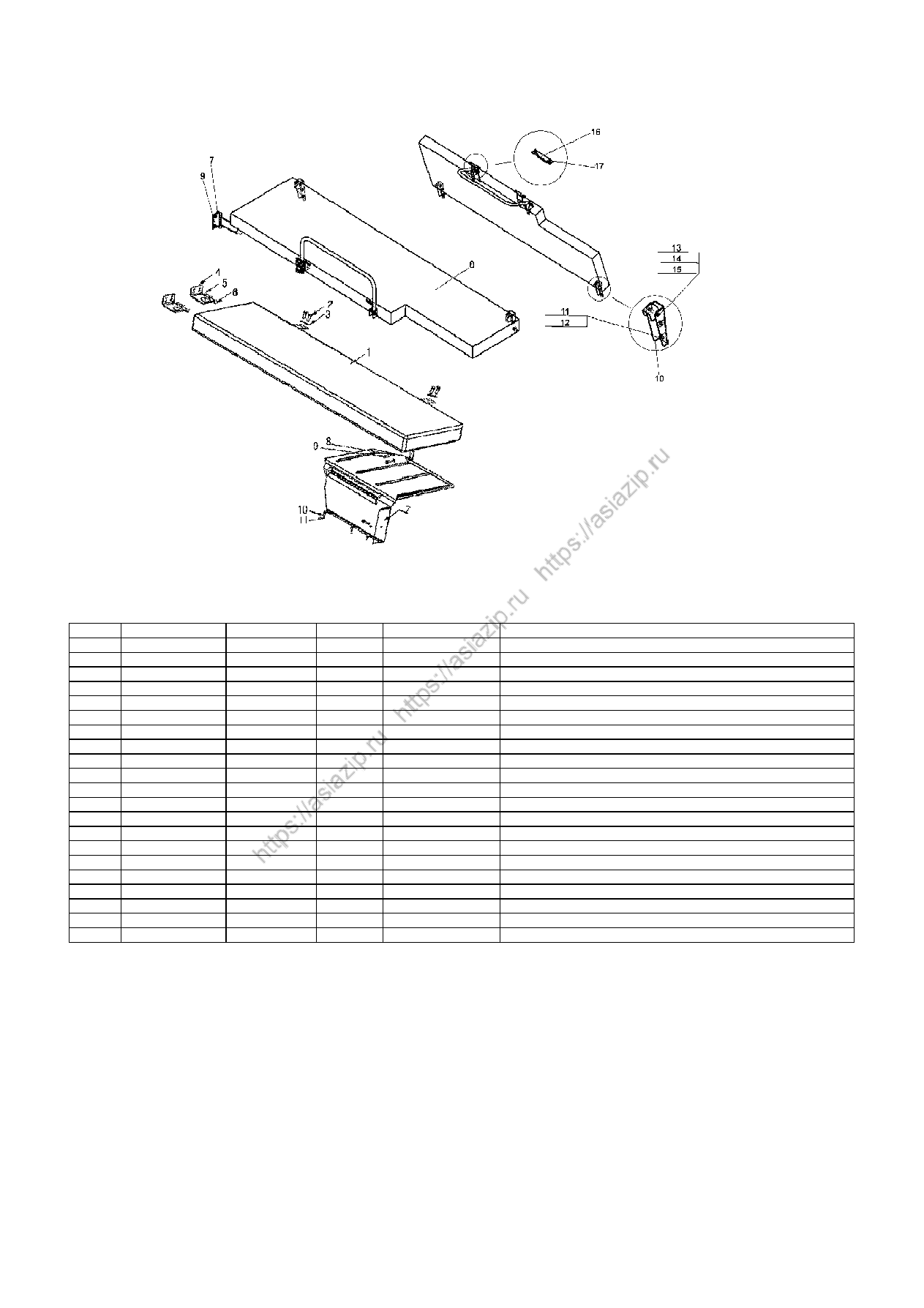

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ1643570001

1

Sleeper

2

Q150B0825

4

Screw

3

Q40008

4

Washer

4

WG1643570008

2

Support right

5

Q150B0825

4

Screw

6

Q40008

4

Washer

7

WG1643570010

1

Support

8

Q150B0625

3

Screw

9

Q40006

3

Washer

10

Q150B0420

3

Screw

11

Q40004

3

Washer

12

AZ1644570001

1

Upper sleeper

13

AZ1644570192

2

Fixed plate

13a

Q150B0820

8

Screw

13b

Q40108

8

Washer

13c

Q40308

8

Spring washer

14

AZ1672570020

2

Rear hinge

15

Q150B0825

4

Screw

16

Q40008

4

Washer

17

Q5100850

2

Bolt

18

Q5003220

2

Split pin

C12-12                 SLEEPER FOR HIGH-ROOF CAB/高顶驾驶室卧铺                Fig.C12-13

C12-12                 SLEEPER FOR HIGH-ROOF CAB/高顶驾驶室卧铺

JINAN SHUNHE AUTO PARTS CO.,LTD

133

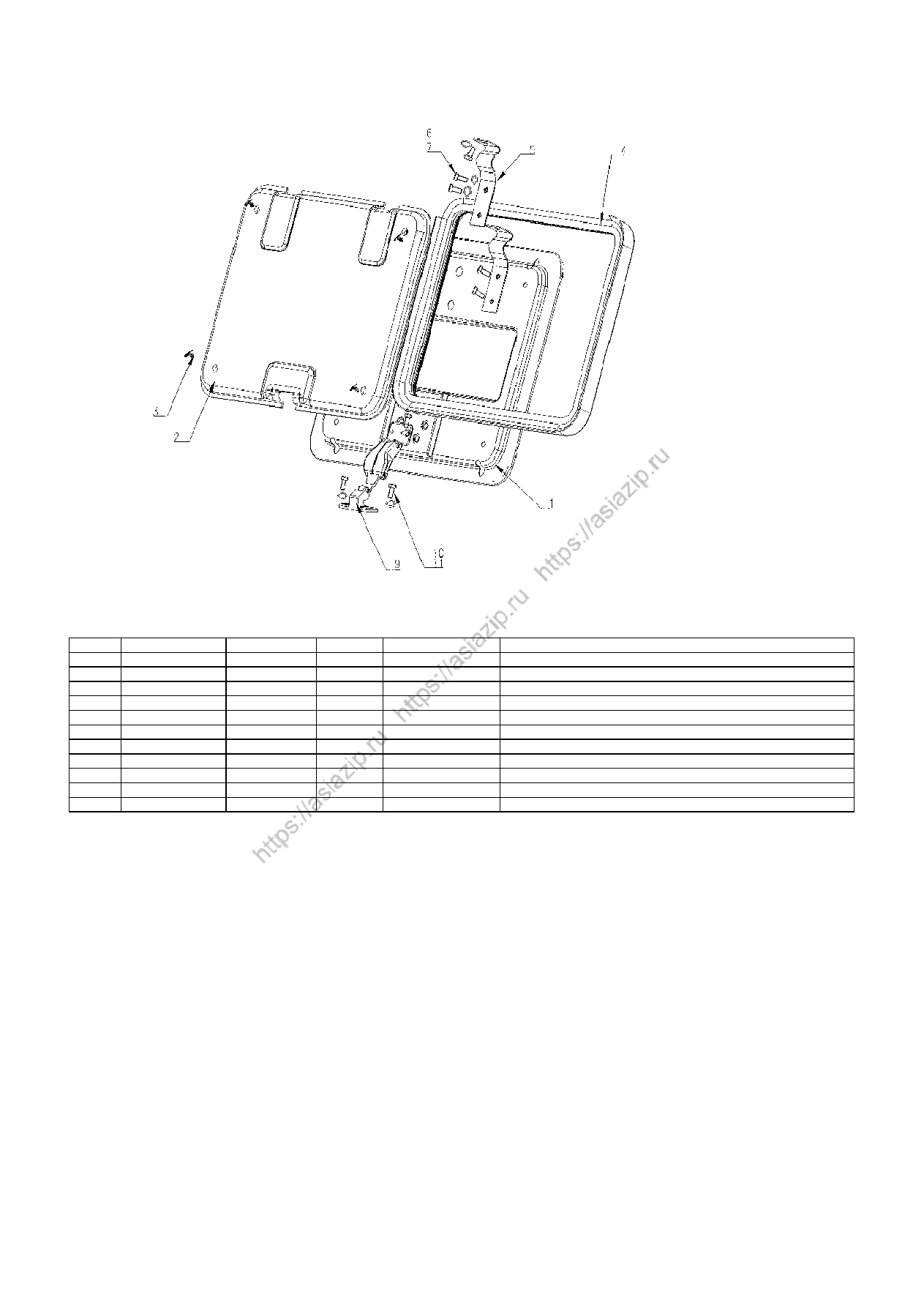

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642770006

1

Roof flap

2

WG1642770008

1

Internal lining

3

WG1642770005

4

Rivet

4

WG1642770009

1

Seal profile

5

WG1642770011

2

Hinge

6

Q2140620

6

Scrow

7

Q40206

6

Washer

8

WG1642930021

2

Washer

9

WG1642770007

1

Switch

10

Q2140620

4

Screw

11

Q40206

4

Washer

C12-13                                 ROOF FLAP/车顶窗                               Fig.C12-14

C12-13                                 ROOF FLAP/车顶窗

JINAN SHUNHE AUTO PARTS CO.,LTD

134

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ1642510001

1

Right seat

1

AZ1646510021

For drive right

Right seat

2

AZ1642510002

1

Left seat

2

AZ1646510022

For drive right

Left seat

3

190003862130

8

Screw

4

AZ1642510005

1

Support right

5

AZ1642510003

1

Support left

6

Q341B10

8

Nut

7

Q40010

8

Washer

8

AZ1642930020

8

Washer

9

WG1641560010

2

For standard cab

Safety belt

9

WG1642560010

2

For long,high-roof cab

Safety belt

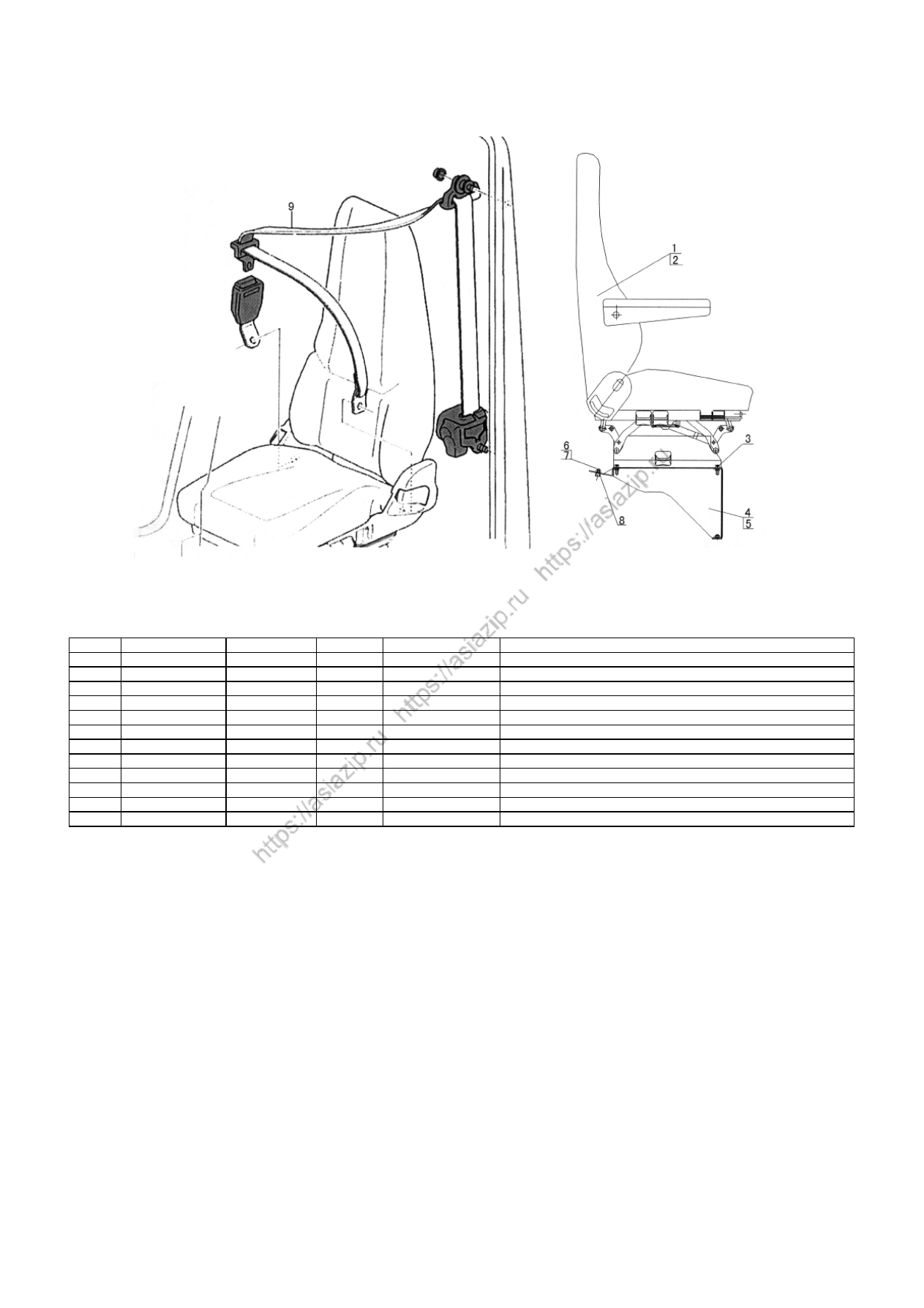

C12-14                         SEATS,SAFETY BELT/座椅，安全带                        Fig.C12-15

C12-14                         SEATS,SAFETY BELT/座椅，安全带

JINAN SHUNHE AUTO PARTS CO.,LTD

135

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642770012

1

Protection lining

2

WG1642770013

2

Cover

3

WG1642770014

2

Housing

4

WG1642770015

1

Cover for horn left

5

WG1642770016

1

Cover for horn right

6

WG1642770017

1

Cover for horn middle

7

AZ1642770017

14

Sleeve

8

WG1642770018

4

Hinge

9

WG1642770010

2

For standard,long cab

Sun visor

10

115200160094

2

Lock

11

115200160098

2

Key

12

Q2713516

14

Screw

13

Q2140520

8

Screw

14

Q2714216

12

Screw

15

Q40004

12

Washer

16

WG1644770146

2

For high-roof cab

Sun visor

C12-15   SUN VISOR,SHELF FOR STANDARD、LONG CAB/标准、加长驾驶室遮阳板，上杂品箱  Fig.C12-16

C12-15   SUN VISOR,SHELF FOR STANDARD、LONG CAB/标准、加长驾驶室遮阳板，上杂品箱

JINAN SHUNHE AUTO PARTS CO.,LTD

136

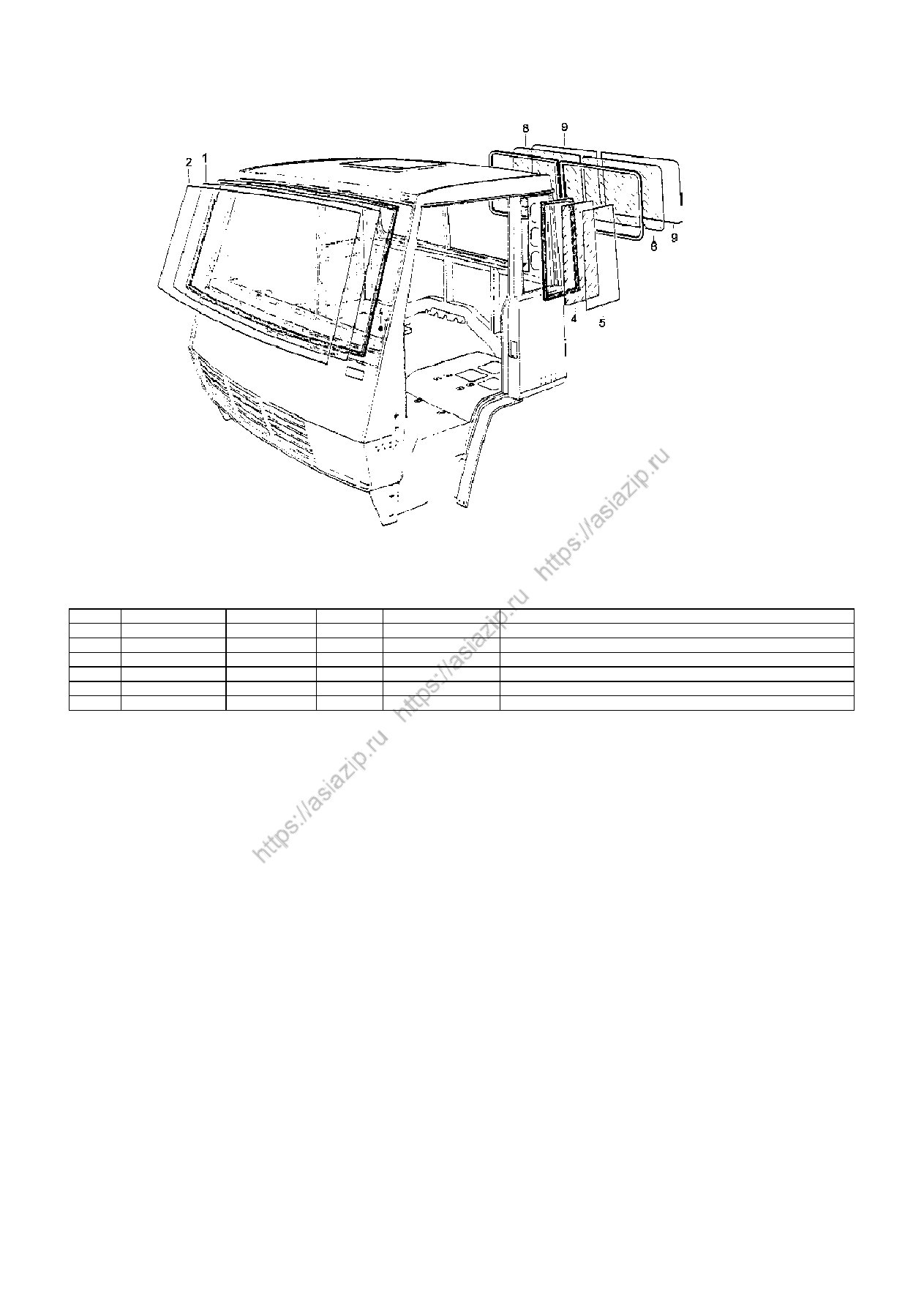

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642710001

1

HOWO windshield

2

WG1642710002

1

Sealing frame for windshield

4

WG1642710003

2

For long,high-roof cab

Side window glass

5

WG1642710004

2

For long,high-roof cab

Sealing frame for side window glass

8

WG1642710005

2

Rear window glass

9

WG1642710006

2

Sealing frame for rear window glass

C12-16                           WINDOW GLASS/车窗玻璃                             Fig.C12-17

C12-16                           WINDOW GLASS/车窗玻璃

JINAN SHUNHE AUTO PARTS CO.,LTD

137

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642330020

1

Internal lining for left door

1a

WG1642330040

1

Internal lining for right door

2

AZ1642930005

14

Plastic rivet

3

AZ1642930006

14

Plastic rivet

4

AZ1642930007

8

Cover

5

Q2140620

8

Screw

6

WG1642330001

2

Grip

7

Q43107

2

Snap ring

8

AZ1642330060

1

Door glass left

8a

AZ1642330061

1

Door glass right

9

WG1642330011

2

Inter sealing profile

10

WG1642330013

2

Outer sealing profile

11

AZ1642330019

2

Protection of door

12

WG1642330009

1

Glass guide left

12a

WG1642330010

1

Glass guide right

13

WG1642330015

2

Sealing profile

14

WG1642330003

1

Window lifter left

14a

WG1642330004

1

Window lifter right

15

AZ1642330051

2

Plasticon

16

Q2140612

10

Screw

17

Q2140610

6

Screw

18

AZ1642930030

2

Rubber plug

19

WG1642350003

1

Ventilation glass left

19a

WG1642350004

1

Ventilation glass right

20

WG1642350001

1

Sealing profile left

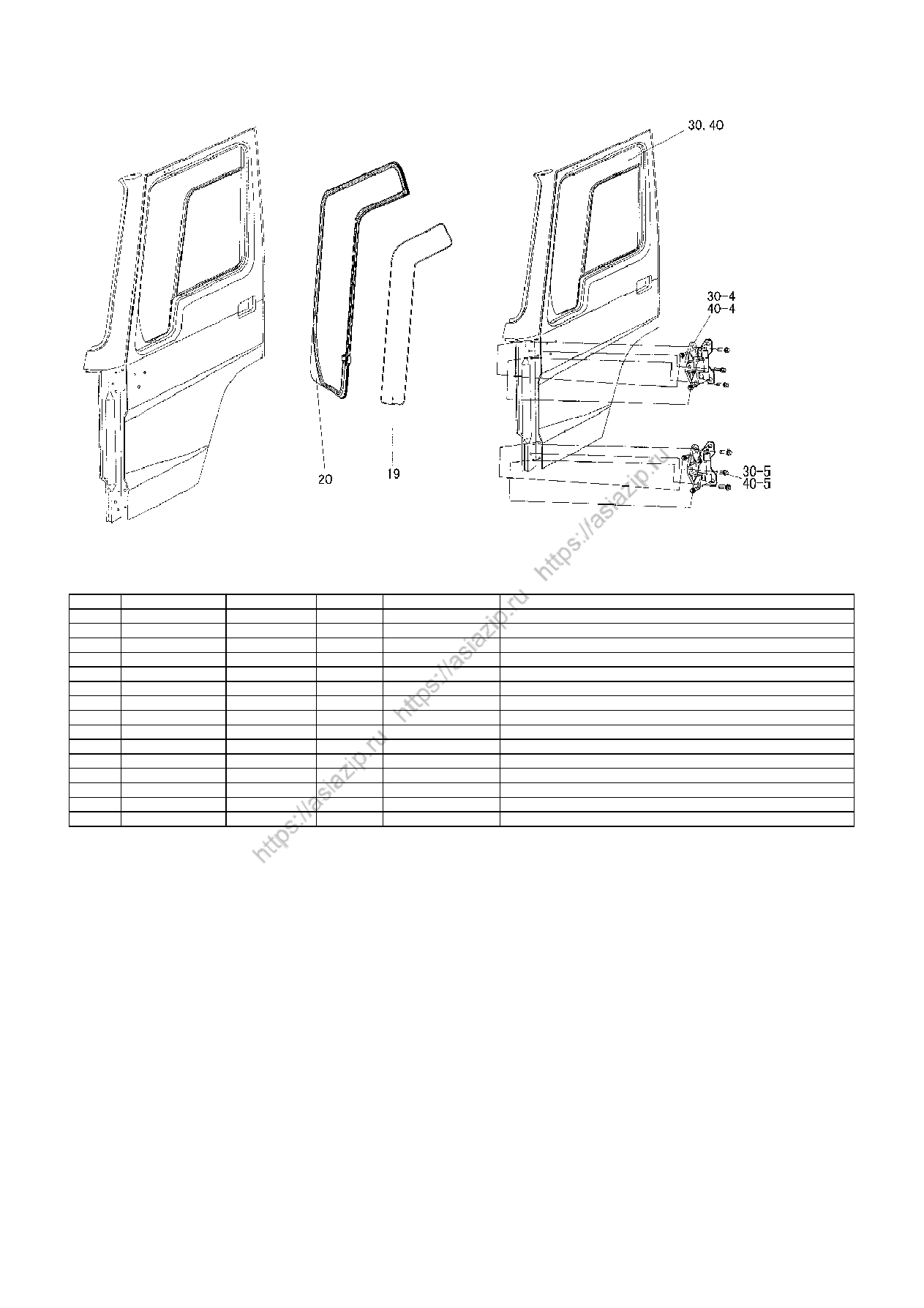

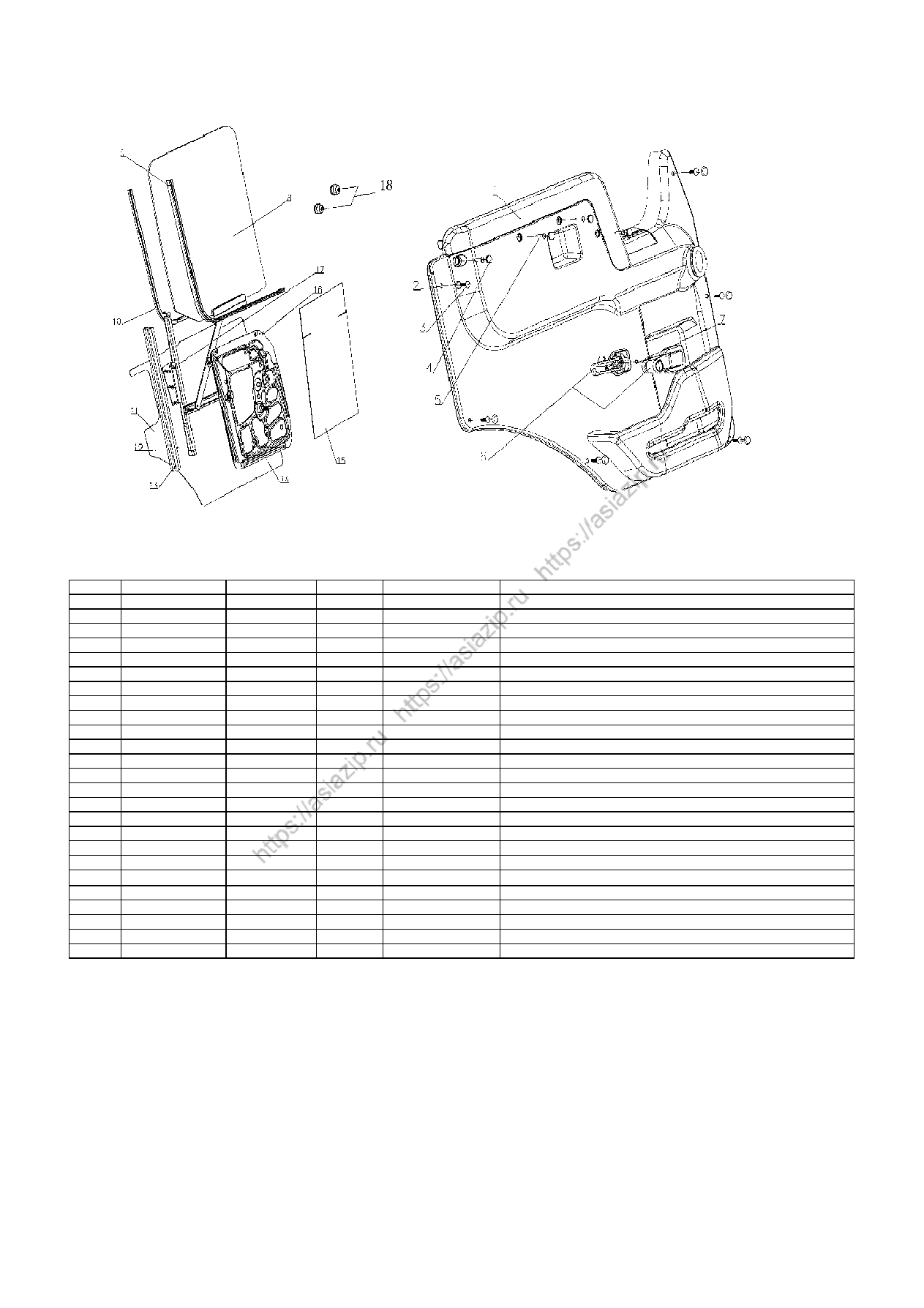

C12-17                 DOOR,GLASS AND FITTINGS/车门，玻璃及附件                   Fig.C12-18

C12-17                 DOOR,GLASS AND FITTINGS/车门，玻璃及附件

JINAN SHUNHE AUTO PARTS CO.,LTD

138

No

Number of part

Quantity

Description

Applicability

Designation

20

WG1642350002

1

Sealing profile right

30

AZ1642210001A

1

Left door assembly with glass,lock,and fittings

30

AZ1642210001

1

Left door assembly

30—1

AZ1642210003

1

Outer piece

30—2

AZ1642210005

1

Inter piece

30—3

WG1642210007

1

Left door glass guide

30—4

AZ1642210009

2

Door hinge

30—5

Q1840825

6

Screw

40

AZ1642210002

1

Right door assembly

40—1

AZ1642210004

1

Outer piece

40—2

AZ1642210006

1

Inter piece

40—3

WG1642210008

1

Right door glass guide

40—4

AZ1642210009

2

Door hinge

40—5

Q1840825

6

Screw

40

AZ1642210002A

1

Right door assembly with glass,lock and fittings

C12-17                 DOOR,GLASS AND FITTINGS/车门，玻璃及附件                   Fig.C12-19

C12-17                 DOOR,GLASS AND FITTINGS/车门，玻璃及附件

JINAN SHUNHE AUTO PARTS CO.,LTD

139

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642340020/1

2

Bearing for aux.support

1

WG1642340020/2

2

Bearing for aux.support

2

Q2540820

8

Screw

3

WG1642340021/1

2

Pin

3

WG1642340021/2

2

Pin

4

Q2540830

4

Screw

5

WG1642340012/1

1

Latch left

5

WG1642340012/2

1

Latch left

5a

WG1642340013/1

1

Latch right

5a

WG1642340013/2

1

Latch right

6

WG1642340014/1

1

Lock left

6

WG1642340014/2

1

Lock left

6a

WG1642340015/1

1

Lock right

6a

WG1642340015/2

1

Lock right

7

WG1642340028/1

2

Cable

7

WG1642340028/2

2

Cable

8

Q150B0612

2

Screw

9

Q2300612

4

Comb.screw

10

WG1642340033/1

2

Inter handle

10

WG1642340033/2

2

Inter handle

11

WG1642340031/1

2

Aux.lock

11

WG1642340031/2

2

Aux.lock

12

WG1642340032/1

2

Cover

12

WG1642340032/2

2

Cover

13

Q150B0616

8

Screw

14

WG1642340001/1

2

Outer handle

14

WG1642340001/2

2

Outer handle

15

WG1642340002/1

2

Washer

15

WG1642340002/2

2

Washer

16

WG1642340011/1

2

Key

16

WG1642340011/2

2

Key

17

WG1642340018/1

1

For left door

Control rod

17

WG1642340018/2

1

For left door

Control rod

17a

WG1642340029/1

1

For right door

Control rod

17a

WG1642340029/2

1

For right door

Control rod

18

WG1642340008/1

1

For left door

Lock element

18

WG1642340008/2

1

For left door

Lock element

18a

WG1642340009/1

1

For right door

Lock element

18a

WG1642340009/2

1

For right door

Lock element

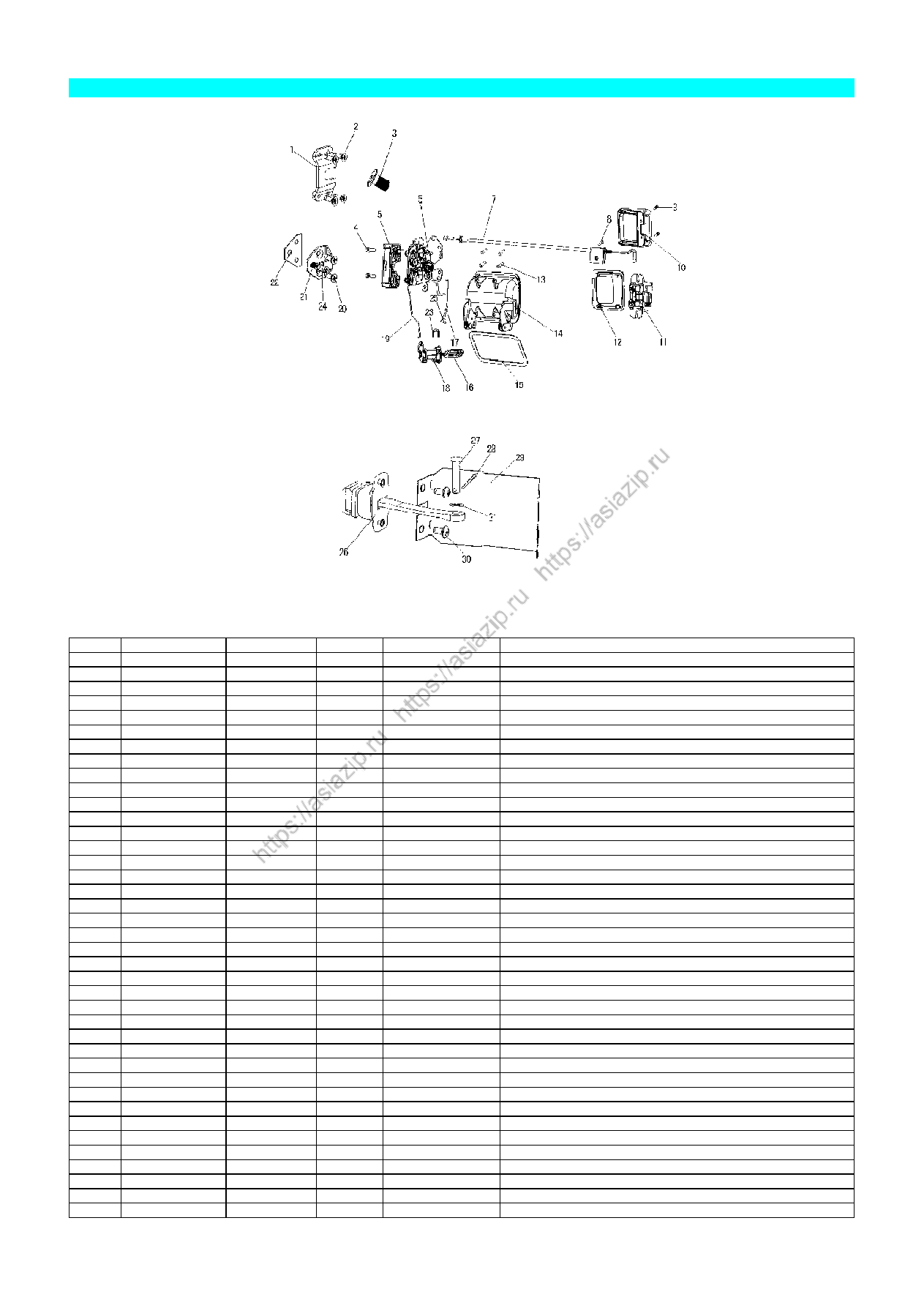

C12-18                                   DOOR LOCK/门锁                           Fig.C12-20

C12-18                                   DOOR LOCK/门锁

JINAN SHUNHE AUTO PARTS CO.,LTD

140

19

WG1642340016/1

2

Control rod I

19

WG1642340016/2

2

Control rod I

20

Q2540820

4

Screw

21

WG1642340022/1

2

Bracket

21

WG1642340022/2

2

Bracket

22

WG1642340023/1

2

Plate

22

WG1642340023/2

2

Plate

23

WG1642340010/1

2

Lock piece

23

WG1642340010/2

2

Lock piece

24

WG1642340024/1

2

Pin

24

WG1642340024/2

2

Pin

25

WG1642340030/1

2

Rubber sleeve

25

WG1642340030/2

2

Rubber sleeve

26

WG1642340026/1

2

Strap

26

WG1642340026/2

2

Strap

27

Q5100835

2

Bolt

28

Q5002526

2

Split pin

29

WG1642340027/1

2

Fixing plate

29

WG1642340027/2

2

Fixing plate

30

Q2140612

4

Screw

31

Q41806

4

Washer

JINAN SHUNHE AUTO PARTS CO.,LTD

141

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642110013

1

Front cover

2

AZ1646950001

1

Logo shield

3

AZ1646950002

1

Shield ‘sinotruk’

4

WG1642110027

1

Right lock C

5

WG1642110028

1

Left lock C

6

Q150B0616

10

Screw

7

Q40206

10

Washer

8

AZ1642110014

2

Bracket

9

Q218B0870

4

Screw

10

Q40008

4

Washer

11

WG1642110018

2

Protecting strip

12

WG1642110016

2

Base for hinge

13

AZ1642110032

1

Left hinge

14

AZ1642110033

1

Right hinge

15

AZ1642110017

2

Hinge pin

16

WG1642930003

4

Plug

17

WG1642110024

2

Spring

18

WG9100360134

4

Spacer

19

Q5002014

2

Split pin

20

Q150B0616

8

Screw

21

Q40206

8

Washer

22

Q150B0816

2

Screw

23

Q40208

2

Washer

24

WG1642110034

1

Plate

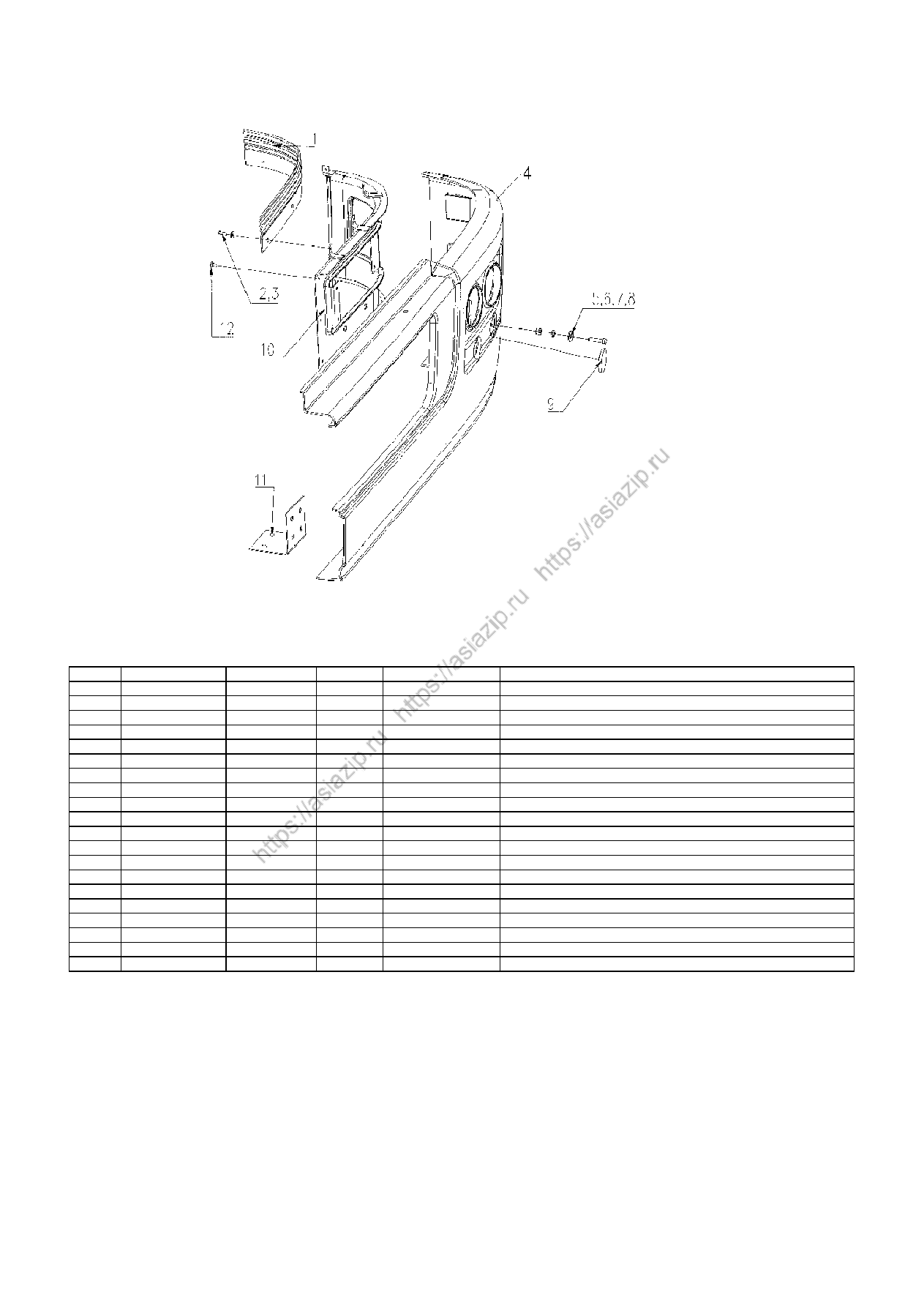

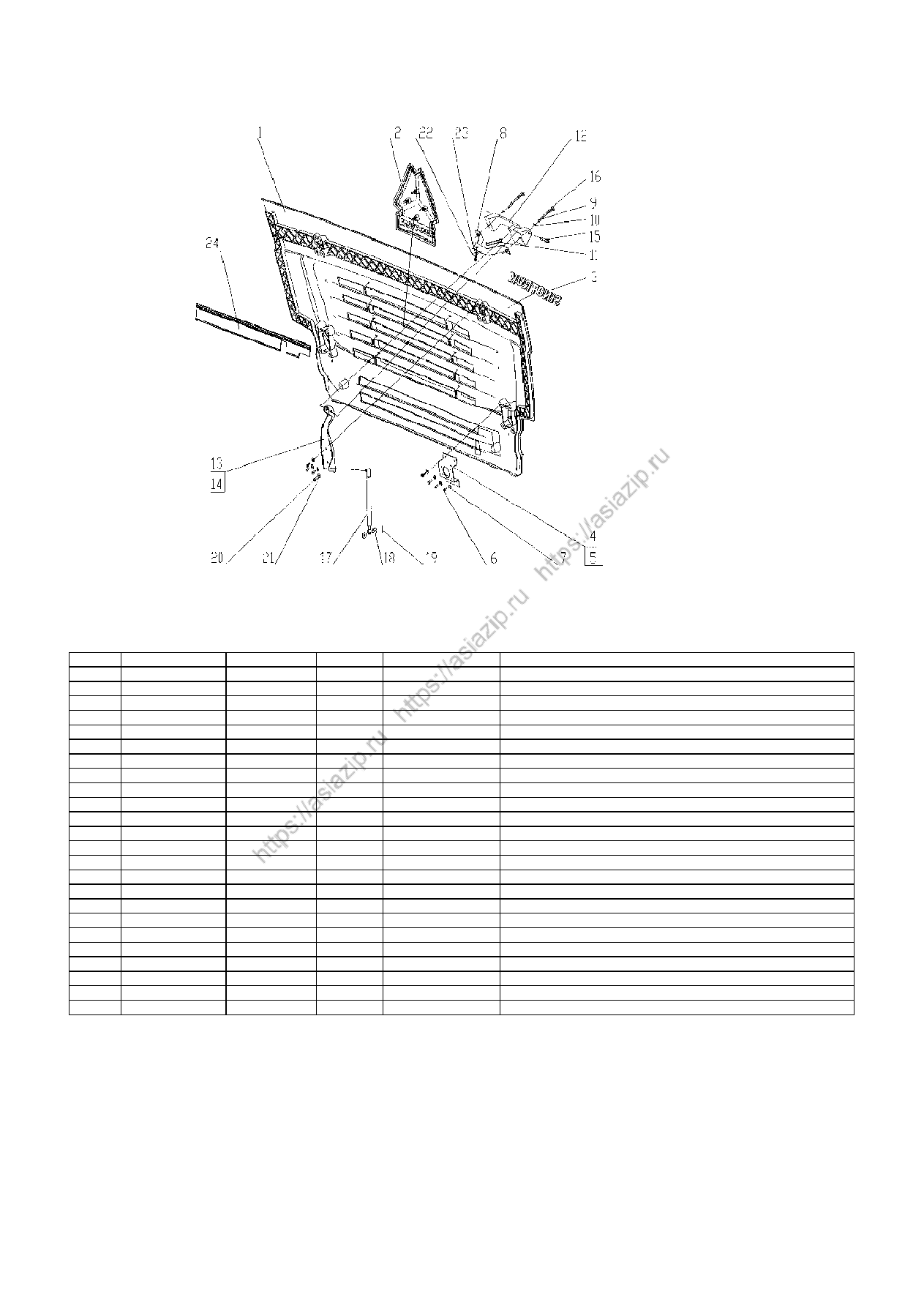

C12-19                                  FRONT COVER/面罩                         Fig.C12-21

C12-19                                  FRONT COVER/面罩

JINAN SHUNHE AUTO PARTS CO.,LTD

142

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642110001

1

Outer side cover right

1a

WG1642110002

1

Outer side cover left

2

WG1642110003

1

Inter plate right

2a

WG1642110004

1

Inter plate left

3

AZ1642110006

2

Bracket

4

AZ1642110007

1

Bracket right

4a

AZ1642110008

1

Bracket left

5

Q350B06

4

Nut

5a

Q40206

4

Washer

5b

Q40306

4

Spring washer

6

Q150B0620

10

Screw

6a

Q40206

10

Washer

6b

Q40306

10

Spring washer

7

Q150B0820

6

Screw

7a

Q40208

6

Washer

7b

Q40308

6

Spring washer

10

WG1642110019

1

‘A’pole garnish left

10a

WG1642110020

1

‘A’pole garnish right

12

WG1642110021

2

Clip

13

WG1642110022

6

Rivet

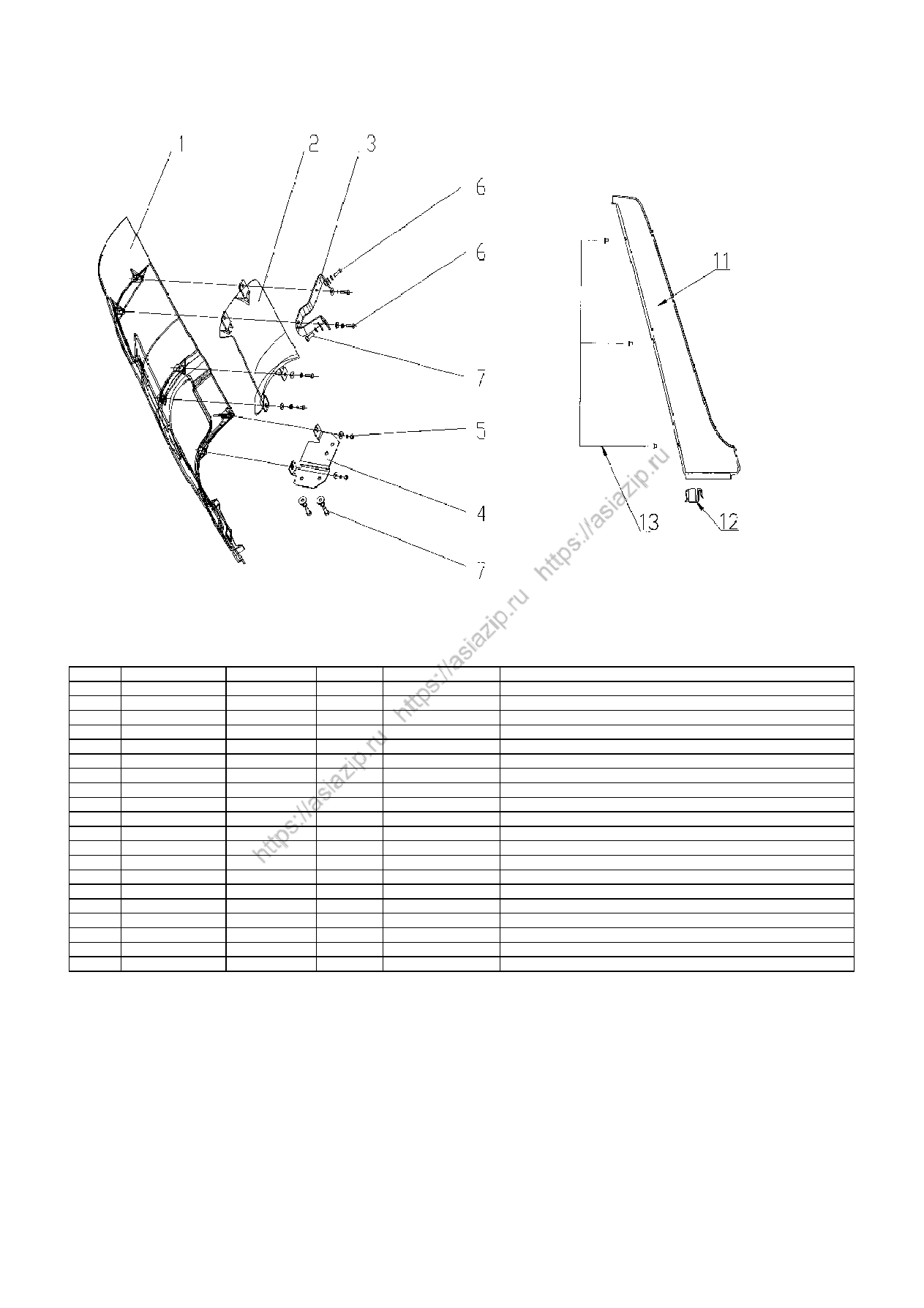

C12-20               SIDE COVER,‘A’POLE GARNISH/侧导风罩，A立柱装饰               Fig.C12-22

C12-20               SIDE COVER,‘A’POLE GARNISH/侧导风罩，A立柱装饰

JINAN SHUNHE AUTO PARTS CO.,LTD

143

No

Number of part

Quantity

Description

Applicability

※

Designation

1

WG1642230012

1

B

，

BR

，

C

，

CR

Left wheel fender

1

WG1641230020

1

A

，

AR

Left wheel fender

2

WG1642230013

1

B

，

C

，

BR

，

CR

Right wheel fender

2

WG1641230021

1

A

，

AR

Right wheel fender

3

Q150B0620

14

Screw

4

Q40106

14

Washer

5

Q40306

14

Spring washer

6

Q340B06

14

Nut

7

WG1642230018

1

Step left

7a

WG1642230019

1

Step right

8

Q2540830

8

Screw

9

AZ9725930049

4

Bracket for step bow

9

WG9725930017

4

B

，

BR

，

C

，

CR

Bracket for step bow

10

WG1641240011

1

Right step bow

10a

WG1641240012

1

Left step bow

10

WG1642240030

Left step bow bottom

10a

WG1642240031

Right step bow bottom

11

Q150B0825

8

Screw

12

Q340B08

8

Nut

13

Q40308

8

Spring washer

14

WG1642230003

1

Left rear wheel fender

15

WG1642230004

1

Right rear wheel fender

15a

WG1642230005

4

Aux.plate for wheel fender

16

AZ1642230008

18

Washer

17

AZ1642230007

2

Pad for rear wheel fender

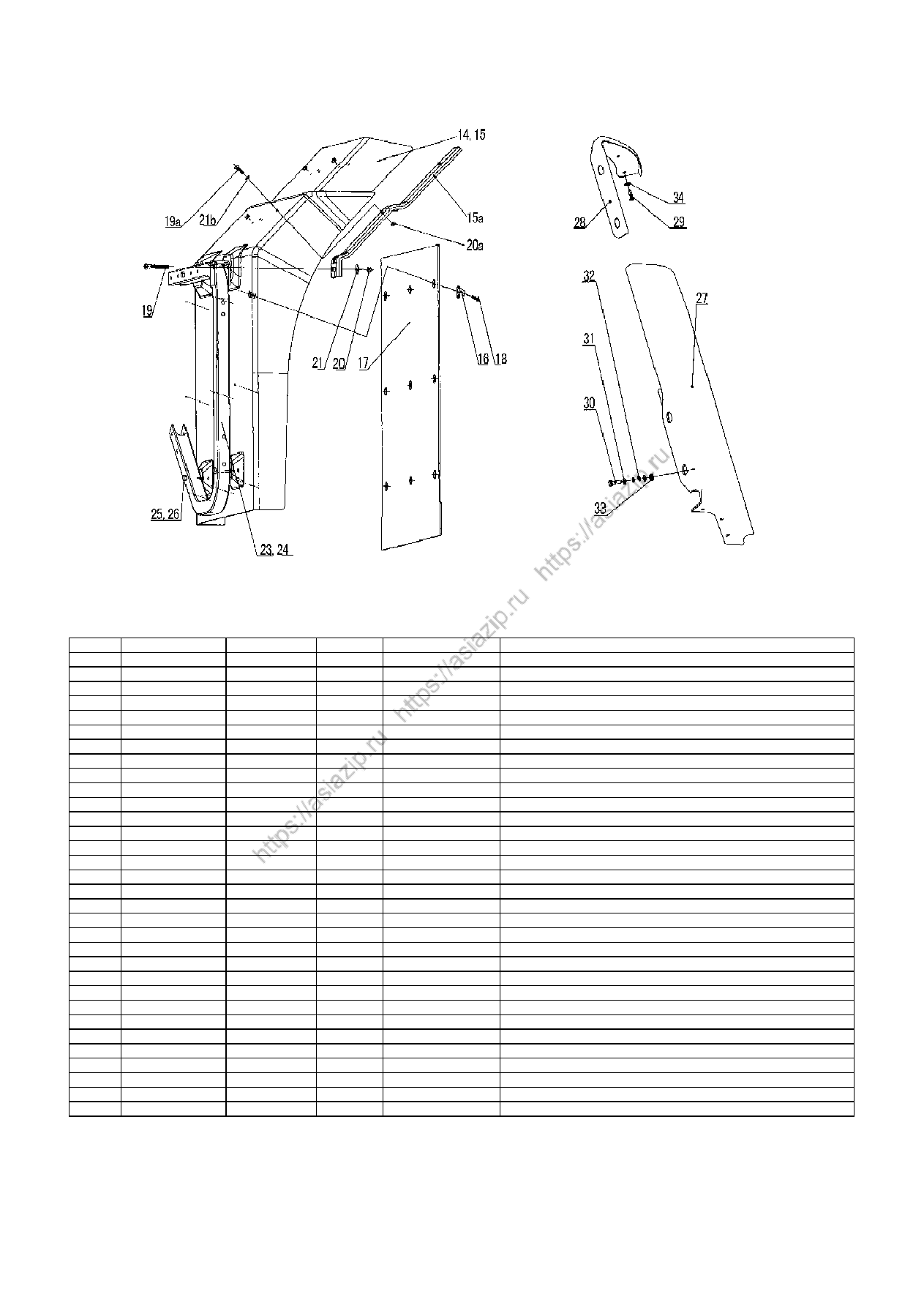

C12-21                                MUDGUARD/翼子板                                  Fig.C12-23

C12-21                                MUDGUARD/翼子板

JINAN SHUNHE AUTO PARTS CO.,LTD

144

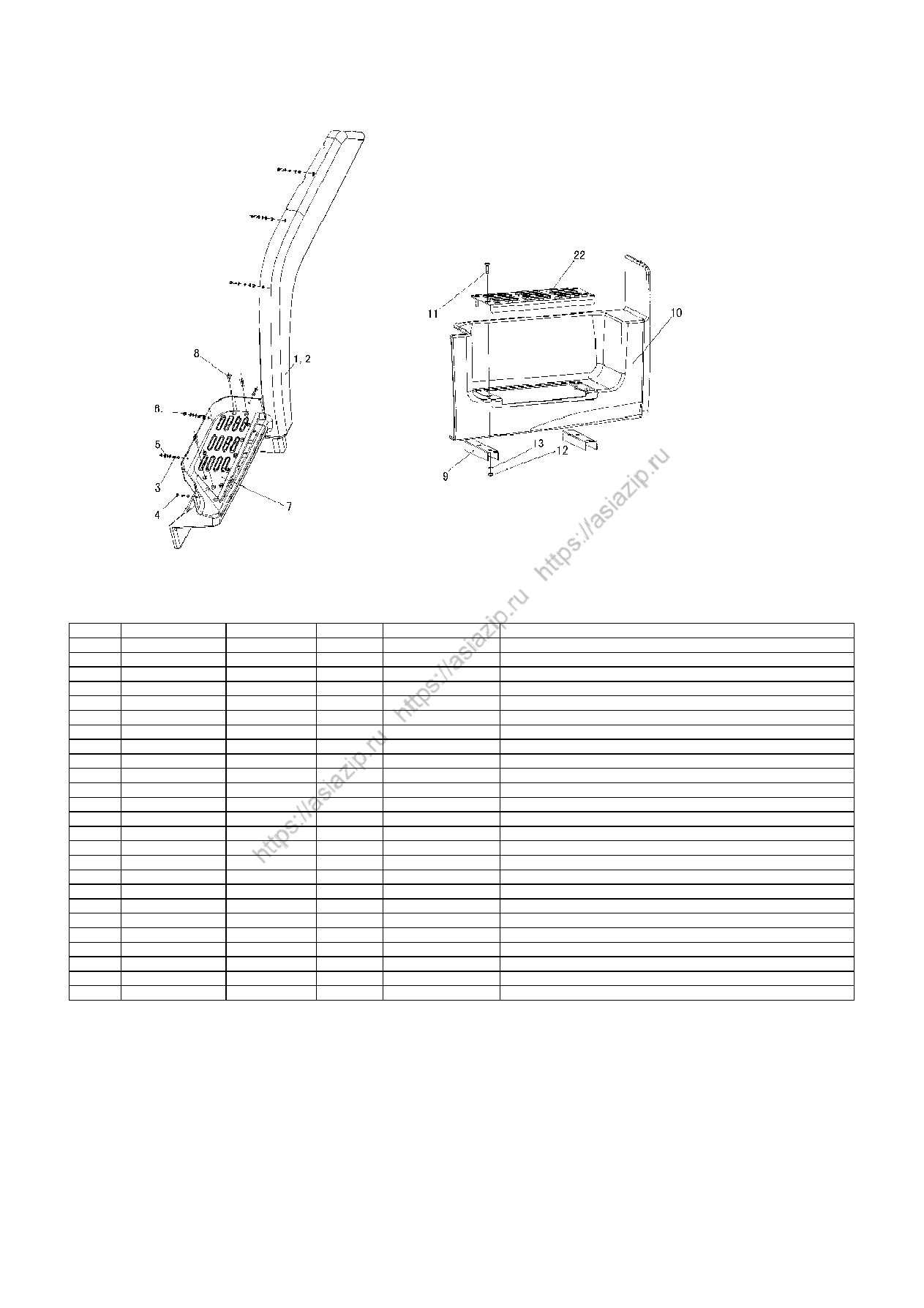

No

Number of part

Quantity

Description

Applicability

Designation

18

Q2713516

18

Screw

19

Q150B0860

8

Screw

19a

Q150B0620

8

Screw

20

Q340B08

8

Nut

20a

Q340B06

8

Nut

21

Q40308

8

Spring washer

21a

Q40306

8

Spring washer

21b

Q40106

8

Washer

22

WG1642240032

1

Bottom step left

22a

WG1642240033

1

Bottom step right

22b

Q2540830

8

Screw

22c

Q40308

8

Spring washer

22d

Q340B08

8

Nut

23

WG9719930315

1

Bracket for left rear mudguard

23

WG9731930010

1

8

×

4

Bracket for left rear mudguard

24

WG9731930015

1

8

×

4

Bracket for right rear mudguard

24

WG9719930313

1

Bracket for right rear mudguard

24a

WG9719930321

2

Plate

24a

WG9731930014

2

8

×

4

Plate

25

Q151B1445

2

Screw

26

190003888468

2

Nut

27

WG1641230028

1

A

，

AR

Rear cover

28

WG1641230030

1

A

，

AR

Bracket for rear cover

29

Q2714816

3

A

，

AR

Screw

30

Q150B0620

3

A

，

AR

Screw

31

Q40206

8

A

，

AR

Washer

32

Q40306

8

A

，

AR

Spring washer

33

Q340B06

4

A

，

AR

Nut

34

Q40204

3

A

，

AR

Washer

41

WG1641230025

1

Left mudguard

42

WG1641230026

1

Right mudguard

43

AZ1641230027

2

Strip for mudguard

C12-21                                  MUDGUARD/翼子板                               Fig.C12-24

C12-21                                MUDGUARD/翼子板

JINAN SHUNHE AUTO PARTS CO.,LTD

145

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ1642240050

1

Garnish plate left

1a

AZ1642240051

1

Garnish plate right

1b

WG1642930009

4

Nut

1c

AZ1608240074

4

Rubber pad

2

Q2714819

4

Screw

3

Q40206

4

Washer

4

WG1642240002

1

Bumper

4

WG1641240001

1

High bumper

5

Q150B0835

8

Screw

6

Q340B08

8

Nut

7

Q40208

8

Washer

8

Q40508

8

Spring washer

9

WG1642240050

1

Inter plug right

9

WG1642240052

1

Outer plug right

9

WG1642240051

1

Inter plug left

9

WG1642240053

1

Outer plug left

10

WG1642240040

1

Bracket left

10

WG1642240041

1

Bracket right

11

WG1642240042

2

Middle bracket

12

Q2764816

20

Screw

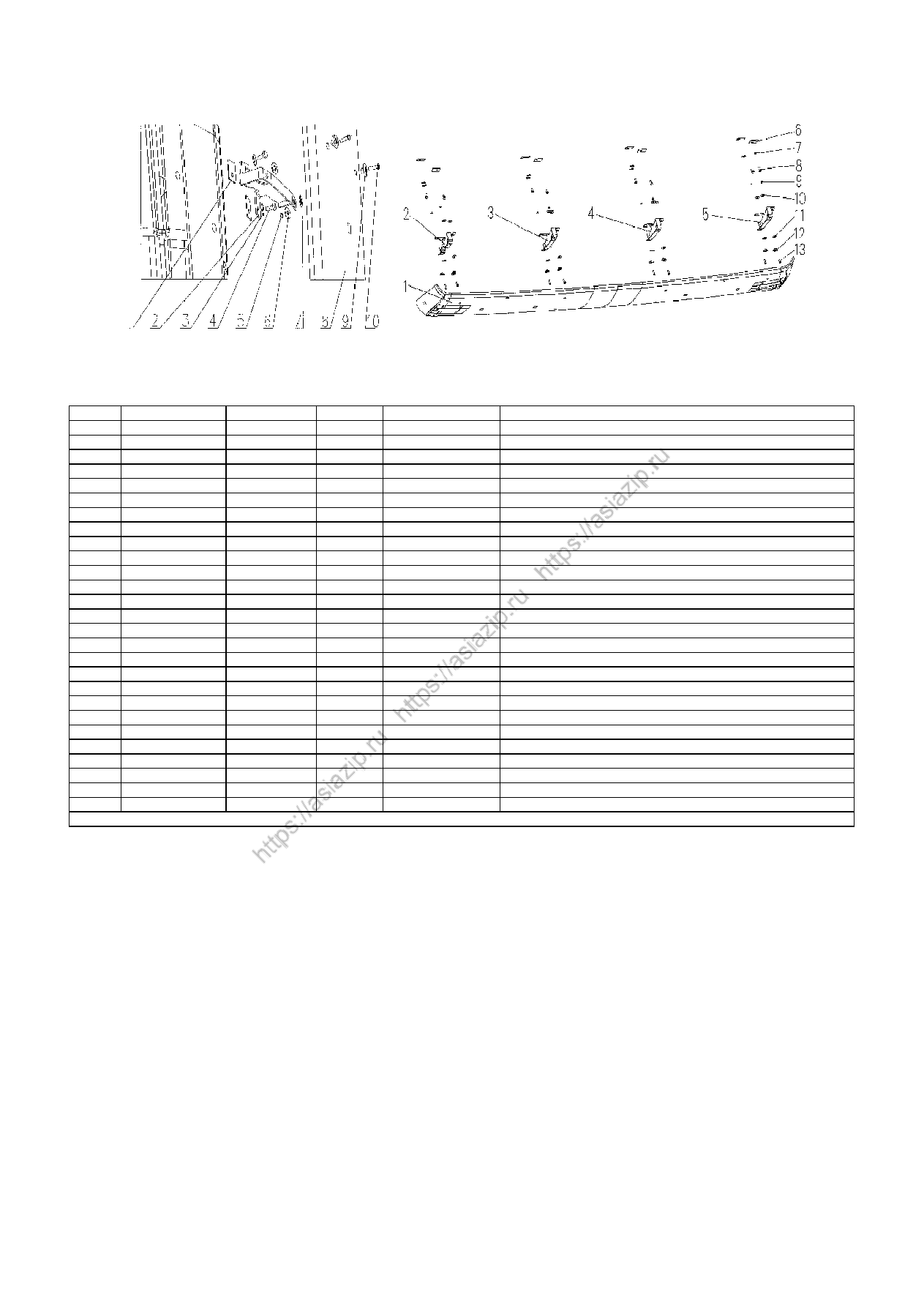

C12-22                                    BUMPER/保险杠                                 Fig.C12-25

C12-22                                    BUMPER/保险杠

JINAN SHUNHE AUTO PARTS CO.,LTD

146

No

Number of part

Quantity

Description

Applicability

Designation

0

AZ1642240011

1

Grille assembly

1

AZ1642240012

1

Grille body

2

Q1840816

4

Screw

3

Q340B08

4

Nut

4

Q40408

4

Spring washer

5

AZ1642240005

1

Connecting plate left

6

AZ1642240006

1

Connecting plate right

7

AZ1642240019

1

Bracket left

8

AZ1642240020

1

Bracket right

9

WG1642240080

2

Bolt

10

Q40508

4

Spring washer

11

Q340B08

2

Nut

12

Q40008

2

Washer

13

Q5000214

2

Split pin

14

Q2764813

8

Screw

15

WG1642240018

1

Grille

16

Q150B0825

4

Screw

17

Q40008

4

Washer

18

Q40408

4

Spring washer

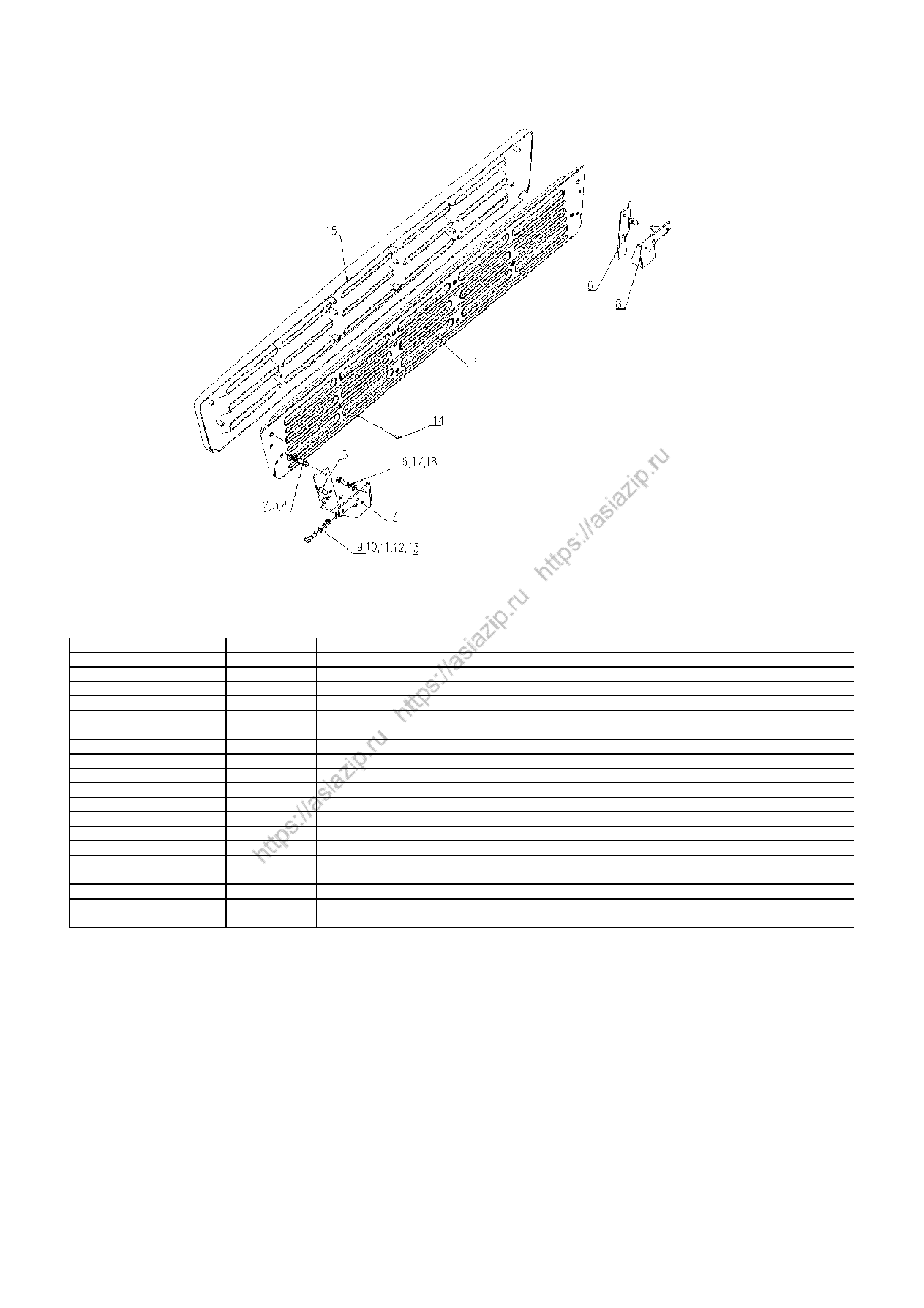

C12-23                          GRILLE OF BUMPER/保险杠格栅                            Fig.C12-26

C12-23                          GRILLE OF BUMPER/保险杠格栅

JINAN SHUNHE AUTO PARTS CO.,LTD

147

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642770001-1

1

Rubber block

2

Q218B0635

12

Screw

3

WG1642770001-2

1

Rubber block

4

WG1642770001-3

1

Cover garnish

5

WG1642770001

1

Rear view mirror left

5

WG1646770001

1

For drive right

Rear view mirror left

6

WG1642770003

1

Rear view block right

6

WG1646770002

1

For drive right

Rear view mirror right

7

WG1642770003-1

1

Rubber block

8

WG1642770003-2

1

Rubber block

9

WG1642770003-3

1

Cover garnish

10

WG1642770001-4

1

Bottom rear view mirror left

10

WG1642770003-4

1

Bottom rear view mirror right

10

WG1646770001-4

1

For drive right

Bottom rear view mirror left

10

WG1646770002-4

1

For drive right

Bottom rear view mirror right

11

WG1642770001-5

1

Above rear view mirror left

11

WG1642770003-6

1

Above rear view mirror right

11

WG1646770001-5

1

For drive right

Above rear view mirror left

11

WG1646770002-6

1

For drive right

Above rear view mirror right

C12-24                           REAR VIEW MIRROR/后视镜                         Fig.C12-27

C12-24                           REAR VIEW MIRROR/后视镜

JINAN SHUNHE AUTO PARTS CO.,LTD

148

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642770004

1

Down view mirror

2

WG1642770004-1

1

Nut

3

WG1642770004-2

1

Washer

4

AZ1642770054

1

For standard,long cab

Bracket

4

AZ1644771000

1

For high-roof cab

Bracket

4

AZ1646771000

1

For high-roof and drive
right

Bracket

4

AZ1646770054

1

For

drive

right,standard,long cab

Bracket

5

Q150B0825

2

Screw

6

Q40308

2

Spring washer

7

Q40208

4

Washer

8

Q340B08

2

Nut

11

WG1600770007

1

Side mirror

12

AZ1642770098

1

Base

13

Q2540620

2

Screw

14

Q218B0616

2

Screw

15

Q40306

2

Spring washer

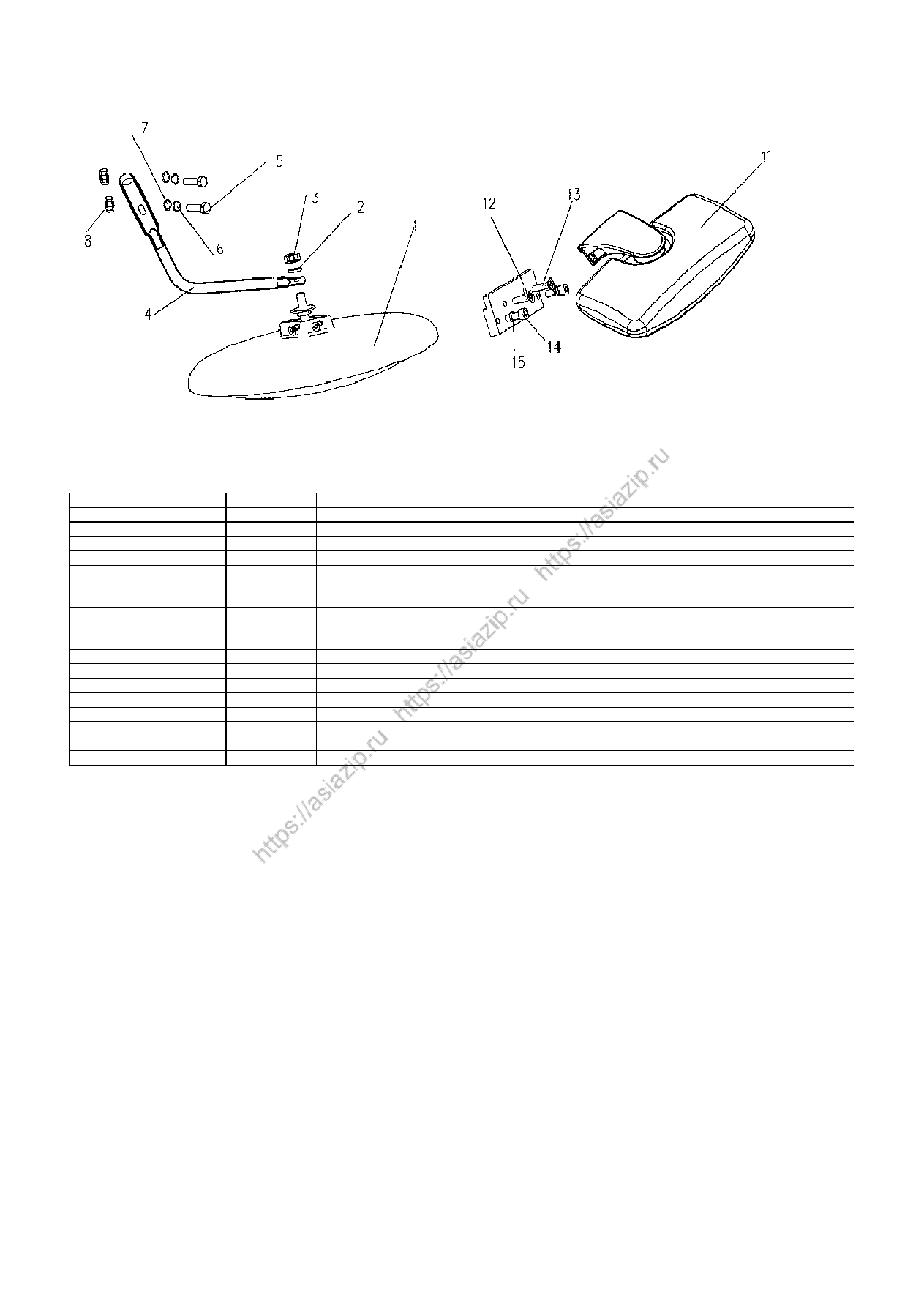

C12-25                 DOWN VIEW MIRROR,SIDE MIRROR/下视镜，路面镜             Fig.C12-28

C12-25                 DOWN VIEW MIRROR,SIDE MIRROR/下视镜，路面镜

JINAN SHUNHE AUTO PARTS CO.,LTD

149

No

Number of part

Quantity

Description

Applicability

※

Designation

1

WG1642870231

1

A

，

AR

，

B

，

BR

Sun visor

1

WG1644870002

1

C

，

CR

Sun visor

2

WG1642870232

1

A

，

AR

，

B

，

BR

Side bracket right

2

AZ1644870003

1

C

，

CR

Bracket

3

WG1642870234

1

A

，

AR

，

B

，

BR

Middle bracket right

4

WG1642870235

1

A

，

AR

，

B

，

BR

Middle bracket left

5

WG1642870233

1

A

，

AR

，

B

，

BR

Side bracket left

5

AZ1644870003

1

C

，

CR

Bracket

6

AZ1672870121

8

A

，

AR

，

B

，

BR

Rubber pad

6

AZ1672870121

6

C

，

CR

Rubber pad

7

Q40208

8

Washer

8

Q150B0820

8

Screw

9

Q340B06

8

Nut

10

Q40206

8

Washer

11

AZ1642870043

8

A

，

AR

，

B

，

BR

Rubber pad

11

AZ1642870043

4

C

，

CR

Rubber pad

11

AZ1644870004

2

C

，

CR

Bracket

12

AZ1608870008

8

A

，

AR

，

B

，

BR

Washer

12

AZ1608870008

6

C

，

CR

Washer

13

Q2140625

8

Screw

14

WG1642870236

2

A

，

AR

，

B

，

BR

Side bracket

15

Q150B0820

2

A

，

AR

，

B

，

BR

Screw

16

Q40208

2

A

，

AR

，

B

，

BR

Washer

17

AZ1672870121

2

A

，

AR

，

B

，

BR

Rubber pad

18

Q150B0825

2

A

，

AR

，

B

，

BR

Screw

19

Q40208

4

A

，

AR

，

B

，

BR

Washer

20

Q340B08

2

A

，

AR

，

B

，

BR

Nut

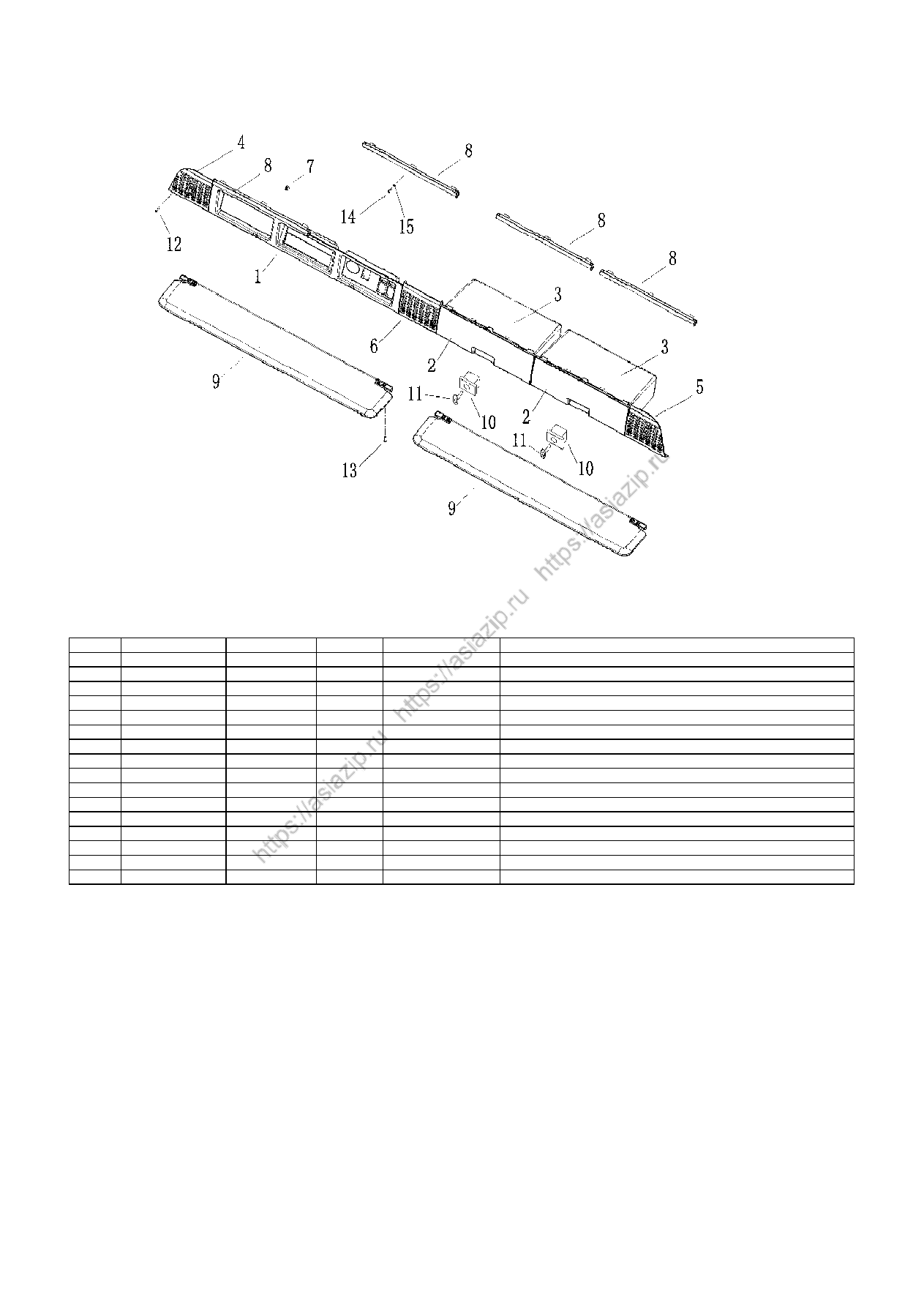

C12-26                                       SUN VISOR/遮阳罩                                    Fig.C12-29

C12-26                                       SUN VISOR/遮阳罩

※

 A

～

CR

——

Mark of cab

JINAN SHUNHE AUTO PARTS CO.,LTD

150

No

Number of part

Quantity

Description

Applicability

※

Designation

1

AZ1642430030

2

Above base for air spring

1

AZ1642430125

2

SS

Above base for screwy spring

2

Q40310

8

Spring washer

3

Q150B1025

8

Screw

4

Q150B0820

2

AS

Screw

5

Q41208

2

AS

Washer

6

WG1642430033

2

AS

Guide

6

AZ1642430116

2

SS

Washer

7

AZ1642430085

2

AS

Air spring

7

WG1642430118

2

SS

Screwy spring

7

WG1642430117

2

SSH

Screwy spring

8

Q40308

2

Spring washer

9

Q150B0820

2

Screw

10

WG1642430086

2

AS

Nozzle

11

AZ1642430043

4

Cover

12

Q40312

8

Spring washer

13

Q150B1235

8

Screw

14

AZ1642430041

1

Front support left

15

WG1642430010

1

AS

Bottom spring bracket left

15

AZ1642430110

1

SS

Bottom spring bracket left

15

AZ1642430126

1

AS,drive right

Bottom spring bracket left

16

Q151C1235

14

Screw

17

AZ1642430071

2

Screw

18

AZ1642430051

1

Left swing arm

19

AZ1642430072

2

Washer

20

190003888459

2

Nut

21

190003888457

2

Nut

22

190003888457

2

Nut

23

WG1642430020

1

AS

Bottom spring bracket right

23

WG1642430120

1

SS

Bottom spring bracket right

23

AZ1642430127

1

AS,drive right

Bottom spring bracket right

24

Q40208

2

Washer

25

Q150B0855

2

AS

Screw

26

WG1642440051

1

AS

Height control valve

27

WG1642430035

1

AS

Brace rad I

28

Q340B09

4

AS

Nut

29

AZ1642430036

2

AS

Ball washer

30

AZ1642430034

1

AS

Connecting rod

31

Q340B08

1

AS

Nut

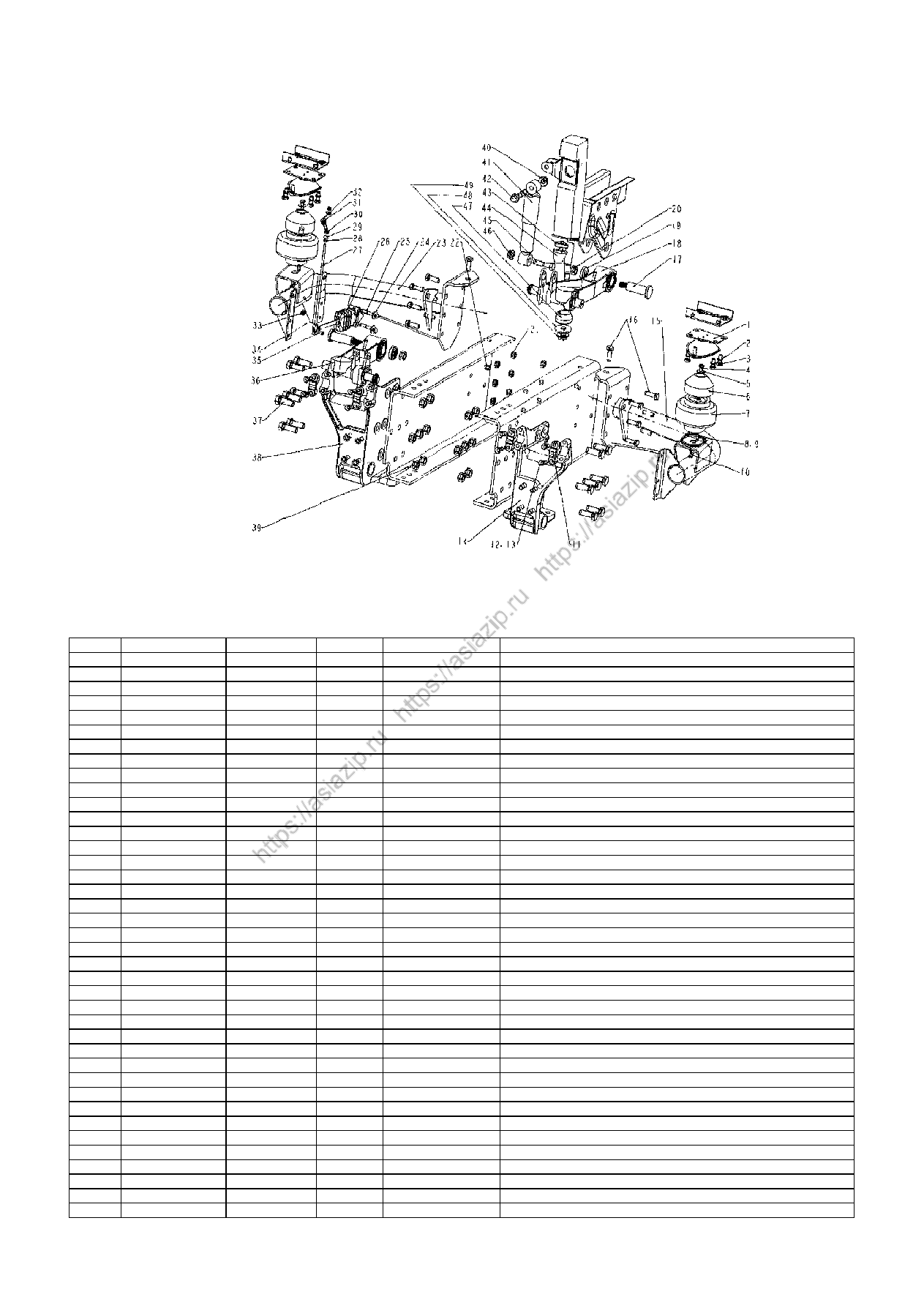

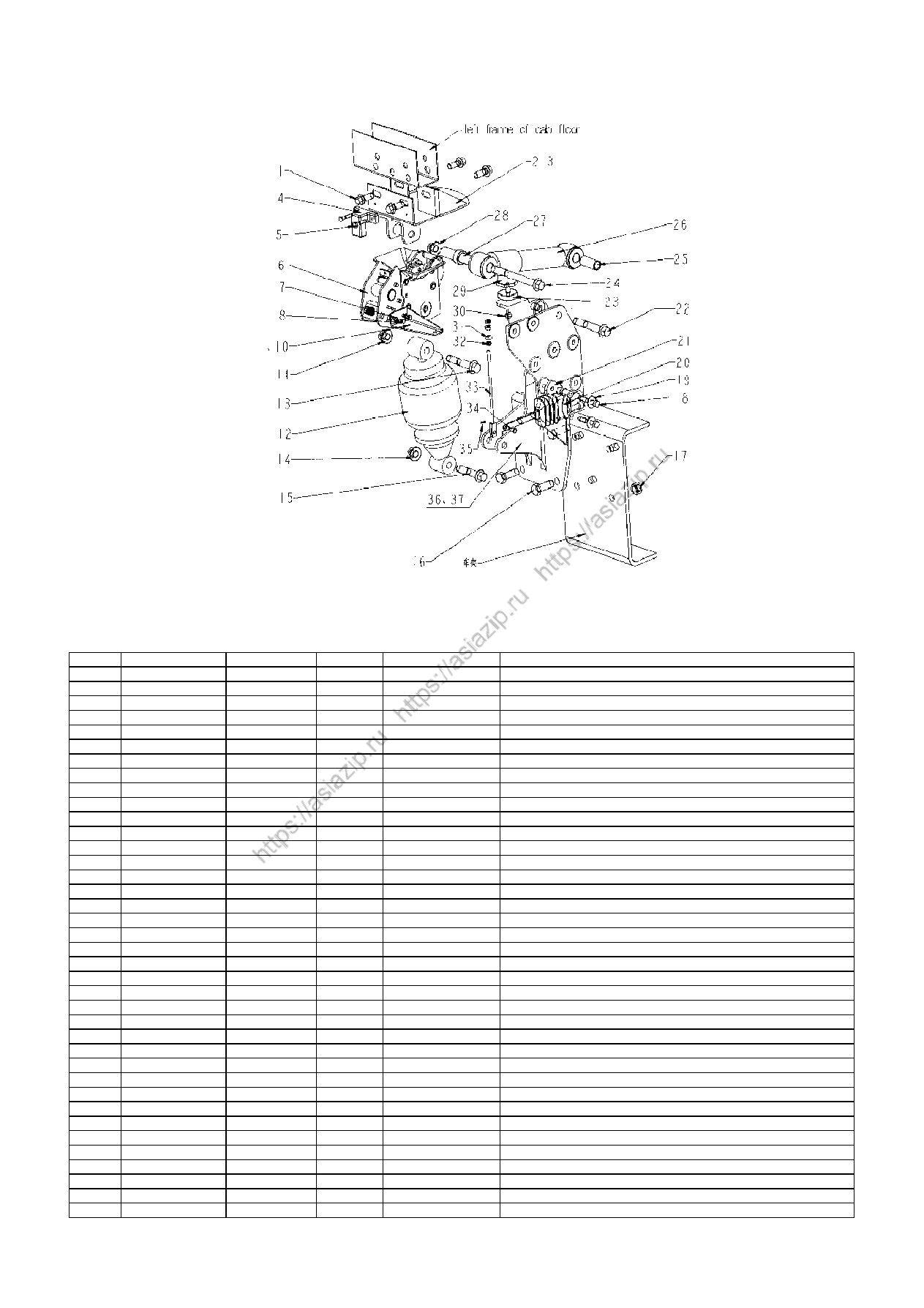

C12-27                       FRONT SUSPENSION OF DRIVER扴 CAB/驾驶室前悬置                     Fig.C12-30

C12-27                       FRONT SUSPENSION OF DRIVER扴 CAB/驾驶室前悬置

JINAN SHUNHE AUTO PARTS CO.,LTD

151

32

Q41208

1

AS

Toothed washer

33

Q340B08

2

AS

Nut

34

Q5002012

1

AS

Split pin

35

Q5100614

1

AS

Bolt

36

AZ1642430052

1

Right swing arm

37

Q151B1645

14

Screw

38

AZ1642430042

1

Front support right

39

190003888459

14

Nut

40

Q33014

2

Nut

41

AZ1642430091

2

Shock absorber

42

Q1841470

2

Nut

43

AZ1642430082

2

Washer

44

WG1642430081

2

Spring stop

45

Q150B1460

2

Screw

46

Q33014

2

Nut

47

AZ1642430097

2

Rubber stop

48

Q40216

2

Washer

49

Q33016

2

Nut

※

 AS

——

Air suspension of cab

，驾驶室空气悬挂

※

 SS

——

Screwy spring suspension of cab

，驾驶室螺旋弹簧悬挂

※

 SSH

——

Screwy spring suspension of Long cab and high-roof cab

，中长，高项驾驶室螺旋弹簧悬挂

JINAN SHUNHE AUTO PARTS CO.,LTD

152

No

Number of part

Quantity

Description

Applicability

※

Designation

1

Q1841230

8

Screw

2

WG1642440040

1

Above bracket left

3

WG1642440041

1

Above bracket right

4

WG1642440052

2

Sensor for cab lock

5

Q150B0630

4

Screw

6

WG1642440101

2

Hyd.lock

7

Q40306

4

Spring washer

8

Q150B0610

4

Screw

9

WG1642440055

1

AS

Left bracket

10

WG1642440056

1

AS

Right bracket

11

Q33014

2

Nut

12

AZ1642440025

2

AS

Shock absorber

12

AZ1642440027

2

SSH

Shock absorber(screwy spring)

12

WG1642440028

2

SSS

Shock absorber(screwy spring)

13

Q1841480

2

Screw

14

Q33014

2

Nut

15

Q1841470

2

Screw

16

Q151B1445

8

Screw

17

190003888458

8

Nut

18

Q150B0850

4

Screw

19

Q40208

4

Washer

20

WG1642440051

2

AS

Height control valve

21

AZ1642440035

2

AS

Plate

22

Q1841490

2

Screw

23

AZ1642430082

2

Washer

24

Q18414140

2

Screw

25

AZ1642440032

2

Bush

Ⅱ

26

AZ1642440021

2

Stabilizer

27

AZ1642440031

2

Bush I

28

Q33014

2

Nut

29

WG1642430081

2

Stop

30

Q340B10

2

Nut

31

AZ1642430036

4

AS

Ball washer

32

Q340B06

8

AS

Nut

33

WG1642440060

2

AS

Brace rod

34

Q5100614

2

AS

Bolt

35

Q5002012

2

AS

Split pin

36

AZ1642440011

1

B

，

BR

，

C

，

CR

Bottom bracket left

C12-28                          REAR SUSPENSION OF DRIVER’S CAB/驾驶室后悬置                       Fig.C12-31

C12-28                          REAR SUSPENSION OF DRIVER’S CAB/驾驶室后悬置

JINAN SHUNHE AUTO PARTS CO.,LTD

153

36

AZ1642440013

1

A

，

AR

Bottom bracket left

36

AZ1642440015

8

×

4and ASS,SSS

Bottom bracket left

37

AZ1642440012

1

B

，

BR

，

C

，

CR

Bottom bracket right

37

AZ1642440014

1

A

，

AR

Bottom bracket right

37

AZ1642440016

8

×

4and ASS,SSS

Bottom bracket right

38

WG1642440070

1

T-nozzle

39

WG1642440072

1

Hose

※

 SSS

——

Spring suspension of standard cab

，标准驾驶室螺旋弹簧悬挂

※

 ASS

——

Air suspension of standard cab

，标准驾驶室空气弹簧悬挂

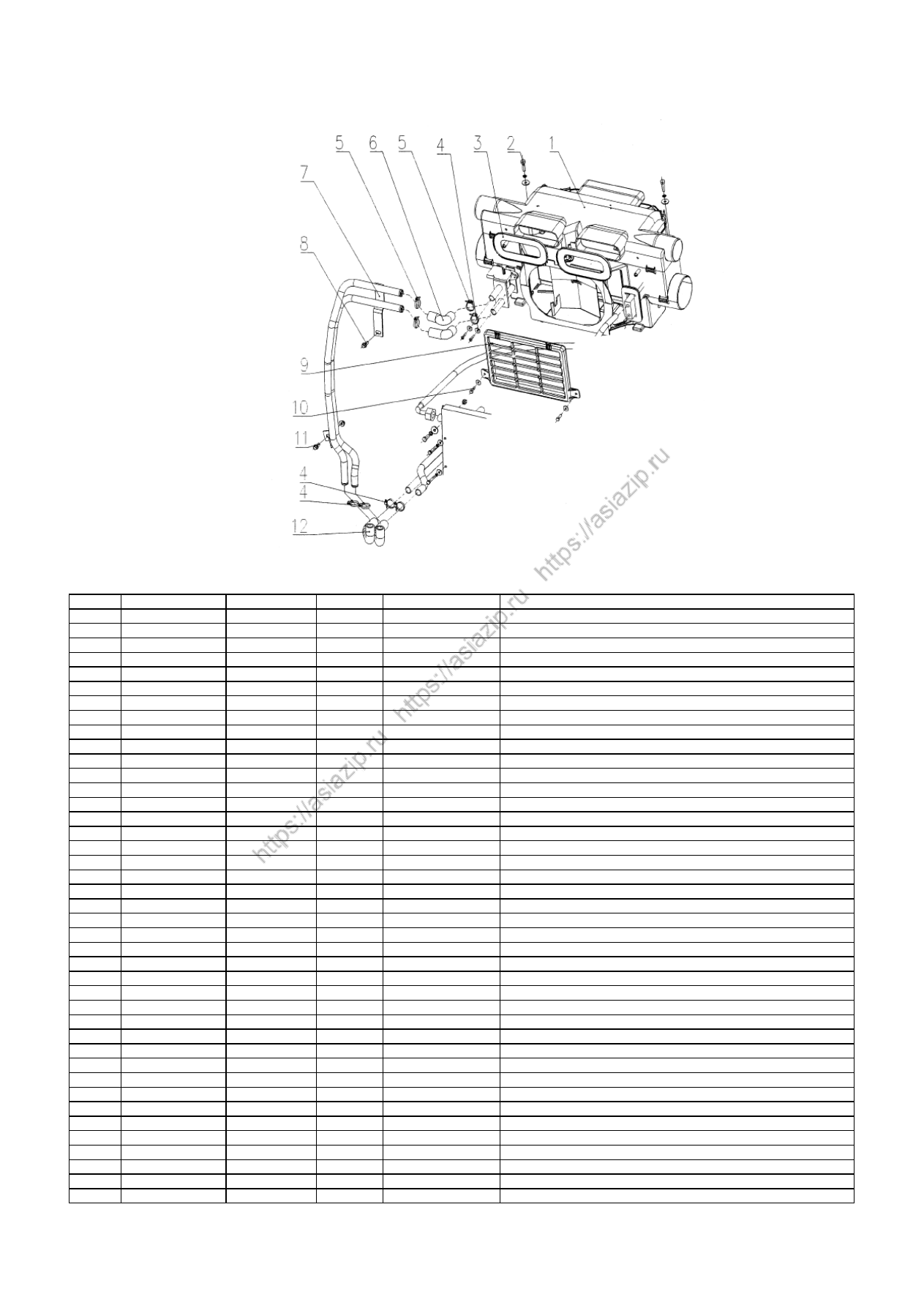

JINAN SHUNHE AUTO PARTS CO.,LTD

154

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ1630840302

1

Heater assembly with electro air intake

1—1

AZ1630840013

1

Bottom housing

1—2

AZ1630840091

2

Water pipe

1—3

AZ1630840319

1

Water tank assembly

1—3—1 AZ1630840074

1

Water tank

1—3—2 AZ1630840320

1

Valve

1—3—3 AZ1630840066

3

O ring

1—3—4 AZ1630840073

1

Input water pipe

1—3—5 AZ1630840072

1

Output water pipe

1—4

AZ1630840015

2

Air in take assembly

1—5

AZ1630840312

1

Middle housing

1—6

AZ1630840092

1

Seal strip

1—7

AZ1630840063

9

Connecter

1—8

AZ1630840014

1

Fan

1—8—1 AZ1630840014-1

3

Motor of fan

1—9

Q2714216

1

Screw

1—10

AZ1630840321

1

Electro speed changer

1—11

AZ1630840323

1

Electrical line

1—28

AZ1630840037

1

Air intake left

1—29

AZ1630840038

1

Air intake right

1—30

AZ1630840040

1

Air intake front

1-33

AZ1630840036

1

Air intake rear

2

Q150B0830

2

Screw

2a

Q40308

2

Spring washer

2b

Q40208

2

Washer

3

AZ1630840062

2

Rubber sleeve

4

Q2714825

2

Screw

4a

Q40206

2

Washer

5

190003989340

6

Circlip

6

WG1642840091

2

Hose I

7

AZ1642840013

1

Steel pipe

8

Q1840816

1

Screw

9

AZ1642840084

1

Protect net for air intake

10

Q150B0620

2

Screw

10a

Q40206

2

Washer

11

Q1840825

1

Screw

11a

Q33008

1

Nut

12

WG1642840092

2

Hose

Ⅱ

13

WG1630840322

1

Control panel

14

AZ1630820312

1

Electrical line of air conditioner

15

WG1630820313

1

Temprature sensor

C12-29                                  DRIVER’S CAB HEATING/驾驶室暖风装置                            Fig.C12-3

C12-29                                  DRIVER’S CAB HEATING/驾驶室暖风装置

JINAN SHUNHE AUTO PARTS CO.,LTD

155

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642820002

1

Air conditioner with electro air intake

1—1

AZ1630840013

1

Bottom housing

1—2

AZ1630840091

2

Water pipe

1—3

AZ1630840319

1

Water tank with electro valve

1—3—1 AZ1630840074

1

Water tank

1—3—2 AZ1630840073

1

Water inlet pipe assembly

1—3—3 AZ1630840066

3

O-ring

1—3—4 AZ1630840072

1

Water outlet pipe assembly

1—3—5 AZ1630840320

1

Water valve with electro switch

1—4

AZ1630840326

1

3#water changer

1—5

Q2723525

2

Screw

1—6

AZ1642820010

1

Evaporator assembly

1—6—1 AZ1642820010-1

1

Expansion valve

1—6—2 AZ1642820010-2

1

Temprature sensor

1—7

AZ1630840015

2

Air intake assembly

1—8

AZ1630840312

1

Middle housing

1—9

AZ1630840092

1

Seal strip

1—10

AZ1630840063

9

Clip

1—11

AZ1642820010

1

Fan

1—12

AZ1630840323

1

Electrical line for fan

1—13

Q2714216

3

Screw

1—14

AZ1630840321

1

Fan speed changer

1—15

AZ1630840049

1

Rotary plate

1—16

AZ1630840050

1

Rotary arm

1—17

AZ1630840051

2

Torsion spring

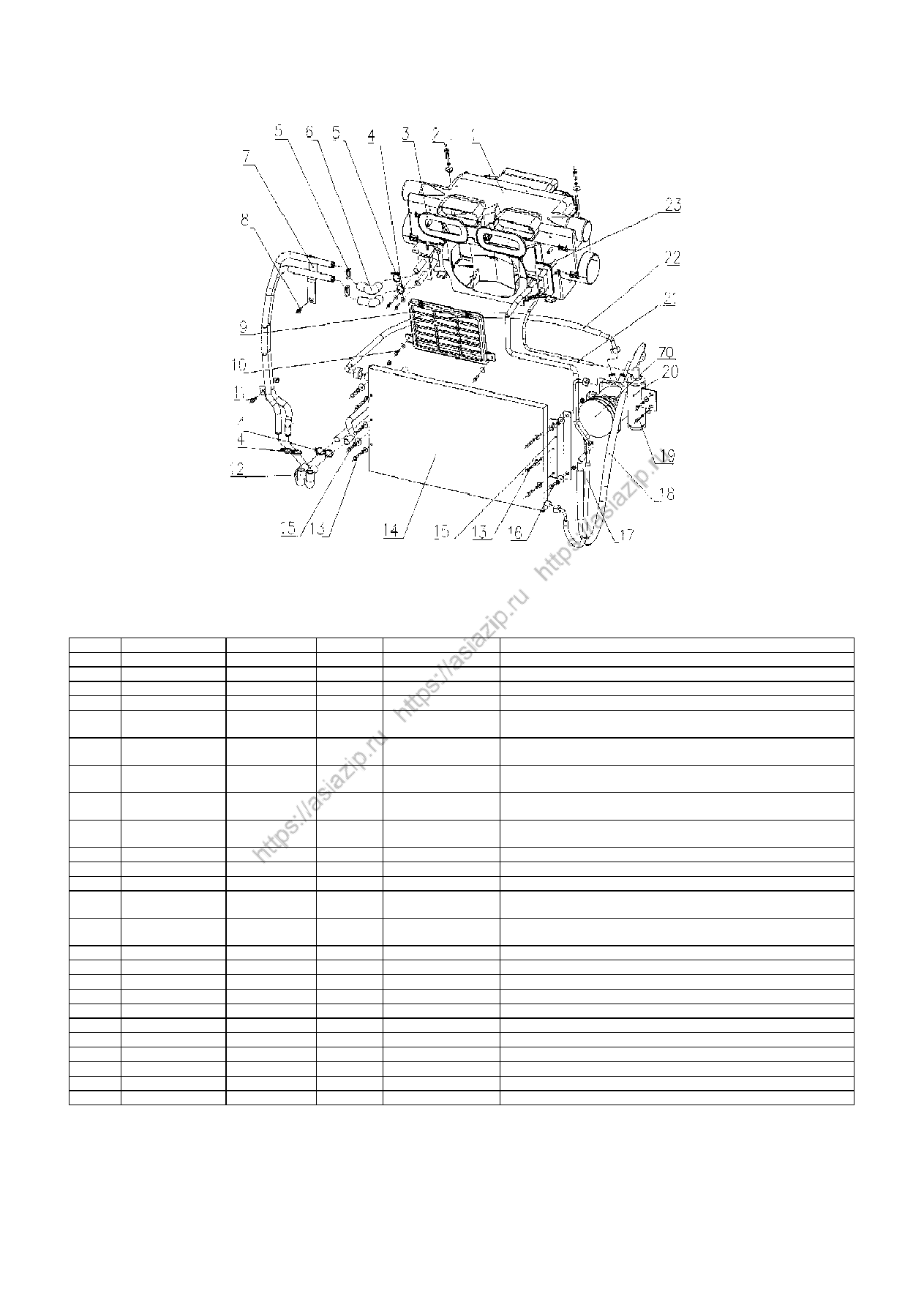

C12-30                                     AIR CONDITIONER/空调装置                                 Fig.C12-33

C12-30                                     AIR CONDITIONER/空调装置

JINAN SHUNHE AUTO PARTS CO.,LTD

156

No

Number of part

Quantity

Description

Applicability

Designation

1—18

AZ1630840052

1

Washer

1—19

AZ1630840065

1

Snap ring

1—20

AZ1630840045

2

Rod

Ⅱ

1—21

AZ1630840046

1

Rod

Ⅲ

1—22

AZ1630840047

1

Rod

Ⅳ

1—23

AZ1630840047

1

2# water changer

1—24

Q2723525

2

Screw

1—25

AZ1630840313

1

Lever

1—26

AZ1630840314

1

Rod

1—27

AZ1630840053

2

Base

1—28

AZ1630840311

1

Above housing

1—29

AZ1630840401

1

Gasket

1—30

AZ1630840093

1

Seal strip

Ⅱ

1—31

AZ1630840063

8

Clip

1—32

AZ1630840037

1

Air intake left

1—33

AZ1630840038

1

Air intake right

1—34

AZ1630840040

1

Air intake front

1—35

AZ1630840041

2

Rod

1—36

AZ1630840035

1

Shaft

1—37

AZ1630840036

1

Air intake rear

1—38

AZ1630840039

1

Rod I

1—39

AZ1630840053

1

Base

1—40

AZ1630840034

2

Bevel gear

1—41

AZ1630840315

1

Shaft for bevel gear

1—42

Q43660

1

Snap ring

1—43

AZ1630840324

1

1# waler changer

1—44

Q2723525

2

Screw

1—45

AZ1630840016

1

Seal ring

1—46

AZ1630840021

1

Plate

1a

Q150B0830

2

Screw

1b

Q40308

2

Spring washer

1c

Q40208

2

Washer

3

AZ1630840062

2

Rubber sleeve

4

Q2714825

2

Screw

C12-30                                         AIR CONDITIONER/空调装置                             Fig.C12-34

C12-30                                         AIR CONDITIONER/空调装置

JINAN SHUNHE AUTO PARTS CO.,LTD

157

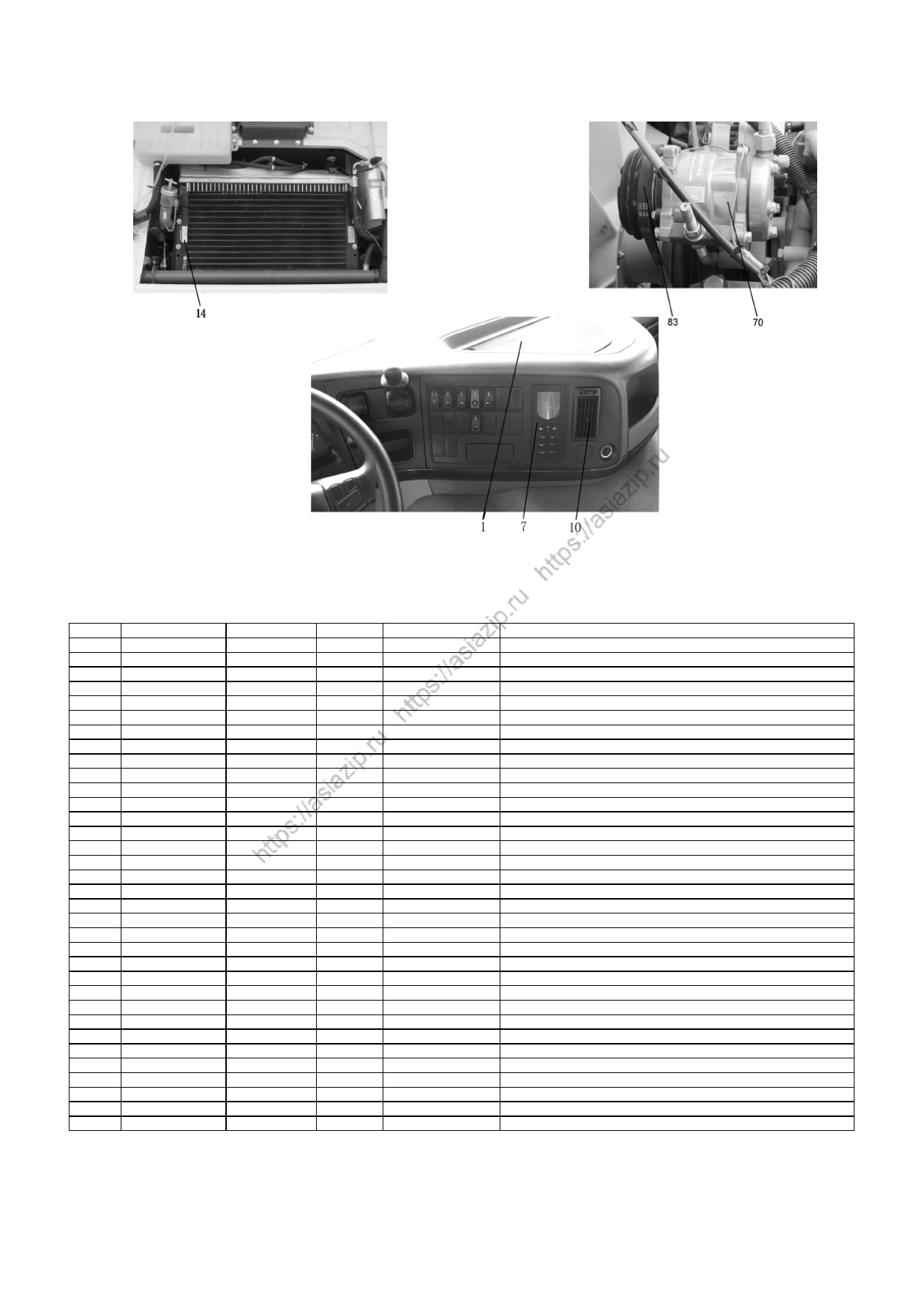

4a

Q40206

2

Washer

5

190003989340

6

Circlip

6

WG1642840091

2

Hose I

7

AZ1642840013

1

Steel pipe

8

Q1840816

1

Screw

9

AZ1642840084

1

Protect net

10

Q150B0620

2

Screw

10a

Q40206

2

Washer

11

Q1840825

1

Screw

11a

Q33008

1

Nut

12

WG1642840092

2

Hose

Ⅱ

13

Q150B0640

6

Screw

13a

Q40306

6

Spring washer

13b

Q40206

6

Washer

14

WG1630820073

1

Condenser assembly

15

WG1642820011

1

Bracket left for condenser

15a

WG1642828011

1

For drive right

Bracket left for condenser

15

WG1642820012

1

Bracket right for condenser

15a

WG1642828012

For drive right

Bracket right for condenser

16

Q150B0825

4

Screw

16a

Q40308

8

Spring washer

16b

Q40208

4

Washer

16c

Q340B08

4

Nut

17

WG1642820017

1

Condenser-receiver connect tube

18

WG1642820019

1

Evaporator-compressor connect tube

18

WG1642828019

1

For drive right

Evaporator-compressor connect tube

19

Q150B0625

2

screw

19

Q40306

2

Spring washer

19

Q40206

2

Washer

20

WG1642820015

1

Receiver tank

21

WG1642820018/1

1

Receiver-evaporator connect tube

22

WG1642820016

1

Compressor-condenser connect tube

22

WG1642828016

1

For drive right

Compressor-condenser connect tube

23

WG1630820019

1

Rubber sleeve

24

WG1630840032

1

Control panel

25

WG1630820313

1

Temprature sensor

26

AZ1630820312

1

Electrical line for air conditioner

70

WG1500139000

1

Compressor

70—1

WG1500139000/3

1

Compressor

71

1581C160018

2

Sleeve

72

AZ1500130018

1

Bracket

72

AZ1500130107

1

HINO engine

Bracket

73

Q150B10130

2

Screw

74

161500130027

1

Spacing plate

76

Q150B0825

2

Screw

77

Q40008

2

Washer

78

Q41808

2

Spring washer

79

AZ1500090026

1

Collar bolt

79

AZ1500130105

1

HINO engine

Collar bolt

80

Q40110

3

Washer

81

Q340B10

2

Flat nut

82

Q33208

1

Lock nut

83

WG1500130110

1

HINO engine

V-belt

83

WG1500130016

1

WD615

V-belt

83—1

WG1500130016/3

1

WD615

V-belt

JINAN SHUNHE AUTO PARTS CO.,LTD

158

No

Number of part

Quantity

Description

Applicability

Designation

1

Q340B06

2

Nut

2

Q40306

2

Spring washer

3

AZ1642860009

1

Bracket

3

AZ1646860005

1

For drive right

Bracket

4

WG1642860001/1

1

Washing equipment

4

WG1646860001

1

For drive right

Reservoir/pump

4—1

WG1642860001-1

1

Pump

4—2

WG1642860001-2

1

Cover

5

Q40308

2

Spring washer

6

340B08

2

Nut

7

Q150B0625

2

Screw

8

Q40206

2

Washer

9

Q40208

2

Washer

10

Q150B0830

2

Screw

11

AZ1642860007

2

Protect ring

12

AZ1642860003

2

Hose

I

13

116100770121

1

V nozzle

14

AZ1642860005

1

Hose

Ⅲ

15

AZ1642860004

1

Hose

II

16

AZ1600860121

1

Nozzle

17

WG1600860008

3

Clip

18

AZ1646860004

1

For drive right

Bracket

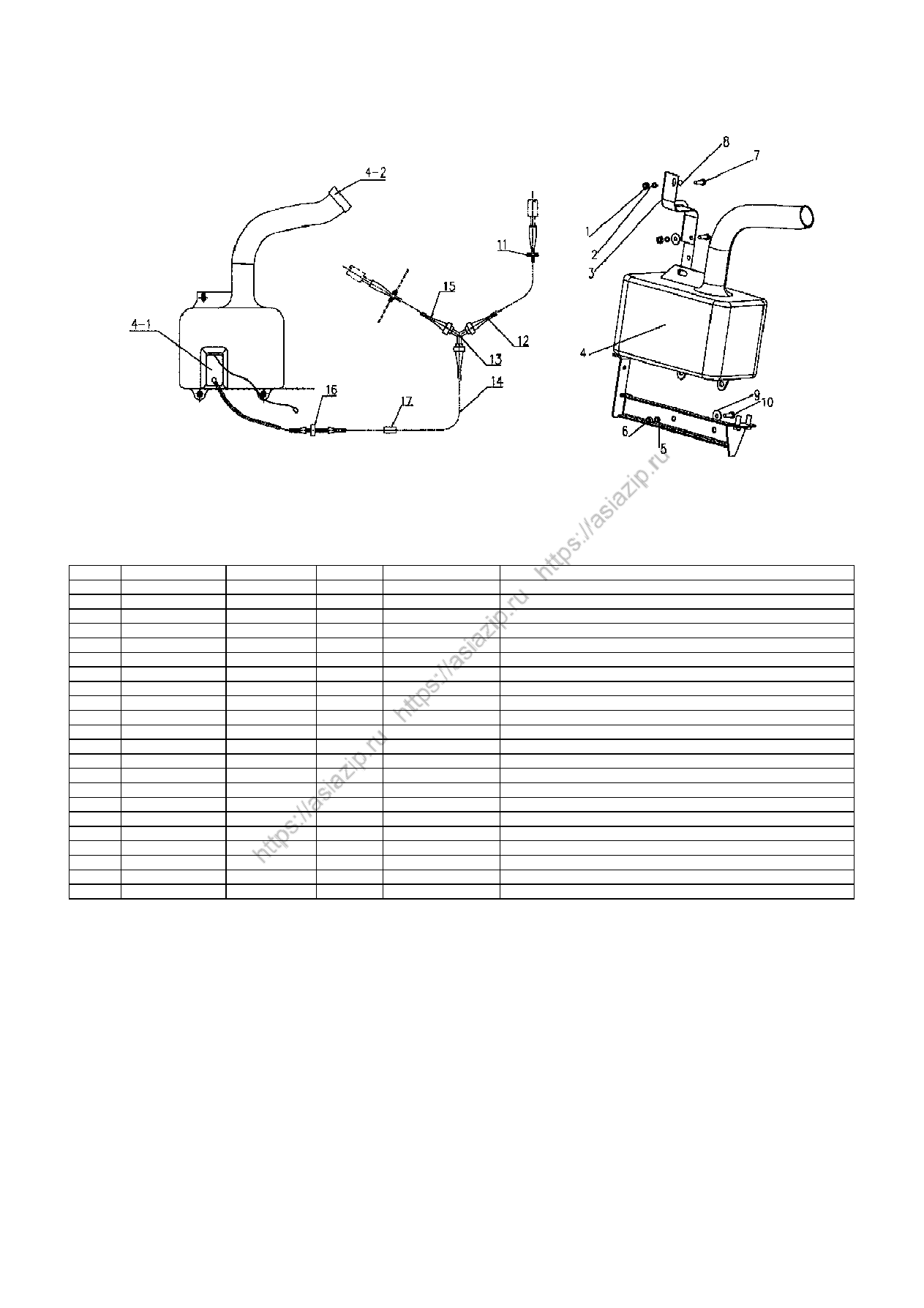

C12-31                       WINDSCREEN WASHING EQUIPMENT/风窗洗涤装置                           Fig.C12-35

C12-31                       WINDSCREEN WASHING EQUIPMENT/风窗洗涤装置

JINAN SHUNHE AUTO PARTS CO.,LTD

159

No

Number of part

Quantity

Description

Applicability

Designation

0

WG1642740002

Wiper (incl.1~5)

0

WG1646740002

Wiper (incl.1~5)

1

WG1642740009/1

1

Rod

1

WG1642740009/2

1

Option

Rod

1

WG1646740009

1

For drive right

Rod

2

WG1642740010/1

2

Wiper arm

2

WG1642740010/2

2

Option

Wiper arm

2

WG1646740001

1

For drive right

Wiper arm

3

WG1642740011/1

2

Wiper rubber

3

WG1642740011/2

2

Option

Wiper rubber

4

WG1642740008/1

1

Wiper anchor

4

WG1642740008/2

1

Option

Wiper anchor

5

Q33010

2

Lock nut

6

WG1642740003/1

1

Bracket for anchor

6

WG1642740003/2

1

Option

Bracket for anchor

7

AZ1642740004

2

Nut

8

AZ1642740005

2

Washer

9

AZ1642740006

2

Base

10

AZ1642740007

2

Protect cover

11

Q150B0812

8

Screw

12

Q40108

8

Washer

13

Q40308

8

Spring washer

14

Q150B0616

3

Screw

15

Q40306

3

Spring washer

16

Q40126

2

Washer

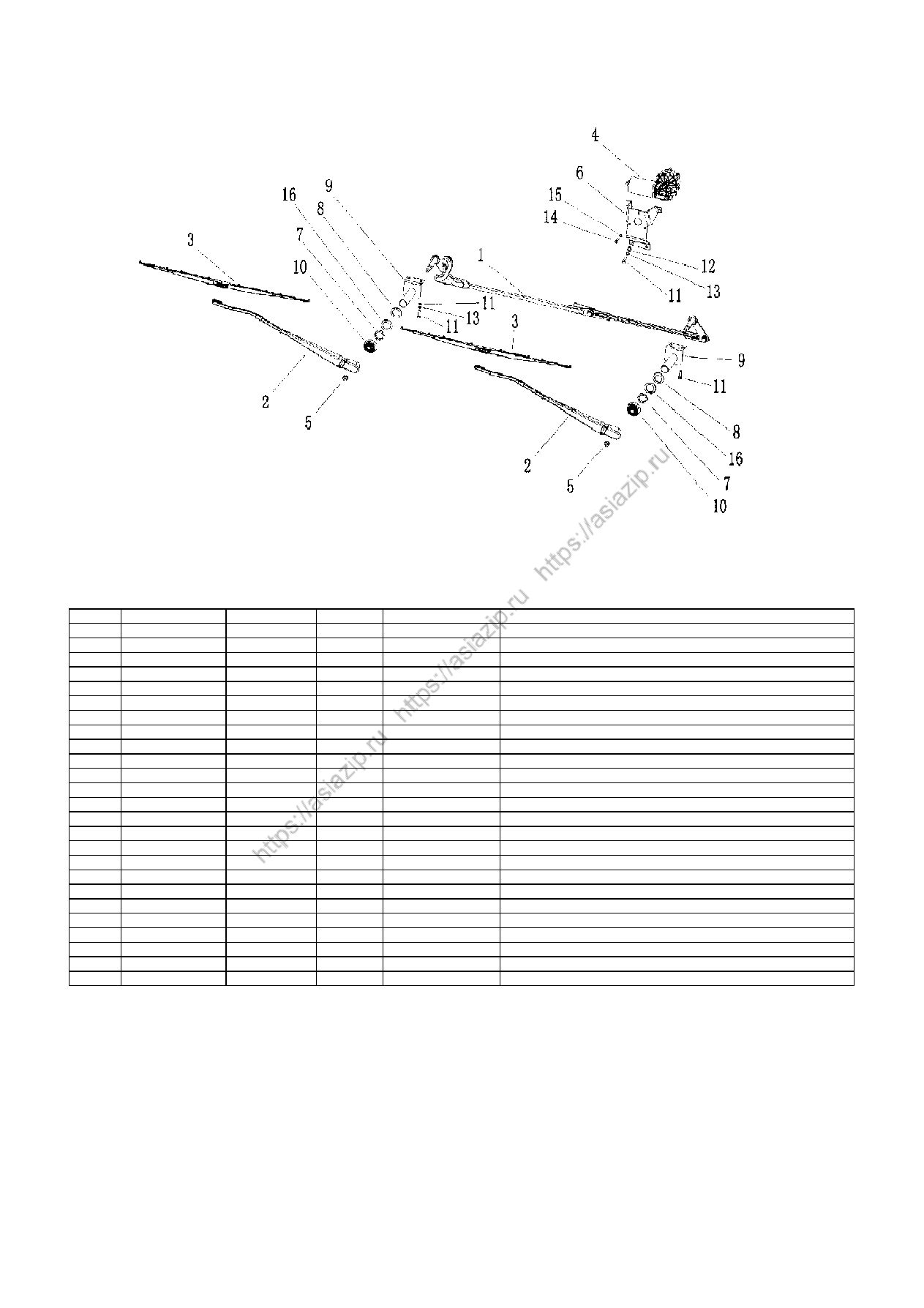

C12-32                                       WINDSCREEN WIPER/雨刮器                                 Fig.C12-36

C12-32                                       WINDSCREEN WIPER/雨刮器

JINAN SHUNHE AUTO PARTS CO.,LTD

160

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9719820001

1

Hydr.hand pump

1

WG9719826001

1

For drive right

Hydr.hand pump

2

Q150B1020

2

Screw

3

Q40310

2

Spring washer

4

WG9719820002

1

Hydr.cylinder

5

WG9719821005

1

B,BR,C,CR

High pressure hose

5

WG9719820005

1

A,AR

High pressure hose

6

WG9719821006

1

B,BR,C,CR

High pressure hose

6

WG9719820006

1

A,AR

High pressure hose

7

WG9719820007

1

High pressure hose

8

WG1642440075

1

High pressure hose

9

190003559482

1

T-nozzle

10

AZ9719820008

1

Support shaft I

11

AZ9719820009

1

Bush

12

Q40216

1

Washer

13

AZ9719820012

2

Bush

14

190003888459

1

Lock nut

15

Q700B06

2

Grease nipple

16

AZ9719820010

1

Support shaft II

17

WG9719820011

1

Washer

18

Q40124

1

Washer

19

WG1642440072

1

Hose

20

Q33424

2

Lock nut

21

WG9719820013

2

Washer

22

AZ9719820021

1

Above brace

23

Q5101428

2

Bolt

24

Q40114

2

Washer

26

Q41814

2

Washer

27

AZ9719820022

2

Bottom brace

28

190003903452

1

Bolt

29

Q41710

1

Washer

30

Q5003216

1

Split pin

31

Q5004028

2

Split pin

32

Q40112

1

Washer

33

190003171356

15

Plastic circlip

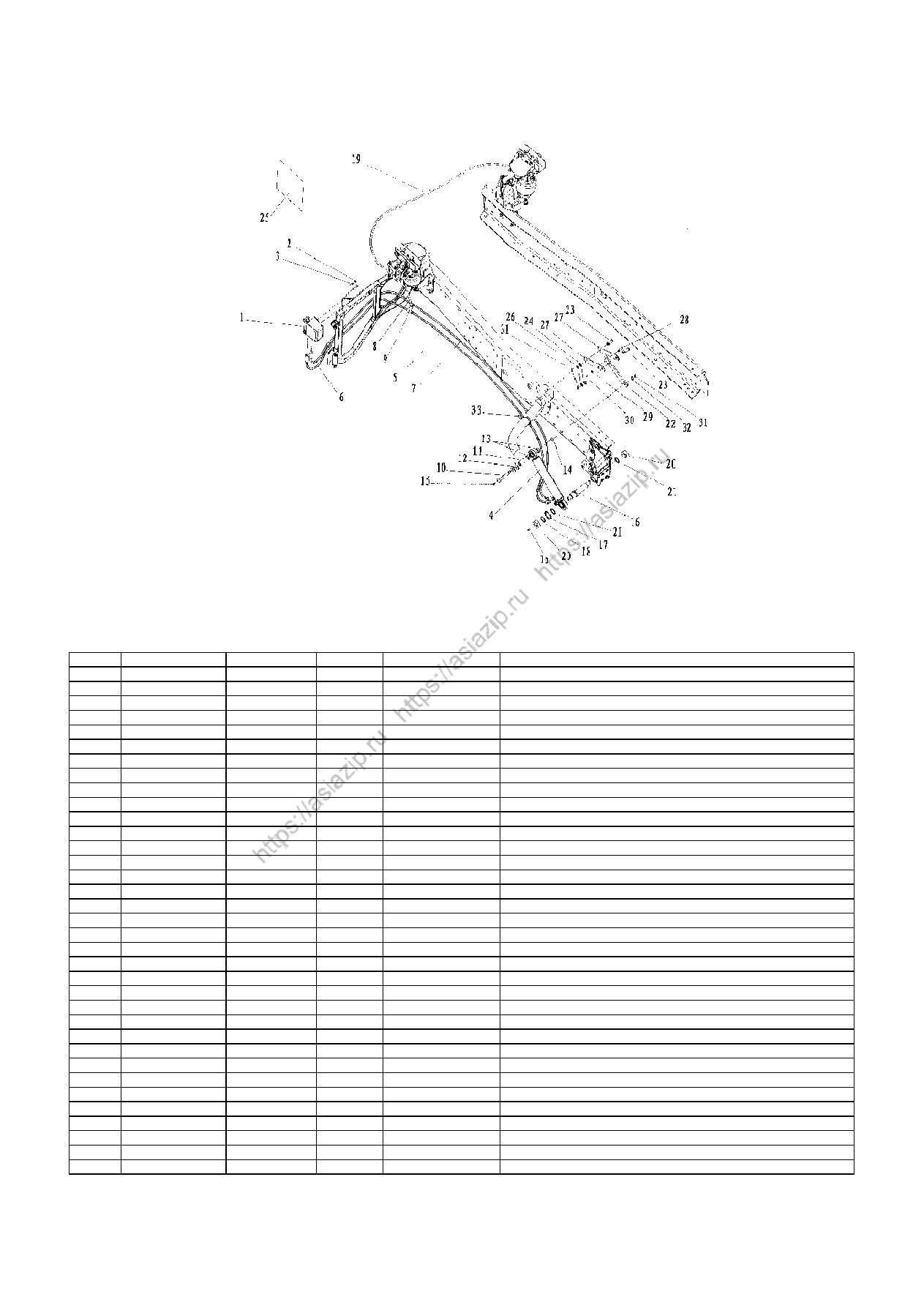

C12-33                                 TILTING EQUIPMENT/翻转装置                                   Fig.C12-37

C12-33                                 TILTING EQUIPMENT/翻转装置

JINAN SHUNHE AUTO PARTS CO.,LTD

161















содержание      ..     3      4      5      6     ..
