HOWO 6x4, 8x4, 4x2. Каталог запчастей (2005-2007 год) - часть 4

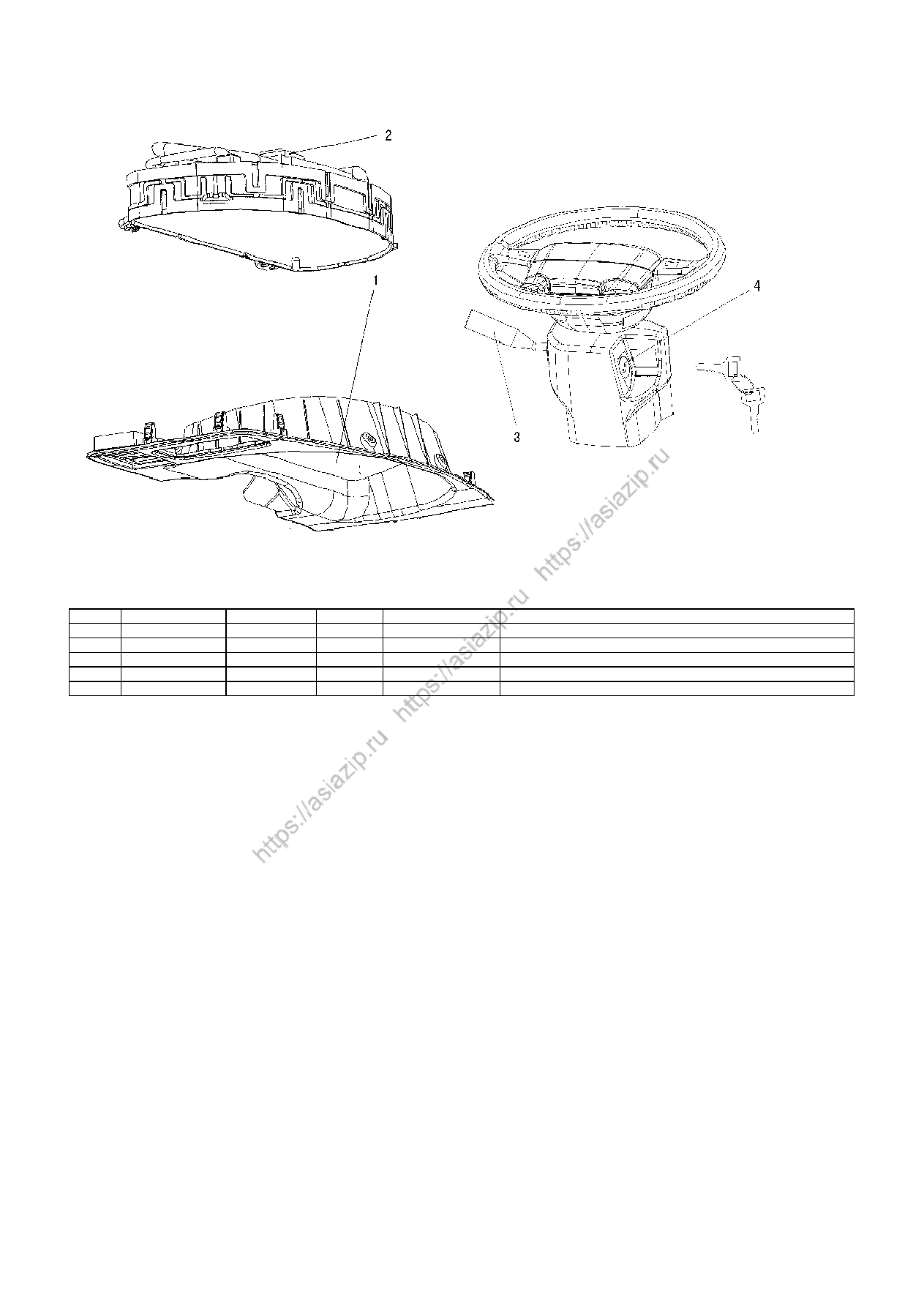

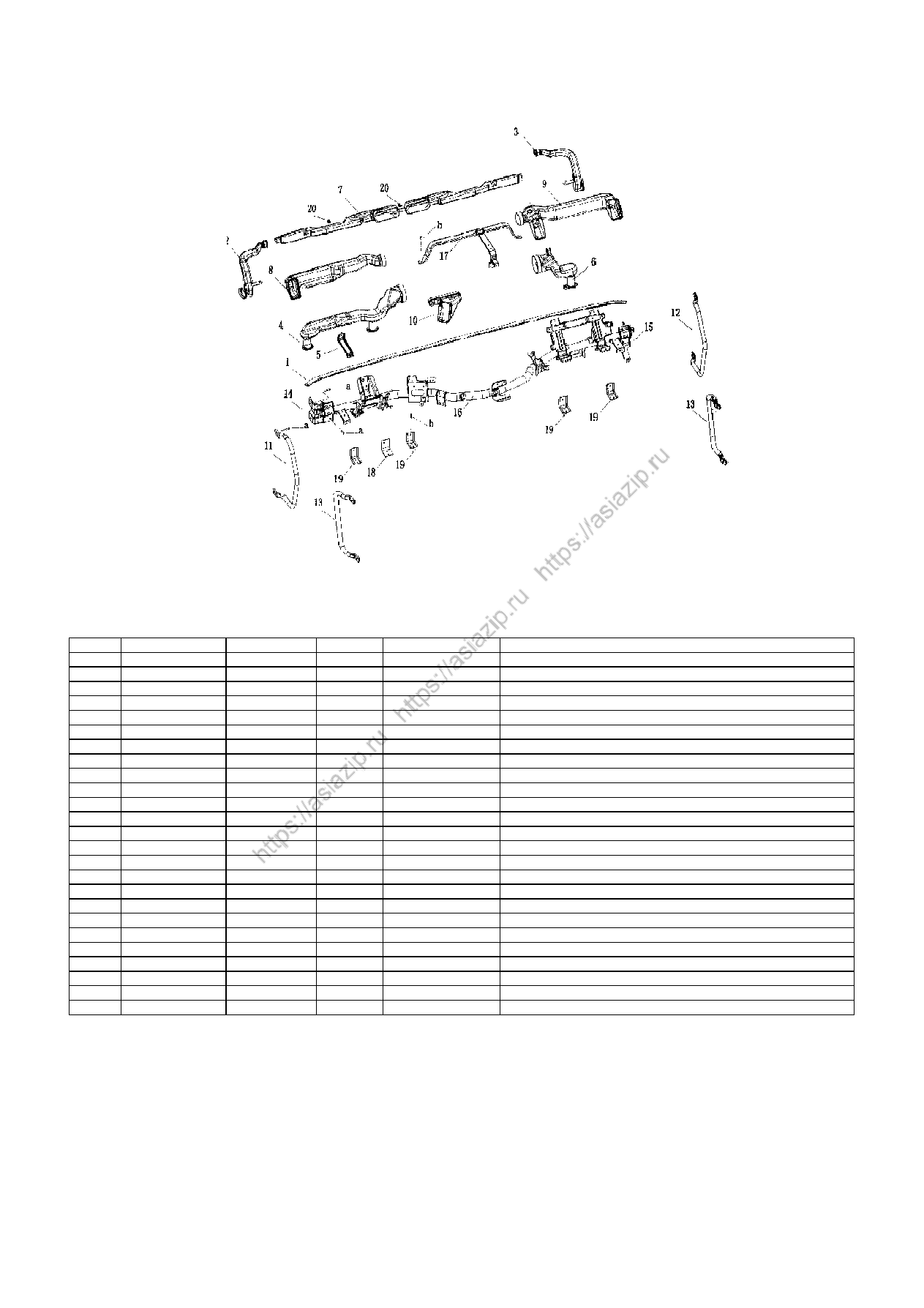

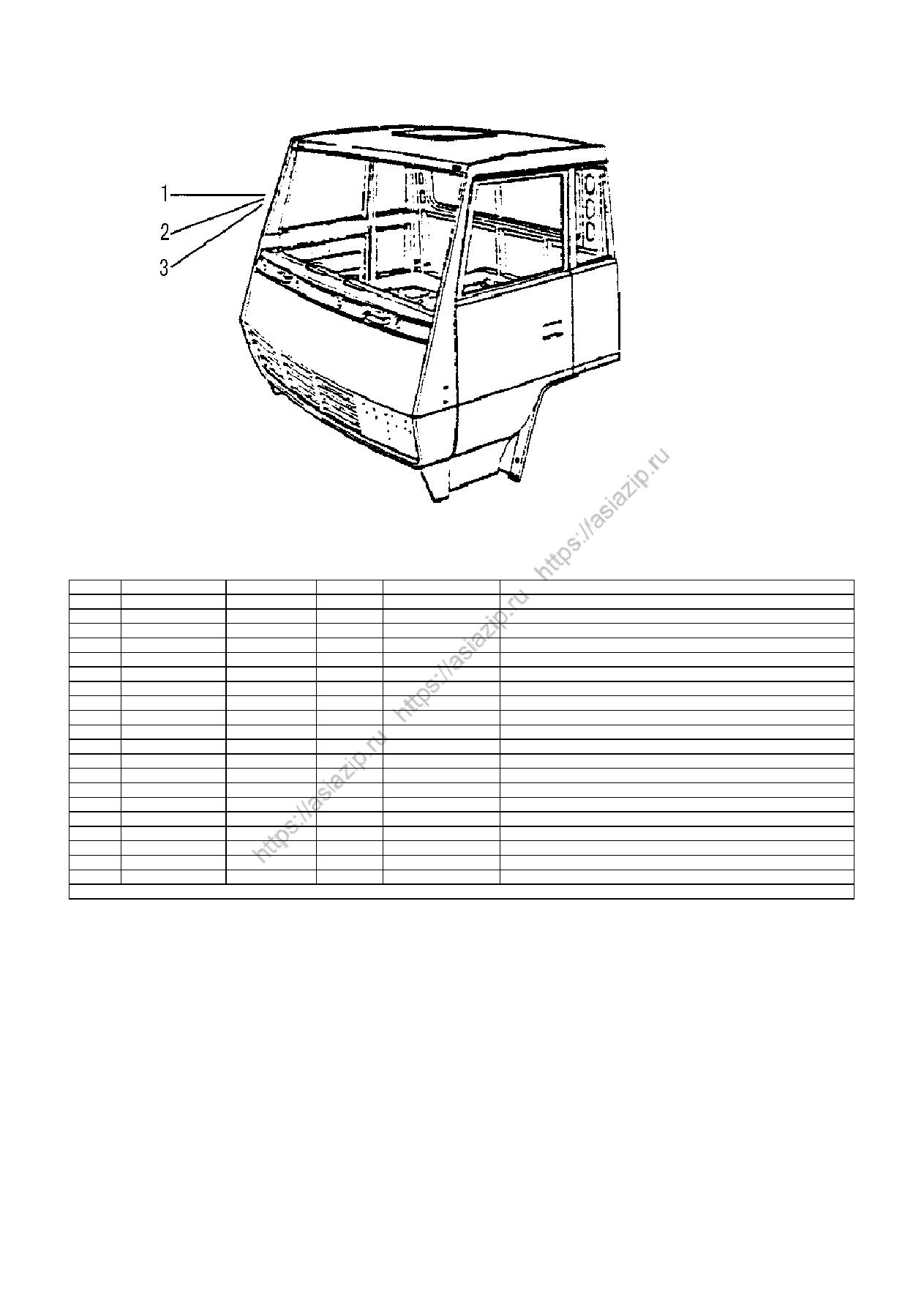

No

Number of part

Quantity

Description

Applicability

Designation

1

190003179782

7

Φ

6

×

1

Plastic pipe

2

190003559766

2

Nozzle

3

190003559516

5

Union nut

4

190003559508

1

Union nut

5

190003559561

6

Cutting ring

6

199014280016

6

Sleeve

7

190003559482

1

Nozzle

8

190003559497

1

Nozzle

9

199000360477

2

Gasket

10

1288 730061

2

O-ring

C10-8   6×4,8×4WHEEL PNEU.DIFF.LOCK FOR STEYR AXLE/STEYR双桥轮间差速锁操纵管路   Fig.C10-8

C10-8     6×4,8×4WHEEL PNEU.DIFF.LOCK FOR STEYR AXLE/STEYR双桥轮间差速锁操纵管路

JINAN SHUNHE AUTO PARTS CO.,LTD

98

No

Number of part

Quantity

Description

Applicability

Designation

1

190003179782

5

Φ

6

×

1

Plastic tube

2

190003559766

1

Nozzle

3

190003559516

1

Union nut

4

190003559561

2

Cutting ring

5

199014280016

2

Sleeve

6

199000360477

1

Gasket

7

WG9100710008

1

Magnetic valve

8

190003559497

1

Nozzle

9

190003559508

1

Union nut

10

1288730061

1

O-ring

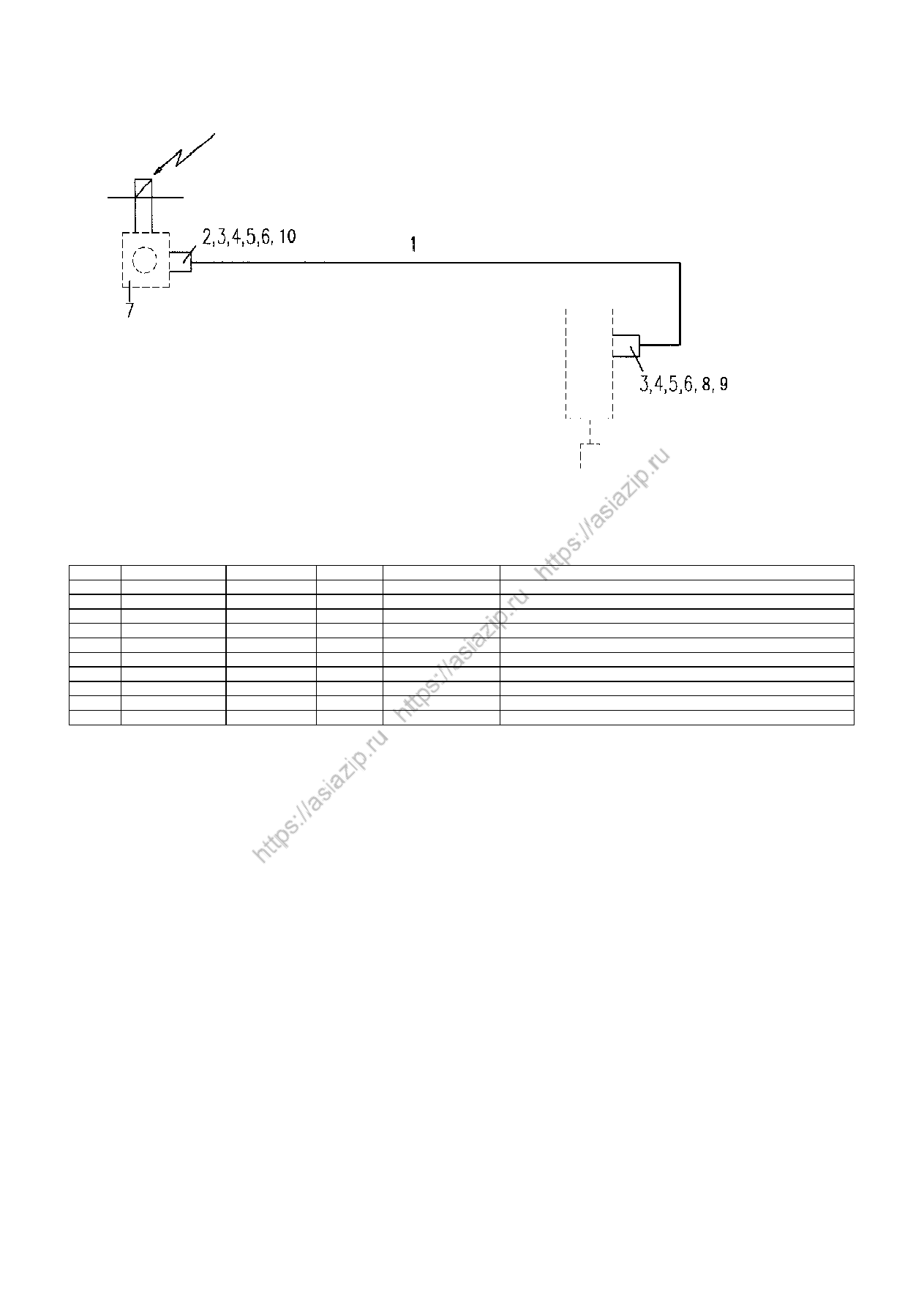

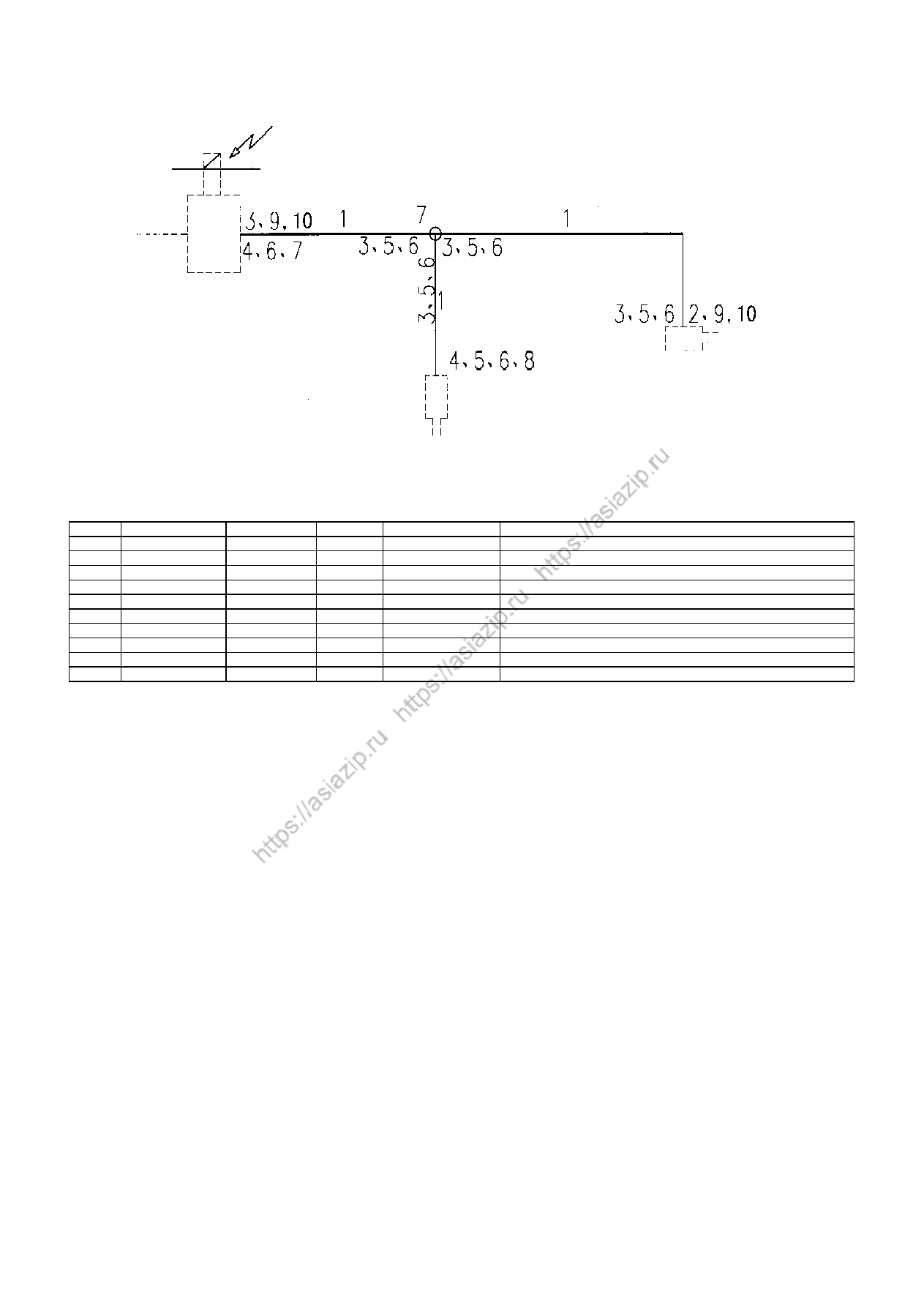

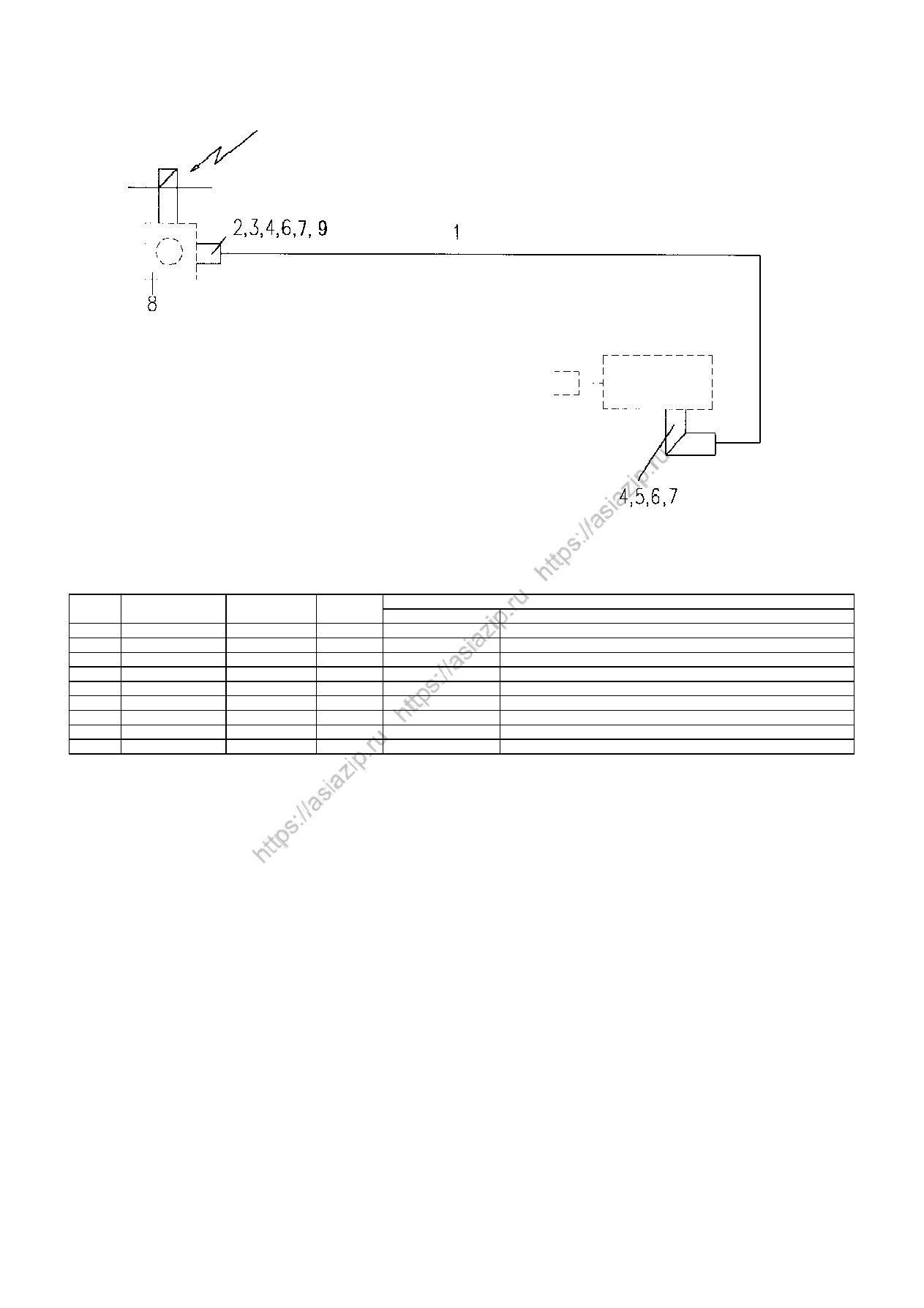

C10-9  4×2 PNEUMATIC DIFFER ENTIAL LOCK FOR STEYR AXLE/单桥轮间差速锁操纵管路 Fig.C10-9

C10-9  4×2 PNEUMATIC DIFFER ENTIAL LOCK FOR STEYR AXLE/单桥轮间差速锁操纵管路

JINAN SHUNHE AUTO PARTS CO.,LTD

99

No

Number of part

Quantity

Description

Applicability

Designation

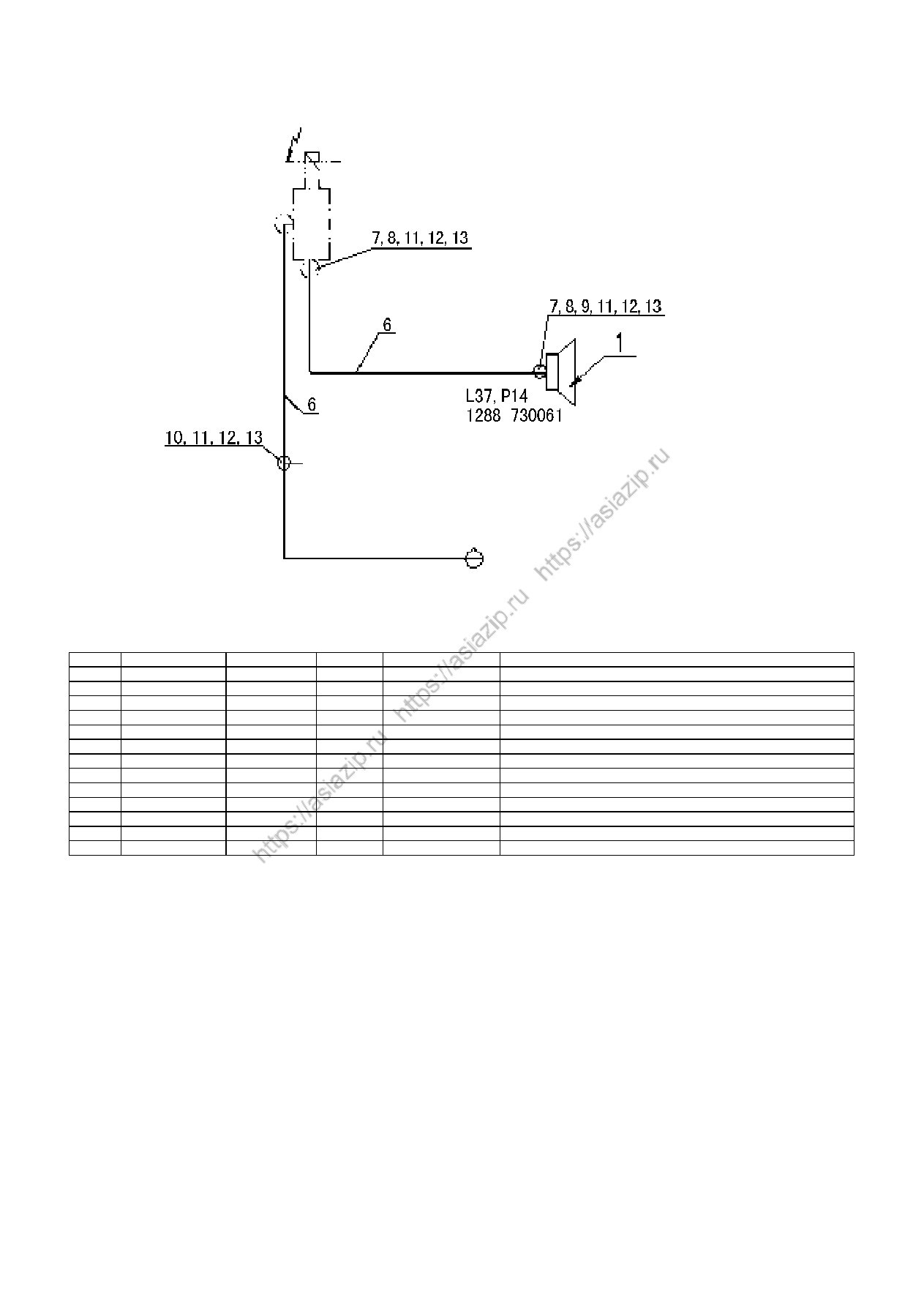

1

WG9716270003

1

Double-voice horn

2

AZ9716270005

1

Bracket for horh

3

Q150B0620

4

Screw

4

Q40306

4

Washer

5

Q340B06

4

Nut

6

190003179782

5

Φ

6

Plastic pipe

7

190003559766

1

Φ

6

Nozzle

8

199000360477

1

Gasket

9

1288 730061

1

O-ring

10

190003559482

1

Φ

6

T-nozzle

11

199014280016

6

Union nut

12

190003559561

6

Cutting ring

13

190003559516

6

sleeve

C10-10               DOUBLE VOICE PENUMATIC HORN/双音气喇叭操纵管路               Fig.C10-10

C10-10               DOUBLE VOICE PENUMATIC HORN/双音气喇叭操纵管路

JINAN SHUNHE AUTO PARTS CO.,LTD

100

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9716270004

1

Low voice penumatic horn

2

Q150B0625

3

Screw

3

Q40106

3

Washer

4

Q40306

3

Spring washer

5

190003179782

10

Φ

6

Plastic pipe

6

AZ9718360009

1

Rubber sleeve

7

190003559482

1

Φ

6

Nozzle

8

WG9719360009

1

Φ

6

Nozzle

9

Q351C12T15

1

Nut

10

Q41212

1

Toothed washer

11

199014280016

8

Union nut

12

190003559561

8

Cutting ring

13

190003559516

8

Sleeve

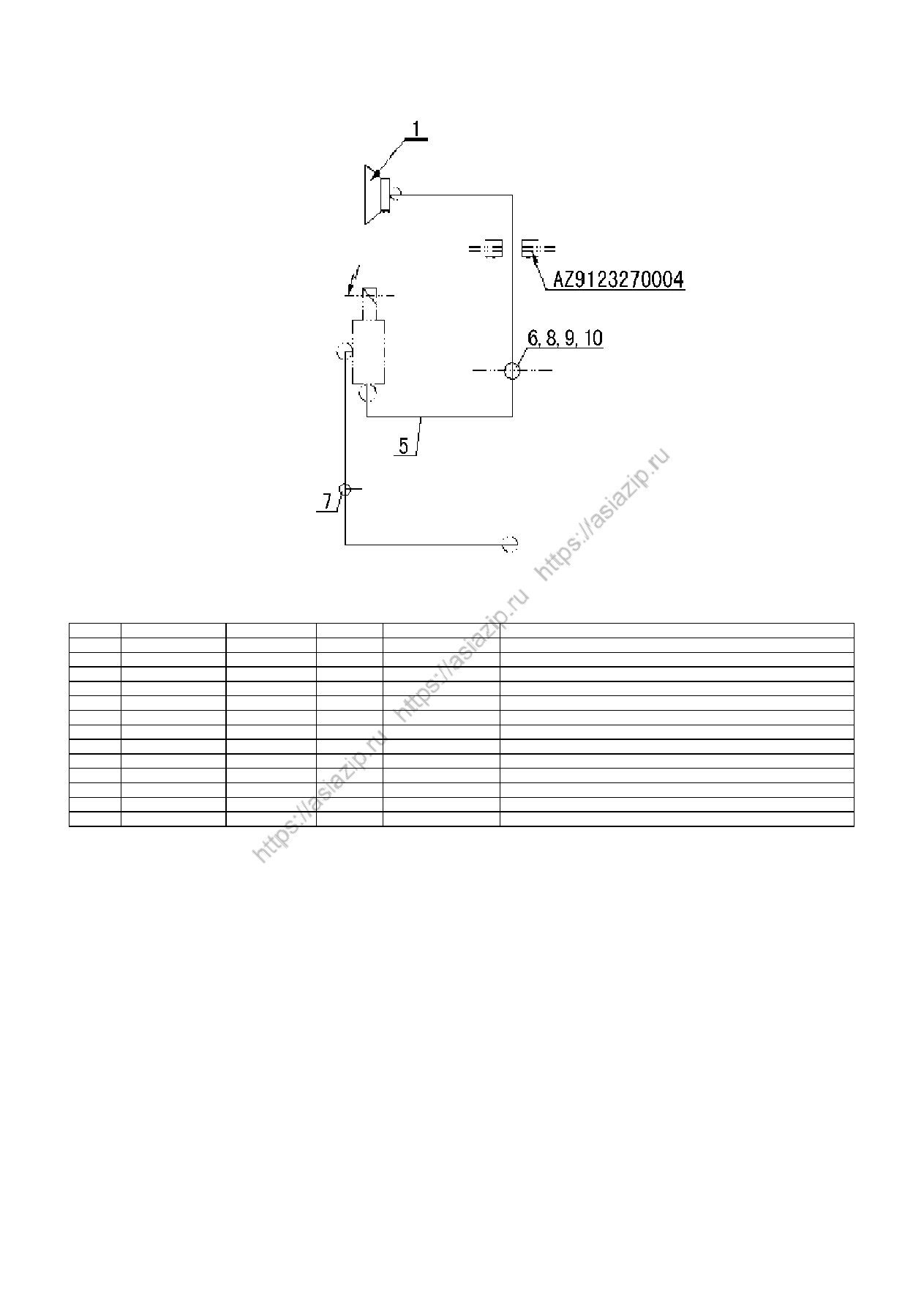

C10-11            LOW VOICE PENUMATIC HORN ON ROOF/顶置低音喇叭操纵管路            Fig.C10-11

C10-11            LOW VOICE PENUMATIC HORN ON ROOF/顶置低音喇叭操纵管路

JINAN SHUNHE AUTO PARTS CO.,LTD

101

No

Number of part

Quantity

Description

Applicability

Designation

1

190003179782

8

Φ

6

Plastic pipe

2

WG99112280014

2

Φ

6

Nozzle

3

190003559496

1

Φ

6

Nozzle

4

Q80406

1

Φ

6

Nozzle

5

Q80106

1

Union nut

6

190003559516

3

Union nut

7

190003559561

4

Cutting ring

8

199014280016

4

Sleeve

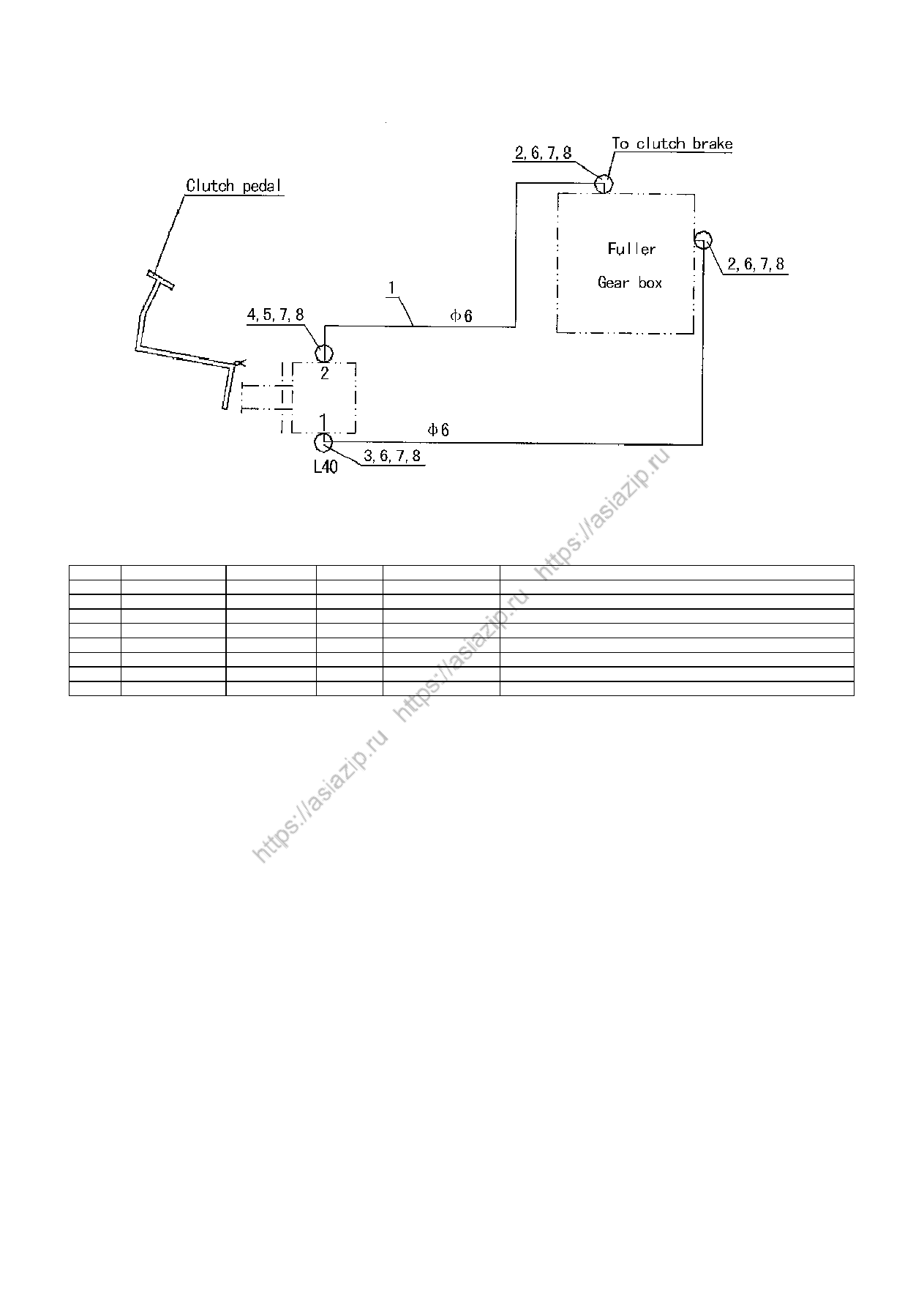

C10-12              AIR LINE FOR CLUTCH BRAKE/离合器制动器气操纵管路            Fig.C10-12

C10-12              AIR LINE FOR CLUTCH BRAKE/离合器制动器气操纵管路

JINAN SHUNHE AUTO PARTS CO.,LTD

102

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9000360366

1

4-Cir.protection valve

2

AZ9719360013

2

Bracket for protection valve

3

Q33212

2

Nut

4

Q150B1220

2

Screw

5

Q40308

2

Spring washer

6

Q150B0818

2

Screw

7

Q150B1030

3

Screw

8

Q33210

3

Nut

9

WG9100368471

1

Air dryer

10

AZ9719360014

1

Bracket for air dryer

11

Q41212

3

Toothed washer

12

Q151C1225

3

Screw

13

WG9719360001

1

Air reservoir

14

WG9100360319

2

Gasket

15

1680 250092

2

Gasket

16

WG9000360115

Drain valve

17

Q40108

4

Washer

18

Q40308

4

Spring washer

19

Q150B0820

4

Screw

21

Q33210

2

Nut

22

Q150B1035

2

Screw

23

AZ9130360003

1

Bracket for trailer control valve

24

Q40108

2

Washer

25

Q40308

2

Spring washer

26

Q340B08

2

Nut

27

WG9000360180

1

Trailer control valve

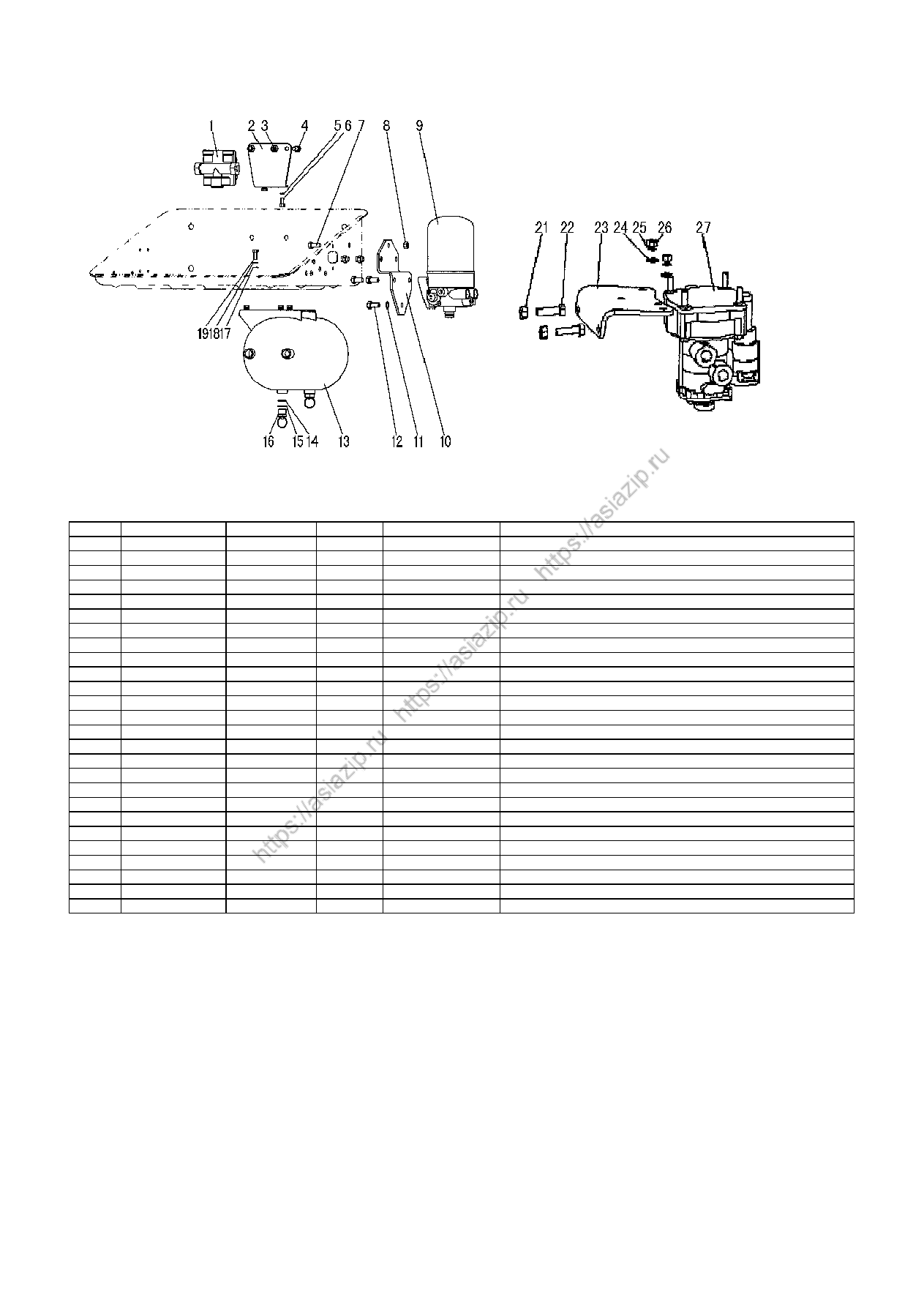

C10-13     AIR RESERVOIR FIXATION FOR TRACTOR TRUCK I/牵引车贮气筒固定Ⅰ     Fig.C10-13

C10-13     AIR RESERVOIR FIXATION FOR TRACTOR TRUCK I/牵引车贮气筒固定Ⅰ

JINAN SHUNHE AUTO PARTS CO.,LTD

103

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9000360115

3

Drain valve

2

1680 250092

3

Gasket

3

WG9100360319

3

Gasket

4

WG9003550087

1

Air reser voir 20L

5

Q218B0880

2

Screw

6

WG09 190017

2

Tension bolt

7

WG700550013

2

Tension bolt

8

WG99112270012

2

Tension strap

9

17017360105

1

Bracket

10

Q340B08

4

Nut

11

Q40308

4

Spring washer

12

Q40108

4

Washer

13

Q150B0830

4

Screw

14

WG9000360366

1

4-Cir.protection valve

15

AZ9719360013

1

Bracket for protection valve

16

Q150B1220

2

Screw

17

Q33212

2

Nut

18

Q40308

2

Spring washer

19

Q150B0818

2

Screw

20

Q150B1030

3

Screw

21

AZ9719360014

1

Bracket for air dryer

22

Q33210

3

Nut

23

WG9100368471

1

Air dryer

24

Q41212

3

Toothed washer

25

Q151C1225

3

Screw

26

WG99100360173

2

Tension strap

27

WG9003550094

2

30L air reservoir

28

Q340B06

4

Nut

29

Q40506

4

Spring washer

30

Q40206

4

Washer

31

199100360101

2

Distance piece

32

Q150B0616

4

Screw

33

Q340B10

2

Nut

34

Q40310

2

Spring washer

35

190003961510

2

Washer

36

Q340B10

2

Nut

37

Q40310

2

Spring washer

38

Q150B1025

2

Screw

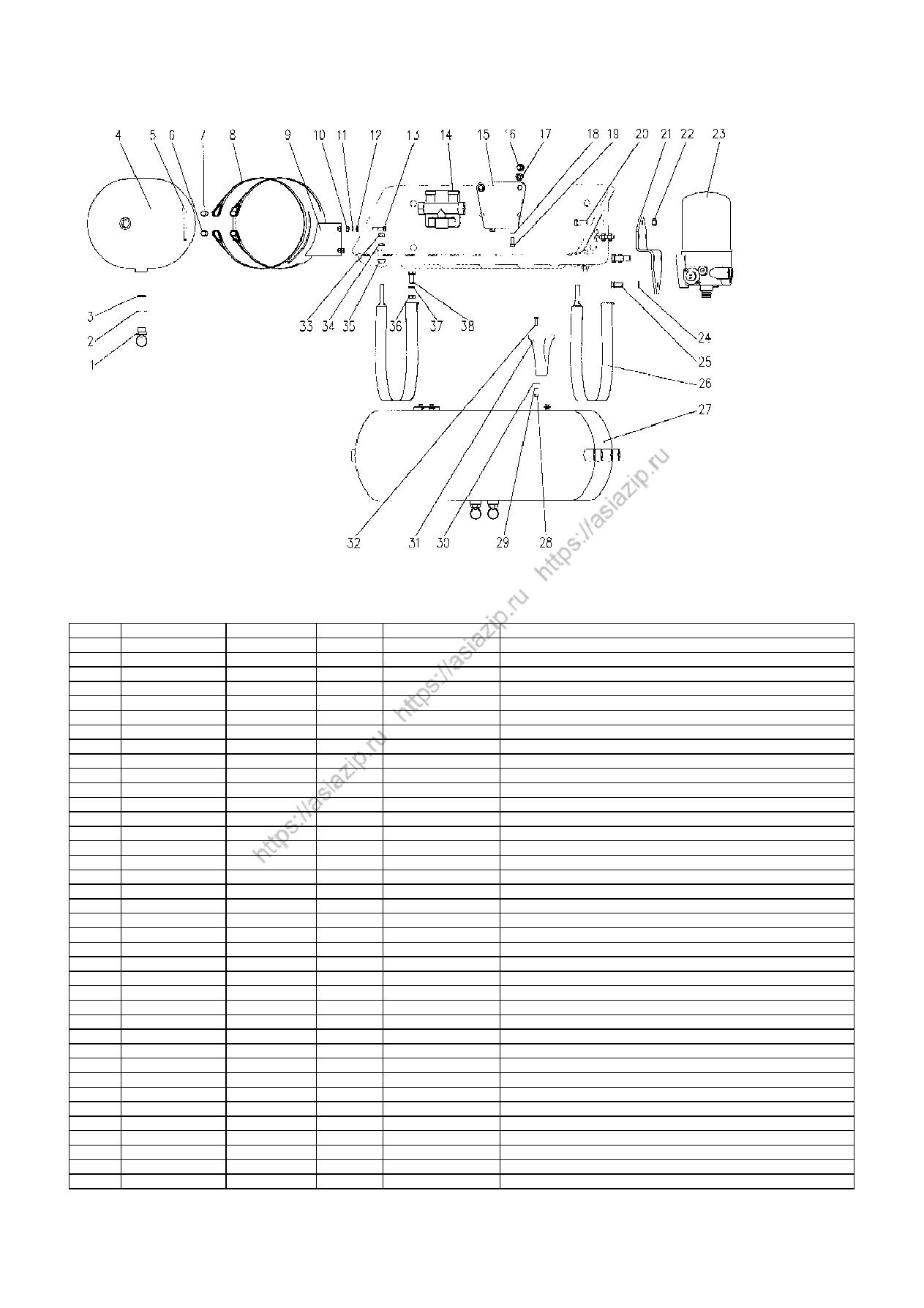

C10-14      AIR RESERVOIR FIXATION FOR CARGO TRUCKⅠ/载货车储气筒固定Ⅰ     Fig.C10-14

C10-14      AIR RESERVOIR FIXATION FOR CARGO TRUCKⅠ/载货车储气筒固定Ⅰ

JINAN SHUNHE AUTO PARTS CO.,LTD

104

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9014362117

1

30L reservoir

2

1680 250092

1

Gasket

3

WG9100360319

1

Gasket

4

WG9000360115

1

Drain valve

5

WG700550013

2

Tension bolt

6

WG09 190017

2

Tension bolt

7

Q218B0880

2

Screw

8

WG9719360024

2

Tension strap

9

AZ9718360005

1

Support

10

Q340B08

4

Nut

11

Q40308

4

Spring washer

12

Q40108

4

Washer

13

Q150B0822

4

Screw

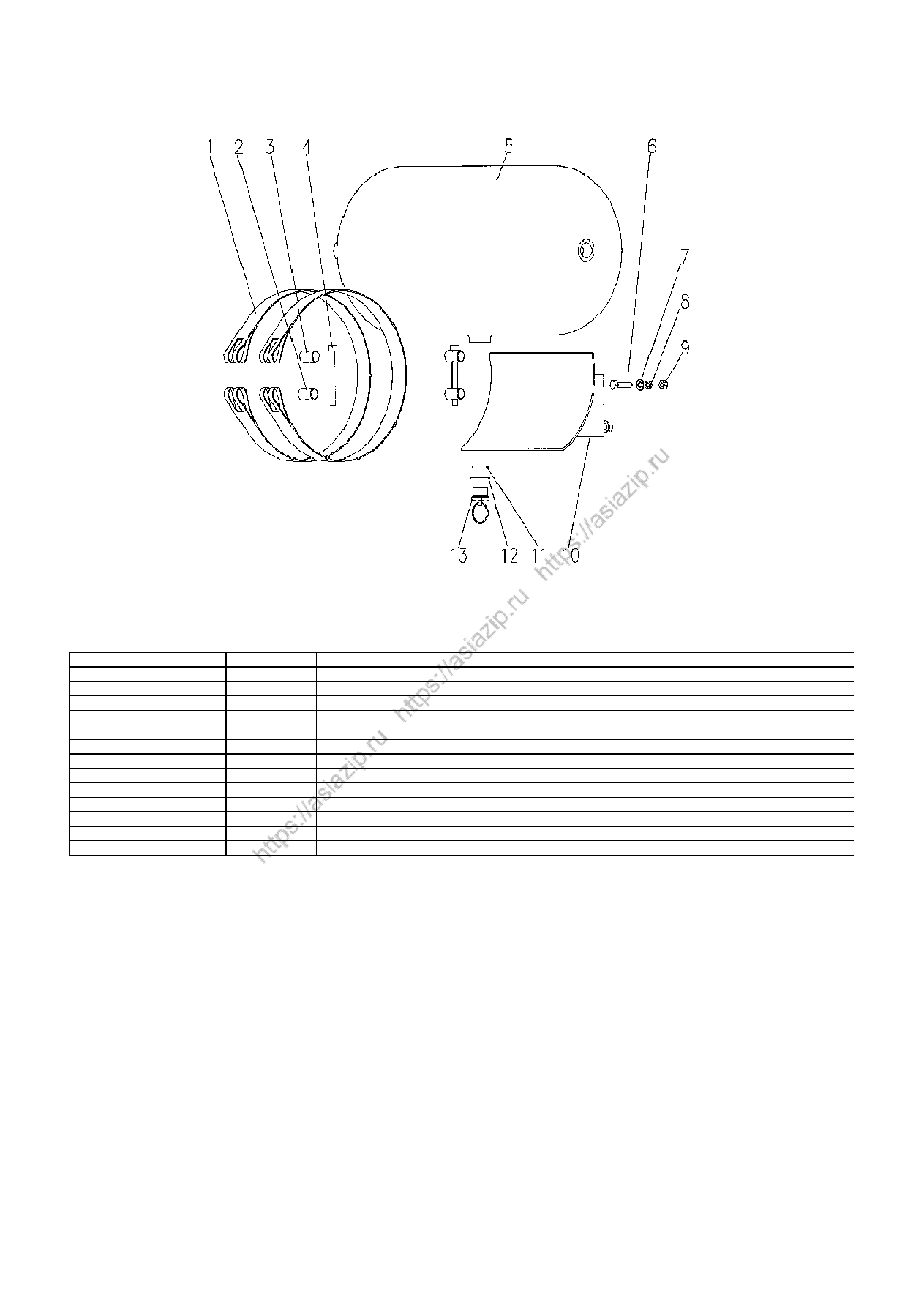

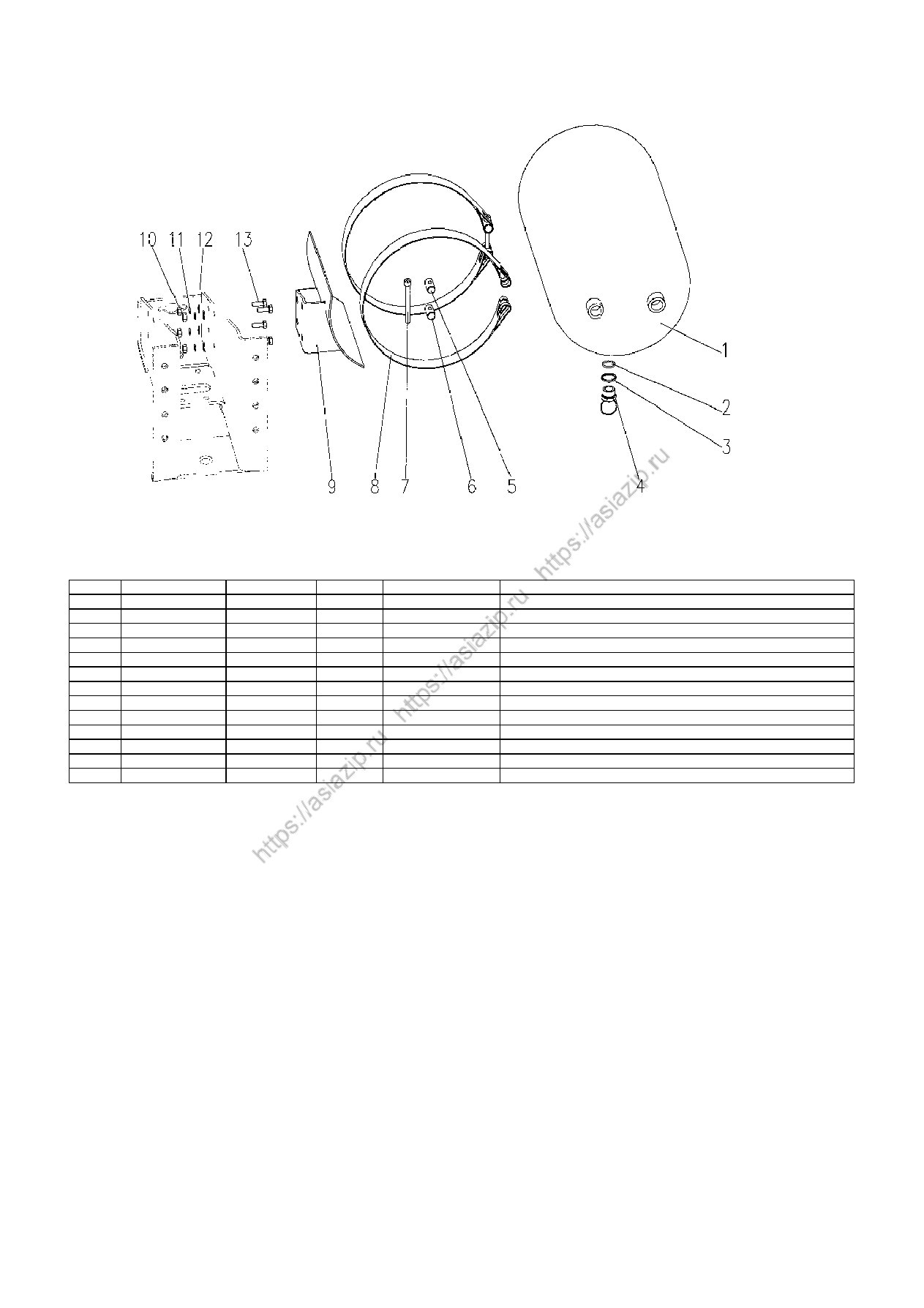

C10-15      AIR RESERVOIR FIXATION FOR TRACTOR TRUCK Ⅱ/牵引车储气筒固定Ⅱ      Fig.C10-15

C10-15      AIR RESERVOIR FIXATION FOR TRACTOR TRUCK Ⅱ/牵引车储气筒固定Ⅱ

JINAN SHUNHE AUTO PARTS CO.,LTD

105

No

Number of part

Quantity

Description

Applicability

Designation

1

WG99112270012

2

Tension strap

2

WG09  190017

2

Tension bolt

3

WG700550013

2

Tension bolt

4

Q218B0880

2

Screw

5

WG9003550087

2

Air reservoir

6

Q150B0830

4

Screw

7

Q40108

4

Washer

8

Q40308

4

Spring washer

9

Q340B08

4

Nut

10

199100360105

1

Bracket

11

WG9100360319

1

Gasket

12

1680  250092

1

Gasket

13

WG9000360115

1

Drain valve

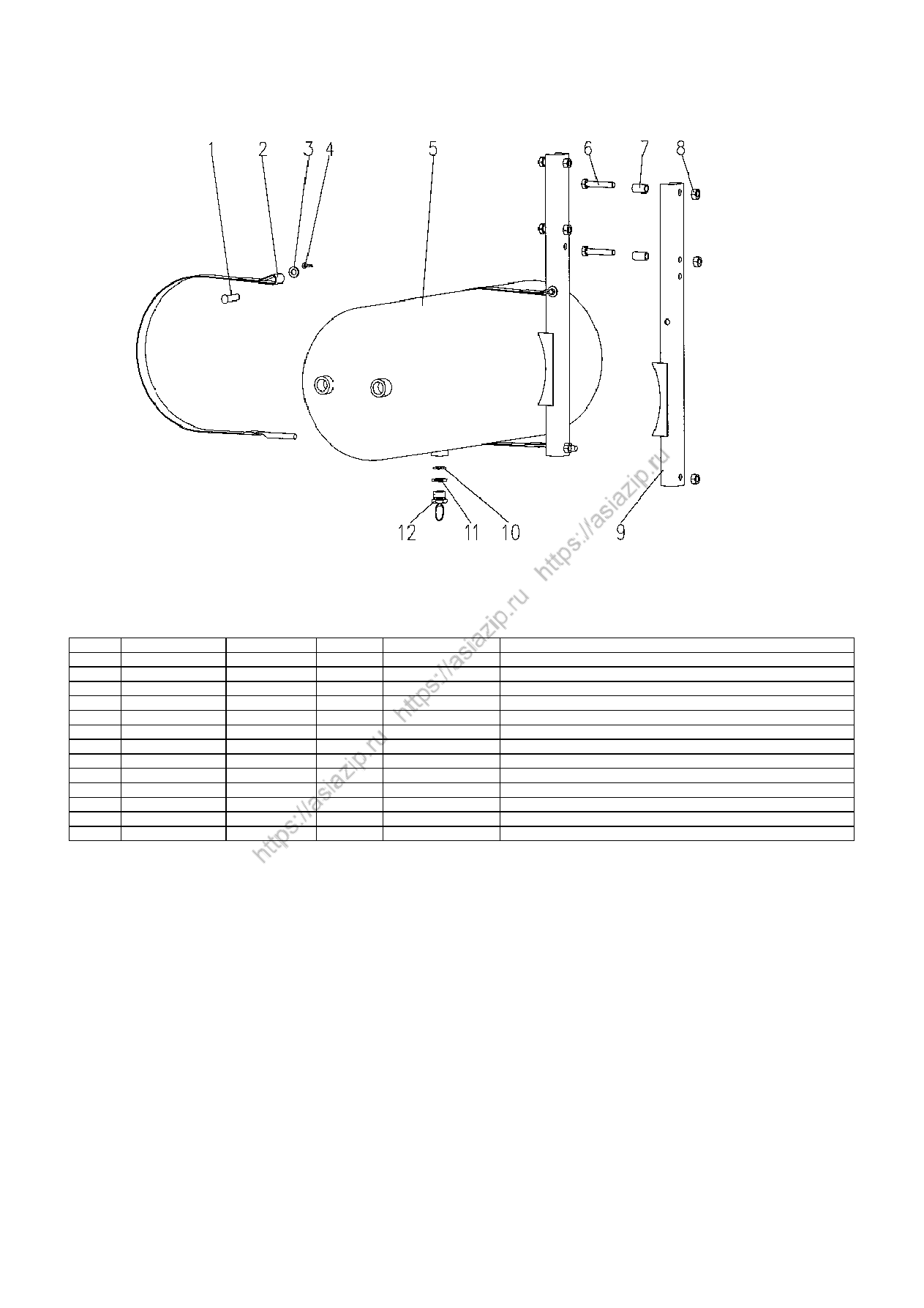

C10-16                   20L AIR RESERVOIR FIXATION/20L储气筒的固定                Fig.C10-16

C10-16                   20L AIR RESERVOIR FIXATION/20L储气筒的固定

JINAN SHUNHE AUTO PARTS CO.,LTD

106

No

Number of part

Quantity

Description

Applicability

Designation

1

Q5101048

2

Bolt

2

WG99118360019

2

Tension strap

3

Q40110

2

Washer

4

Q5003214

2

Split pin

5

WG9003550098

1

Φ

6

×

4

40Lair reservoir

5

WG9014362117

1

4

×

2

30Lair reservoir

6

Q150B1055

4

Screw

7

1293 250096

4

Distance sleeve

8

Q33210

6

Nut

9

AZ9118360004

2

Bracket

10

WG9100360319

1

Gasket

11

1680 250092

1

Gasket

12

WG9000360115

1

Drain valve

C10-17     AIR RESERVOIR FIXATION FOR TRACTOR TRUCK Ⅲ/牵引车储气筒固定Ⅲ    Fig.C10-17

C10-17     AIR RESERVOIR FIXATION FOR TRACTOR TRUCK Ⅲ/牵引车储气筒固定Ⅲ

JINAN SHUNHE AUTO PARTS CO.,LTD

107

4

×

2

6

×

4

1

190003179782

200

Φ

6

×

1

√

2

190003559766

1

√

3

199000360477

1

√

4

199014280016

2

√

5

190003559497

1

√

6

190003559561

2

√

7

190003559516

2

√

8

WG9100710008

1

√

9

1288 730061

1

√

C10-7     AIR LINE FOR AXLE PNEU.DIFF.LOCK/轴间差速锁操纵管路    Fig.C10-7

C10-7           AIR LINE FOR AXLE PNEU.DIFF.LOCK/轴间差速锁操纵管路

Applicability

No

Number of part

Quantity

Description

JINAN SHUNHE AUTO PARTS CO.,LTD

108

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719580005

1

Combination instrument panel

2

AZ9719580001

1

Center control block left

3

WG9130583017

1

Combination switch

4

AZ9130583019

1

Start switch by key

10

WG9100583056

1

Sensor for speedmeter

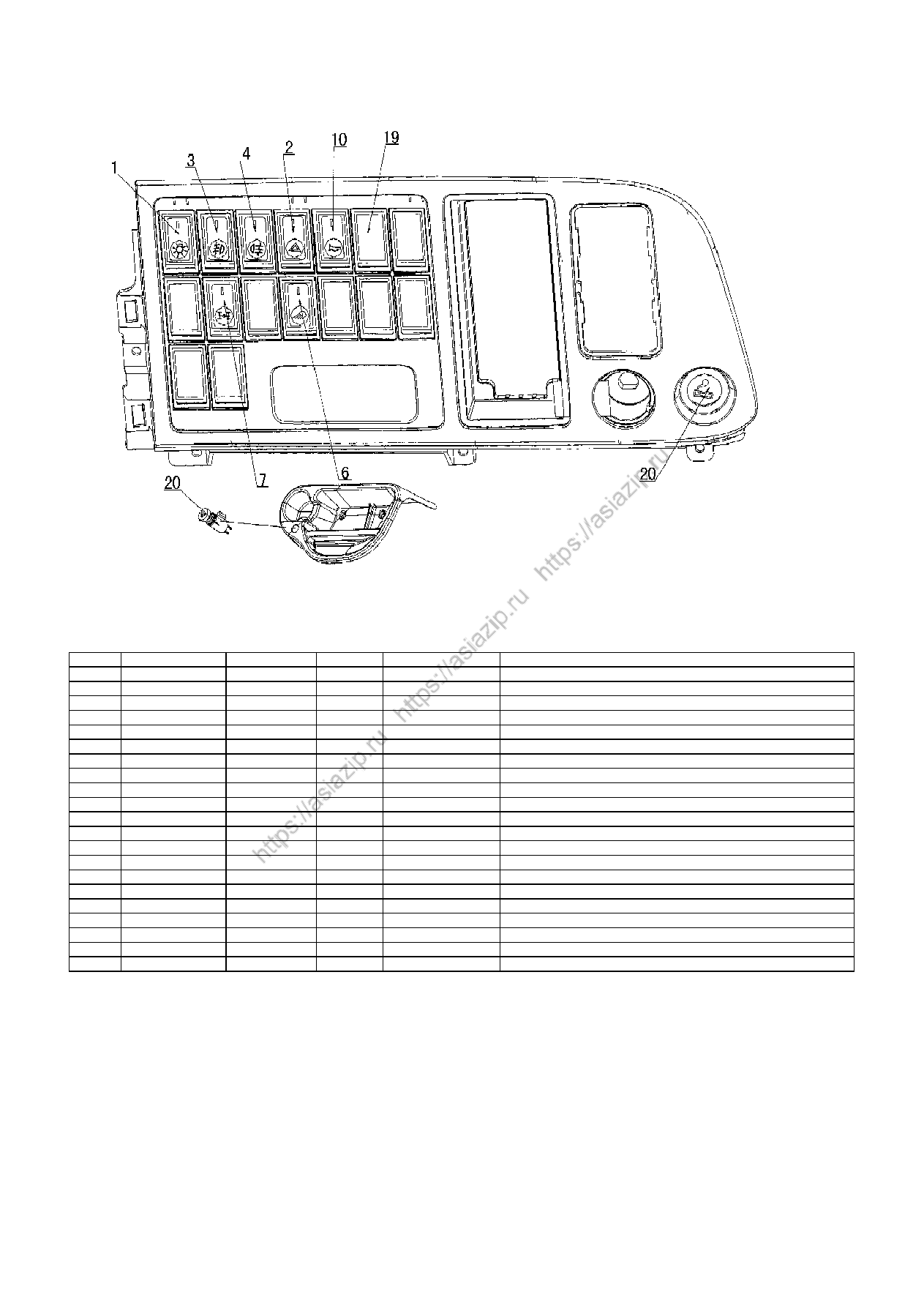

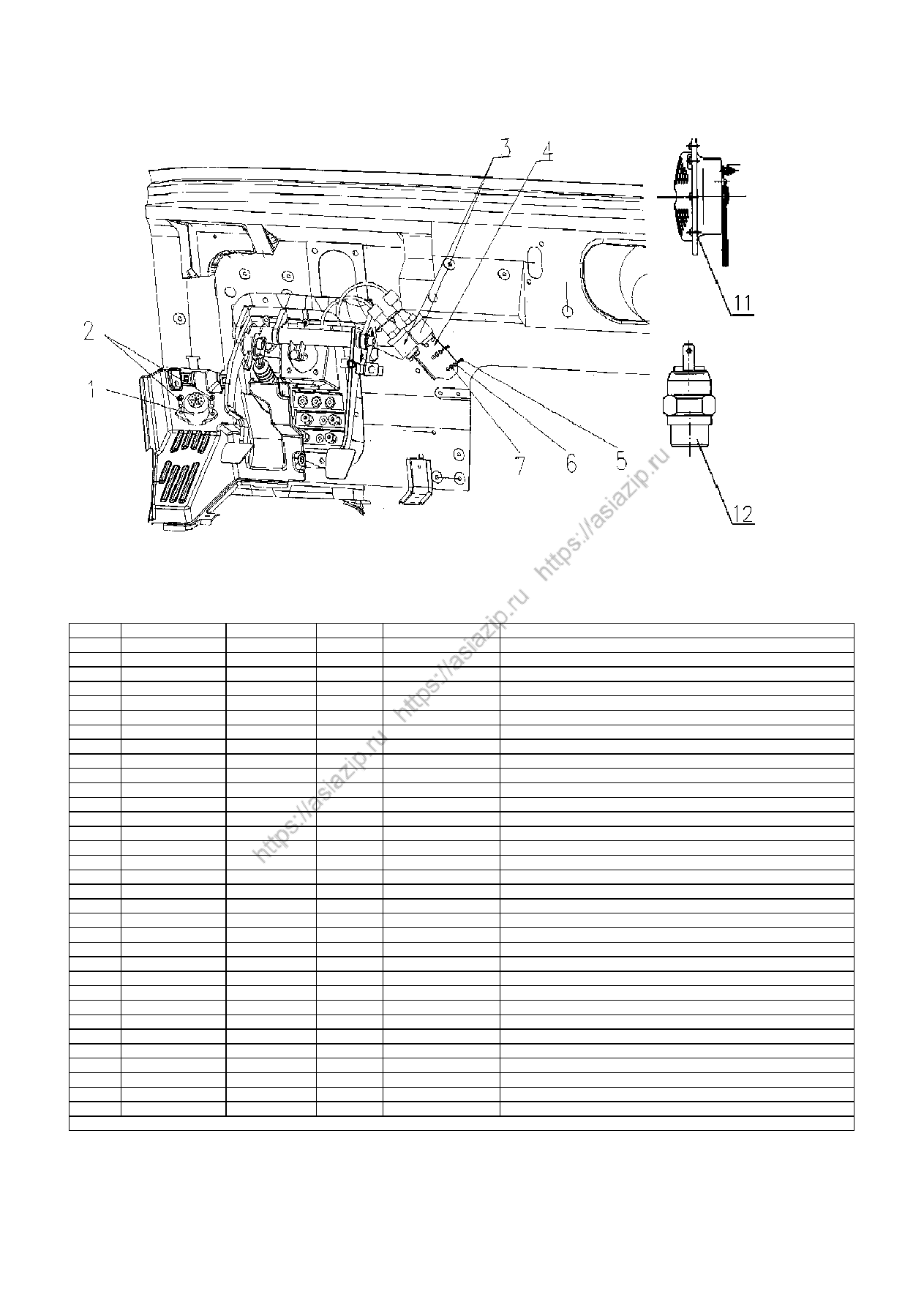

C11-1   CAN MAIN CIRCUIT ELECTRICAL DASHBOARD/CAN总线控制电气系统组合仪表板    Fig.C11-1

C11-1   CAN MAIN CIRCUIT ELECTRICAL DASHBOARD/CAN总线控制电气系统组合仪表板

JINAN SHUNHE AUTO PARTS CO.,LTD

109

No

Number of part

Quantity

Description

Applicability

Designation

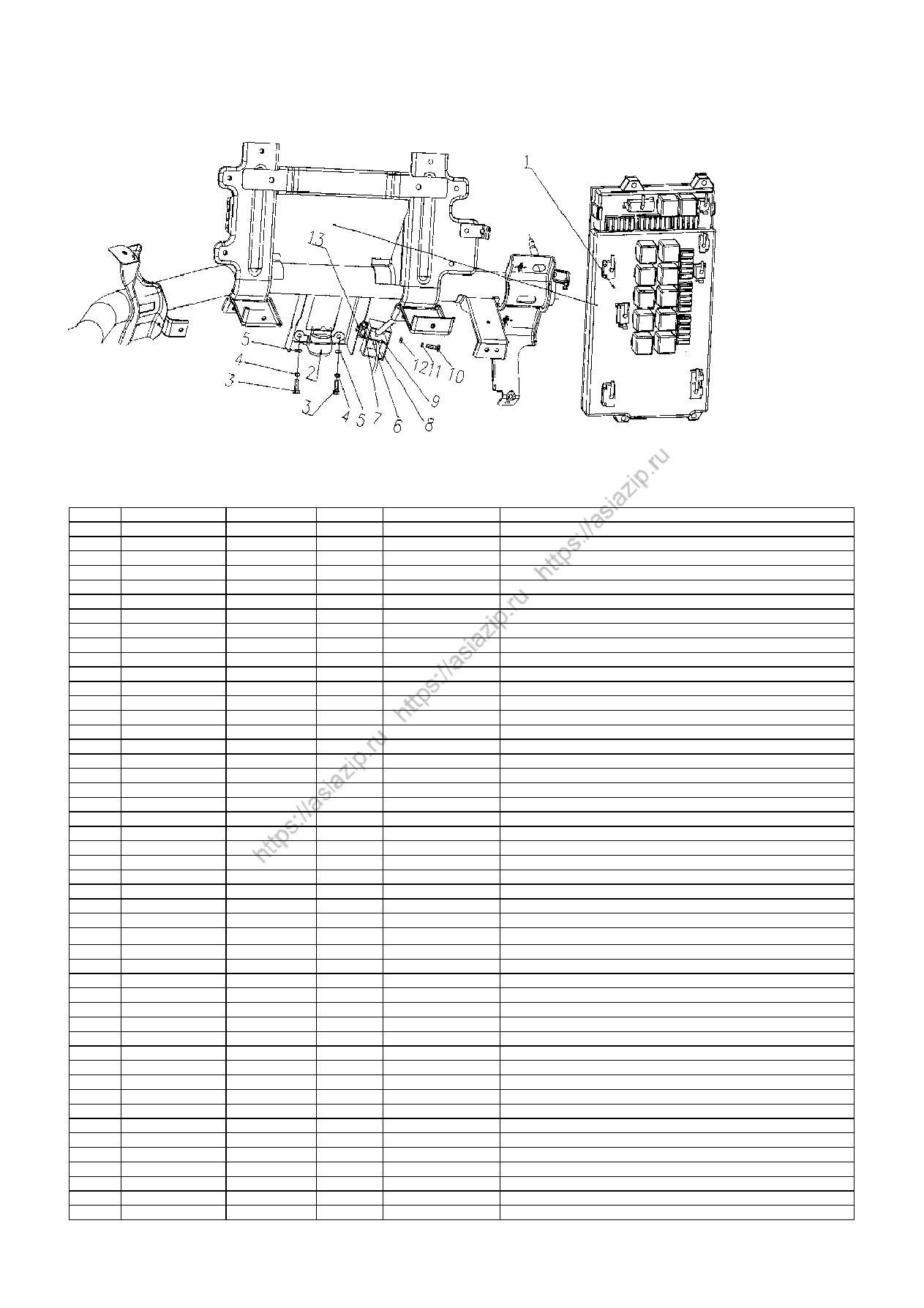

1

AZ9719580002

1

Control block right

1—1

AZ9719580002-1

1

Control block right without relay

1—2

F1-1

1

15A

Fuse for seat adjusting

1—3

F1-2

1

15A

Fuse for start switch

1—4

F1-3

1

25A

Fuse for ABS of trailer

1—5

F1-4

1

15A

Fuse for cigar lighter left

1—6

F1-5

1

15A

Fuse for radio and cigar lighter right

1—7

F2-1

1

15A

Fuse for ECAS

1—8

F2-2

1

25A

Fuse for ABS(30#)

1—9

F2-3

1

15A

Fuse for ABS(30#)

1—10

F2-4

1

15A

Fuse for elctrodrnamic window left

1—11

F2-5

1

15A

Fuse for elctrodrnamic window right

1—12

F3-1

1

15A

Fuse for spare relay

1—13

F3-2

1

15A

Fuse for spare relay

1—14

F3-3

1

10A

Fuse for ABS(15#)

1—15

F3-4

1

15A

Fuse for ECAS(15#)

1—16

F3-5

1

15A

Fuse for 15# electroline

1—17

F4-1

1

15A

Fuse for steering lights

1—18

F4-2

1

25A

Fuse for 30#electroline

1—19

F4-3

1

10A

Fuse for electrothermal seat

1—20

F4-4

1

10A

Fuse for 15# electroline

1—21

F4-5

1

10A

Fuse for air dryer

1—22

F5-1

1

10A

Fuse for combination instrument and control block left

1—23

F5-2

1

10A

Fuse for wiper

1—24

F5-3

1

25A

Fuse for electroline of air conditioner

1—25

F5-4

1

10A

Fuse for low beam

1—26

F5-5

1

25A

Fuse for high beam

1—27

F6-1

1

25A

Fuse for position light

1—28

F6-2

1

15 A

Fuse for electroline D

+

1—29

F6-3

1

10:00 AM

Fuse for front fog lamp

1—30

F6-4

1

15 A

Spare fuse

1—31

F6-5

1

10:00 AM

Spare fuse

1—32

J1

1

Relay for steering lamp right

1—33

J2

1

Relay for air dryer and electrothermal seat

1—34

J3

1

Relay for air conditioner

1—35

J4

1

Relay for high beam

1—36

J5

1

Relay for fog lamp front

1—37

J6

1

Relay for steering lamp left

1—38

J7

1

Relay for wiper intermission control

1—39

J8

1

Relay for low beam

1—40

J9

1

Relay for position light

1—41

J10

1

Spare relay

1—42

J11

1

Spare relay

2

WG9100583049

1

Start relay

（

80A

）

3

Q150B0516

2

Screw

4

Q40305

2

Spring washer

5

Q340B05

2

Nut

6

Q340B05

2

Nut

C11-2  CONTROL BLOCK RIGHT,RELAY,FUSE/右控制模块，继电器，保险丝  Fig.C11-2

C11-2     CONTROL BLOCK RIGHT,RELAY,FUSE/右控制模块，继电器，保险丝

JINAN SHUNHE AUTO PARTS CO.,LTD

110

7

Q40405

2

Spring washer

8

189100770103

1

Line connector(

Ⅰ

)

9

189100770104

2

Line connector(

Ⅱ

)

10

Q150B0518

1

Screw

11

Q41205

1

Toothed washer

12

Q340B05

1

Nut

13

AZ9719770040

1

Bracket

14

WG9160580501

1

Option

ABS(4S/4M)electrical control unit(WABCO)

14a

AZ9718580002

1

Option

ECU bracket(WABCO)

15

WG9718580001

1

Option

ABS(4S/4M)electrical control unit(KNORR)

15a

AZ9718580003

1

Option

ECU bracket(KNORR)

JINAN SHUNHE AUTO PARTS CO.,LTD

111

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9719582001

1

Light switch

2

WG9719582004

1

Emer.blinker system switch

3

WG9719582002

1

Front fog lamp switch

4

WG9719582004

1

Rear fog lamp switch

5

WG9719582007

1

Working lamp switch

6

WG9719582011

1

Wheel diff.lock switch

7

WG9719582012

1

Axle diff.lock switch

8

WG9719582013

1

All-wheel-drive switch

9

WG9719582010

1

Power take off switch

10

WG9719582005

1

Horn switch

11

WG9719582018

1

Transfer case high/low speed switch

12

WG9719582017

1

Transfer case neutral switch

13

WG9719582009

1

PTO neutral switch

14

WG9719582008

1

Cool start switch

15

WG9719582014

1

ABS check switch

16

WG9719582019

1

Lifting switch for trailing axle

17

WG9719582020

1

ECU check switch

18

WG9719582030

1

Switch for ECU check lamp

19

WG9900580021

1

Cover

20

WG9100580141

2

Cigar lighter

21

WG9725580001

Outer cover for check connector

C11-3                      SWITCHS，CIGAR LIGHTER/翘板开关，点烟器                       Fig.C11-3

C11-3                      SWITCHS，CIGAR LIGHTER/翘板开关，点烟器

JINAN SHUNHE AUTO PARTS CO.,LTD

112

No

Number of part

Quantity

Description

Applicability

※

Designation

1

WG9719710001

1

Exhaust brake switch

1

WG9719710002

1

For drive right

Exhaust brake switch

2

Q2714216

2

Screw

3

WG9130713001

2

Air pressure sensor

4

AZ9725710001

1

Bracket

5

Q150B0616

2

Screw

6

Q40306

2

Spring washer

7

Q41206

2

Washer

8

WG9100580141

1

Cigar lighter

9

WG9718710001

1

Electromagnetic valve for pneumatic horn

9a

Q150B0816

3

Screw

9b

Q40308

3

Spring washer

10

WG9100710008

5

Electromagnetic valve

10a

Q150B08110

2

Screw

10b

190003800497

2

Screw

10c

190003962019

4

Screw

10d

Q72312T5F

3

Gasket

10e

Q33208

4

Nut

11

WG9718710002

1

Electro horn

11a

Q1460825

1

Combination screw

11b

Q33208

1

Nut

12

WG9100710004

2

Air pressure signal lamp switch

13

WG9725580028

1

For HHR

Water temeroture sensor

14

WG9725580029

1

For HHR

Oil pressure sensor

15

WG9725580006

1

For HHR

100Aprotector

16

WG9725580009

1

For HHR

5A protector

17

AZ9725580015

1

For HHR

Relay for battery

18

AZ9725580011

1

For HHR

Cutout relay

19

190003499855

1

For tractor

Seven hole socket

20

WG9160710522

4

ABS sensor(WABCO)

21

WG9160710523

4

Sleeve for ABS sensor(WABCO)

22

WG9718580005

4

ABS sensor(KNORR)

23

WG9718580006

4

Sleeve for ABS sensor(KNORR)

C11-4                 ELECTRICAL EQUIPMENT ON THE CHASSIS/底盘电器                  Fig.C11-4

C11-4                 ELECTRICAL EQUIPMENT ON THE CHASSIS/底盘电器

※

 HHR

——

HOWO with HINO engine

JINAN SHUNHE AUTO PARTS CO.,LTD

113

No

Number of part

Quantity

Description

Applicability

Designation

15

WG9719790007

2

For standard,long cab

Side lamp

15

WG9719790005

1

High-roof cab

Left,front side lamp

16

WG9719790008

1

High-roof cab

Right,front side lamp

16a

WG9719790006

2

High-roof cab

Rear side lamp

17

Q2764825

8

Screw

18

Q39748202

4

Spring nut

19

169200720016

4

24V 5W

Bulb

20

WG9719790002

4

Internal light

20a

WG9719790003

4

24V 5W

Standard,long cab

Internal light

20b

WG9719790004

2

High-roof cab

Reading lamp

21

179100810051

4

Bulb

22

WG9719790001

2

Door contact

23

Q2764216

2

Screw

25

AZ9719770006

1

Standard,long cab

Roof line of cab

25

AZ9719770015

1

High-roof cab

Roof line of cab

26

AZ9719770005

1

Standard cab

Line for driver’s cab

26

AZ9719770009

1

Long.high-roof cab

Line for driver’s cab

27

AZ9719770007

1

Reading lamp line

55

WG1642440052

1

Lock signal switch for cab

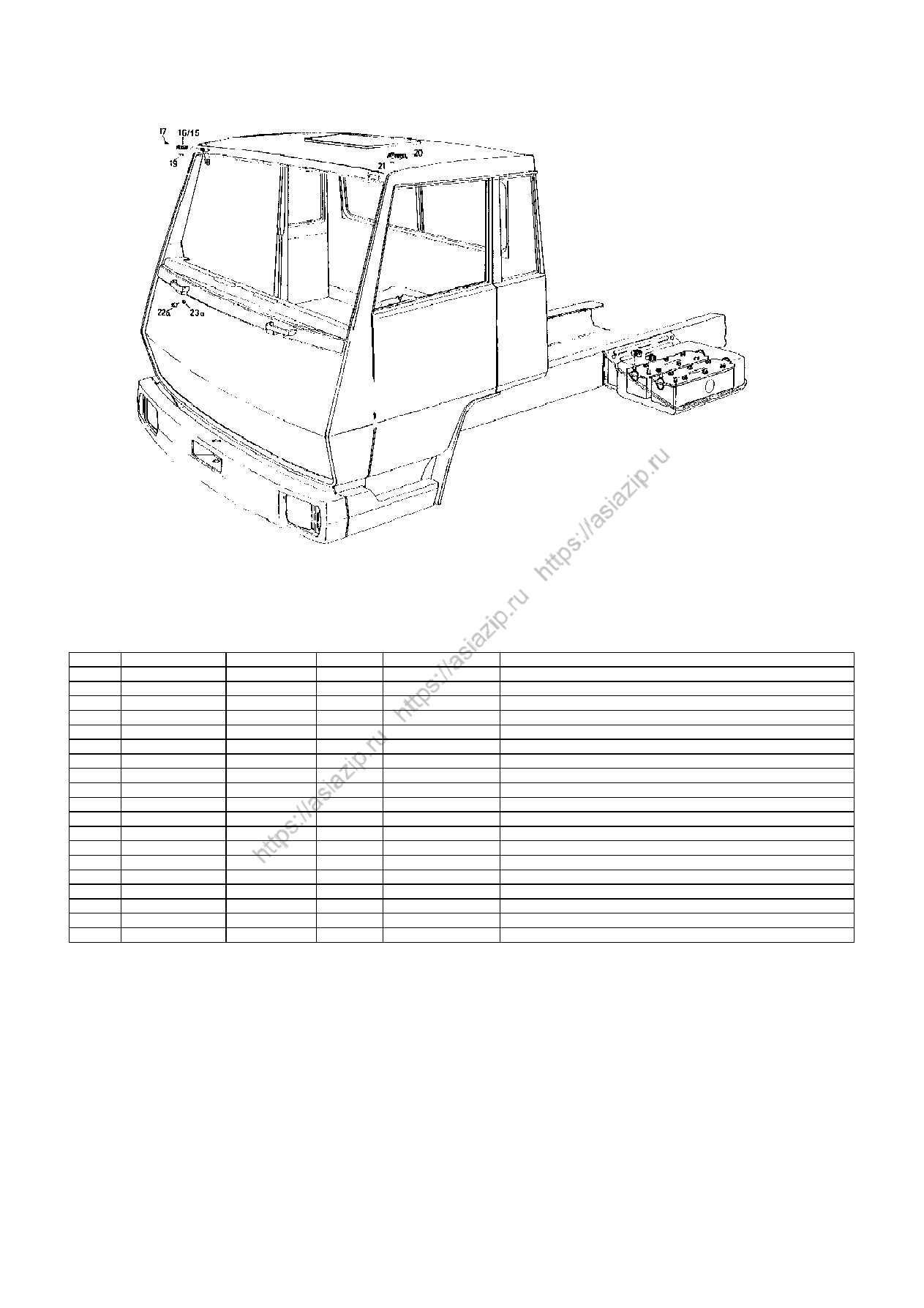

C11-5              ELECTRICAL EQUTPMENT IN DRIVER扴 CAB/驾驶室电器               Fig.C11-5

C11-5              ELECTRICAL EQUTPMENT IN DRIVER扴 CAB/驾驶室电器

JINAN SHUNHE AUTO PARTS CO.,LTD

114

No

Number of part

Quantity

Description

Applicability

※

Designation

1

AZ9719770001

1

Driver’s cab-line

1

AZ9716770001

1

For drive right

Driver’s cab-line

1

AZ9130775038

1

Driver’s cab-line ABS(Wabco)

1

AZ9718770061

1

S35/4

×

2

Gearbox-connector negative line(240)

1

AZ9718770062

1

K29/6

×

4

Gearbox-connector negative line(300)

1

AZ9718770063

1

K46/4

×

2,K32,S32/6

×

4

Gearbox-connector negative line(350)

1

AZ9718770064

1

B32,K36,K38/6

×

4

Gearbox-connector negative line(410)

1

AZ9718770065

1

O46/4

×

2,B36/6

×

4

Gearbox-connector negative line(470)

1

AZ9718770066

1

O50/4

×

2,K28,K30,K38/6

×

4

Gearbox-connector negative line(540)

1

AZ9718770067

1

O43,O46/6

×

4,B32/8

×

4 Gearbox-connector negative line(610)

1

AZ9718770068

1

N56/4

×

2,K32/8

×

4

Gearbox-connector negative line(690)

1

AZ9718770069

1

O52/6

×

4,O38/8

×

4

Gearbox-connector negative line(760)

1

AZ9718770070

1

N58/6

×

4,O46/8

×

4

Gearbox-connector negative line(830)

1

AZ9719770002

1

Switch-line

1

AZ9719770041

1

Electro-line for ABS(Wabco)

1

AZ9718770020

1

Electro-line for ABS(Knorr)

1

AZ9719770010

1

Chassis-line for air conditioner

1

AZ9718770085

1

Speedmeter cable (470)

2

AZ9731770012

1

K(B)28,32,30/8

×

4

Starter-line

2

AZ9731770013

1

B30,O46/8

×

4

Starter-line

2

AZ9719770013

1

Starter-line

2

WG9130773086

1

Speedometer-line

2

AZ9719770051

1

Electro-line for ABS on trailer

2

AZ9718770051

1

Electro-line for ABS on trailer

2

WG9100773029

1

8

×

4

Air dryer-line

2

AZ9719770028

O46/4

×

2,s

、

k32/6

×

4

Chassis frame-line

2

AZ9719770026

S35/4

×

2

Chassis frame-line

2

AZ9719770027

K29/6

×

4

Chassis frame-line

2

AZ9719770029

B32,K36,K38/6

×

4

Chassis frame-line

2

AZ9719770030

1

O46/4

×

2,B36/6

×

4

Chassis frame-line

O50/4

×

2,O38/6

×

4,

K28,K30/8

×

4

2

AZ9719770035

1

O40,O46/8

×

4,K58/6

×

4 Chassis frame-line

2

AZ9719770032

1

S,B32/8

×

4,O43,O46/6

×

4

Chassis frame-line

2

AZ9130775051

1

S32/6

×

4

ABS(4S/4M)chassis line

2

AZ9719770033

1

N56/4

×

2,K32/8

×

4

Classis frame-line

2

AZ9719770034

1

N52/6

×

4,O38/8

×

4

Classis frame-line

2

AZ9719770014

1

FAST gearbox

Transmission and air filter-line

2

AZ9718770014

1

QJ gearbox

Transmission-line

2

AZ9731770024

1

O46/8

×

4

Fuel tank,solenoid valve and air dryer-line

2

AZ9731770027

1

K,B32~40/8

×

4

Fuel tank,solenoid valve and air dryer-line

2

AZ9719770023

1

O46,N58/6

×

4,S32/6

×

4

Fuel tank,solenoid valve and air dryer-line

2

AZ9731770026

1

O46/8

×

4

Fuel tank,solenoid valve and air dryer-line

2

AZ9731770025

1

K,B28,32,38/8

×

4

Fuel tank,solenoid valve and air dryer-line

2

AZ9719770021

1

O,S/4

×

2

Fuel tank,solenoid valve and air dryer-line

2

AZ9719770022

1

S32/6

×

4

Fuel tank,solenoid valve and air dryer-line

2

AZ9719770024

1

O,K/32~38/6

×

4

Fuel tank,solenoid valve and air dryer-line

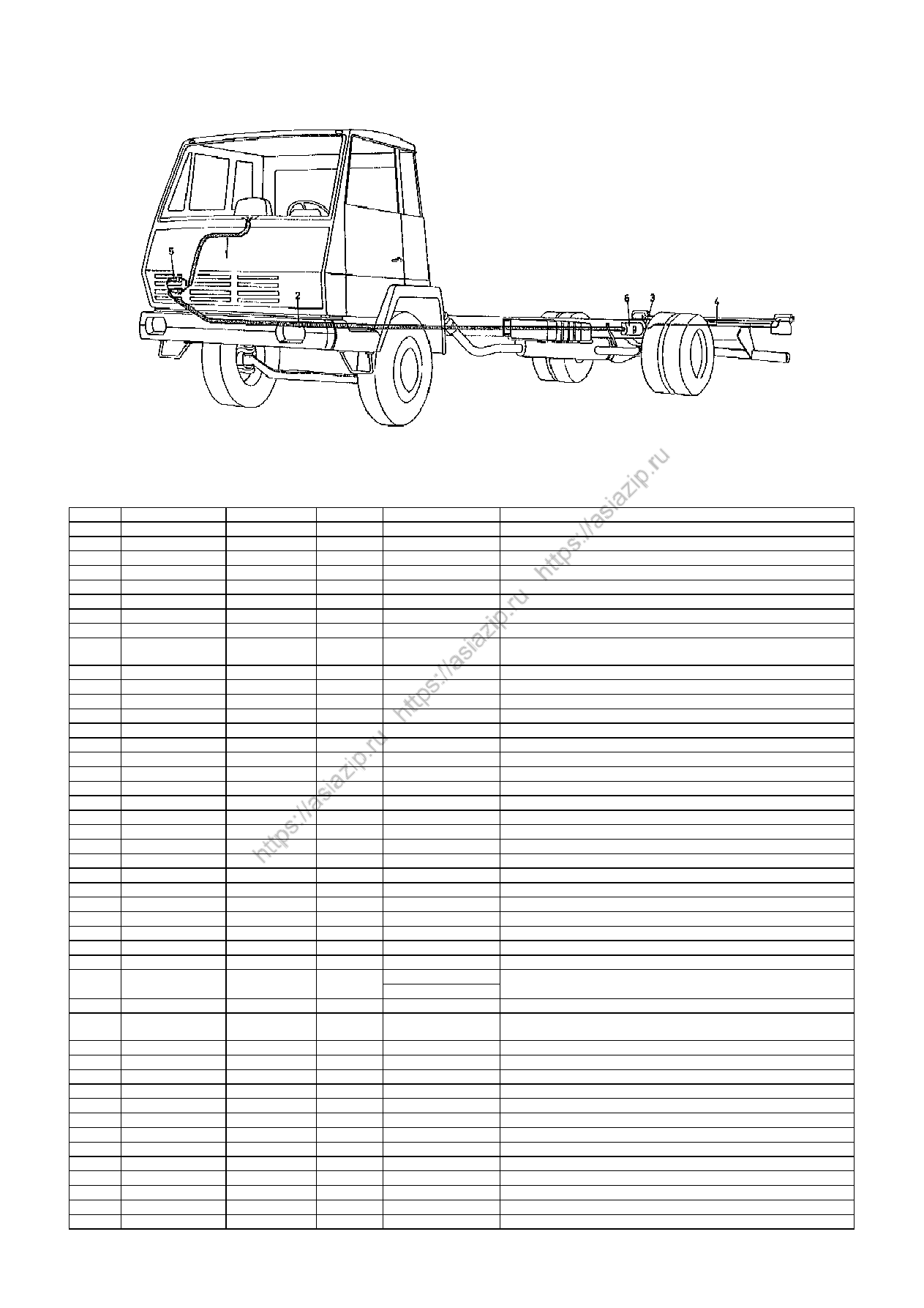

C11-6                               ELECTRICAL LINES/电线线束                                 Fig.C11-6

C11-6                               ELECTRICAL LINES/电线线束

2

AZ9719770031

1

Chassis frame-line

JINAN SHUNHE AUTO PARTS CO.,LTD

115

2

AZ9719770012

1

Engine-line

2

AZ9716770020

1

Power take off-line

2

WG9130775007

1

Work lamp chassis-line

2

189100770068

1

Seven hole socket-line

2

AZ9719770054

1

ABS socket-line

2

AZ9718770054

1

ABS socket-line

2

WG9100770255

1

For Tractor

Flexible spirality cable-line

2

AZ9719770052

1

For Tractor

Flexible spirality cable-line for ABS

2

AZ9725770001

1

For tractor

Side lamp-line

2

AZ9731770020

1

Lifting magnetic valve-line

2

AZ9718770052

1

Flexible spirality cable-line for ABS

2

AZ9731770042

1

O46/8

×

4

ABS chassis-line(6S/6M)

2

AZ9731770043

O38/8

×

4

ABS chassis-line(6S/6M)

2

AZ9731770044

O46/8

×

4

ABS chassis-line(6S/6M)

2

AZ9731770045

K28/8

×

4

ABS chassis-line(6S/6M)

2

AZ9719770053

1

ABS socket

2

AZ9718770026

1

3800/4

×

2

ABS chassis frame line(Knorr)

2

AZ9718770024

1

4600/4

×

2

ABS chassis frame line(Knorr)

2

AZ9718770026

1

5600/4

×

2

ABS chassis frame line(Knorr)

2

AZ9718770031

1

2900/6

×

4

ABS chassis frame line(Knorr)

2

AZ9718770032

1

3400/6

×

4

ABS chassis frame line(Knorr)

2

AZ9718770033

1

3800/6

×

4

ABS chassis frame line(Knorr)

2

AZ9718770035

1

4600/6

×

4

ABS chassis frame line(Knorr)

2

AZ9718770037

5800/6

×

4

ABS chassis frame line(Knorr)

3

189100770082

1

Axle diff.lock and wheel diff.lock-line

4

AZ9719770019

1

K46/4

×

2

Right,rear combination lamp-line

4

AZ9719770017

1

B,K,O,S

Right,rear combination lamp-line

4

AZ9719770016

1

B,K,O,S

Left,rear combination lamp-line

4

AZ9719770018

1

K46/4

×

2

Left,rear combination lamp-line

4

AZ9718770060

1

Connector negative-line

4

AZ9716770016

O

Left rear combination lamp-line

4

AZ9716770017

O

Right rear combination lamp-line

5

189100770103

Connecting box I

5a

189100770104

Connecting box I

6

WG9100770392

1

Line connector body

6a

179100770391

1

Line connector

6b

WG9100770394

1

Line connector cover

※

O

——

Cargo truck  K

——

Tipper truck  S

——

Tractor truck  B

——

Concrete mixer

JINAN SHUNHE AUTO PARTS CO.,LTD

116

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9719720001

1

Left head lamp

1a

WG9719720002

1

Right head lamp

1

WG9716720001

1

For drive right

Left head lamp

1a

WG9716720002

1

For drive right

Right head lamp

2

WG9719720005

1

Front left combinatory lamp

2a

WG9719720006

1

Front right combinatory lamp

3

WG9719810001

1

Rear left combinatory lamp

3a

WG9719810002

1

Rear right combinatory lamp

4

AZ9725810001

1

Spacing plate for tail light

5

1-34-172-010

1

For tractor

Working lamp

6

WG9100720012

2

For tractor

Side lamp

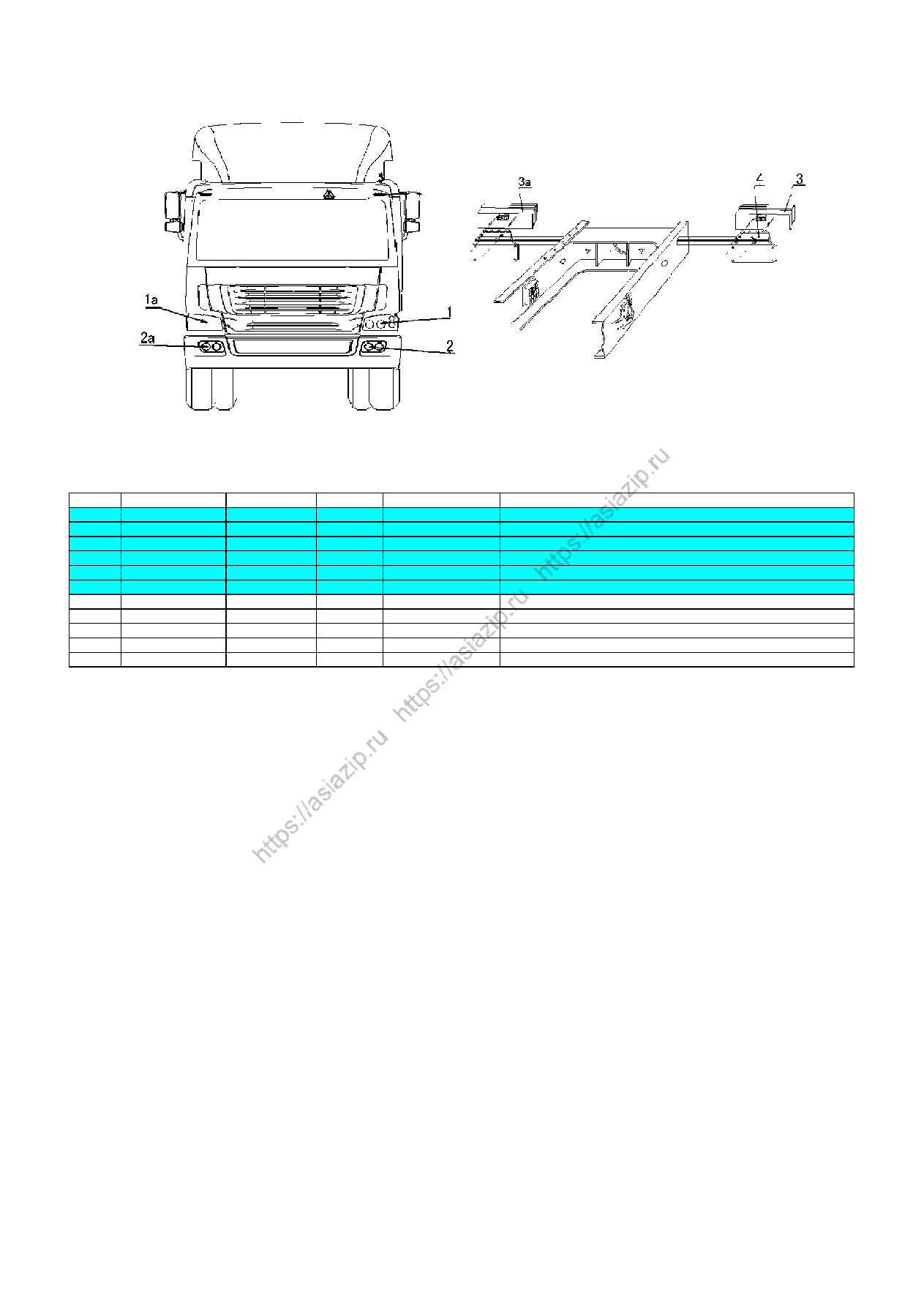

C11-7                                          LIGHTS/灯具                                        Fig.C11-7

C11-7                                                LIGHTS/灯具

JINAN SHUNHE AUTO PARTS CO.,LTD

117

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9100760100

1

Battery main switch

2

199100760099

1

Gasket

3

Q150B0835

2

Screw

4

Q40308

2

Spring washer

5

Q340B08

2

Nut

6

WG9100760064

2

135Ah

Battery

6

WG9100760065

2

165Ah

Battery

6

WG9100760001

2

180Ah

Battery

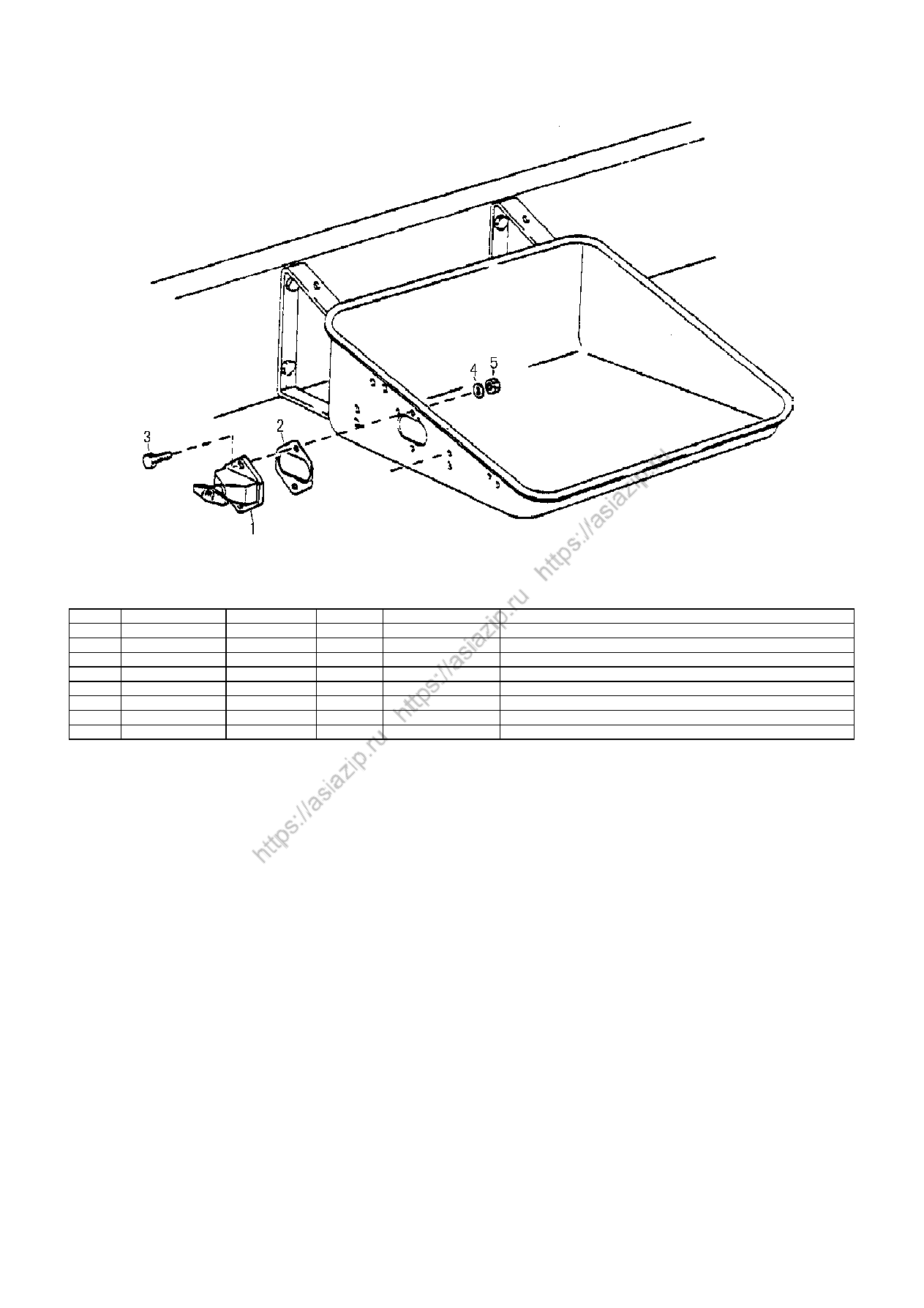

C11-8                             BATTERY,MAIN SWITCH/蓄电池，电源总开关                      Fig.C11-8

C11-8                             BATTERY,MAIN SWITCH/蓄电池，电源总开关

JINAN SHUNHE AUTO PARTS CO.,LTD

118

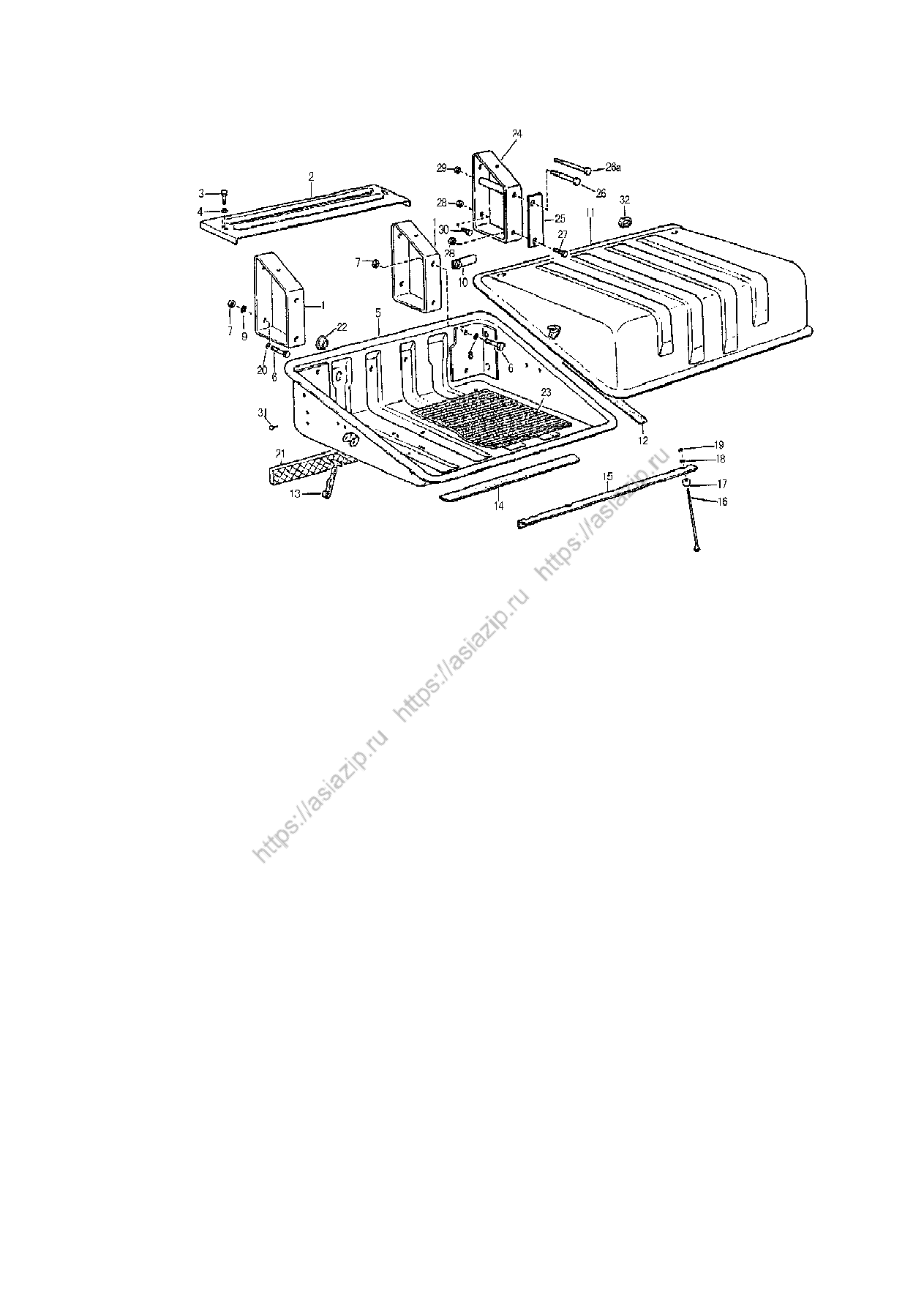

C11-9                                        BATTERY BOX/蓄电池箱                                  Fig.C11-9

JINAN SHUNHE AUTO PARTS CO.,LTD

119

No

Number of part

Quantity

Description

Applicability

Designation

2

199100760011

1

Cover

3

190003846410

2

Screw

4

Q40008

2

Washer

5

WG9719760004

1

Battery case bottom

6

Q151B16200

4

Screw

7

Q33216

4

Nut

8

Q40016

4

Washer

11

WG9100760002

1

Battery case top

13

WG9100760021

2

Hood carrier

14

190003179044

4

Edge protection

15

179200760024

4

Angle

16

AZ9100760143

4

Screwy rod

17

1682 110021

4

Rubber buffer

18

Q40008

4

Washer

19

Q33408

4

Nut

21

WG9100760066

1

Spacing plate

22

190003179425

8

Plug

23

WG9100760084

1

Rubber base

24

199114760004

2

Bracket

25

AZ9100760001

1

Plate

26a

Q150B16200

2

Screw

27

Q151B1645

4

Screw

28

190003888459

6

Nut

31

1293 13 0067

4

Rubber buffer

C11-9                                        BATTERY BOX/蓄电池箱

JINAN SHUNHE AUTO PARTS CO.,LTD

120

HW70

标准型

HW70/70R

Standard driver

’

s cab

No

TYPE

Mark

Description

Applicability

Designation

※

1

HW70

A

HW 70 Standard driver’s Cab

2

HW70R

AR

HW 70 Standard driver’s Cab r.

3

HW76

B

HW 76 Long driver’s Cab

4

HW76R

BR

HW 76 Long driver’s Cab r.

5

HW79

C

HW 79 high-roof driver’s Cab

6

HW79R

CR

HW 79 high-roof driver’s Cab r.

C12-1                                DRIVER’S CAB/驾驶室                                         Fig.C12-1

High-roof driver’s cab

C12-1                                DRIVER’S CAB/驾驶室

※

 r.

——

 Drive right

HW79高顶型

HW79/79R

JINAN SHUNHE AUTO PARTS CO.,LTD

121

No

Number of part

Quantity

Description

Applicability

Designation

※

1

AZ1641100001

1

HW70 standard body shell C

1

AZ1646100001

1

HW70 standard body shell C r.

1—1

AZ1642180029

1

HW70 standard body shell

1—1

AZ1646186001

1

HW70 standard body shell r.

2

AZ1642100001

1

HW76 long body shell C

2—1

AZ1642180001

1

HW76 long body shell

2

AZ1646100002

1

HW76 long body shell C r.

2—1

AZ1646180001

1

HW76 long body shell r.

3

AC16410.00401

1

HW79 high-roof cab body C

3—1

AZ1644100001

1

HW79 high-roof cab body shell C

3—1

AZ1644181001

1

HW79 high-roof cab body shell

3—2

WG1644170001

1

High roof

3—3

WG1644170005

1

Front right bracket for high roof

3—4

WG1644170006

1

Front left bracket for high roof

3—5

WG1644170007

1

Middle bracket for high roof

3—6

WG1644170008

1

Rear bracket for high roof

3

AC16410.00402

1

HW79 high-roof cab body r.

3—1

AZ1646100004

1

HW79 high-roof cab body sheel C r.

3—1

AZ1646180004

1

HW79 high-roof cab body shell r.

3—2

WG1644171001

1

High roof r.

C12-2                            CAB BODY SHELL/驾驶室本体                            Fig.C12-2

C12-2                                  CAB BODY SHELL/驾驶室本体

※

 r.

——

drive right

JINAN SHUNHE AUTO PARTS CO.,LTD

122

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ1642160010

1

Front seal profile

2

AZ1642160011

1

Left air pipe

3

AZ1642160014

1

Right air pipe

4

AZ1642160017

1

Bottom left air pipe

5

AZ1642160021

1

Bracket

6

AZ1642160023

1

Bottom right air pipe

7

AZ1642160025

1

Air pipe front

8

AZ1642160031

1

Air pipe left

9

AZ1642160037

1

Air pipe right

10

AZ1642160042

1

Middle rear air pipe

11

WG1642160047

1

Front grip left

12

WG1642160050

1

Front grip right

13

WG1642160052

2

Rear grip

14

AZ1642160060

1

Support left

15

AZ1642160062

1

Support right

16

AZ1642160064

1

Crossbar

17

AZ1642160109

1

Bracket

18

AZ1642160251

1

Bracket

19

AZ1642160181

4

Bracket

20

AZ1642160146

2

Bearing

20a

Q1460825

22

Combination screw

20b

Q1460620

28

Combination screw

21

AZ1642160124

1

Cover

22

AZ1642160138

1

Garnish profile

23

AZ1642930010

7

Cover

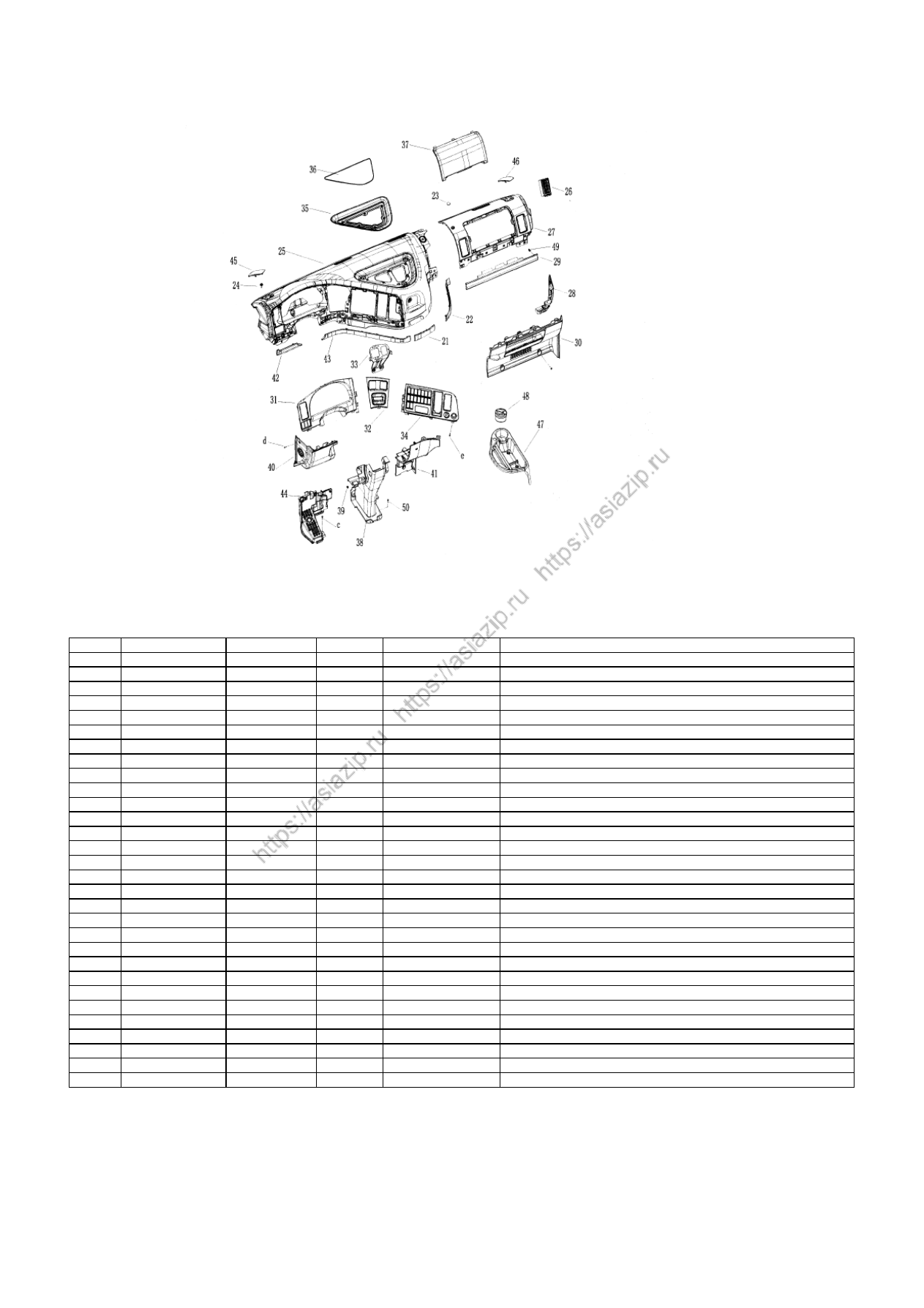

C12-3                                DASHBOARD/驾驶室仪表台                        Fig.C12-3

C12-3                                DASHBOARD/驾驶室仪表台

JINAN SHUNHE AUTO PARTS CO.,LTD

123

No

Number of part

Quantity

Description

Applicability

Designation

24

AZ1642930011

2

Combination screw

25

WG1642160120

1

Switch panel left

26

AZ1642160150

4

Air nozzle

27

WG1642160170

1

Switch panel right

28

WG1642160172

1

Side cover

29

AZ1642160175

1

Profile

30

WG1642160177

1

Protection plate

31

WG1642160183

1

Cover

32

WG1642160186

1

Cover

33

AZ1642160188

1

Bracket

34

WG1642160190

1

Switch panel

35

WG1642160213

1

Cover

36

AZ1642160214

1

Facing

37

WG1642160215

1

Cover

38

AZ1642160217

1

Protection cover

39

WG1642930009

2

Nut

40

WG1642160218

1

Protection cover left

41

WG1642160230

1

Protection cover right

42

AZ1642160232

1

Garnish profile left

43

AZ1642160234

1

Garnish profile right

44

WG1642160236

1

Step

45

WG1642160238

1

Cover left

46

WG1642160239

1

Cover right

47

WG1642160242

1

Box

48

AZ1642160243

1

Ashtray

49

AZ1642160137

1

Latch

50

AZ1642930620

22

Combination screw

51

Q2140820

1

Screw

52

Q2140516

2

Screw

53

Q2714816

35

Screw

C12-3                                DASHBOARD/驾驶室仪表台                        Fig.C12-4

C12-3                                DASHBOARD/驾驶室仪表台

JINAN SHUNHE AUTO PARTS CO.,LTD

124

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642910006

Insulating slab

2

WG1642910001

1

Insulating slab

3

WG1642910002

1

Insulating slab

3

WG1646910001

1

For drive right

Insulating slab

4

WG1642910007

1

Insulating slab

4

WG1646910002

1

For drive right

Insulating slab

5

WG1642910003

2

Insulating slab

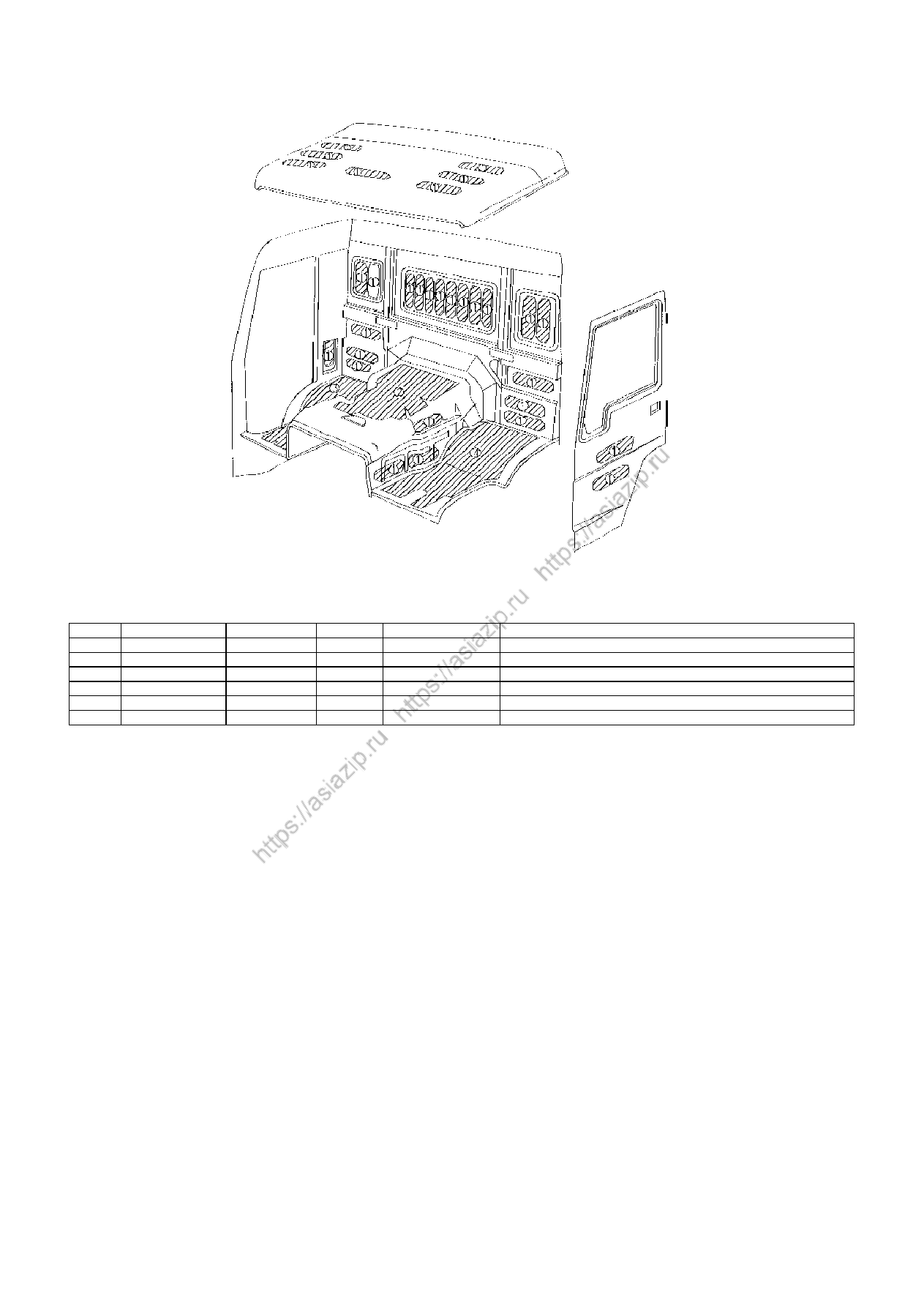

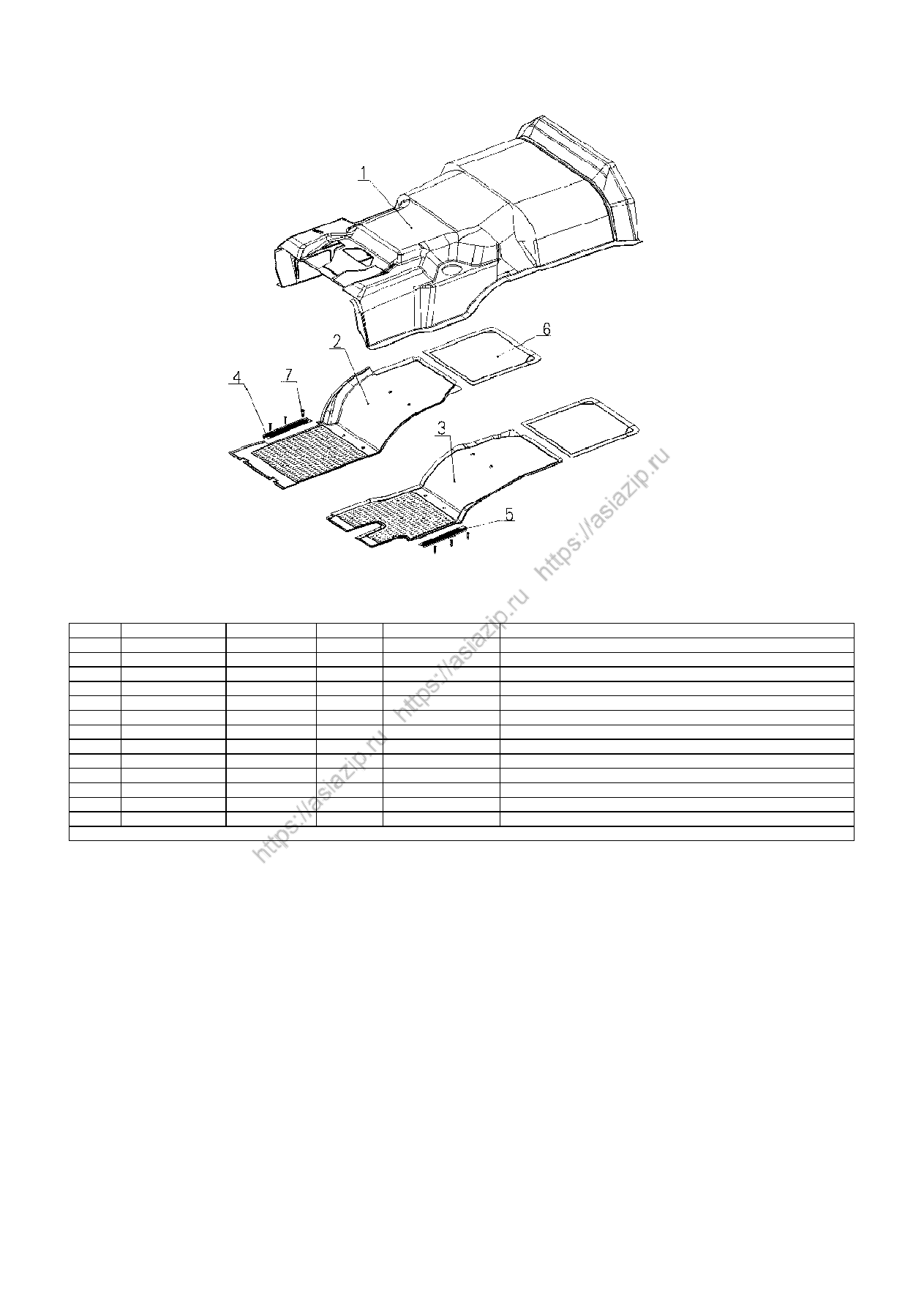

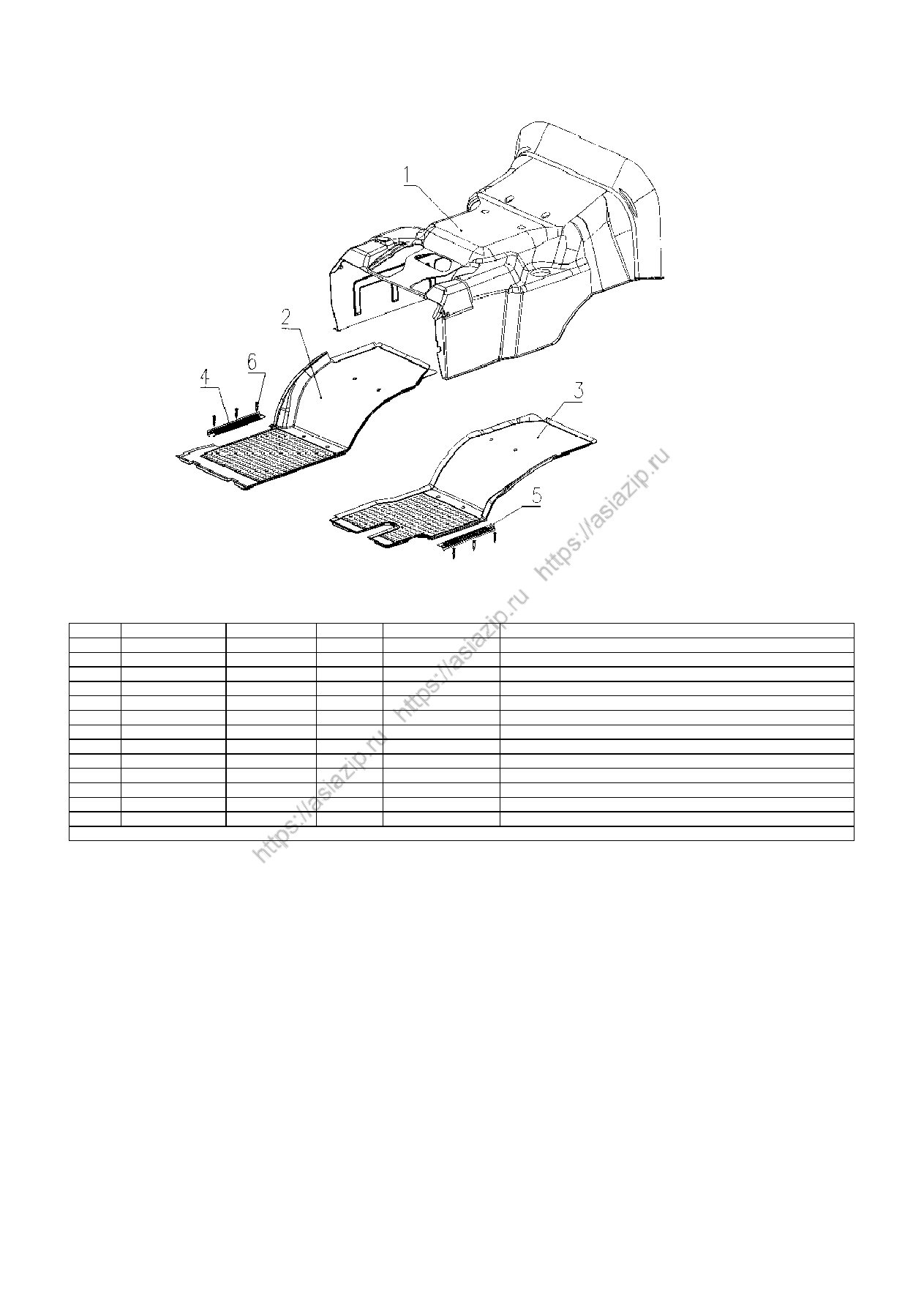

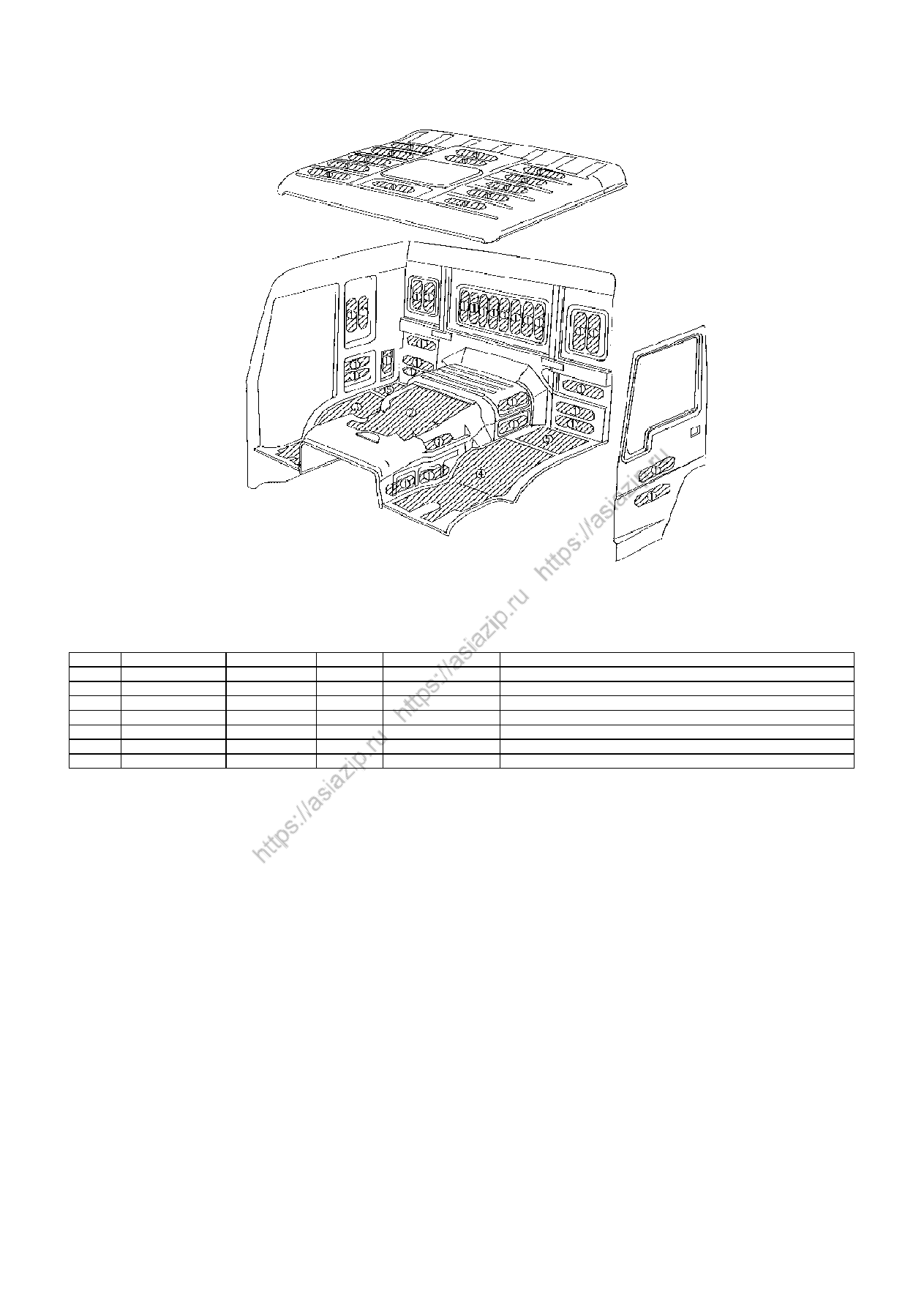

C12-4      SOUND PROOF FOR LONG,HIGH-ROOF CAB/中长，高顶驾驶室隔音材料      Fig.C12-5

C12-4      SOUND PROOF FOR LONG,HIGH-ROOF CAB/中长，高顶驾驶室隔音材料

JINAN SHUNHE AUTO PARTS CO.,LTD

125

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642910006

Insulating slab

2

WG1642910001

1

Insulating slab

3

WG1642910002

1

Insulating slab

3

WG1646910001

1

For drive right

Insulating slab

4

WG1642910007

1

Insulating slab

4

WG1646910002

1

For drive right

Insulating slab

C12-5             SOUNDPROOF FOR STANDARD CAB/标准驾驶室隔音材料             Fig.C12-6

C12-5             SOUNDPROOF FOR STANDARD CAB/标准驾驶室隔音材料

JINAN SHUNHE AUTO PARTS CO.,LTD

126

No

Number of part

Quantity

Description

Applicability

Designation

※

1

AZ1642620005

1

Carpet to engine hood

2

AZ1642620002

1

Front lining r.

2a

WG1642620010

Thermal insulation plate r.

2

WG1646620002

1

For drive right

Front lining r.

2a

WG1646620004

1

For drive right

Thermal insulation plate r.

3

AZ1642620001

1

Front lining l.

3a

WG1642620008

Thermal insulation plate l.

3

WG1646620001

1

For drive right

Front lining l.

3a

WG1646620003

1

For drive right

Thermal insulation plate l.

4

WG1642620007

1

Step plate r.

5

WG1642620006

1

Step plate l.

6

AZ1642620003

2

Rear lining

7

Q2714219

6

Screw

C12-6  ENGINE HOOD,FLOOR LINING FOR LONG,HIGH-ROOF CAB/中长，高顶驾驶室发动机罩、地板  Fig.C12-7

C12-6  ENGINE HOOD,FLOOR LINING FOR LONG,HIGH-ROOF CAB/中长，高顶驾驶室发动机罩、地板

※

 r.

——

right   l.

——

left

JINAN SHUNHE AUTO PARTS CO.,LTD

127

No

Number of part

Quantity

Description

Applicability

Designation

※

1

AZ1642620005

1

Carpet to engine hood

1

ZW1641626003

1

For drive right

Carpet to engine hood

2

AZ1642620002

1

Lining r.

2a

WG1642670010

1

Thermal insulation plate r.

2

ZW1641626002

1

For drive right

Lining r.

2a

WG1646620004

1

For drive right

Thermal insulation plate r.

3

AZ1642620001

1

Lining l.

3a

WG1642620008

1

Thermal insulation plate l.

3

ZW1641626001

1

For drive right

Lining l.

3a

WG1646620003

1

For drive right

Thermal insulation plate l.

4

WG1642620007

1

Setp plate r.

5

WG1642620006

1

Setp plate l.

6

Q2714219

6

Screw

C12-7  ENGINE HOOD,FLOOR LINING FOR STANDARD CAB/标准驾驶室发动机罩、地板   Fig.C12-8

C12-7  ENGINE HOOD,FLOOR LINING FOR STANDARD CAB/标准驾驶室发动机罩、地板

※

 r.

——

right   l.

——

left

JINAN SHUNHE AUTO PARTS CO.,LTD

128

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642690001

1

For long,high-roof cab

Insulating slab

1

WG1642690002

1

For standard cab

Insulating slab

2

WG1642690003

1

Front support

3

WG1642610005

2

Rear support

4

WG1642690006

1

Rubber block

5

Q68610

1

Clamp

6

Q2714819

1

Screw

C12-8              SOUNDPROOF ON BOTTOM OF CAB/驾驶室底部隔音材料             Fig.C12-9

C12-8              SOUNDPROOF ON BOTTOM OF CAB/驾驶室底部隔音材料

JINAN SHUNHE AUTO PARTS CO.,LTD

129
