HOWO 6x4, 8x4, 4x2. Каталог запчастей (2005-2007 год) - часть 3



  Главная      Книги - Разные     HOWO 6x4, 8x4, 4x2. Каталог запчастей (products catalog, 2005-2007 год)



поиск по сайту            правообладателям























содержание      ..     1      2      3      4      ..







HOWO 6x4, 8x4, 4x2. Каталог запчастей (2005-2007 год) - часть 3





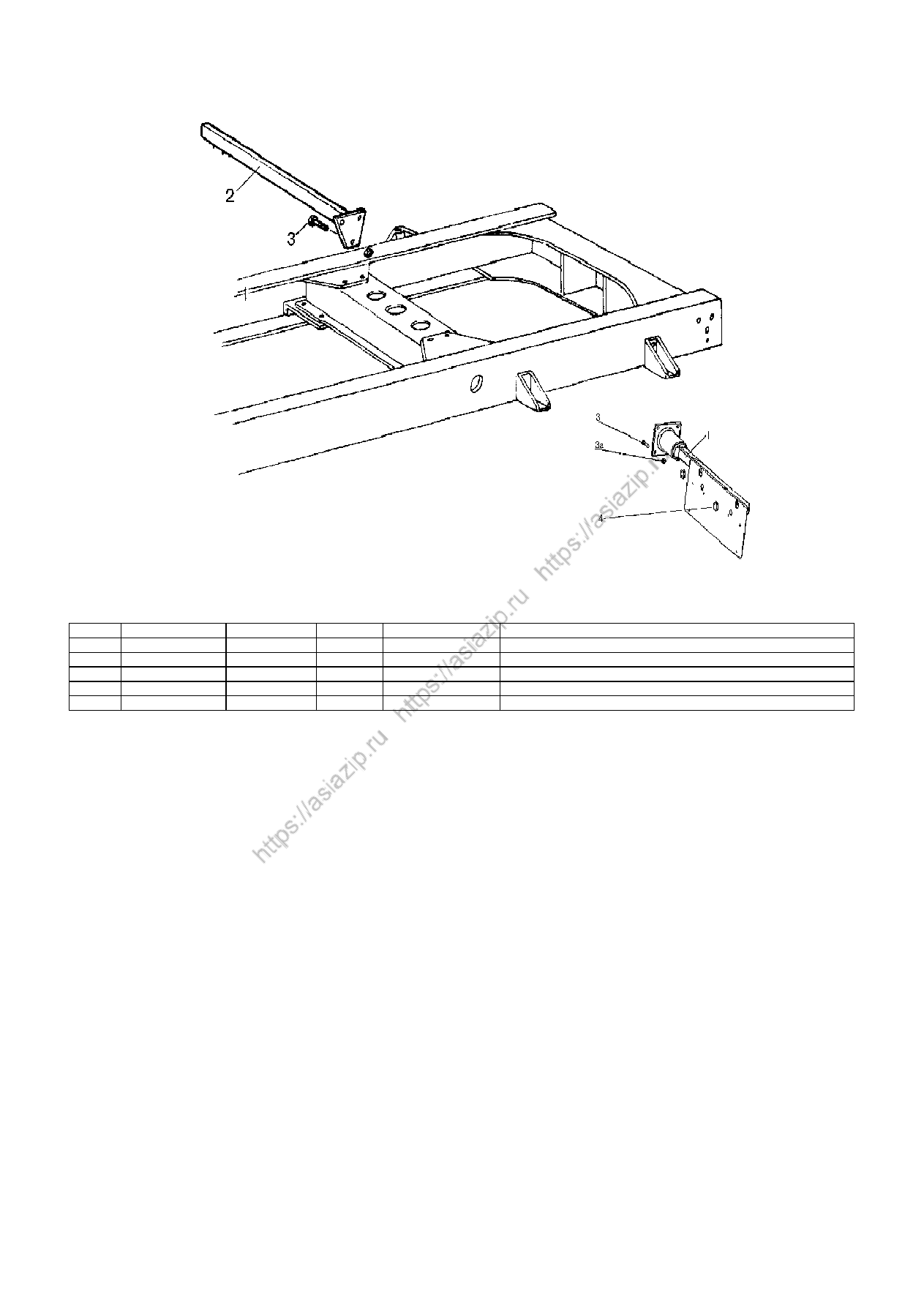

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9716940001

1

No incl.tractor truck

Tail light bracket left

2

AZ9716940007

1

No incl.tractor truck

Tail light bracket right

3

Q150B1030

6

No incl.tractor truck

Screw

3a

Q33210

6

No incl.tractor truck

Nut

4

AZ9716940004

1

No incl.tractor truck

Rubber plug

C7-12               TAIL LIGHTS AND NUMBER PLATE CARRIER/牌照及尾灯支架             Fig.C7-13

C7-12               TAIL LIGHTS AND NUMBER PLATE CARRIER/牌照及尾灯支架

JINAN SHUNHE AUTO PARTS CO.,LTD

66

No

Number of part

Quantity

Description

Applicability

Designation

1

199000930113

1

Optional

Trailer coupling

2

Q150B1660

4

Screw

3

Q33216

4

Nut

6

AZ9725930104

1

No inc.tractor truck

Bumper rear

6

AZ9124930015

1

No inc.tractor truck

Bumper rear

7

Q150B1655

4

No inc.tractor truck

Screw

7a

190003937830

6

No inc.tractor truck

Washer

7b

199400930003

2

No inc.tractor truck

Sleeve

8

Q33216

4

No inc.tractor truck

Nut

9

WG9100930150

2

No inc.tractor truck

Cover

9

AZ9725930103

2

No inc.tractor truck

Cover

10

WG9000930047

Trailer coupling

10—1

WG9000930047-1

1

Towing seat

10—2

WG9000930047-2

1

Towing hitch

19

199114930110

1

Optional

Trailer coupling

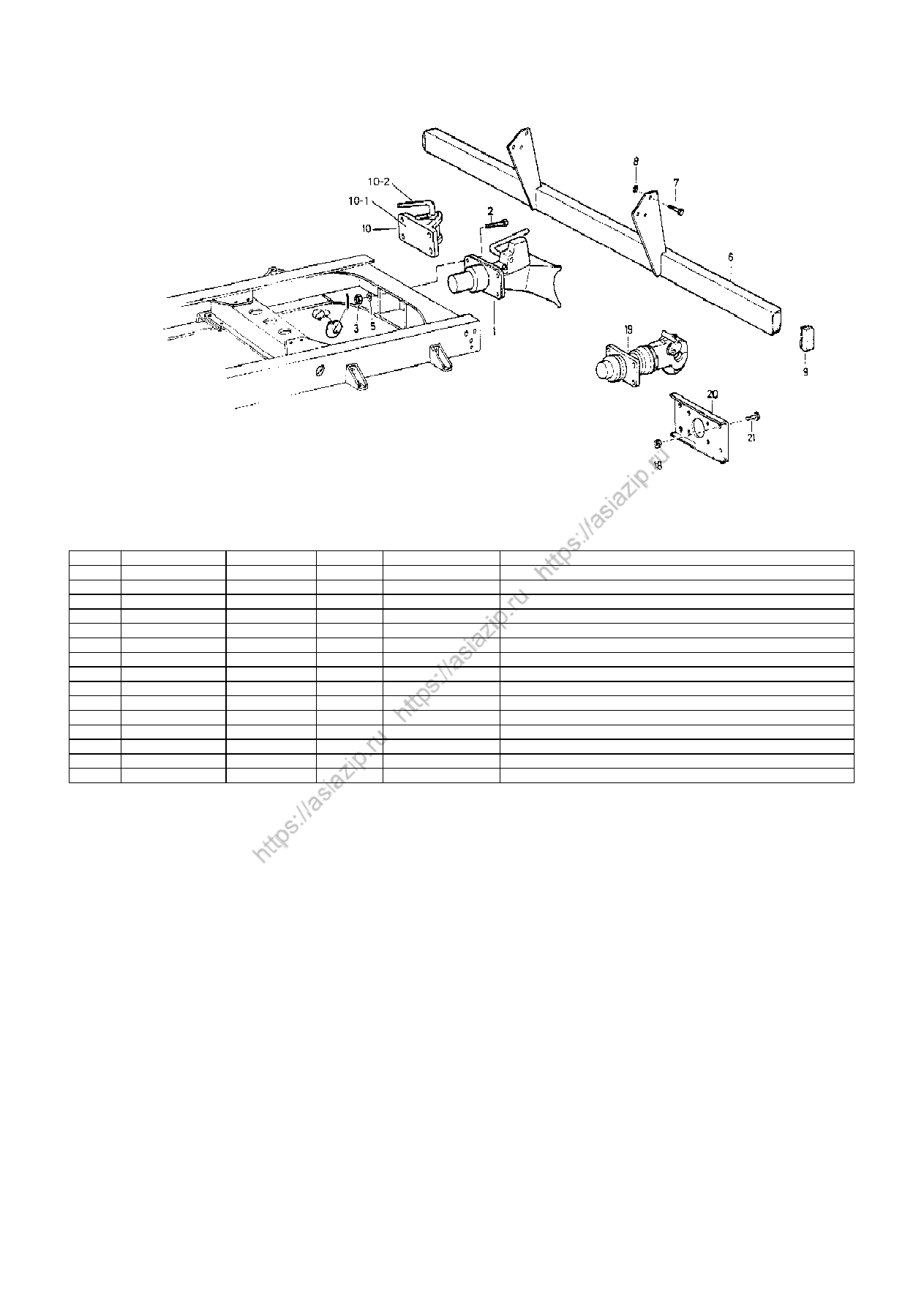

C7-13               BOTTOM PROTECTION,TRAILER COUPLING/后保险杠及牵引装置             Fig.C7-14

C7-13               BOTTOM PROTECTION,TRAILER COUPLING/后保险杠及牵引装置

JINAN SHUNHE AUTO PARTS CO.,LTD

67

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9725952020

4

6

×

4

，

8

×

4

Tubular beam

1

WG9719950026

4

4

×

2

Tubular beam

1a

AZ9719950028

2

4

×

2

Rear connecting block

1b

AZ9719950029

2

4

×

2

Front connecting block

1

AZ9725950012

1

6

×

2

Front bracket left

1a

AZ9725950012

1

6

×

2

Front bracket right

1b

AZ9112951201

2

6

×

2

Rear bracket

2

WG9725952010

2

6

×

4

，

8

×

4

Tubular beam

3

WG9725952011

2

6

×

4

，

8

×

4

Tubular beam

4

WG9725950120

1

6

×

4

，

8

×

4

Rear mudguard

4

WG9719950110

1

4

×

2

Rear mudguard

4

WG9719950111

1

6

×

2

Rear mudguard

4—1

WG9719950130/1

8

6

×

4

，

8

×

4

Segment mudguard

4—1

WG9719950130/1

4

4

×

2

，

6

×

2

Segment mudguard

4—2

WG9719950135/1

4

6

×

4

，

8

×

4

Sheet rear

4—2

WG9719950135/1

2

4

×

2

，

6

×

2

Sheet rear

4—3

WG9719950137/1

4

6

×

4

，

8

×

4

Sheet front

4—3

WG9719950137/1

2

4

×

2

，

6

×

2

Sheet front

4—4

WG9719950141/1

24

6

×

4

，

8

×

4

Pressure plate

Ⅰ

4—4

WG9719950141/1

12

4

×

2

，

6

×

2

Pressure plate

Ⅰ

4—5

WG9719950142/1

8

6

×

4

，

8

×

4

Pressure plate

Ⅱ

4—5

WG9719950142/1

4

4

×

2

，

6

×

2

Pressure plate

Ⅱ

4—6

WG9719950143/1

4

6

×

4

，

8

×

4

Pressure plate

Ⅲ

4—6

WG9719950143/1

2

4

×

2

，

6

×

2

Pressure plate

Ⅲ

4—7

WG9719950144/1

12

6

×

4

，

8

×

4

Washer

4—7

WG9719950144/1

6

4

×

2

，

6

×

2

Washer

4—8

WG9719950150/1

2

Tail light bracket

4—9

WG9719950155/1

4

6

×

4

，

8

×

4

Top cover

4—9

WG9719950155/1

2

4

×

2

，

6

×

2

Top cover

4—10

WG9719950156/1

16

6

×

4

，

8

×

4

Rubber hook

4—10

WG9719950156/1

8

4

×

2

，

6

×

2

Rubber hook

4—11

WG9719950159/1

8

6

×

4

，

8

×

4

Plug

4—11

WG9719950159/1

4

4

×

2

，

6

×

2

Plug

4—12

WG9719950161/1

16

6

×

4

，

8

×

4

Inter bracket

4—12

WG9719950161/1

8

4

×

2

，

6

×

2

Inter bracket

4—13

WG9719950162/1

16

6

×

4

，

8

×

4

Outer bracket

4—13

WG9719950162/1

8

4

×

2

，

6

×

2

Outer bracket

4—14

WG9719950163/1

16

6

×

4

，

8

×

4

Washer

4—14

WG9719950163/1

8

4

×

2

，

6

×

2

Washer

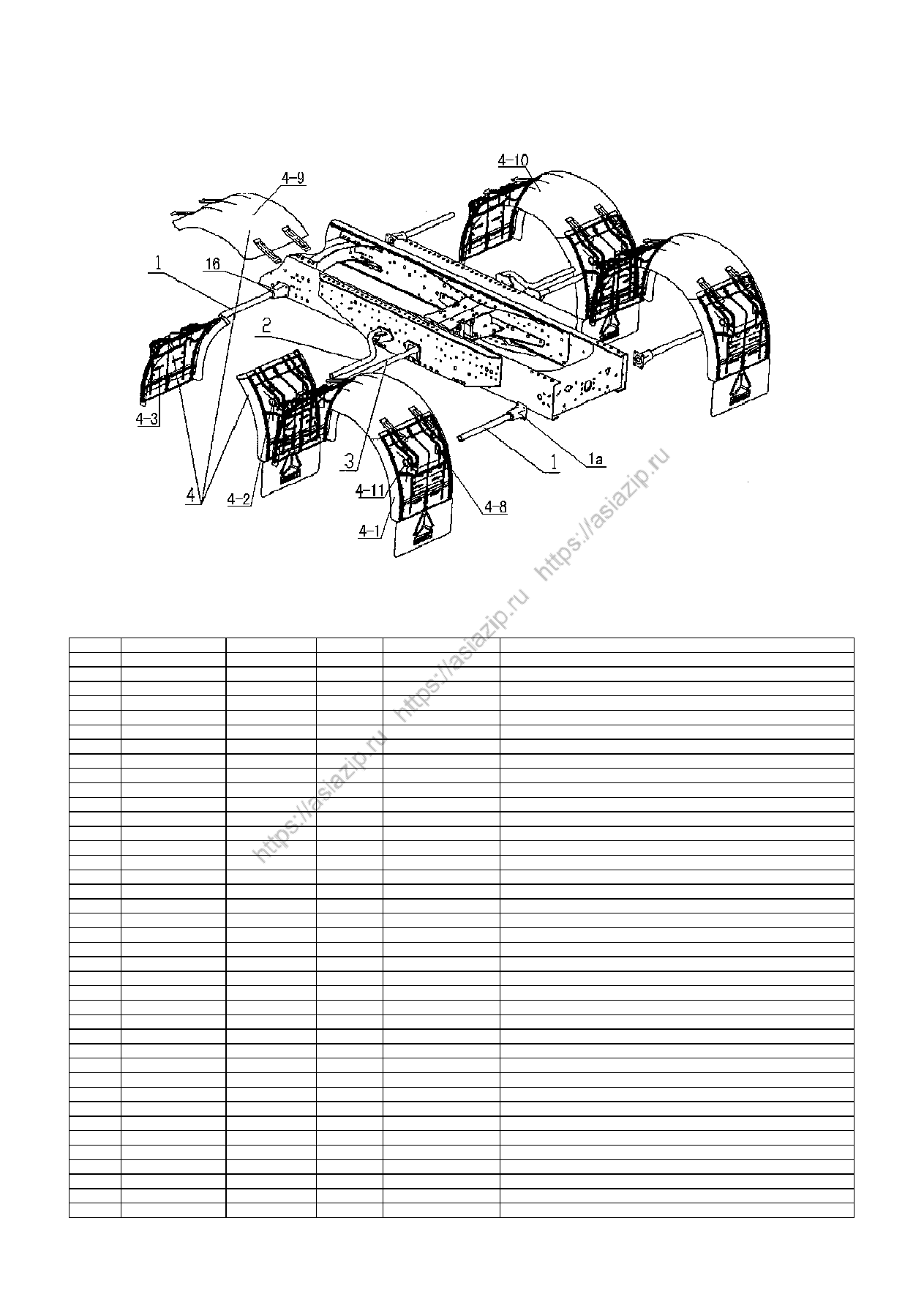

C7-14                  REAR MUDGUARD FOR TRACTOR/牵引车后挡泥板                   Fig.C7-15

C7-14                  REAR MUDGUARD FOR TRACTOR/牵引车后挡泥板

JINAN SHUNHE AUTO PARTS CO.,LTD

68

4—15

Q1840860

16

6

×

4

，

8

×

4

Screw

4—15

Q1840860

8

4

×

2

，

6

×

2

Screw

4—16

Q33008

16

6

×

4

，

8

×

4

Nut

4—16

Q33008

8

4

×

2

，

6

×

2

Nut

4—17

Q2716319

200

6

×

4

，

8

×

4

Screw

4—17

Q2716319

100

4

×

2

，

6

×

2

Screw

JINAN SHUNHE AUTO PARTS CO.,LTD

69

No

Number of part

Quantity

Description

Applicability

※

Designation

1

AZ9719520005

2

Spring bracket front

2

Q151B1665

6

Screw

3

Q151B1650

4

Screw

4

19003888459

10

Nut

5

AZ9232520010

1

Spring bracket rear,left

5a

AZ9232520011

1

Spring bracket rear,right

6

Q151B1650

8

Screw

8

190003888459

8

Lock nut

9

WG9114510510

1

Cross member

10

199100520025

8

Plate

13

Q151G1260

16

Screw

14

190003888457

16

Lock nut

15

WG9000520078

4

Bush

16

WG9100520034

2

Spring shackle front C

17

WG9100520065

6

Spring bolt

20

1680 520050

12

Washer

21

Q151C1270

2

Screw

22

Q151C1275

4

Screw

23

190003888457

6

Nut

24

190003963115

2

Grease nipple

26

190003963127

4

Grease nipple

27

WG80 52 0002

2

Plate

28

AZ9100520015

4

K/4

×2,O,S

Spring clip

28

199014520259

4

K/6

×4

Spring clip

29

1680 52 0056

8

Washer

30

190003888626

8

Lock nut

31

WG9323520010

2

Spring stop

32

1880520019

2

Screw

33

Q340B10

2

Nut

34

Q40310

2

Spring washer

38

WG9100520002

1

K/4

×2,O,S

Front spring C,left

38

WG9100520042

1

K/4

×2,O,S

Front spring C,right

38

WG9725520072

1

K/6

×4

Front spring C,left

38

WG9725520073

1

K/6

×4

Front spring C,right

39

AZ9731520034

2

Bracket for spring stop

39a

Q150B1240

4

Screw

39b

Q150B1230

4

Screw

39c

Q33212

8

Lock nut

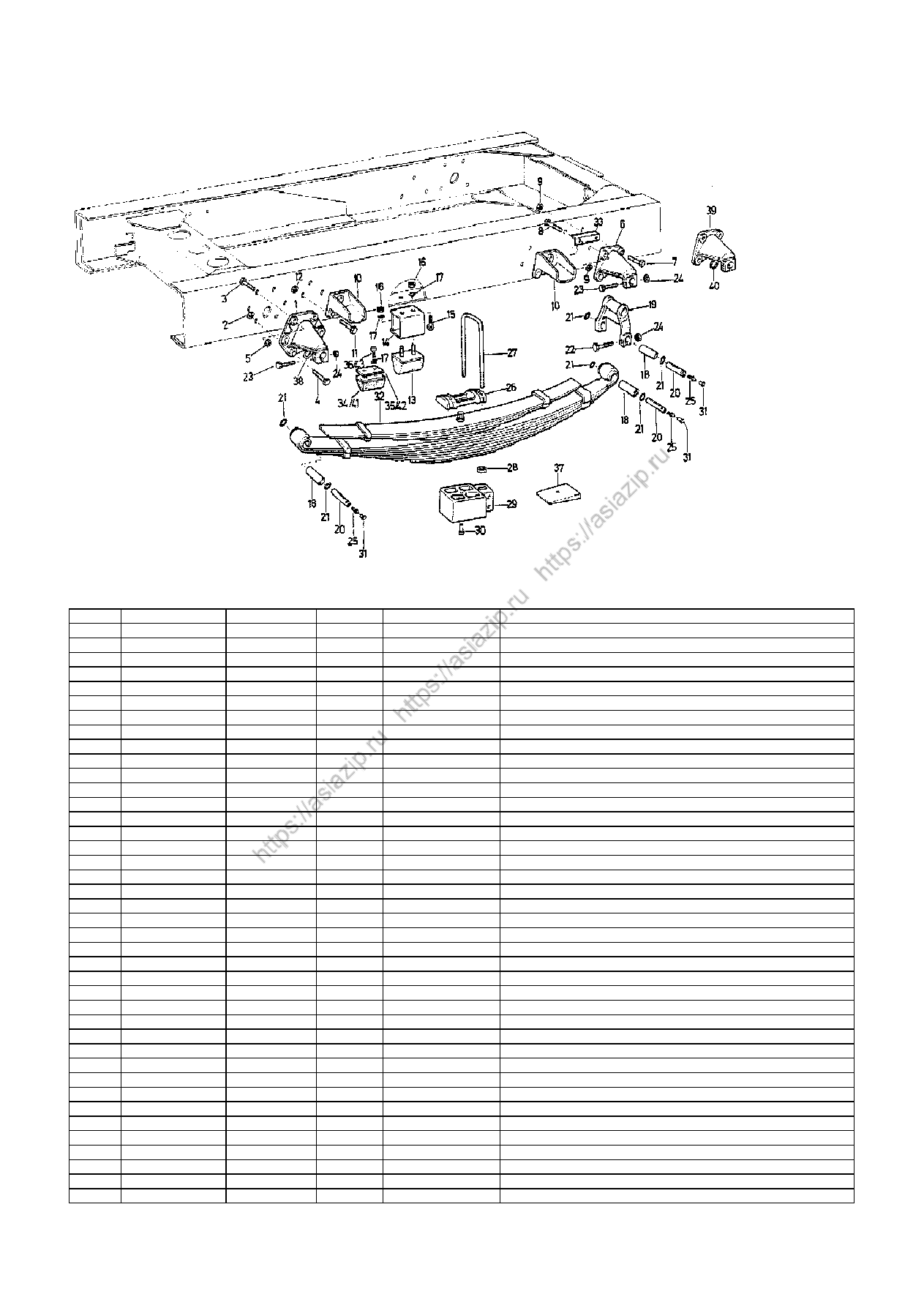

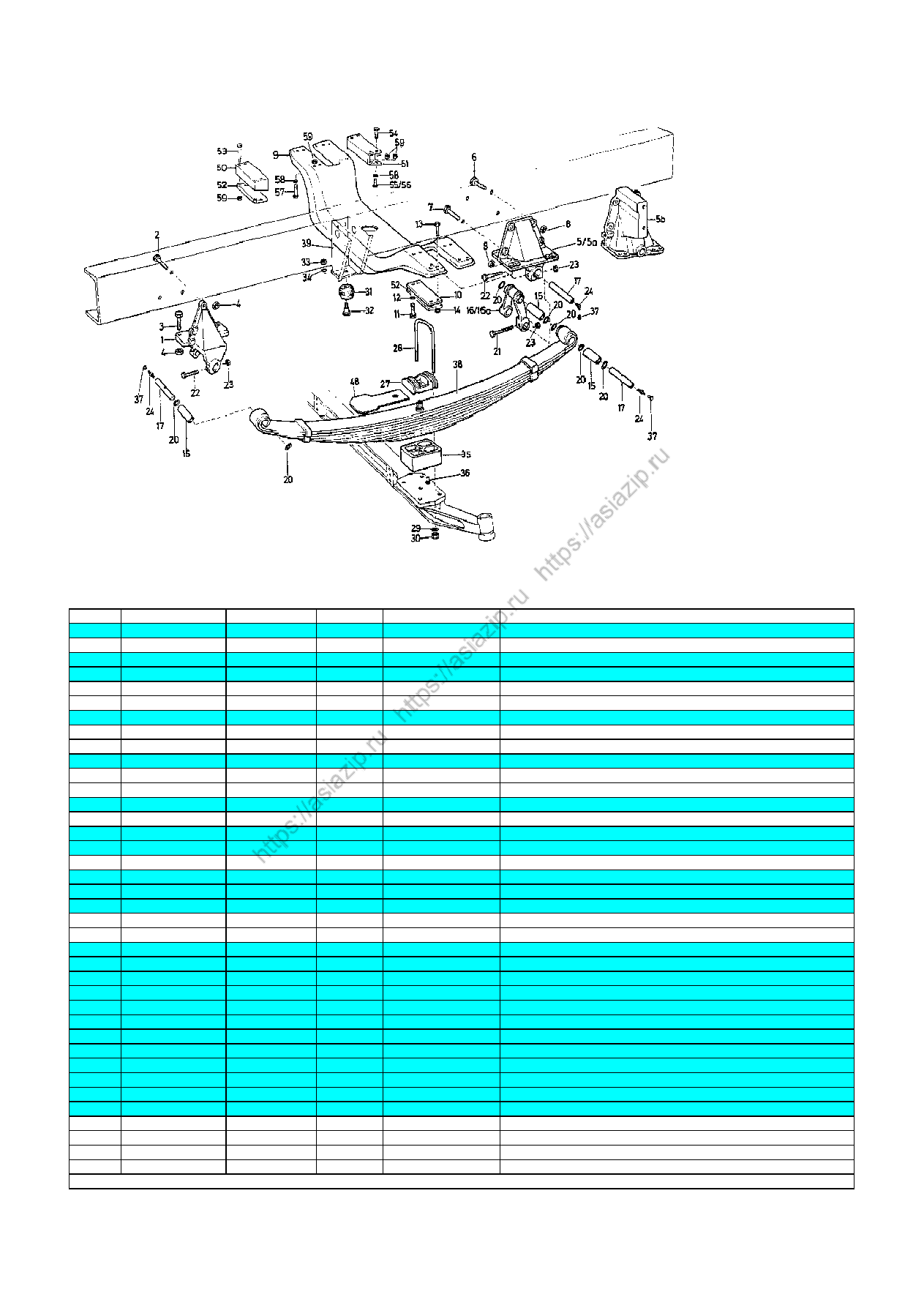

C8-1             4×2、6×2、6×4 FRONT SPRING/4×2、6×2、6×4前悬架                 Fig.C8-1

C8-1                   4×2、6×2、6×4 FRONT SPRING/4×2、6×2、6×4前悬架

※

 K

——

Tipper truck   O

——

Cargo truck   S

——

Tractor truck

JINAN SHUNHE AUTO PARTS CO.,LTD

70

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9000520078

12

Bush

2

WG9731520011

2

Front spring C,left

2a

WG9731520012

2

Front spring C,right

3

199000520006

4

Guide bolt

5

147000520019

7

Latch

6

147000520020

7

Security sheet

7

Q150B0820

14

Screw

9

190003963115

7

Grease nipple

9a

190003963127

5

Grease nipple

10

189000520015

1

Spring bolt

11

WG9100520065

5

Spring bolt

12

199100520080

4

Spring bolt

15

179000520040

2

Spring bolt

16

Q151C1270

4

screw

17

Q151C1275

1

Screw

18

190003888457

5

Lock nut

19

WG9100520034

4

Spring shackle front C

20

1680 51 0050

24

Washer

21

WG80 52 0002

4

Plate

22

199000520086

4

Spring clip

22a

1990 520003

4

Spring clip

23

1680 52 0043

16

Washer

24

190003888626

16

Lock nut

26

WG9232520010

4

Spring stop

26a

AZ9731520034

2

Bracket

26b

Q150B1240

4

Screw

26c

Q150B1230

4

Screw

26d

AZ9731520007

2

Bracket

26e

Q150B12105

4

Screw

26f

Q33212

12

Nut

30

AZ9719520005

2

Spring bracket front

32

Q151B1665

4

Screw

33

Q151B1650

4

Screw

36

190003888459

1

Lock nut

38

179000520050

2

Spring bracket rear

39

Q151B1460

6

Screw

40

Q151B1455

4

Screw

41

190003888458

10

Lock nut

42

AZ9731520024

1

Spring bracket left

43

AZ9731520021

1

Spring bracket right

43a

AZ9731520005

2

Bracket

43b

AZ9731520010

2

Washer

44

Q151B16140

2

Screw

44a

Q151B14120

4

Screw

C8-2                             8×4 FRONT SPRING/8×4前悬架                         Fig.C8-2

C8-2                                  8×4 FRONT SPRING/8×4前悬架

JINAN SHUNHE AUTO PARTS CO.,LTD

71

45

Q151B1650

4

Screw

46

190003888459

2

Lock nut

47

190003888458

8

Lock nut

48

AZ9731510020

1

Bracket C

49

Q151B1440

8

Screw

50

Q41214

8

Toothed washer

53

AZ9731520004

2

Spring bracket rear

53a

AZ9731520005

2

Bracket

53b

AZ9731520010

2

Washer

54

Q151B1460

6

Screw

55

Q151B1455

2

Screw

56

190003888458

8

Lock nut

JINAN SHUNHE AUTO PARTS CO.,LTD

72

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719520007

2

Spring bracket rear

1a

AZ9719520018

2

Washer

3

Q151B1655

8

Screw

3a

190003888459

8

Lock nut

4

Q151B1855TF2

4

Screw

5

190003888626

4

Nut

6

AZ9719520019

2

S/4×2

Spring bracket rear

6

AZ9719520008

2

O/K/4

×2

Spring bracket rear

6a

AZ9719520018

2

Washer

7

Q151B1650

8

Screw

9

190003888459

8

Lock nut

10

AZ9719520140

4

O/K/4

×2

Stop bracket

10

AZ9719520010

1

S/4×2

Stop bracket,left,front

10a

AZ9719520011

1

S/4×2

Stop bracket,right,front

10b

AZ9719520012

1

S/4×2

Stop bracket,left,rear

10c

AZ9719520013

1

S/4×2

Stop bracket,right,rear

10d

AZ9719520016

4

S/4×2

Plug

11

Q151B1445

16

Screw

12

190003888458

14

Nut

14

199100520112

2

Plate

17

Q40310

4

Spring washer

18

WG9000520079

4

Bush

19

WG9100520018

2

Spring shackle C

20

199100520006

6

Spring bolt

21

1680 52 0050

12

Washer

22

Q151C1270

2

Screw

23

Q151C1275

4

Screw

24

190003888457

6

Lock nut

25

190003963124

6

Grease nipple

26

AZ9719520009

2

S/O/4×2

Plate

26

199014520295

2

K/4×2

Plate

27

AZ9112520312

4

Spring clip

27

199000520109

4

K/4×2

Spring clip

32

WG9719520020

2

Spring rear

34

AZ9725520048

2

O/S/4×2

Stop C for rear axle

34

AZ9725520047

2

K/4×2

Stop C for rear axle

35

AZ9725520041

2

K/4×2

Plate

36

Q151B1260

4

Screw

36a

Q33212

4

Nut

38

WG9000520089

2

Washer

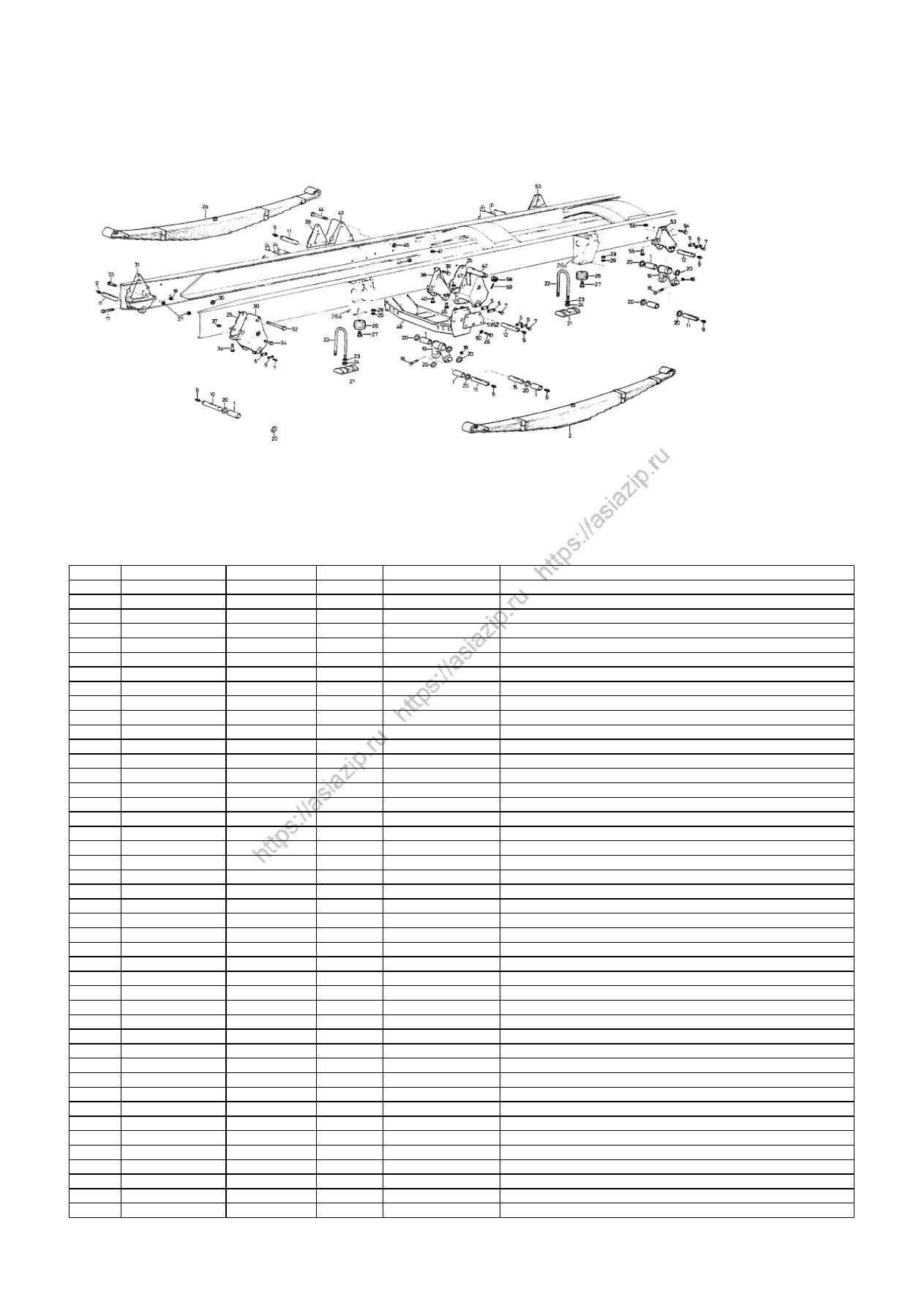

C8-3                          4×2 REAR SPRING/4×2后悬架                            Fig.C8-3

C8-3                                4×2 REAR SPRING/4×2后悬架

JINAN SHUNHE AUTO PARTS CO.,LTD

73

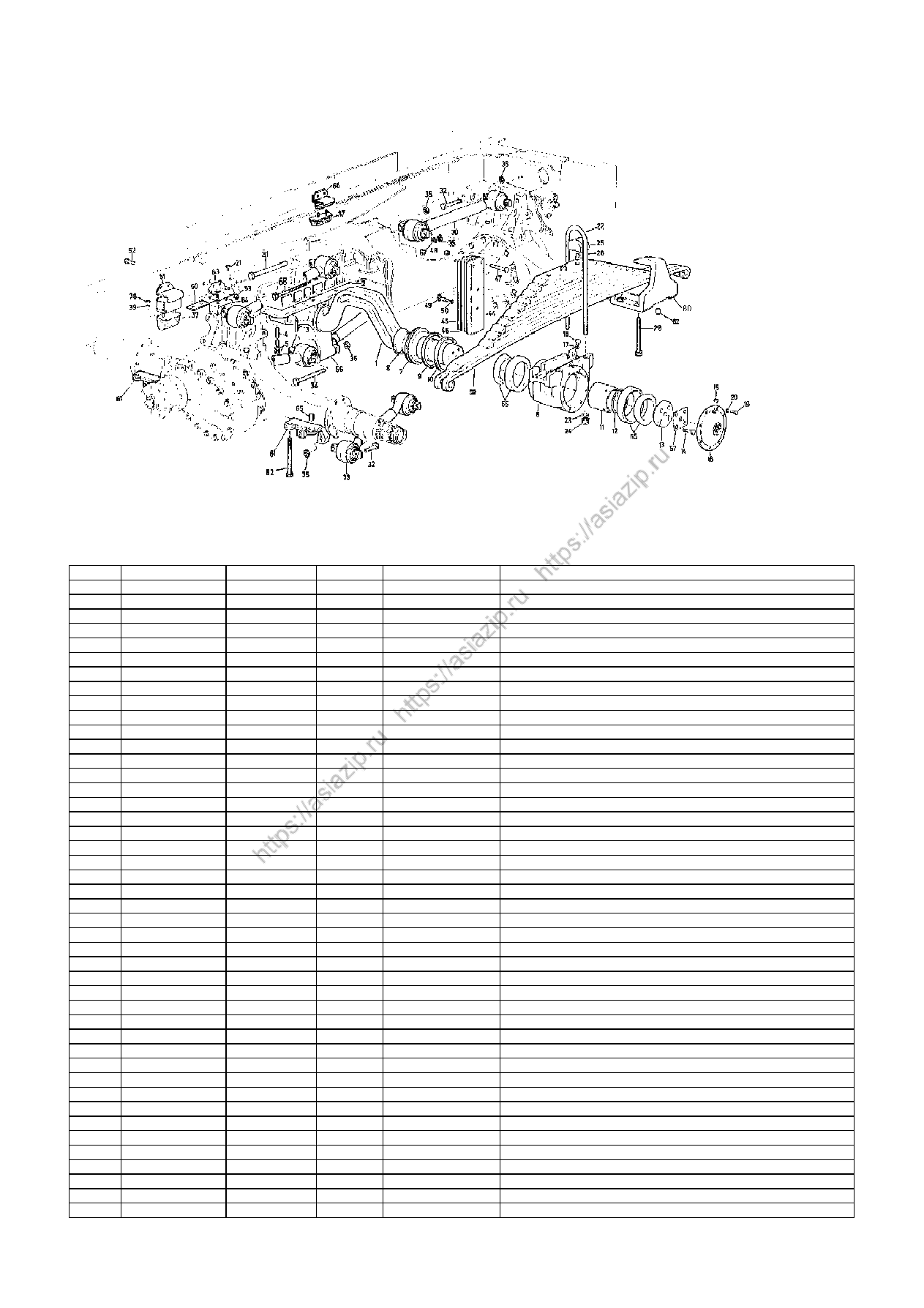

No

Number of part

Quantity

Description

Applicability

Designation

0

AZ9725520110

1

Balance shaft C with housing(inc.1~20,55)

0

AZ9725520100

1

S/6×4/8×4

Balance shaft C with housing(inc.1~20,55)

0

AZ9725520022

1

O,K/6×4/8×4

Balance shaft C with housing(inc.1~20,55)

1

AZ9232520004

1

Balance shaft

3

Q5211645

2

Pin

4

WG9014520227

28

Stud

5

190003871353

28

Nut

6

199114520035

2

Balance shaft housing

6

199114520233

2

Balance shaft housing

7

199114520136

2

Bearing sealing cover

8

1614 130062

2

Sealing ring

9

AZ9114520223

2

Sealing ring

10

AZ9114520222

2

Ring

11

199014520191

2

Bush

12

199014520192

2

Space washer

12a

199014520193

2

Space washer

12b

199014520194

2

Space washer

12c

199014520303

2

Space washer

12d

199014520306

2

Space washer

12e

99114520059

2

Space washer

12f

AZ9100520008

2

Space washer

13

199014520265

2

Stop washer

14

Q171B1655TF2

8

Screw

14a

WG9114520041

2

Screw

15

190003962021

2

Screw

15

190003962021

2

Screw

16

Q150B0810

2

Screw

17

Q72308T5F

2

Grasket

18

199014520311

2

Cover

19

Q150B0820

16

Screw

20

Q40308

16

Spring washer

22

AZ9725520037

4

For WG9232520008

Spring clip

22

AZ9725520053

4

For WG9638520008

Spring clip

22

AZ9725520055

4

For WG9731520013

Spring clip

22

199114520234

4

For WG9232520232

Spring clip

23

1880340022

8

Washer

24

190003888749

8

Lock nut

25

AZ9638520005

2

Spring clip plate

26

199000520006

4

Guide bolt

27

AZ9725520001

1

Bracket left,front

27a

AZ9725520002

1

Bracket right,front

27b

AZ9725520003

1

Bracket left,rear

27c

AZ9725520004

1

Bracket right,rear

27

AZ9725520011

1

Bracket left,front

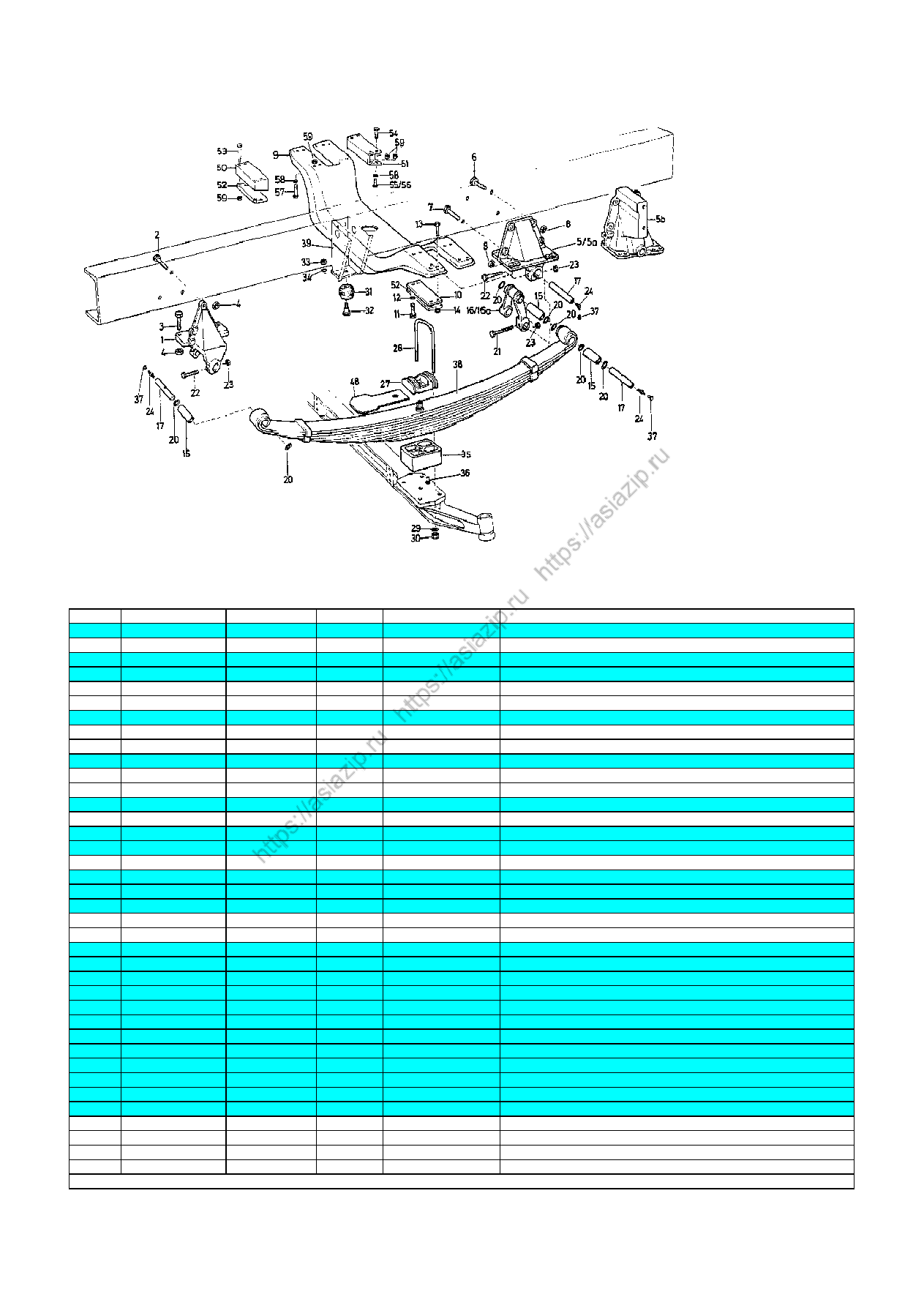

C8-4          6×4, 8×4 SWIVEL SPRING AND SUSPENSION/6×4，8×4平衡悬架        Fig.C8-4

C8-4        6×4, 8×4 SWIVEL SPRING AND SUSPENSION/6×4，8×4平衡悬架

JINAN SHUNHE AUTO PARTS CO.,LTD

74

27a

AZ9725520012

1

Bracket right,front

27b

AZ9725520058

1

Bracket left,rear

27c

AZ9725520059

1

Bracket right,rear

27

AZ9638520001

1

For WG9638520008

Bracket left,frowt

27a

AZ9638520002

1

For WG9638520008

Bracket right,frowt

27b

AZ9638520003

1

For WG9638520008

Bracket left,rear

27c

AZ9638520004

1

For WG9638520008

Bracket right,rear

28

Q151B22230

16

Screw

30

WG9114521174

4

Bottom brace rod C

30

199114520038

4

Bottom brace rod C

30

DZ9114520175

4

Bottom brace rod C

30

DZ9114520175

4

Bottom brace rod C

31

Q151B2090

2

Screw

32

190003803974

12

Screw

33

WG9114521175

2

Top brace rod C

33

199114520169

2

For 12.00R24

Top brace rod C

33

DZ9114520174

2

Top brace rod C

34

Q151B20200

4

Screw

35

190003888467

18

Lock nut

JINAN SHUNHE AUTO PARTS CO.,LTD

75

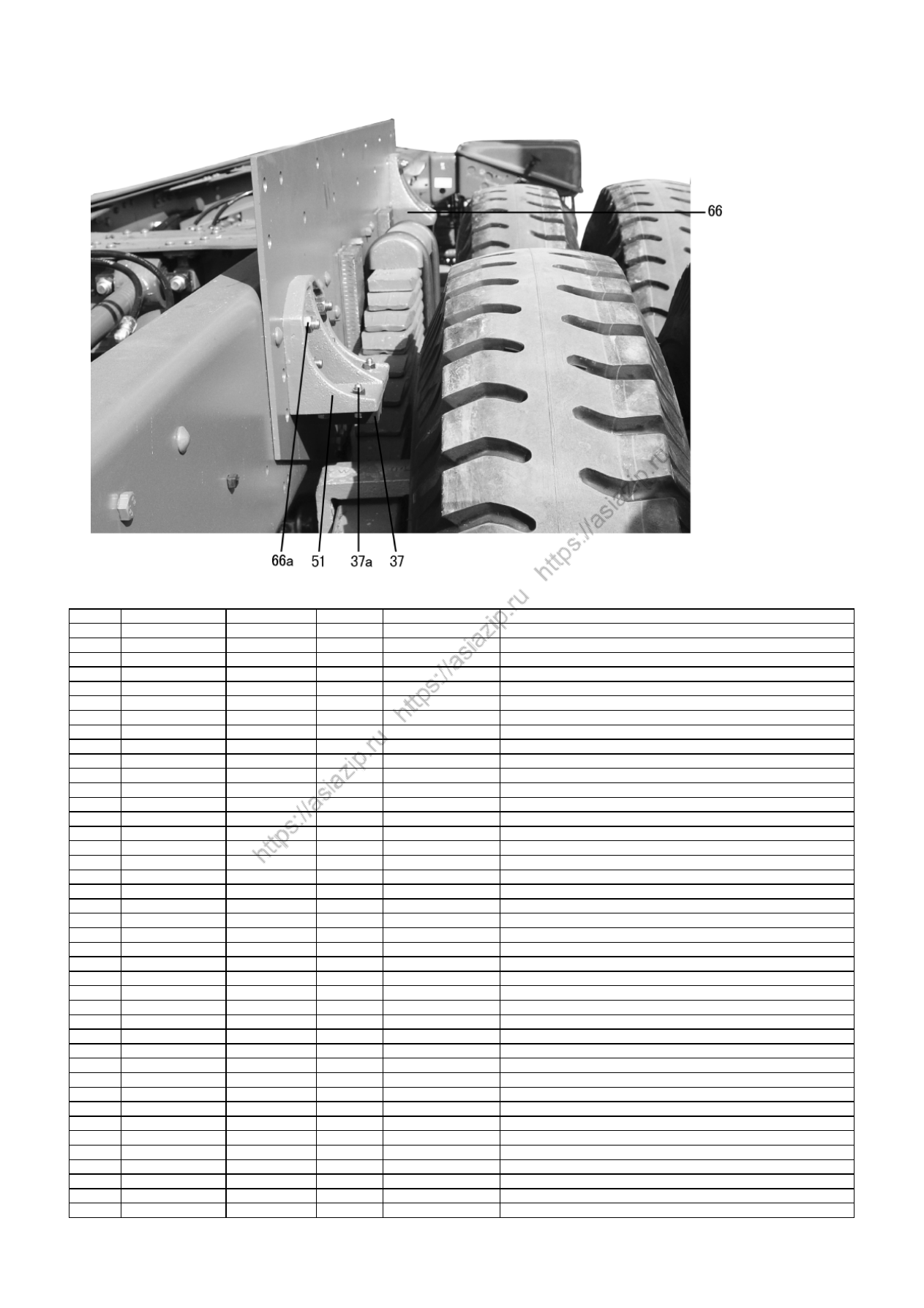

No

Number of part

Quantity

Description

Applicability

Designation

37

AZ9114520091

4

Stop C

37a

Q150B1035

16

Screw

38

Q340B10

16

Nut

39

Q40310

16

Spring washer

45

WG9232520005

4

Diff.sheet

45

199014520224

4

Diff.sheet

46

199014520224

4

Diff.sheet

46a

199014520204

4

Diff.sheet

47

Q151C1260

12

Screw

48

190003888457

16

Lock nut

49

Q151C1255

4

Screw

50

Q40312

16

Spring washer

51

AZ9232520003

2

Stop bracket

51

AZ9114520098

4

For WG9638520008

Stop bracket

54

199014520019

4

Bolt

55

WG9114520042

4

Ball bearing

55a

199014520188

2

Retaining plate of bearing

56

199014520217

2

Bracket

57

199014520265

2

Lock washer

59

WG9232520008

2

S/O/

6×4

Self-stop rear spring C

59

WG9725520010

2

O/S/

6×4

Self-stop rear spring C

59

WG9232520028

2

K/

6×4,8×4

Self-stop rear spring C

59

WG9731520013

2

K/6

×4,8×4

Self-stop rear spring C

59

WG9638520008

2

Four main-leaf K/6

×4,8×4

Self-stop rear spring C

59

WG9232520232

2

For 12.00R24

Self-stop rear spring C

60

199100520112

4

Plate

61

199014520292

2

Bracket left

61a

199014520293

2

Bracket right

61

AZ9725520016

1

Bracket left,front

61a

AZ9725520017

1

Bracket right,front

61b

AZ9725520018

1

Bracket left,rear

61c

AZ9725520019

1

Bracket right,rear

62

199014520256

4

Pin

65

1990003901905

4

Pin

66

AZ9232520002

4

Stop bracket

66

AZ9114520098

4

Stop bracket

66a

Q150B1460

16

Screw

66b

Q340B14

16

Nut

66c

Q40314

16

Spring washer

67

Q40020

1

Washer

69

Q40312

8

Spring washer

C8-4          6×4, 8×4 SWIVEL SPRING AND SUSPENSION/6×4，8×4平衡悬架        Fig.C8-5

C8-4        6×4, 8×4 SWIVEL SPRING AND SUSPENSION/6×4，8×4平衡悬架

JINAN SHUNHE AUTO PARTS CO.,LTD

76

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719680003

1

Stabilizer C

2

1880 680024

2

Connect plate

3

WG880 680027

2

Plate

4

199100680068

2

Rubber bearing

5

Q5211424

2

Bolt

6

Q150B1095TF2Q

4

Screw

7

Q40310

4

Spring washer

10

WG9100680055

2

Plate

11

199100680069

2

Screw

12

Q40214

2

Washer

13

190003888458

2

Lock nut

16

199100680057

2

Screw

17

Q40016

2

Washer

18

190003888459

2

Lock nut

19

AZ9719680013

2

Bracket C

20

Q151C1240

4

Screw

21

190003888457

4

Lock nut

22

190003936012

2

Washer

23

199100680065

2

Bracket

24

Q151B1660

4

Screw

26

199012680025

2

Fork

27

190003933242

2

Snap ring

28

199012680009

2

Screw

29

Q40116

2

Washer

30

90003888459

2

Nut

31

WG9719680008

1

For long,high-roof cab

Shock absorber bracket C

32

Q151C1240

8

Screw

33

199100680021

4

Plate

34

190003888457

8

Lock nut

35

199100680036

2

Screw

36

Q40016

2

Washer

37

190003888459

2

Lock nut

38

WG9100680001

2

Shock absorber

39

190003963112

2

Grease nipple

41

Q40316

2

Washer

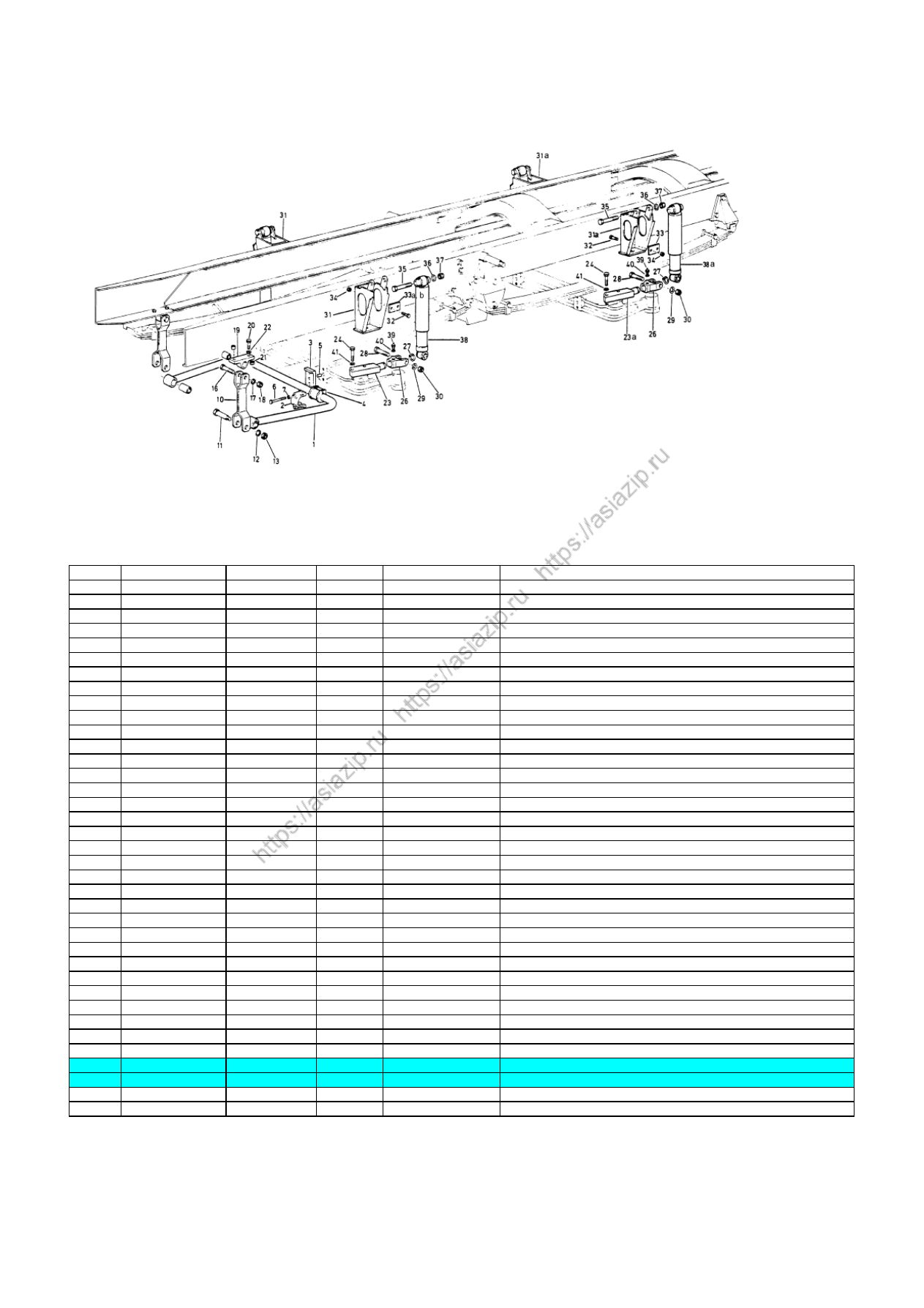

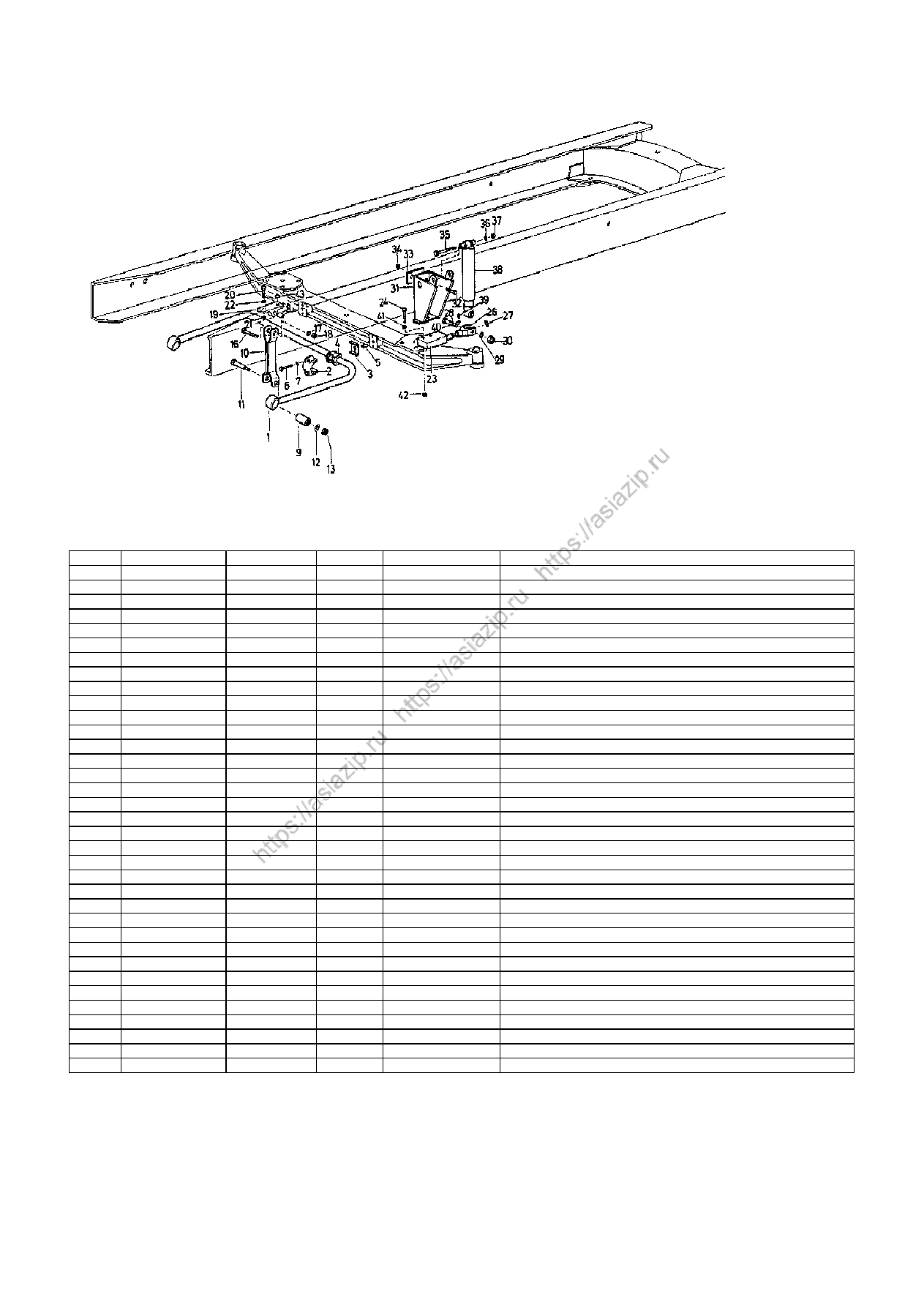

C8-5    4×2,6×4 STABLIZER,SHOCK ABSORBER FRONT/4×2,6×4前稳定杆与减振器    Fig.C8-6

C8-5    4×2,6×4 STABLIZER,SHOCK ABSORBER FRONT/4×2,6×4前稳定杆与减振器

JINAN SHUNHE AUTO PARTS CO.,LTD

77

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719680003

1

Stabilizer

2

1880 680024

2

Connect plate

3

WG880 680027

2

Plate

4

199100680068

2

Rubber bearing

5

Q5211424

2

Pin

6

Q150B1095TF2Q

4

Screw

7

Q40310

42

Spring washer

10

WG9100680055

2

Plate

11

199100680069

2

Screw

12

Q40214

2

Washer

13

190003888458

2

Lock nut

16

199100680057

2

Screw

17

Q40016

2

Washer

18

190003888459

2

Lock nut

19

AZ9719680013

2

Bracket C

20

Q151C1250

4

Screw

21

190003888457

4

Lock nut

23

AZ9731680001

2

Bracket

23a

199100680065

2

Bracket

24

Q151B1660

8

Screw

26

199012680025

4

Joint fork

27

190003933242

4

Circlip

28

199012680009

4

Screw

30

190003888459

4

Lock nut

31

WG9731680005

2

Shock absorber bracket C

31a

WG9731680006

2

Shock absorber bracket C

32

Q151C1240

16

Screw

33

199100680021

4

Connect sheet

33a

AZ9731680007

2

Connect sheet

33b

AZ9731680008

2

Connect sheet

34

190003888457

16

Lock nut

35

199100680036

4

Screw

37

190003888459

4

Lock nut

38

WG9114680004

2

Shock absorber

38a

WG9100680001

2

Shock absorber

39

190003963112

2

Grease nipple

41

Q40316

8

Spring washer

C8-6            8×4 STABLIZER,SHOCK ABSORBER FRONT/8×4前稳定杆与减振器          Fig.C8-7

C8-6            8×4 STABLIZER,SHOCK ABSORBER FRONT/8×4前稳定杆与减振器

JINAN SHUNHE AUTO PARTS CO.,LTD

78

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9100680046

2

S/O/

4×2

Shock absorber

2

199100680036

2

Screw

3

190003888459

2

Lock nut

4

AZ9719680010

2

Bracket

5

199012680025

2

Joint fork

6

190003933242

2

Snap ring

7

199012680009

2

Screw

8

Q40116

2

Lock nut

9

190003888459

2

Grease nipple

10

190003953112

2

Washer

12

190003932965

2

Washer

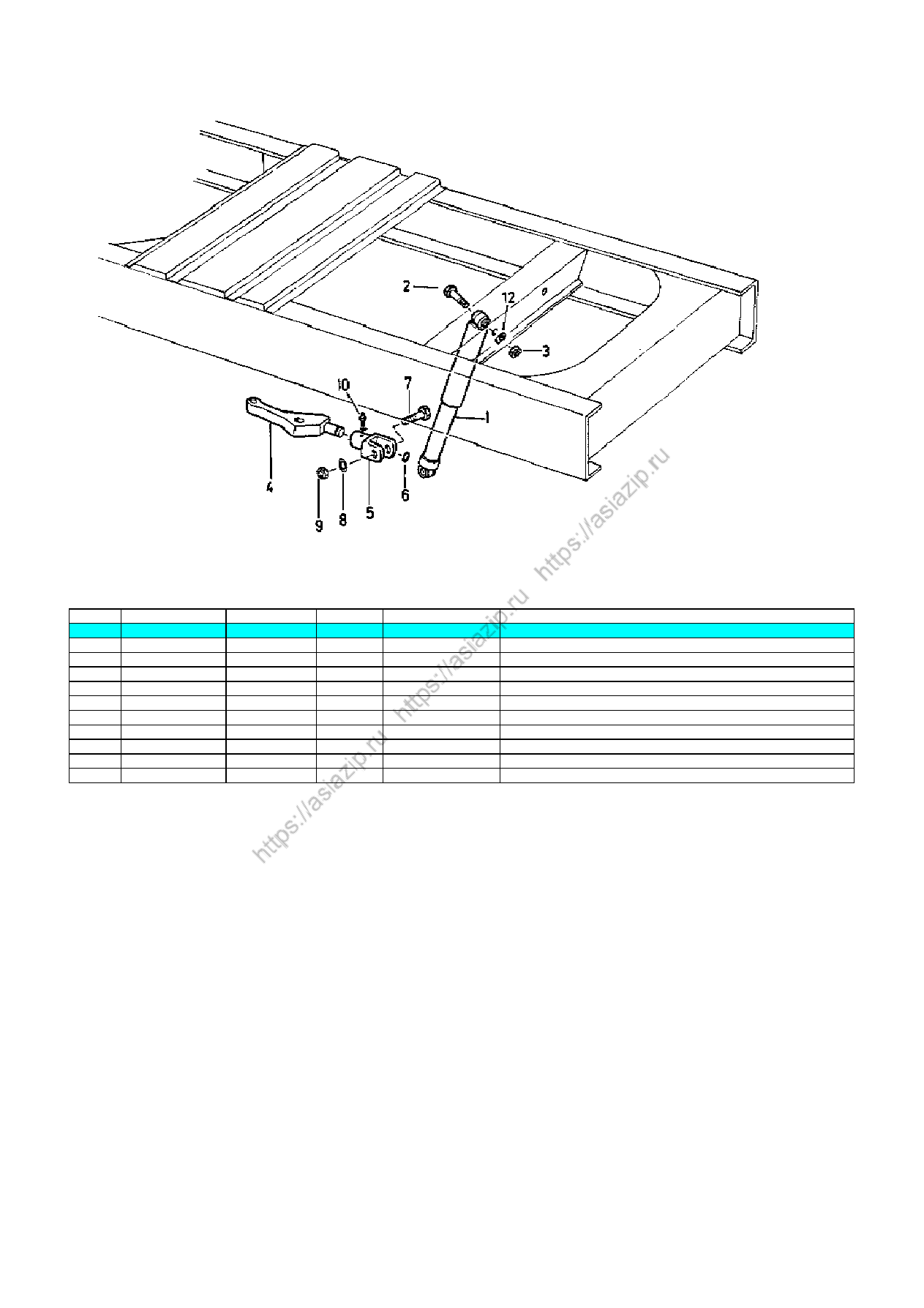

C8-7                      4×2 SHOCK ABSORBER/4×2后减振器                       Fig.C8-8

C8-7                      4×2 SHOCK ABSORBER/4×2后减振器

JINAN SHUNHE AUTO PARTS CO.,LTD

79

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719680006

1

Stabilizer C

2

1780680035

2

Bush

3

WG80 680029

2

Screw

4

1780 680030

2

Washer

5

190003888459

2

Lock nut

6

199100680067

2

Rubber bearing

7

WG780 680032

2

Bearing clip

8

Q151C12100

4

Screw

9

190003888457

4

Lock nut

10

WG9719680011

2

Connecting clip

11

199100680037

2

Bush

12

199100680066

4

Bearing

13

WG80 680029

2

Screw

14

1780 680030

2

Washer

15

190003888459

2

Lock nut

20

199100680071

2

Washer

21

190003930010

2

Washer

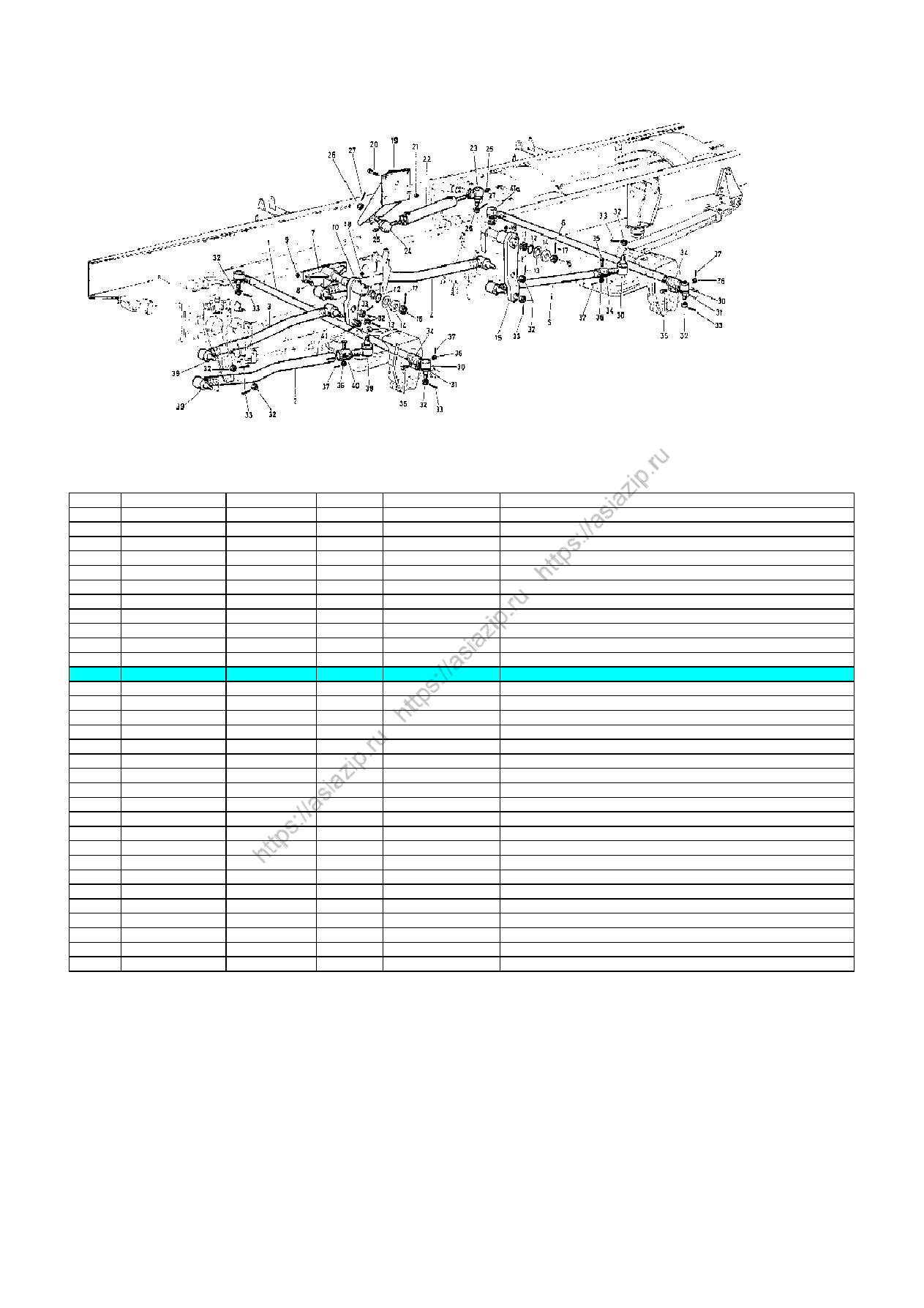

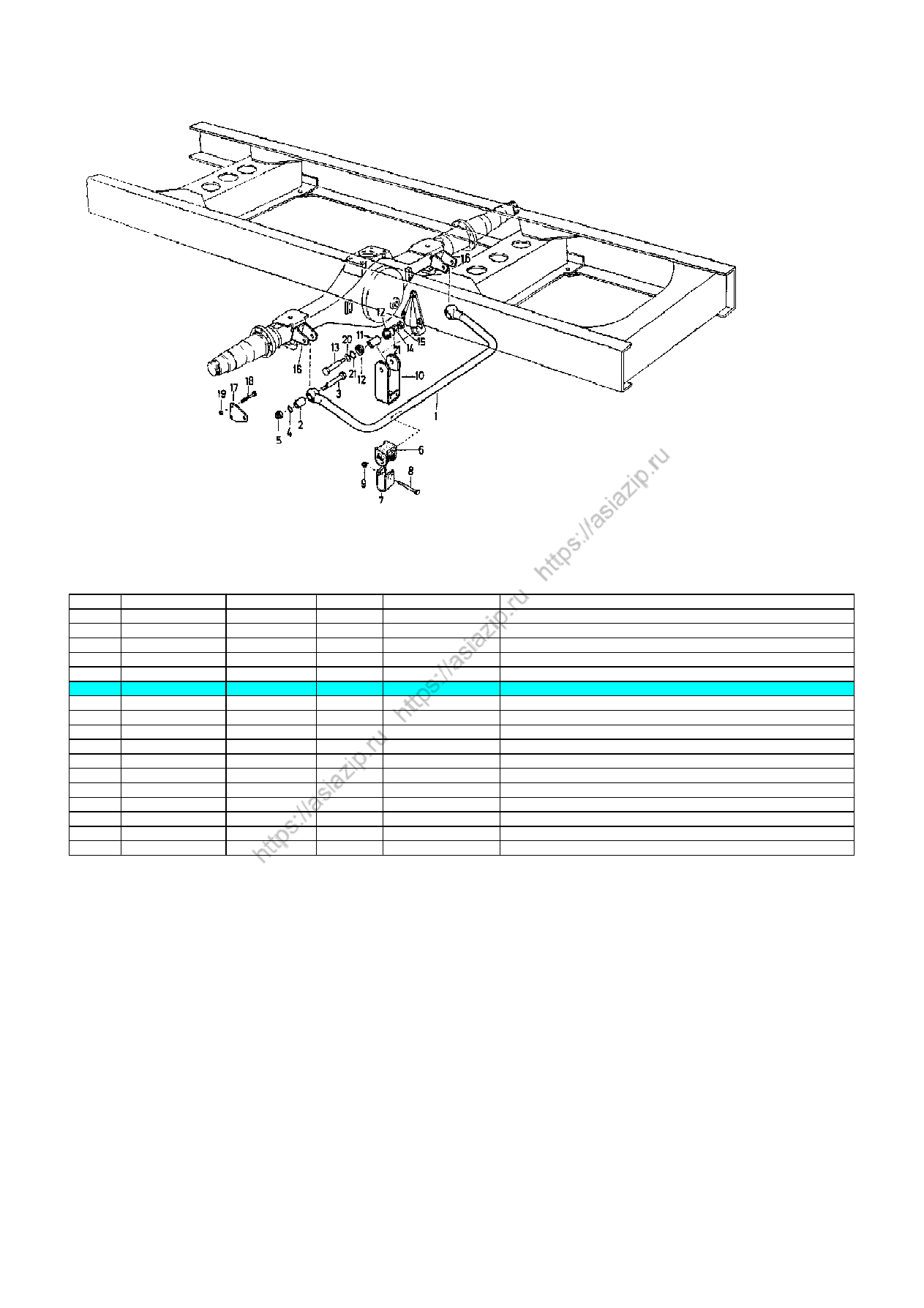

C8-8                           4×2 STABLIZER REAR/4×2后稳定器                        Fig.C8-9

C8-8                           4×2 STABLIZER REAR/4×2后稳定器

JINAN SHUNHE AUTO PARTS CO.,LTD

80

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719470100

1

Steering wheel

2

AZ9130583024

1

Touch ring

AZ9719470050

1

No incl.1,2,19,30,46~52

Steering tube assembly

3

Q351B22T15

1

Nut

4

Q41822

1

Spring washer

6

Q43125

1

Snap ring

7

AZ9003320012

1

Ball bearing

8

AZ9719470053

1

Steering shaft

9

WG9130583019

1

Start switch

10

Q150B0530

1

Screw

11

Q340B05

1

Nut

12

81.95801.0071

1

Roller

13

81.46433.0005

1

Clip

14

AZ9719470051

1

Sleeve

15

AZ9123470129

1

Spring

16

AZ9123470130

1

Washer

17

AZ9100470424

1

Support

18

Q150B0865

2

Screw

19

AZ9719470041

1

Cover of the steering column rear

20

Q2720412

4

Screw

AZ9719470057
Q40316

22

Q40316

1

Spring washer

23

AZ9719470058

1

Plate

24

AZ9719470055

1

Adjusting screw

25

AZ9123470153

1

Spring

26

AZ9719470052

1

Bracket for electrical line

27

Q150B0408

2

Screw

28

Q40304

2

Spring washer

29

Q40104

2

Washer

30

AZ9719470042

1

Cover of the steering column front

31

Q2714250

2

Screw

32

AZ9123470150

1

Hand wheel

33

AZ9123470155

1

Washer

34

AZ9719470054

1

Sleeve

35

AZ9719470056

1

Support

36

Q150B0830

4

Screw

37

Q340B08

4

Nut

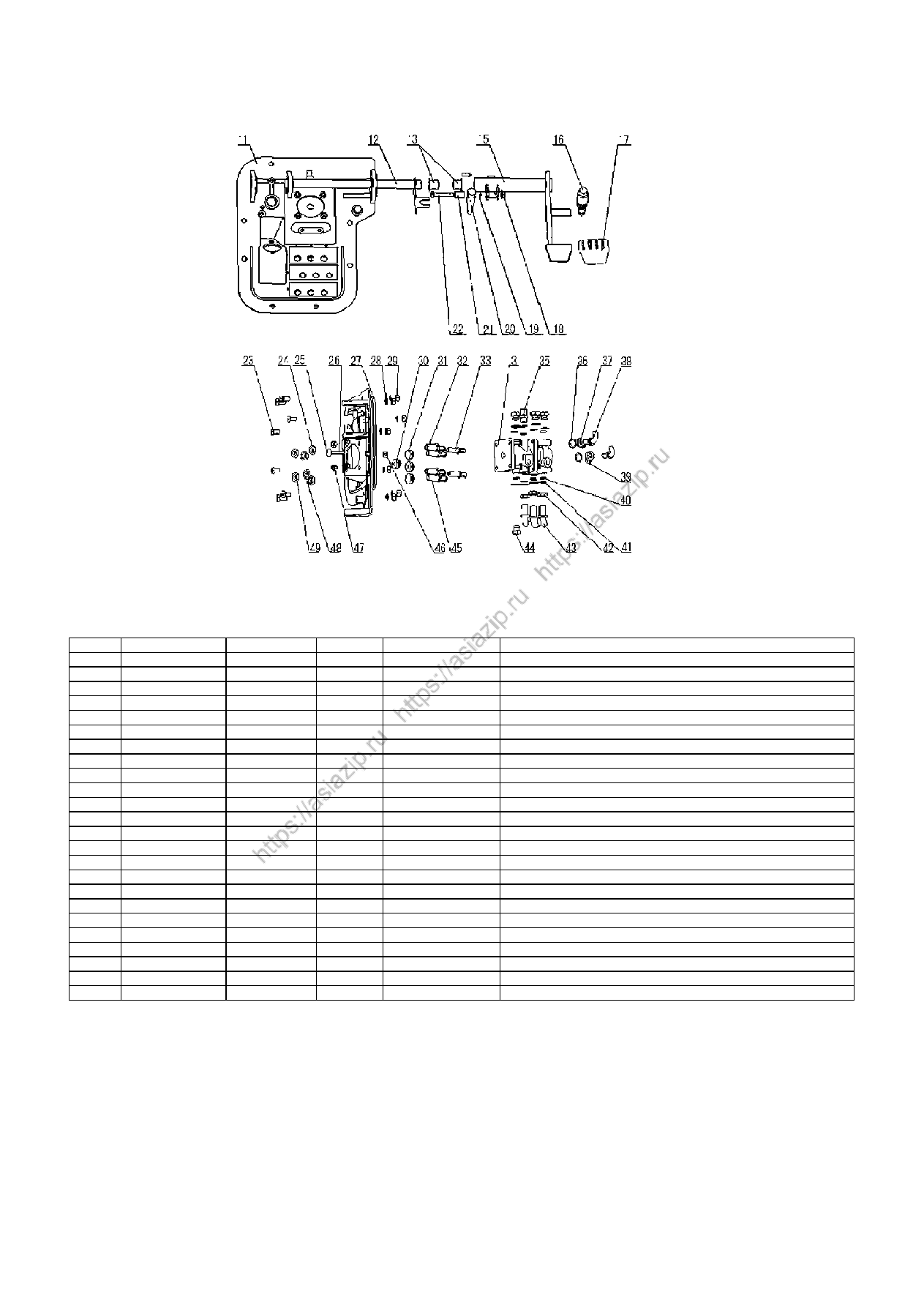

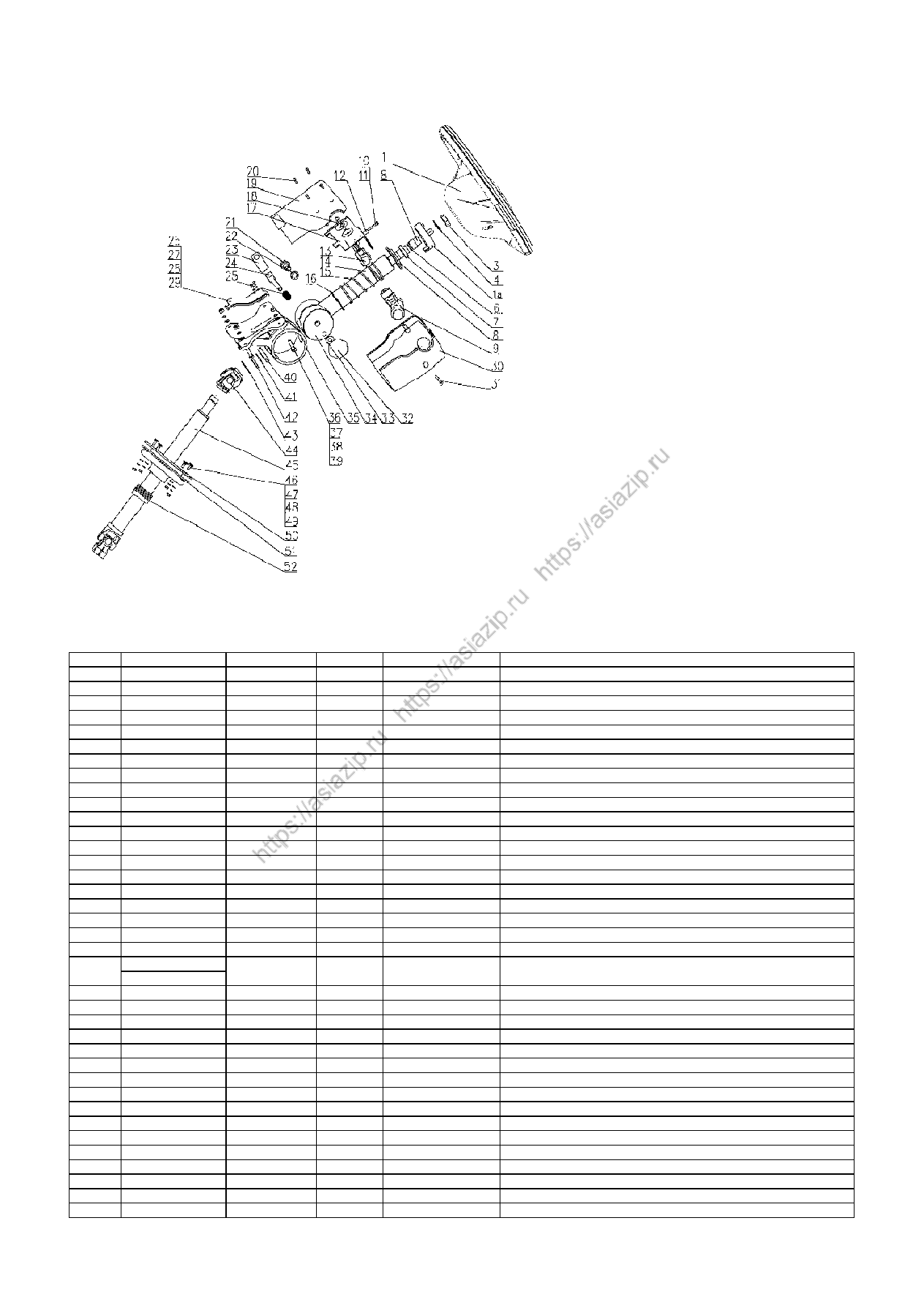

C9-1                   STEERING DEVICE/转向操纵装置                       Fig.C9-1

C9-1                   STEERING DEVICE/转向操纵装置

21

1

Screw

JINAN SHUNHE AUTO PARTS CO.,LTD

81

38

Q40308

4

Spring washer

39

Q40108

4

Washer

40

AZ9003320013

1

Ball bearing

41

Q43130

1

Snap ring

42

81.91710.0459

1

Ring

43

Q43042

1

Snap ring

44

AZ9719470043

1

Gimbal –assembly

45

AZ9719470044

1

Telescopic shaft

46

Q199B0616

4

Screw

47

Q340B06

4

Nut

48

Q40306

4

Spring washer

49

Q40106

4

Washer

50

AZ9719470045

1

Bellow

51

AZ9719470046

2

Plate

52

AZ9100470410

1

Bush

JINAN SHUNHE AUTO PARTS CO.,LTD

82

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719470228

1

Steering gear(ZF8098)

1

AZ9100470225

1

Steering gear(ZF8095)

1

WG9716470150

1

Steering gear(ZF8098)

2

AZ9719470029

1

Delivery line

2

AZ9725470229

1

Delivery line

2

AZ9716470050

1

Delivery line

3

T071800

2

Gasket

4

190003962632

1

Female screw

5

252-3407054

1

Gasket

6

252-3407055

1

Nut

7

252-3407056

1

Nozzle

8

190003883242

1

Nut

9

WG9100470078

1

Nozzle

10

190003989336

2

Hose clamp

11

WG9725470050

1

Rubber hose

11

AZ9716470060

1

Rubber hose

11a

17017470015

1

Spring protect ring

12

Q151B2045TF2

5

Screw

13

WG9719470020

1

Drop arm

13

WG9725470298

1

Drop arm

13

WG9716470020

1

Drop arm

15

Q150B0630

2

Screw

16

Q340B06

2

Nut

17

Q40206

2

Washer

18

Q40306

2

Spring washer

19

1397 350169

1

Angle

20

190003489292

1

Sleeve

21

Q68225

1

clamp

22

Q150B0620

4

Screw

23

Q340B06

5

Nut

24

Q40306

5

Spring washer

26

AZ9731470020

1

Steering bracket

26

AZ9725470295

Steering bracket

26

AZ9725470238

1

For ZF 8098

Steering bracket

27

Q151B1660TF2

6

Screw

28

190003888627

5

Nut

29

AZ9725470020

1

Bracket assembly

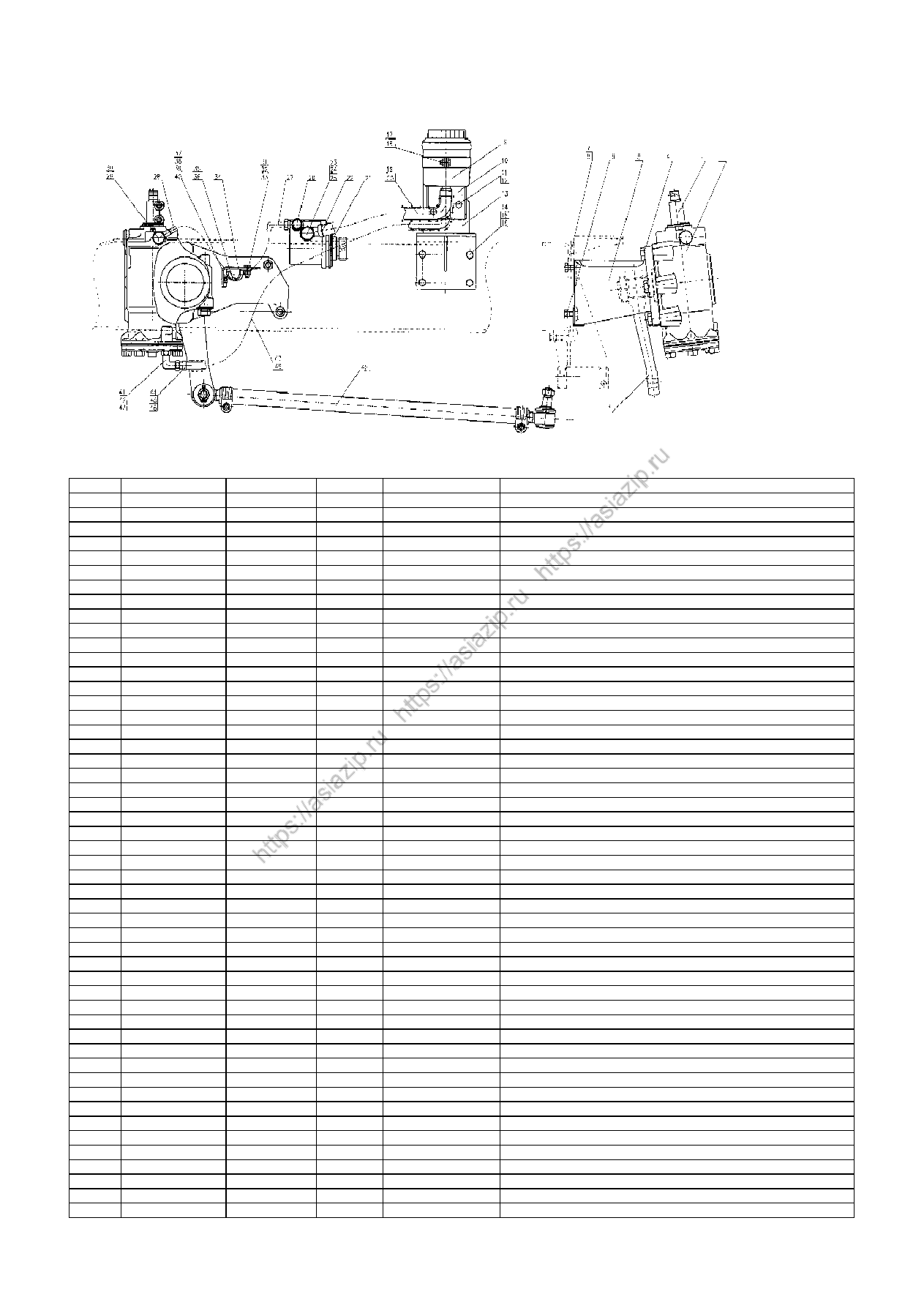

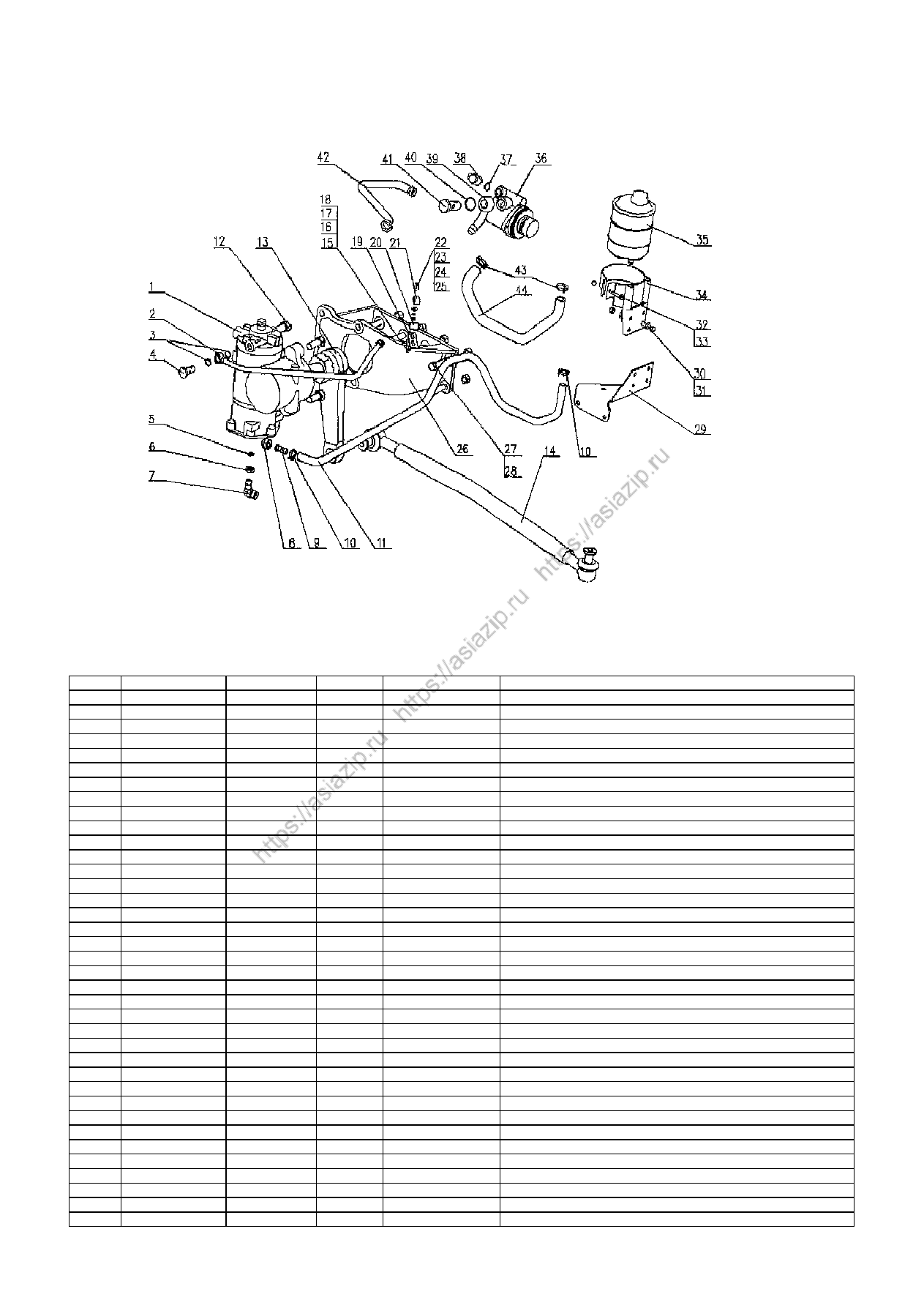

C9-2                      4×2，6×4HYDRAULIC STEERING SYSTEM

     4×2，6×4液压动力转向系统                      Fig.C9-2

C9-2                      4×2，6×4HYDRAULIC STEERING SYSTEM

     4×2，6×4液压动力转向系统

JINAN SHUNHE AUTO PARTS CO.,LTD

83

29

AZ9725470025

1

Bracket assembly

30

Q151B1020

2

Screw

31

Q33210

2

Nut

32

Q150B0835

1

Serew

33

Q33208

1

Nut

34

AZ9100470040

1

Bracket

34

AZ9100470049

1

Support

35

WG9719470033

1

Oil tank

36

WG9719470037

1

Hydraulic pump

36

WG9619470080

1

Hydraulic pump

36

WG9631470060

1

Hydraulic pump

36a

161800130047

1

Gasket

36b

Q218B1025

1

Screw

36c

Q218B1035

Screw

37

T071800

1

Gasket

38

WG9100470110

1

Screwing

39

WG9100470076

1

Joint

40

190003098031

2

Gasket

41

190003962651

1

Female screw

42

WG9100470107

1

High pressure hose

42

WG2032470140

1

High pressure hose

42

AZ9716470070

1

High pressure hose

43

190003989301

2

Hose clamp

44

WG9725470120

1

Hose

44

AZ9725470175

1

Hose

44a

AZ9725470084

1

Spring protect ring

44b

AZ9123360300

120

Protect sleeve

JINAN SHUNHE AUTO PARTS CO.,LTD

84

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719470228

1

Steering gear(ZF8098)

3

WG9719470020

1

Drop arm

4

Q151B2045TF2

5

Screw

5

AZ9731470020

1

Steering bracket

6

Q151B1660TF2

5

Screw

8

190003888627

5

Nut

9

Q81714

3

Tie-in

10

Q81818

3

Screw

11

T071800

6

Gasket

12

Q80014

6

Ring

13

Q80114

6

Nut

14

Q80414

6

Tie-in

15

AZ9725470091

1

Steel tube

15a

AZ9725470092

1

Steel tube

16

AZ9725470093

1

Steel tube

16a

AZ9725470094

1

Steel tube

17

Q80314

2

Tie-in

18

WG9725470060

1

Oil tank C

19

AZ9725470040

1

Bracket assembly

20

Q150B1020

4

Screw

21

Q33210

4

Nut

26

Q150B0835

1

Screw

27

Q33208

1

Nut

28

190003989301

2

Hose clamp

29

WG9725470120

1

Hose

30

AZ9725470084

1

Spring protect ring

31

WG9719470037

1

Hydraulic pump

31

WG9631470060

1

Hydraulic pump

32

AZ9725470090

1

Hight pressure hose

32a

AZ9725470097

1

Hight pressure hose

33

AZ9160470090

1

Tie-in

34

190003098031

2

Gasket

35

WG9719470029

1

Steel tube

36

Q150B0620

4

Screw

37

Q40306

5

Spring washer

38

Q340B06

5

Nut

39

1397350169

1

Angle

40

138091360181

1

Clamp

41

161000060211

1

Rubber hose

42

Q150B0630

4

Screw

43

Q340B06

5

Nut

44

Q40206

4

Washer

45

252-3407056

1

Nozzle

46

252-3407054

1

Gasket

47

252-3407055

1

Nut

48

WG9100470078

1

Tie-in

49

190003989336

Hose clamp

50

190003883242

Nut

51

WG9725470050

Rubber hose

52

17017470015

Spring protect ring

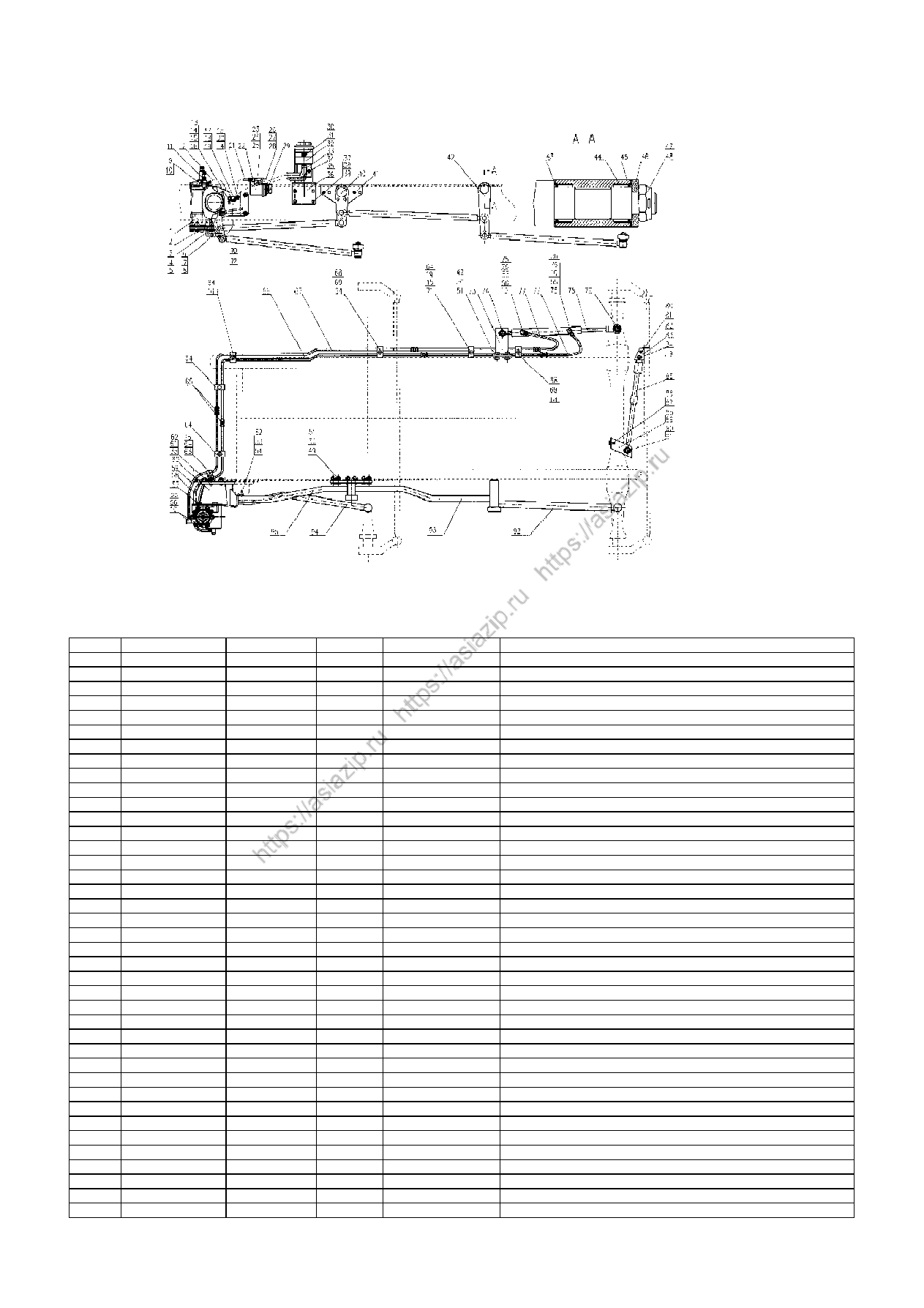

C9-3               6×2HYDRAULIC STEERING SYSTEM/6×2液压转向系统              Fig.C9-3

C9-3               6×2HYDRAULIC STEERING SYSTEM/6×2液压转向系统

JINAN SHUNHE AUTO PARTS CO.,LTD

85

No

Number of part

Quantity

Description

Applicability

Designation

27

AZ9100470084

1

Spring protect ring

28

190003989301

2

Hose clamp

29

WG9719470037

1

Hydr.pump

30

Q150B0835

1

Screw

31

Q33208

1

Nut

32

WG9719470033

1

Oil tank C

33

AZ9100470040

1

Support

34

Q150B1020Q

2

Screw

35

Q40310

2

Spring washer

36

AZ9725470020

1

Bracket

37

Q150B1230

6

Screw

38

Q340B12

6

Nut

39

Q40312

6

Spring washer

40

AZ9731470030

1

Lever

41

AZ9731470035

1

Bracket

42

WG9018470016

1

Lever

43

199018470014

4

Washer

44

WG90  410228

4

Needle bearing

45

1880  340023

4

“O”ring

46

199018470015

2

Washer

47

190003872383

2

Nut

48

Q5006350

2

Split pin

49

190003888458

2

Locknut

50

Q151B1445

2

Screw

51

Q40020

2

washer

54

190003888459

1

Locknut

55

Q81714

3

Tie-in

56

Q81818

3

Screw

57

Q151B2035TF2

5

Screw

58

AZ9731470050

1

Pressure oil pipe

59

AZ9731470051

1

Pressure oil pipe

60

AZ9731470020

1

Steering bracket

61

Q151B1660TF2

6

Screw

62

190003888627

6

Nut

63

199100820050

2

Lashing

64

1188  730187

6

Clamp

65

Q80314

4

Nozzle

66

AZ9731470052

1

Pressure oil pipe

67

AZ9731470053

1

Pressure oil pipe

C9-4          8×4 HYDRAULIC STEERING SYSTEM/8×4液压动力转向系统              Fig.C9-4

C9-4          8×4 HYDRAULIC STEERING SYSTEM/8×4液压动力转向系统

JINAN SHUNHE AUTO PARTS CO.,LTD

86

70

WG9725470050

1

Return hose

71

Q40506

5

Spring washer

72

17017470015

1

Spring protect ring

73

199018510018

1

Bracket assembly

74

AZ9118470024

1

Ball joint C

75

Q80114

12

Nut

76

Q80014

12

Ring

77

WG2032470140

2

High pressure hose

78

WG9014470008

1

Operating cylinder

79

AZ9118470025

1

Ball joint C

80

Q151C1270

2

Screw

81

190003888457

2

Locknut

82

199118470035

1

Bracket

83

199118470036

1

Bracket

84

Q151B1480

1

Screw

85

19003888458

1

Locknut

86

WG9114470106

1

Absorber

87

Q150B1025

2

Screw

88

Q5211424

1

Column pin

89

199118470033

1

Angle

90

Q271B14

1

Nut

91

Q5003225

1

Split pin

JINAN SHUNHE AUTO PARTS CO.,LTD

87

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719430010

1

Drag link

2

AZ9112430003

1

Tie rod

6

Q387B20T15

1

Nut

7

Q5004036

4

Split pin

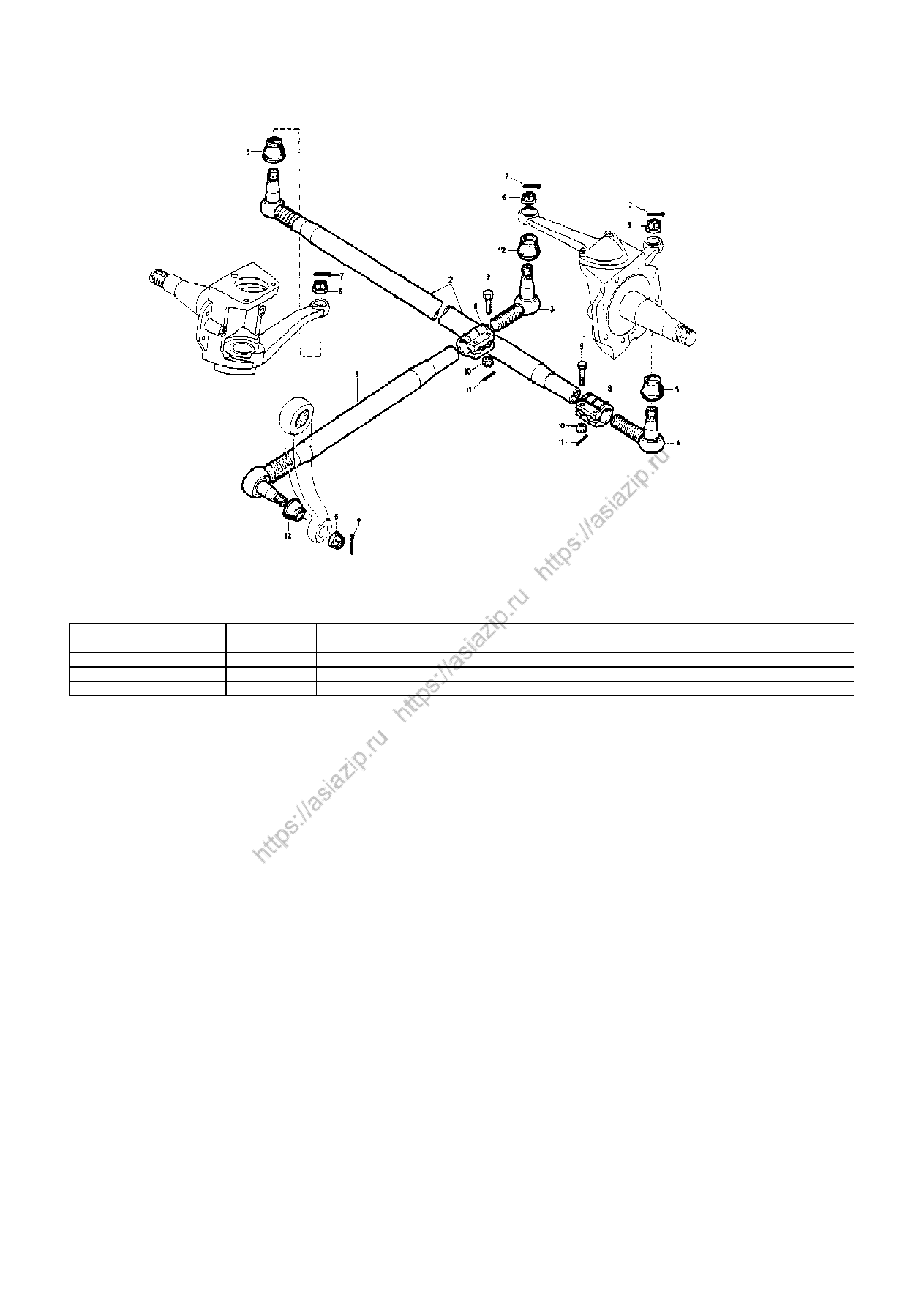

C9-5              4×2,6×2,6×4 STEERING LINKAGE/4×2,6×2,6×4转向拉杆            Fig.C9-5

C9-5              4×2,6×2,6×4 STEERING LINKAGE/4×2,6×2,6×4转向拉杆

JINAN SHUNHE AUTO PARTS CO.,LTD

88

No

Number of part

Quantity

Description

Applicability

Designation

1

11031430066

1

Tie rod

2

AZ9731430010

1

Drag link

3

AZ9731430020

1

Drag link

4

AZ9731430030

1

Drag link

5

AZ9731430040

1

Drag link

6

AZ9731430002

1

Tie rod

7

AZ9731470035

1

Support plate

8

Q151B1445

6

Screw

9

Q33014

6

Lock nut

10

AZ9731470030

1

Lever

11

WG90  410228

4

Needle bearing

12

1880  340023

4

O-ring

13

199018470014

4

Washer

14

199018470015

2

Washer

15

WG018470016

1

Lever

16

190003872383

2

Castle nut

17

Q5006350

2

Split pin

18

19000396612

2

Grease nipple

19

199018510018

1

Blacket

20

Q151B1445

4

Screw

21

Q33014

2

Lock nut

22

WG9014470008

1

Operating cylinder

23

AZ9118470025

1

Ball joint C

24

AZ9115470024

1

Ball joint C

25

190003963112

1

Grease nipple

26

Q387B20T15

1

Castle nut

27

Q5004036

1

Split pin

32

Q387B20T15

2

Castle nut

33

Q5004036

2

Split pin

34

199118470037

1

Clamp

35

Q151C1255

1

Screw

36

Q341C12

1

Lock nut

C9-6                         8×4 STEERING LINKAGE/8×4转向拉杆                   Fig.C9-6

C9-6                         8×4 STEERING LINKAGE/8×4转向拉杆

JINAN SHUNHE AUTO PARTS CO.,LTD

89

No

Number of part

Quantity

Description

Applicability

Designation

1

190003559479

3

Φ

12

Nozzle

2

190003559946

3

Φ

12

Angle nozzle

3

WG9719360005

1

Service brake valve

4

190003559945

6

Φ

8

Nozzle

5

WG9719360030

1

Hand brake valve for trailer

5a

Q617B16

1

Screw

6

WG9000360165

1

Hand brake valve

7

190003559483

1

Φ

8

Nozzle

8

WG99100360111

1

Φ

8/

Φ

6

Nozzle

11

AZ9719360050

1

Combination bracket

12

AZ9719360051

1

Shaft

13

AZ9719360060

2

Bush

14

Q1840616

1

Screw

15

AZ9719360055

1

Brake foot pedal

15

AZ9719364055

1

Brake foot pedal

16

WG9100710006

1

Brake lamp switch

17

AZ9123230226

1

Rubber cover

18

Q341B08

1

Nut

19

Q5002016

1

Split pin

20

AZ9719360063

1

Push rod

21

AZ9719360062

1

Bolt

22

Q173B0845

1

Screw

23

Q150B1016

7

Screw

24

Q351B14T15

2

Nut

25

AZ9123360067

1

Plug

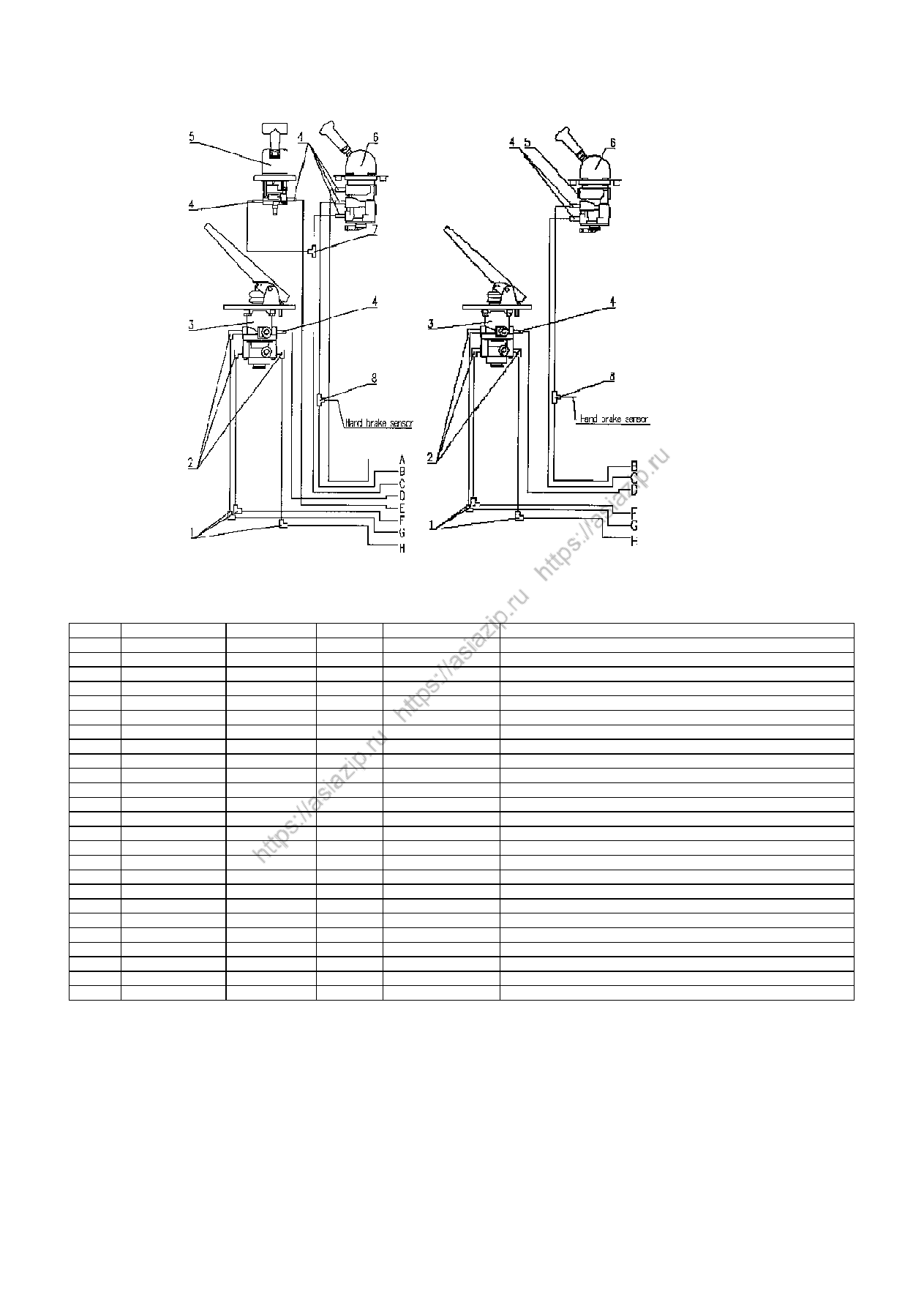

C10-1         BRAKE MECHANISM IN CAB/驾驶室制动操纵机构          Fig.C10-1

C10-1             BRAKE MECHANISM IN CAB/驾驶室制动操纵机构

JINAN SHUNHE AUTO PARTS CO.,LTD

90

No

Number of part

Quantity

Description

Applicability

Designation

26

Q150B0845

1

Screw

27

AZ9719360099

1

Seal profile

28

Q40310

7

Spring washer

29

Q340B10

7

Nut

30

AZ9719360018

2

Rubber sleeve

31

AZ9719360019

2

Plug

32

AZ9719360010

2

Joint

33

AZ9719360009

2

Angle screwing

35

190003559945

1

Screwing

36

1288  730061

2

Gasket

37

Q351C12T15

2

Nut

38

WG9100361003

2

Angle screwing

39

199000360477

2

Gasket

40

1406  070015

8

Gasket

41

WG9000360292

8

Gasket

42

Q351B16T15

3

Nut

43

190003559946

3

Angle screwing

44

Q617B16

4

Screw

45

AZ9719360010

2

Angle nozzle

46

Q150B0830

4

Screw

47

Q340B08

1

Nut

48

Q33208

4

Nut

49

Q351C12T15

2

Nut

49

Q351B15T15

2

Nut

C10-1        BRAKE MECHANISM IN CAB/驾驶室制动操纵机构         Fig.C10-2

C10-1            BRAKE MECHANISM IN CAB/驾驶室制动操纵机构

JINAN SHUNHE AUTO PARTS CO.,LTD

91

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9100368471

1

Air dryer

2

190003559653

3

Angle nozzle

3

190003962612

1

Female screw

4

WG99100270117

1

Connecter

5

Q72312T5F

2

Gasket

6

190003559385

1

Nozzle

7

WG9000360112

2

Check valve

8

190003559963

3

Nozzle

9

WG9719360001

1

Air reservior(5L+5L)

9

WG9100360044

For tractor

Air reservior(5L)

10

190003962038

2

Screw

11

WG9114360010

5

nozzle

12

WG9000360115

5

Drain valve

13

WG9000360366

1

4-circuit protecting valve

14

190003559946

3

Angle nozzle

15

WG99100360115

1

Distributor

16

WG99100360161

1

Nozzle

17

190003559948

4

Nozzle

18

WG9000360314

1

Test connector

19

WG9014362117

1

S/6

×

4,S/4

×

2,K/4

×

2

Air reservior(

Φ

275/30L)

19

WG9003550098

1

S/6

×

2

Air reservior(40L)

19

WG9003550098

2

O/6

×

2

Air reservior(40L)

19

WG9003550094

2

O/4

×

2/6

×

4,K/6

×

4

Air reservior(30L)

19

WG9014362009

2

O/8

×

4,K/8

×

4

Air reservior(35L)

20

190003559955

6

Angle nozzle

21

WG9003550087

1

S/6

×

4,S/4

×

2,O/6

×

2

Air reservior(20L)

21

WG9003550087

2

O/4

×

2/6

×

4/8

×

4,K/6

×

4 Air reservior(20L)

21

WG9003550087

3

K/4

×

2

Air reservior(20L)

22

190003559766

4

Nozzle

23

Q80408

2

Nozzle

24

190003962019

4

Screw

25

AZ9100366156

1

Nozzle

26

WG9000360140

2

For Tractor

Screwy line

27

190003559490

3

Nozzle

28

WG9000360170

1

Tractor

Coupling

29

WG9000360171

1

Tractor

Coupling

30

WG9000360188

1

Tractor

Two way valve

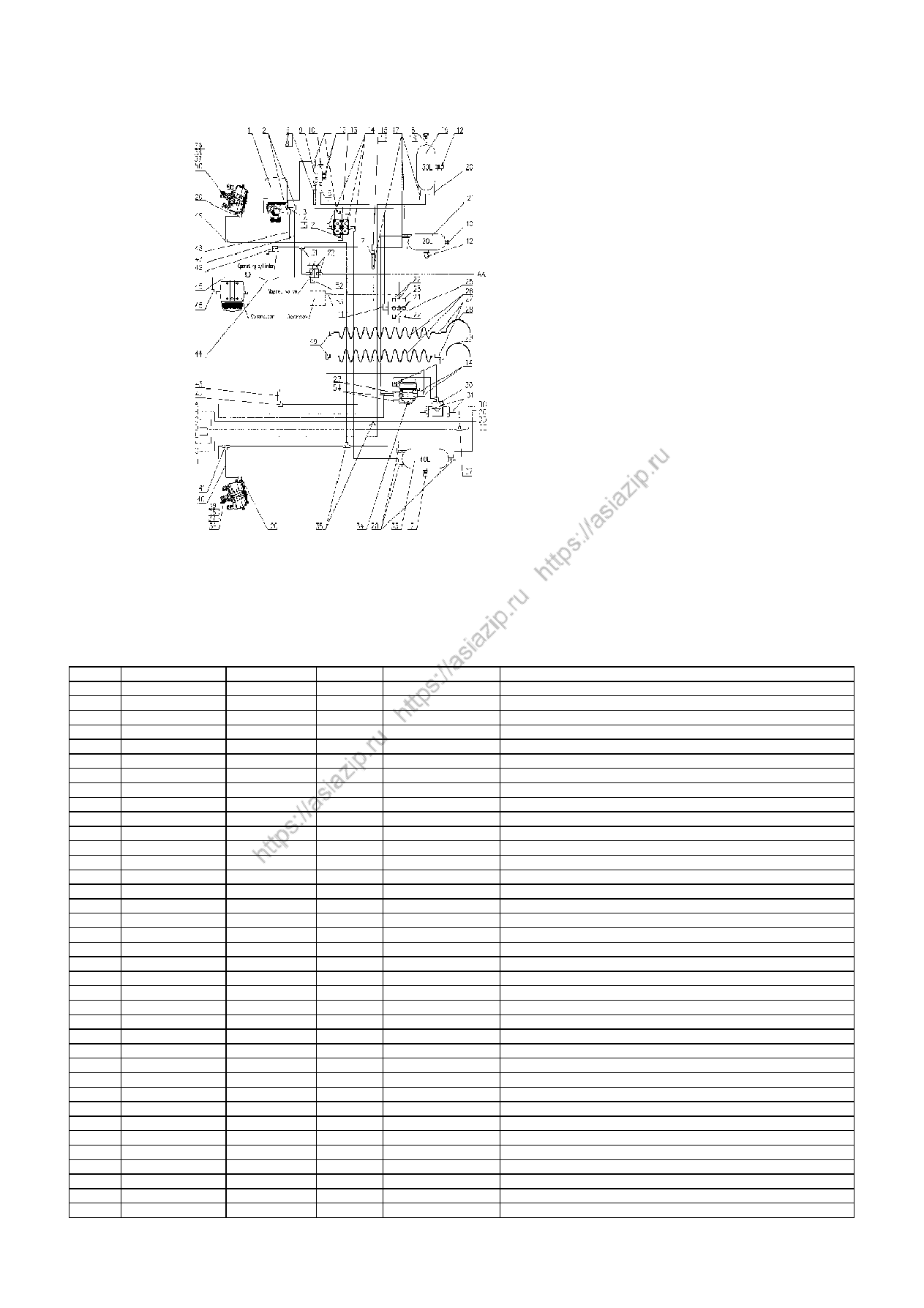

C10-2     BRAKE PARTS IN FRONT SECT OF CHASSIS/底盘前部制动部件     Fig.C10-3

A～H line connected with A～H line in cab.
AA～EE line connected with AA～EE in rear sect of chassis.

C10-2     BRAKE PARTS IN FRONT SECT OF CHASSIS/底盘前部制动部件

JINAN SHUNHE AUTO PARTS CO.,LTD

92

31

190003559947

2

Nozzle

32

190003559483

1

Distributor

33

WG9003550098

1

S/6

×

4,S/6

×

2

Air reservior(40L)

33

WG9014362009

1

S/4

×

2

Air reservior(35L)

34

WG9000360180

1

Tractor

Trailer control valve

35

WG17017360203

2

Dis tributor

36

WG9000360100

1

Diaphragm cylinder left

37

190003903661

2

Bolt

38

Q40114

2

Washer

39

Q5004022

2

Split pin

40

WG17017360450

2

Brake hose

40a

WG17017361000

2

Screwy protecting sleeve

40b

WG9123360300

900

Protection sleeve(

Φ

30)

40c

WG9123360200

900

Protection sleeve(

Φ

20)

41

WG9100360112

1

Screwing

42

190003559496

2

Screwing

43

WG9719180010

1

Exhaust brake

44

WG99100360184

1

Hose

45

WG99000360410

1

Screwing

46

AZ9719360101

1

Pipe(Air com pressor--hose)

47

AZ9719360103

1

Pipe(Hose—Air dryer)

48

AZ9719360102

1

Pipe(dryer—4-cir.protection valve)

49

190003559479

3

Nozzle

50

WG9000360101

1

Diaphragm cylinder right

51

190003559482

1

Nozzle

52

WG9100361003

2

Screwing

53

WG99112280010

1

Screwing

54

190003559945

2

Screwing

55

AZ9725360101

1

Pipe(22 Hole of 4-cir.protection valve-reservior for rear axle)

56

AZ9725360103

1

Pipe(21 Hole of 4-cir.protection valve-reservior for front axle)

57

AZ9725360106

1

Pipe(24 Hole of 4-cir.protection valve-reservior for hand brake)

60

WG9718360002

2

Option

WABCO/ABS magnetic valve

60

WG9718360001

2

Option

KNORR/ABS magnetic valve

60a

AZ9725360108

1

For ABS

Pipe

60b

AZ9725360109

1

For ABS

Pipe

JINAN SHUNHE AUTO PARTS CO.,LTD

93

No

Number of part

Quantity

Description

Applicability

Designation

1

190003559496

1

Φ

6

Angle nozzle

2

190003559946

7

Φ

12

Angle nozzle

3

WG99100360114

1

Φ

12

T-nozzle

4

WG9000360314

1

Test connector

5

WG9000360108

2

4

×

2,6

×

4,8

×

4,6

×

2

Spring brake actuator

5a

WG9000360108

2

6

×

4,8

×

4,6

×

2

Spring brake actuator

5

WG9100360303

2

STEYR Axle

Spring brake actuator

5a

WG9100360303

2

6

×

2,6

×

4,8

×

4 STEYR

Axle

Spring brake actuator

5

WG9100360011

2

6

×

2 STEYR Axle

Spring brake actuator

6

WG9003550006

2

4

×

2,6

×

4,8

×

4,6

×

2

T-nozzle

6a

WG9003550006

2

6

×

4,8

×

4,6

×

2

T-nozzle

7

190003559479

1

4

×

2,6

×

4,8

×

4,6

×

2

Nozzle

7a

190003559479

1

6

×

4,8

×

4,6

×

2

Nozzle

8

190003559474

1

4

×

2,6

×

4,8

×

4,6

×

2

Nozzle

8a

190003559474

1

6

×

4,8

×

4,6

×

2

Nozzle

9

WG9000360134

2

Relay valve

10

190003962038

2

Screw

11

190003559948

2

Φ

12

Nozzle

12

WG17017360470

4

Φ

12

6

×

4,8

×

4

Brake Hose

12

WG17017360470

2

Φ

12

4

×

2

Brake Hose

12

WG17017360470

1

Φ

12

6

×

2

Brake Hose

12a

WG17017360460

3

Φ

12

6

×

2

Brake Hose

13

190003559947

2

Φ

8

Nozzle

14

WG99100360112

2

Φ

12

T-nozzle

14

190003559946

2

Φ

12

4

×

2

Angle nozzle

15

190003903661

4

Bolt

16

Q40114

4

Washer

19

WG9718360002

1

ABS Magnetic valve/WABCO

19

WG9718360001

1

ABS Magnetic valve/KNORR

20

WG17017360480

1

4

×

2/ABS

Brake hose

21

WG17017360480

1

6

×

4,8

×

4,6

×

2/ABS

Brake hose

22

WG9718360002

1

6

×

4,8

×

4,6

×

2/ABS

ABS Magnetic valve/WABCO

22

WG9718360001

1

6

×

4,8

×

4,6

×

2/ABS

ABS Magnetic valve/KNORR

23

WG17017360460

2

Brake hose

23

WG17017360470

2

4

×

2/ABS/KNORR

Brake hose

24

WG17017360460

2

6

×

4,8

×

4,6

×

2/ABS

Brake hose

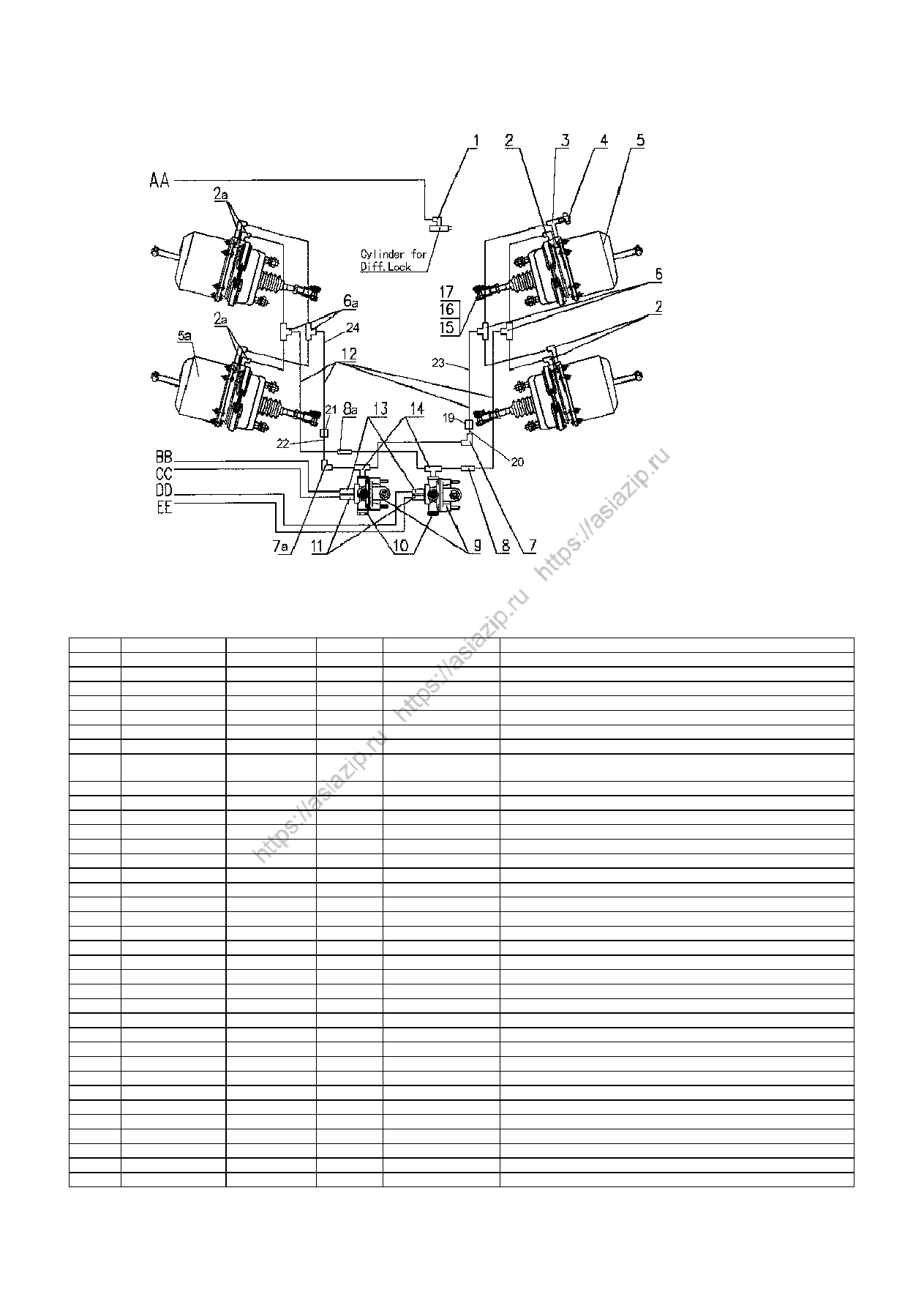

C10-3          BRAKE PARTS IN REAR SECT OF CHASSIS/底盘后部制动部件          Fig.C10-5

C10-3          BRAKE PARTS IN REAR SECT OF CHASSIS/底盘后部制动部件

JINAN SHUNHE AUTO PARTS CO.,LTD

94

No

Number of part

Quantity

Description

Applicability

Designation

A

Connector for steel pipe

1

190003559516

Φ

6

Union nut

2

190003559508

Φ

6

Union nut

3

190003559561

Φ

6

Cutting ring

4

190003559509

Φ

8

Union nut

5

190003559558

Φ

8

Cutting ring

6

190003559518

Φ

10

Union nut

7

190003559564

Φ

10

Cutting ring

8

190003559514

Φ

12

Union nut

9

190003559563

Φ

12

Cutting ring

10

190003559520

Φ

15

Union nut

11

190003559562

Φ

15

Cutting ring

12

190003559538

Φ

15

Pressure ring

13

190003559539

Φ

15

Gasket

B

Connector for hose

1

190003559507

Φ

4

Union nut

2

190003559556

Φ

4

Cutting ring

3

199014280040

Φ

4

Sleeve

4

190003559516

Φ

6

Union nut

5

190003559561

Φ

6

Cutting ring

6

199014280016

Φ

6

Sleeve

7

190003559509

Φ

8

Union nut

8

190003559558

Φ

8

Cutting ring

9

199014280041

Φ

8

Sleeve

10

190003559518

Φ

10

Union nut

11

190003559564

Φ

10

Cutting ring

12

199014280042

Φ

10

Sleeve

13

190003559514

Φ

12

Union nut

14

WG99100360253

Φ

12

Ring

15

WG99100360252

Φ

12

Sleeve

16

190003179778

Φ

4

×

1

Plastic pipe

17

190003179782

Φ

6

×

1

Plastic pipe

18

190003179781

Φ

8

×

1

Plastic pipe

19

190003179784

Φ

10

×

1

Plastic pipe

20

190003179785

Φ

12

×

1.5

Plastic pipe

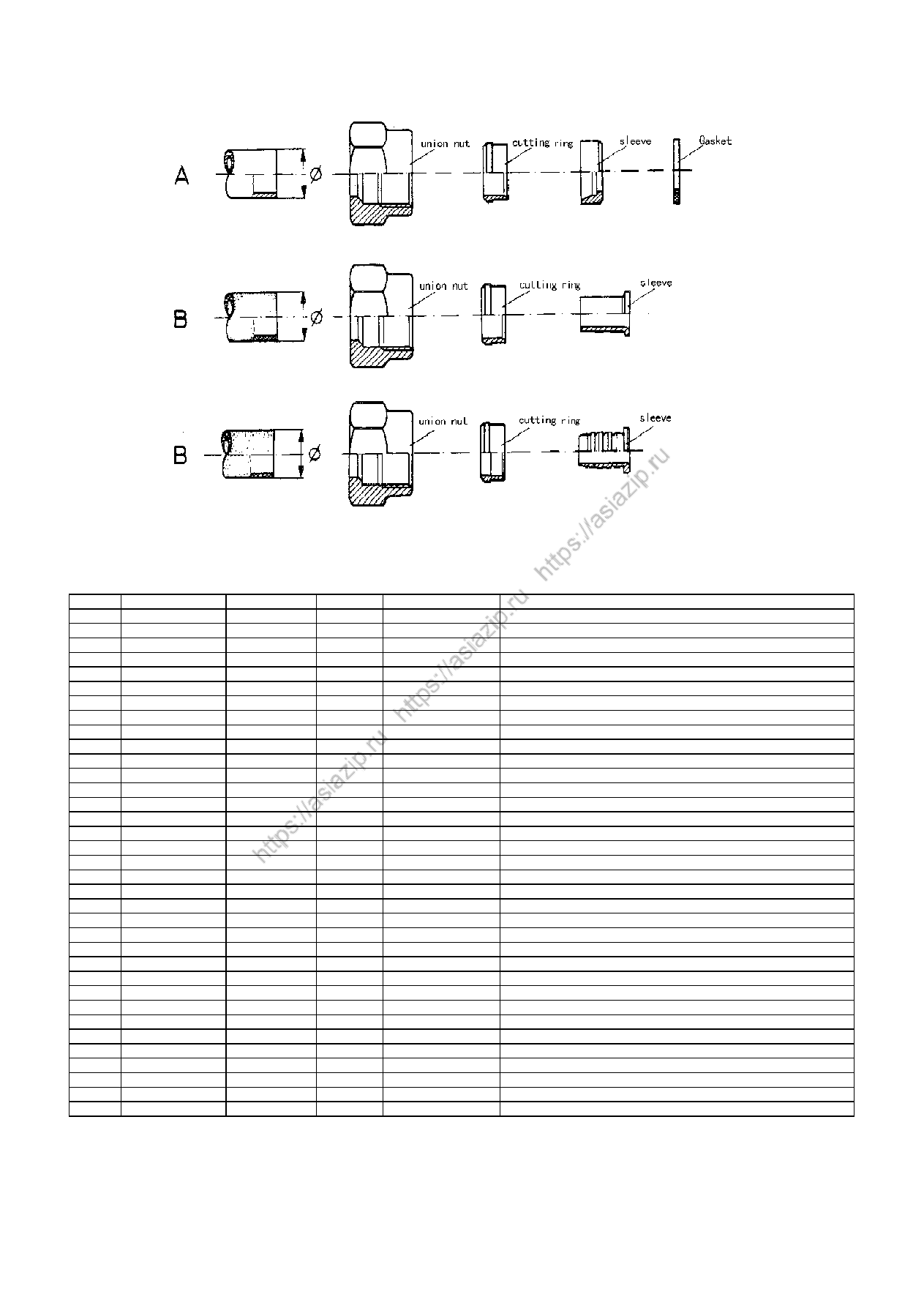

C10-4                               CONNECTOR FOR LINE/管路连接件                     Fig.C10-6

C10-4                               CONNECTOR FOR LINE/管路连接件

JINAN SHUNHE AUTO PARTS CO.,LTD

95

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9719360013

Bracket for 4-cir.protection valve

2

199014360140

Angle for relay valve

3

AZ961836001

Angle for relay valve

6

AZ9130360003

Angle for trailer control valve

7

AZ9719360014

Bracket for air dryer

8

1880 360083

Carrier

9

199000360315

Carrier

10

199012360441

Angle

11

199000362186

Angle

12

199100360165

Angle

13

1397 350169

Angle

14

199100360168

Angle

15

199100360241

Angle

16

199100360207

Support

17

199100360228

Lashing

18

199100360229

Angle

19

199114360101

Angle

20

AZ9718360007

Connecting plate

21

AZ9100360120

Angle

22

26600360022

Angle

23

199100360166

Angle

24

AZ9719360031

Combination bracket

25

AZ9719360028

U-Bracket

26

AZ9719360029

Bracket for coupling

C10-5                       BRACKET FOR BRAKE/制动用支架

JINAN SHUNHE AUTO PARTS CO.,LTD

96

No

Number of part

Quantity

Description

Applicability

Designation

1

Q72312T5F

Gasket

2

190003098031

Gasket

3

190003098015

Gasket

4

WG9000360292

Gasket

5

1406 070015

Gasket

6

WG9100360319

Gasket

7

1680 250092

Gasket

8

138091360181

Clamp

9

1188 730187

Clamp

10

199000360408

Clamp

11

1 93 760081

Angle

12

199100360174

Clamp

13

1280 770028

Clamp

14

199100360234

Clamp

15

199100360134

Distance sleeve

16

199100360135

Distance sleeve

17

190003171390

Wire fastener

18

190003171392

Wire fastener

19

190003171393

Wire fastener

20

190003559539

Gasket

21

19900360477

Gasket

22

1288730061

O-ring

23

190003179045

Protection sleeve

24

1381F140090

Protection sleeve

C10-6                              RARTS FOR BRAKE/制动零部件

JINAN SHUNHE AUTO PARTS CO.,LTD

97

















содержание      ..     1      2      3      4      ..
