HOWO 6x4, 8x4, 4x2. Каталог запчастей (2005-2007 год) - часть 6

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642870141

1

Wing

2

AZ1642870145

4

Base

2a

Q150B0820

8

Screw

2b

Q40208

8

Washer

2c

Q40308

8

Spring washer

3

AZ1642870143

1

Bracket

3a

AZ1672870121

6

Rubber pad

3b

Q150B0820

6

Screw

3c

Q40208

6

Washer

3d

Q40308

6

Spring washer

4

AZ1642870148

2

Front bracket

4a

Q173B0870

6

Screw

4b

Q5002020

6

Split pin

4c

Q40208

6

Washer

4d

Q41208

6

Toothed washer

4e

Q241B08

6

Nut

5

AZ1642870146

2

Rear bracket

5a

Q173B0870

4

Screw

5b

Q5002020

4

Split pin

5c

Q40208

4

Washer

5d

Q41208

4

Toothed washer

5e

Q341B08

4

Nut

6

AZ1642870147

2

Side bracket

6a

Q173B0870

2

Screw

6b

Q5002020

2

Split pin

6c

Q41208

2

Toothed washer

6d

Q341B08

2

Nut

6e

Q40208

4

Washer

6f

Q150B0820

2

Screw

7

WG1644870013

1

For high-roof cab

Top bracket left

7

WG1644870019

1

For high-roof cab

Top bracket right

7

AZ1642870153

2

For long cab

Bracket for side wind sheet

7a

Q150B0820

8

Screw

7b

Q40208

8

Washer

7c

Q40308

8

Spring washer

8

WG1644870011

1

Side wind sheet right

8a

AZ1644870012

1

Side wind sheet left

9

AZ1642870014

2

Middle bracket

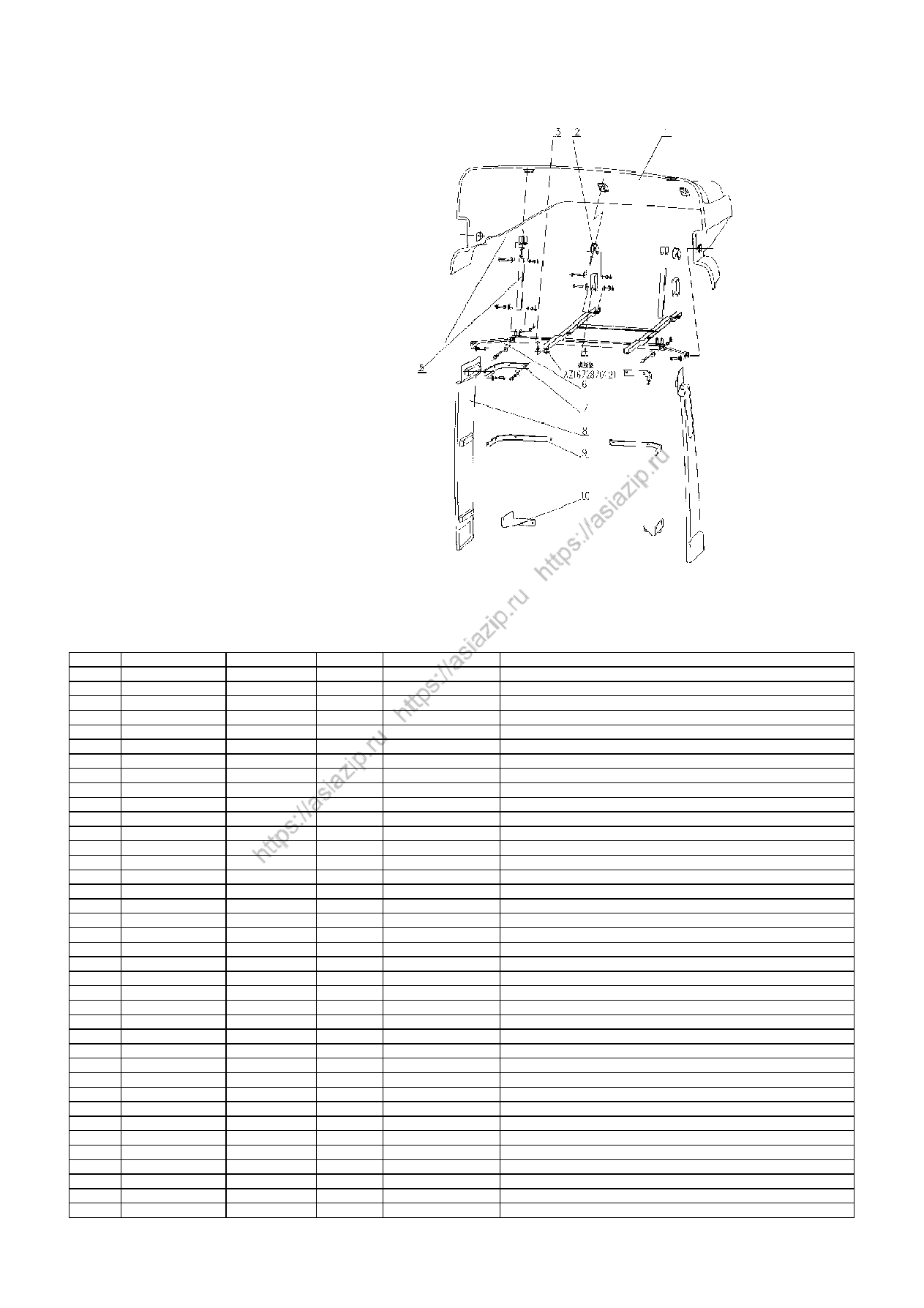

C12-34                                     WING,WIND SHEET/导流罩，导风板                              Fig.C12-38

C12-34                                     WING,WIND SHEET/导流罩，导风板

JINAN SHUNHE AUTO PARTS CO.,LTD

162

9a

Q150B0820

8

Screw

9b

Q40208

8

Washer

9c

Q40308

8

Spring washer

10

AZ1644870015

1

Bottom bracket right

10a

AZ1644870018

1

Bottom bracket left

10b

Q150B0820

8

Screw

10c

Q40208

8

Washer

10d

Q40308

8

Spring washer

11

AZ1630230125

4

Rubber pad

12

AZ1672870121

12

Rubber pad

13

AZ1642930061

2

Plate with nut

20

WG1644870016

1

For high-roof cab

Top wind sheet

JINAN SHUNHE AUTO PARTS CO.,LTD

163

No

Number of part

Quantity

Description

Applicability

Designation

21

WG1644870017

4

For high-roof cab

Side bracket for top wind sheet

22

WG1644870020

1

For high-roof cab

Middle bracket for top wind sheet

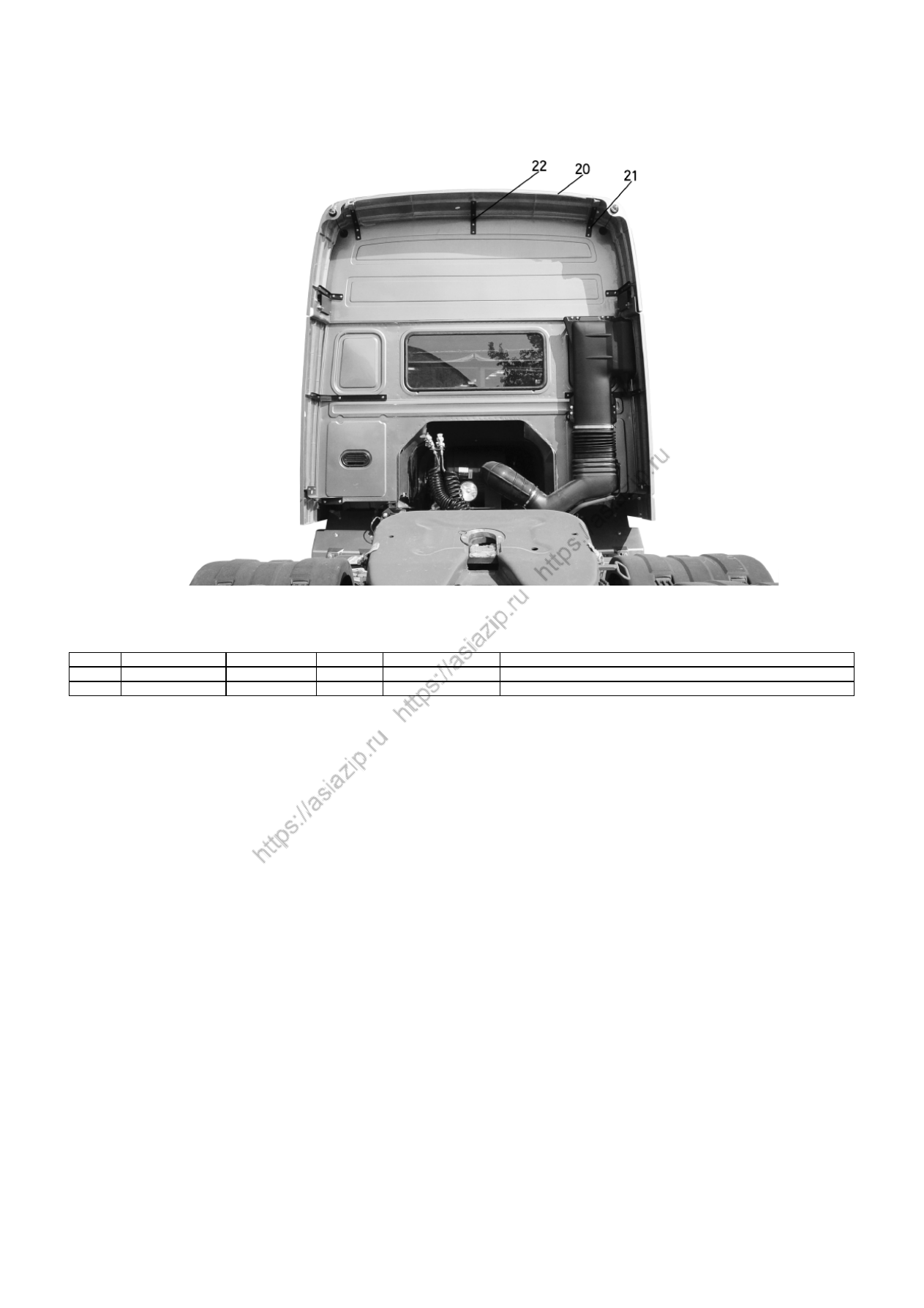

C12-34                                        WING,WIND SHEET/导流罩，导风板                         Fig.C12-38

C12-34                                        WING,WIND SHEET/导流罩，导风板

JINAN SHUNHE AUTO PARTS CO.,LTD

164

No

Number of part

Quantity

Description

Applicability

Designation

1

WG9130780026

Radio

1

WG9719780002

Option

Radio with CD

1

WG9719780001

Option

Radio with electro adjuster

4

WG9719780003

Reproducer

5

AZ9719770006

For WG9719780001/2

Electrical line on roof of cab

5

AZ9719770003

For WG9130780026

Electrical line on roof of cab

9

WG9130780001

Cable

25

Q2714216

Screw

26

Q40004

Washer

27

1900039699563

Elastic nut

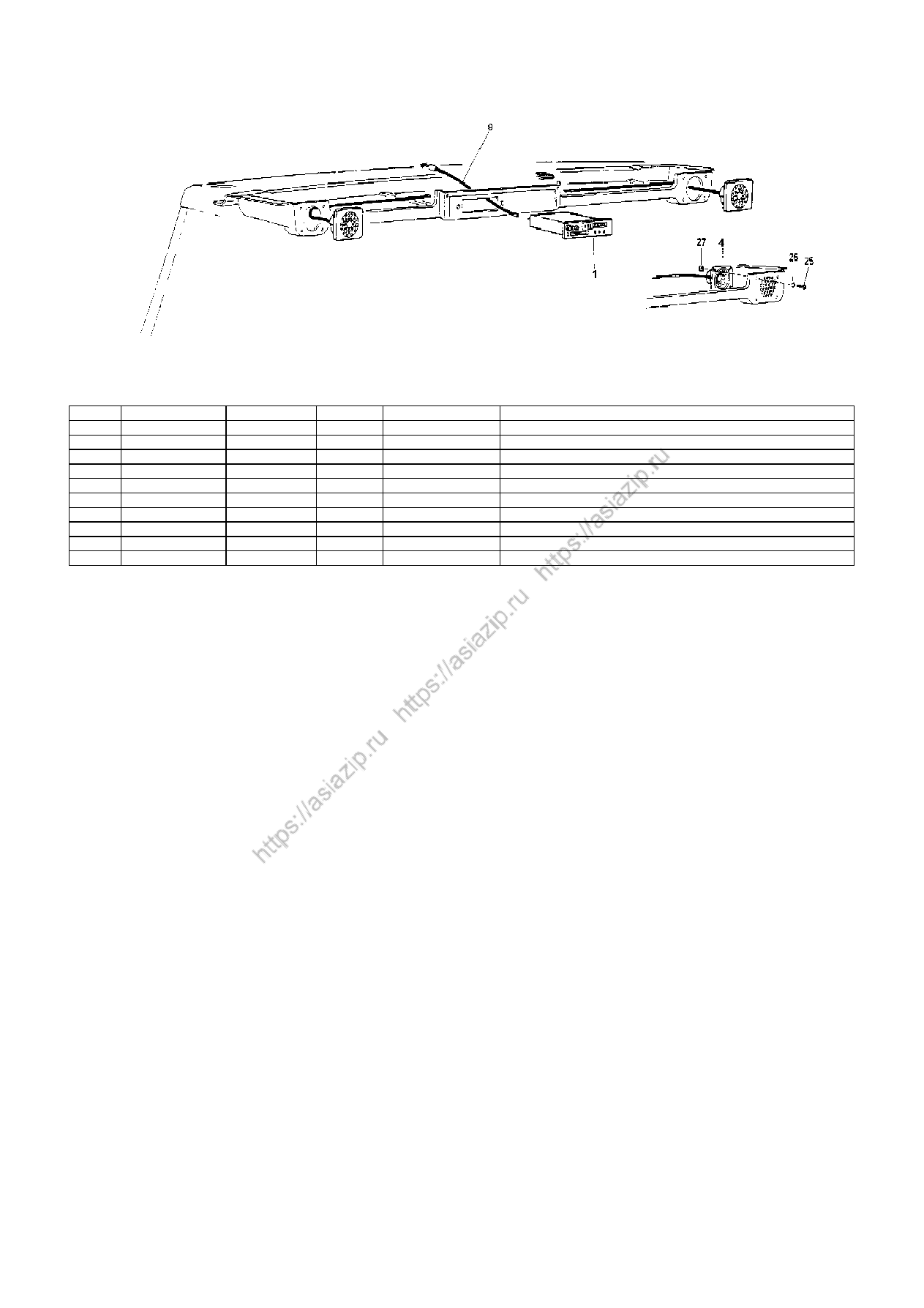

C12-35                                                 RADIO/收放机                                          Fig.

C12-35                                                 RADIO/收放机

JINAN SHUNHE AUTO PARTS CO.,LTD

165

No

Number of part

Quantity

Description

Applicability

Designation

1

WG1642270006

1

Cover for top window

2

WG1642290002

2

Hinge

3

Q1840612

12

Screw

4

WG1642290005

1

Locking pin

5

Q2100612

4

Screw

6

Q218B0616

2

Screw

7

Q68108

1

Clamp

8

WG1642290003

1

Lock of tool box

9

WG1642290004

2

Pad

10

WG1642290006

1

Sealing strip

C12-36                TOOL BOX FOR LONG AND HIGH-ROOF CAB/中长，高顶驾驶室工具箱                Fig.C12-40

C12-36                TOOL BOX FOR LONG AND HIGH-ROOF CAB/中长，高顶驾驶室工具箱

JINAN SHUNHE AUTO PARTS CO.,LTD

166

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9725730010

1

Rotor

2

AZ9114730130

1

Bracket

3

AZ9725730005

1

Girder

4

AZ9725730004

1

Bracket

5

Q150B1240

10

Screw

6

Q150B1250

8

Screw

7

Q40112

18

Washer

8

Q40312

18

Spring washer

9

Q340B12

18

Nut

10

AZ9114730021

1

Pin

10a

Q40130

1

Washer

10b

Q5008050

1

Pin

11

WG9114730161

1

Hydraulic cylinder

12

Q43130

2

Circlip

13

AZ9114730022

1

Pin

13a

AZ9114730115

1

Washer

13b

Q5008060

2

Pin

15

AZ9114730023

1

Bolt

16

Q150B0816

1

Nut

17

Q40308

1

Spring washer

18

Q700B01

7

Grease nipple

19

Q80410

2

Nozzle

20

Q80414

2

Nozzle

21

Q72318T3

2

Gasket

22

Q72314

2

Gasket

23

AZ9725730025

1

Vitta(

Ⅰ

)

24

AZ9725730026

1

Vitta(

Ⅱ

)

25

Q80114

8

Nut

26

Q80014

8

Cutting ring

27

AZ9114730140

1

Bracket

28

Q340B08

4

Nut

29

Q40308

4

Spring washer

30

Q218B0870

4

Screw

31

WG9114730001

1

Hydraulic valve

32

AZ9114730145

2

Nozzle

33

Q150B0630

6

Screw

34

Q340B06

6

Nut

35

Q40206

6

Washer

36

Q40306

6

Spring washer

37

1397 350169

2

Angle

38

WG9114730002

2

Hose

39

1188 730187

6

Clamp

40

199100820050

1

Lashing

41

AZ9725730027

1

Pipe(

Ⅲ

)

42

Q80314

2

Nozzle

43

AZ9725730028

1

Pipe(

Ⅳ

)

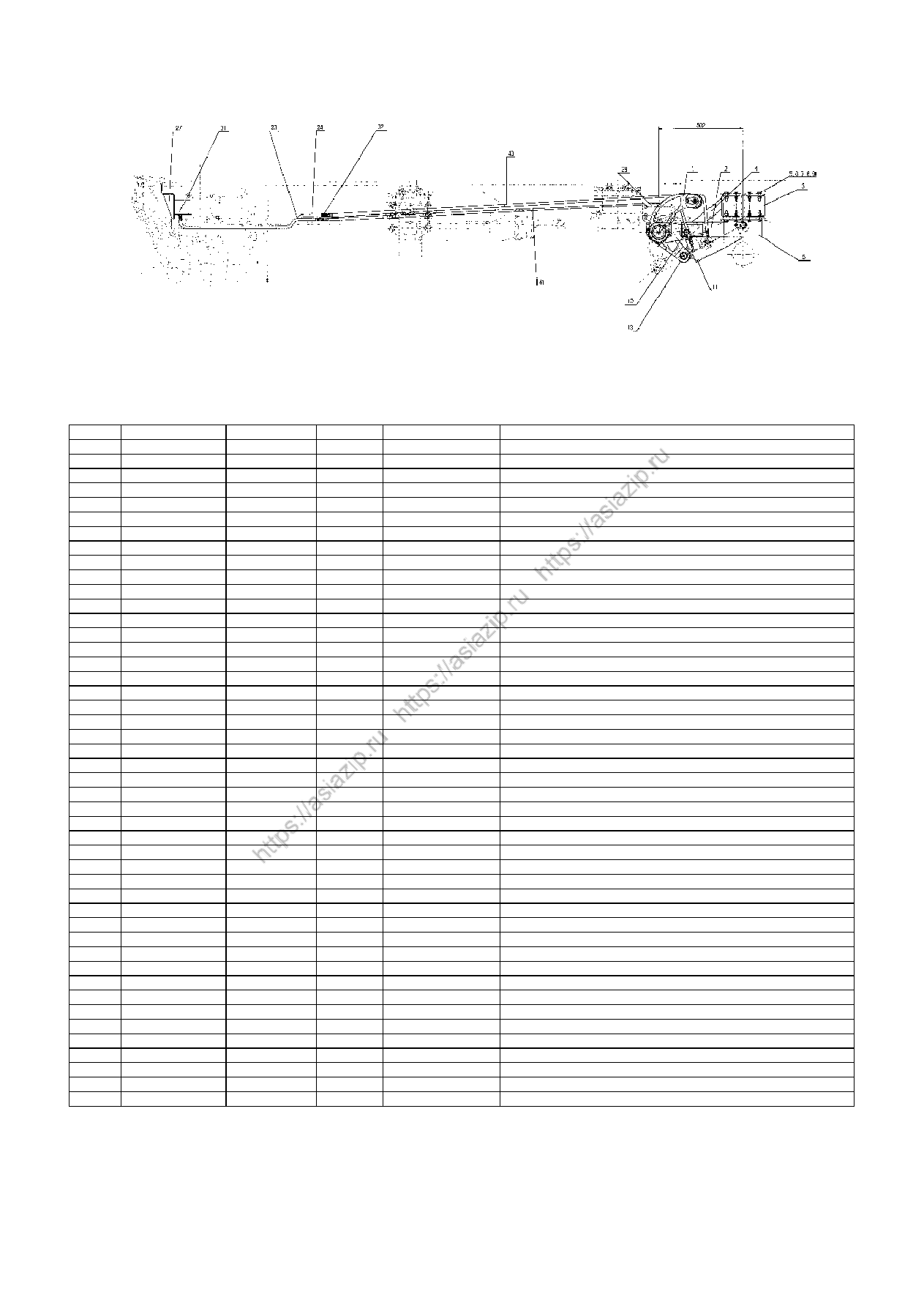

C13-1               HYDRAULIC DEVICE FOR 6×2 TRAILING AXLE/后支承桥液压提升装置                Fig.C13-1

C13-1               HYDRAULIC DEVICE FOR 6×2 TRAILING AXLE/后支承桥液压提升装置

JINAN SHUNHE AUTO PARTS CO.,LTD

167

No

Number of part

Quantity

Description

Applicability

Designation

35

WG9725520030

1

6

×

2 rear spring left

35a

WG9725520031

1

6

×

2 rear spring right

36

AZ9114520075

2

Bolt

37

Q151C1290

4

Screw

38

190003888457

4

Nut

39

190003963124

4

Grease nipple

40

AZ9114520408

2

Plate

41

AZ9114520052

4

Spring clip

42

190003888630

8

Nut

43

AZ9114520376

2

Plate

44

AZ9725520028

2

Rear spring front hanger

45

Q151B1650

8

Screw

46

Q151B1655

4

Screw

47

Q151B1640

4

Screw

48

190003888459

16

Nut

49

199114520028

2

Bracket

50

199012520012

2

Plate

51

WG9012520011

2

Stop

52

Q33210

4

Nut

53

Q151B1035

4

Screw

54

Q2581035

4

Screw

55

AZ9725520032

1

Trailing axle C

68

Q151B1460

8

Screw

69

Q341B14T13F2

8

Nut

70

Q151B1655

12

Screw

71

190003888459

12

Nut

72

AZ9114520386

2

Rotate wheel

73

AZ9114520387

2

Bush

74

AZ9114520328

2

Pin

75

Q341B30

2

Nut

76

AZ9114520379

2

Stop bracket

77

12054520640

2

Stop

78

Q150B1250

4

Screw

79

Q150B1255

4

Screw

80

Q340B12

12

Nut

81

Q40312

12

Spring washer

82

AZ9624520380

2

Protect cover for stop

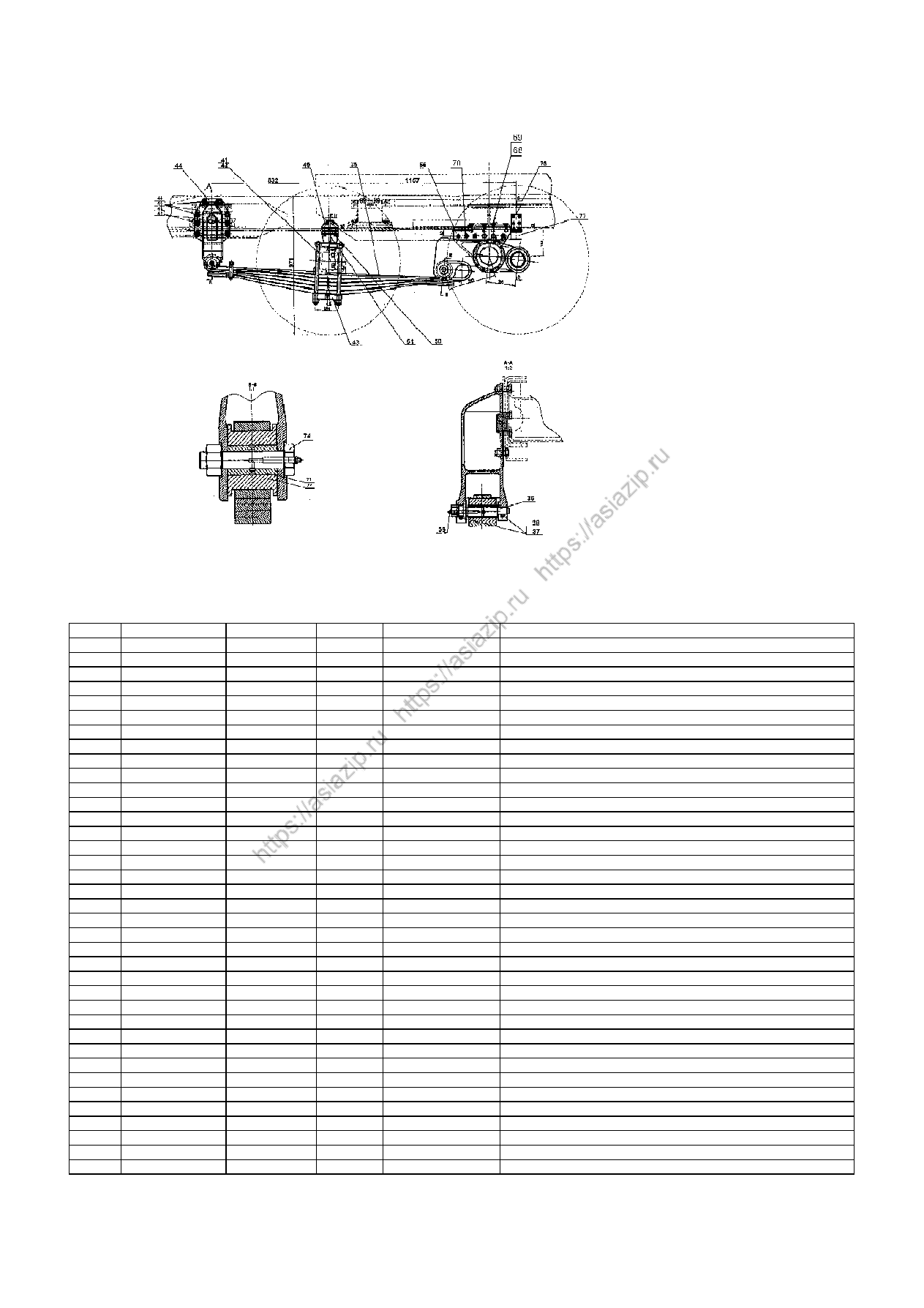

C13-2                               6×2 REAR SPRING/6×2后悬挂                             Fig.C13-2

C13-2                               6×2 REAR SPRING/6×2后悬挂

JINAN SHUNHE AUTO PARTS CO.,LTD

168

No

Number of part

Quantity

Description

Applicability

Designation

0

AZ9725520032

Trailing axle C

55

AZ9725520035

1

Trailing axle

56

AZ9725520033

1

Lashing left

57

AZ9725520034

1

Lashing right

58

AZ9114520389

4

Sheet

59

Q5220510

8

Pin

60

AZ9114520321

2

Gasket

61

AZ9114520323

2

Cover

62

Q150B0817

2

Screw

63

Q40308

2

Spring washer

64

AZ9114520330

2

Lock pin

65

AZ9114520357

2

Cover

66

Q150B0820

16

Screw

67

Q40308

16

Spring washer

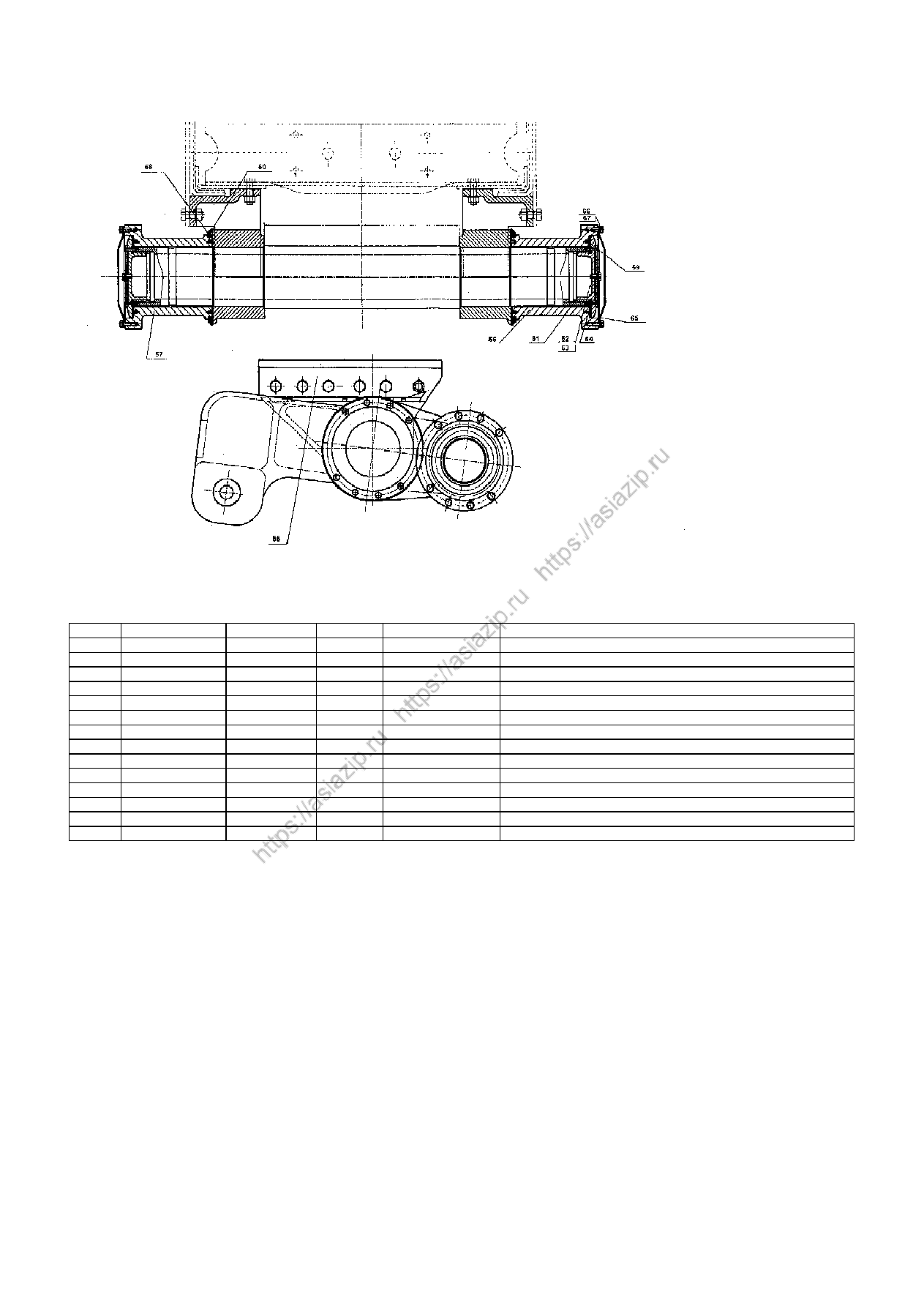

C13-3                                   REAR TRAILING AXLE/后支承轴                                             F

C13-3                                   REAR TRAILING AXLE/后支承轴

JINAN SHUNHE AUTO PARTS CO.,LTD

169

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9111340017

2

Spacer

2

AZ9111340082

2

Rear wheel hub

3

WG9003884160

20

Wheel nut

4

Q150B0816

16

Screw

5

Q40308

16

Sping washer

6

AZ9114340043

2

Cover

7

190003078956

2

Gasket

8

Q2541025

4

Screw

9

1227P1186

2

Outer adjusting nut

10

1227N1184

2

Inter adjusting nut

11

1229M3003

2

Locking sheet

12

AZ9017334673

2

Locking sheet

13

32217

2

Bevel roller bearing

14

190003326067

2

Bevel roller bearing

15

WG9107340002

20

Wheel stud

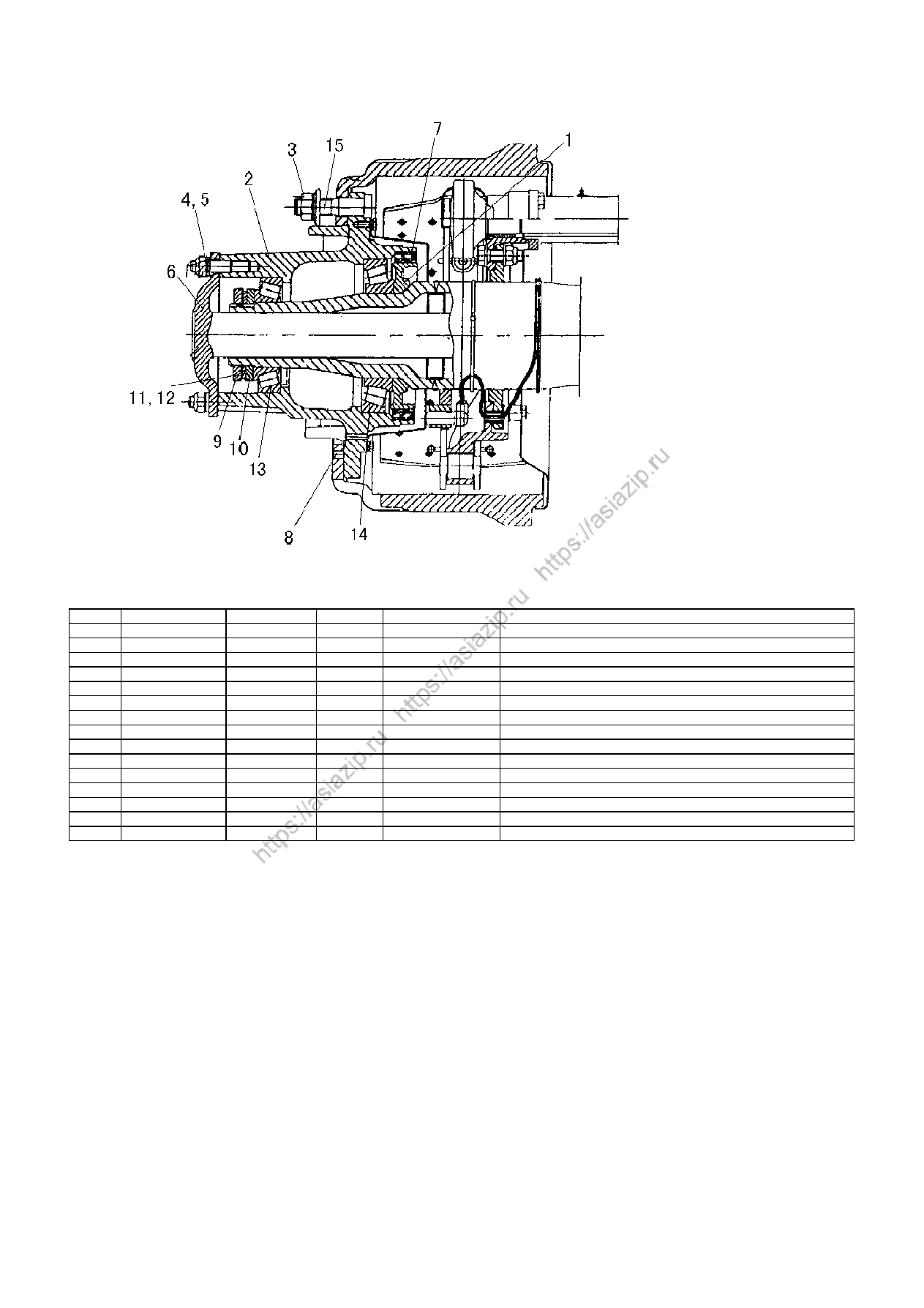

C13-4                     WHEEL HUB OF TRAILING AXLE/支承轴轮毂              Fig.C13-4

C13-4                     WHEEL HUB OF TRAILING AXLE/支承轴轮毂

JINAN SHUNHE AUTO PARTS CO.,LTD

170

No

Number of part

Quantity

Description

Applicability

Designation

1

AZ9112340006

2

Brake drum

2

190003825513

4

Screw

3

1880 34 0018

2

Brake cover

4

150B0816

12

Screw

5

Q40308

12

Spring washer

6

1880 340037

2

Seal-ring

8

AZ9107340062

2

Brake anchor

9

190003963114

4

Grease nipple

10

199000340070

4

Brake shoe C

10—1

199000340061

4

Brake shoe

11

WG9200340068

8

Brake Lining

12

189000340068

64

Rivet

13

199000340064

4

Bolt

14

18880 34 0016

4

Bush

16

199000340027

4

Pressure roller

17

AZ9100340012

2

Spring

18

1880 44 0032

4

Bolt

19

199112340026

1

Brake camshaft left

20

199112340027

1

Brake camshaft right

21

1880440010

2

Washer

22

1880340023

2

Gasket

23

1880440010

2

Washer

24

WG9100340017

4

Bush

25

190003933300

2

Snap ring

26

199100340003

1

Rod adjusting device 1eft

27

199100340004

1

Rod adjusting device right

28

1880340022

2

Washer

29

1880320028

nB

Shim

29

1880320029

nB

Shim

29

1880320030

nB

Shim

29

1880320046

nB

Shim

30

190003933116

2

Circlip

31

Q151B1635TF2

20

Screw

32

199014340041

2

Bracket

33

190003963112

2

Grease nipple

34

1880340031

nB

Shim

34

1880340032

nB

Shim

34

1880340033

nB

Shim

34

1880340034

nB

Shim

34

13809470031

nB

Shim

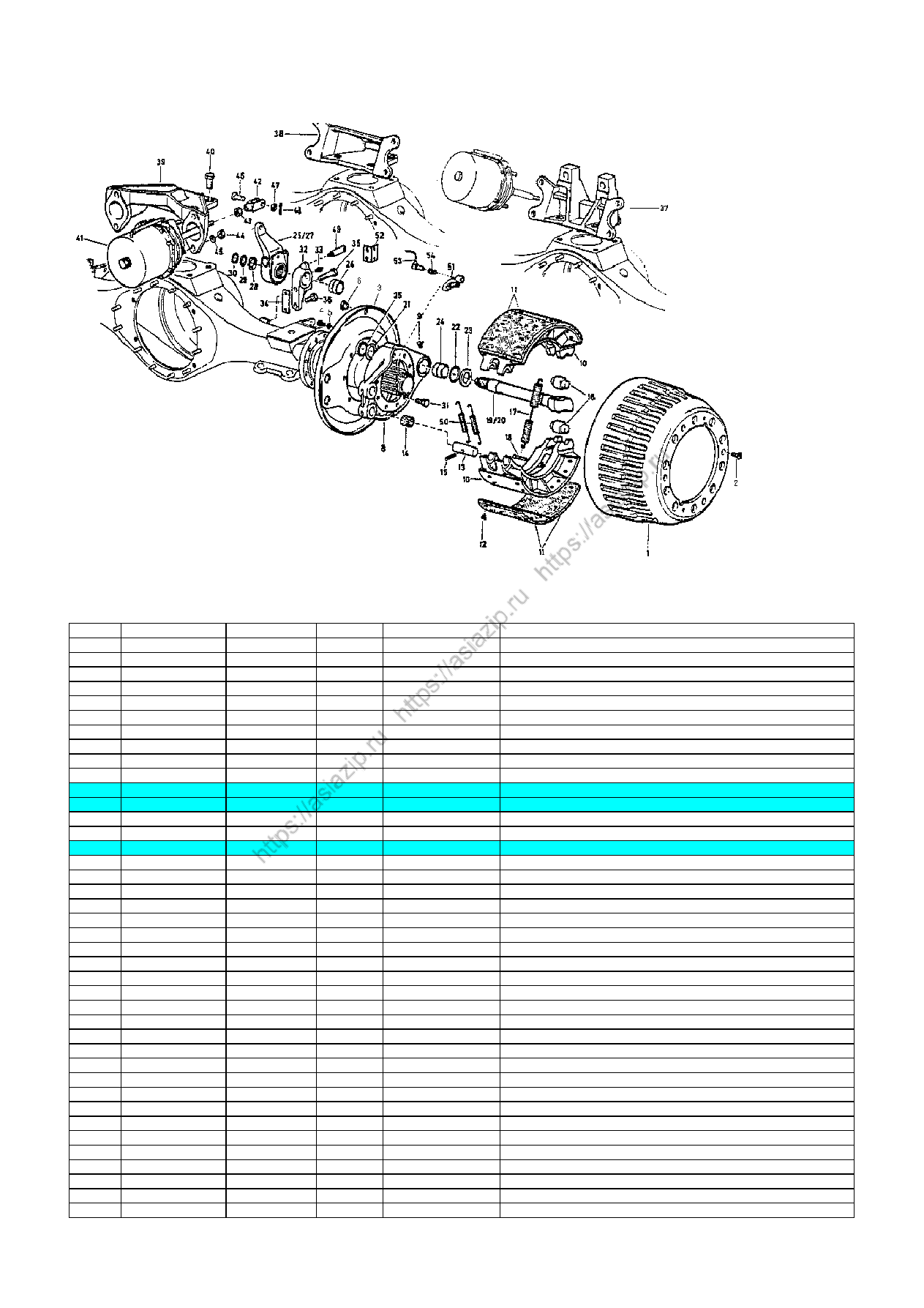

C13-5                          BRAKE OF TRAILING AXLE/支承轴制动器                             Fig.C13-5

C13-5                          BRAKE OF TRAILING AXLE/支承轴制动器

JINAN SHUNHE AUTO PARTS CO.,LTD

171

34

13809470032

nB

Shim

34

13809470033

nb

Shim

37

AZ9114340061

1

Bracket left

37a

AZ9114340062

1

Bracket right

40

Q151B2040TF2

4

Screw

41

WG9100360011

2

Diaphragrm cylinder

46

190003903661

2

Bolt

47

Q40114

2

Washer

48

Q5004022

2

Split pin

JINAN SHUNHE AUTO PARTS CO.,LTD

172

No

Number of part

Quantity

Description

Applicability

Designation

1

CZ9114505220

1

Front board

2

DZ9725500115

4

ZZ1257S4341W

Side board

3

Q2140612

6

Screw

4

CZ9114505230

4

Middle strut

5

CZ9114505233

1

Rear strut left

6

CZ9725500117

2

Side board

7

CZ9114505234

1

Rear strut right

8

DZ9725500119

1

Rear board

9

17017500021

2

Connecting plate

10

AZ9725500202

1

ZZ1257S4341W

Bottom board

11

DZ9725500101

1

ZZ1257S4341W

Frame

12

17017950004

8

Support

13

11600950004

4

Rear mudguard

14

17017950006

4

Strap

15

11600950003

2

Rubber madguard

16

Q150B0620

8

Screw

17

Q340B06

8

Nut

18

Q40306

8

Spring washer

19

Q150B0822

22

Screw

20

Q340B08

22

Nut

21

Q40108

22

Washer

22

Q40308

22

Spring washer

23

Q340B08

24

Nut

24

Q40108

24

Washer

25

Q40308

24

Spring washer

26

AZ9725990201

4

Support

27

AZ9114992007

6

Bar

28

AZ9114992005

2

ZZ1257S4341W

Side protector

29

AZ9114992003

2

ZZ1257S4341W

Side protector

30

Q150B1230

4

ZZ1257S4341W

Screw

31

Q33212

4

ZZ1257S4341W

Nut

32

Q51016115

25

ZZ1257S4341W

Bolt

33

Q40116

25

ZZ1257S4341W

Washer

34

Q5004020

25

ZZ1257S4341W

Split pin

35

Q150B1435

18

ZZ1257S4341W

Screw

36

Q340B14

18

ZZ1257S4341W

Nut

37

Q40114

18

ZZ1257S4341W

Washer

38

Q40314

18S

ZZ1257S4341W

Spring washer

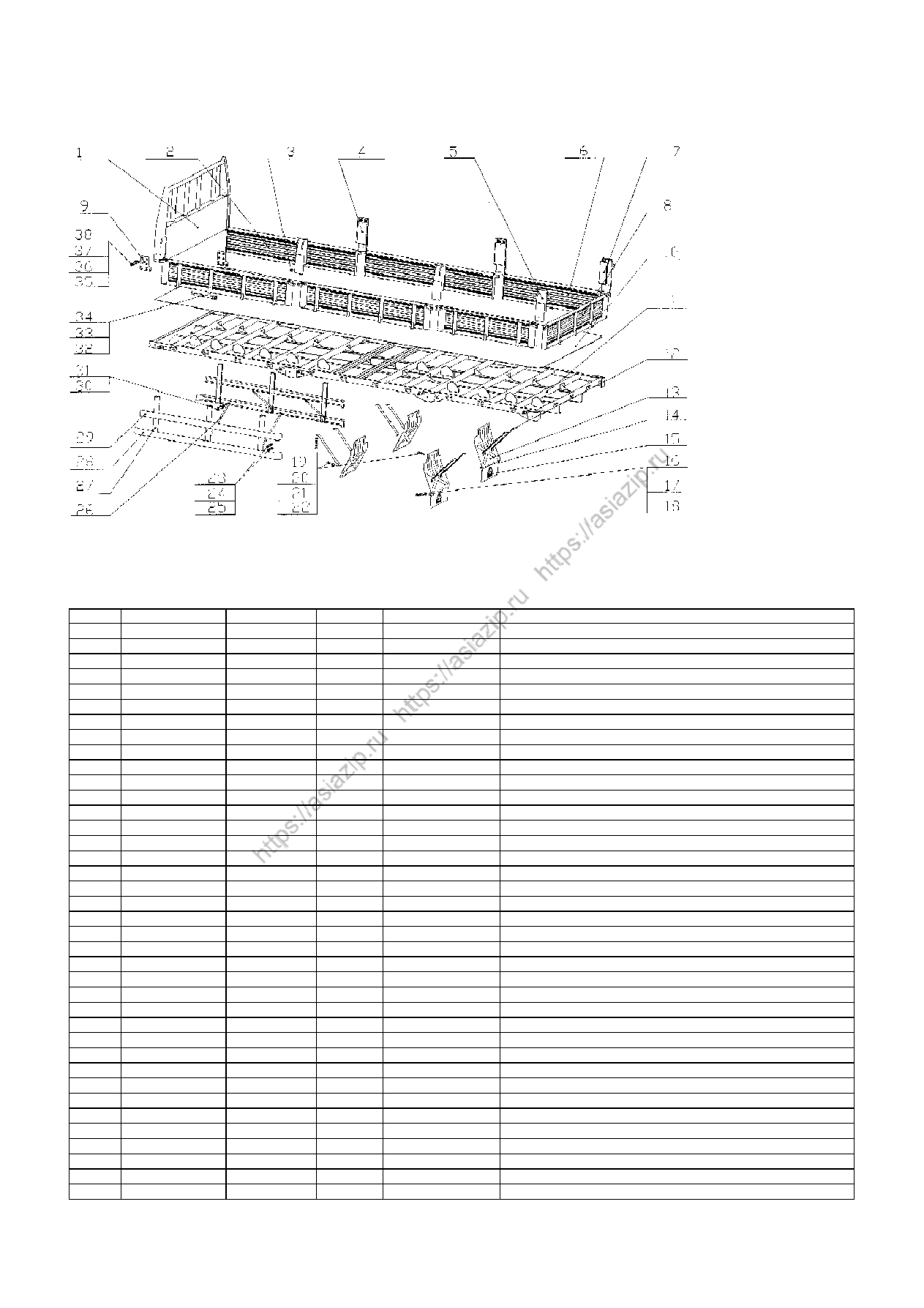

C14-1                   CARGO BODY/车厢                          Fig.C14-1

C14-1                              CARGO BODY/车厢

JINAN SHUNHE AUTO PARTS CO.,LTD

173

No

Number of part

Quantity

Description

Applicability

Designation

0

AZ9719860018

1

Incl.2~10,15~19

Drive device

1

AZ9719860014

1

Cranker

2

AZ9719860012

1

Shaft

3

17017860022

1

Locking sheet

4

17017860023

1

Drive wheel

5

17017860024

1

Driven wheel

6

AZ9719860007

1

Housing

7

Q150B1035

4

Screw

8

Q5004030

1

Split pin

9

Q33210

4

Nut

10

17017860027

1

Coveer

11

WG9003884160

2

Wheel nut

12

Q150B1235

6

Screw

13

Q33212

6

Nut

14

AZ9719860021

1

Bracket

15

17017860031

1

Cable

16

AZ9112860046

2

Screw

17

Q340B08

4

Nut

18

AZ9112860097

1

Hook

19

Q5004030

1

Split pin

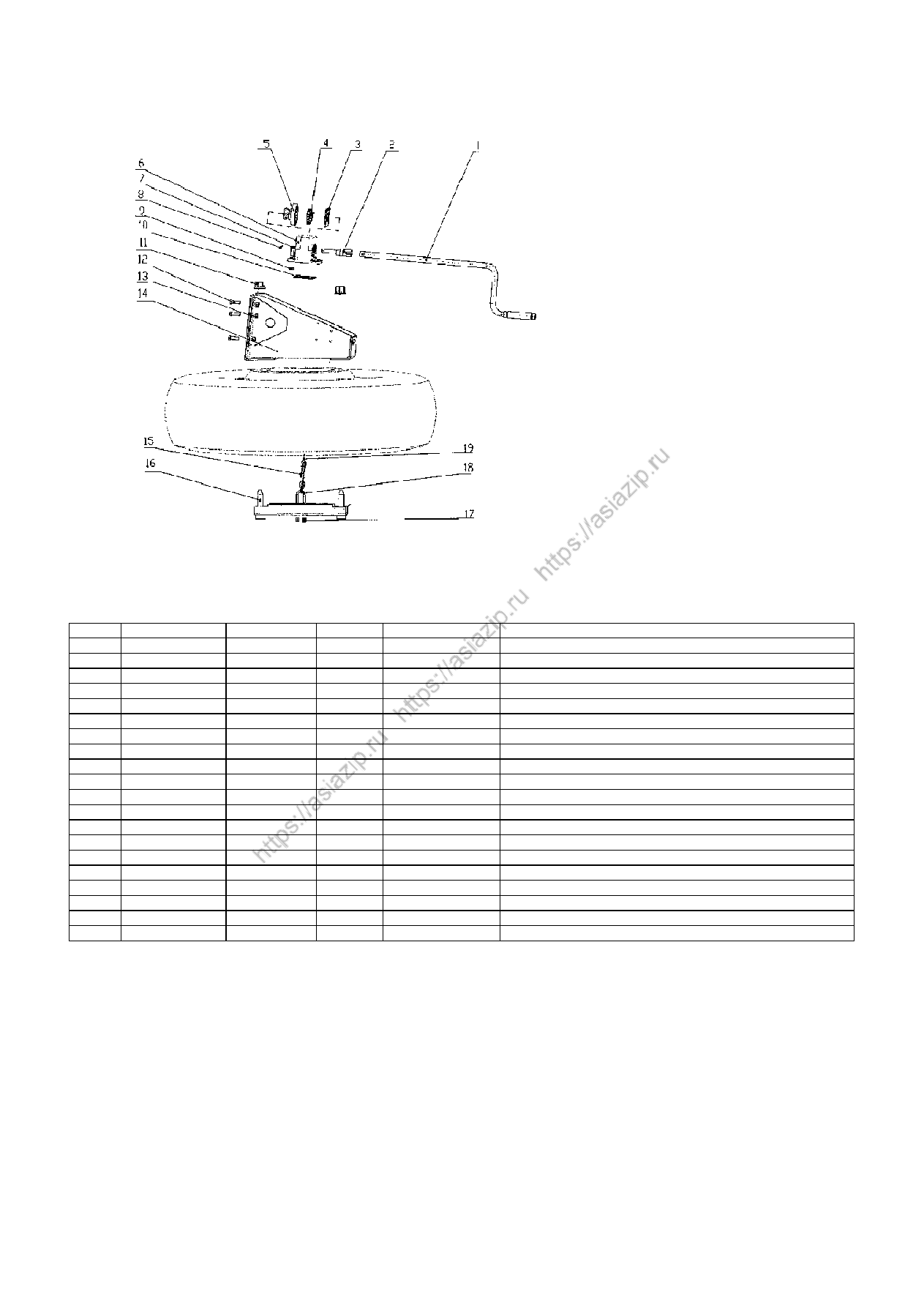

C15-1                            SPARE WHEEL CARRIER/备轮架                              Fig.C15-1

C15-1                            SPARE WHEEL CARRIER/备轮架

JINAN SHUNHE AUTO PARTS CO.,LTD

174

No

Number of part

Quantity

Description

Applicability

Designation

0

AZ9738520000

1

HOWO air suspension assembly

1

AZ9738520011

1

Cross member

1a

Q151B1460

8

Screw

1b

190003888458

8

Nut

2

AZ9738520001

2

Stop bracket

2a

Q151B1245

6

Screw

2b

190003888457

6

Nut

3

WG9012520011

2

Sotp

3a

Q2541020

4

Screw

4

AZ9636520009

2

Siphon C

4a

Q151B0825

4

Screw

4b

Q40108

4

Washer

5

AZ9738520006

2

Top cover

5a

Q151B1460

12

Screw

5b

190003888458

12

Nut

6

AZ9738520010

1

Support left

6a

AZ9738520013

1

Support right

6b

WG9636520048

4

Washer

6c

Q151B20120TF2

4

Screw

6d

190003888467

4

Nut

6e

AZ9636520024

2

Positioning pin

7

AZ9636520024

1

Top brace rod left

7a

AZ9636520033

1

Top brace rod right

8

AZ9636520027

1

Bottom brace rod left

8a

AZ9636520034

1

Bottom brace rod right

9

AZ9636520007

2

Lifting siphon

9a

Q151B0825

4

Screw

9b

Q40108

4

Washer

10

AZ9738520008

1

Bracket left

10a

AZ9738520009

1

Bracket right

11

AZ9636520021

16

Plastic washer

12

Q151B1660

16

Screw

13

190003888459

16

Nut

14

AZ9636520028

8

Bolt

14a

190003888749

8

Nut

15

AZ9738520014

2

Shock absorber

                                                 可提升自转向空气悬挂支承桥                            Fig.C16-1

C16-1   TRAILING AXLE WITH AIR SUSPENSION,SELF STEERING,PNEUMATIC LIFTING DEVICE

                                       可提升自转向空气悬挂支承桥

C16-1     TRAILING AXLE WITH AIR SUSPENSION,SELF STEERING,PNEUMATIC LIFTING DEVICE

JINAN SHUNHE AUTO PARTS CO.,LTD

175

15—1

AZ9738520014-1

2

Spring

16

AZ9636520035

1

For shock absorber

Bracket right

17

AZ9636520036

1

For shock absorber

Bracket left

17a

Q151B20200TF2

4

Screw

17b

190003888467

4

Nut

17c

WG9636520029

4

Washer

18

AZ9636520019

2

Spring seat left

19

AZ9636520045

2

Spring seat right

20

AZ9636520046

8

Bush

21

AZ9636520022

4

Bolt

22

Q381B18

4

Nut

23

Q5000445

4

Split pin

24

AZ9636410061

1

Bracket left

24a

AZ9636410060

1

Bracket right

25

AZ9100430218

1

Tie rod

26

AZ9128710002

1

Pneutronic valve

27

AZ9632710001

Bracket for pneutronic valve

JINAN SHUNHE AUTO PARTS CO.,LTD

176
