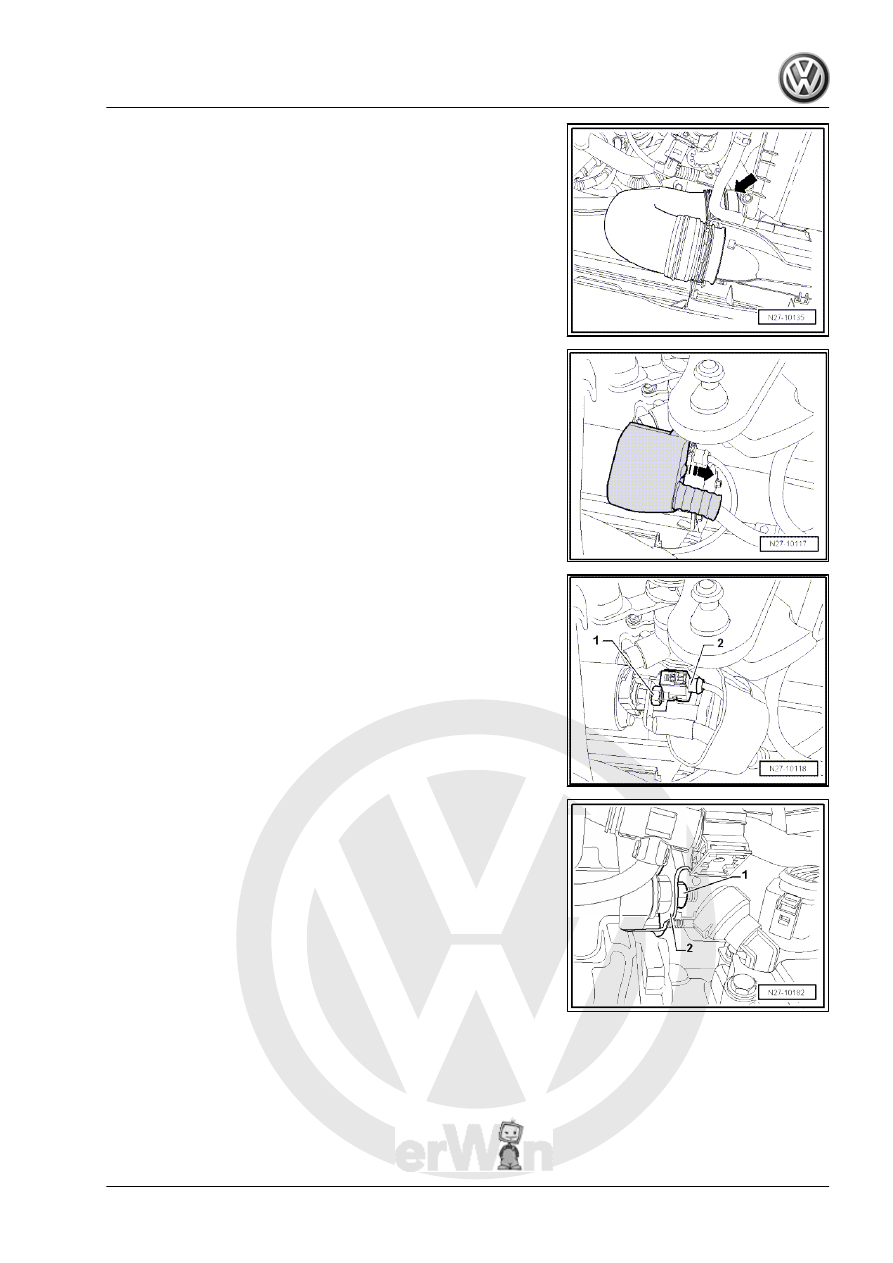

– Push down protective cap -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

53

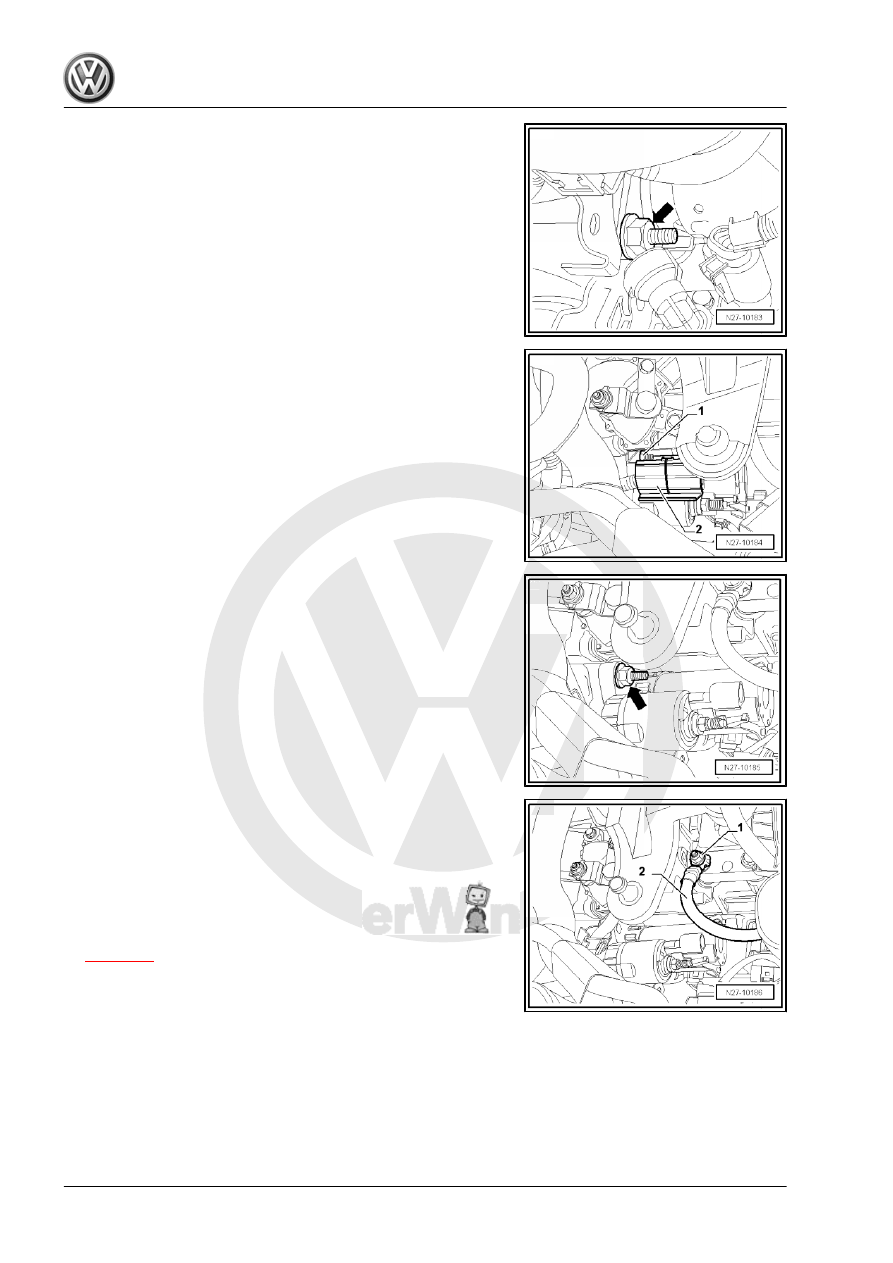

– Unscrew nut -1- from upper starter securing bolt.
– Remove wiring retainer -2-.

– Remove upper securing bolt of starter -arrow-.

– Unscrew earth wire securing nut -1- and place earth wire end

-2- in direction of battery to side.

– Remove starter from vehicle upwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

54

Vehicles with 2.0 l SDI engine

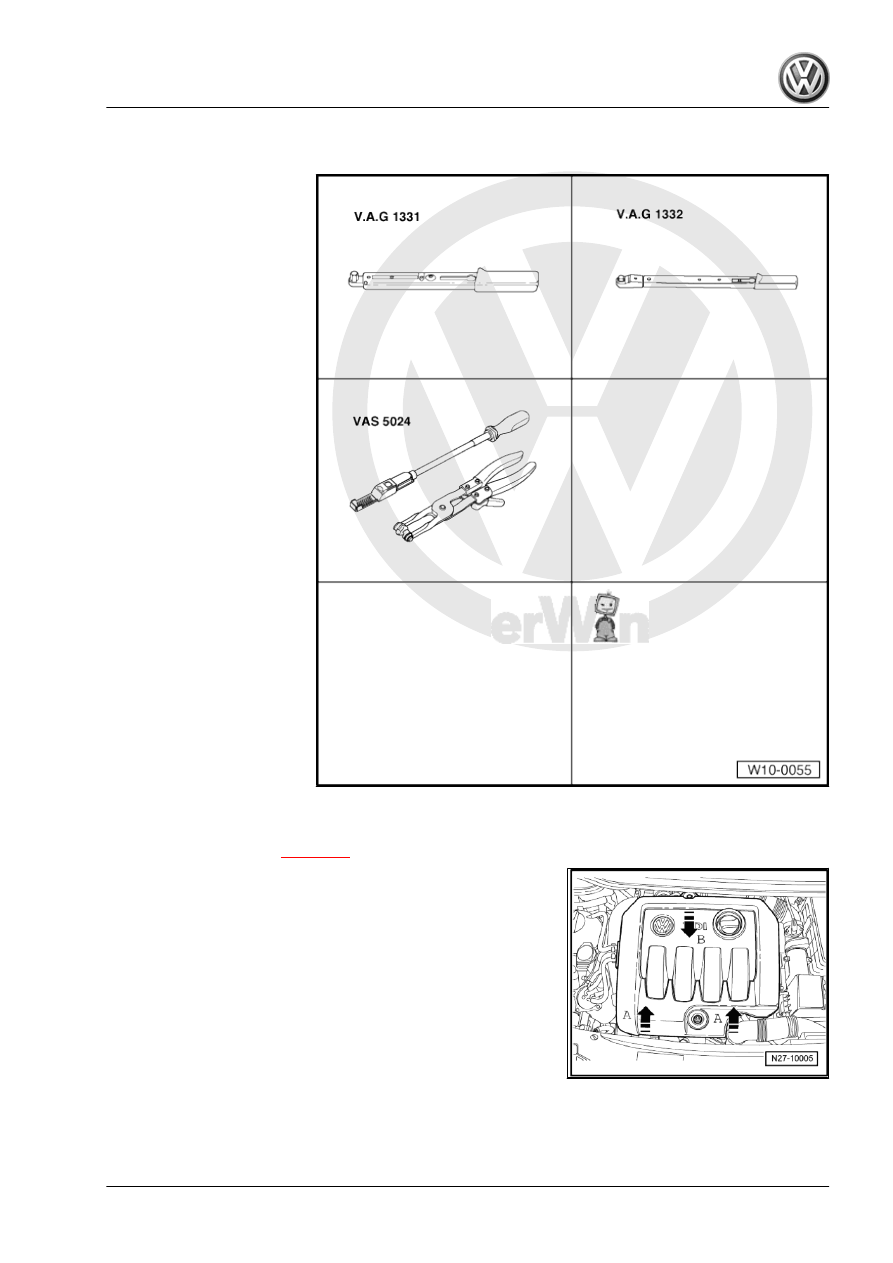

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

55

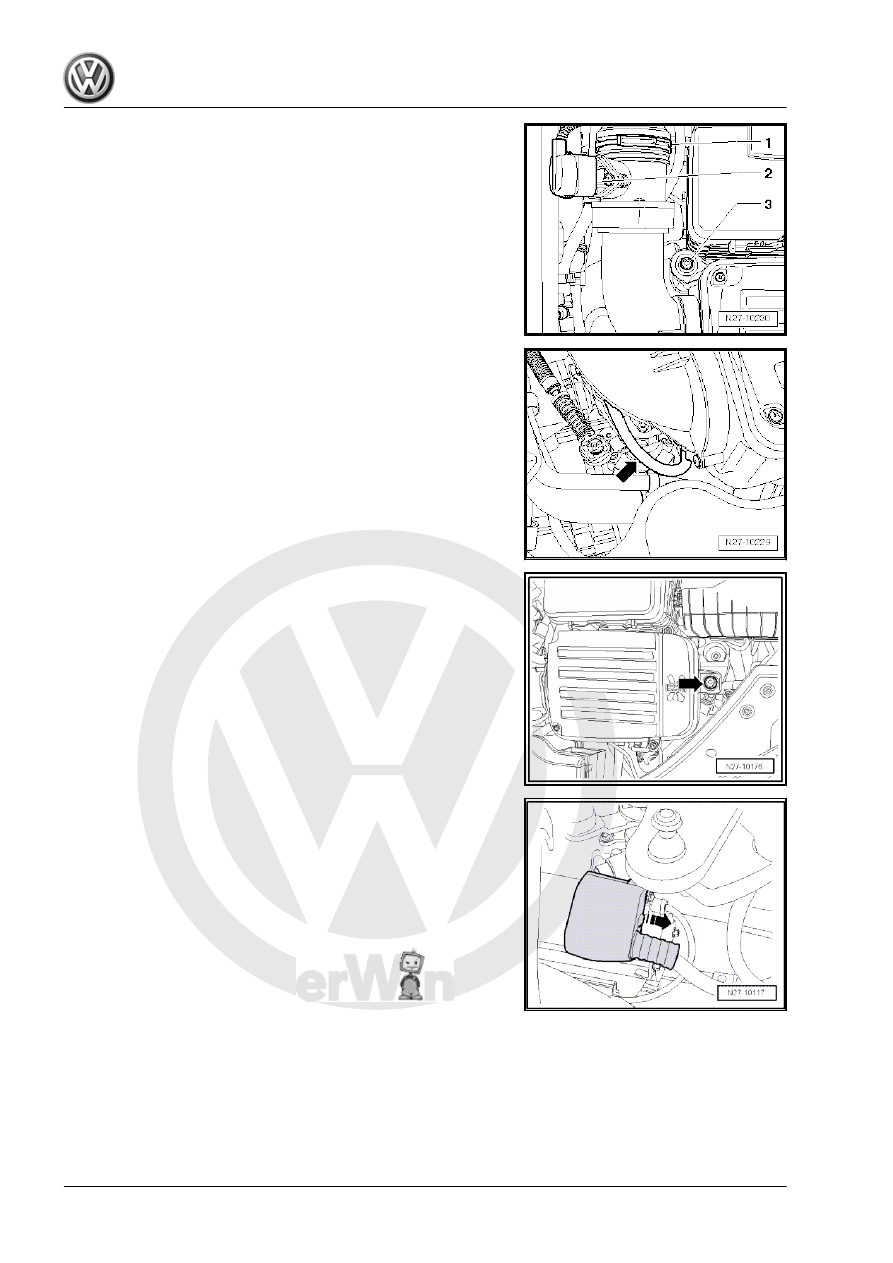

5024- and disconnect connector -2-.

– Remove securing bolt -3-.

– Pull vacuum hose off -arrow-.

– Pull air filter housing on right side upwards off rubber mounting

-arrow-.

– Remove air filter housing from vehicle.

– Push down protective cap in -direction of arrow- from solenoid

switch.
