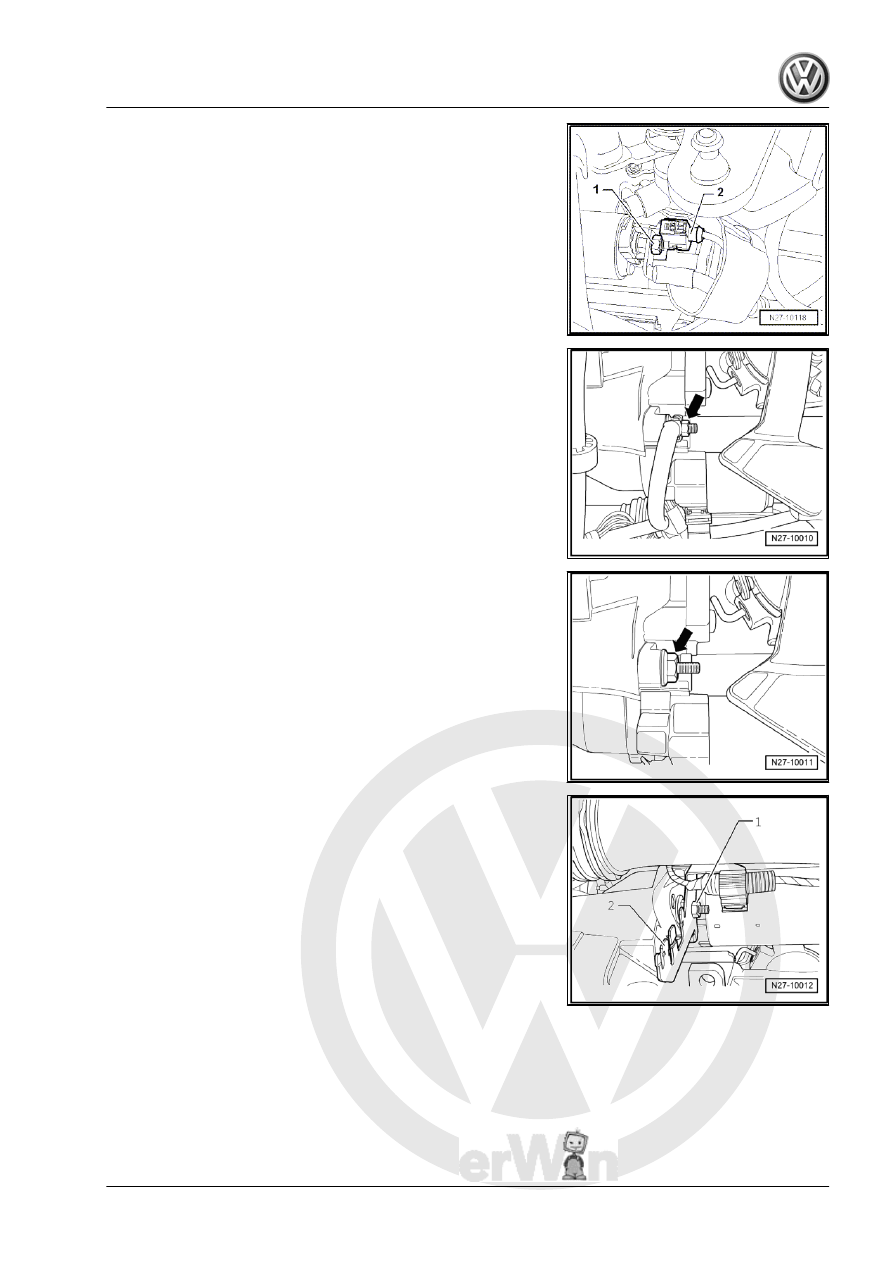

minal 50 -2-.

– Unscrew earth wire from starter securing bolt -arrow-.

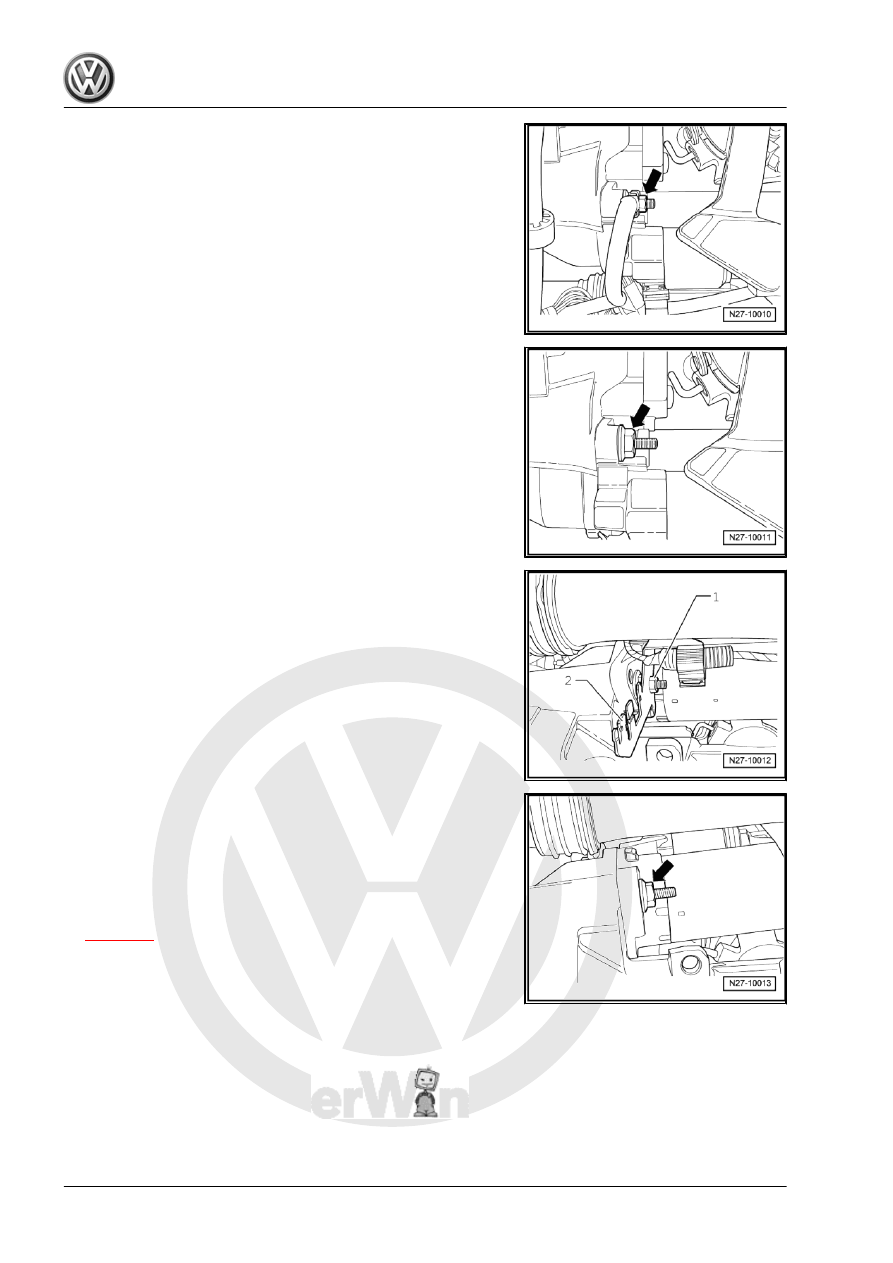

– Unscrew starter securing bolt -arrow-.
– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew securing nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

57

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

7.3

Removing and installing starter, auto‐

mated shift gearboxes

7.3.1

Vehicles with 1.6 l injection engine

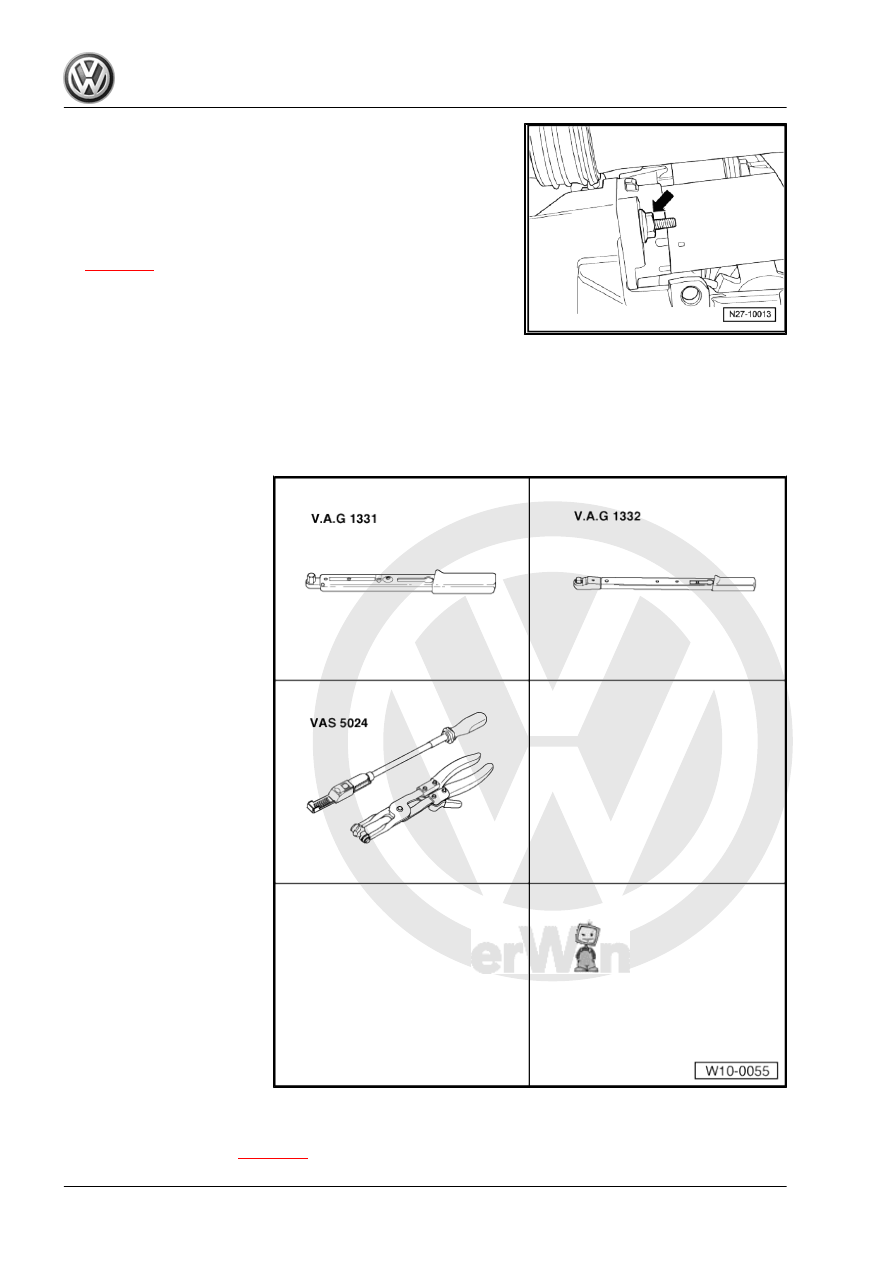

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

Jetta 2005 ➤ , Bora 2006 ➤

58

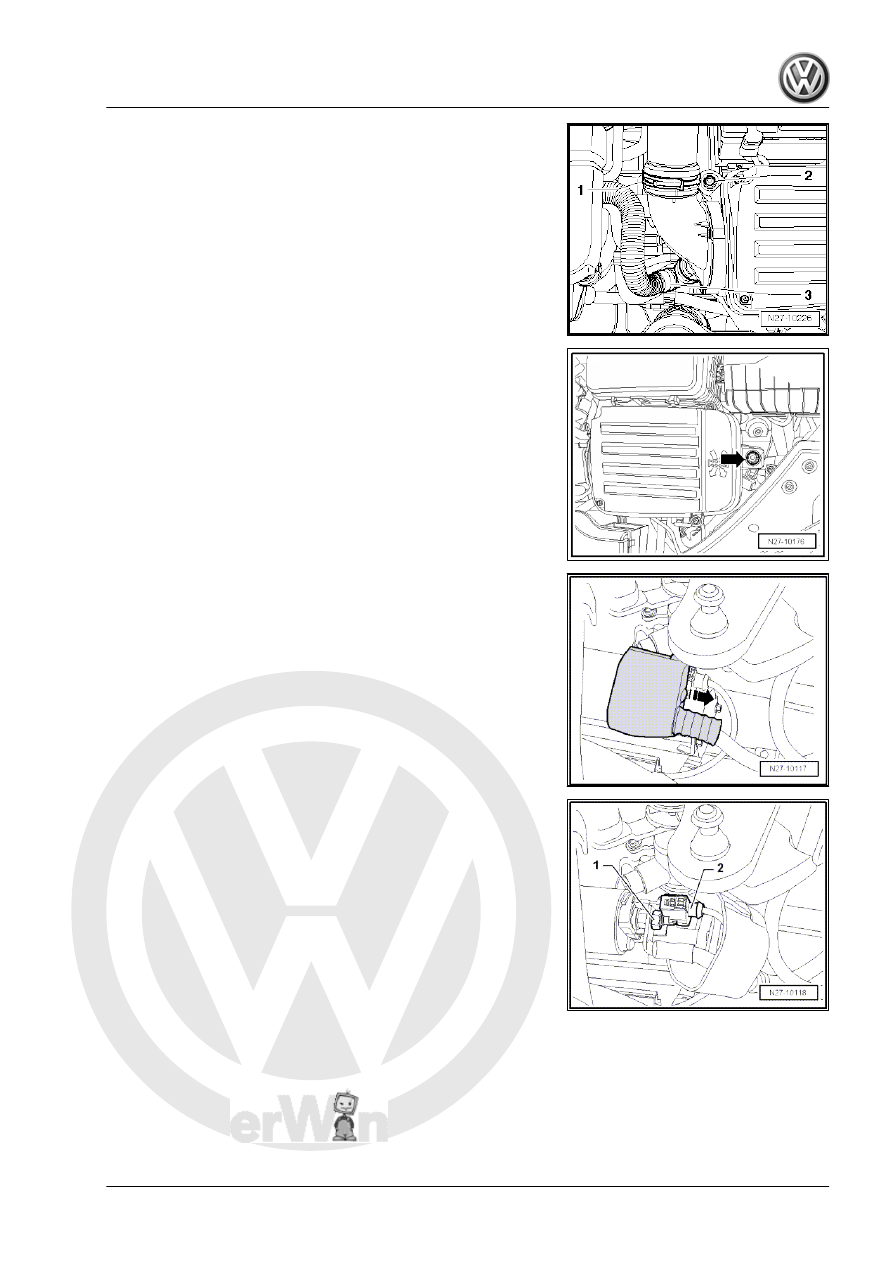

5024- and remove securing bolt -2-.

– Release hose -3- and pull it off the air filter housing.

– Pull air filter housing on right side upwards off rubber mounting

-arrow-.

– Remove air filter housing from vehicle.

– Push down protective cap in -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

59

– Unscrew starter securing bolt -arrow-.
– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew securing nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

– Unscrew starter securing bolt -arrow-.
– Remove starter from vehicle downwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .
