type clip pliers -VAS 5024- and pull off vacuum hose -3-.

– Pull air filter housing upwards out of brackets and remove.

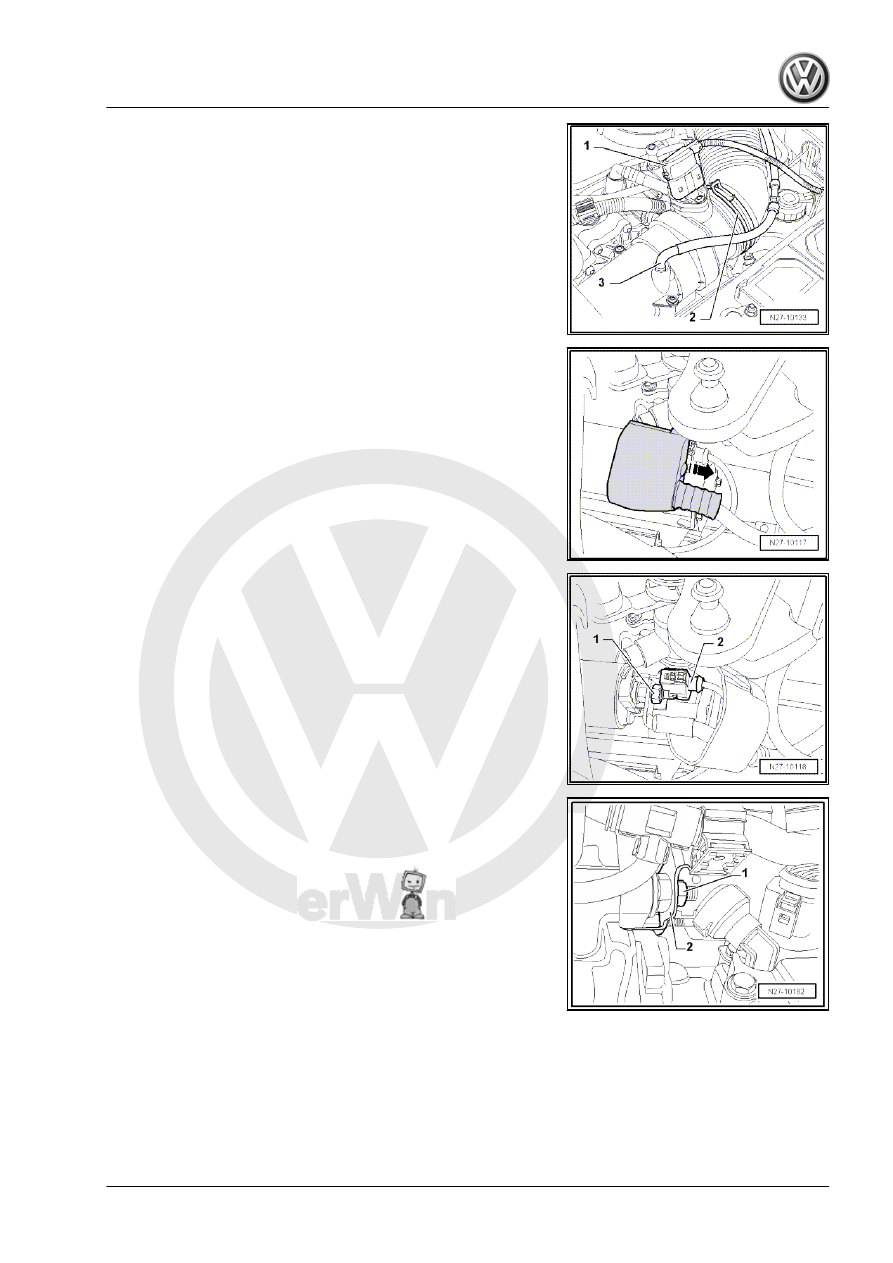

– Push down protective cap -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

49

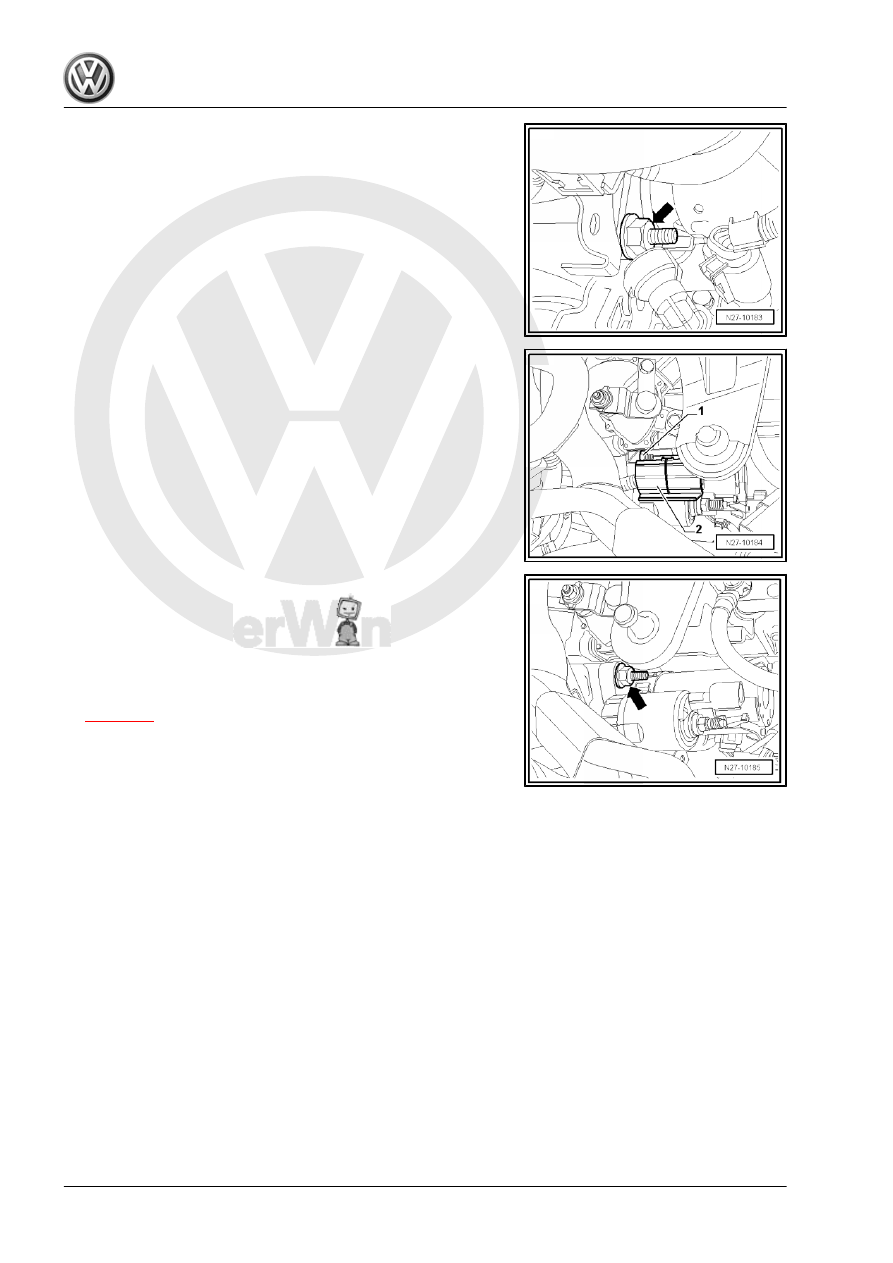

– Unscrew nut -1- from upper starter securing bolt.
– Remove wiring retainer -2-.

– Remove upper securing bolt of starter -arrow-.
– Remove starter from vehicle downwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

50

Vehicles with 1.9 l TDI engine

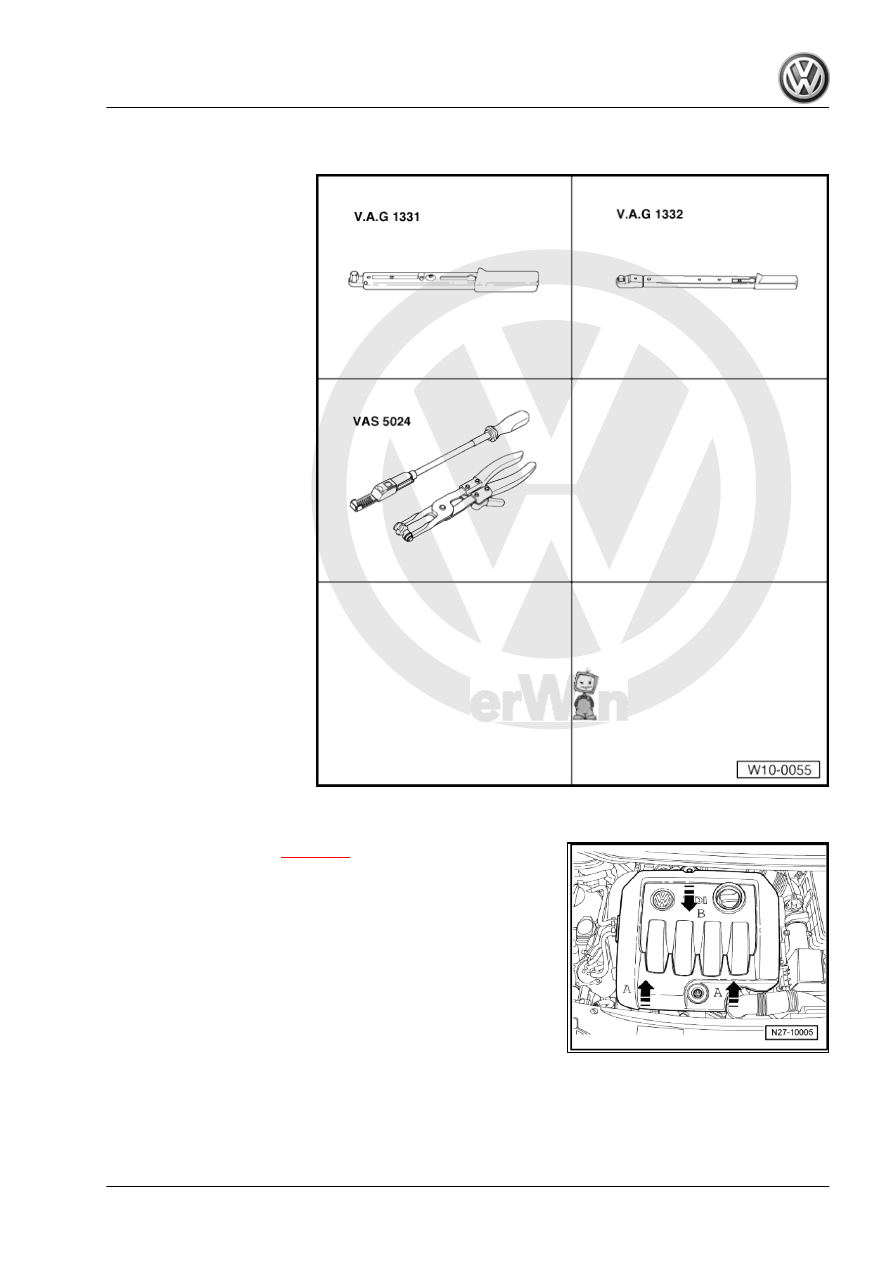

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

51

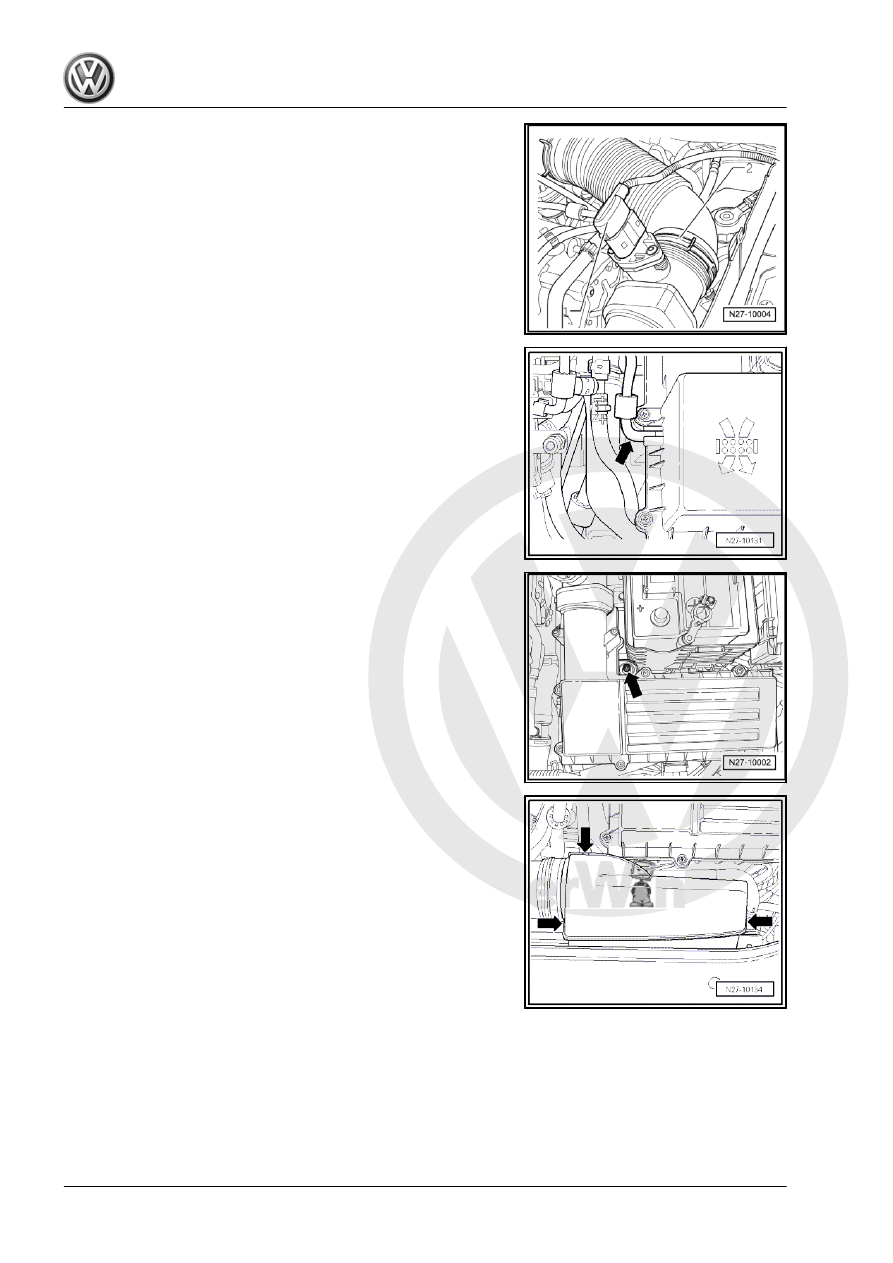

spring type clip pliers -VAS 5024- .

– Pull the vacuum hose -arrow- off air filter housing.

– Unscrew air filter housing securing bolt -arrow-.

– Unlock lugs -arrows- and take cover off.

Jetta 2005 ➤ , Bora 2006 ➤
