♦ Torque wrench -V.A.G 1332-

Removing:
– Disconnect the battery

⇒ page 29

 .

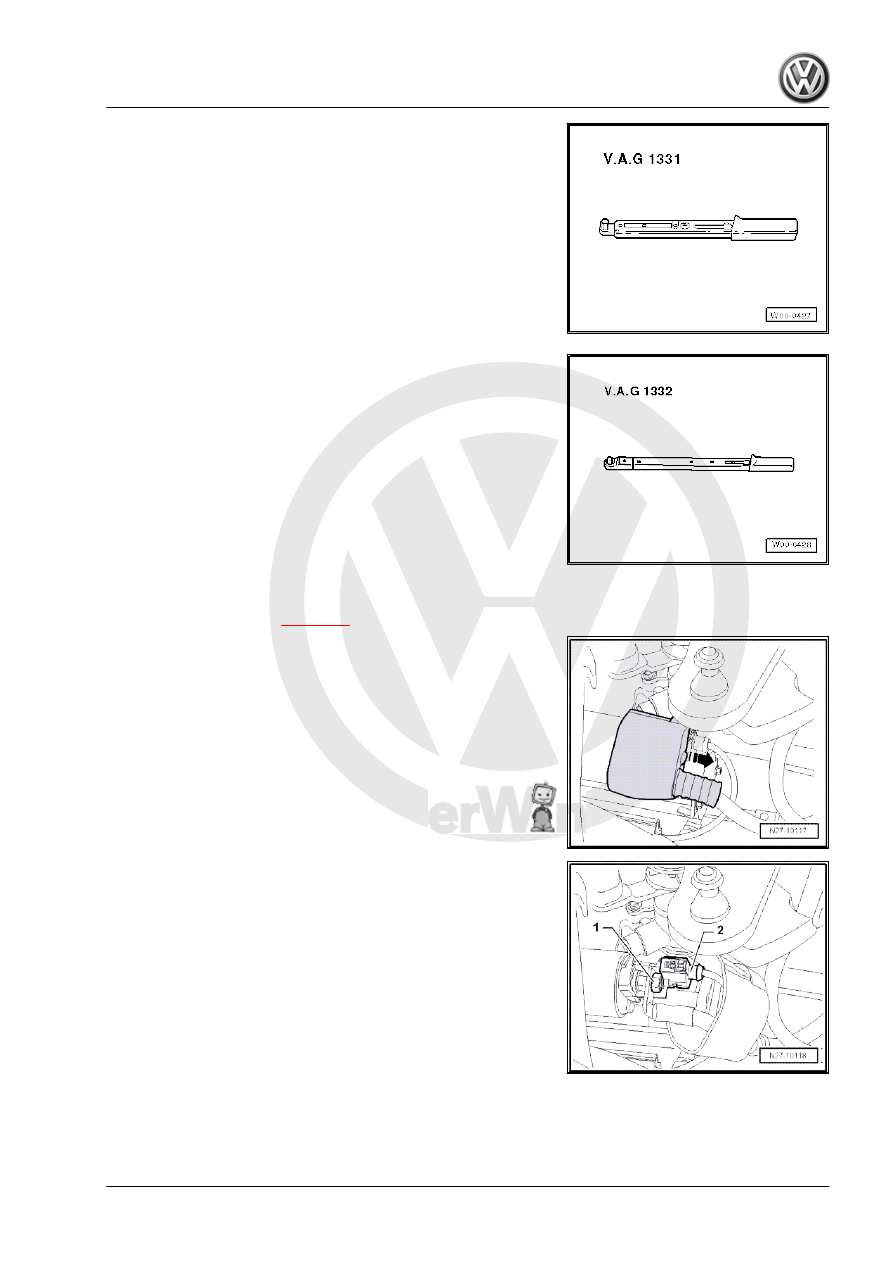

– Push down protective cap in -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

41

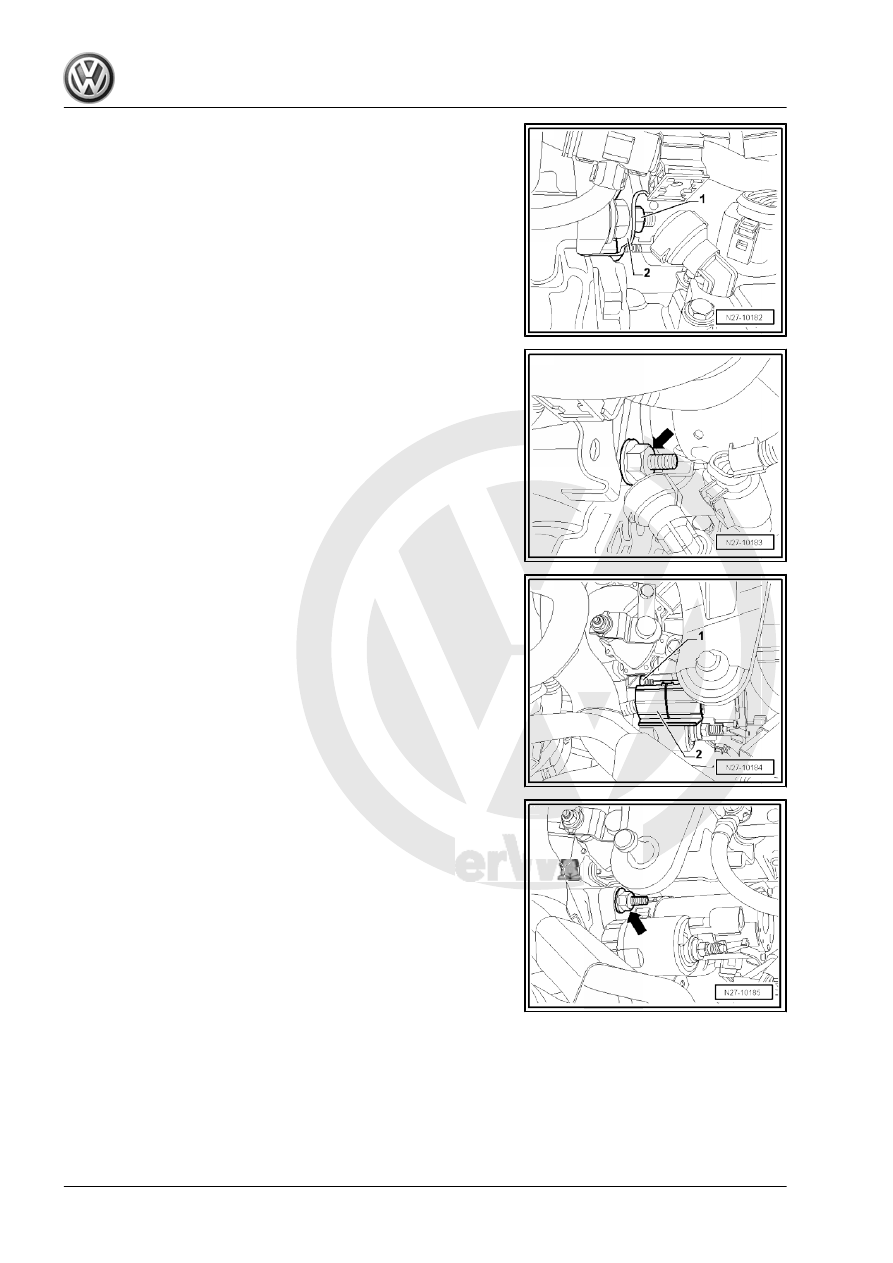

– Remove lower securing bolt of starter -arrow-.

– Unscrew securing nut -1- from upper starter securing bolt.
– Remove wiring retainer -2-.

– Remove upper securing bolt of starter -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

42

to one side.

– Remove starter from vehicle upwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

7.2.3

Vehicles with 2,0 l FSI engine

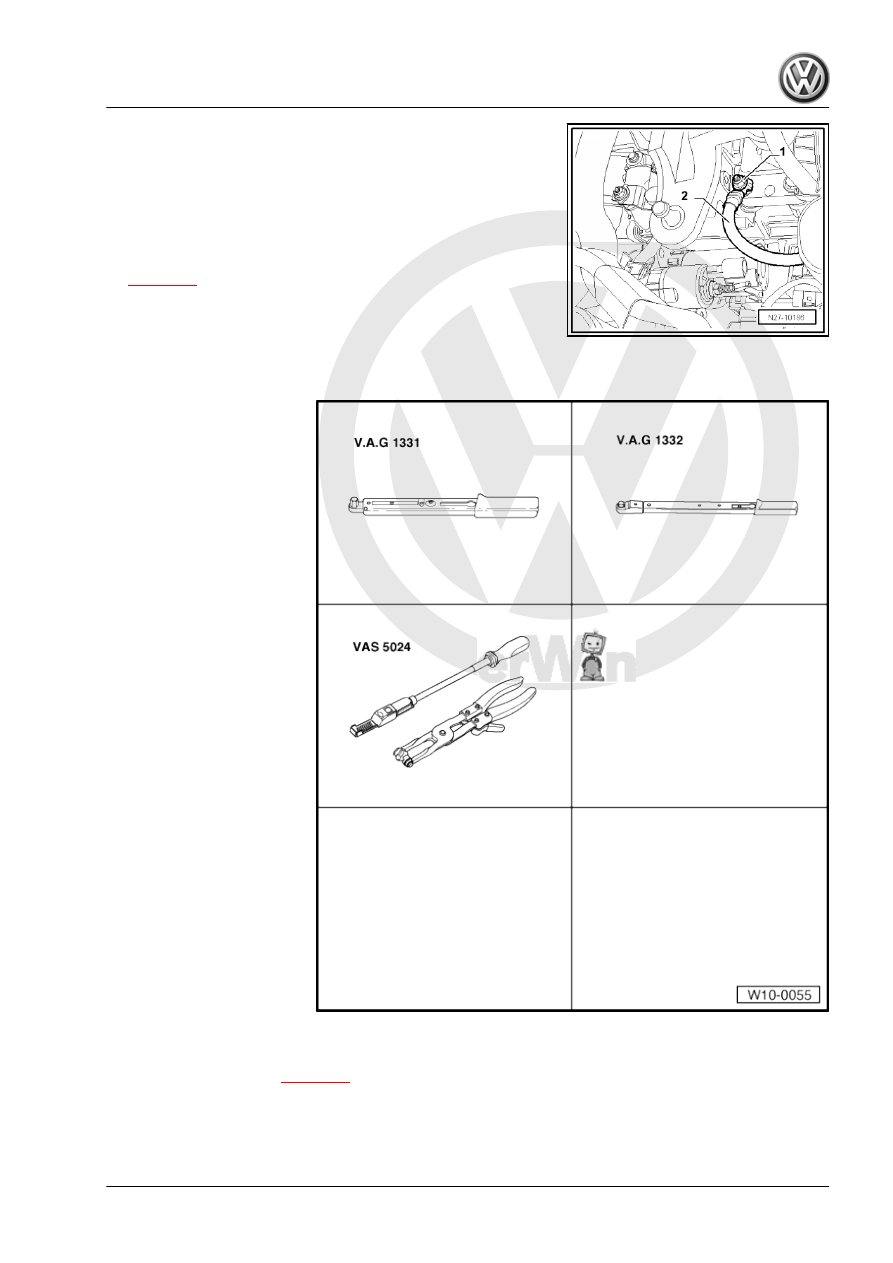

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

43

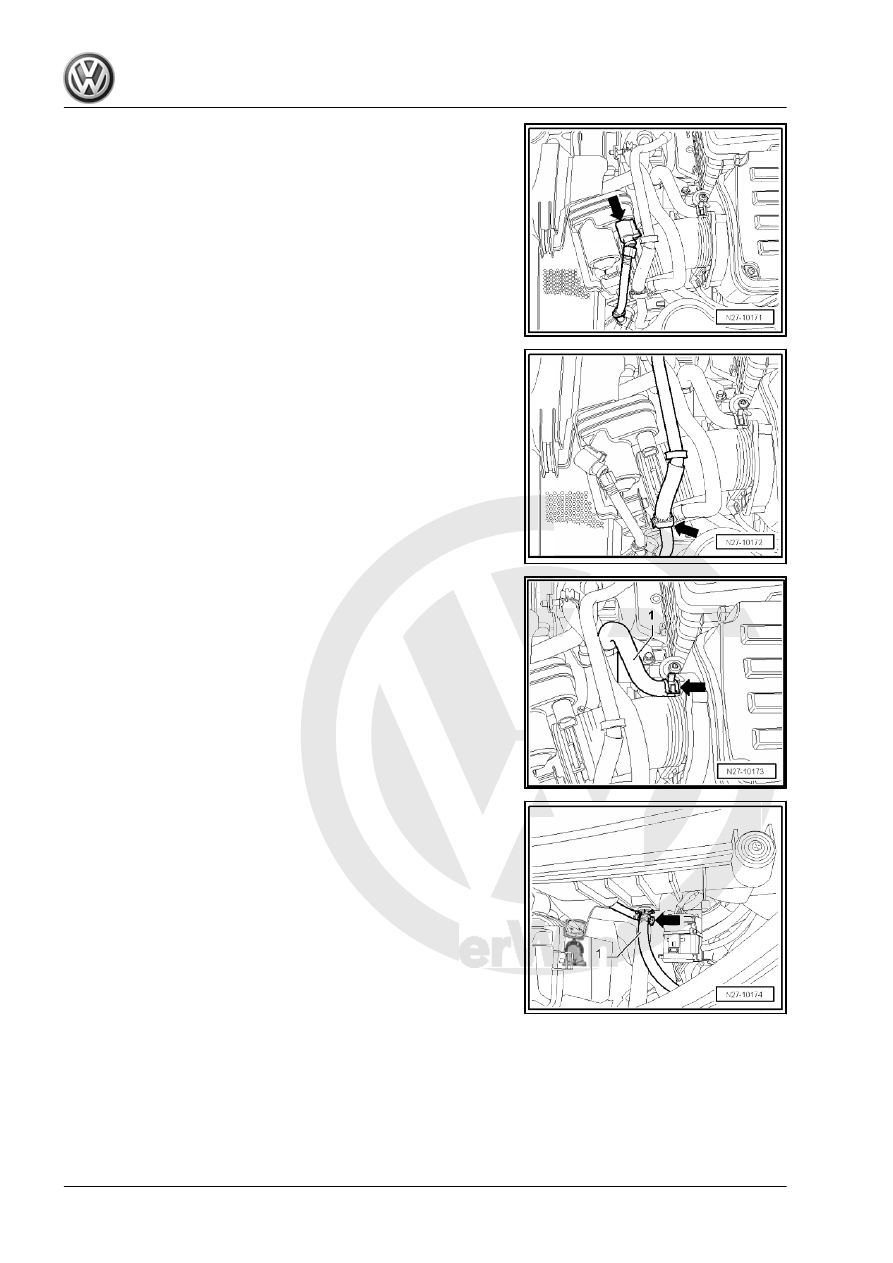

– Unclip vacuum hose from its mounting -arrow-.

– Loosen spring-type clip -arrow- from hose -1- using spring type

clip pliers -VAS 5024- .

– Pull hose -1- off air filter housing.

– Open retainer -arrow- on front side of air filter housing and take

hose -1- off.

Jetta 2005 ➤ , Bora 2006 ➤

44
