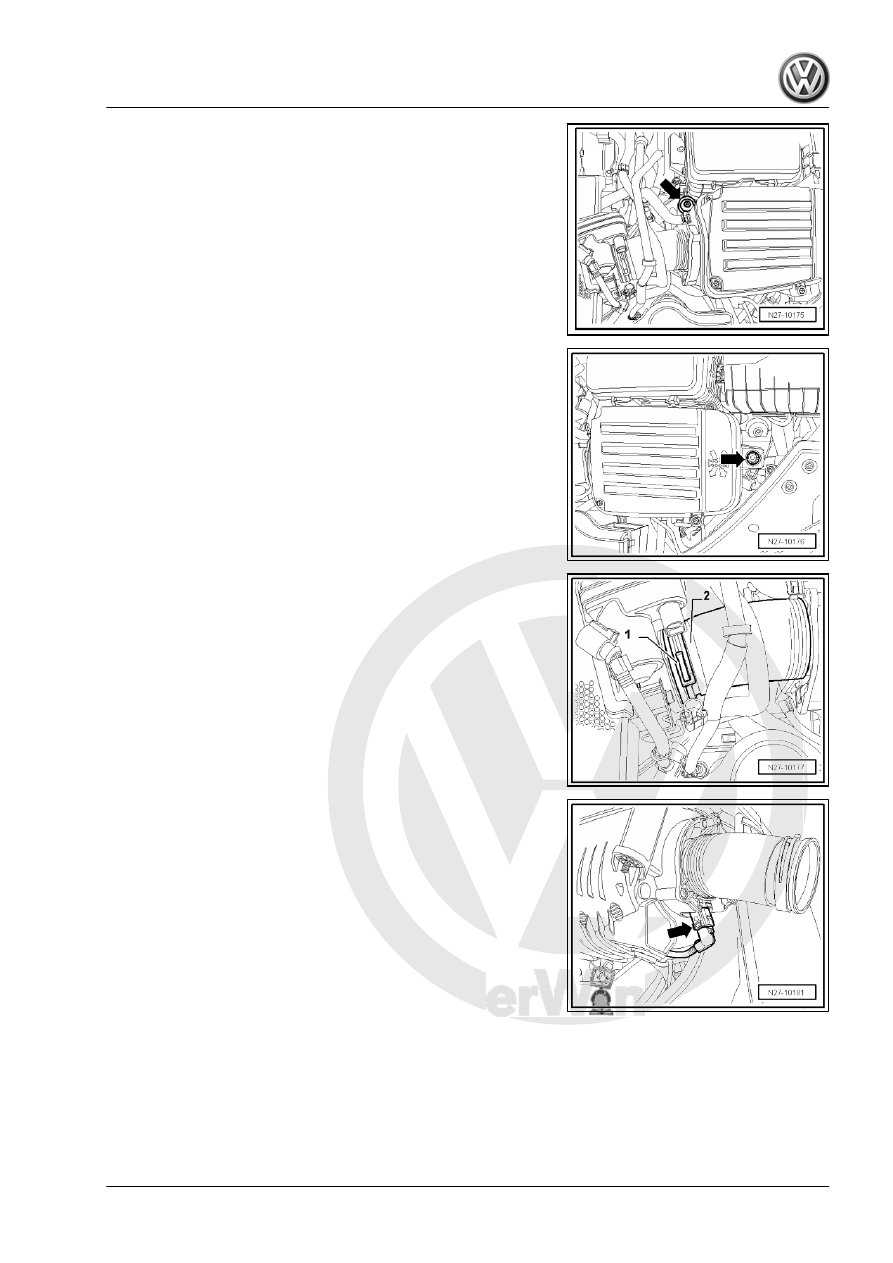

– Pull air filter housing on right side upwards off rubber mounting

-arrow-.

– Loosen spring-type clip -1- using spring type clip pliers -VAS

5024- .

– Pull hose -2- off pipe union.
– Carefully lift air filter housing upwards out of the vehicle taking

into consideration the length of the hose.

– Separate connector -arrow- on rear of air filter housing.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

45

switch.

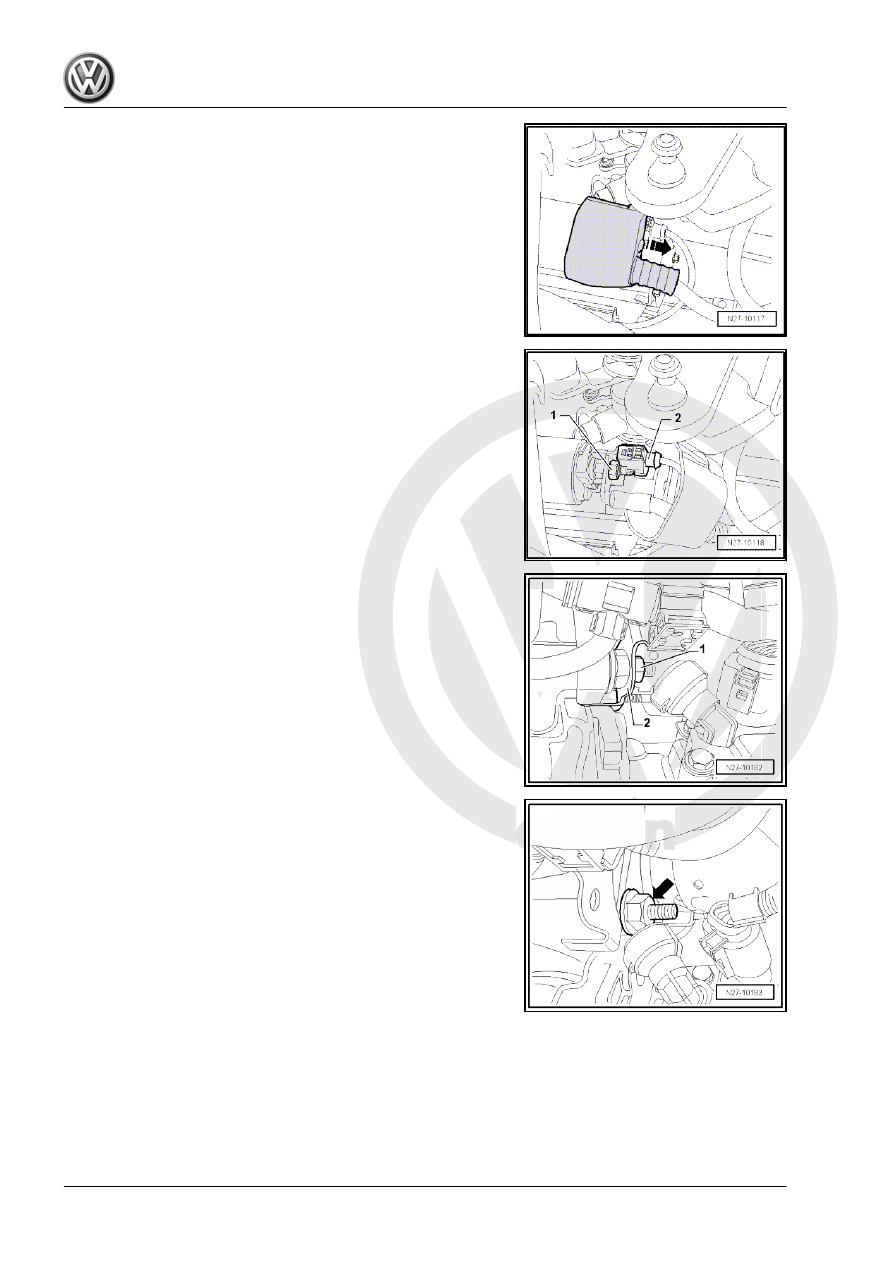

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew securing nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

– Remove lower securing bolt of starter -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

46

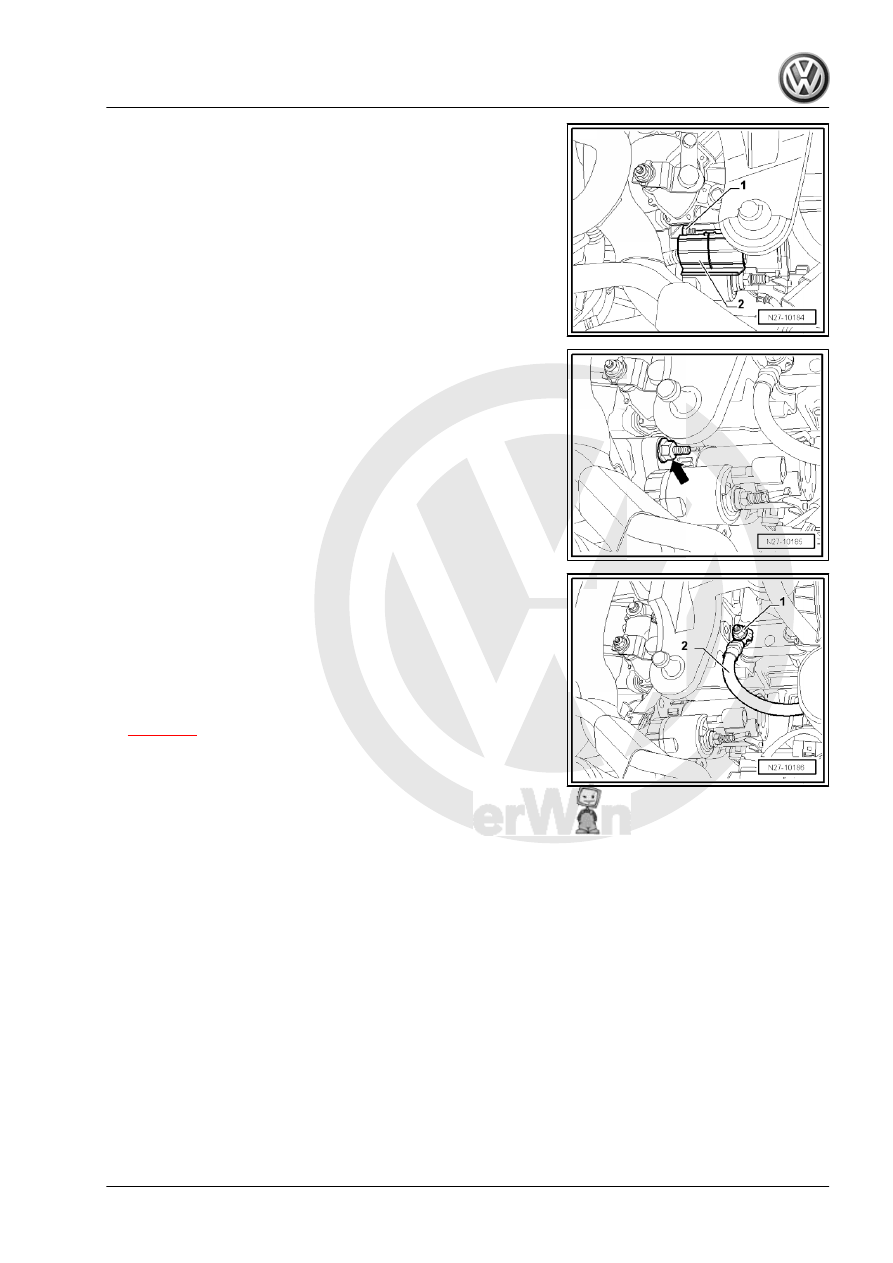

– Remove upper securing bolt of starter -arrow-.

– Unscrew earth wire securing nut -1- and place earth wire -2-

to one side.

– Remove starter from vehicle upwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

47

Vehicles with 2,5 l injection engine

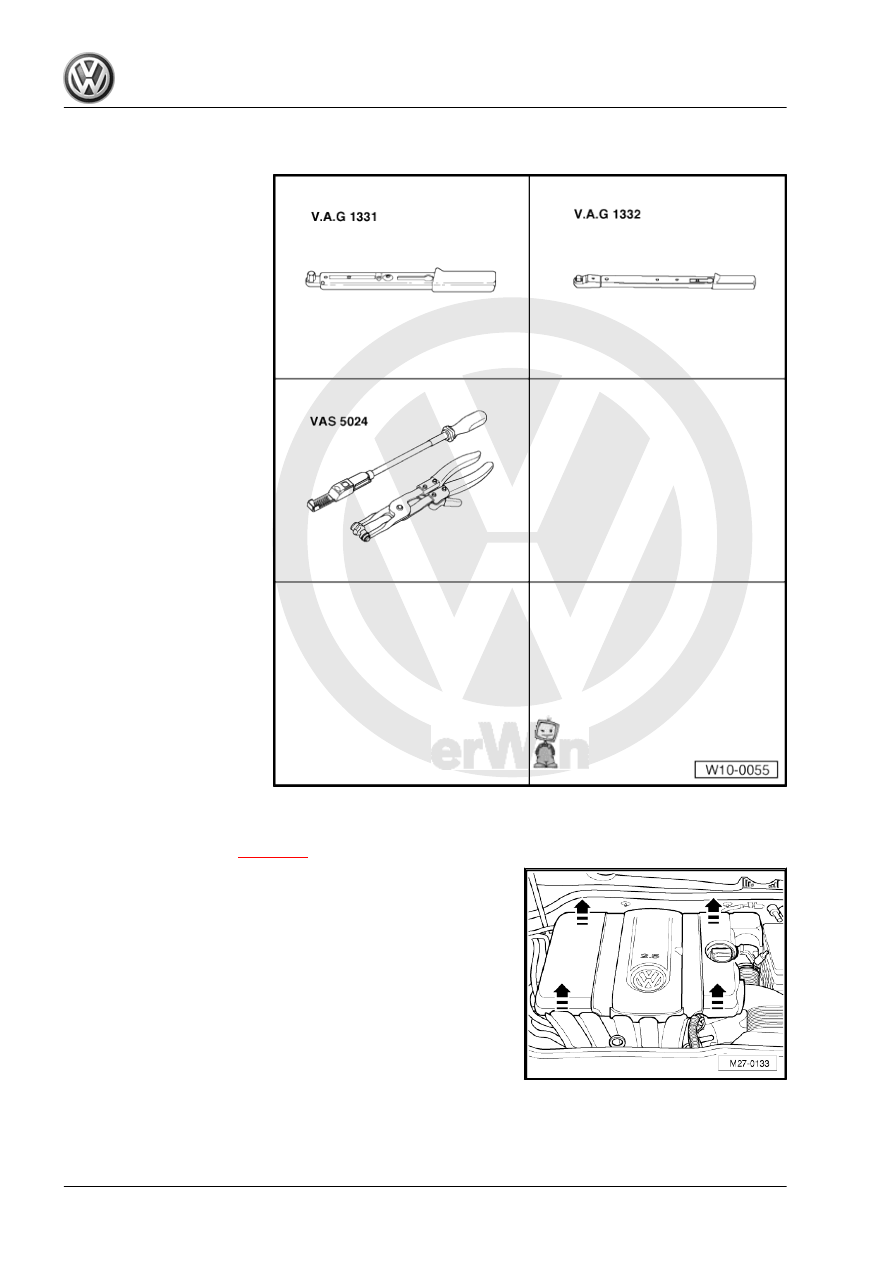

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

– Pull engine cover off upwards -arrows-.
