BACK SEAT TABLES AND PARCEL SHELVES

74-1

DISMOUNTING
Extract the panel  (1).
Dismount the attachment screws (3) of the

lateral supports (2) on the lateral frames
linings.

REMOUNTING
Perform in the reverse order the

dismounting operations.

UPPER BACK PANEL REPLACEMENT

75

FRONT SEATS FRAMES AND RUNNERS

75-1

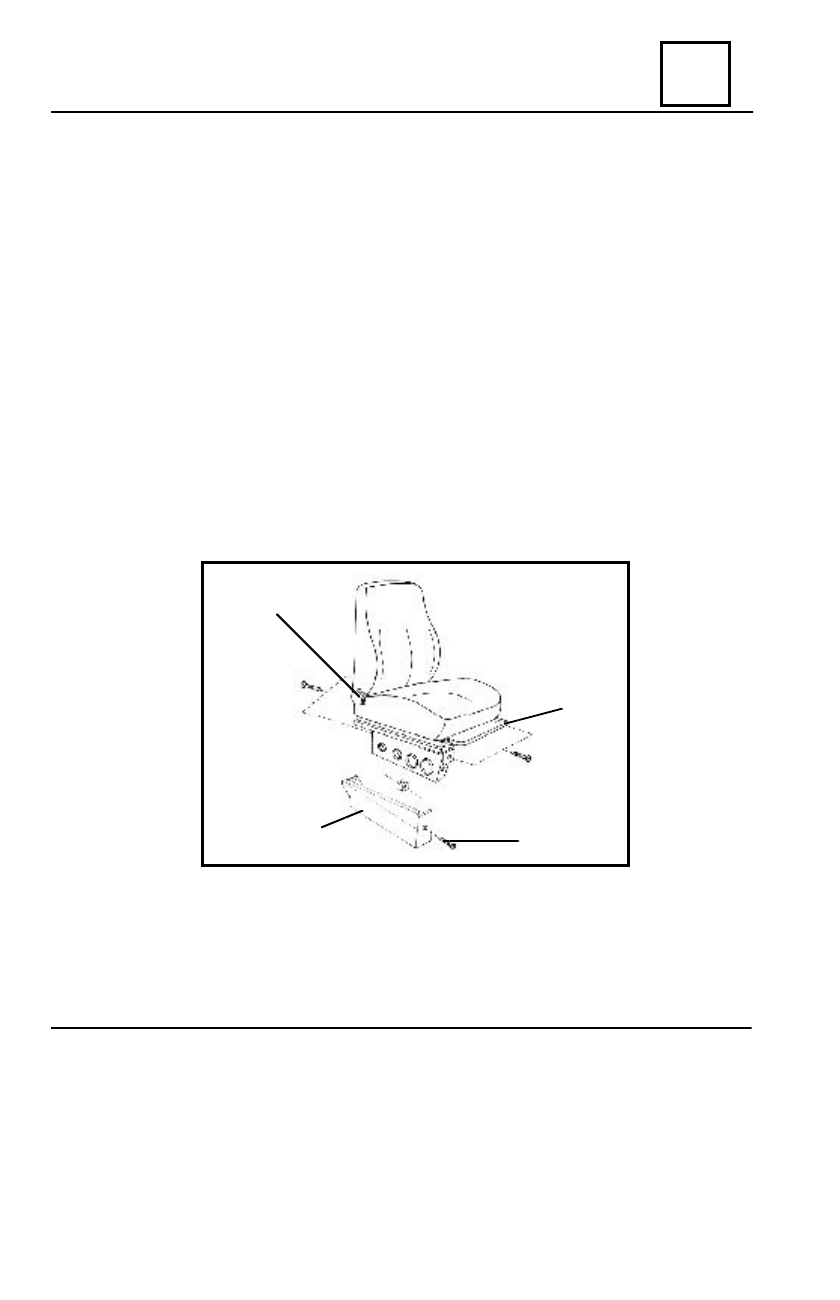

CONTROL/ADJUSTMENT
The front seats, equipping DACIA NOVA vehicles, have two possibilities of adjustment:

- front or rear longitudinal movement ,which can be performed by lever’s operation (1);
- seat back overturning up to the horizontal position, by rotating the round button (2).

DISMOUNTING
For dismounting, the seat will be placed in the middle position by lever’s (1) lifting and per-

form the following operations:

Remove the lateral cross bar protector (3) by dismounting the metal screws  (4).
Dismount screws (5), which are fixing the seat on the central and lateral cross bar.
Release the front seat.

REMOUNTING
Perform in the reverse order the dismounting operations.

4

1

2

3

FRONT SEATS

75

FRONT SEATS FRAMES AND RUNNERS

75-2

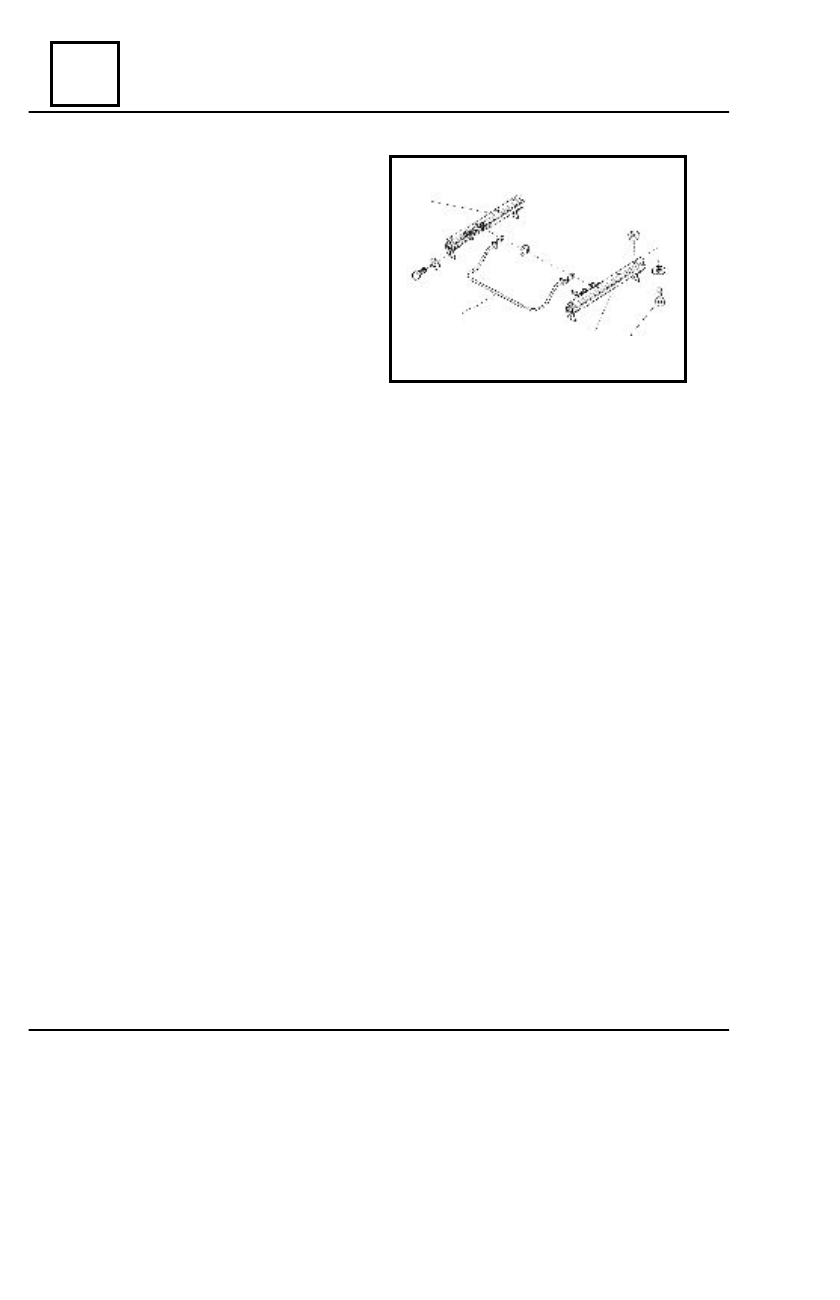

FRONT SEAT SLIDES GUIDES

DISMOUNTING
Dismount the attachment  screws (4) of the

slides guides (1) and (2) on the front seat, by
acting upon  the control lever  (3) and move the
slide guides in  one  way or  the  other  as required.

Release slides guides from the front seat.

REMOUNTING
Perform in the reverse order the dismounting

operations.

1

3

2

4

75

FRONT SEATS FRAMES AND RUNNERS

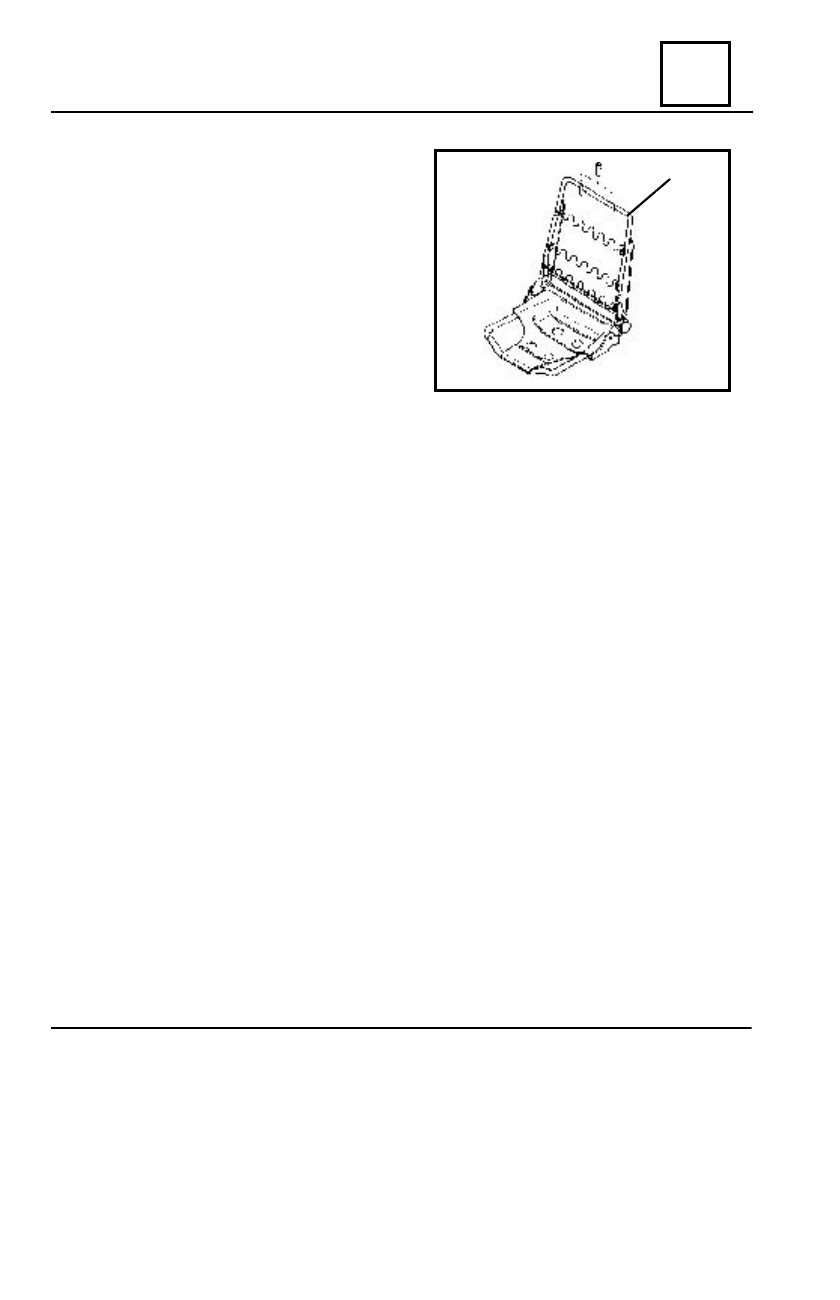

FRONT SEAT ARMATURE

DISMOUNTING
Dismount the front seat off the vehicle.
Dismount slides guides from the seat.
Remove the upholstery.
Detach the quilt from the seat armature.
Release the front seat armature.

REMOUNTING
Perform in the reverse order the dismounting

operations.

1

75-3
