Dacia SuperNova (engine E7J). Manual - part 108

71

INTRENAL BODY TRIM

72 - 7

DISMOUNTING
Detach from the two attachment clips (1)

the rear wheel passage covering.

Release the rear wheel passage covering.

REMOUNTING
Perform in the reverse order the

dismounting operations.

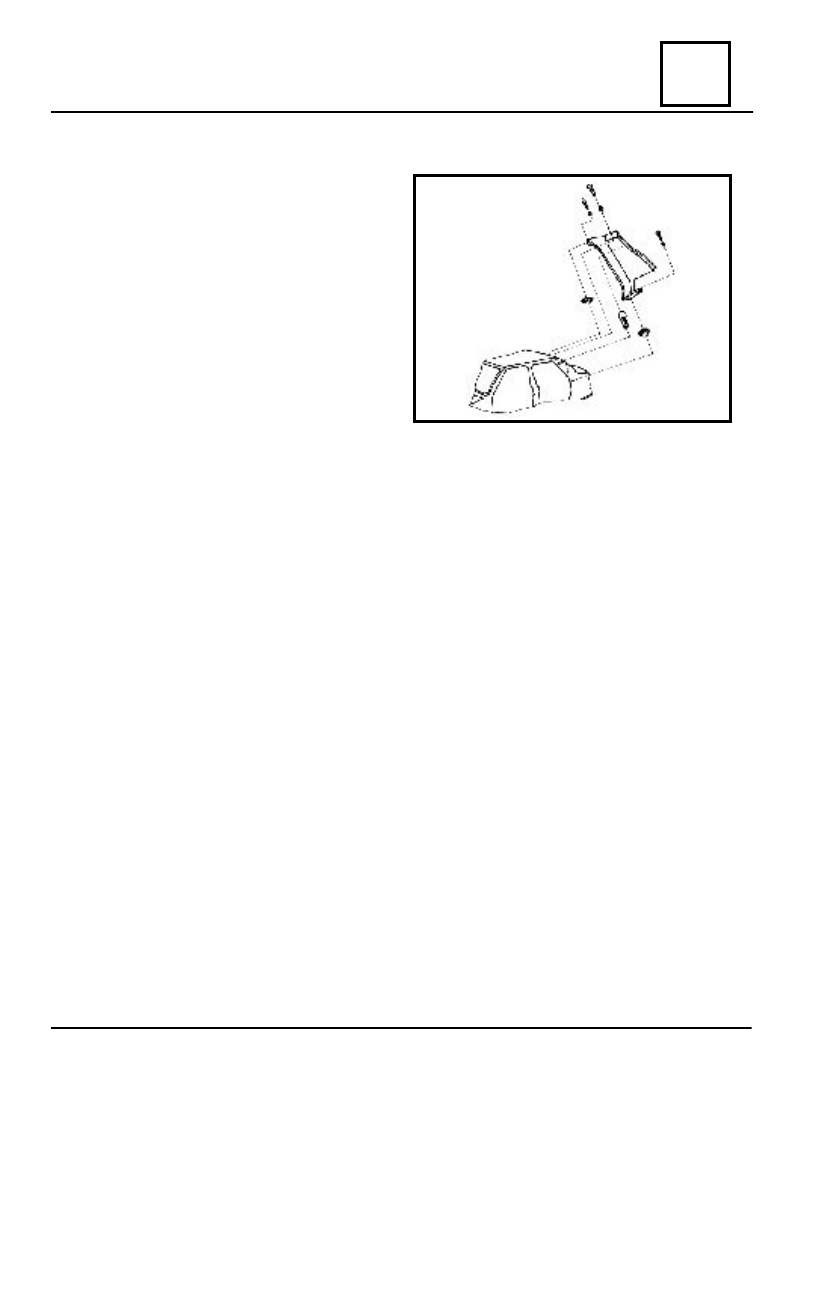

REAR WHEEL PASSAGE COVERING

71

INTRENAL BODY TRIM

72 - 8

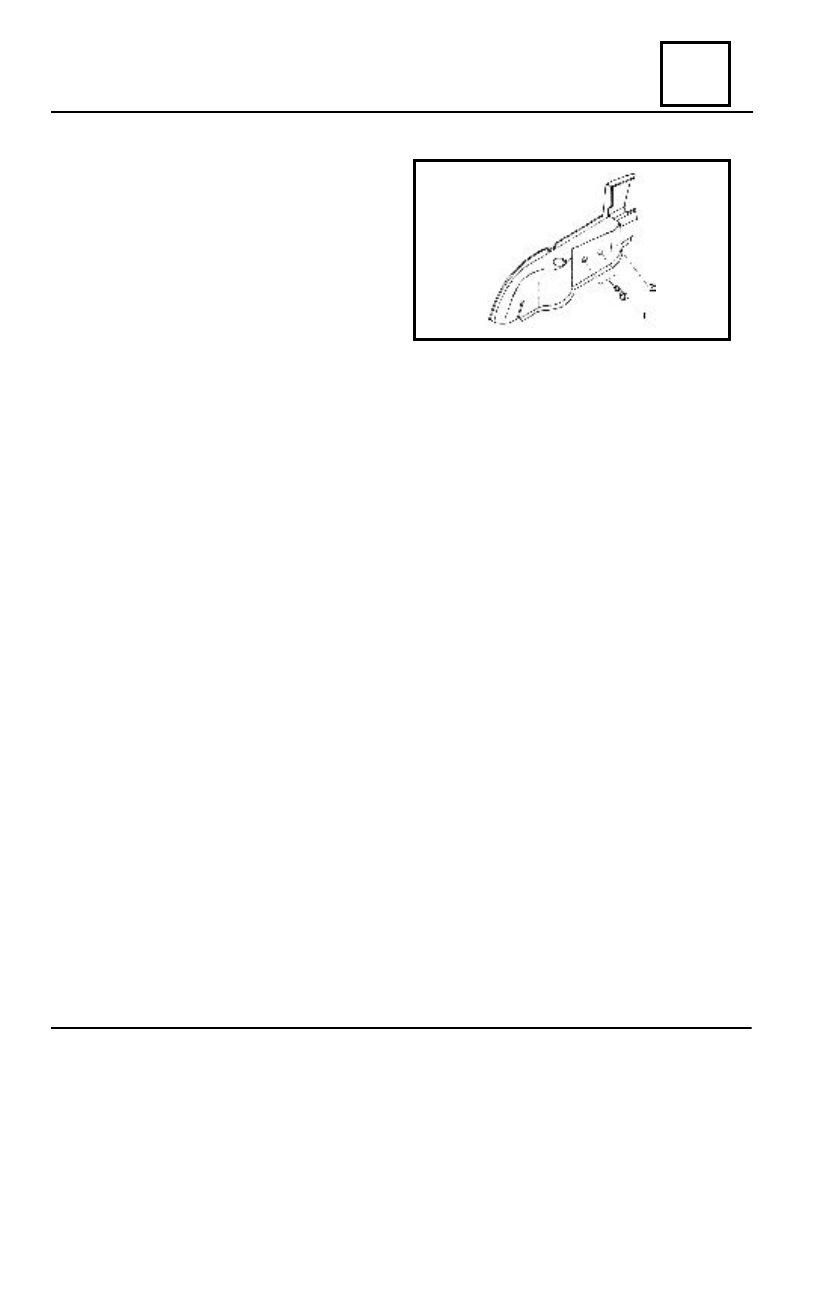

MIDDLE PILLAR LOWER COVERING

DISMOUNTING
Dismount:

- the obturator (2);
- the attachment screws (1) of the middle

pillar lower covering (3) from the upper and  lower
area of the safety belt mounting.

REMOUNTING
Perform in the reverse order the dismounting

operations.

71

INTRENAL BODY TRIM

72 - 9

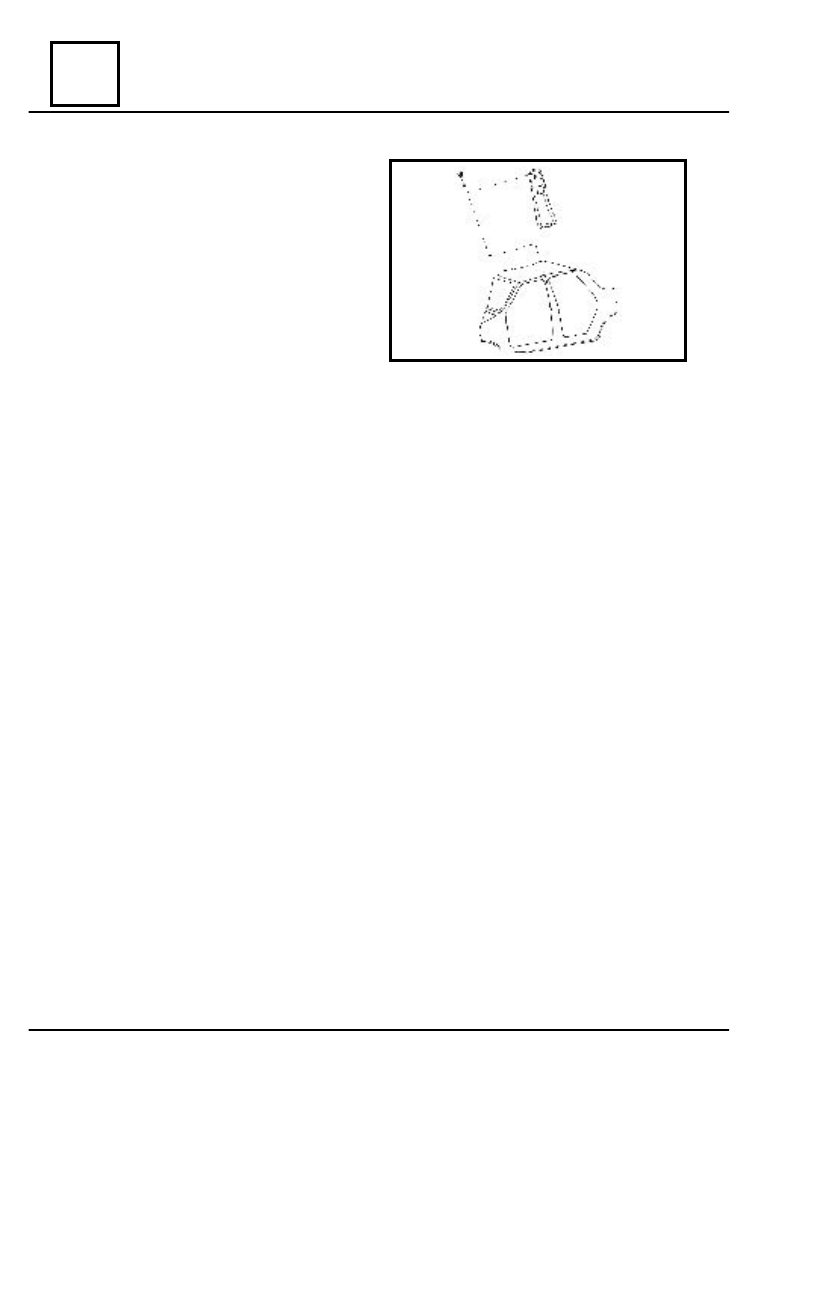

REAR SIDE PANEL COVERING

DISMOUNTING
Dismount:

- rear door frame gasket;
- hatchback frame gasket;
- the attachment screws (1) and (2) of the

rear side panel covering (3) on the panel lining.

- the protecting and the attachment screw

of the rear safety belt on the rear side panel.

Detach from  clips (4) and (5) and release.

REMOUNTING
Perform in the reverse order the

dismounting operations.

71

INTRENAL BODY TRIM

72 - 10

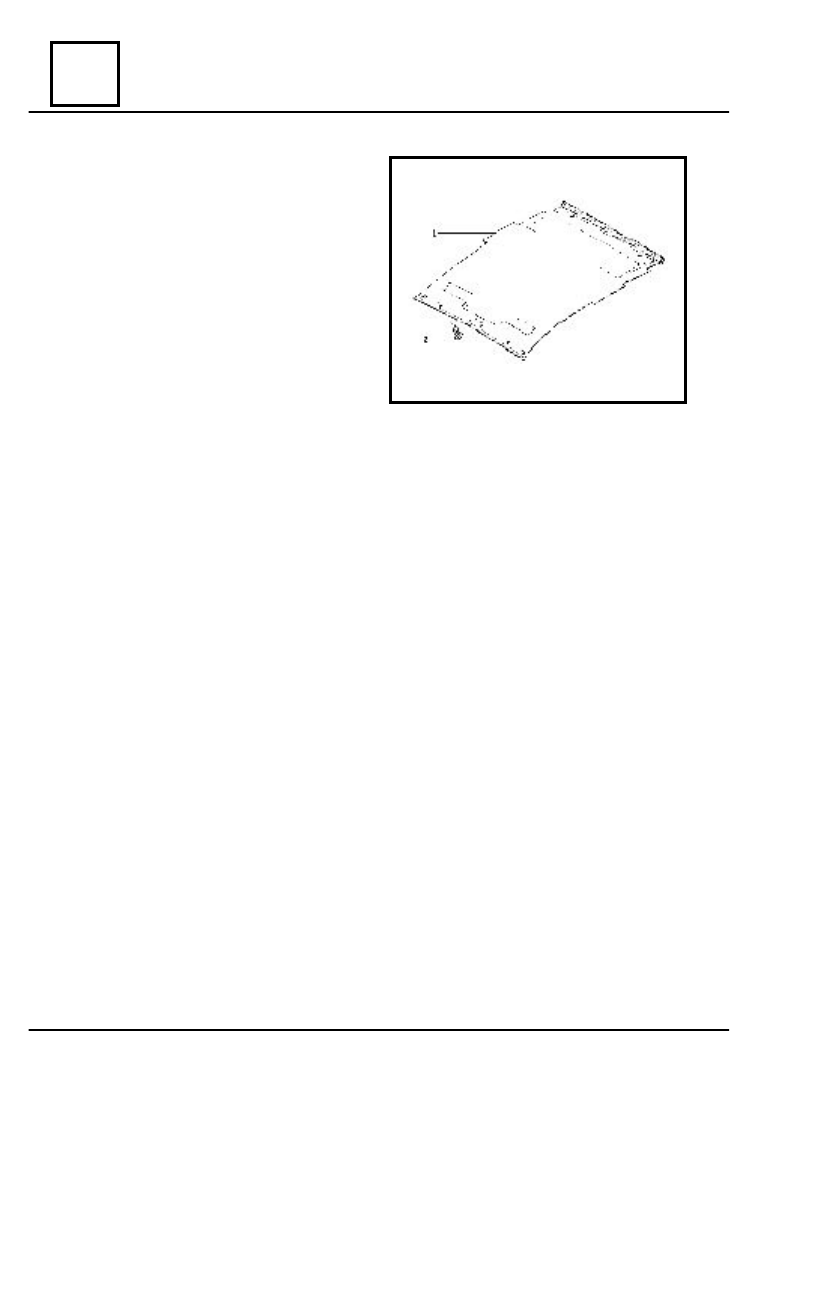

ROOF GASKET

DISMOUNTING
Dismount: the turn handles, front/rear safety

belts attachment on the upper area, ceiling lamps,
interior rear view mirror, sun visors, stop lamp,
volumetric sensors and the upper covering on
the roof outliner.

Dismount the  roof gasket  (1) by detaching

from the clips (2).

REMOUNTING
Perform in the reverse order the dismounting

operations.
