INTRENAL BODY TRIM

72 - 11

CARPETS

DISMOUNTING
Remove :

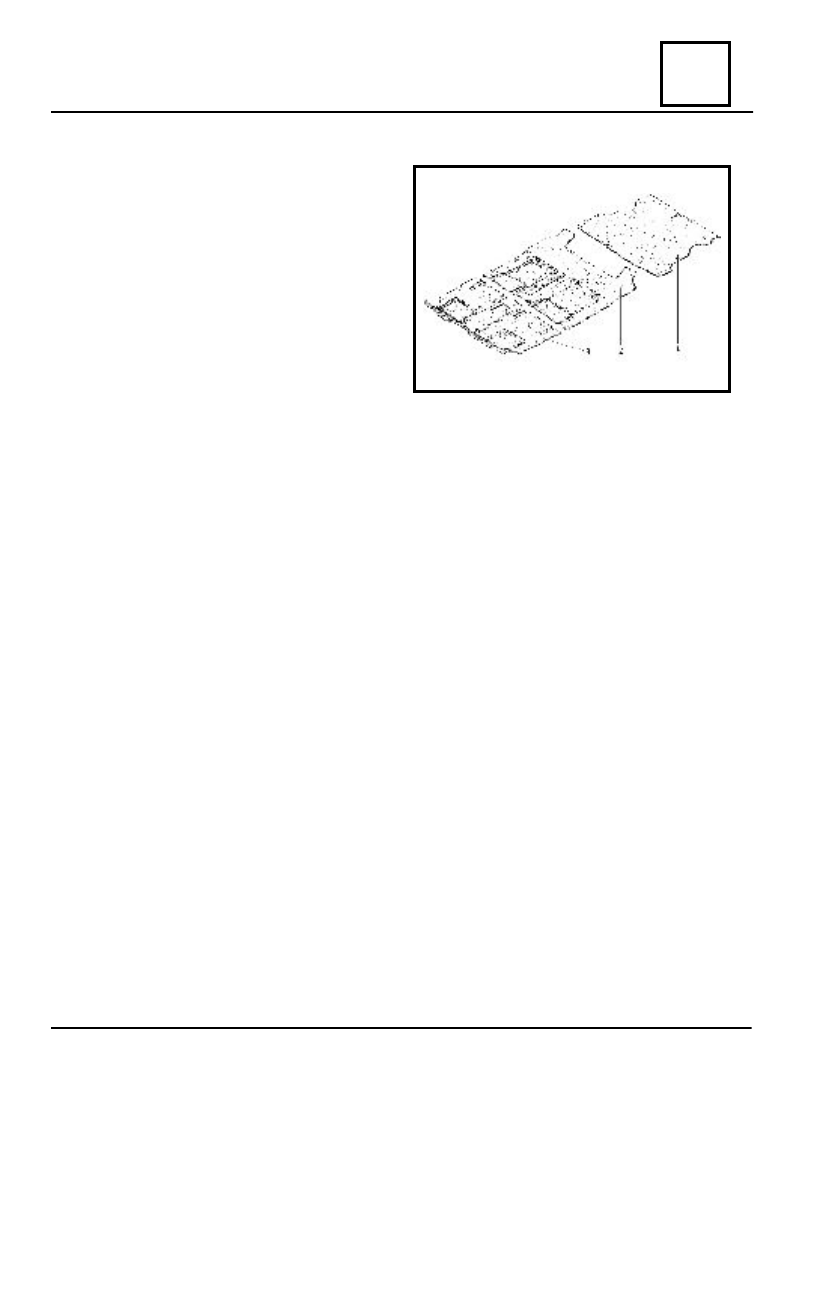

- the complete trunk carpet (1);
- the rear carpet (2) after dismounting

the left/right rear coverings;

- the front carpet (3)  after the

dismounting of the left/right door thresholds
coverings.

REMOUNTING
Perform in the reverse order the

dismounting operations.

71

INTRENAL BODY TRIM

72 - 12

DISMOUNTING

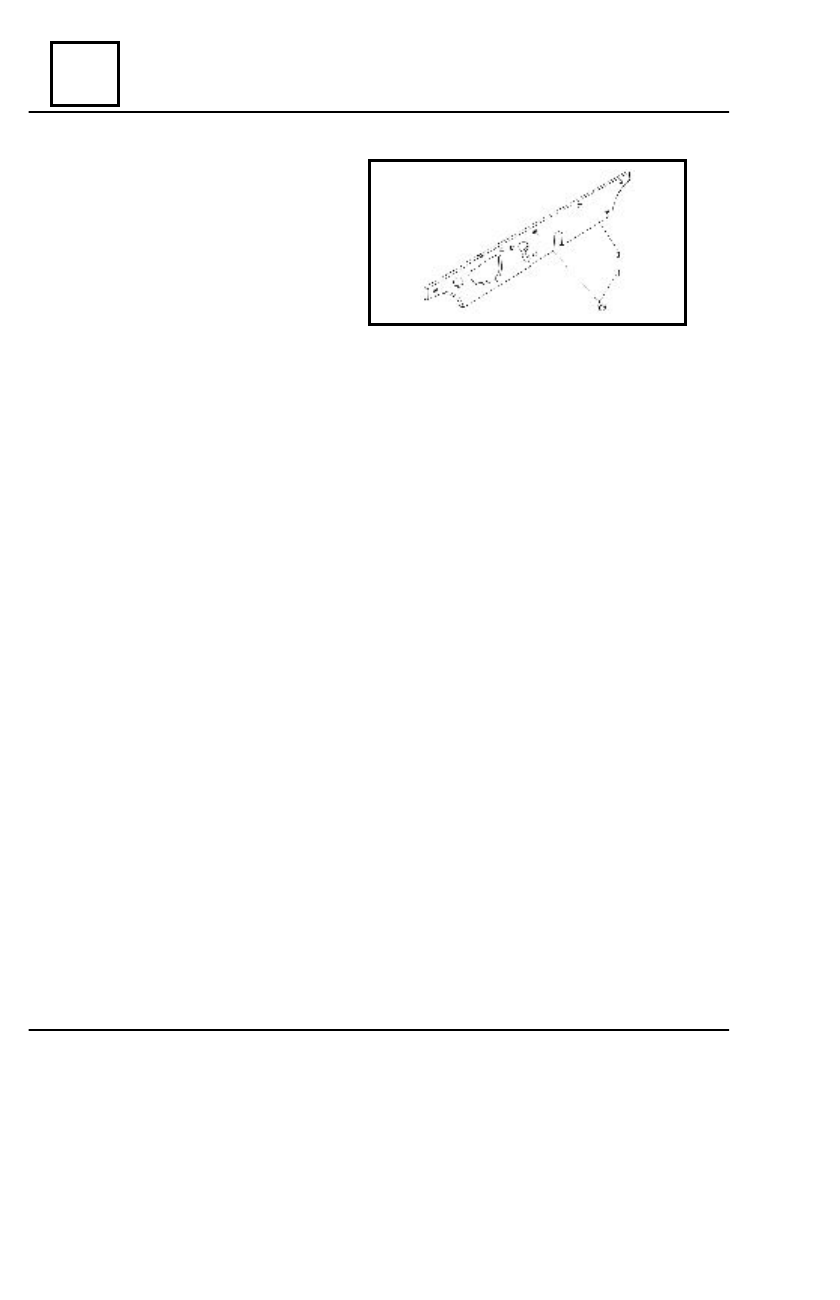

Detach the  attachment  clips (1) of the noise

absorbent pad (2) on the cowl panel.

Release the noise absorbent pad.

REMOUNTING
Perform in the reverse order the

dismounting operations.

COWL PANEL NOISE ABSORBENT

72

SIDE OPENINGS ELEMENTS TRIM

72-1

DISMOUNTING

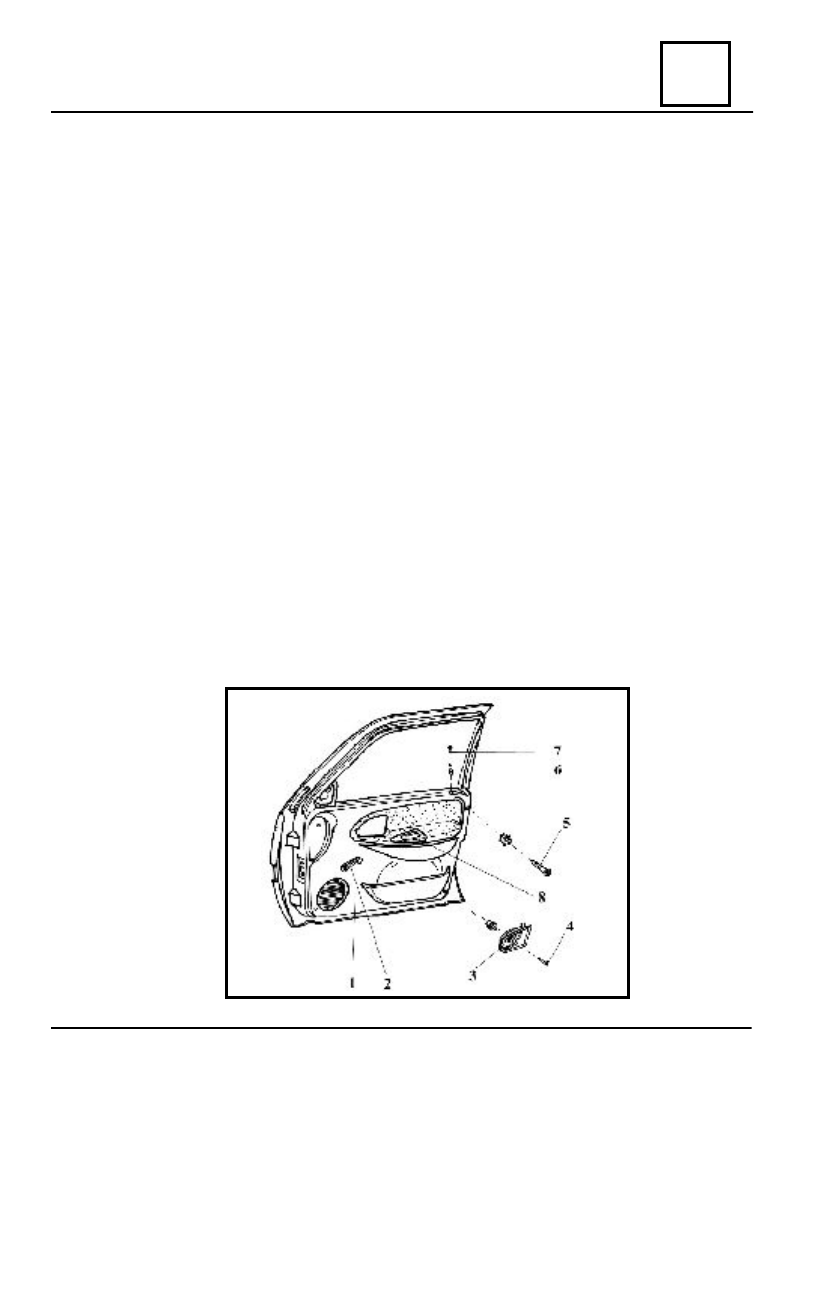

Front door panel replacement is performed without the dismounting of the door, and the

operations that must be performed are the following:

Dismount the window regulator crank (2) that is mounted by clips attachment on the window

regulator axle.

Dismount the inner opening mechanism (3), by dismounting the screw (4) and detaching from

the inner opening mechanism, the front door opening control rod, this rod being fixed on the plate
with the other  end.

Dismount the locking handle (8).
Dismount the screws (5) and remove the panel by clips detaching from the caisson of the door.
Dismount the guiding case (6) and the locking button. (7).

REMOUNTING
Perform in the reverse order the dismounting operations taking into account the following

recommendations:

- for the mounting of the inner opening mechanism, the opening control rod will be placed

in the position where the assembled plate with electric control is unblocked.

- after mounting, check the operation of the inner opening mechanism and its alignment

with the front door  panel.

NOTE
The window regulator crank must be placed in horizontal position with the button

oriented toward front, the window being closed.

FRONT DOOR PANEL

72

SIDE OPENINGS ELEMENTS TRIM

72-2

DISMOUNTING

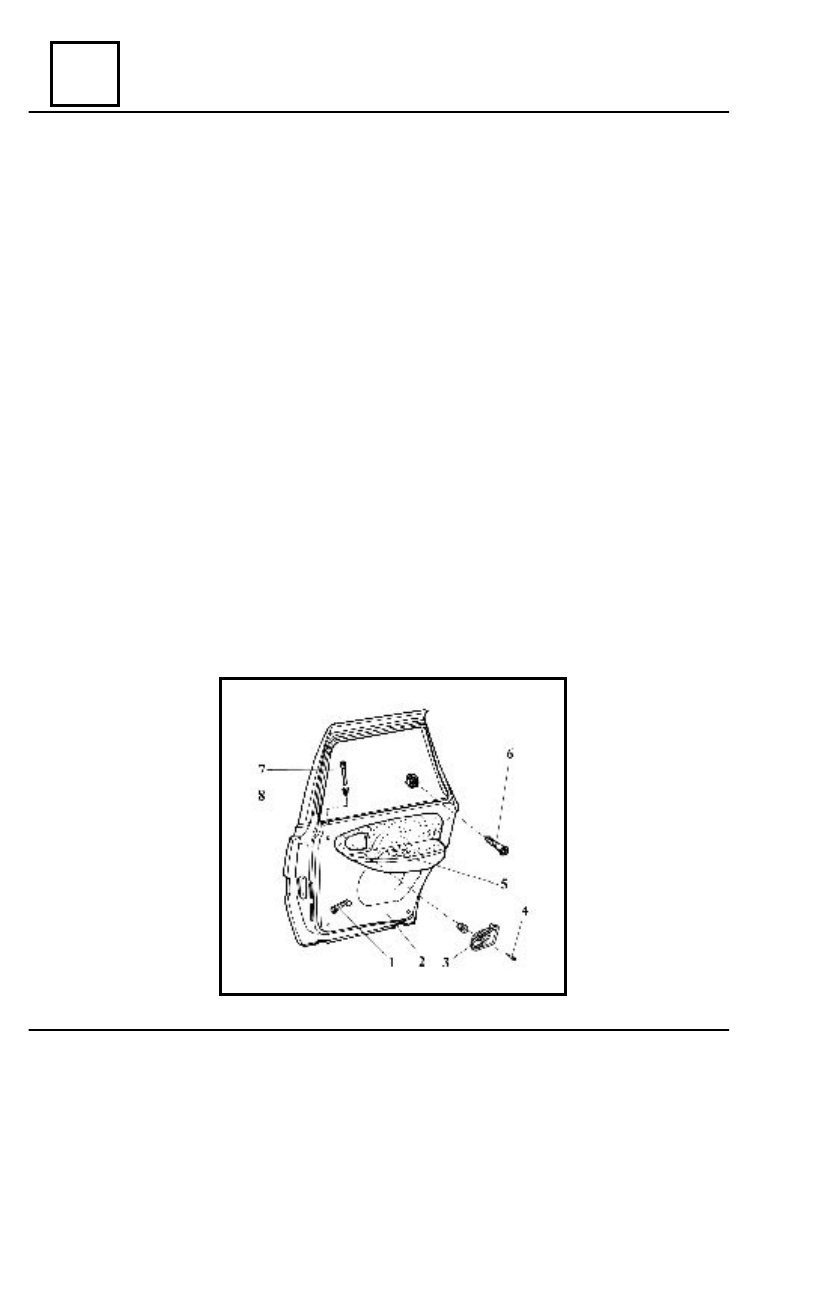

Rear door panel replacement is performed without the dismounting of the door, and the

following operations are  to  be  performed :

Dismount the window regulator crank (2) that is mounted by clips attachment on the window

regulator axle.

Dismount the inner opening mechanism (3), by dismounting the screw (4) and detaching from

the inner opening mechanism, the rear door opening control rod, which is fixed on the plate with
the other end.

Dismount the locking handle (5).
Dismount the screws  (6) remove the panel by detaching it from the caisson of the door.
Dismount the guiding case (8) and the locking button (7).

REMOUNTING
Perform in the reverse order the dismounting operations taking into account the following

recommendations:

- for the mounting of the outside opening mechanism, the opening control rod will be

placed in the position where the assembled plate with electric control is unblocked.

- after mounting, check the operation of the internal opening mechanism and its alignment

with the rear door panel.

NOTE
The window regulator crank must be placed in horizontal position with the button

oriented toward front, the window being closed.

REAR DOOR PANEL
