REAR SEATS FRAMES AND RUNNERS

76-1

The rear bench is composed of two separated swinging seats, unequal and two separated,

unequal, swinging back rests.

DISMOUNTING
Dismount the seats, by swinging and by removing them from the welded supports on the

carriage body.

For the back rests dismounting perform the following operations:

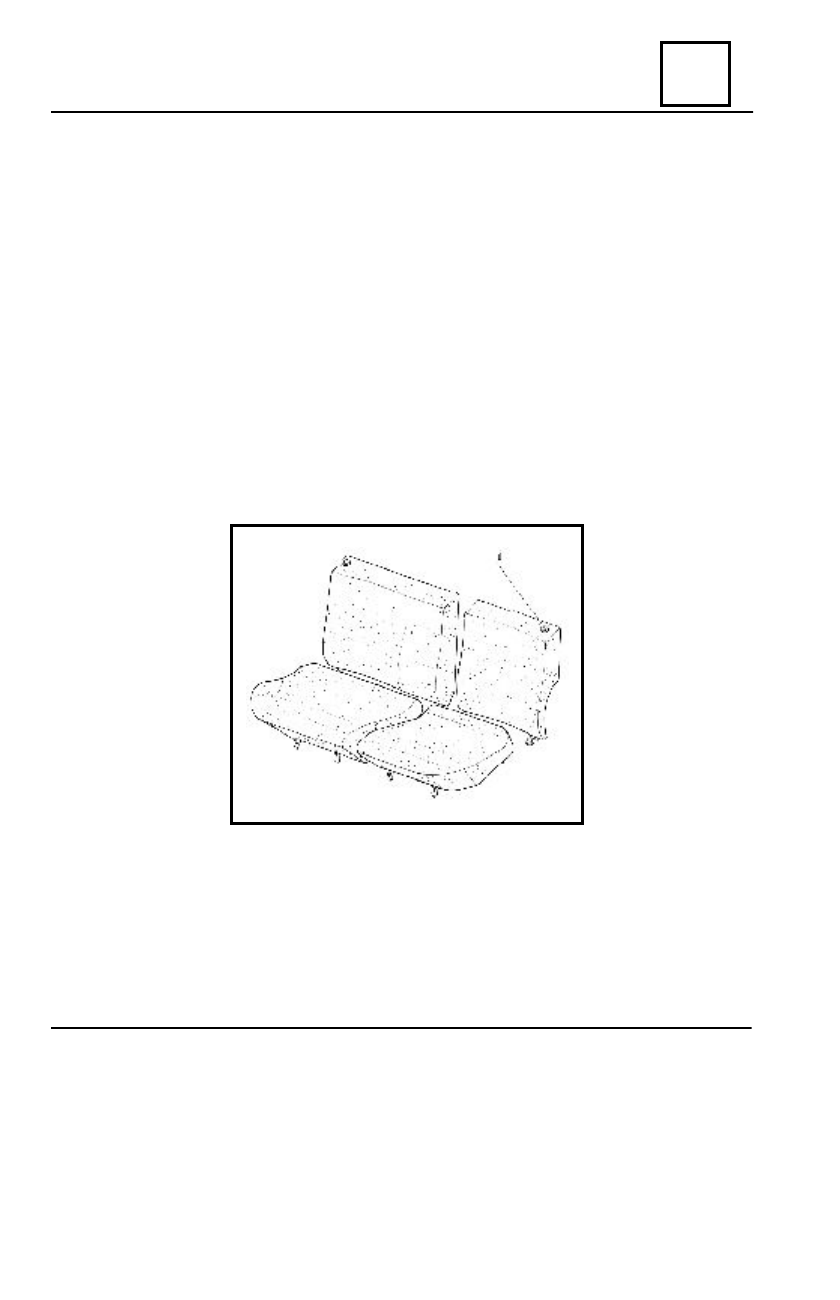

- lift the unlocking buttons (1), and swing out the back rests ahead.
- dismount the four screws for the attachment of hinges on the wheels’ passage.
- remove the back rests from the central  hinge

REMOUNTING
Perform in the reverse order the dismounting operations.

REAR BENCH

76

REAR SEATS FRAMES AND RUNNERS

76-2

DISMOUNTING

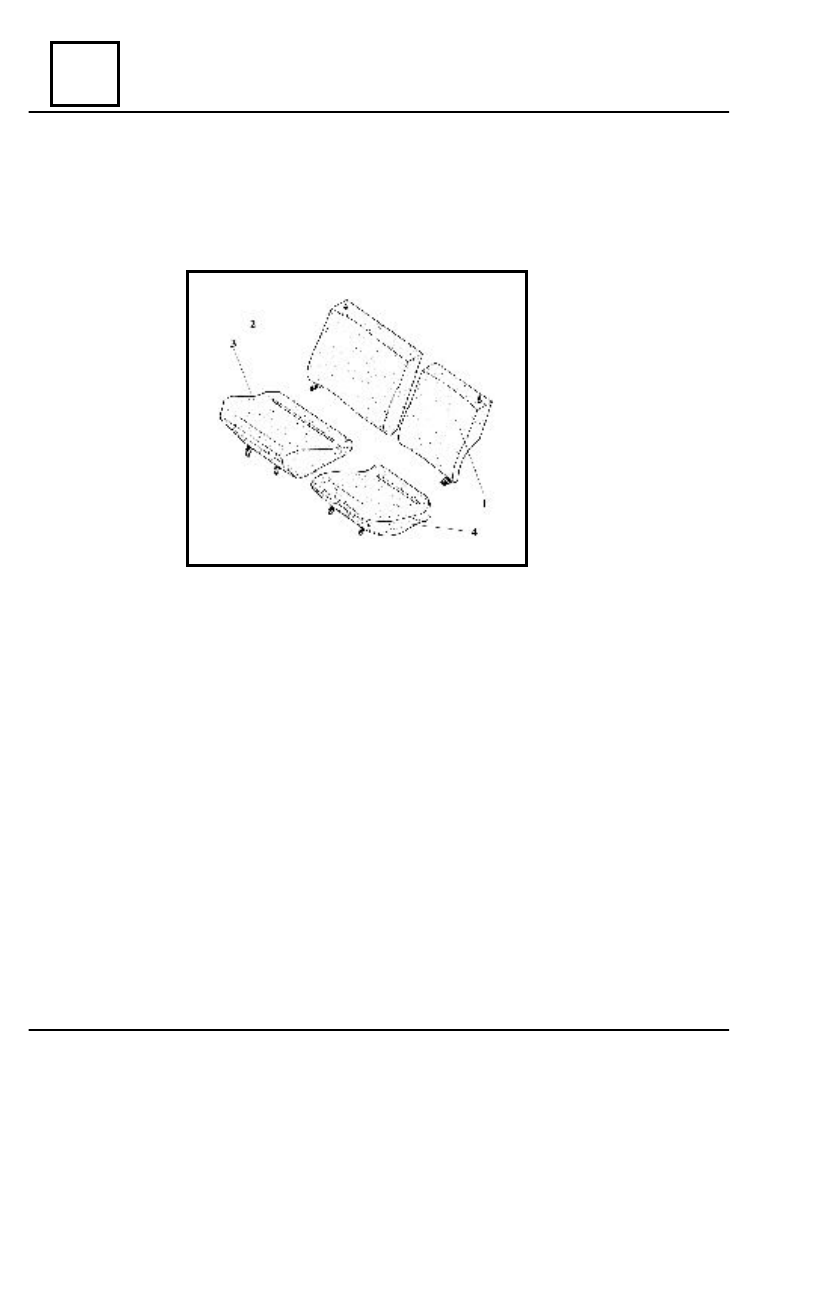

Dismount the bench seats and remove the upholstery from the seats quilts  (3) and (4).
Dismount the bench’s backs rests and remove the upholstery from the back rests quilts (1)

and (2).

Release the reinforced quilts of the bench.

REMOUNTING
Perform in the reverse order the dismounting operations.

BENCH SEATS

77

FRONT SEAT TRIM

77-1

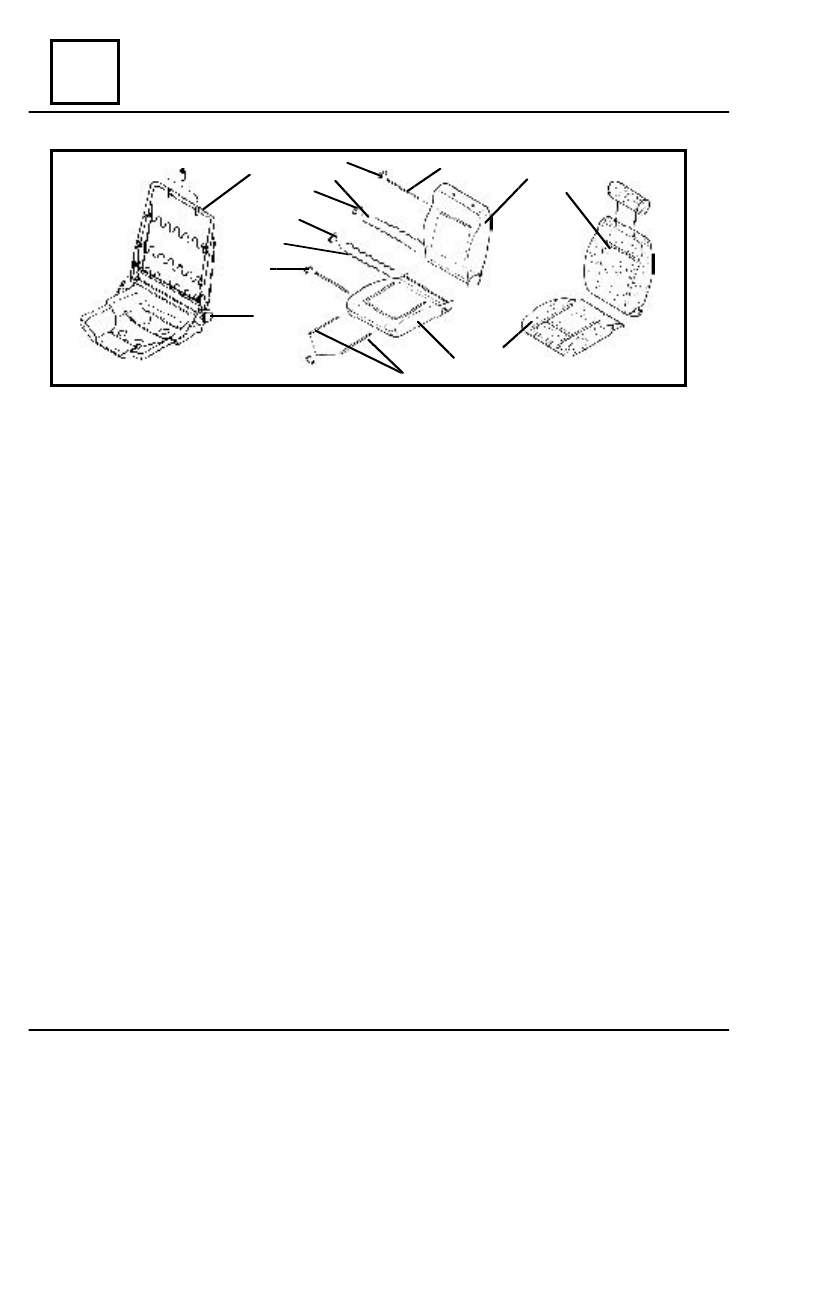

Detach the  rods  (3) from the attachment clips (4) of the seats upholstery (7) on the quilt (14).
Detach the rods (6) from the attachment clips (5) of the seats upholstery with front seat

reinforcement.

Remove the front seat upholstery from the seat quilt.

REMOUNTING
Perform in the reverse order the dismounting operations.

SEATS UPHOLSTERY DISMOUNTING

1

2

10

11

8

5

6

4

12

13

7

3

14

9

77

FRONT SEAT TRIM

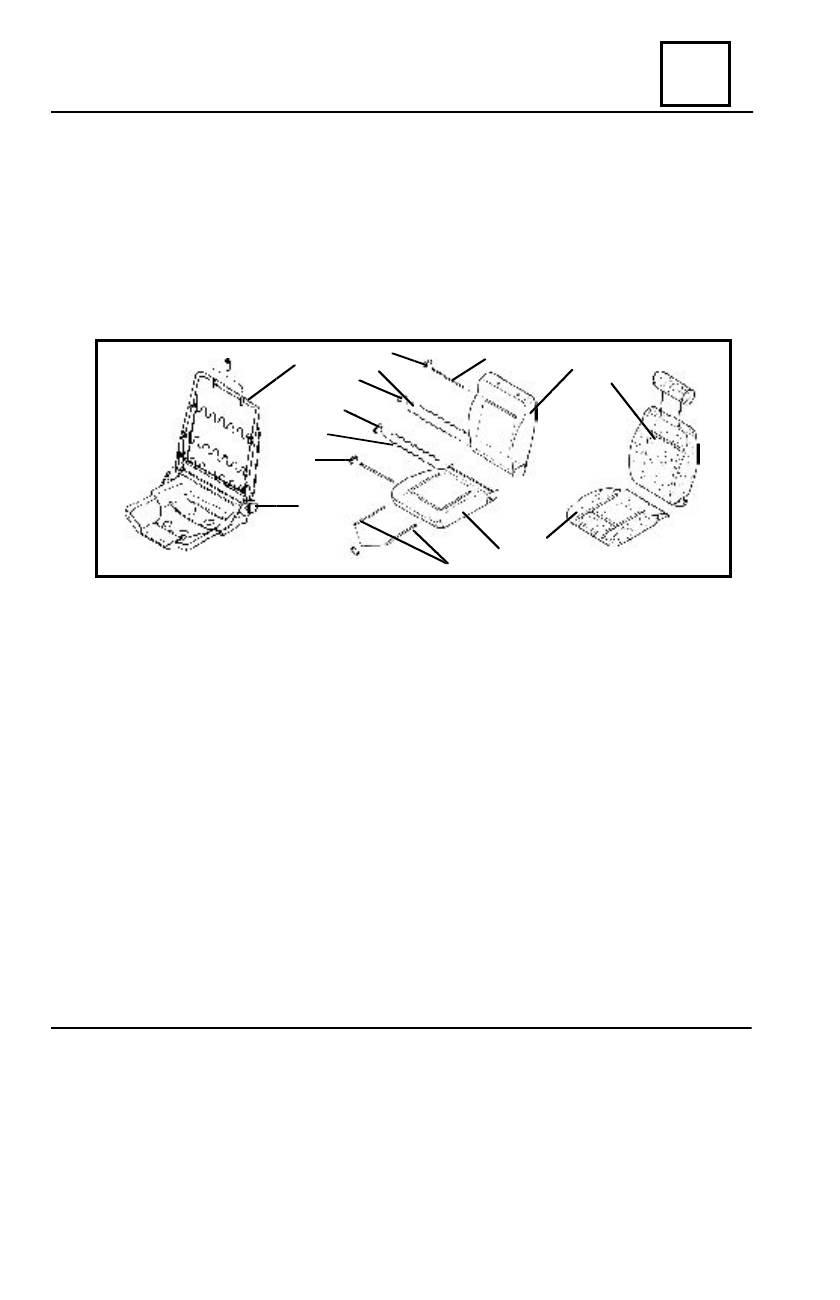

Dismount the button control for backrest swinging (2), releasing the screw, the washer, the

plate, and the backing plate.

Remove the sleeves for headrests from  the pipes welded on  the  front  seat reinforcement.
Detach the rods  (9) also from the clips (8).
Detach at the second criss-cross arch level the rod (11) from the attachment clips (10) of the

back rest upholstery (12) on the back rest quilt (13) and remove the back rest upholstery.

REMOUNTING
Perform in the reverse order the dismounting operations.

77-2

BACK REST UPHOLSTERY DISMOUNTING
