Dacia SuperNova (engine E7J). Manual - part 92

NON SIDE OPENING ELEMENTS

48

 48 - 2

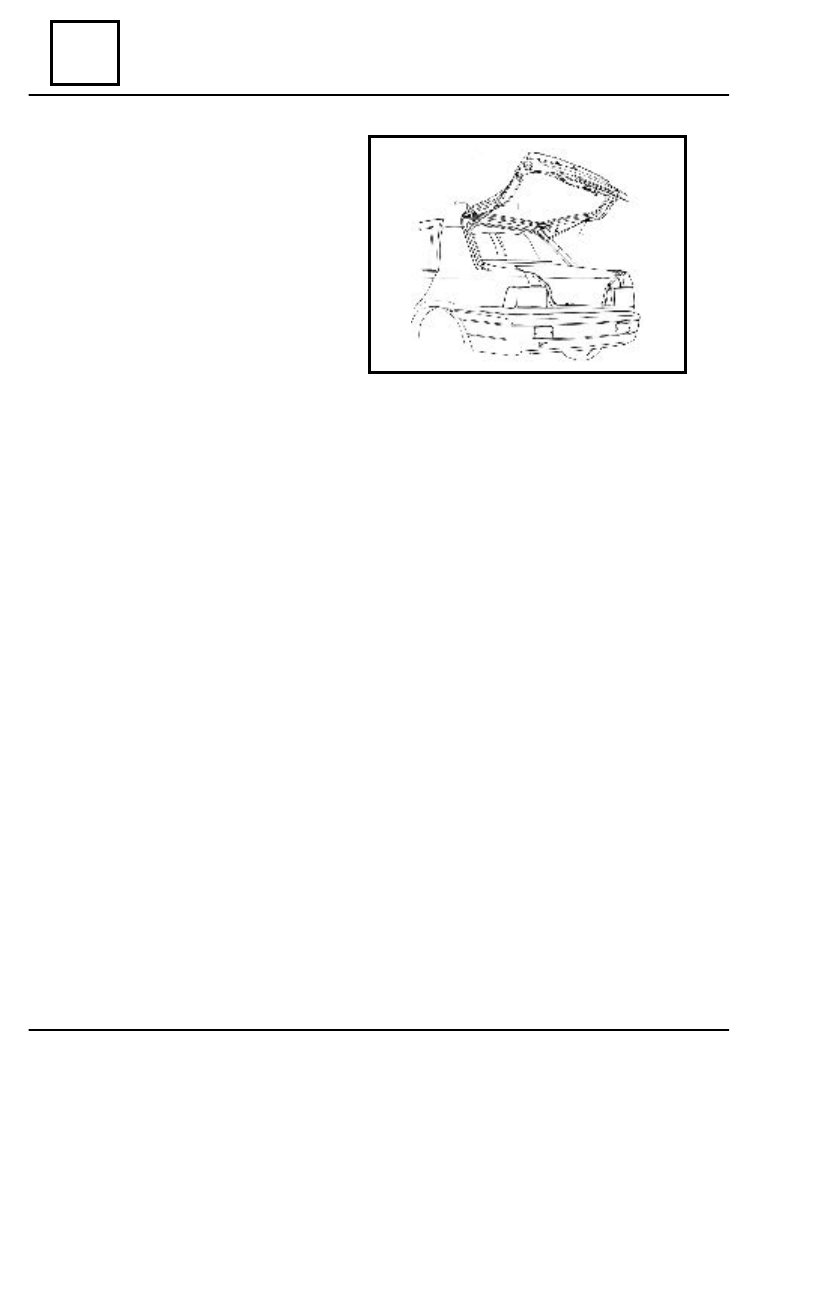

HATCHBACK

DISMOUNTING

Dismount  the elements that are in

connection with the hatchback.

Dismount the hatchback attachment ball-

shaped joints (1) and the attachment screws
of the hinges.

Dismount the hatchback.

REMOUNTING

Perform in the reverse order the dismounting operations.

SIDE OPENINGS ELEMENTS MECHANISMS

51

51 - 1

DISMOUNTING

For the dismounting of the front door assembled plate with electric control, dismount:

- the window lifting crank, inner opening mechanism, by detaching from it, the control rod

(8) of the front door opening, the rod which is fixed with the other end on the plate;

- the locking button(2) and the guiding case (3);
- the attachment screw (9) of the locking handle;
- the door panel.

Disconnect the actuator  connector. (7)
Dismount the attachment screws (5) of the box (6) from the caisson of the door.
Remove the electric control assembled plate assembly through the technological opening from

the caisson of the door.

Dismount the attachment screws of the outside opening mechanism on the external panel of

the door.

REMOUNTING

Perform in reverse order the dismounting operations, taking into account the following recom-

mendation:

- for the lock control mounting, the lock rod  (4) will be placed in the position where the

lock is blocked;

- for the front door plate mounting, the connecting fork (1) of the outside opening mechanism

will be  fixed on  the  existing ball joint on the lock;
mount the button (2) by self-threading on the rod (4).

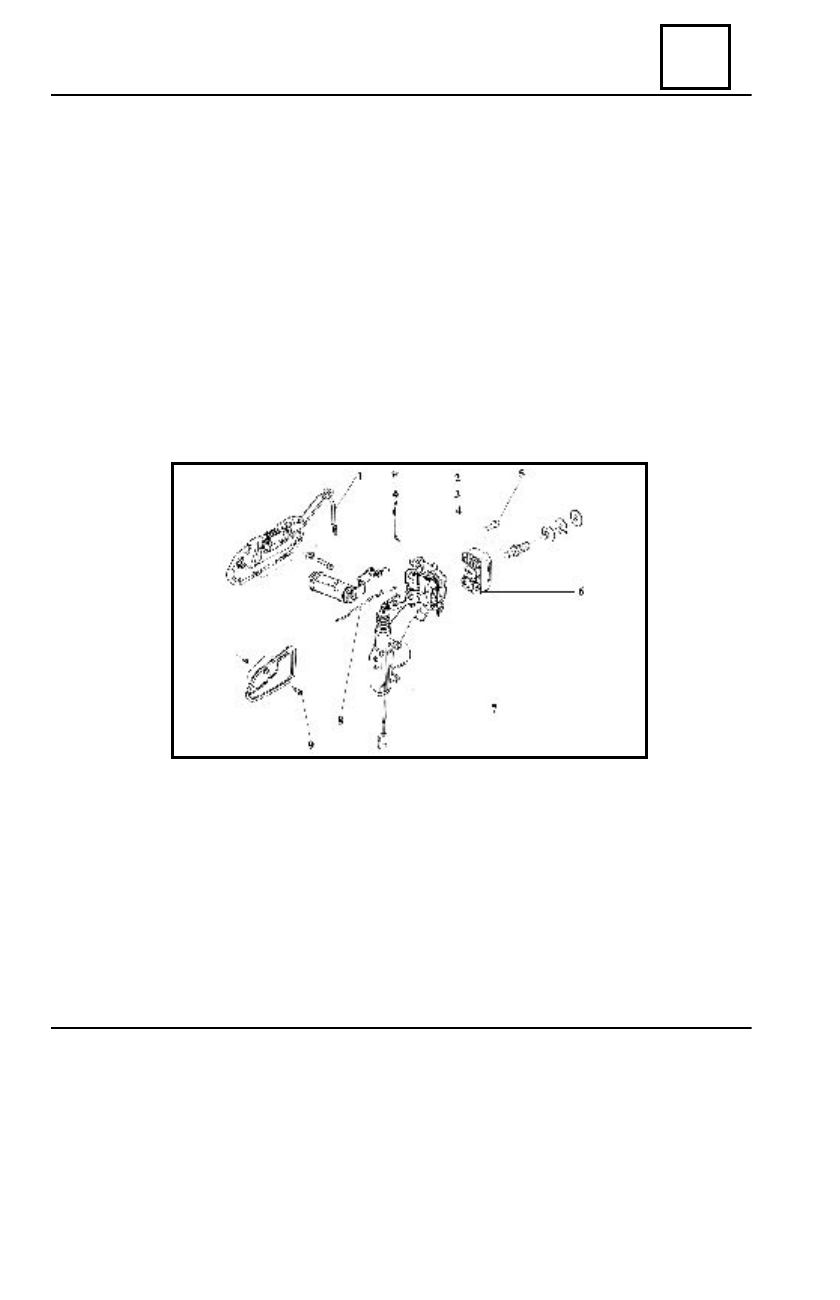

MECHANISM WITH ELECTRIC CONTROL FOR

FRONT DOOR OUTSIDE OPENING

LOCK AND FRONT DOOR LOCK CYLINDER

SIDE OPENINGS ELEMENTS MECHANISMS

51

51 - 2

DISMOUNTING

For the front door lock dismounting and the outside opening mechanism, beforehand dismount:

- the window lifting crank;
- the arm rest;
- the inside opening mechanism (1);
- the door panel inner ornament;
- the door panel upper ornament, the locking button (5) and the guiding case (4);
- the door panel.

After these operations dismount:

- the lock attachment fork (6) and the lock (11) from the door;
- the front door lock attachment screws (9) on the door caisson;
- the door opening control rod(2) from the lock.

Remove the lock assembly through the technological opening from the door caisson.
Dismount the attachment screws (8) of the outside opening mechanism (7) on the front door

outside panel.

REMOUNTING

Perform in the reverse order the dismounting operations, taking into account the following

mounting instructions:

- for the lock control mounting, the lock rod (3) will be placed in the position where the

lock is blocked;

- introduce the locking rod thought the caisson hole, in the panel guide, then fix it on the

lock by the attachment element;

- mount the button (5) by self-threading on the rod (3);

for the front door lock mounting, the connecting fork (6) of the outside opening mechanism will
be fixed on the existing ball joint on the lock.

11

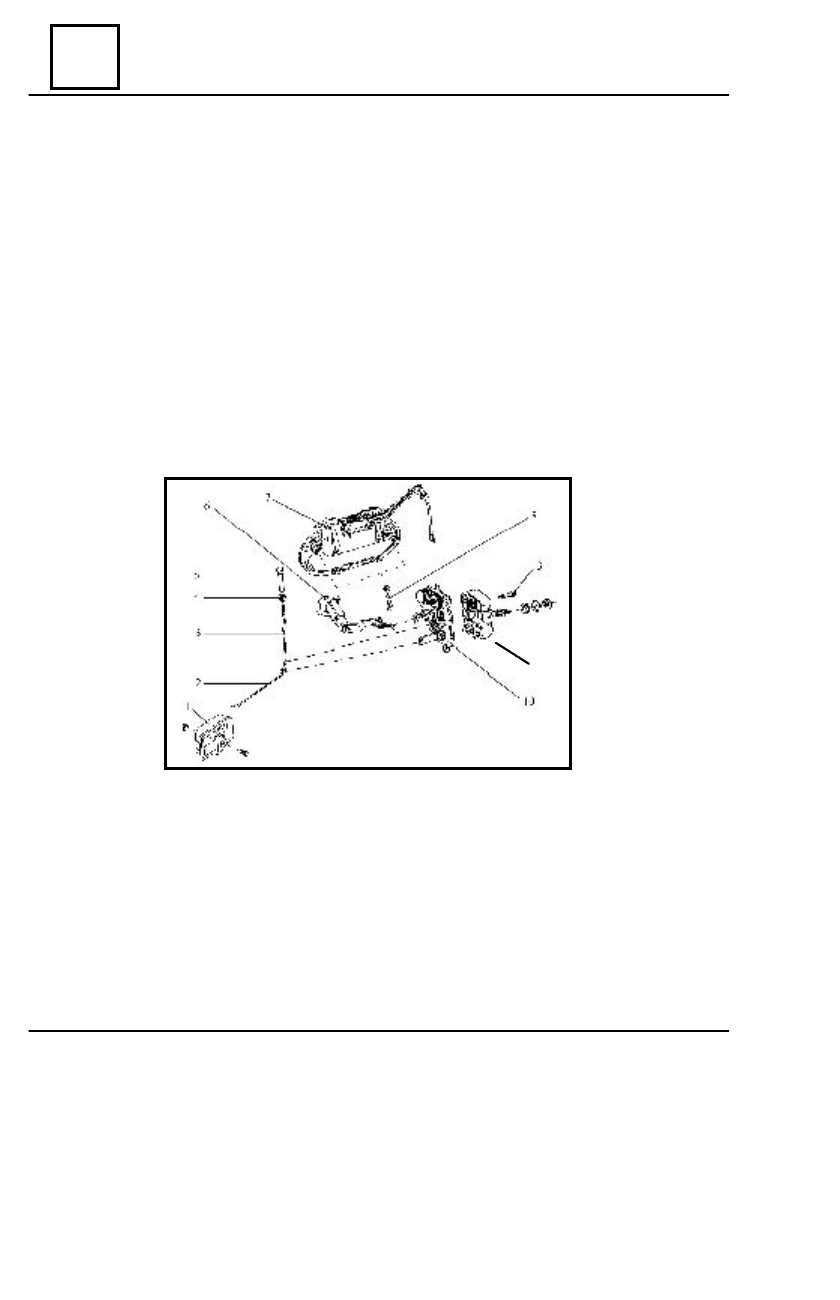

FRONT DOOR LOCK AND OUTSIDE OPENING MECHANISM

LOCK AND FRONT DOOR LOCK CYLINDER

SIDE OPENINGS ELEMENTS MECHANISMS

51

51 - 3

DISMOUNTING

For the dismounting of the rear door plate with electric control  and of the outside opening

mechanism, beforehand dismount:

- the window lifting crank, inner opening mechanism;
- the locking button(8) and the guiding case (7);
- the attachment screw (9) of the locking handle (6);
- the door panel.

Disconnect the actuator  connector (3).
Dismount the attachment screws (1) of the box (2) on the caisson of the door, and then detach

an end of the locking rod (4) from the existing ball joint on the plate, and the other end from the
direction change device (5).

Dismount the direction change device (5) by dismounting the assembly attachment nut on the

caisson of the door.

Dismount the attachment screws of the outside opening mechanism on the external panel of

the door.

REMOUNTING

Perform in reverse order the dismounting operations, taking into account  the following rec-

ommendation:

- for the direction change device mounting (5), the lock rod will be placed in the position

where the plate is blocked;

- the locking button (8) will be mount by self-threading on the locking rod ;

tighten the  screws (1) at the  moment of 0,.4 da Nm.

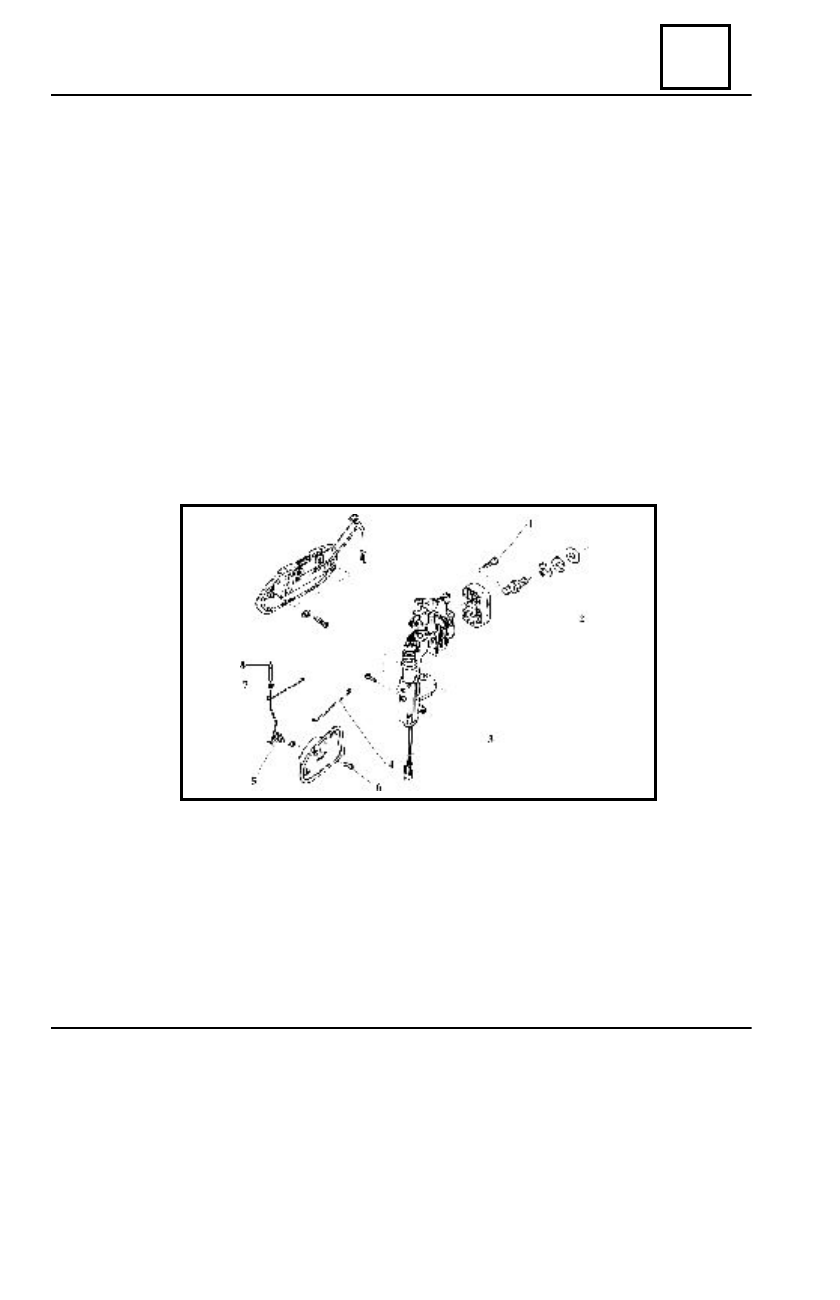

MECHANISM WITH ELECTRIC CONTROL FOR

REAR DOOR OUTSIDE OPENING

LOCK AND REAR DOOR LOCK CYLINDER
