Dacia SuperNova (engine E7J). Manual - part 91

44

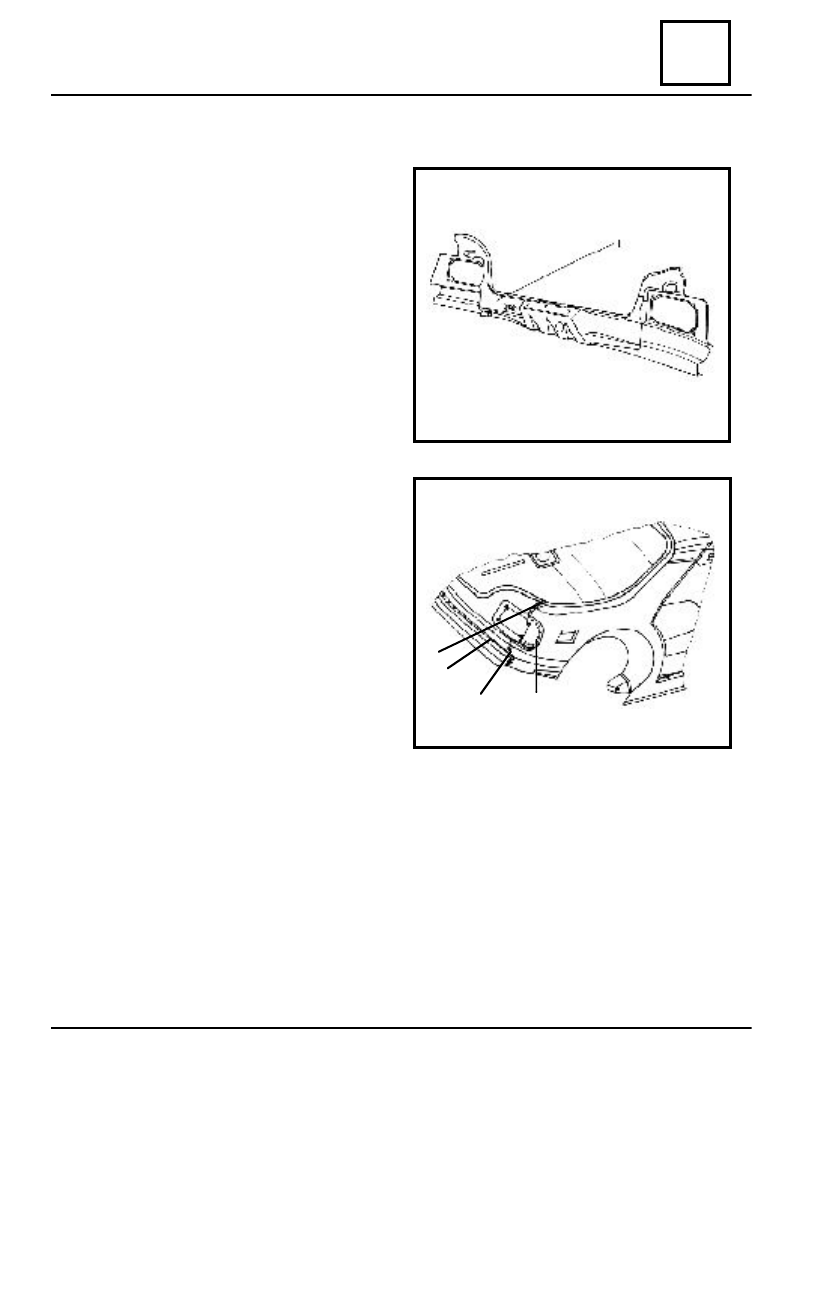

REAR UPPER STRUCTURE

REAR PANEL

44  - 3

DISMOUNTING

Dismount the elements that are in contact

with the rear  panel.

Detach the welding points of the rear panel

(1) which are in connection with:

- side panel edge in the area (2);
- side panel ( rear lamps area) in the

area (3);

- side panel in the area  (4);
- rear end cross bar in the area (5).

Straighten  the areas resulted from

dismounting.

Grind the areas resulted from dismounting.

REMOUNTING

Position and center the new element.
Check the correct  positioning of the rear

panel.

Weld the rear panel  (1) following the

welding outlines (2), (3) and (4)…;

Protect the welding with a corrosion

preventive product.

Mount in the reverse order the  elements

that are in connection with the rear panel.

2

5

4

3

45

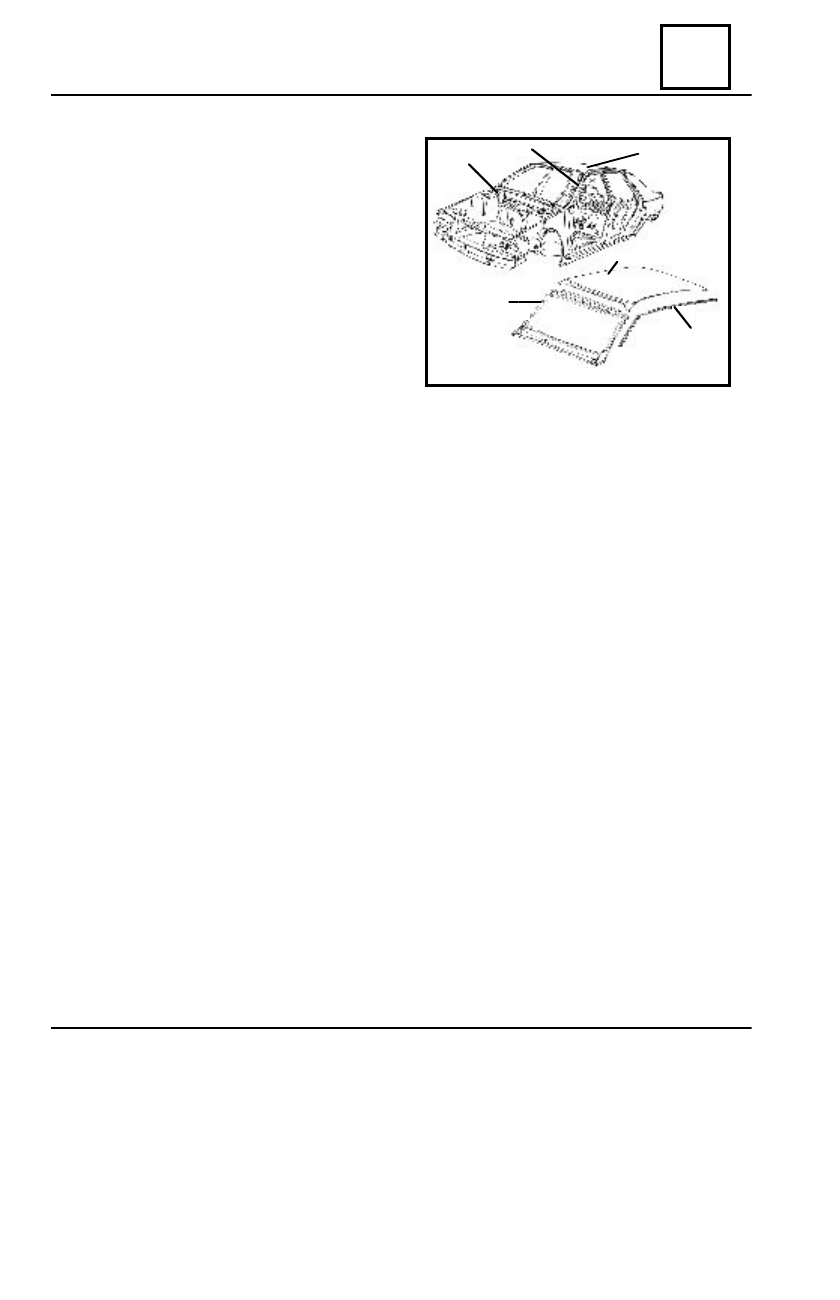

TOP OF BODY

ROOF

1. Roof
2 Roof belt
3. Windscreen frame

DISMOUNTING

Dismount the elements, which are in

contact with the roof (front/rear doors,
windscreen, rear glass, roof sealing of the
ceiling and windows gaskets).

Detach the  welding  points of  roof (1) which are in connection with :

- roof belt in the area (4);
- side frame lining in the area (5);
- windscreen lower cross bar in the area (6);
- front pillar in the area (7).

Straighten the areas resulted by dismounting.
Grind the areas resulted by dismounting.

REMOUNTING

Position and center the new element.
Check the correct positioning of the roof.
Weld the roof (1) following the welding outlines  (4), (5), (6) and (7).
Mount in the reverse order the elements, which are in connection with the roof.

4

5

6

1

3

2

 45 - 01

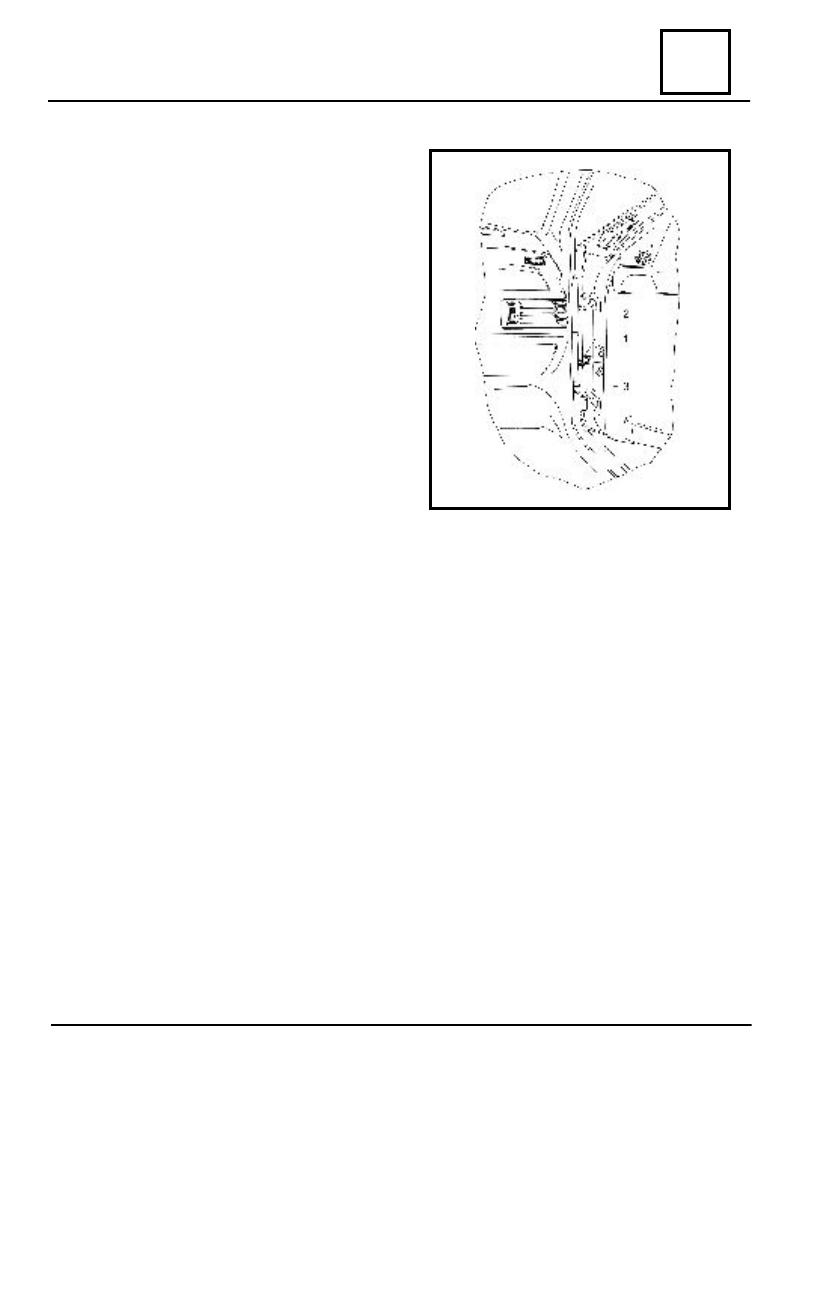

FRONT / REAR DOOR

 47 - 1

47

DISMOUNTING

Dismount the elements, which are in

connection with the front/rear  door.

Dismount the attachment screw (1) of the

limiting mechanism of the front/rear door.

Dismount the upper hinge (2) and lower

hinge axles (3) .

REMOUNTING

Perform in the reverse order the

dismounting operations.

LATERAL OPENINGS

48

NON SIDE OPENING ELEMENTS

 48 - 1

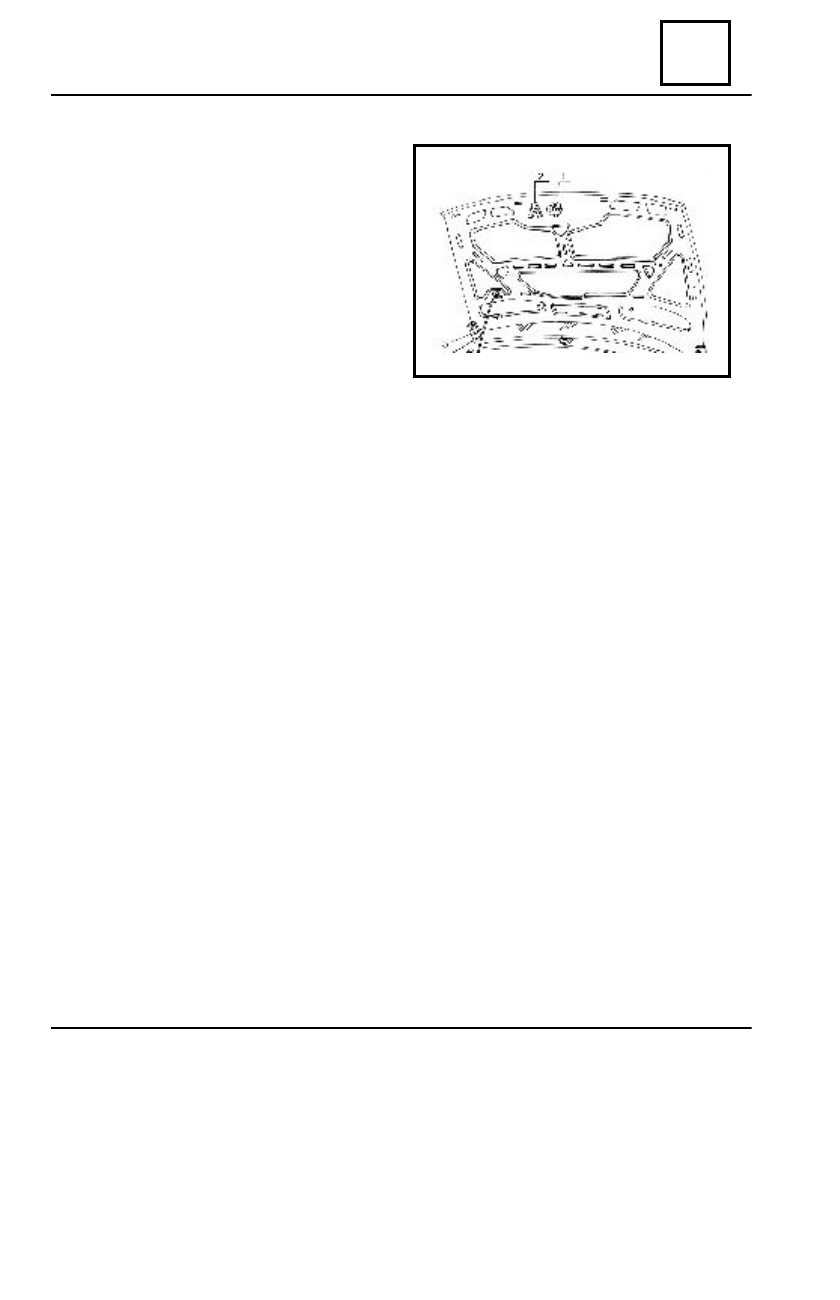

FRONT BONNET

DISMOUNTING

Dismount :

- the aeration grill;
- the windscreen washer jets and hoses;
- the front bonnet locker (1);
- the safety hook (2);
- the attachment screws (3)  of the

hinges;

- front bonet.

REMOUNTING

Perform in the reverse order the dismounting operations.
