61

HEATING

61 - 6

Disconnect the battery.
Dismount the distributor of ventilation air con-

ditioning (RACV) position (2) by recovering the
cooling fluid (see R.A.C.V. Dismounting- Re-
mounting).

Dismount the attachment screw of the heating

radiator (1) and after detaching from clips release
it.

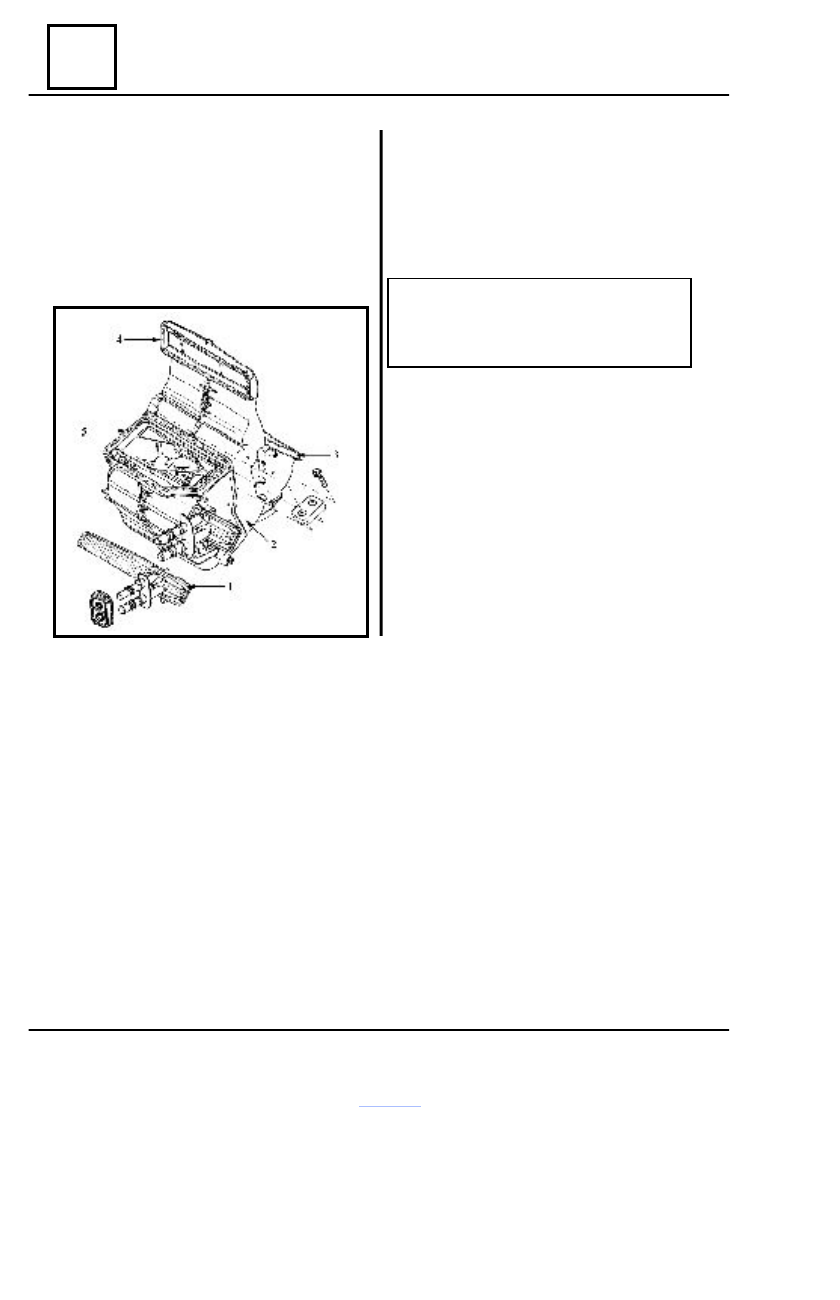

Heating radiator

REMOUNTING

Perform the dismounting  operations in the

reverse order

Fill up  the recovered  fluid and  restore  the

fluid level after purging.

REMARK :

  The self-adhesive gaskets (3), (4) and (5)
are to   be obligatory replaced with new
ones.

61

HEATING

61 - 7

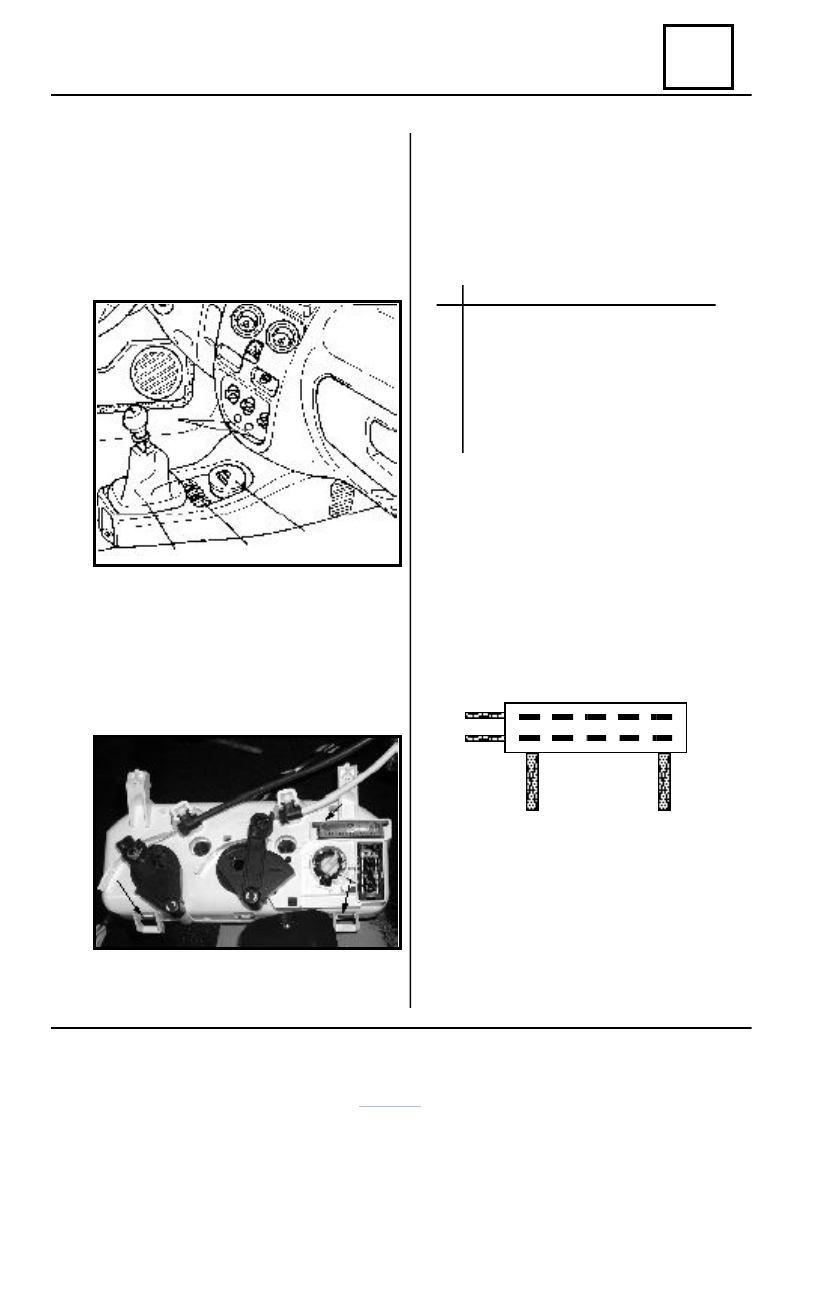

Control panel

DISMOUNTING

Disconnect the battery.
Dismount :

- ashtray (B);
- front doors electric windows switches

(C).

- gearbox lever cover (D);

Dismount the two screws (A) located in the

lower part of the control panel on the lower
dashboard.

Climate control panel is pushed towards

vehicle front  part  and  swing over  until it is re-
leased from supports (1) and (2).

C

B

A

Dismount the two control cables  (distribu-

tion and mixing).

Connectors

Connector (6)

Pin

Denomination

A1

Control + blower speed 4

A2

Control + blower speed 4

A4

Supply + after contact

A5

Supply + after contact

B1

Control + blower speed 3

B4

Control + blower speed 2

B5

Control + blower speed 1

Disconnect the connector (6).

2

1

3

D

1

A
B

5

61

HEATING

61 - 8

Connector (3)

Pin Denomination

1 Free
2 Free
3 Free
4 Free
5 Free
6 Free
7 + parking lights
8 Free
9 Mass

10 Free

11 Free

12 Free
13 Free
14 Free
15 Free

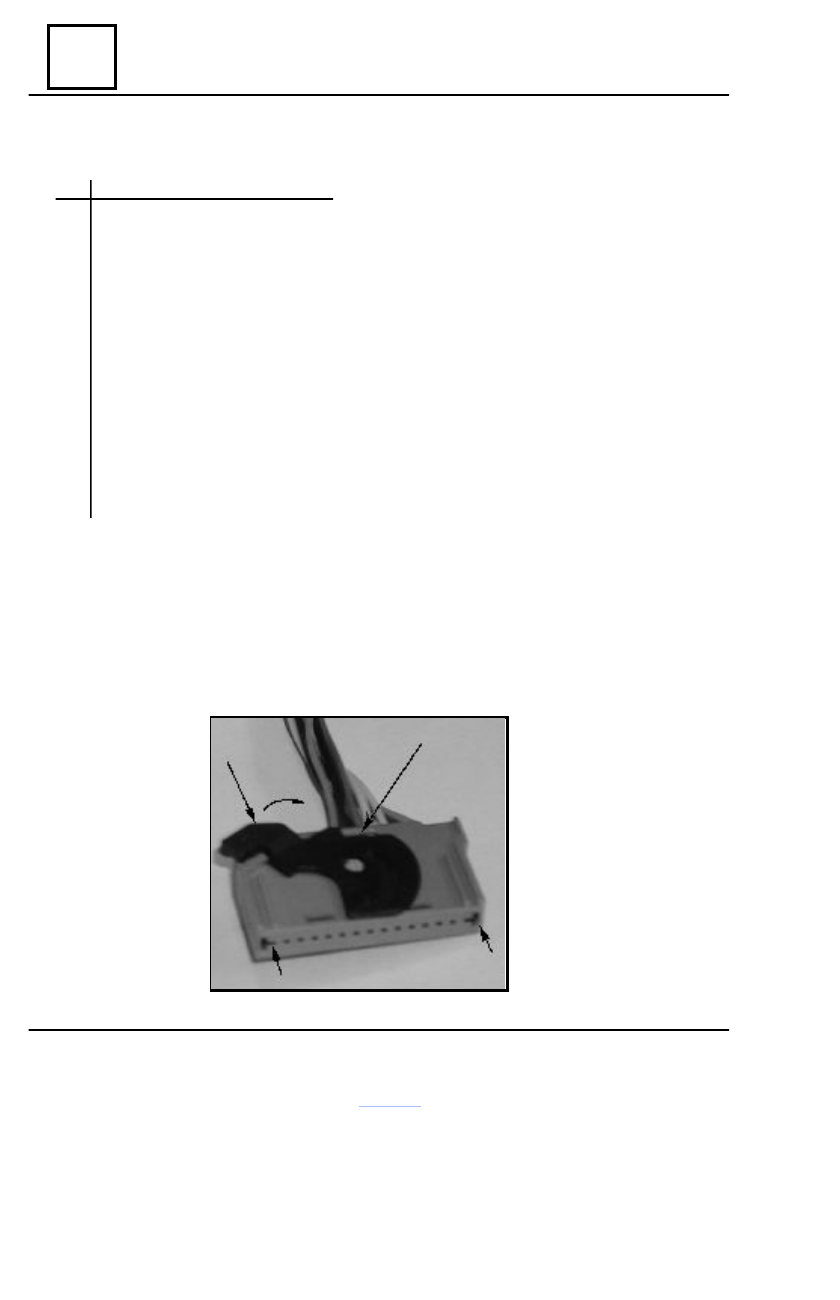

Disconnect the connector (3), carefully push the lever (4) and rotate the lever (5) in the

direction of  (E) arrow.

REMOUNTING

Perform the dismounting operations in  the reverse order.
Check the operation of the control panel.

5

E

1

15

4

Control panel

61

HEATING

61 - 9

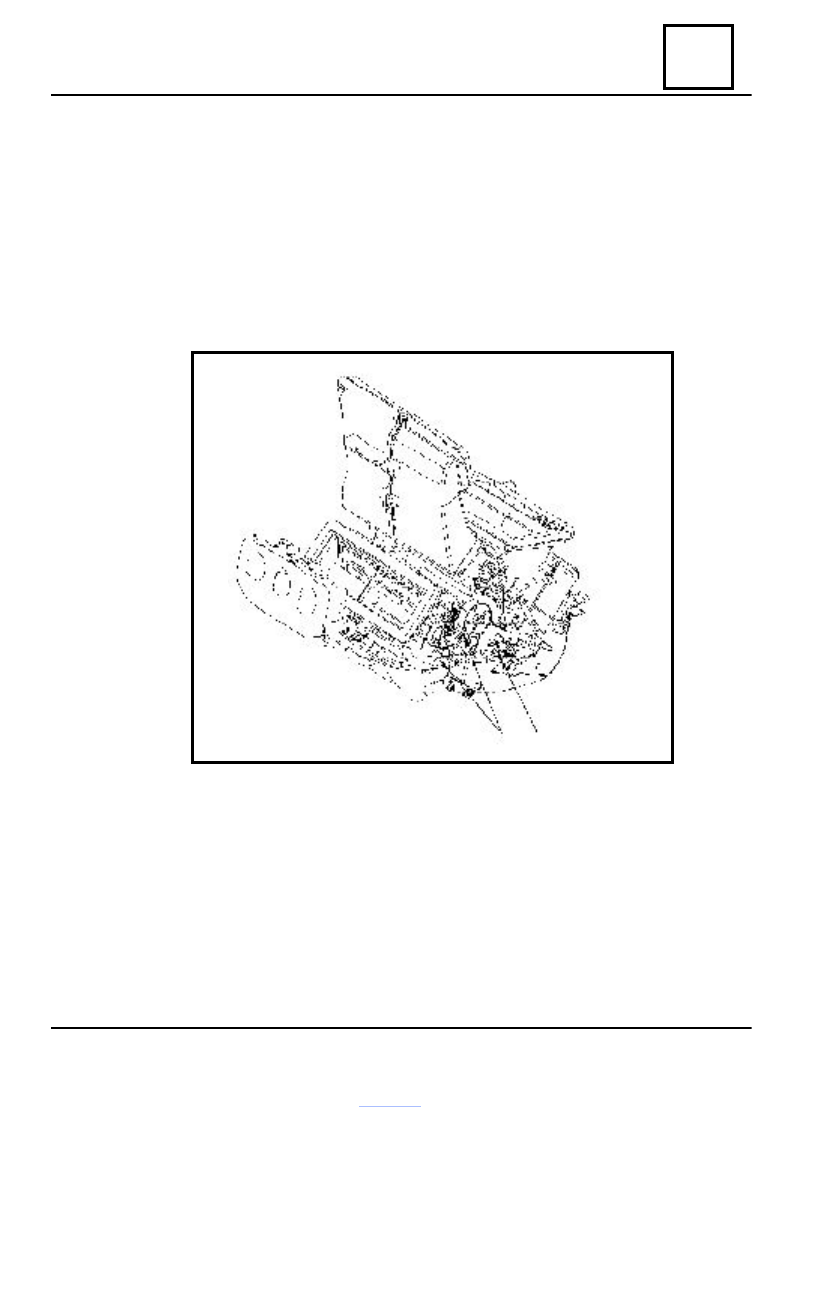

Control cables

DISMOUNTING

Dismounting of the control cables (1) may be performed without dashboard dismounting.
Dismount:

- ashtray;
- switches of the front doors electric windows;
- control panel as well as cables (1) attached to this one by screws.

Dismount the maintaining clips (2) in the cockpit lower part.
Release the cables.

1

2

REMOUNTING

Perform the dismounting operations in  the reverse order.
Check the good operation of the controls.
Remount the control panel on the dashboard and central console.

continuity and resistance against vehicle’s mass,
front wiring                                                            between:
- cockpit fuse F 14 exit  pin 7 climate control panel
- pin 9 climate control panel vehicle mass.
