Dacia Solenza (engine E7J). Manual - part 118

61

HEATING

61 - 10

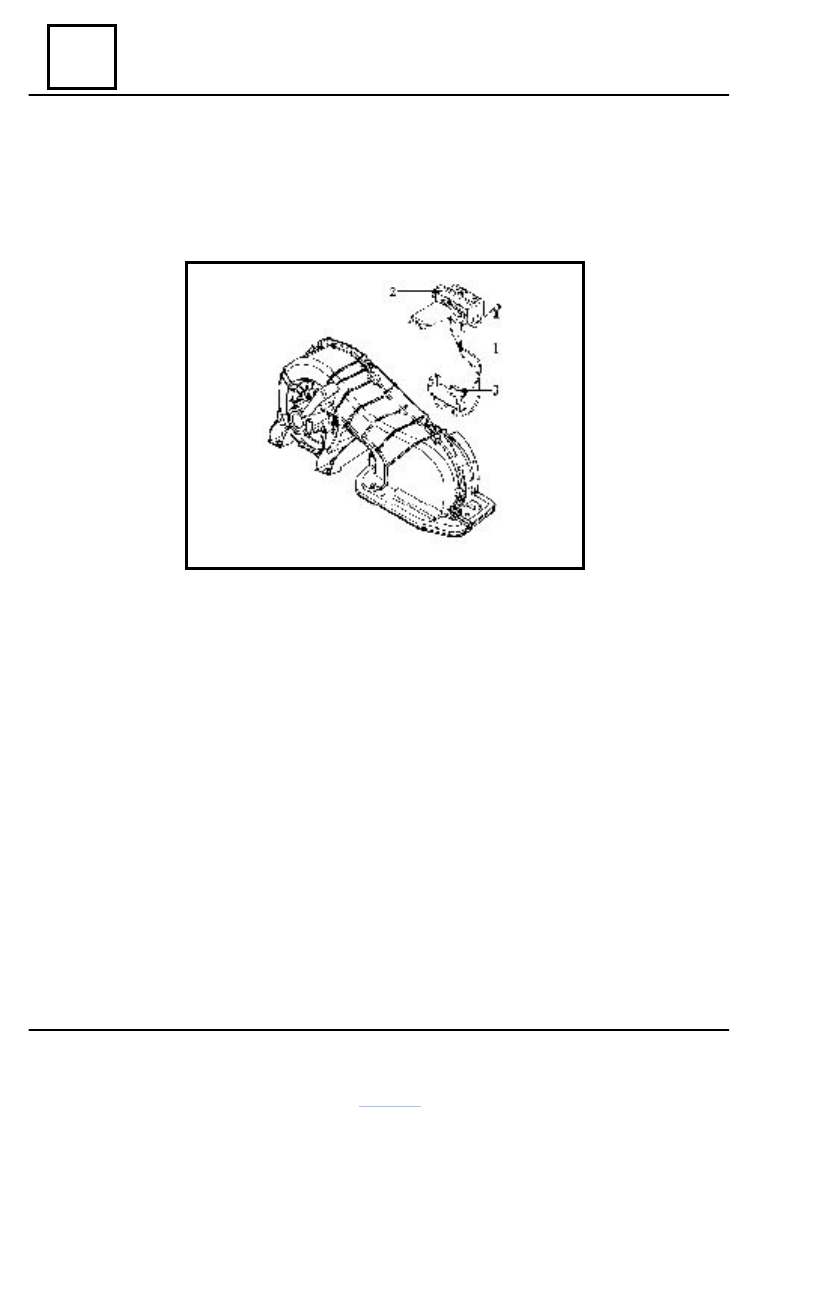

  Motor fan control resistance

DISMOUNTING (Climate control uni

t being already dismounted)

Dismount the resistance attachment screw (1).
Extract the resistance (2).
Disconnect the connector (3).

REMOUNTING

Perform the dismounting operations in  the reverse order.

61

HEATING

61 - 11

CLIMATE CONTROL BLOWER NOT WORKING

Replace fuse F 17.

Check the  fuse F 17 from cockpit. Is it ok?

Replace ventila-
tion-climate control
air distributor

Check the continuity of the speeds switch of the climate control
panel for:
Step 1 – between pins A4 or A5

pin B5;

Step 2 – between pins A4 or A5

pin B4;

Step 3 – between pins A4 or A5

pin B1;

Step 4 – between pins A4 or A5

pins A1 or A2.

Are they corresponding ?

Replace the front

wiring.

Is there 12 V between vehicle mass and pins A4 or A5 of the
connector (6) of the climate control panel ?

Check the continuity and resistance against vehicle’s mass
between:
- pin B5 climate panel

pin 3 blower connector

- pin B4 climate panel

pin 4 blower connector

- pin B1 climate panel

pin 5 blower connector

- pin A1 climate panel

pin 12 blower connector

- pin A2 climate panel

pin 13 blower connector

- pin 15 blower connector

 vehicle mass

- pin 14 blower connector

 vehicle mass

Are they corresponding ?

Replace the cold air

blowing device.

No

No

No

No

Yes

Diagnose

Yes

Yes

Yes

61

HEATING

61 - 12

CLIMATE CONTROL PANEL LIGHTING NOT WORKING

Replace fuse F14.

Replace front

wiring.

Check in cockpit fuse 14. Is it OK ?

Check the continuity and resistance against vehicle between:

- cockpit fuse F 14 exit

pin 7 climate control panel

- pin 9 climate control panel

vehicle mass.

Are they corresponding ?

Replace the ventilation-climate
control air distributor.

No

No

Yes

Yes

Diagnose

62

AIR CONDITIONING

62 - 1

General

The purpose of the air conditioning unit is to produce a decrease of the temperature in the

passengers compartment and to obtain  a lower value temperature compared to  the external
environment one, reducing in the same time the air moisture.

MAINTENANCE
For a vehicle equipped with air conditioning, during the year it is recommended:

- the checking of the  refrigerant fluid filling;
- the cleaning and the air-blowing of the condenser and the cooling radiator fins;
- the checking of the condensation removal pipe on order not to be clogged.

For important leakage repair, for any components replacement (compressor, condenser, etc)

and if moisture was noticed in the air conditioning circuit, replace the dryer filter tank and drain
the unit; the same is valid also in case the conditioning circuit remains open without protection
covers more than 10 minutes.

   IMPORTANT !
   During winter, it is recommended the frequent start of the system, in order to prolong
the lifetime of the compressor and of the whole system.
   The vehicle equipped with an air conditioning system shall be not exposed for more
than 20 minutes in painting cabin where there are temperatures higher than 80 °C.
   It is obligatory the use of the refrigerating agent and compressor oil type prescribed
by the manufacturer.
   It is absolutely forbidden to perform welding works on the elements of the air condition
circuits.
   The filling of the air conditioning system can be performed only by means of charging
units and observing the instructions of the manufacturer. For mechanical or body
operations it is recommended piping protection in order to avoid their disconnection
by accident.
   Avoid the drip of the oil compressor on the painted vehicle carriage body.
   For component replacement implying the circuit draining, it is absolutely necessary
the use of new parts and of a special oil for compressor.
