3. Remove the second-row buckle (RH).

4. Install in the reverse order of removal.

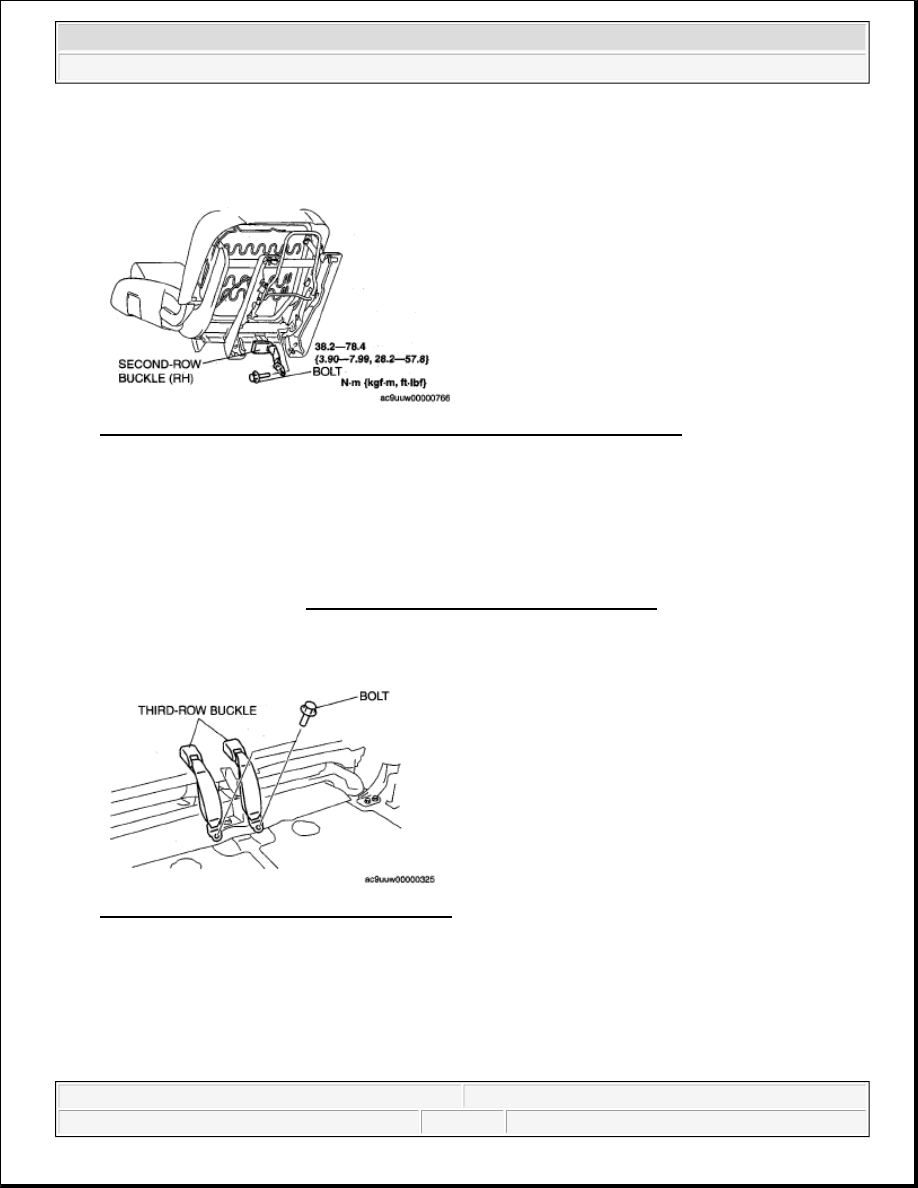

Fig. 13: Identifying Second-Row Buckle (RH), Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

THIRD-ROW BUCKLE REMOVAL/INSTALLATION

REMOVAL

1. Fold the third-row seat backs forward.

2. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)

3. Remove the bolt.

4. Remove the third-row buckle.

Fig. 14: Identifying Third-Row Buckle & Bolt
Courtesy of MAZDA MOTORS CORP.

INSTALLATION

1. Bind the third-row seat belt buckles in a band as shown in the figure.

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Seat Belt - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:19:40 AM

Page 11

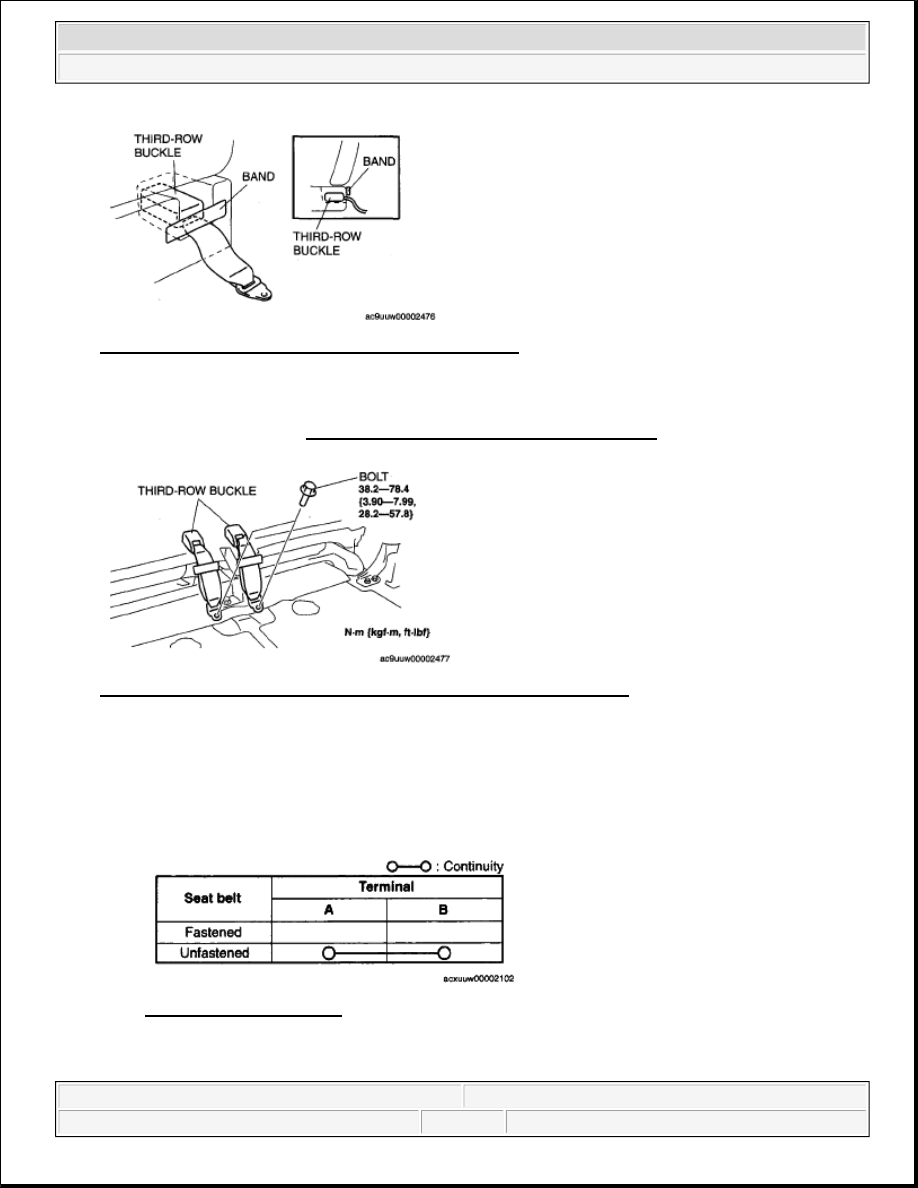

Fig. 15: Binding Third-Row Seat Belt Buckles In Band
Courtesy of MAZDA MOTORS CORP.

2. Install the bolt.

3. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)

Fig. 16: Identifying Third-Row Buckle, Bolt & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

BUCKLE SWITCH INSPECTION

1. Inspect for continuity between the buckle switch terminals using a tester.



If not as indicated in the table, replace the front buckle.

Fig. 17: Continuity Chart
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Seat Belt - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:19:40 AM

Page 12

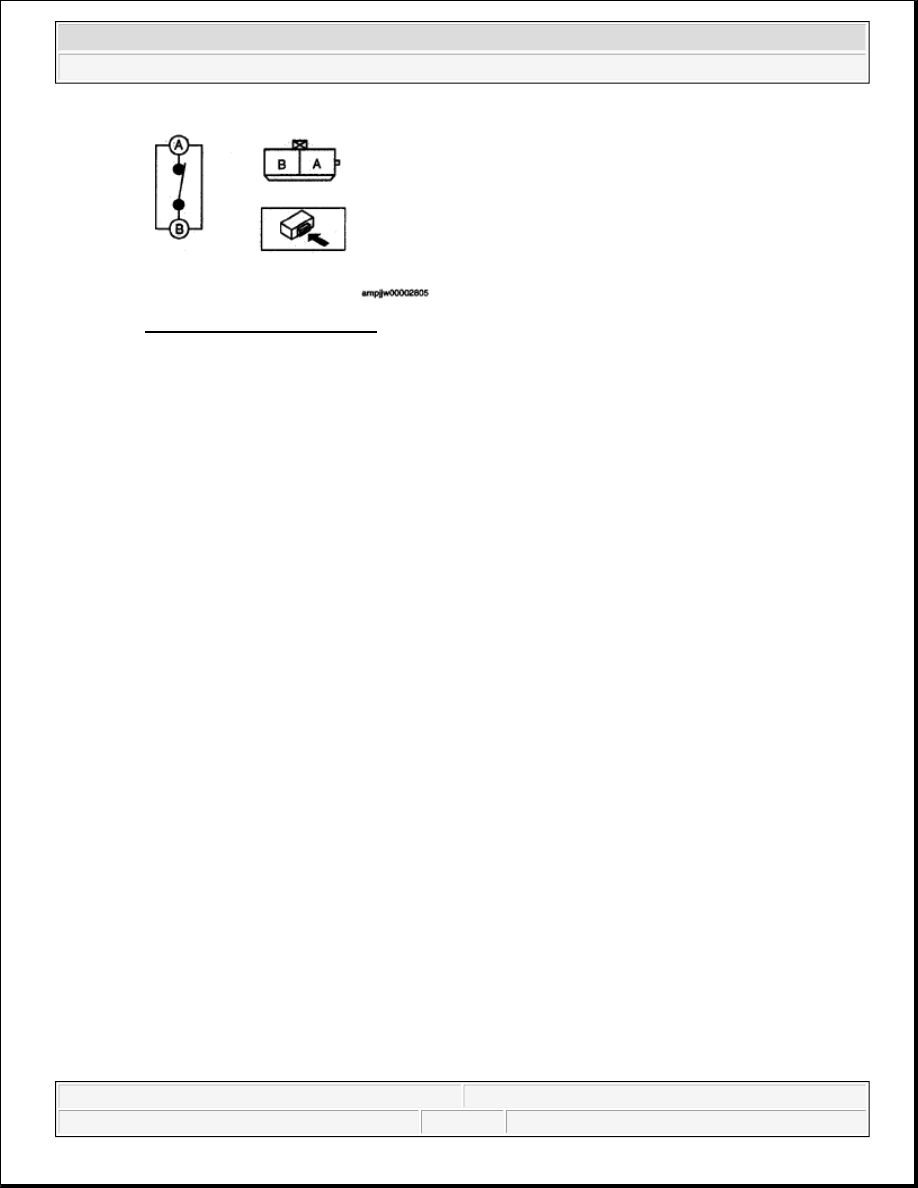

Fig. 18: Buckle Switch Circuit
Courtesy of MAZDA MOTORS CORP.

2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Seat Belt - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:19:40 AM

Page 13

2008 BODY & ACCESSORIES

Seats - Mazda CX-9

SEAT LOCATION INDEX

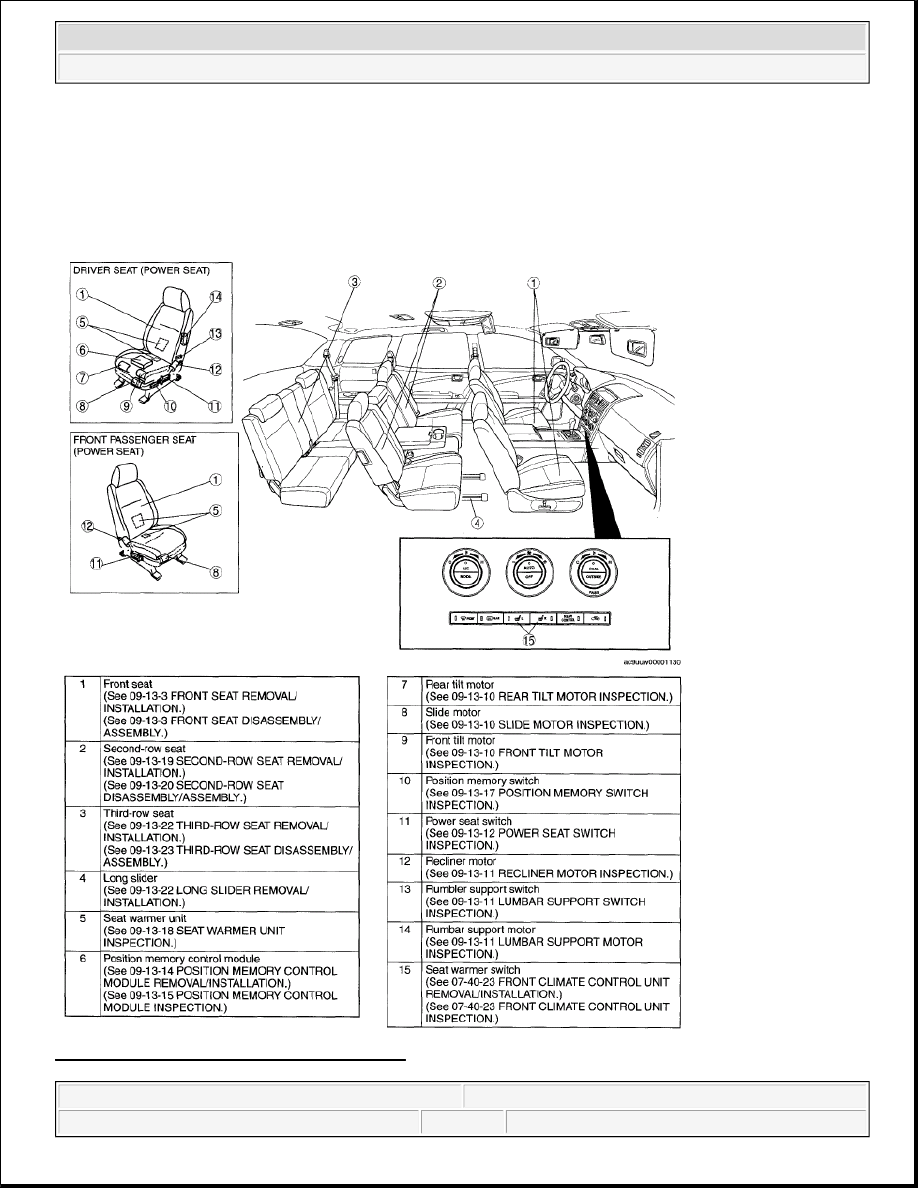

Fig. 1: Identifying Seat Components Location
