Mazda CX-9 Grand Touring. Manual - part 568





FRONT SEAT REMOVAL/INSTALLATION

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait 1 min or more.

3. Press connector tab A in the direction of the arrow.

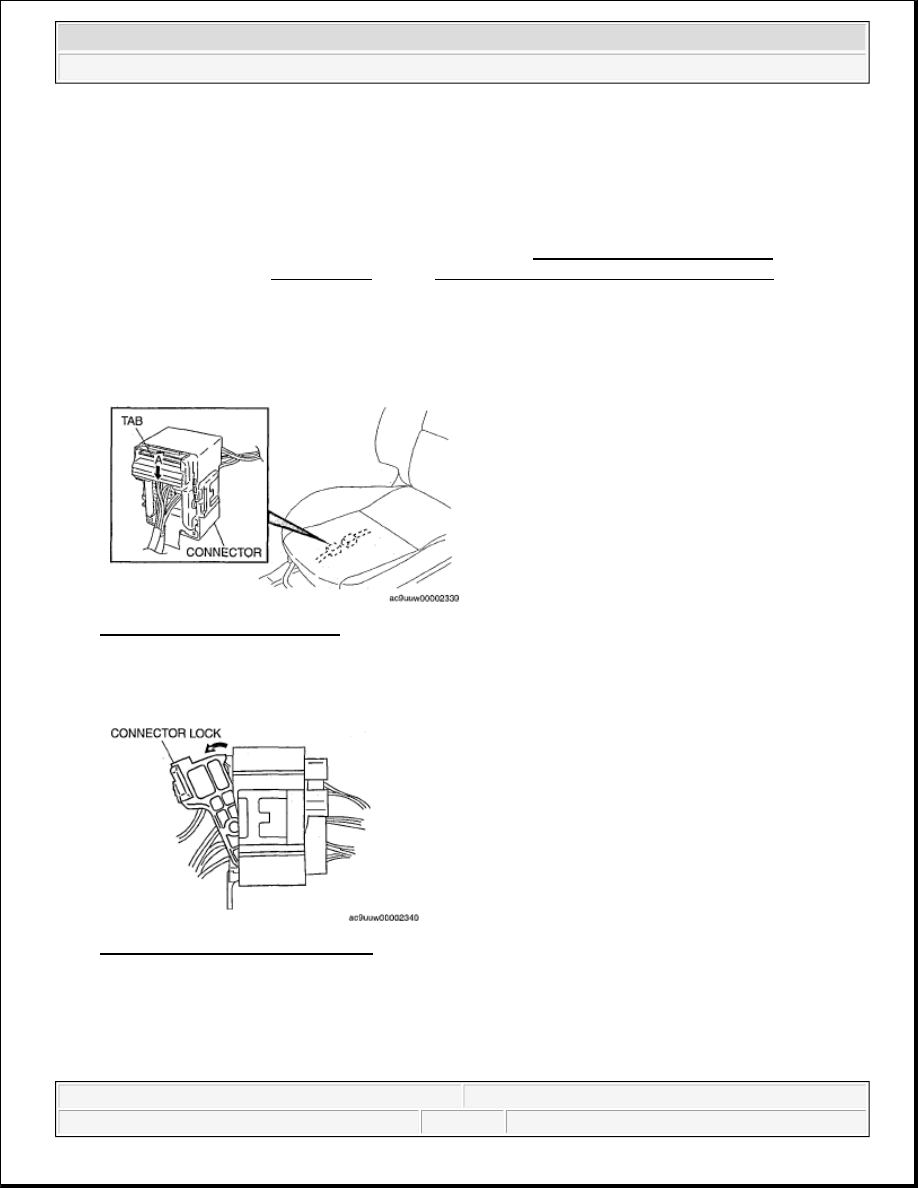

Fig. 2: Pressing Connector Tab
Courtesy of MAZDA MOTORS CORP.

4. Pull out the connector lock in the direction of the arrow and disconnect the connector.

Fig. 3: Pulling Out Connector Lock
Courtesy of MAZDA MOTORS CORP.

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

WARNING:

Handling the front seat (with a side air bag) improperly can
accidentally deploy the air bag, which may seriously injure you.
Read the service warnings and cautions before handling the front
seat (with a side air bag). (See AIR BAG SYSTEM SERVICE
WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

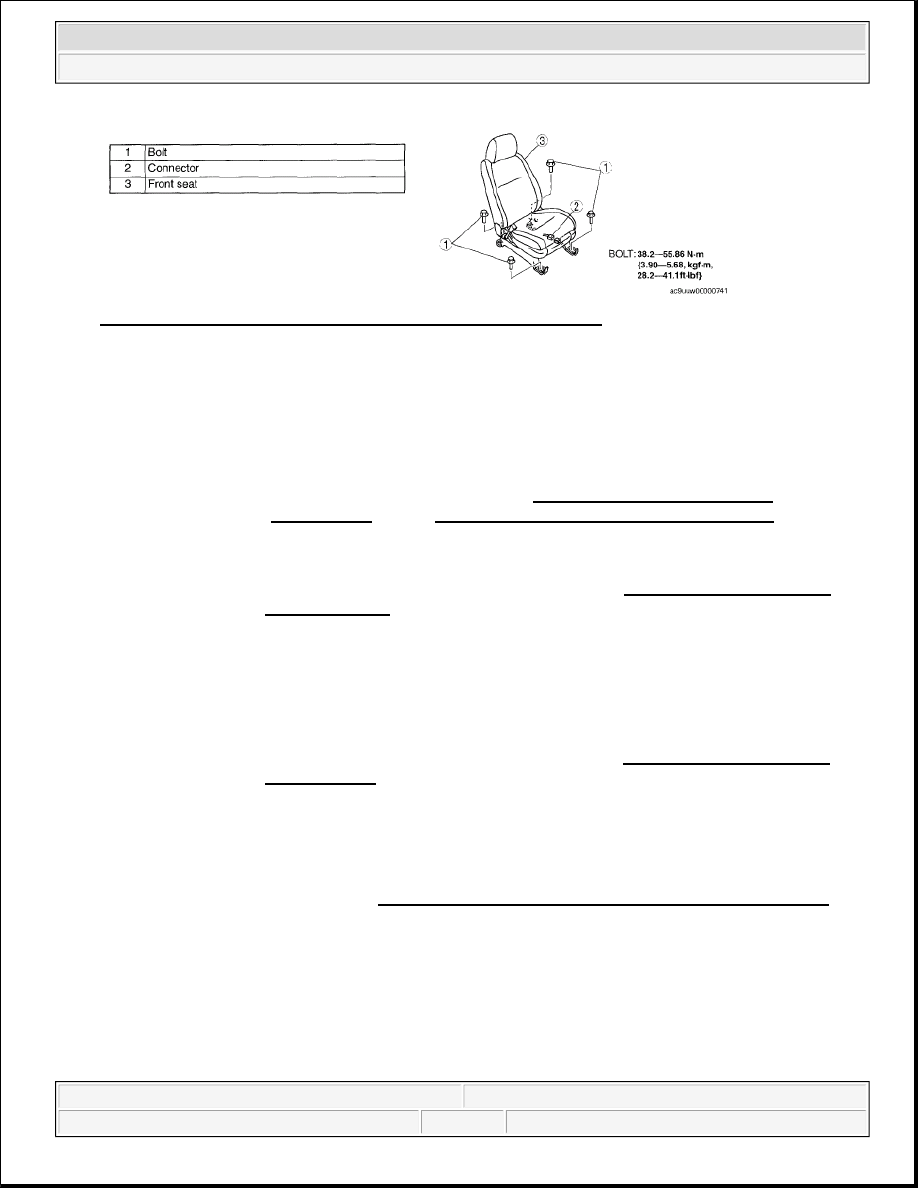

Fig. 4: Identifying Front Seat Connector & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

FRONT SEAT DISASSEMBLY/ASSEMBLY

1. Disconnect the negative battery cable and wait for more than 1 minute.

2. Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)

3. Disassemble in the order indicated in the table.

4. Assemble in the reverse order of disassembly.

DRIVER SEAT (MANUAL SEAT)

WARNING:

Handling the front seat (with a side air bag) improperly can
accidentally deploy the air bag, which may seriously injure you.
Read the service warnings and cautions before handling the front
seat (with a side air bag). (See AIR BAG SYSTEM SERVICE
WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

CAUTION:

If any of the following work is performed, perform the seat weight
sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR
CALIBRATION .)

Replacement with a new seat weight sensor

Replacement with a new seat weight sensor control module

Replacement with new passenger-side seat parts

Disassembly of the passenger-side seat

If any of the following work is performed, perform the seat weight
sensor inspection using the M-MDS. (See SEAT WEIGHT SENSOR
INSPECTION .)

Removal of the passenger-side seat

Loosening and retightening of passenger's seat fixing bolts



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

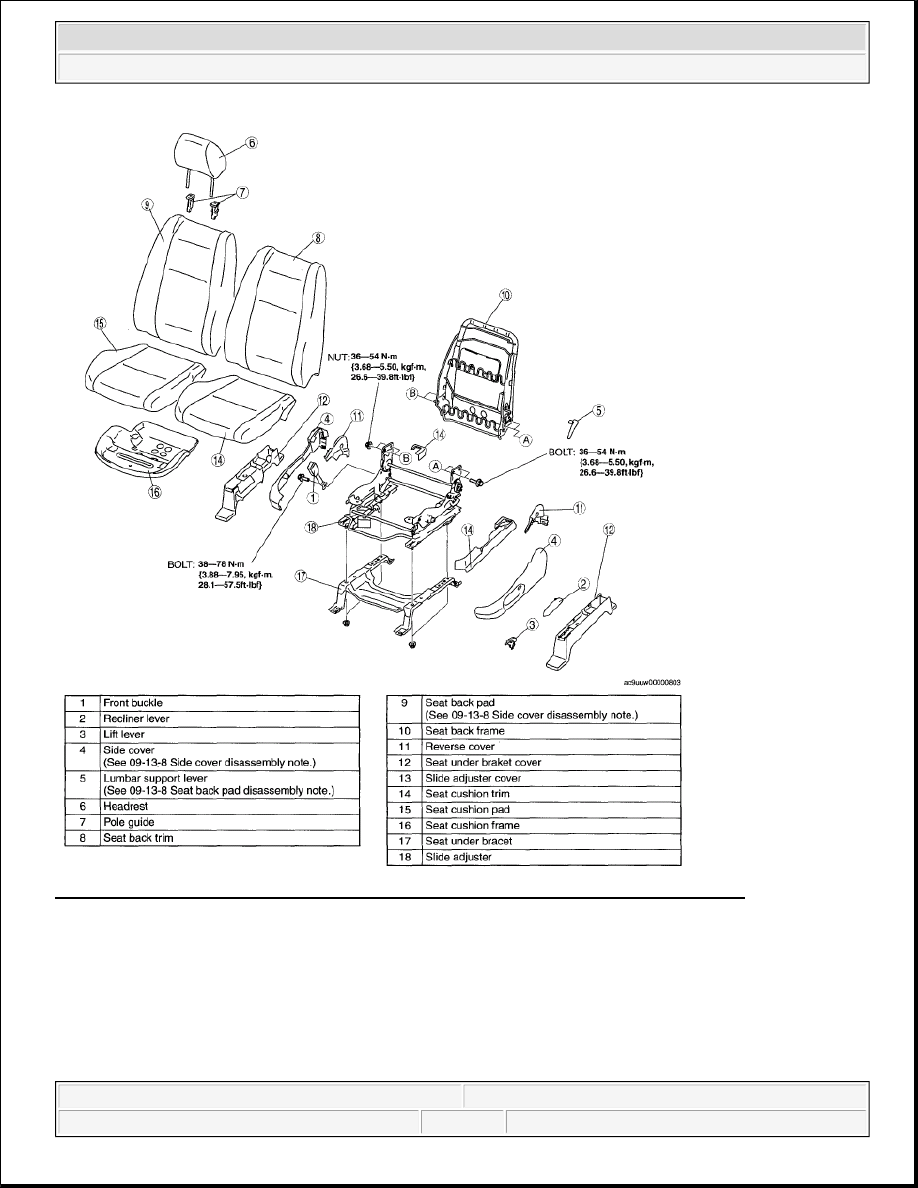

Fig. 5: Exploded View Of Front Seat - Driver Seat (Manual Seat) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

DRIVER SEAT (POWER SEAT)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

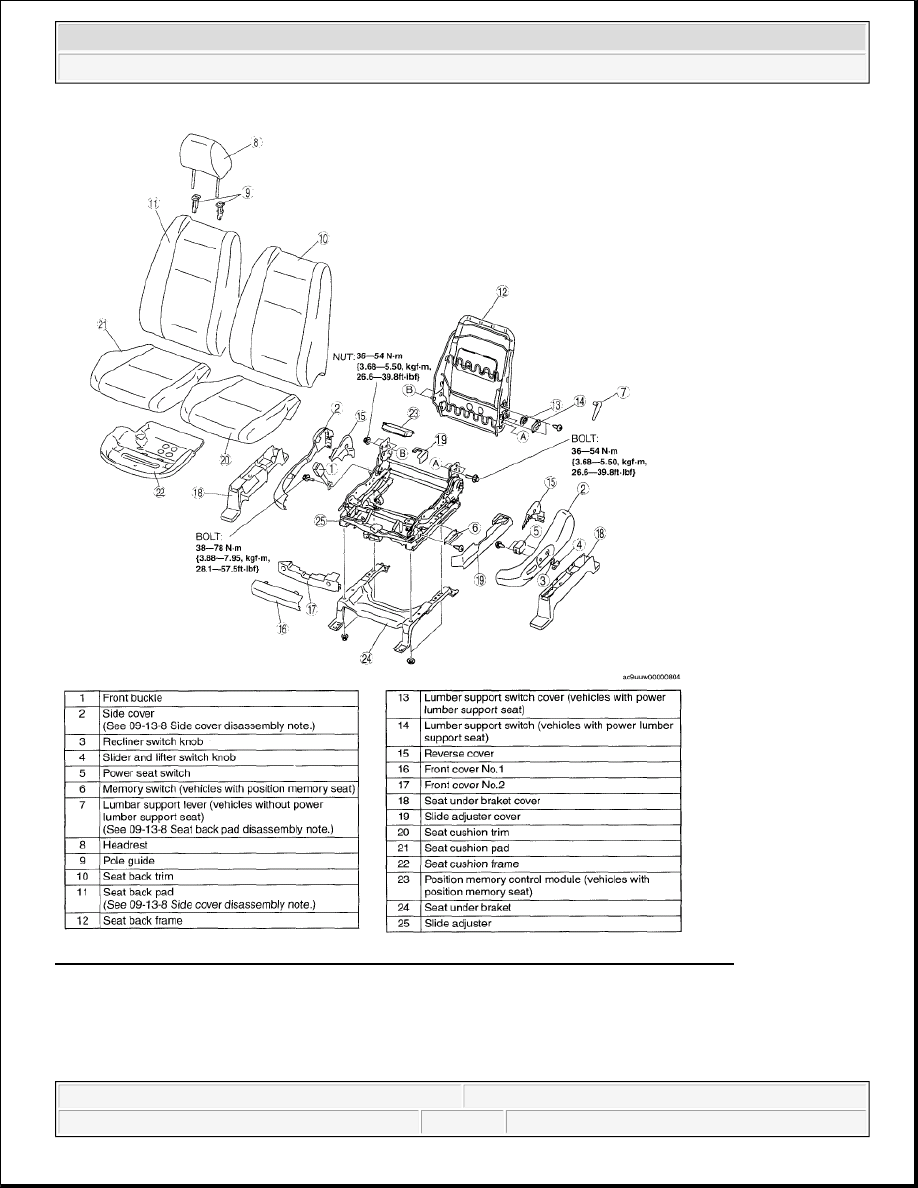

Fig. 6: Exploded View Of Front Seat - Driver Seat (Power Seat) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

PASSENGER SEAT (MANUAL SEAT)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.
