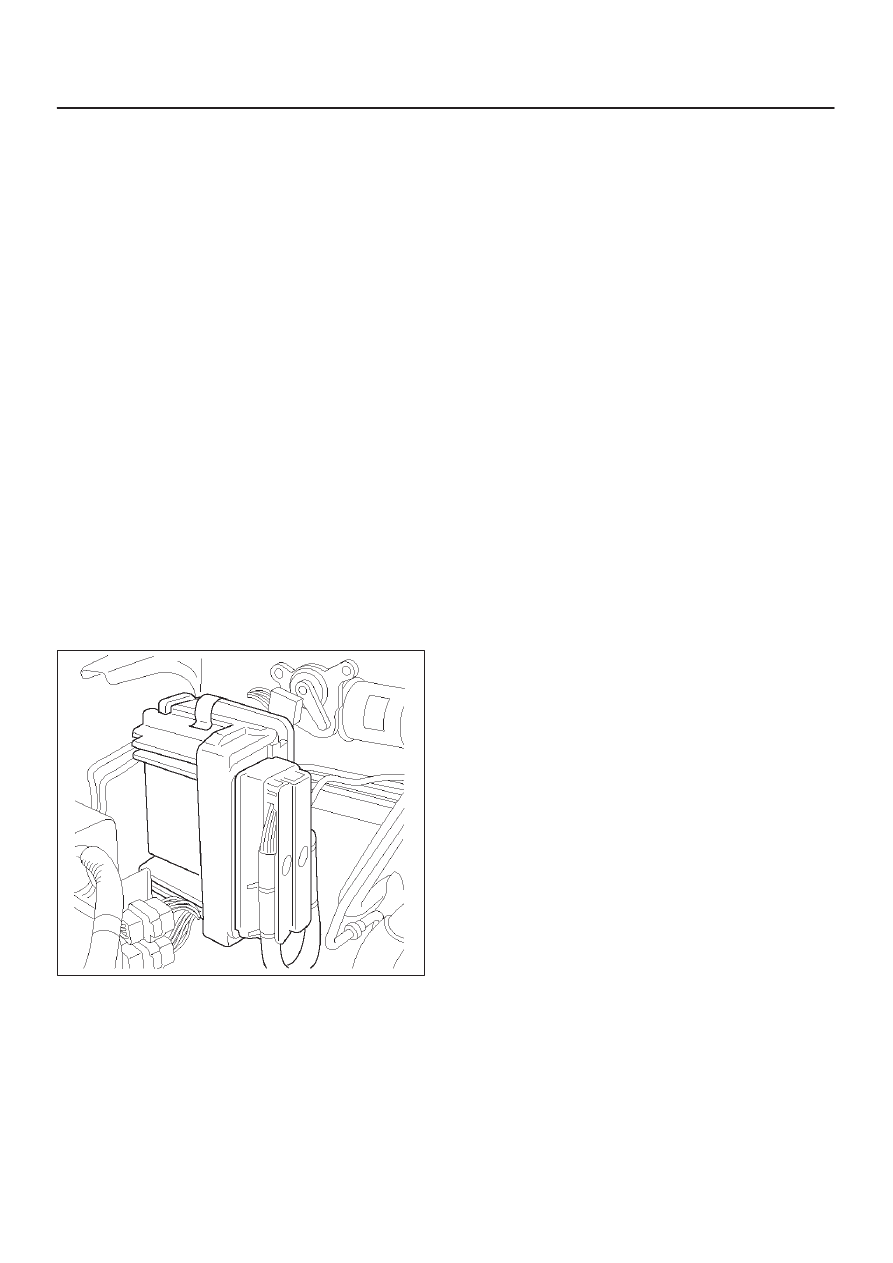

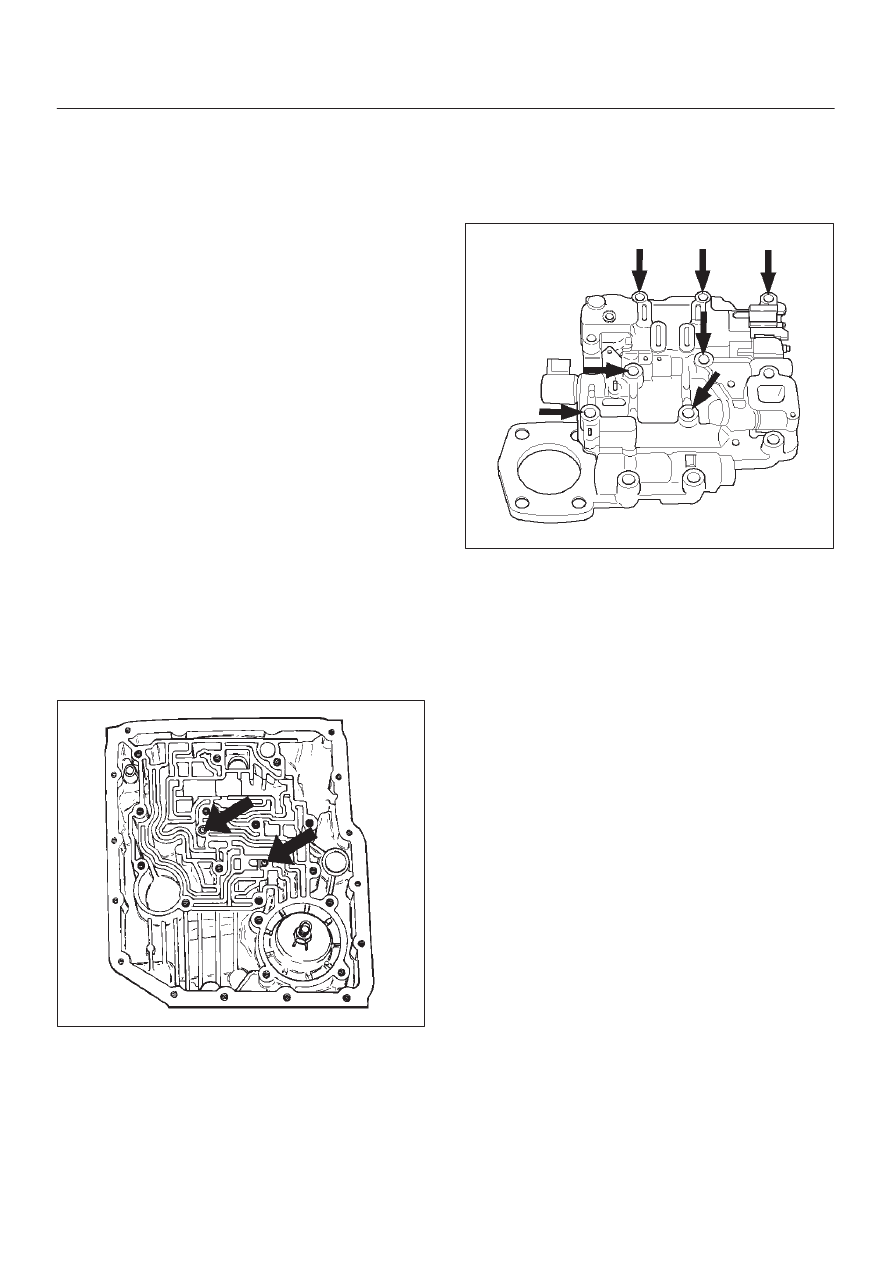

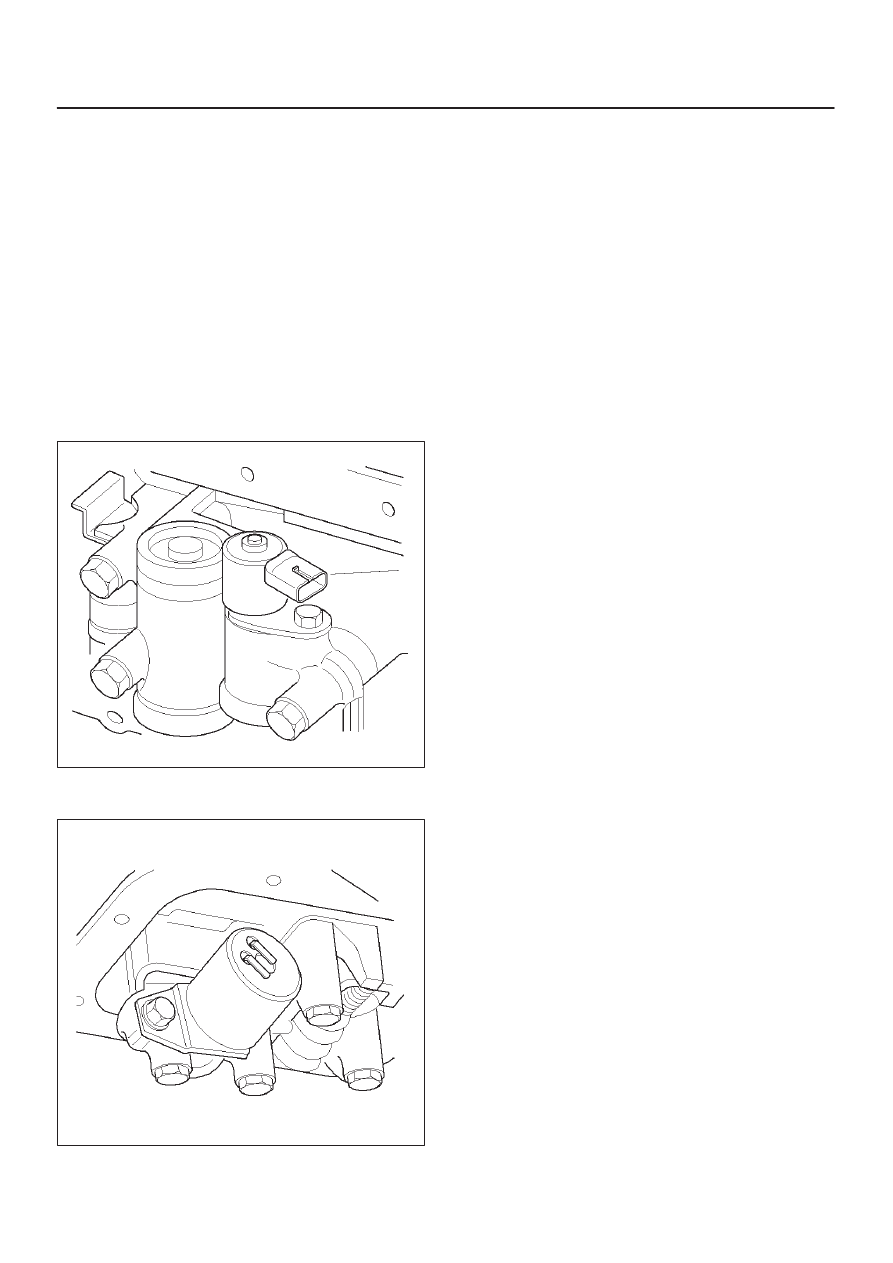

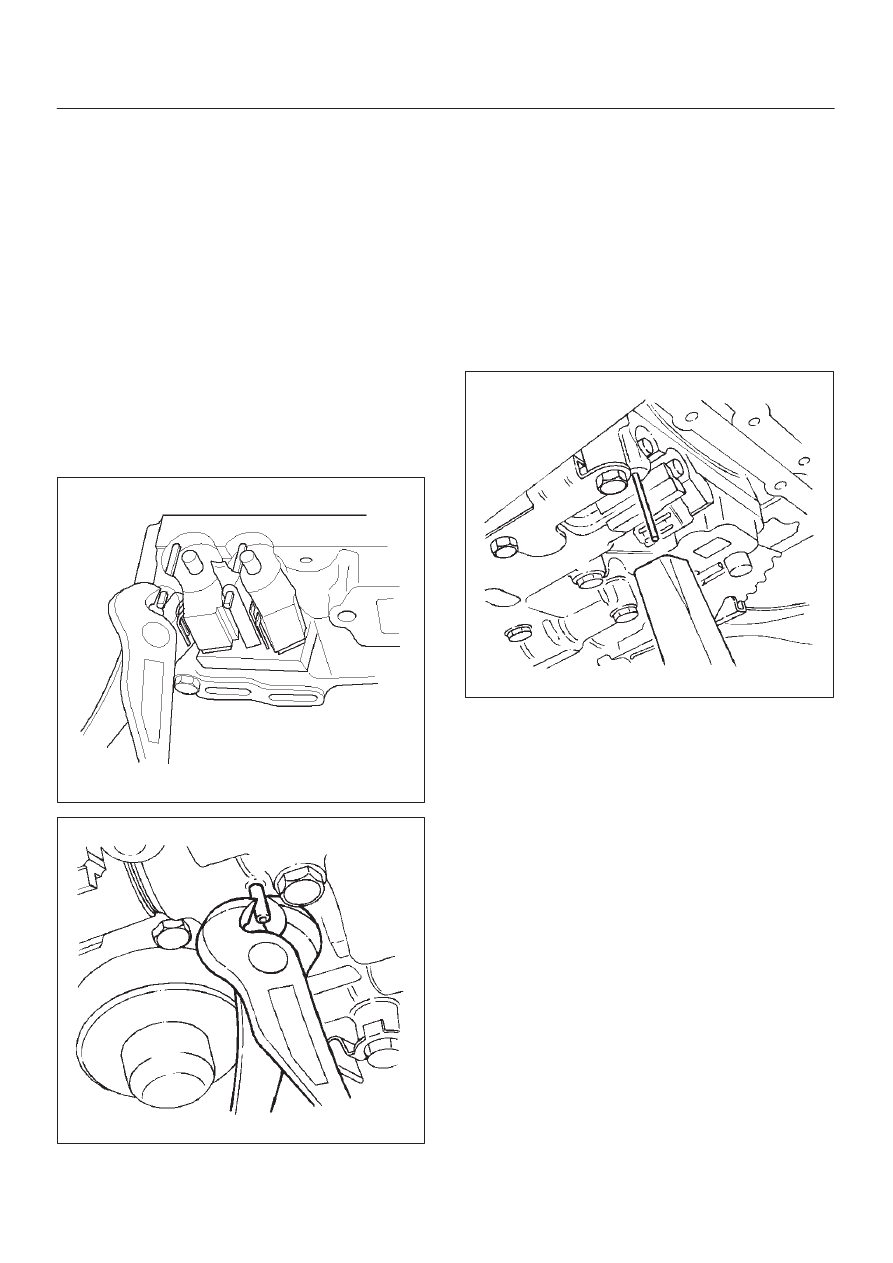

7A–38 AUTOMATIC TRANSMISSION (4L30–E) Solenoid (Main Case Valve Body) Removal 1. Raise the vehicle and support it on jack stands. × 4). 4. Drain fluid. crossmember. 6. Remove sixteen 10 mm screws, main case oil pan, magnet, and gasket. 7. Remove three 13 mm screws, oil filter. solenoid and shift solenoids. Pull only on connectors, 9. Remove spring pin for shift solenoid A, shift solenoid B, and band control solenoid respectively, using 210RW010 244RW003 10. Remove shift solenoid A, shift solenoid B, band control solenoid, and gaskets from main case valve Installation 1. Install shift solenoid A, shift solenoid B, band control solenoid with new gaskets to main case valve body 2. Carefully install spring pin with hammer to avoid damage to valve body, etc. 243RW004 3. Connect wiring harness to solenoids. screws. Tighten the screws to the specified torque. Torque: 20 N • m (15 lb ft) 5. Install magnet, main case oil pan with new gasket, sixteen 10 mm screws. Tighten the screws to the Torque: 11 N • m (96 lb in) 6. Install third crossmember and rear mount nuts. Tighten the nuts and bolts to the specified torque. Third crossmember bolt: 76 N • m (56 lb ft) Rear mount nut: 50 N • m (37 lb ft) 7. Install the transfer protector. Tighten the bolts to the specified torque (4 × 4). Torque: 37 N • m (27 lb ft) 8. Fill transmission through the overfill screw hole of oil pan, using ATF DEXRON –III. Refer to Changing Transmission Fluid in this section. 9. Connect the battery ground cable. |
