7A–34

AUTOMATIC TRANSMISSION (4L30–E)

5. Install the under cover (3 pieces), and tighten the

bolts to the specified torque.

Torque: 8 N

•

m (69 lb in)

6. Install front crossmember.

Torque: 78 N

•

m (58 lb ft)

7. Install the starter, and tighten the bolts to the specified

torque.

Torque: 40 N

•

m (30 lb ft)

8. Connect transmission harness connectors to

transmission, transfer, and right catalytic converter.

9. Connect fuel pipe brackets to transmission side.

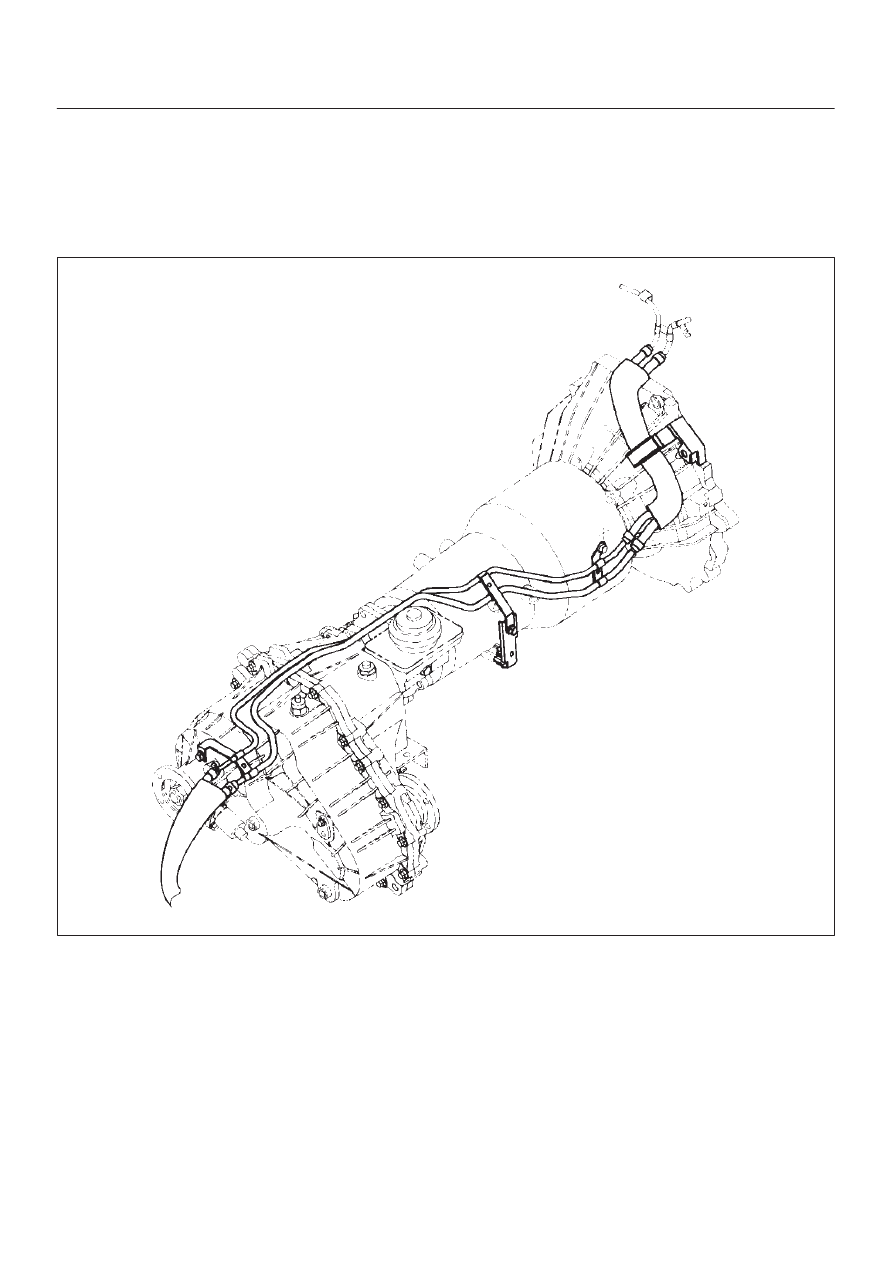

For 4

×

4 (TOD)

141RW001

7A–35

AUTOMATIC TRANSMISSION (4L30–E)

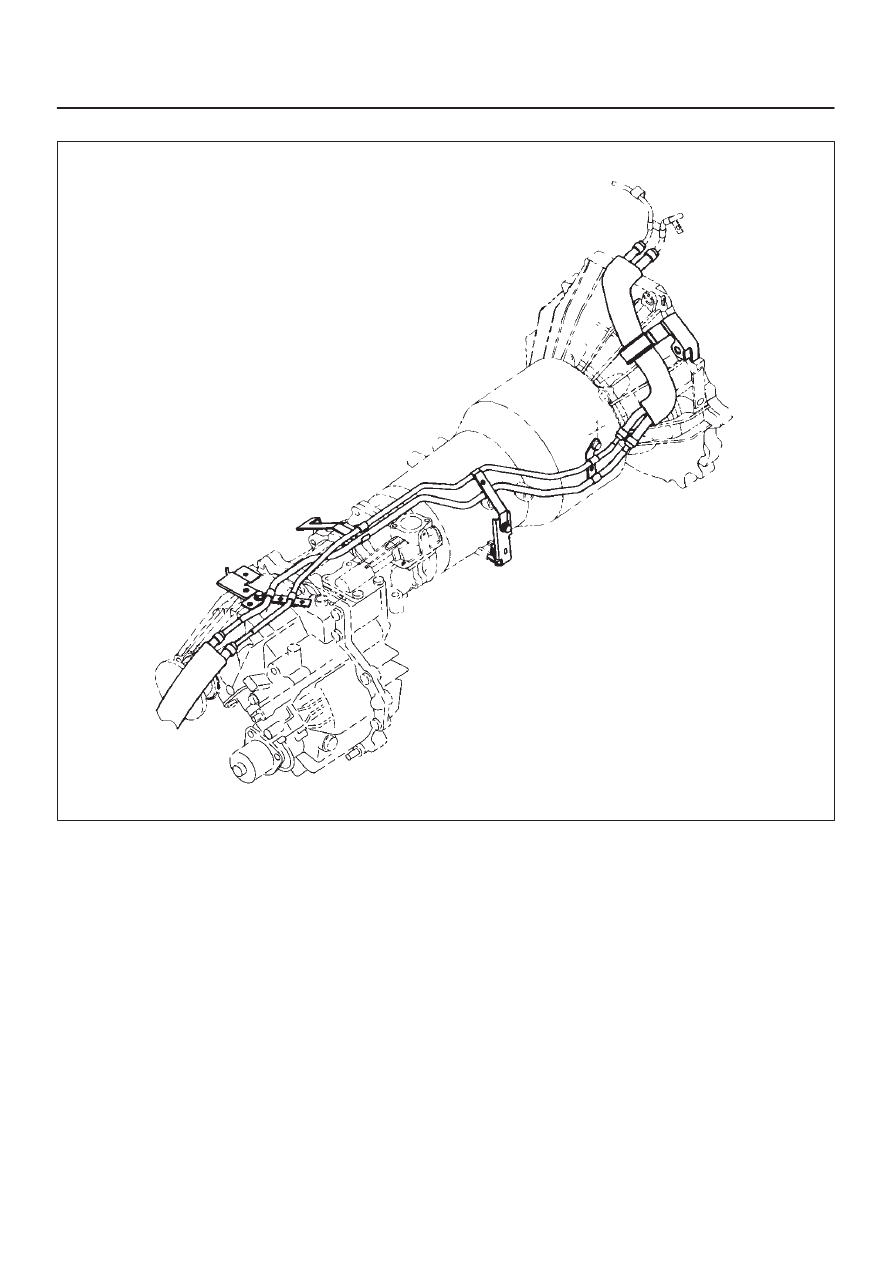

For 4

×

4

141RW027

7A–36

AUTOMATIC TRANSMISSION (4L30–E)

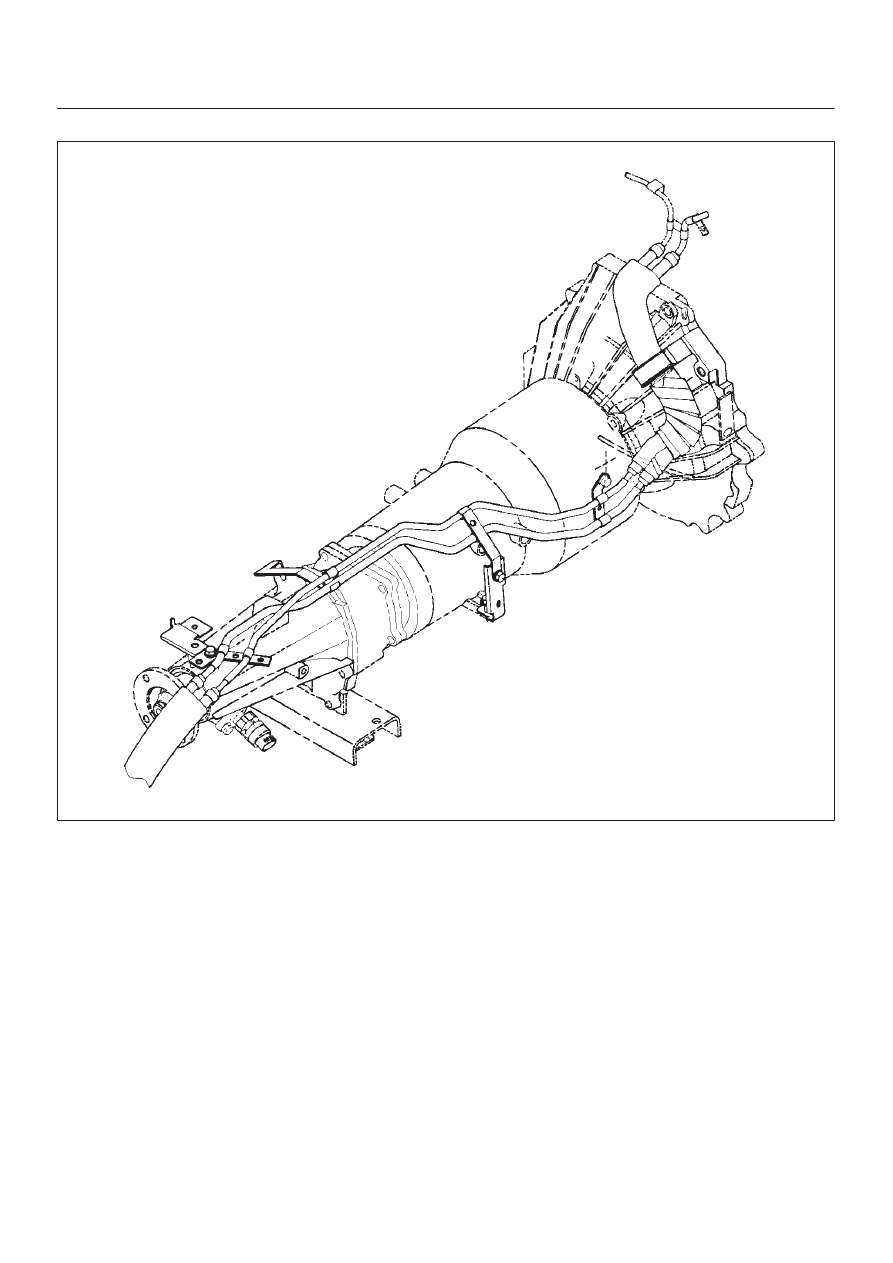

For 4

×

2

141RY001

10. Install transmission oil cooler pipe to transmission.

Torque: 44 N

•

m (33 lb ft)

11. Install oil pipe clamp to torque converter housing

bracket.

12. Tighten oil pipe clamp bolt at engine mount side.
13. Install right catalytic converter, tighten to the specified

torque.

Torque: 67 N

•

m (49 lb ft)

14. Install left catalytic converter assembly, and tighten

the bolts to the specified torque.

Exh. pipe to exh. manifold  67 N

•

m (49 lb ft)

Exh. pipe flange bolt  43 N

•

m (32 lb ft)

15. Install left seat belt tension rod.

Torque: 39 N

•

m (29 lb ft)

16. Connect two left side oxygen sensor connectors to

the transmission harness.

17. Install front exhaust silencer mounting nuts.
18. Install third crossmember, and tighten the bolts to the

specified torque.

Torque: 76 N

•

m (56 lb ft)

19. Install rear mount nuts, and tighten the bolts to the

specified torque.

Torque: 50 N

•

m (37 lb ft)

20. Remove the jack from the transfer case.

7A–37

AUTOMATIC TRANSMISSION (4L30–E)

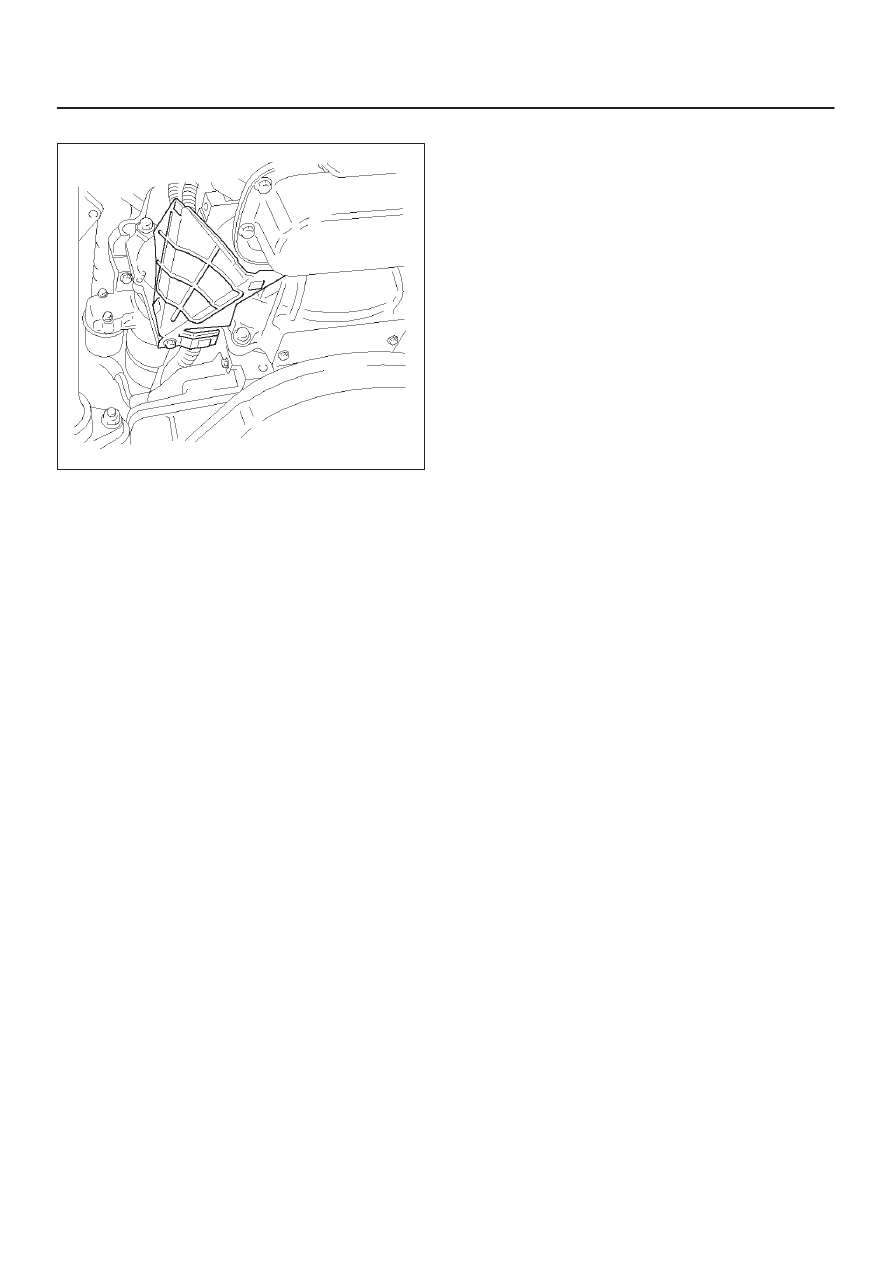

21. Install harness protector.

815RW002

22. Install the front propeller shaft, and tighten the bolts to

the specified torque (4

×

4).

Torque: 63 N

•

m (46 lb ft)

23. Install the rear propeller shaft, and tighten the bolts to

the specified torque.

Torque: 63 N

•

m (46 lb ft)

24. Connect the shift control rod to selector lever

assembly.

25. Install the transfer protectors, and tighten the bolts to

the specified torque (4

×

4).

Torque: 37 N

•

m (27 lb ft)

26. Install the transfer control lever (4

×

4).

27. Install the selector lever assembly.
28. Connect the wiring harness connectors to front

console.

29. Install the front console.
30. Install the transfer control lever knob (4

×

4).

31. Connect the  battery ground cable.
32. Install the engine hood.
