7A–30

AUTOMATIC TRANSMISSION (4L30–E)

249RW001

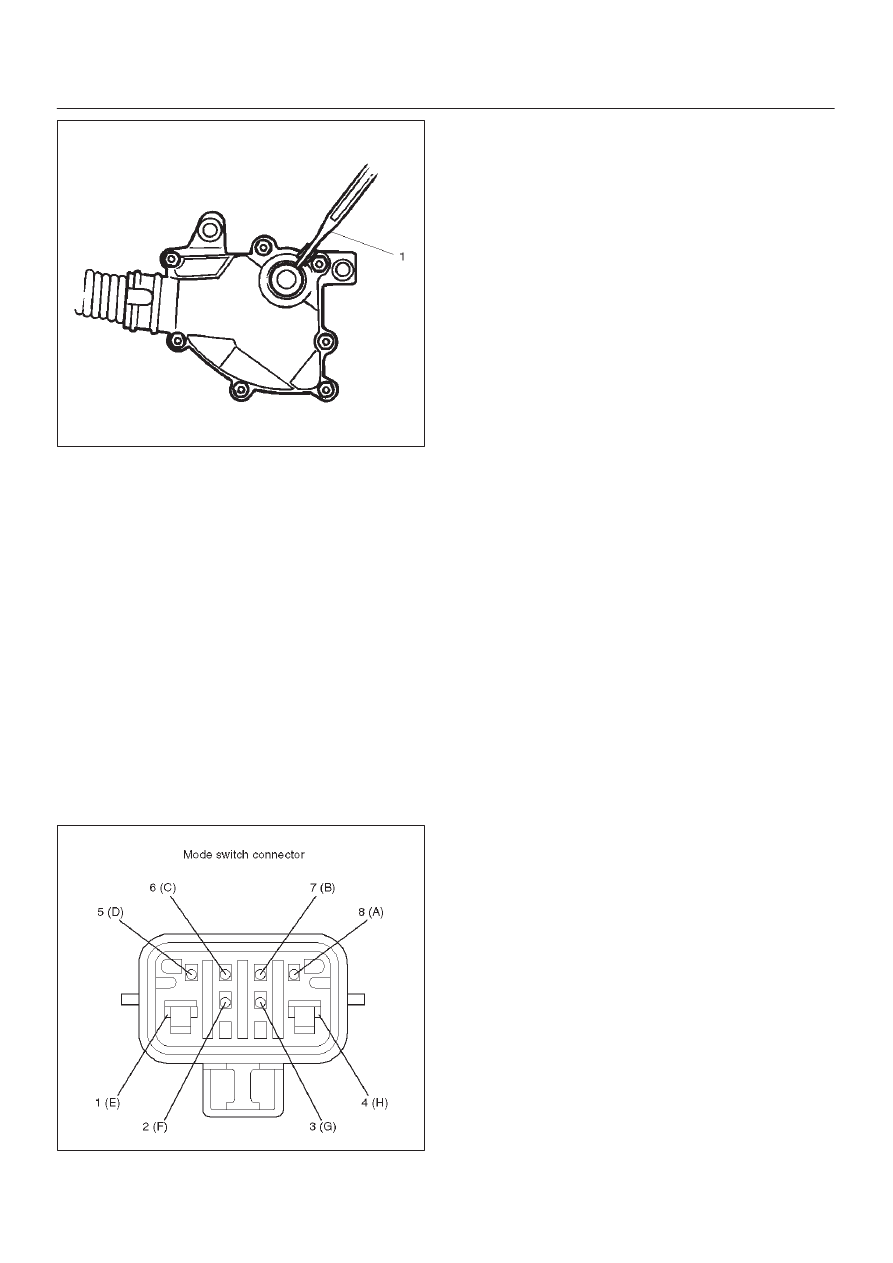

Procedure 2

a. Place selector lever in neutral.
b. Disconnect transmission harness connector from

mode switch connector.

c. Remove mode switch connector with bracket from

the transmission case.

d. Connect multimeter (resistance mode) to

terminals 1(E) and 4(H) on mode switch connector.

e. Loosen two mounting screws.
f. Rotate mode switch slightly in both directions to

determine the range (approx. 5 degrees) of
electrical contact.

g. Position mode switch in middle of contact range.
h. Tighten two mounting screws.
i. Remove multimeter and install mode switch

harness connector with bracket to the
transmission case.

j. Connect transmission harness connector to mode

switch connector.

F07RW003

7A–31

AUTOMATIC TRANSMISSION (4L30–E)

Transmission (With Transfer Case / Extension Assembly)

Transmission And Associated Parts

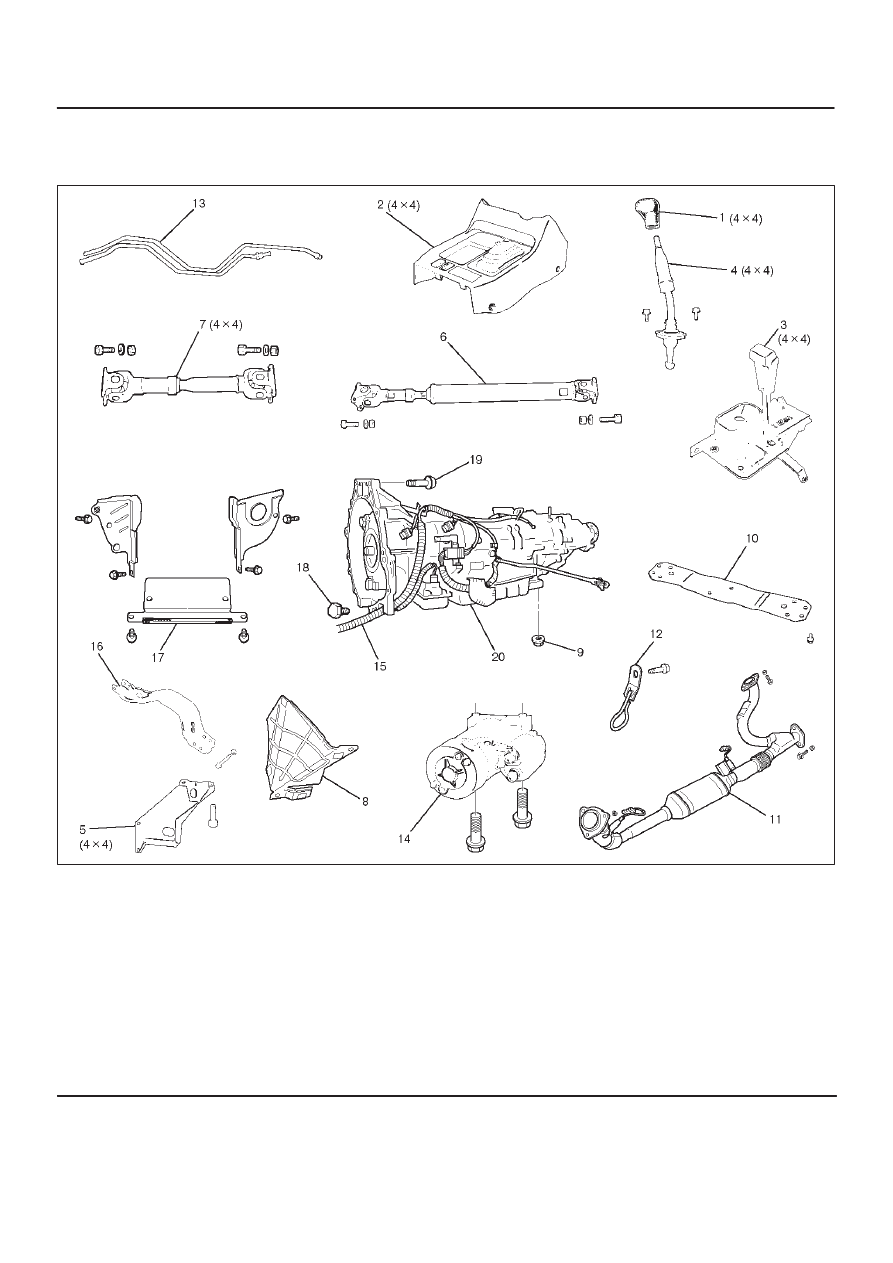

150RY00001

Legend

(1) Transfer Control Lever Knob (4

×

4)

(2) Front Console
(3) Selector Lever Assembly
(4) Transfer Control Lever (4

×

4)

(5) Transfer Protector (4

×

4)

(6) Rear Propeller Shaft
(7) Front Propeller Shaft (4

×

4)

(8) Harness Protector
(9) Rear Mount Nut

(10) Third Crossmember

(11) Left Catalytic Converter Assembly

(12) Seat Belt Tension Rod
(13) Transmission Oil Cooler Pipe
(14) Starter
(15) Transmission Harness Connector
(16) Front Crossmember
(17) Under Cover
(18) Torque Converter Bolt
(19) Engine Transmission Bolt
(20) Transmission Assembly (With Transfer Case /

Extension Assembly)

7A–32

AUTOMATIC TRANSMISSION (4L30–E)

Removal

NOTE: Before remove transmission and transfer
assembly from vehicle, change the tansfer mode to 2WD
using push button on dash panel.

1. Remove engine hood.
2. Disconnect battery ground cable.
3. Remove transfer control lever knob (1) (4

×

4) and

disconnect wiring harness connectors, then remove
front console (2).

4. Remove selector lever assembly (3).
5. Remove transfer control lever (4) (4

×

4).

6. Remove transfer protector (5) (4

×

4).

7. Disconnect shift control rod from the selector lever

assembly side.

256RW013

8. Remove rear propeller shaft (6).
9. Remove front propeller shaft (7) (4

×

4).

10. Remove harness protector (8).

11. Support transfer case (4

×

4) or transmission (4

×

2)

with a jack and remove two rear mount nuts (9) from
the 3rd crossmember side.

12. Remove eight third crossmember bolts and third

crossmember (10).

13. Remove front exhaust silencer mounting nuts.
14. Remove left seat belt tension rod.
15. Disconnect two left side oxygen sensor connectors

from the transmission harness.

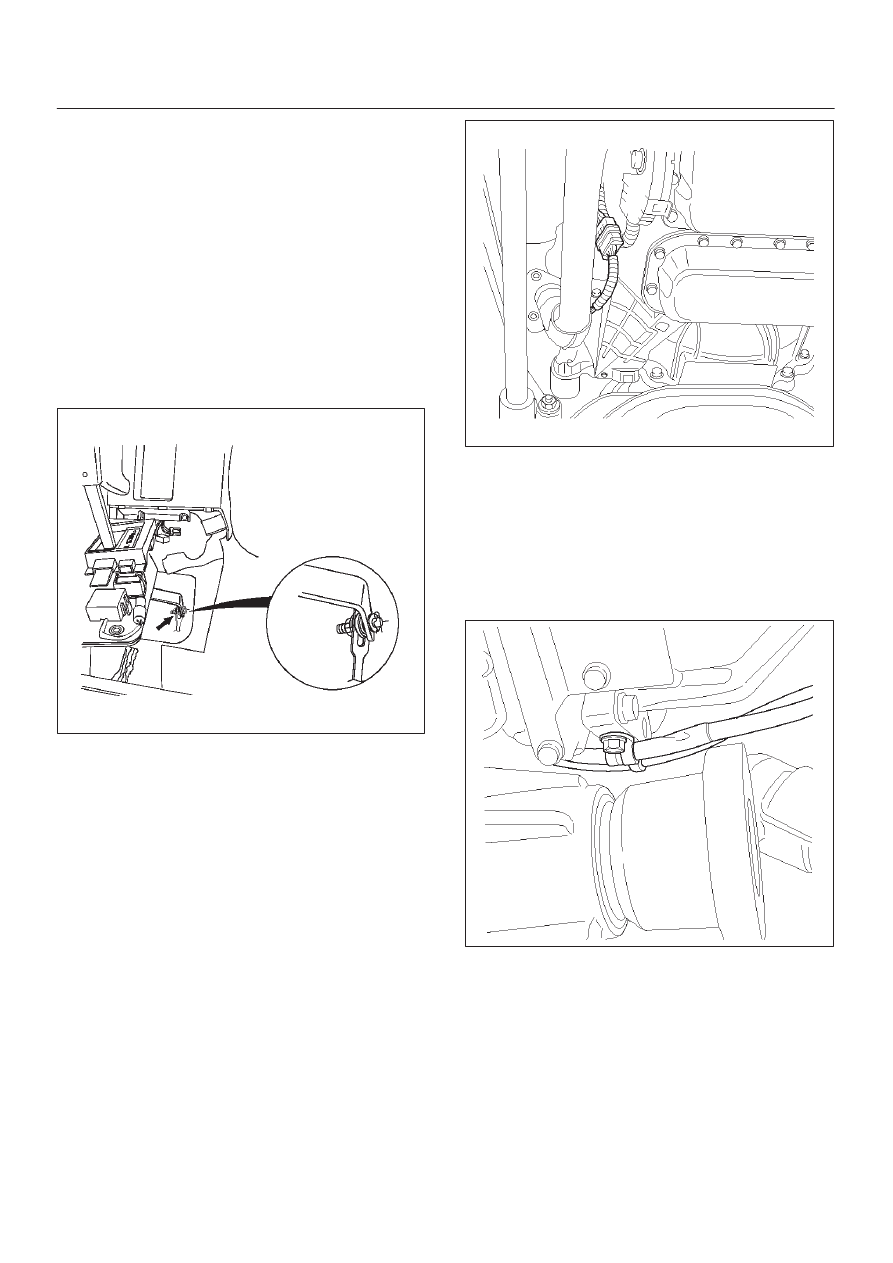

150RW002

16. Remove left catalytic converter assembly (11).
17. Loosen right catalytic converter nuts to exhaust

manifold.

NOTE: This will make the next steps easier.

18. Disconnect transmission oil cooler pipe (12) from A/T

side.

19. Remove oil pipe clamp  from torque converter

housing bracket.

253RY001

20. Loosen oil pipe clamp bolt at the engine mount side.
21. Remove starter (14).
22. Disconnect fuel pipe clamp brackets from

transmission side.

23. Disconnect transmission harness connectors (15)

from transmission, transfer, and right catalytic
converter.

24. Remove front crossmember (16).
25. Remove under covers (3 pieces) (17) from

transmission case.

26. Remove flex plate torque converter fixing bolts (6

pieces) (18) by turning crankshaft.

7A–33

AUTOMATIC TRANSMISSION (4L30–E)

27. Support the transmission with a transmission jack,

and hoist engine with a chain block.

28. Remove engine transmission fixing bolts (19).
29. Remove transmission assembly with transfer case

(4

×

4) / extension assembly (4

×

2) (20).

30. Remove transfer case / extension assembly from the

transmission assembly if necessary.

Installation

1. Slowly raise transmission jack until front of the

transmission is aligned with rear of the engine, then
install transmission assembly.

2. Tighten engine transmission bolts, to the specified

torque.

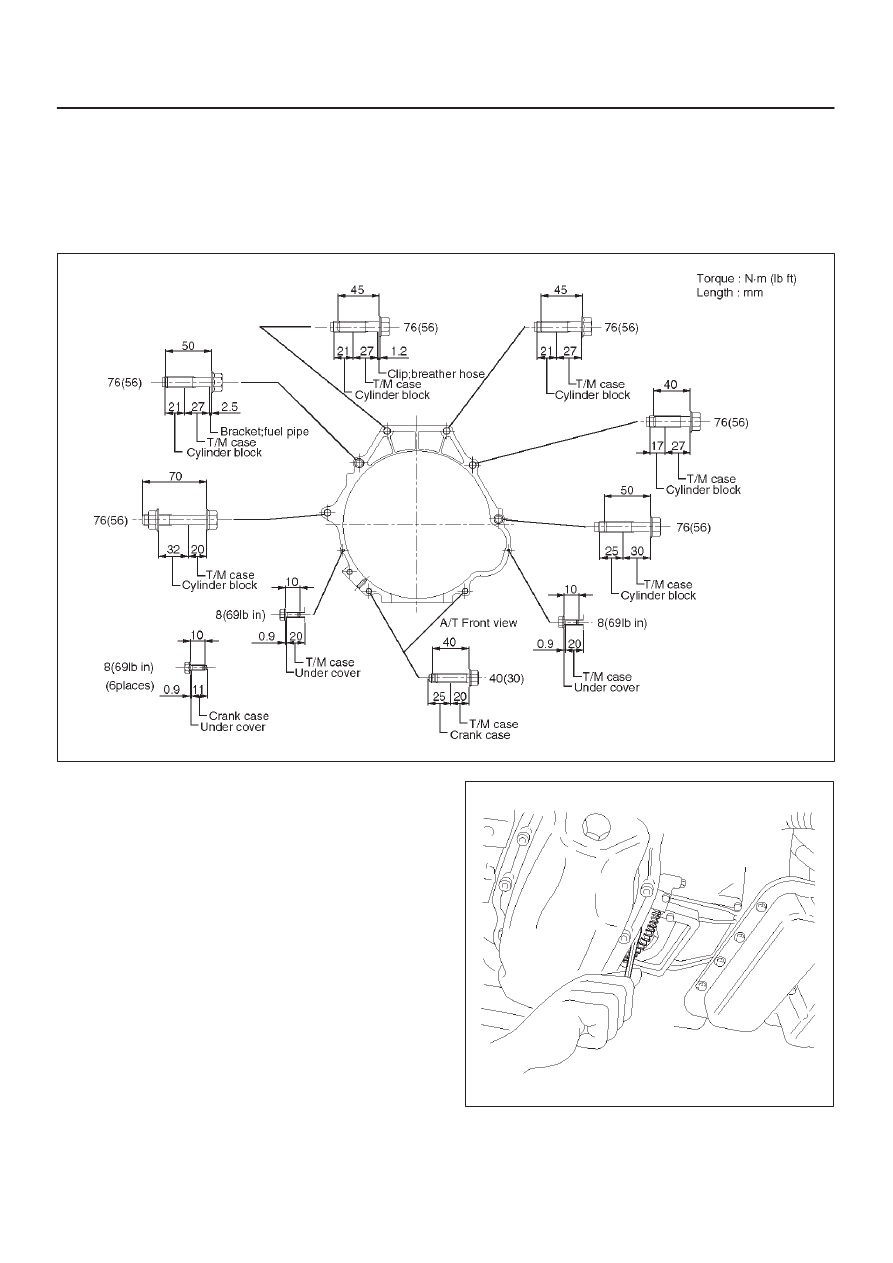

F07RY001

3. Support transfer case with a jack, and remove the

transmission jack.

4. Install flex plate torque converter bolts (6 pieces) by

turning crankshaft.

Torque: 54 N

m (40 lb ft)

NOTE: Do not reuse the flex plate torque converter bolt.

240RY003
