EXTERIOR/INTERIOR TRIM

8J–7

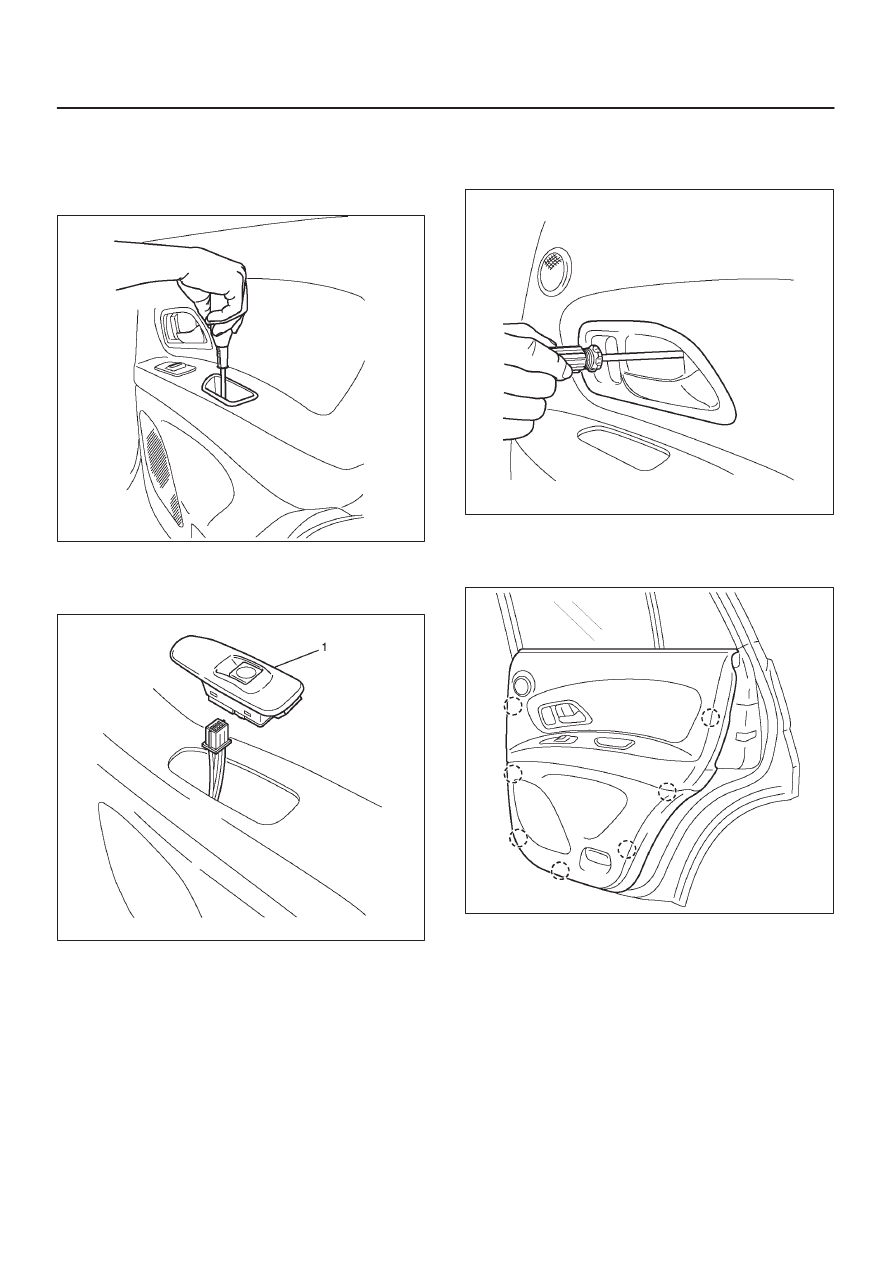

Removal

1. Disconnect the battery ground cable.
2. Remove the pull box.

D

Remove the fixing screw.

655R200003

3. Remove the power window switch.

D

Pry the power window switch (1) and remove the
connector.

655R200004

4. Remove the inside handle.

D

Open the screw cover and remove the screw.

D

Disconnect the cable.

655R200008

5. Remove the door trim panel.

D

Remove the trim panel with the seven clips from the
door panel.

655R200005

D

Disconnect the tweeter and the courtesy light
connectors.

6. Remove the inner waist seal.
7. Remove the tweeter.
8. Remove the courtesy light.

Installation

To install, follow the removal steps in the reverse order.

8J–8

EXTERIOR/INTERIOR TRIM

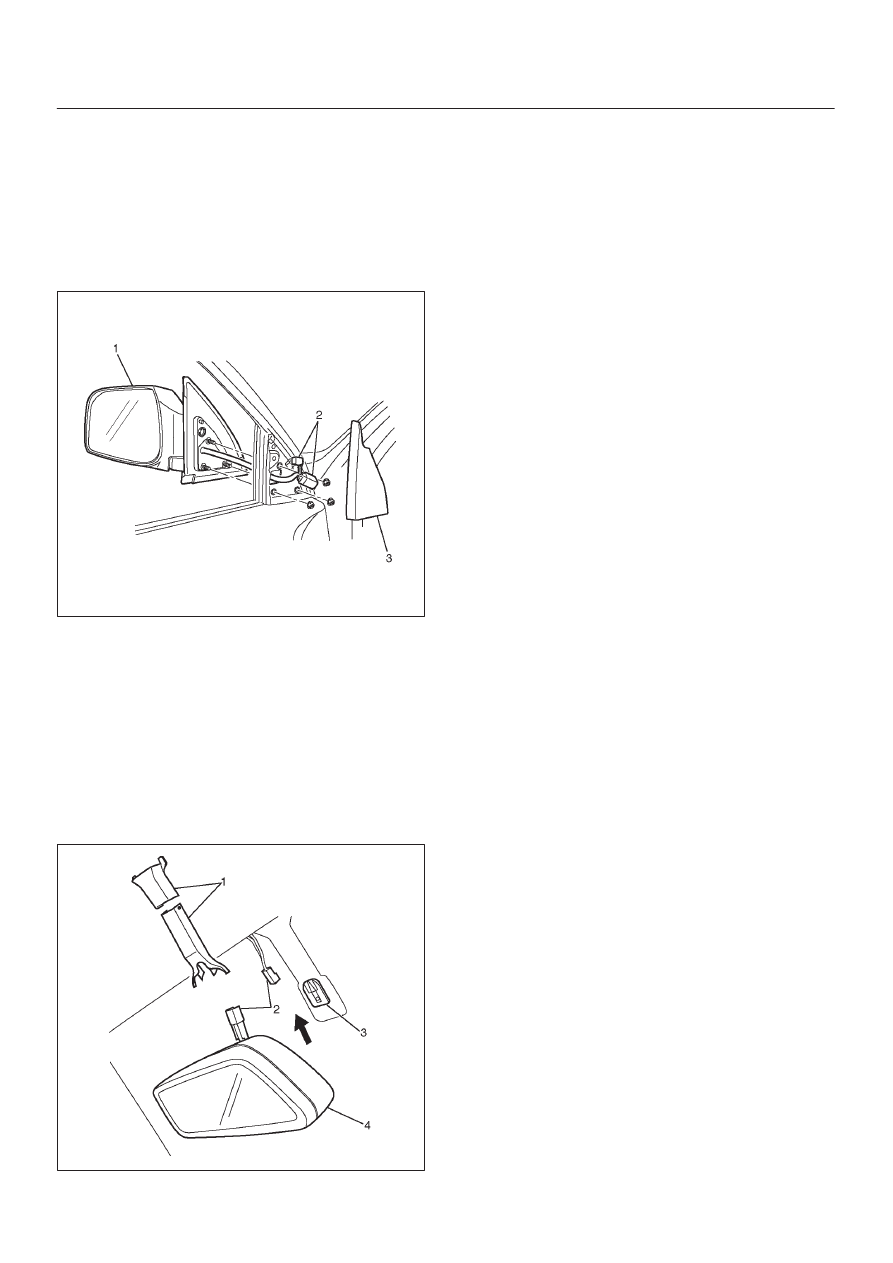

Door Mirror Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the door mirror cover (3).
3. Remove the door mirror assembly (1).

D

Remove the three nuts and disconnect the
connector (2).

635R200006

Installation

To install, follow the removal steps in the reverse order.

Interior Mirror Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the covers (1).
3. Remove the interior mirror assembly (4).

D

Pull the interior mirror up with the stay and remove
the interior mirror from the base (3).

D

Disconnect the connector (2).

720R200004

Installation

To install, follow the removal steps in the reverse order.

EXTERIOR/INTERIOR TRIM

8J–9

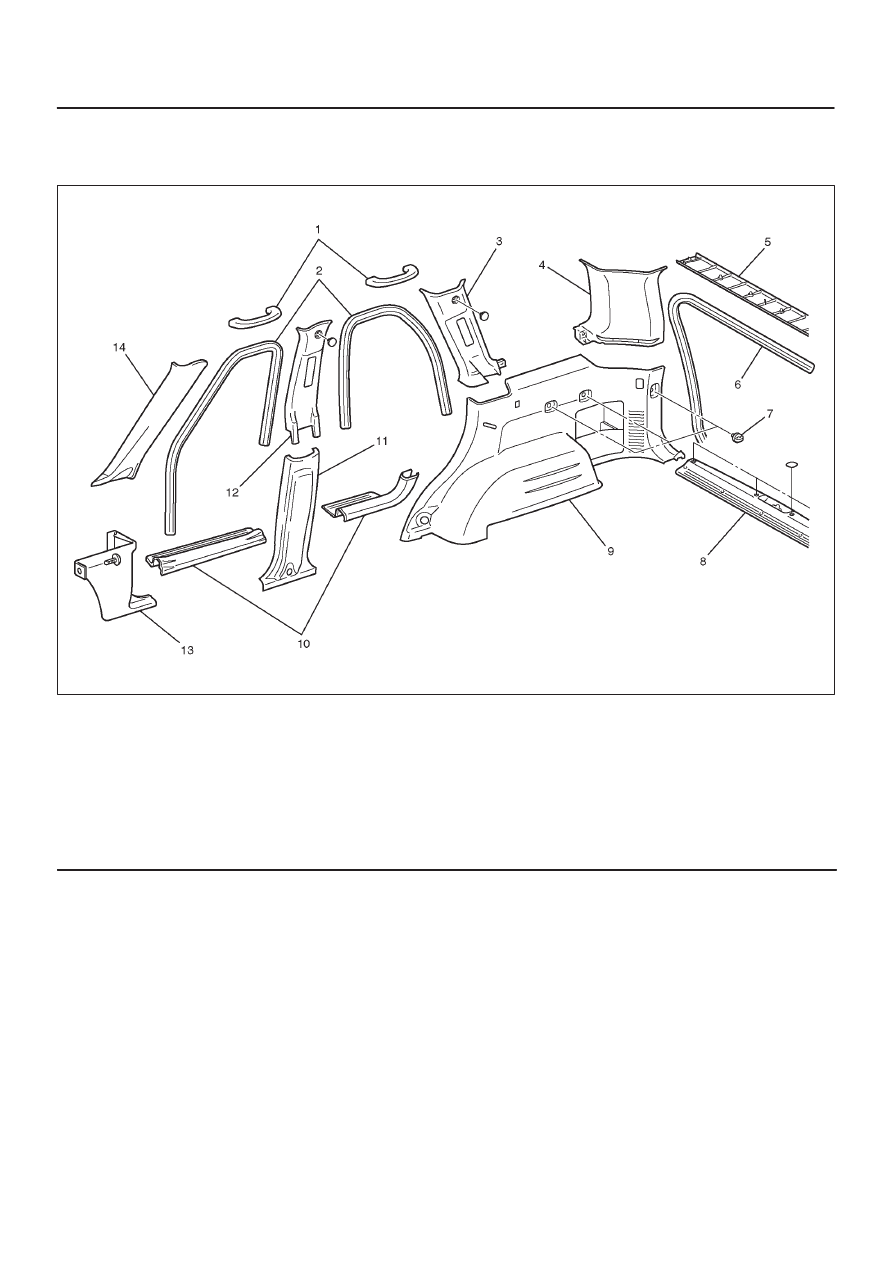

Interior Trim Panels

Interior Trim Panels and Associated Parts

643R200003

Legend

(1) Assist Grip (Front & Rear)
(2) Door Finisher (Front & Rear)
(3) Upper Quarter Pillar Trim Cover
(4) Upper Rear Pillar Trim Cover
(5) Rear Roof Trim Cover
(6) Tailgate Weather Strip
(7) Multi Hook

(8) Rear End Floor Trim Cover
(9) Lower Quarter Trim Cover

(10) Sill Plate (Front & Rear)

(11) Lower Center Pillar Trim Cover

(12) Upper Center Pillar Trim Cover
(13) Dash Side Trim Cover
(14) Front Pillar Trim Cover

Removal

1. Disconnect the battery ground cable.
2. Remove the sill plates (Front & Rear).
3. Remove the dash side trim cover.
4. Remove the lower center pillar trim cover.

D

Remove the lower anchor bolt cover and lower
anchor bolt from the front seat belt.

D

Pry the trim cover with the clips from the body panel.

5. Remove the door finishers (Front & Rear).

8J–10

EXTERIOR/INTERIOR TRIM

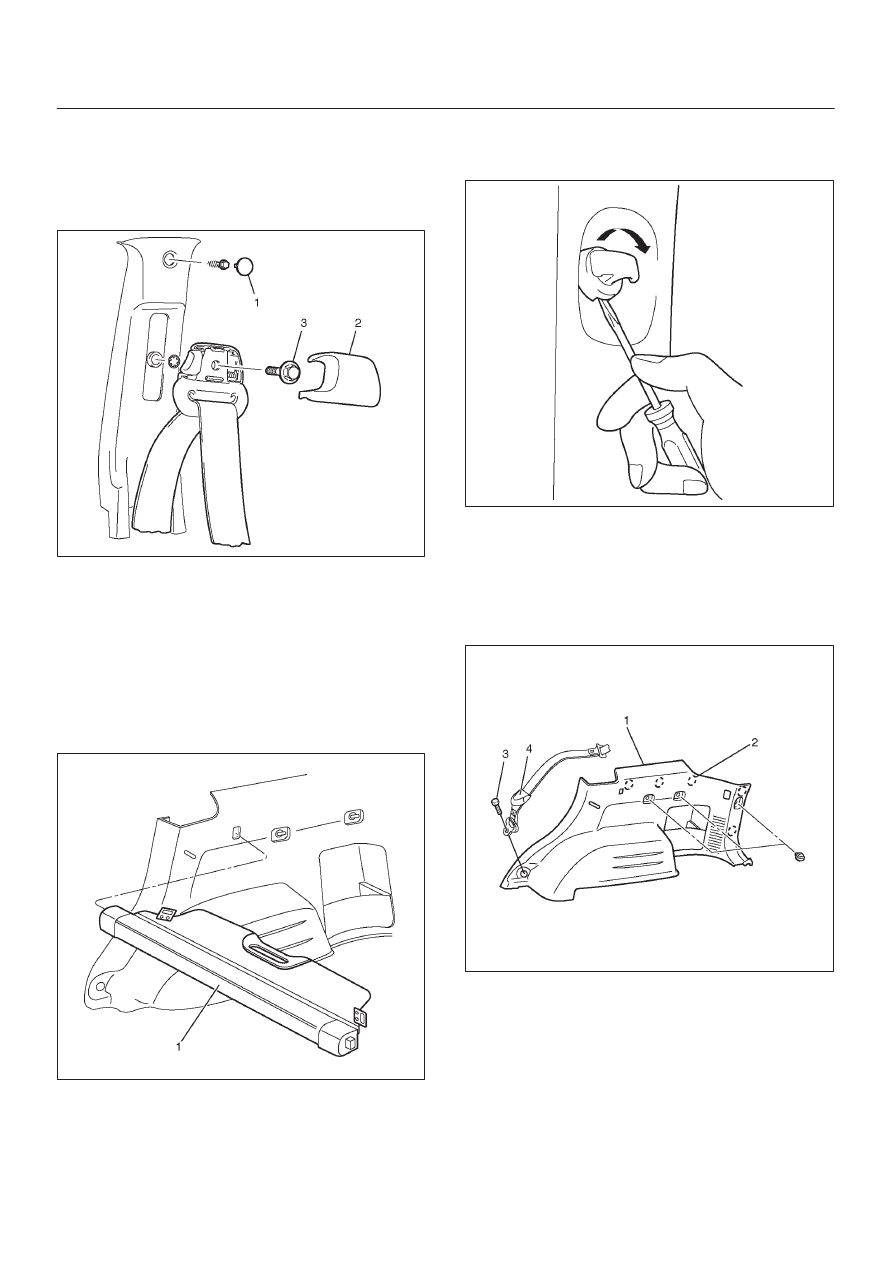

6. Remove the upper center pillar trim cover.

D

Remove the cover (1) and screw.

D

Remove the shoulder anchor cap (2) and upper
anchor bolt (3) from the front seat belt.

D

Pry the trim cover with the clip from the body panel.

760R200006

7. Remove the front pillar trim cover.

D

Ply the trim cover with the clips from the body panel.

8. Remove the tailgate weather strip.
9. Remove the rear end floor trim cover.

D

Remove the four screw cover and nine fixing
screws.

10. Remove the  rear roof trim cover.

D

Pry the trim cover with the clips from the body panel.

11. Remove the tonneau cover assembly (1).

643R200001

12. Remove the multi hooks.

D

While raising the notch of the hook with the
screwdriver, pull out the hook by turning 180

°

.

643R200004

13. Remove the lower quarter trim cover (1).

D

Remove the  lower anchor bolt cover (4) and the
lower anchor bolt (3) from the rear seat belt.

D

Pull the trim cover at the five clip positions (2).

D

Disconnect the accessory socket connectors (LH
side).

643R200006

14. Remove the upper quarter pillar trim cover (1).

D

Remove the cover and screw, pull the trim cover at
the two clip positions (2).

D

Remove the shoulder anchor cap (4) and upper
anchor bolt (3) from the rear seat belt.
