EXTERIOR/INTERIOR TRIM

8J–3

Consoles

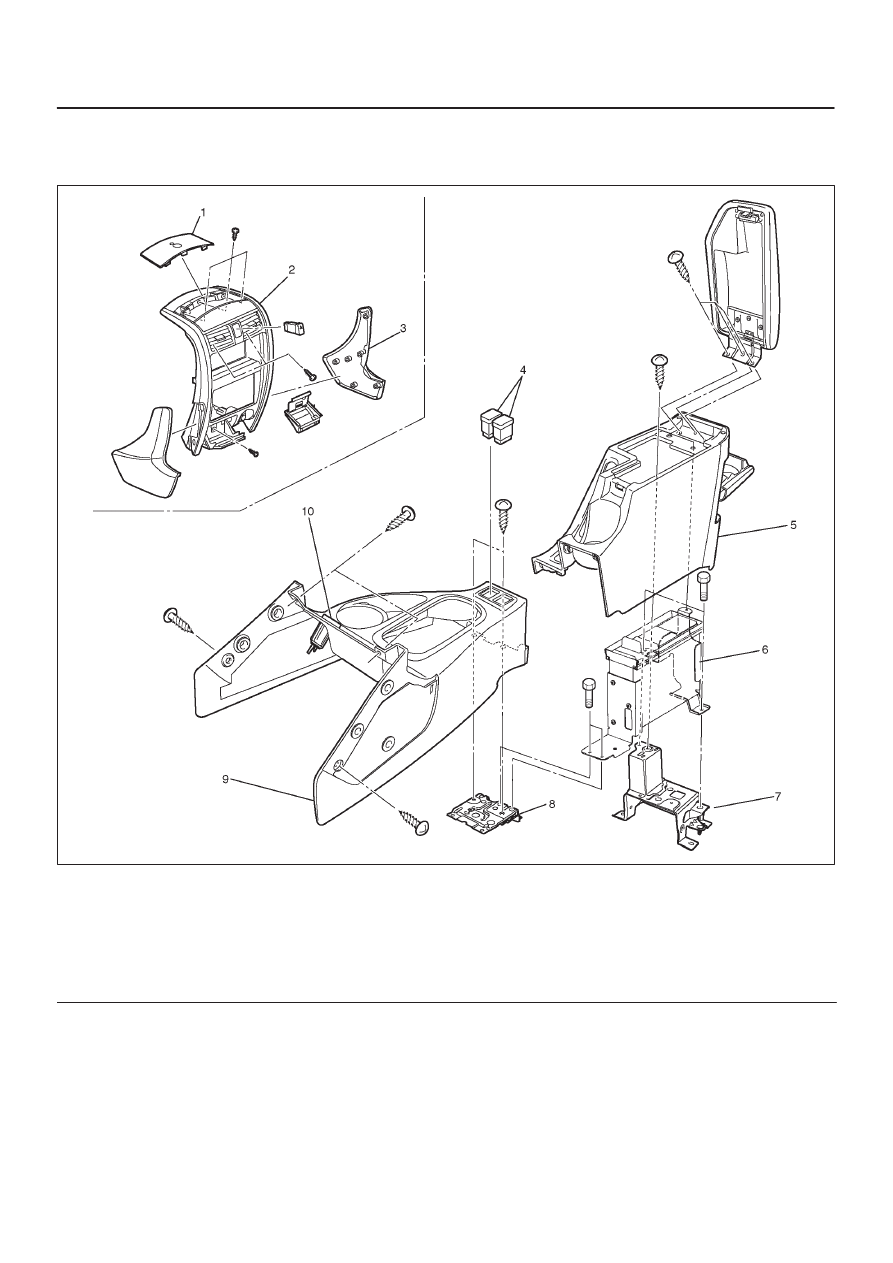

Consoles and Associated Parts

745R200005

Legend

(1) Cluster Upper Cover
(2) Center Cluster
(3) Knee Pad
(4) Seat Heater Switch (Required Option)
(5) Rear Console Assembly

(6) CD Changer
(7) Rear Console Bracket
(8) Front Console Bracket
(9) Front Console Assembly

(10) Accessory Socket

Removal

1. Disconnect the battery ground cable.
2. Remove the cluster upper cover and connectors.
3. Pry the knee pads.
4. Remove the center cluster.

D

Remove the six screws and pull out the center
cluster at the six clip positions.

D

Disconnect the connectors.

5. Remove the rear console assembly.

D

Open the rear console lid and remove two screws.

6. Remove the front console assembly.

D

Remove six fixing screws and disconnect the
accessory socket connectors.

D

Disconnect the seat heater switch connectors (if so
equipped).

8J–4

EXTERIOR/INTERIOR TRIM

7. Remove the CD changer.

D

Remove the four fixing bolts and the connector.

Installation

To install, follow the removal steps in the reverse order.

Front Door Trim Panel

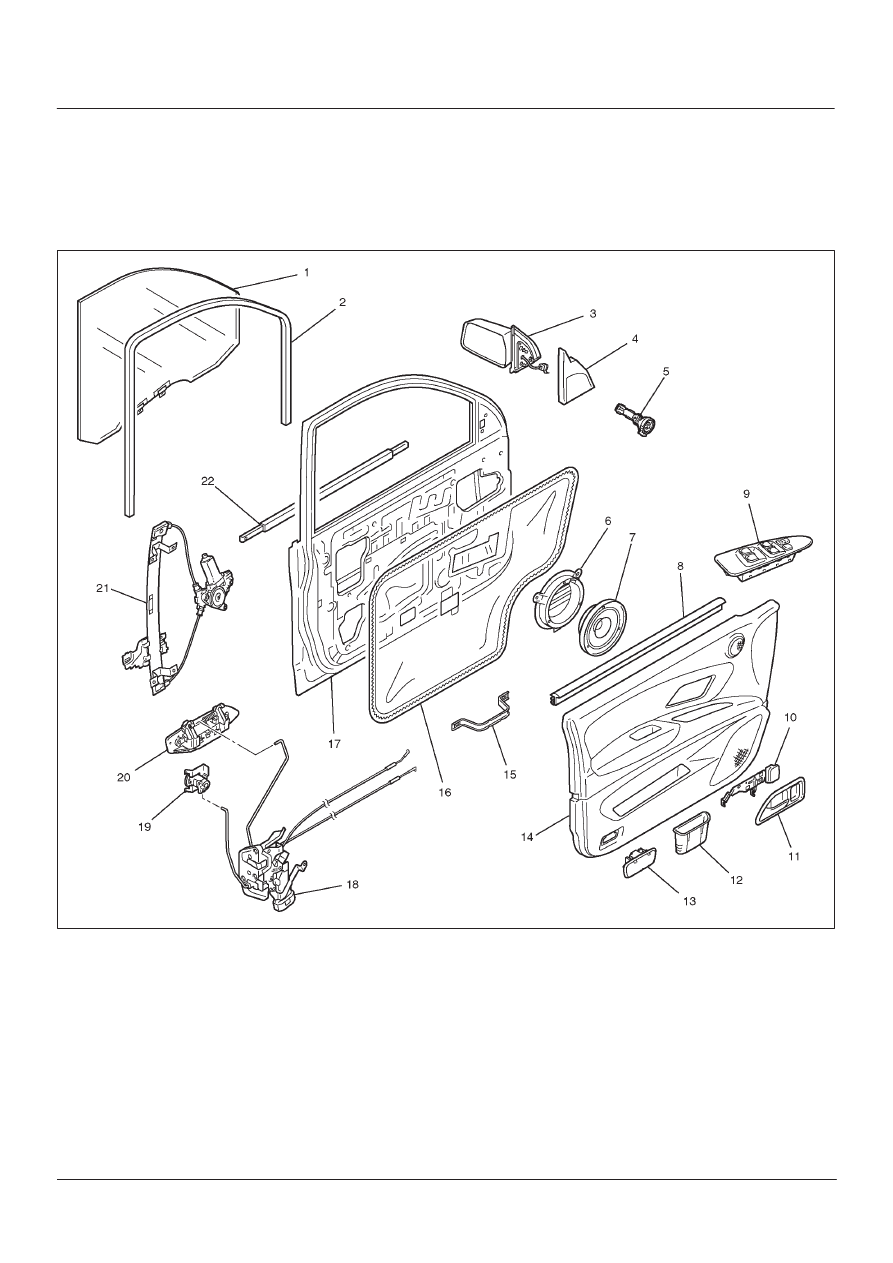

Front Door Trim Panel and Associated Parts

635R200012

Legend

(1) Glass
(2) Glass Run
(3) Door Mirror Assembly
(4) Door Mirror Cover
(5) Tweeter
(6) Speaker Spacer
(7) Speaker Assembly
(8) Inner Waist Seal
(9) Door Trim Panel

(10) Power Window Switch

(11) Inside Lock Bracket

(12) Inside Handle
(13) Pull Box
(14) Courtesy Light
(15) Pull Box Bracket
(16) Waterproof Sheet
(17) Front Door Panel
(18) Door Lock Assembly
(19) Door Lock Cylinder
(20) Outside Handle
(21) Power Window Regulator
(22) Outer Waist Seal

EXTERIOR/INTERIOR TRIM

8J–5

Removal

1. Disconnect the battery ground cable.

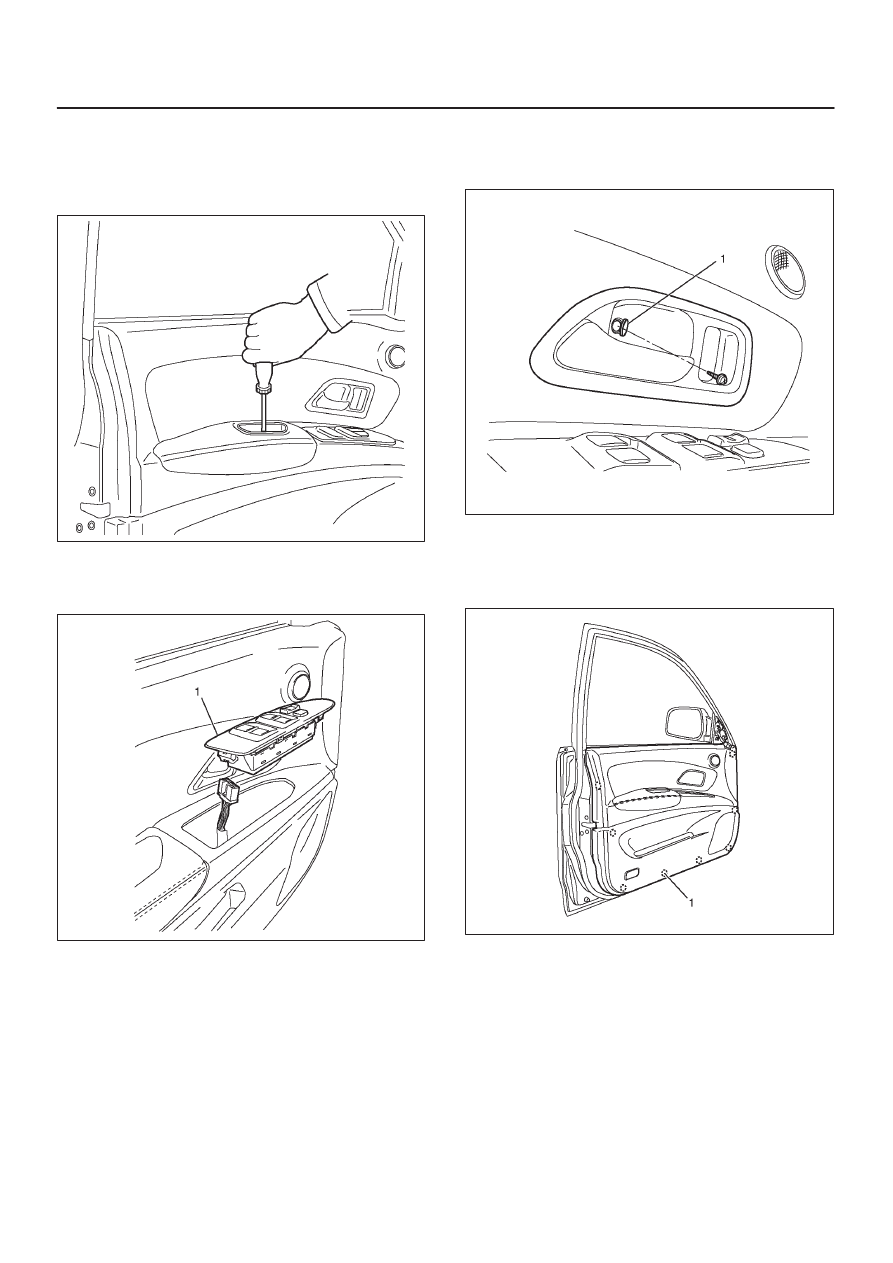

2. Remove the pull box.

D

Remove the one fixing screw.

635R200004

3. Remove the power window switch (1).

D

Pry the power window switch out and disconnect
the switch connector.

635R200002

4. Remove the inside handle.

D

Open the screw cover (1) and remove the screw.

D

Disconnect the cable.

635R200003

5. Remove the door mirror cover.
6. Remove the door trim panel.

D

Remove the trim panel with the eight clips (1) from
the door panel.

635R200005

D

Disconnect the tweeter and courtesy light
connectors.

7. Remove the inner waist seal.
8. Remove the courtesy light.
9. Remove the tweeter.

Installation

To install, follow the removal steps in the reverse order.

8J–6

EXTERIOR/INTERIOR TRIM

Rear Door Trim Panel

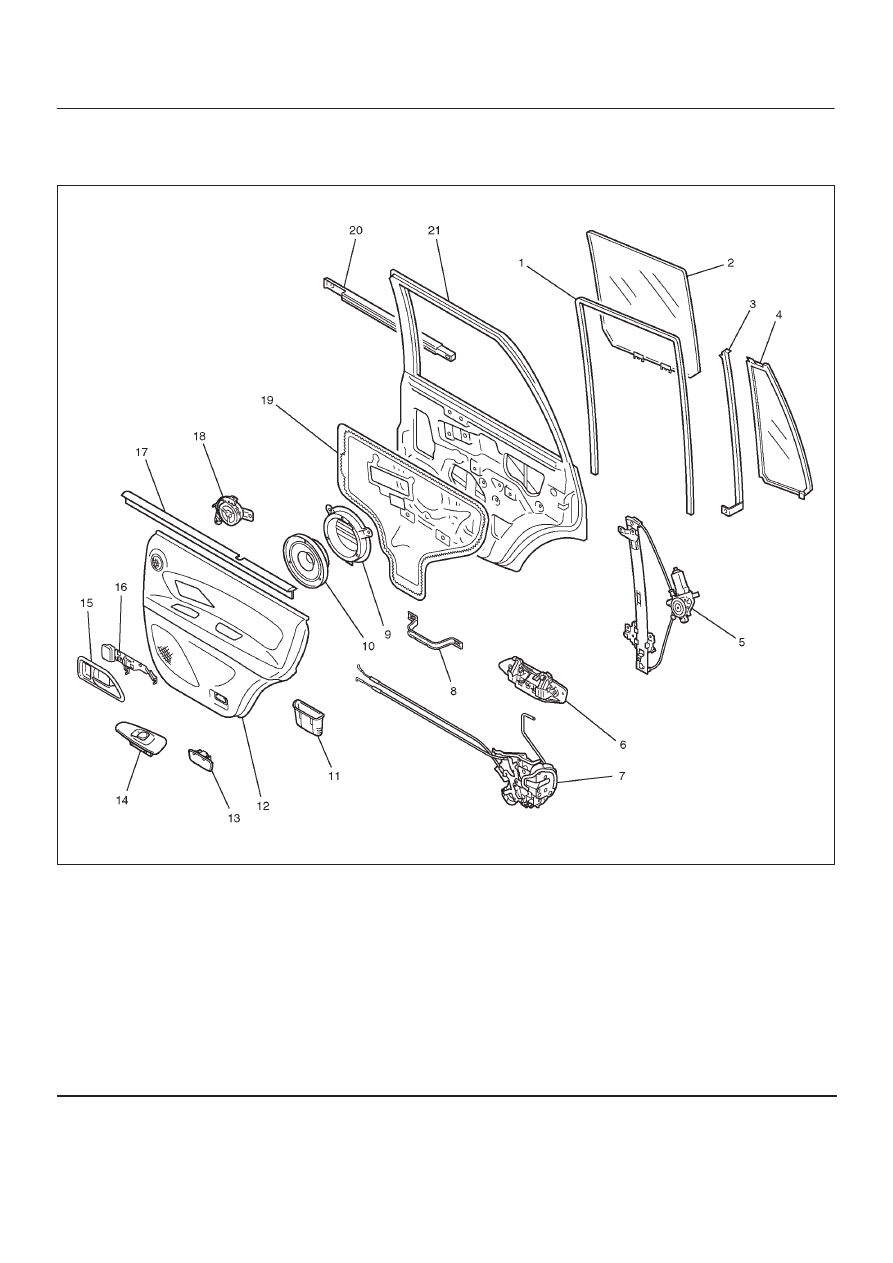

Rear Door Trim Panel and Associated Parts

655R200009

Legend

(1) Glass Run
(2) Glass
(3) Division Bar
(4) Fix Window Glass
(5) Power Window Regulator
(6) Outside Handle
(7) Door Lock Assembly
(8) Pull Box Bracket
(9) Speaker Spacer

(10) Speaker

(11) Pull Box

(12) Door Trim Panel
(13) Courtesy Light
(14) Power Window Switch
(15) Inside Handle
(16) Inside Lock Bracket
(17) Inner Waist Seal
(18) Tweeter
(19) Waterproof Sheet
(20) Outer Waist Seal
(21) Rear Door Panel
