8I–4

SUN ROOF/CONVERTIBLE TOP

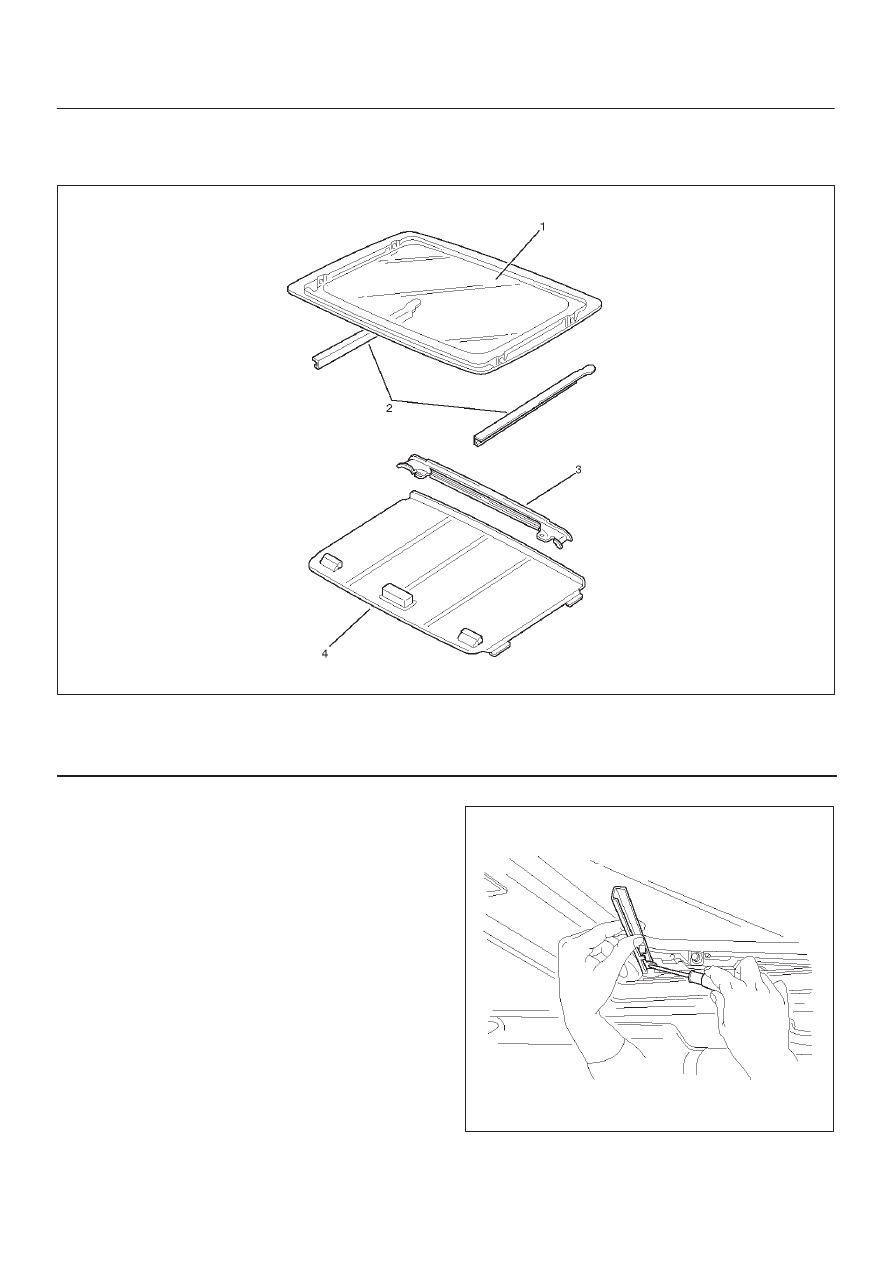

Sunshade

Disassembled View

665RW012

Legend

(1) Sunroof Glass
(2) Sight Shield

(3) Sunshade Stopper
(4) Sunshade

Removal

1. Tilt the sunroof.
2. Disconnect the battery ground cable.
3. Remove the sunroof glass.

D

Refer to Sunroof Glass in this section.

4. Pull the sight shield upward using screwdriver.

665RW006

SUN ROOF/CONVERTIBLE TOP

8I–5

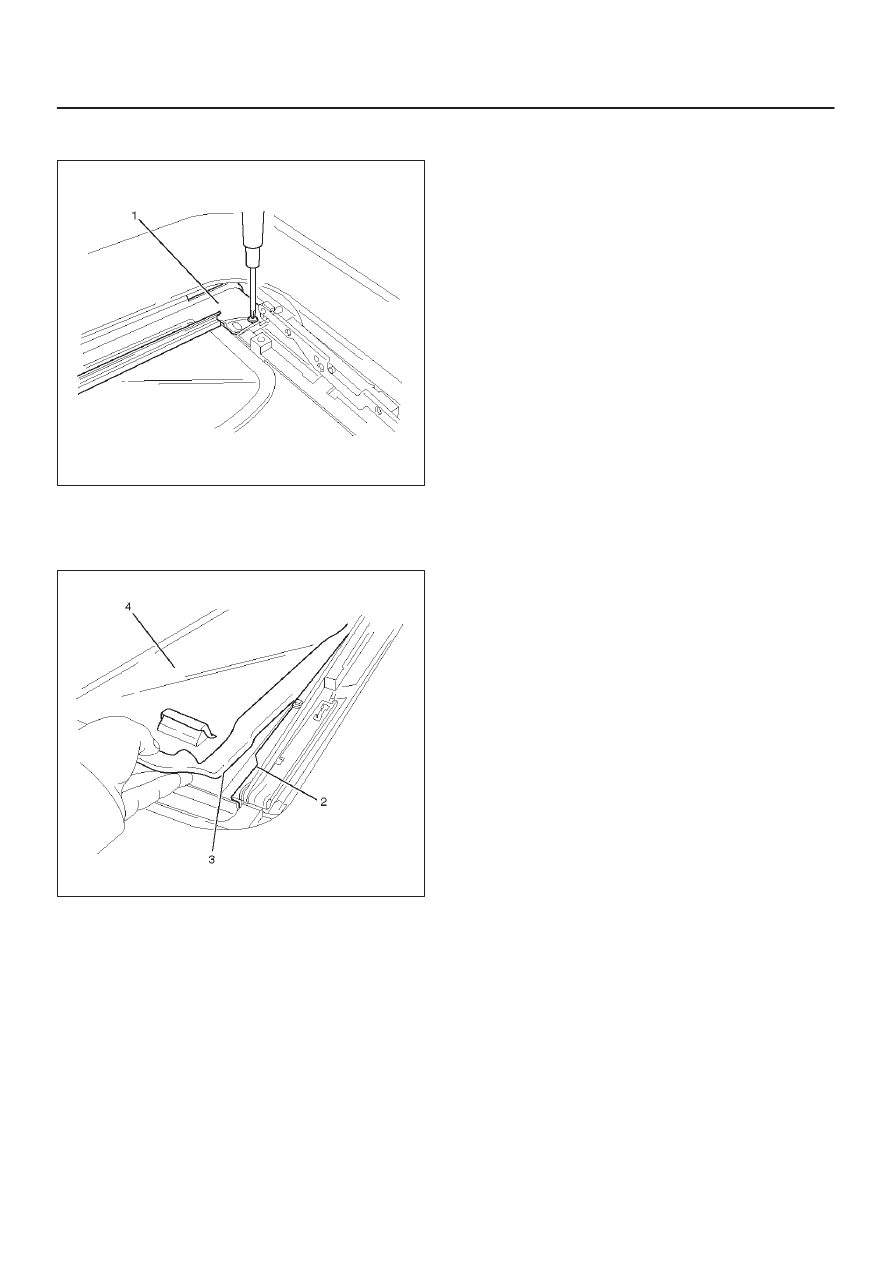

5. Remove 2 sunshade stopper fixing screws and

remove sunshade stopper (1).

665RW007

6. Pull out the sunshade (4) up to the guide rail edge. Lift

the front of sunshade and clear the projection (3) of
sunshade through the notch (2) of guide rail edge,
then draw the sunshade out of the roof.

665RW009

Installation

To install, follow the removal steps in the reverse order.

8I–6

SUN ROOF/CONVERTIBLE TOP

Sunroof Frame Complete Assembly

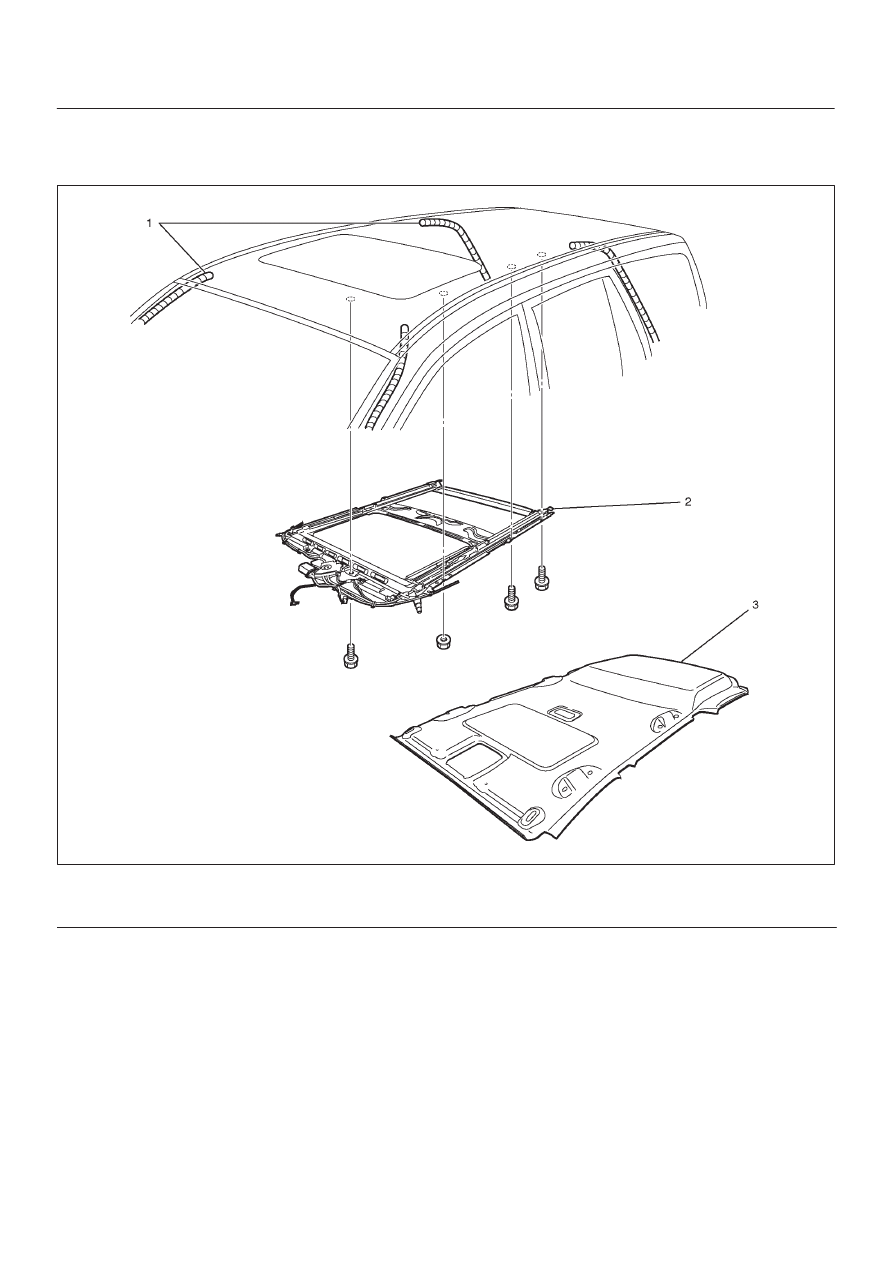

Sunroof Frame Complete Assembly and Associated Parts

665R200005

Legend

(1) Sunroof Drain Hose

(2) Sunroof Frame Complete Assembly
(3) Headlining

Removal

1. Disconnect the battery ground cable.
2. Remove the headlining.

D

Refer to Headlining in Exterior/Interior Trim section.

SUN ROOF/CONVERTIBLE TOP

8I–7

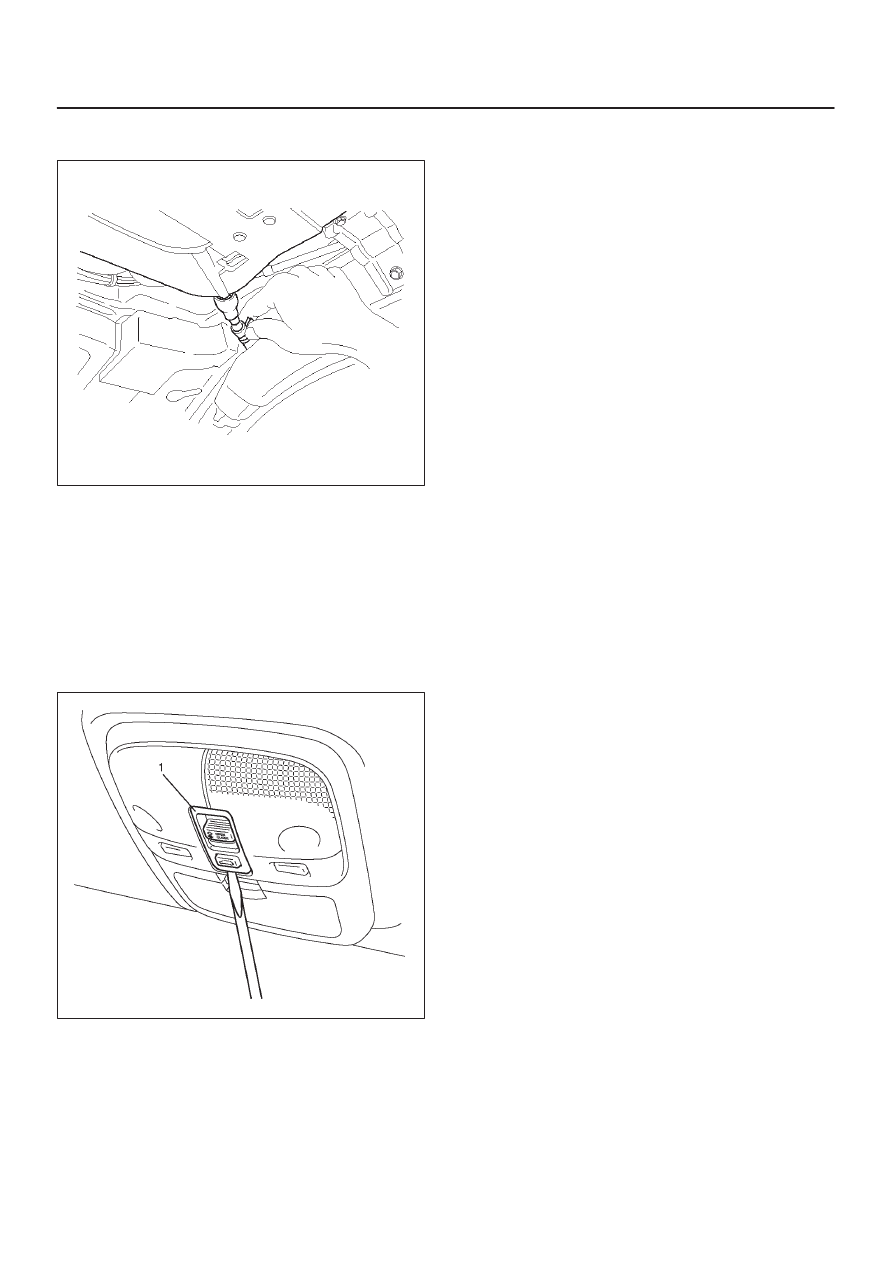

3. Disconnect the sunroof drain hose at the sunroof

frame side as shown in the figure.

665RW010

4. Disconnect the sunroof harness connection.
5. Remove two sunroof frame assembly fixing nuts

(front side) and six fixing bolts from the frame
complete assembly, and then remove the sunroof
frame complete assembly.

NOTE: Be sure to remove the frame assembly while
supporting it.

Installation

1. Install the sunroof frame assembly.
2. After installing the frame assembly, loosen the

sunroof glass fixing nuts and adjust the sunroof glass
setting position.

D

Refer to Sunroof Glass in this section.

3. Install the sunroof drain hose.
4. Install the headlining.

D

Refer to Headlining in Exterior/Interior Trim section.

Sunroof Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the sunroof switch (1).

D

Remove the switch by pushing the spring with the
tip of a screwdriver.

D

Disconnect the switch connector.

825R200021

Installation

To install, follow the removal steps in the reverse order.
