SECURITY AND LOCKS

8H–19

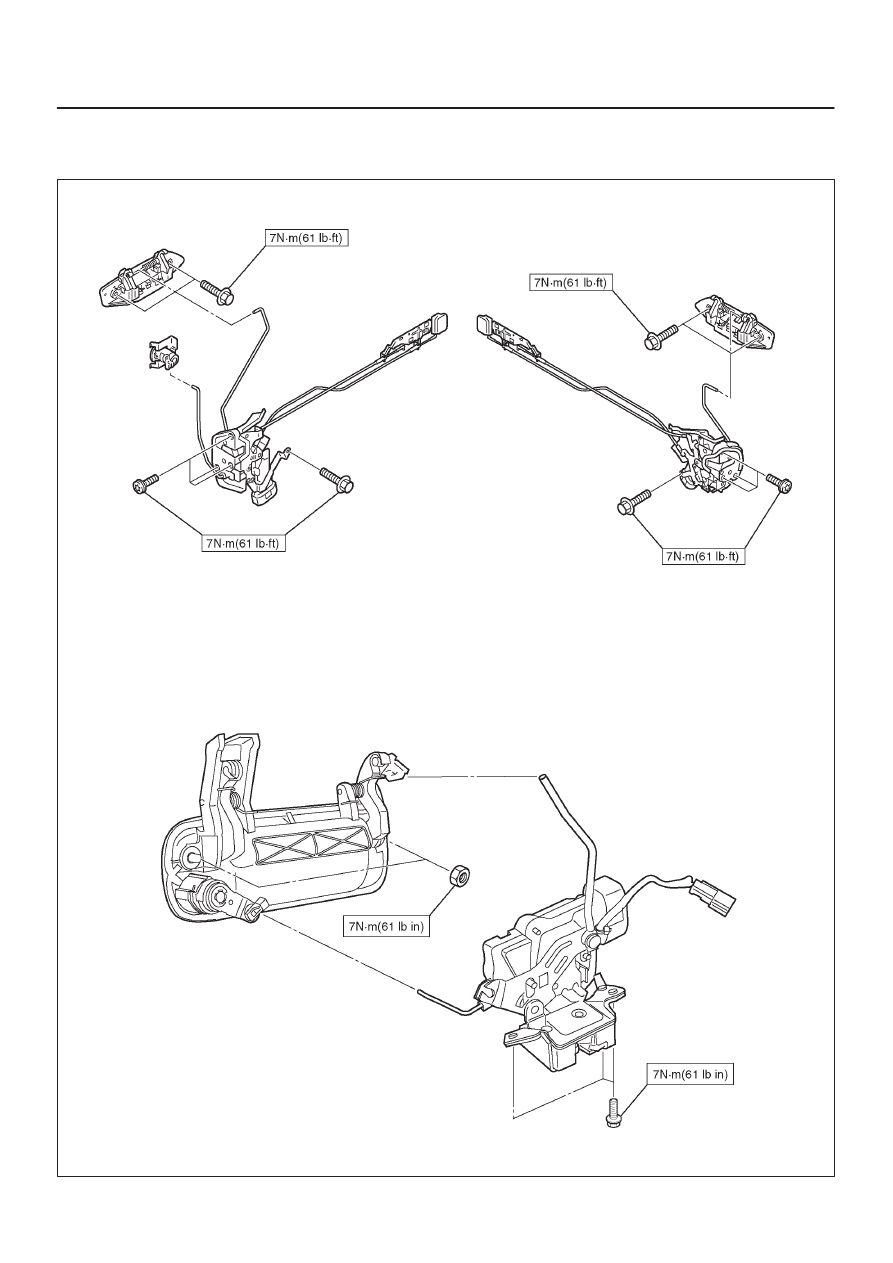

Main Data and Specifications

Torque Specifications

635R200011

SUN ROOF/CONVERTIBLE TOP

8I–1

AXIOM

BODY AND ACCESSORIES

SUNROOF/CONVERTIBLE TOP

CONTENTS

Service Precaution

8I–1

. . . . . . . . . . . . . . . . . . . . . .

Sunroof Glass

8I–2

. . . . . . . . . . . . . . . . . . . . . . . . . .

Sunroof Glass and Associated Parts

8I–2

. . . . .

Removal

8I–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunroof Deflector

8I–3

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8I–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunshade

8I–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View

8I–4

. . . . . . . . . . . . . . . . . . . .

Removal

8I–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunroof Frame Complete Assembly

8I–6

. . . . . . .

Sunroof Frame Complete Assembly and
 Associated Parts

8I–6

. . . . . . . . . . . . . . . . . . . . . .

Removal

8I–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunroof Switch

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunroof Control Unit

8I–8

. . . . . . . . . . . . . . . . . . . . .

Removal

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sunroof Motor

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8I–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8I–9

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE  SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications.  Following these
instructions can help you avoid damage to parts and
systems.

SECTION

8I–2

SUN ROOF/CONVERTIBLE TOP

Sunroof Glass

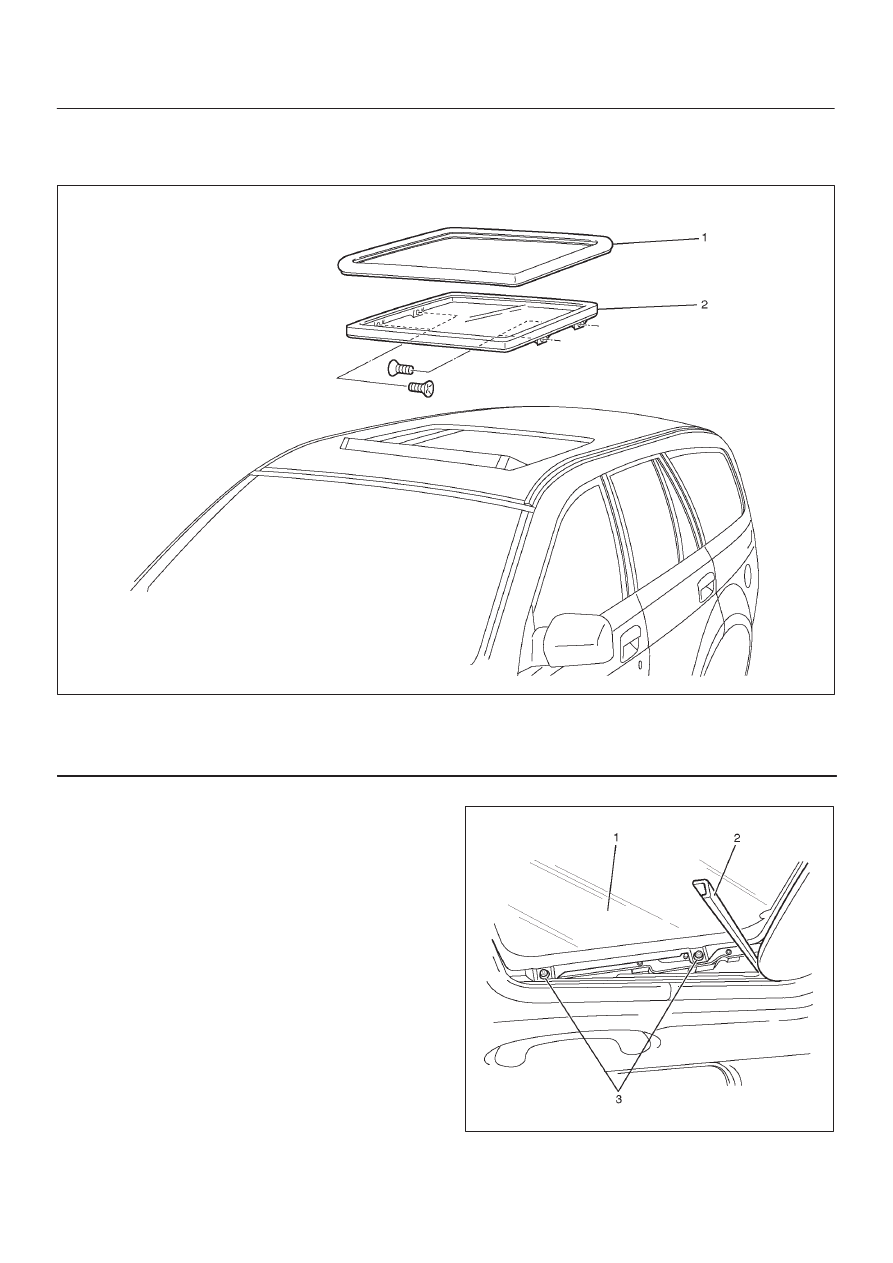

Sunroof Glass and Associated Parts

665R200003

Legend

(1) Sunroof Weatherstrip
(2) Sunroof Glass

Removal

1. Tilt the sunroof and open the sunshade.
2. Disconnect the battery ground cable.
3. Pull out the front of sight shield (2).
4. Remove four sunroof glass fixing Torx screws (3) to

remove the sunroof glass (1).

665R200004

SUN ROOF/CONVERTIBLE TOP

8I–3

Installation

1. Be sure to install the sunroof weatherstrip so that the

joint of the weatherstrip is on the rear side of the
vehicle.

2. Temporary install the glass to the sunroof frame.
3. Open and shut the sunroof four to five times to

position correctly the sunroof weatherstrip and the
glass in the longitudinal and latitudinal setting
positions.

4. Adjust the setting position to flush the surface

between the roof panel and weatherstrip of sunroof
glass.

5. Tighten the sunroof glass fixing screws to the

specified torque.

Torque: 4 N·m (35 lb in)

6. Inspect the sunroof alignment after installing the

sunroof glass. Use the fixing screws to adjust the
sunroof if not aligned.

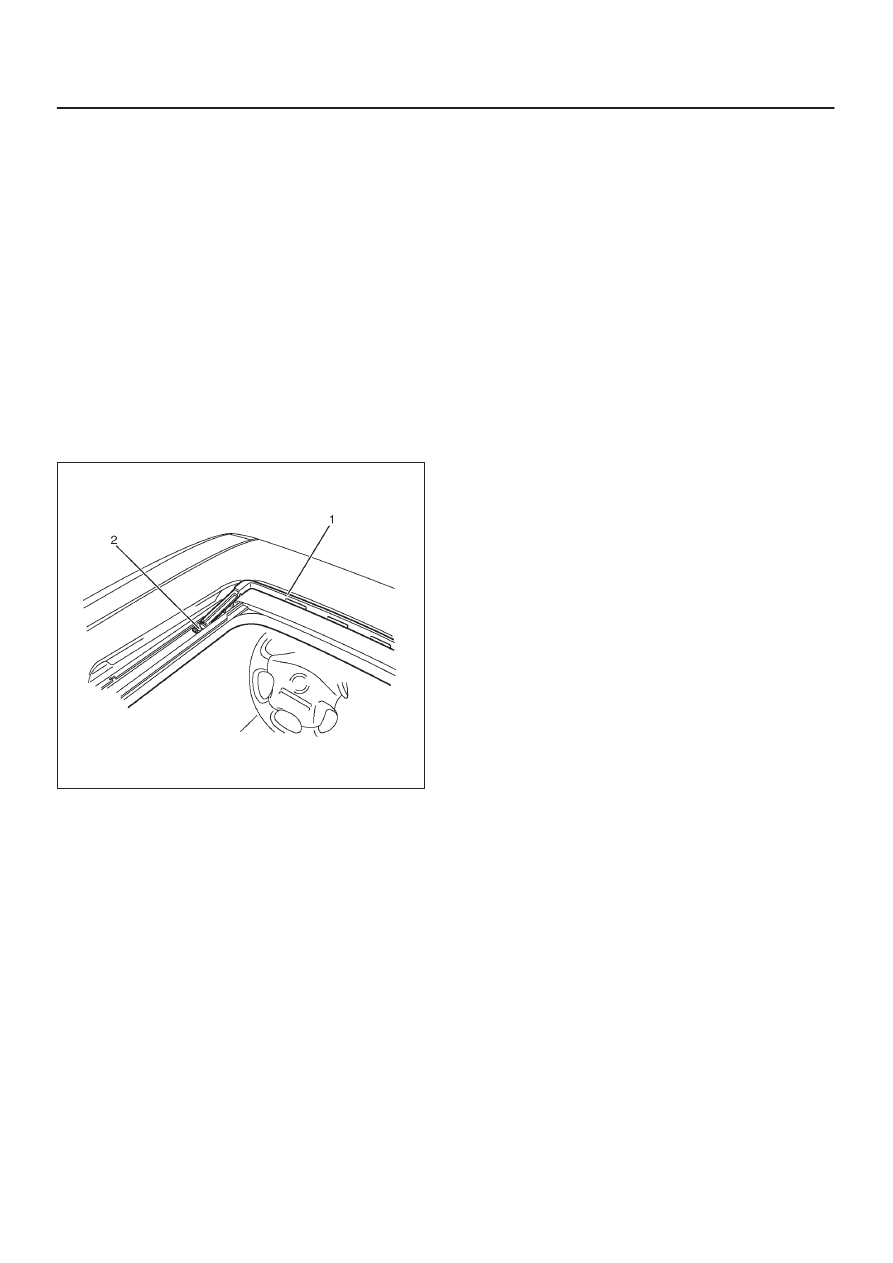

Sunroof Deflector

Removal

1. Open the sunroof.

D

Let a 5 mm (0.20 in) drill go through two blind rivets
(2) to disengage riveted portions.

2. Remove the sunroof deflector (1).

665R200001

Installation

To install, follow the removal steps in the reverse order.
