8I–8

SUN ROOF/CONVERTIBLE TOP

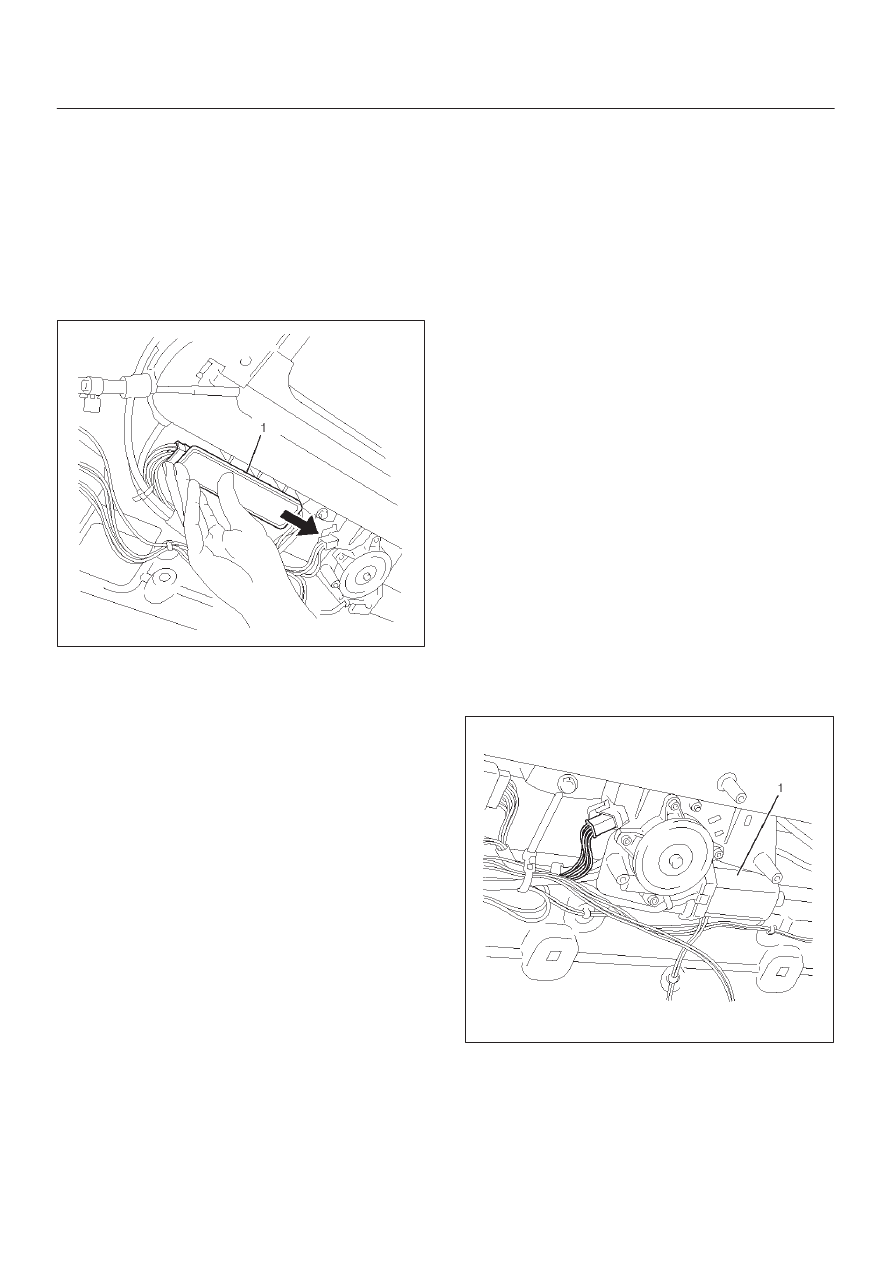

Sunroof Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the headlining.

D

Refer to Headlining in Exterior/Interior Trim section.

3. Remove the sunroof control unit (1).

D

Disconnect two connectors.

D

Remove two screws.

665RW013

Installation

To install, follow the removal steps in the reverse order.

Sunroof Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the headlining.

D

Refer to Headlining in Exterior/Interior Trim section.

3. Remove the sunroof motor (1).

D

Disconnect the connector.

D

Remove three nuts and two screws.

665RW014

Installation

To install, follow the removal steps in the reverse order.

SUN ROOF/CONVERTIBLE TOP

8I–9

Main Data and Specifications

Torque Specification

Application

N·m

lb ft

lb in

Sunroof Glass Fixing Screws

4

—

35

Sunroof Frame Fixing Bolts and Nuts

8

—

69

EXTERIOR/INTERIOR TRIM

8J–1

AXIOM

BODY AND ACCESSORIES

EXTERIOR / INTERIOR TRIM

CONTENTS

Service Precaution

8J–2

. . . . . . . . . . . . . . . . . . . . . .

Consoles

8J–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Consoles and Associated Parts

8J–3

. . . . . . . . .

Removal

8J–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Door Trim Panel

8J–4

. . . . . . . . . . . . . . . . . . .

Front Door Trim Panel and Associated
 Parts

8J–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Trim Panel

8J–6

. . . . . . . . . . . . . . . . . . . .

Rear Door Trim Panel and Associated
 Parts

8J–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Door Mirror Assembly

8J–8

. . . . . . . . . . . . . . . . . . . .

Removal

8J–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Interior Mirror Assembly

8J–8

. . . . . . . . . . . . . . . . . .

Removal

8J–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Interior Trim Panels

8J–9

. . . . . . . . . . . . . . . . . . . . . .

Interior Trim Panels and Associated Parts

8J–9

Removal

8J–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlining

8J–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8J–12

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overhead Console

8J–14

. . . . . . . . . . . . . . . . . . . . . .

Parts Location (W/O Sunroof)

8J–14

. . . . . . . . . . .

Removal

8J–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location (W/ Sunroof)

8J–15

. . . . . . . . . . . . .

Removal

8J–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wheel Arch Cover

8J–16

. . . . . . . . . . . . . . . . . . . . . . .

Wheel Arch Cover and Associated Parts

8J–16

. .

Removal

8J–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Locker Cover

8J–17

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Locker Cover and Associated Parts

8J–17

. . . . . .

Removal

8J–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filler Door

8J–18

. . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8J–18

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Roof Moulding

8J–19

. . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8J–19

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Door Mirror System

8J–20

. . . . . . . . . . . . . . .

General Description

8J–20

. . . . . . . . . . . . . . . . . . . . .

Door Mirror Switch

8J–20

. . . . . . . . . . . . . . . . . . . . .

Power Window System

8J–21

. . . . . . . . . . . . . . . . . .

General Description

8J–21

. . . . . . . . . . . . . . . . . . . . .

Power Window Switch Driver Seat Side

8J–21

. .

Power Window Motor

8J–22

. . . . . . . . . . . . . . . . . .

Main Data and Specifications

8J–23

. . . . . . . . . . . . .

SECTION

8J–2

EXTERIOR/INTERIOR TRIM

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE  SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications.  Following these
instructions can help you avoid damage to parts and
systems.
