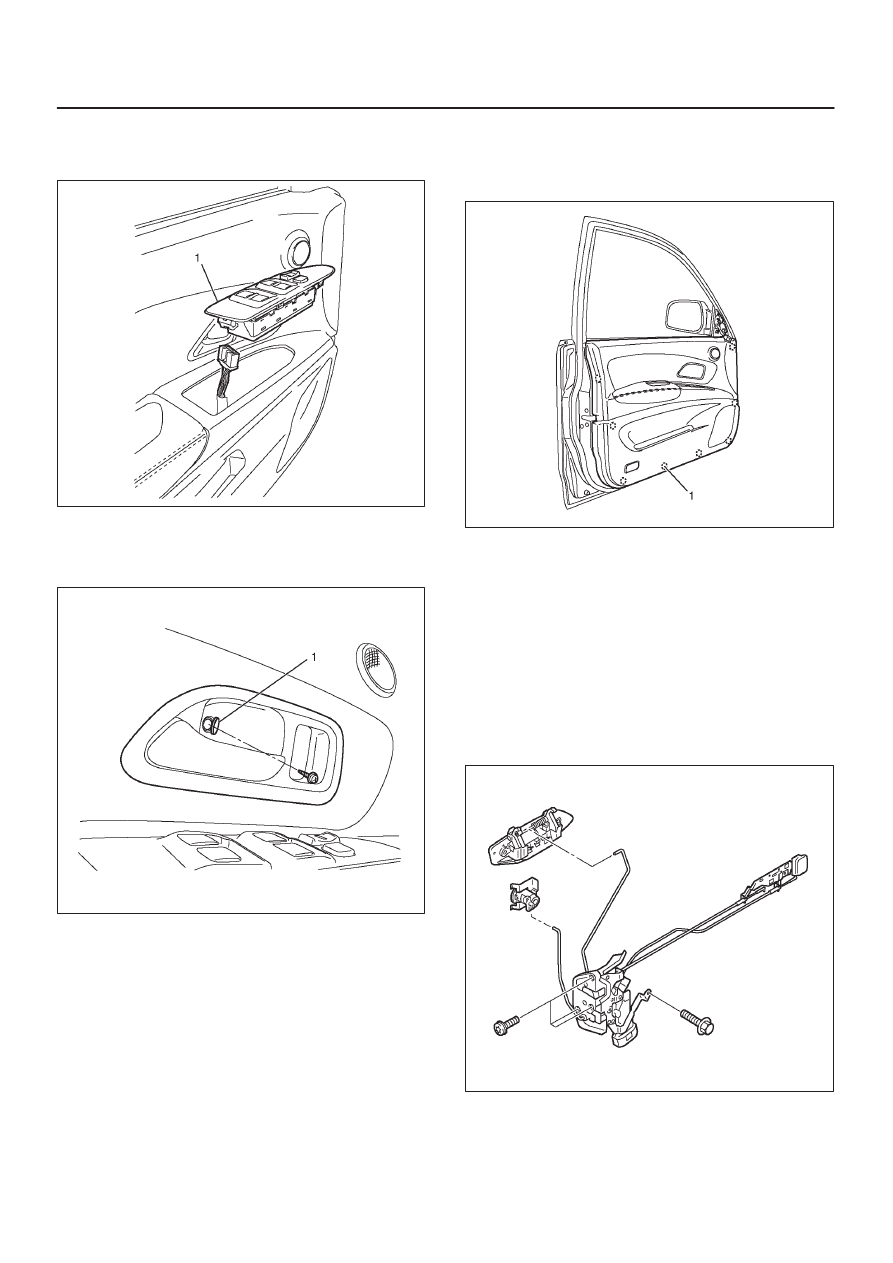

3. Remove the power window switch (1).

D

Pry the power window switch and remove the
connector.

635R200002

4. Remove the inside handle.

D

Open the screw corer (1) and remove the screw.

D

Disconnect the cable.

635R200003

5. Remove the door mirror cover.
6. Pull the door trim panel at the 8 clip positions (1).

D

Disconnect the courtesy light and tweeter harness
connectors.

635R200005

7. Remove the pull box bracket.
8. Remove the inside lock bracket.

D

Disconnect the cable.

9. Remove the waterproof sheet.

D

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.

10. Raise the glass up to the uppermost position.

11. Remove the door lock assembly.

D

Disconnect the locking links and harness
connector.

D

Remove the 3 fixing Torx screws and bolt.

632R200001

8H–4

SECURITY AND LOCKS

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply chassis grease to the lock assembly and striker

moving surface.

2. Tighten the door lock assembly fixing screws to the

specified torque.

Torque 7 N·m (61 Ib in)

3. Check that the door lock operates smoothly.

SECURITY AND LOCKS

8H–5

Front Outside Handle

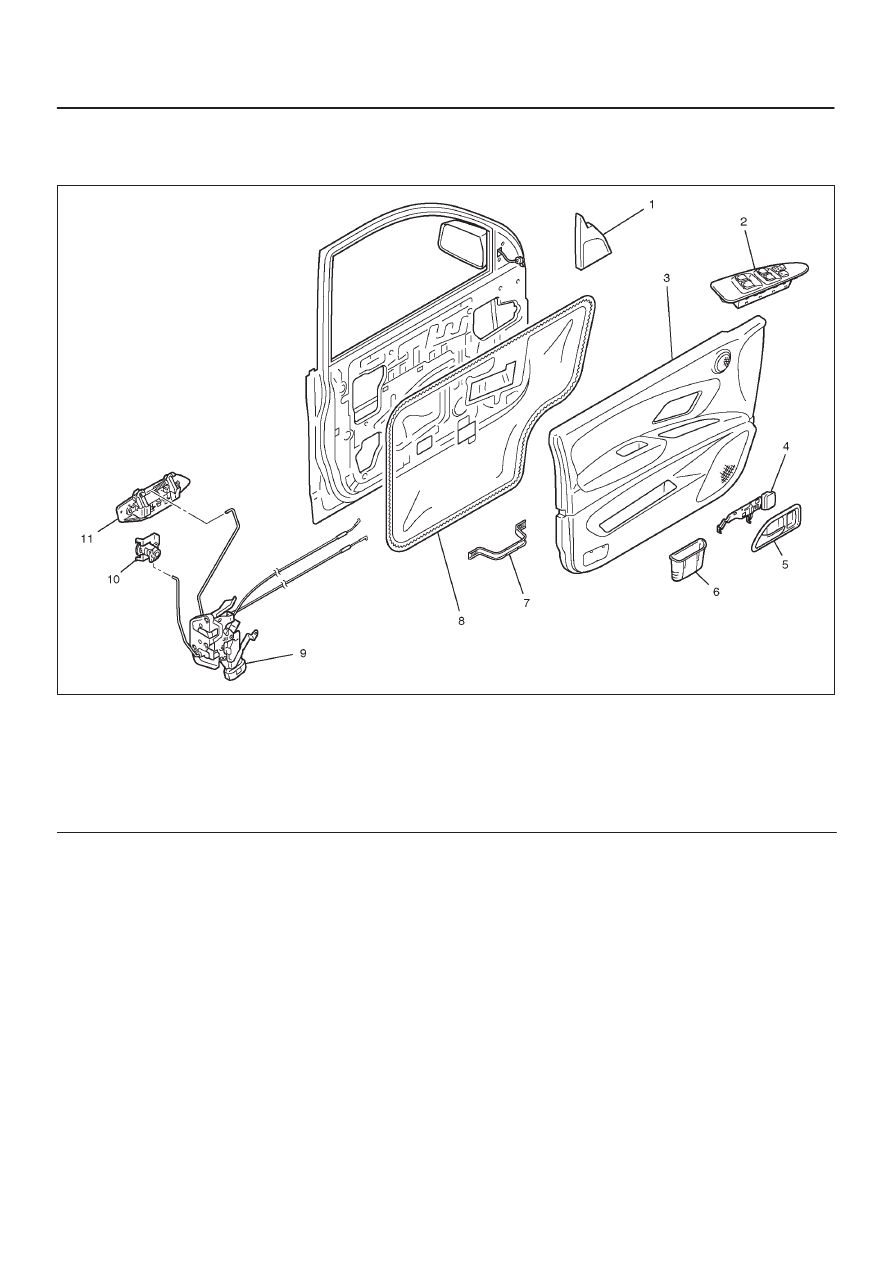

Front Outside Handle and Associated Parts

635R200008

Legend

(1) Door Mirror Cover
(2) Power Window Switch
(3) Door Trim Panel
(4) Inside Lock Bracket
(5) Inside Handle

(6) Pull Box
(7) Pull Box Bracket
(8) Waterproof Sheet
(9) Door Lock Assembly

(10) Door Locking Cylinder

(11) Outside Handle

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel.

D

Refer to

Front Door Lock Assembly in this section.

3. Remove the waterproof sheet.

D

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.

4. Disconnect the locking links and remove the outside

handle.

5. Remove the fixing clip to remove the door lock

cylinder.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Be sure to install the door lock cylinder at a specified

angle to the outside handle.

2. Check for smooth outside handle and lock cylinder

operation.

3. Tighten the outside handle fixing bolts to the specified

torque.

Torque 7 N·m (61 Ib in)

8H–6

SECURITY AND LOCKS

Rear Door Lock Assembly

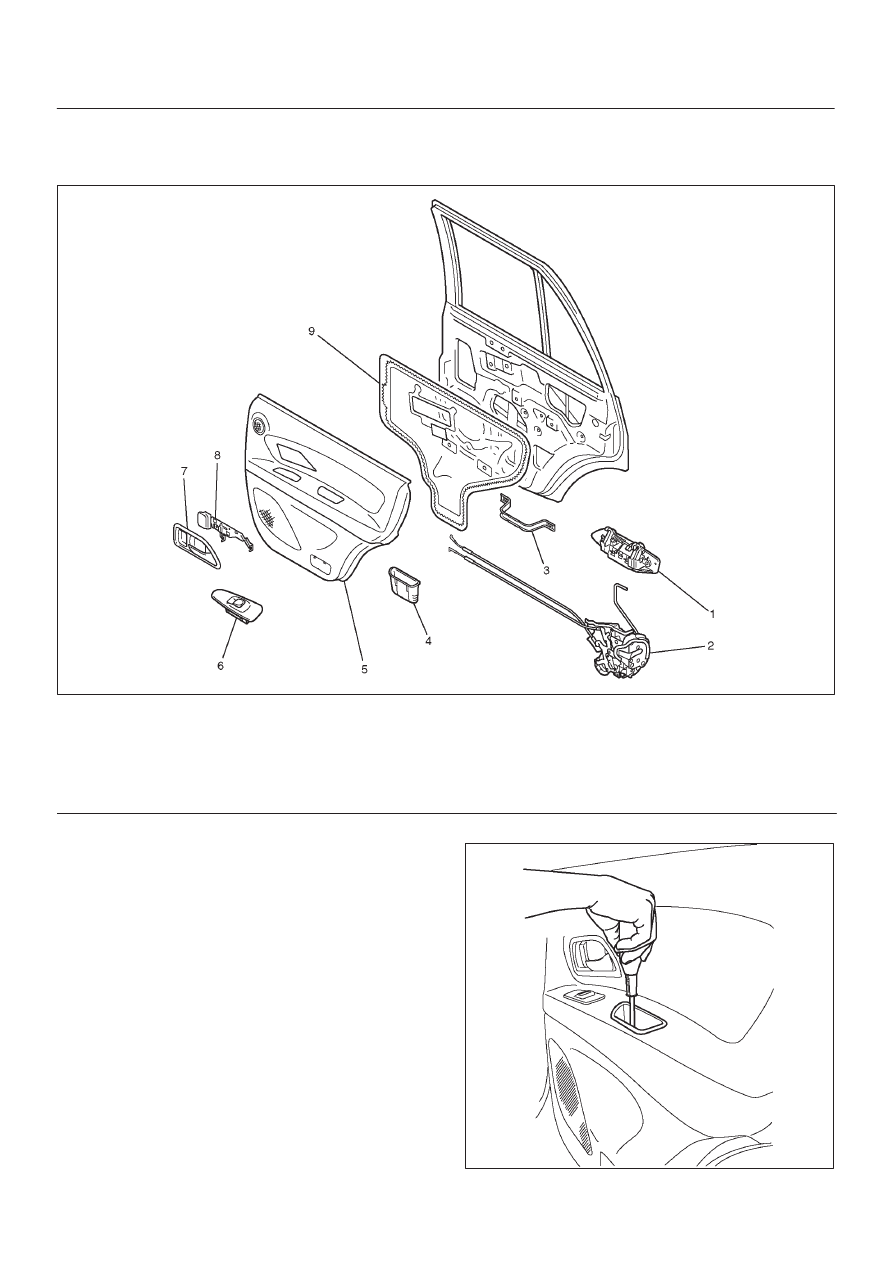

Rear Door Lock Assembly and Associated Parts

655R200007

Legend

(1) Outside Handle
(2) Door Lock Assembly
(3) Pull Box Bracket
(4) Pull Box

(5) Door Trim Panel
(6) Power Window Switch
(7) Inside Handle
(8) Inside Lock Bracket
(9) Waterproof Sheet

Removal

1. Disconnect the battery ground cable.
2. Remove the pull box.

D

Remove the fixing screw.

655R200003
