Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 488

SEATS 8G–11

Main Data and Specifications

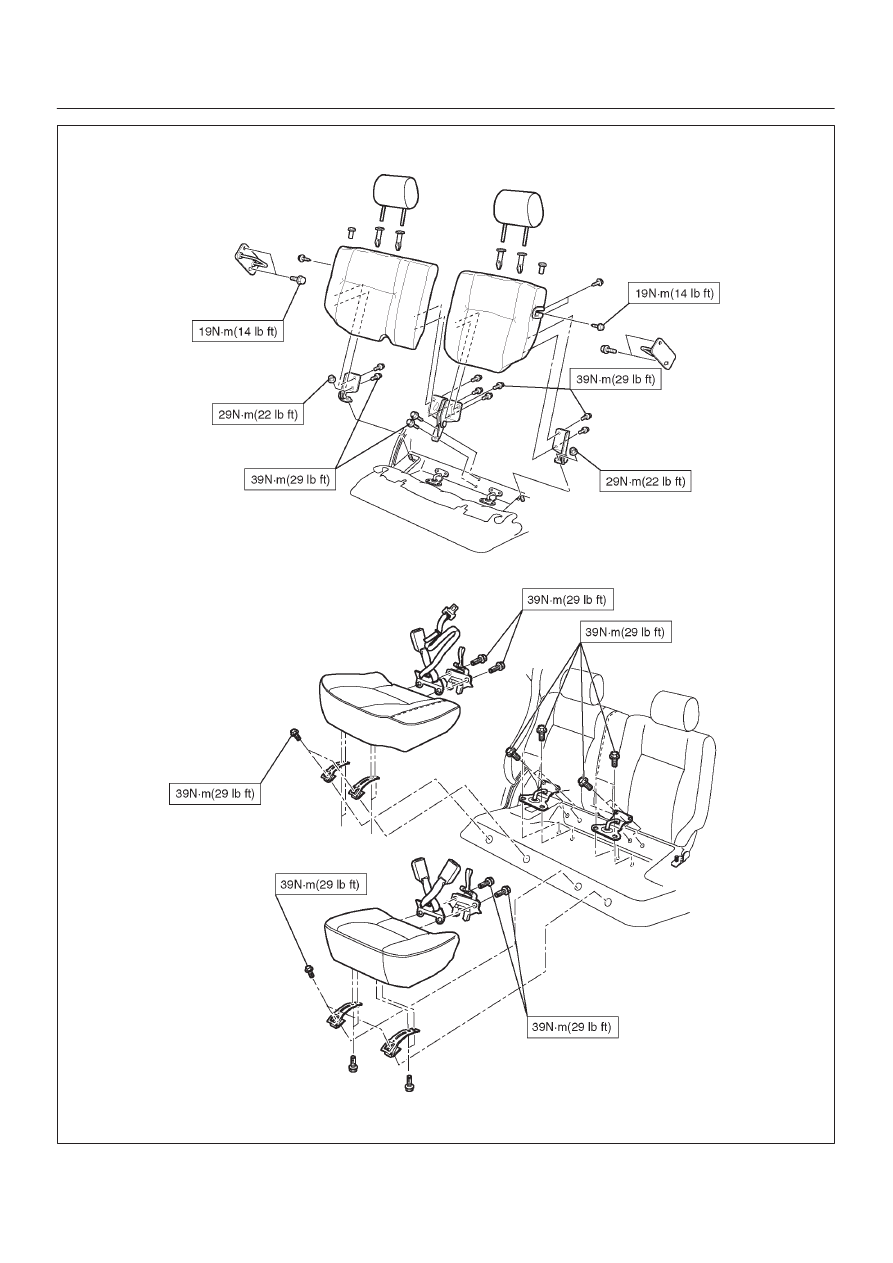

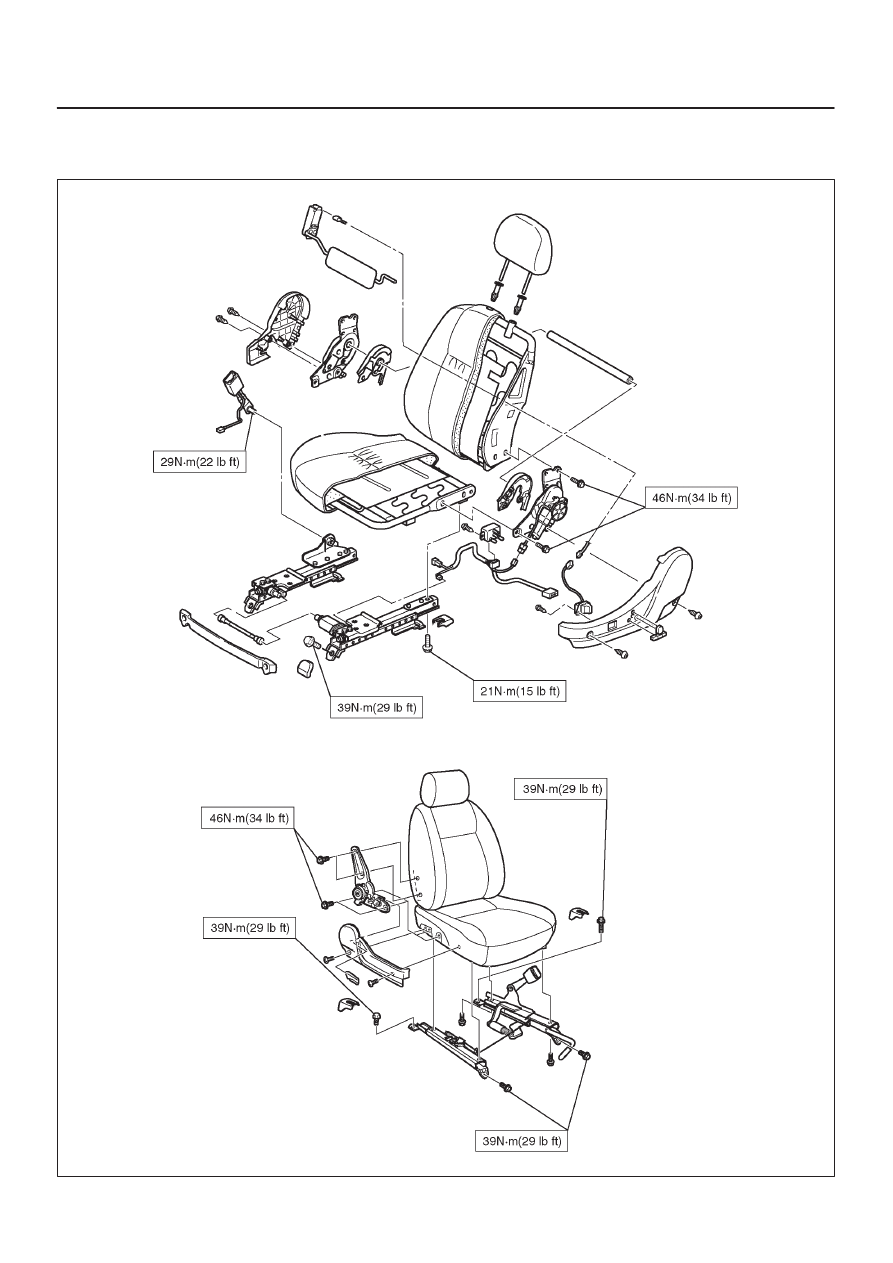

Torque Specifications

750R200010

8G–12 SEATS

755R200009

SECURITY AND LOCKS

8H–1

AXIOM

BODY AND ACCESSORIES

SECURITY AND LOCKS

CONTENTS

Service Precaution

8H–1

. . . . . . . . . . . . . . . . . . . . . .

Front Door Lock Assembly

8H–2

. . . . . . . . . . . . . . .

Front Door Lock Assembly and Associated
 Parts

8H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8H–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Outside Handle

8H–5

. . . . . . . . . . . . . . . . . . . .

Front Outside Handle and Associated Parts

8H–5

Removal

8H–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8H–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Lock Assembly

8H–6

. . . . . . . . . . . . . . . .

Rear Door Lock Assembly and Associated
 Parts

8H–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8H–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8H–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Outside Handle

8H–9

. . . . . . . . . . . . . . . . . . . .

Rear Outside Handle and Associated Parts

8H–9

Removal

8H–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8H–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Lock and Outside Handle

8H–10

. . . . . . . . .

Tailgate Lock, Outside Handle and
 Associated Parts

8H–10

. . . . . . . . . . . . . . . . . . . . . .

Removal

8H–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8H–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Key

8H–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Key Coding

8H–12

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Key Styles

8H–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Door Lock System

8H–13

. . . . . . . . . . . . . . . .

General Description

8H–13

. . . . . . . . . . . . . . . . . . . .

Door Lock Key Switch

8H–13

. . . . . . . . . . . . . . . . . .

Front Door Lock Actuator

8H–13

. . . . . . . . . . . . . . .

Rear Door Lock Actuator

8H–13

. . . . . . . . . . . . . . .

Tailgate Lock Actuator

8H–13

. . . . . . . . . . . . . . . . . .

Anti-Theft System

8H–14

. . . . . . . . . . . . . . . . . . . . . . .

General Description

8H–14

. . . . . . . . . . . . . . . . . . . .

Anti–Theft & Keyless Entry Controller

8H–14

. . . .

Anti–Theft Indicator

8H–14

. . . . . . . . . . . . . . . . . . . .

Anti–Theft Horn

8H–14

. . . . . . . . . . . . . . . . . . . . . . .

Engine Hood Switch

8H–15

. . . . . . . . . . . . . . . . . . .

Anti–theft & Keyless Entry Control
 Unit/Transmitter Replacement

8H–15

. . . . . . . . . .

Keyless Entry System

8H–16

. . . . . . . . . . . . . . . . . . . .

ID Code Registration

8H–16

. . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8H–19

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

SECTION

8H–2

SECURITY AND LOCKS

Front Door Lock Assembly

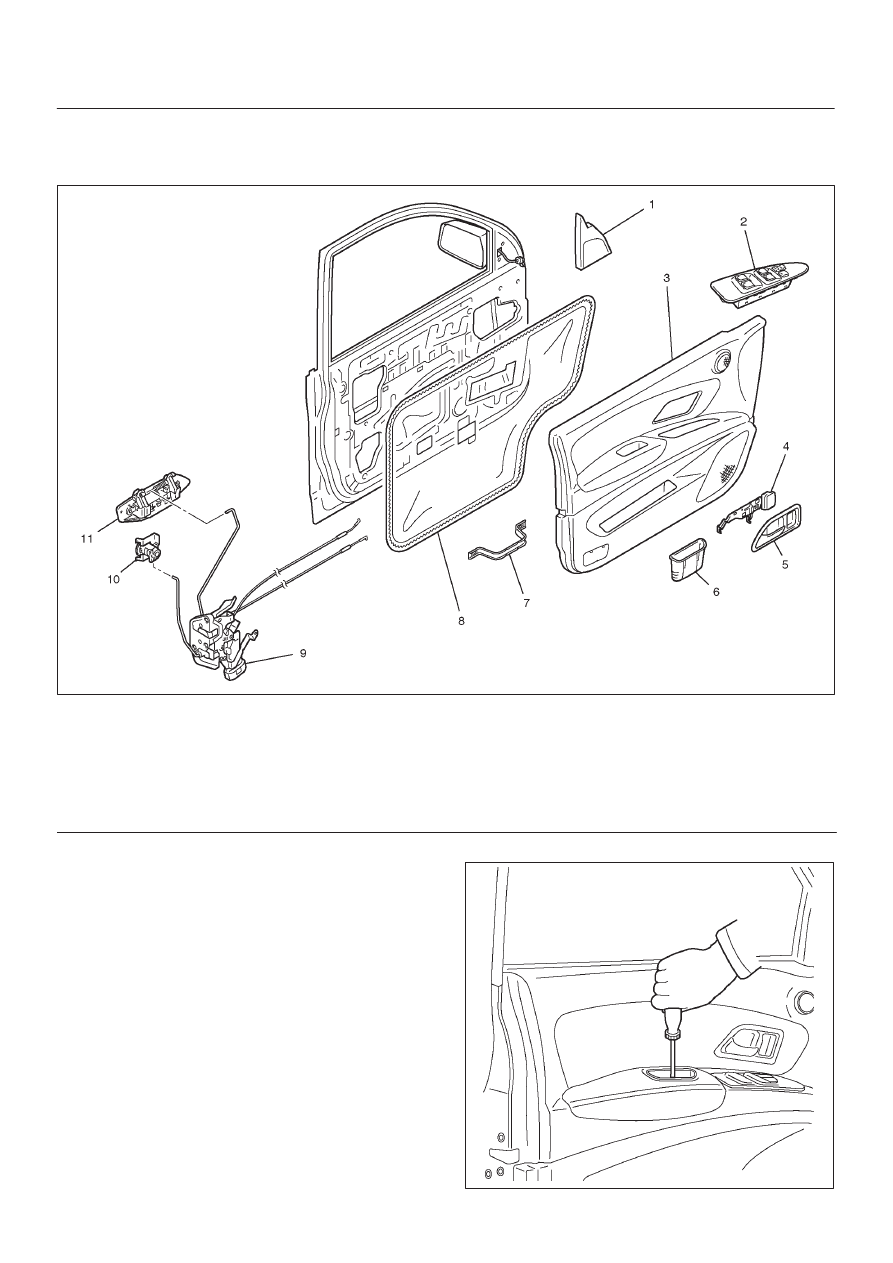

Front Door Lock Assembly and Associated Parts

635R200008

Legend

(1) Door Mirror Cover
(2) Power Window Switch
(3) Door Trim Panel
(4) Inside Lock Bracket
(5) Inside Handle

(6) Pull Box
(7) Pull Box Bracket
(8) Waterproof Sheet
(9) Door Lock Assembly

(10) Door Lock Cylinder

(11) Outside Handle

Removal

1. Disconnect the battery ground cable.
2. Remove the pull box.

D

Remove the one fixing screw.

635R200004
