LIGHTING SYSTEM

8A–13

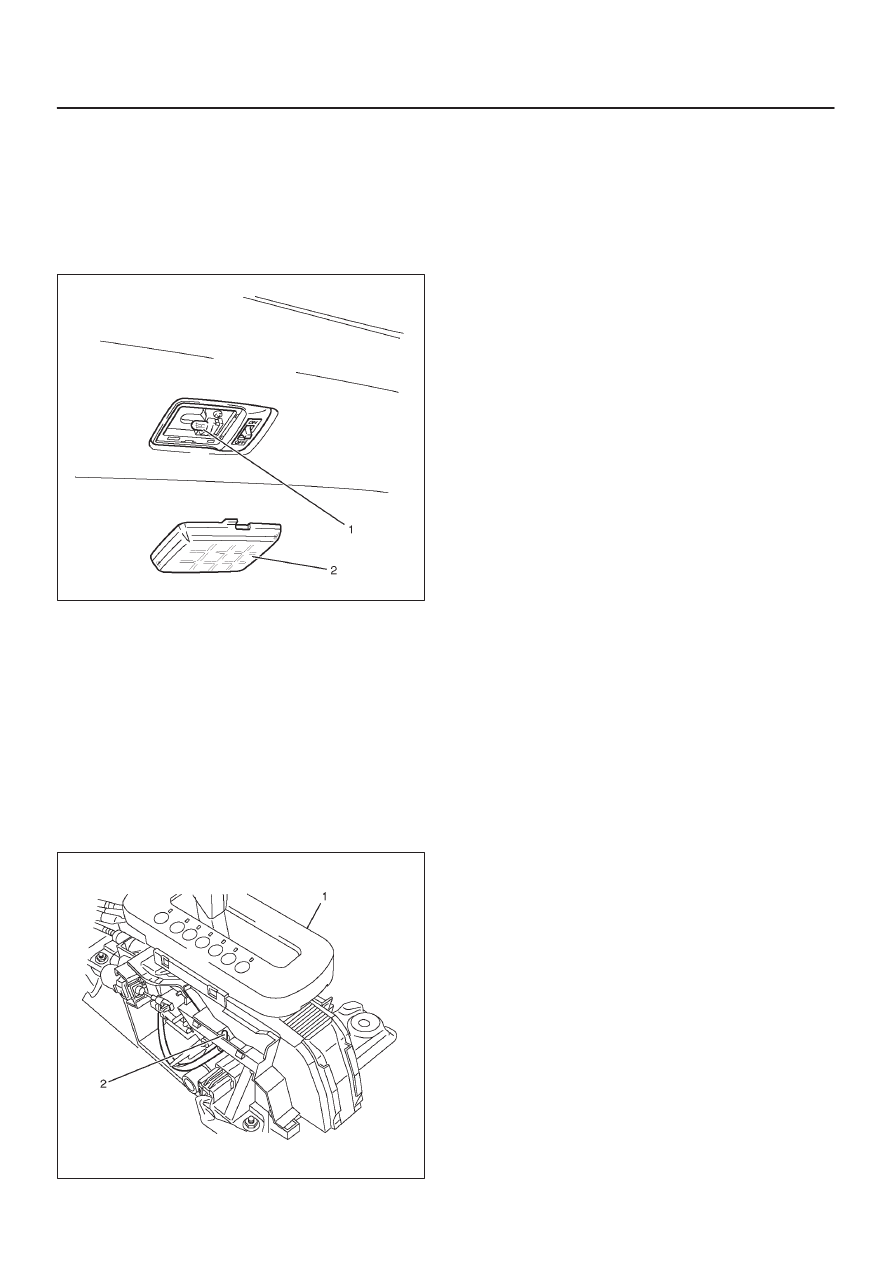

Luggage Room Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

D

Pull out the bulb.

805R200001

Installation

To install, follow the removal steps in the reverse order.

Shift Lever Illumination Light Bulb (A/T)

Removal

1. Disconnect the battery ground cable.
2. Remove the console assembly.

D

Refer to

Consol in Body Structure section.

3. Remove the indicator cover (1).
4. Remove the bulb (2).

D

Turn the bulb socket counterclockwise.

D

Pull out the bulb from the socket.

825R200022

Installation

To install, follow the removal steps in the reverse order.

8A–14

LIGHTING SYSTEM

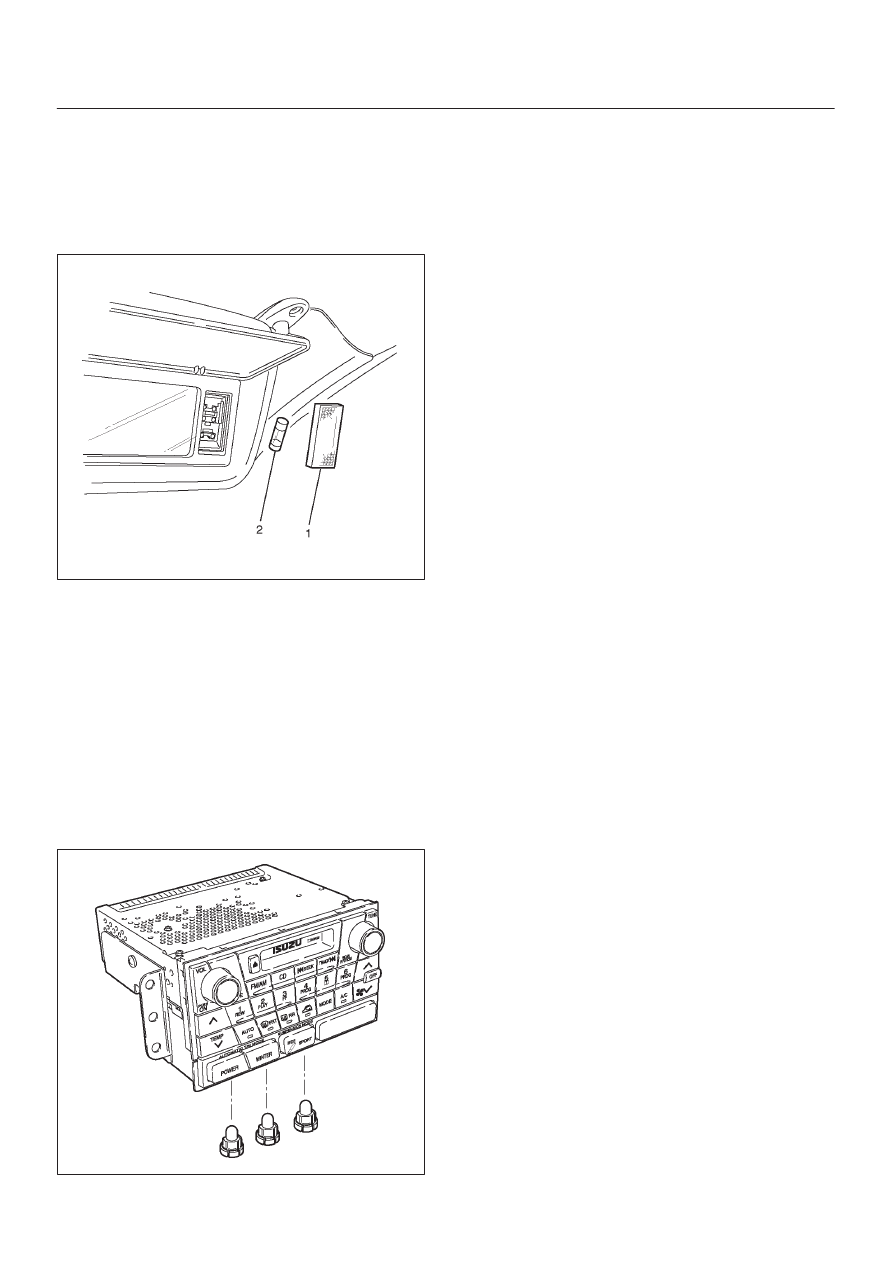

Vanity Mirror Illumination Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (1).
3. Remove the bulb (2).

805R200004

Installation

To install, follow the removal steps in the reverse order.

Switch Unit Assembly Illumination Light Bulb

(Power/Winter & Intelligent Suspension Switch)

Removal

1. Disconnect the battery ground cable.
2. Remove the center cluster assembly.

D

Refer to

Instrument Panel Assembly in Body

Structure section.

3. Remove the audio.

D

Refer to

Audio in Entertainment section.

4. Remove the illumination light bulb.

825R200036

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–15

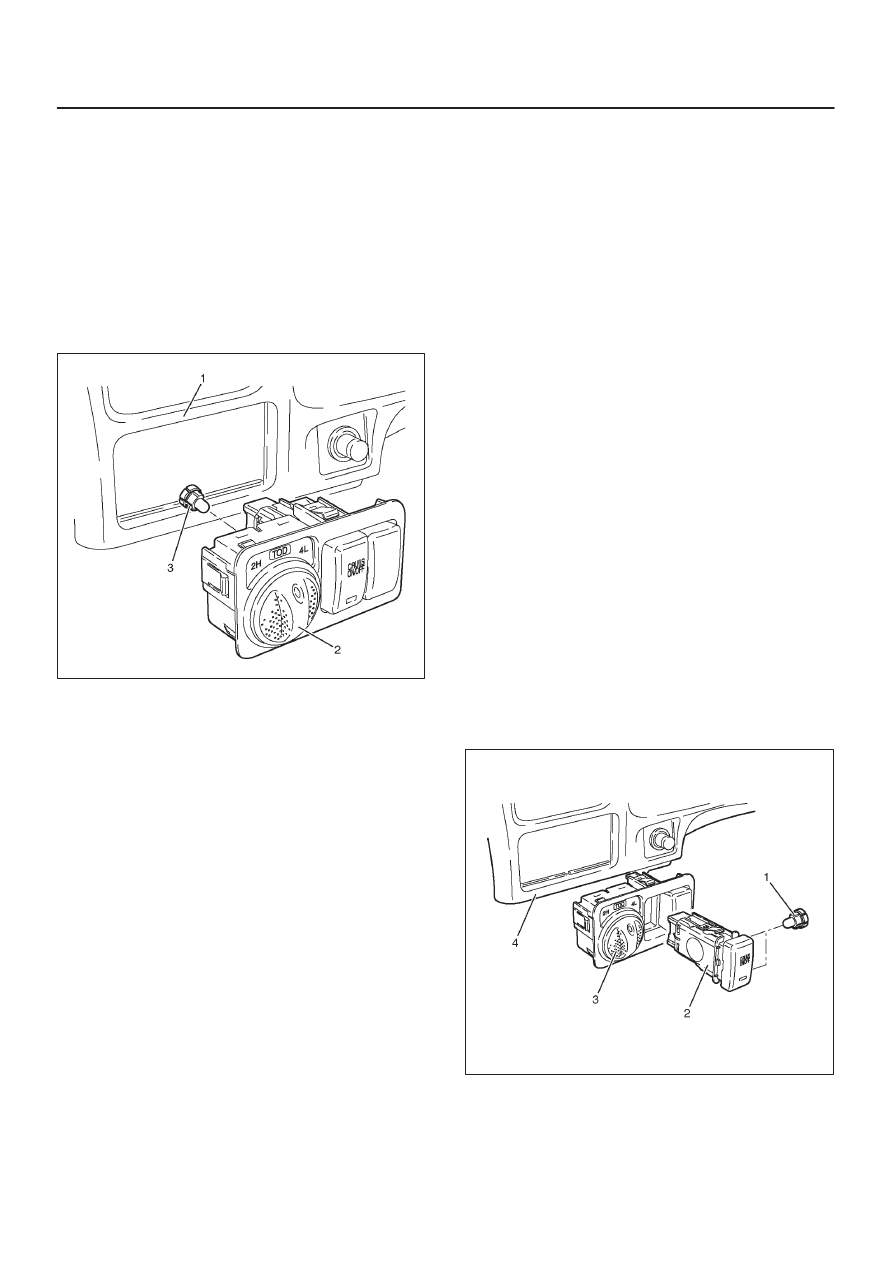

TOD Switch Illumination Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the meter cluster (1).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

3. Remove the bulb (3).

D

Disconnect the TOD switch connector and cruise
control main switch connector.

D

Remove the TOD switch (2).

825R200033

Installation

To install, follow the removal steps in the reverse order.

Cruise Control Main Switch Illumination Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the meter cluster panel (4).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

3. Remove the bulb (1).

D

Disconnect the TOD switch connector and cruise
control main switch connector.

D

Remove the TOD switch (3).

D

Remove the cruise main switch (2).

825R200032

Installation

To install, follow the removal steps in the reverse order.

8A–16

LIGHTING SYSTEM

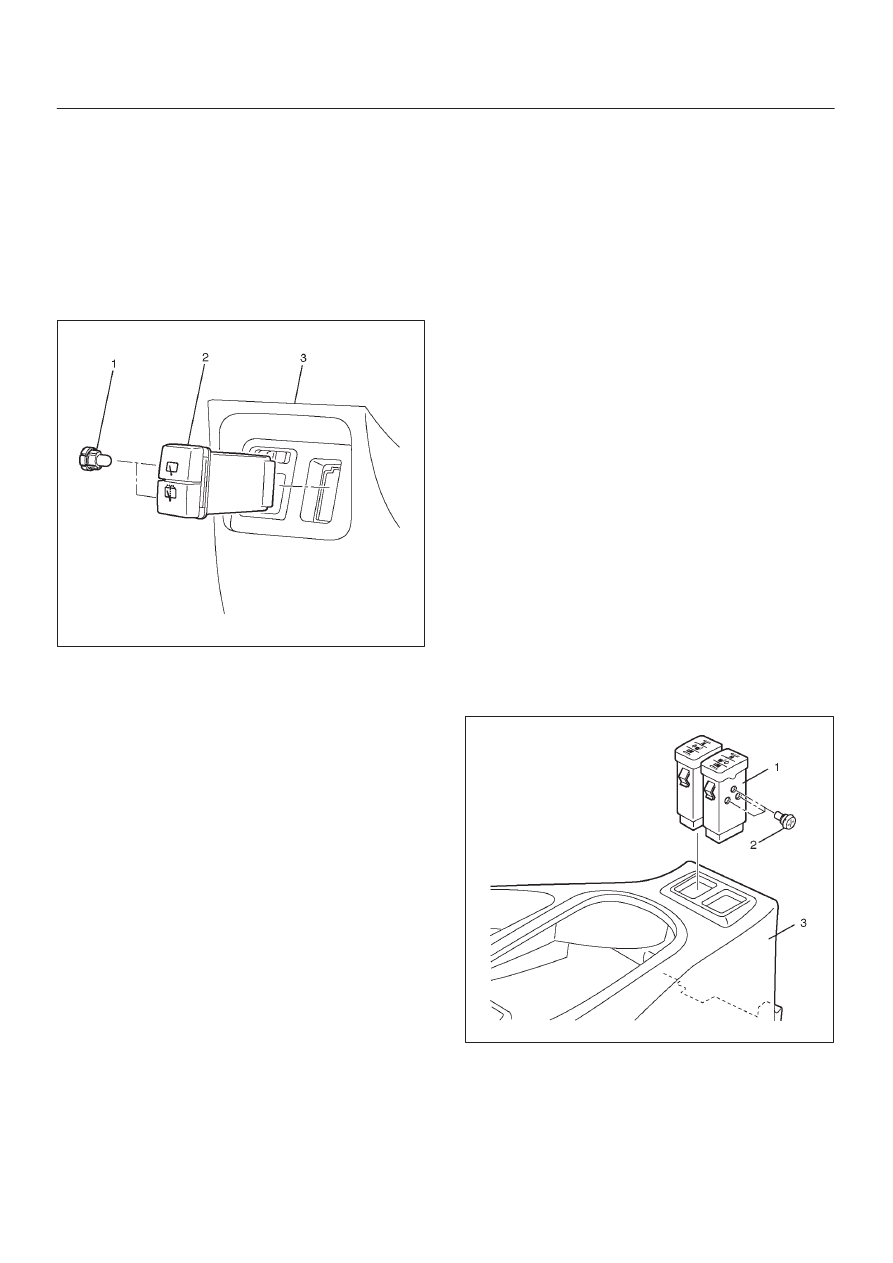

Rear Wiper and Washer Switch Illumination Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lower cover assembly (3).

D

Remove the dash side trim cover.

3. Remove the bulb (1).

D

Disconnect the connector.

D

Remove the rear wiper and washer switch (2).

825R200037

Installation

To install, follow the removal steps in the reverse order.

Seat Heater Switch Illumination Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the center consol assembly (3).

D

Refer to

Consol in Body Structure section.

3. Remove the bulb (2).

D

Disconnect the seat heater switch connector.

D

Remove the seat heater switch (1).

825R200034

Installation

To install, follow the removal steps in the reverse order.
