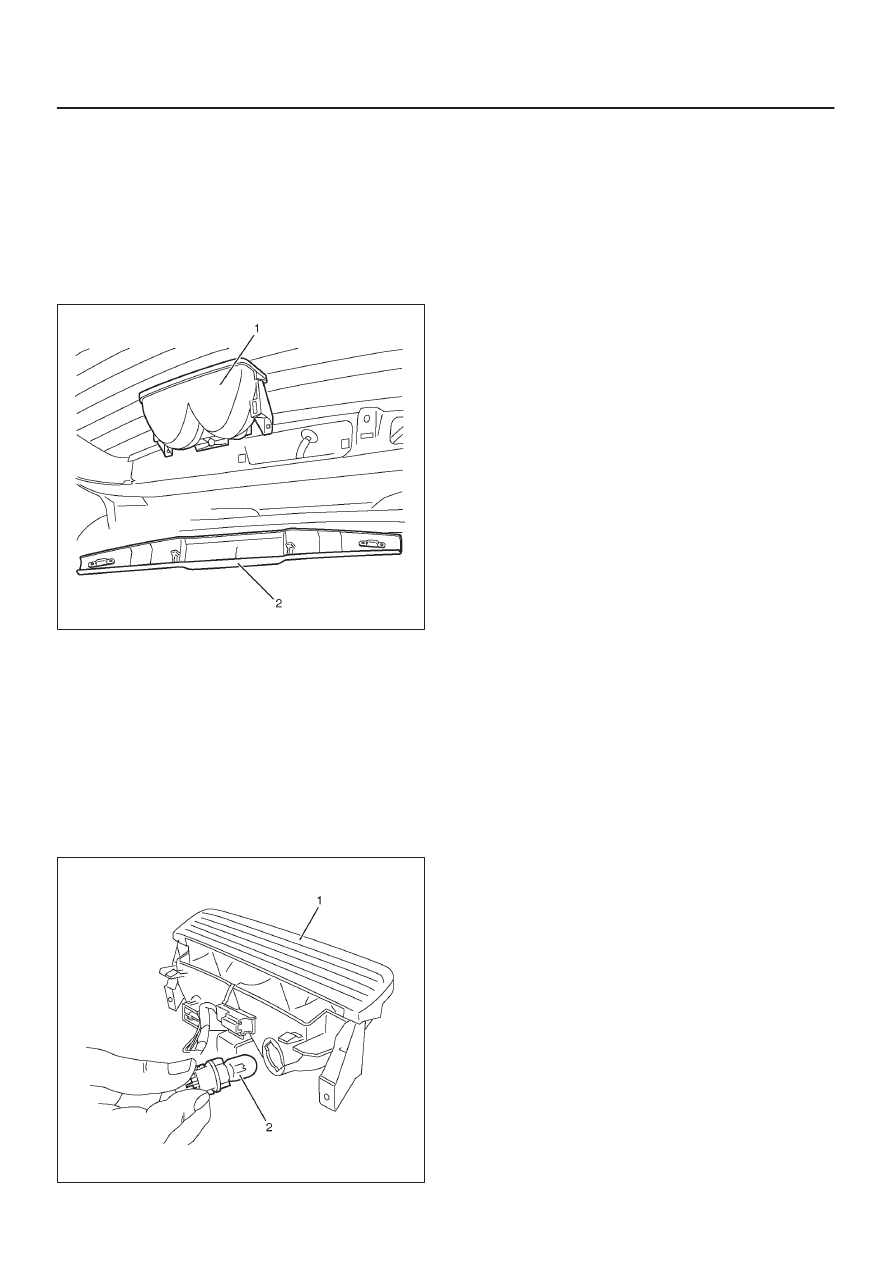

High Mounted Stoplight Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the high mounted stoplight assembly (1).

D

Remove the cover (2).

D

Remove two screws.

D

Disconnect the connector.

803R200004

Installation

To install, follow the removal steps in the reverse order.

High Mounted Stoplight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the cover.
3. Remove the high mounted stoplight assembly (1).

D

Remove two screw.

4. Remove the bulb (2).

D

Remove the socket by turning it counterclockwise.

803R200005

Installation

To install, follow the removal steps in the reverse order.

8A–10

LIGHTING SYSTEM

Backup Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly.

D

Refer to

Taillight Bulb in this section.

3. Remove the bulb (1).

D

Remove the backup light socket by turning it
counterclockwise.

D

Pull out the bulb from the socket.

803R200007

Installation

To install, follow the removal steps in the reverse order.

Front Turn Signal Light Bulb

Removal and Installation

Refer to

Side Marker Light Bulb in this section.

LIGHTING SYSTEM

8A–11

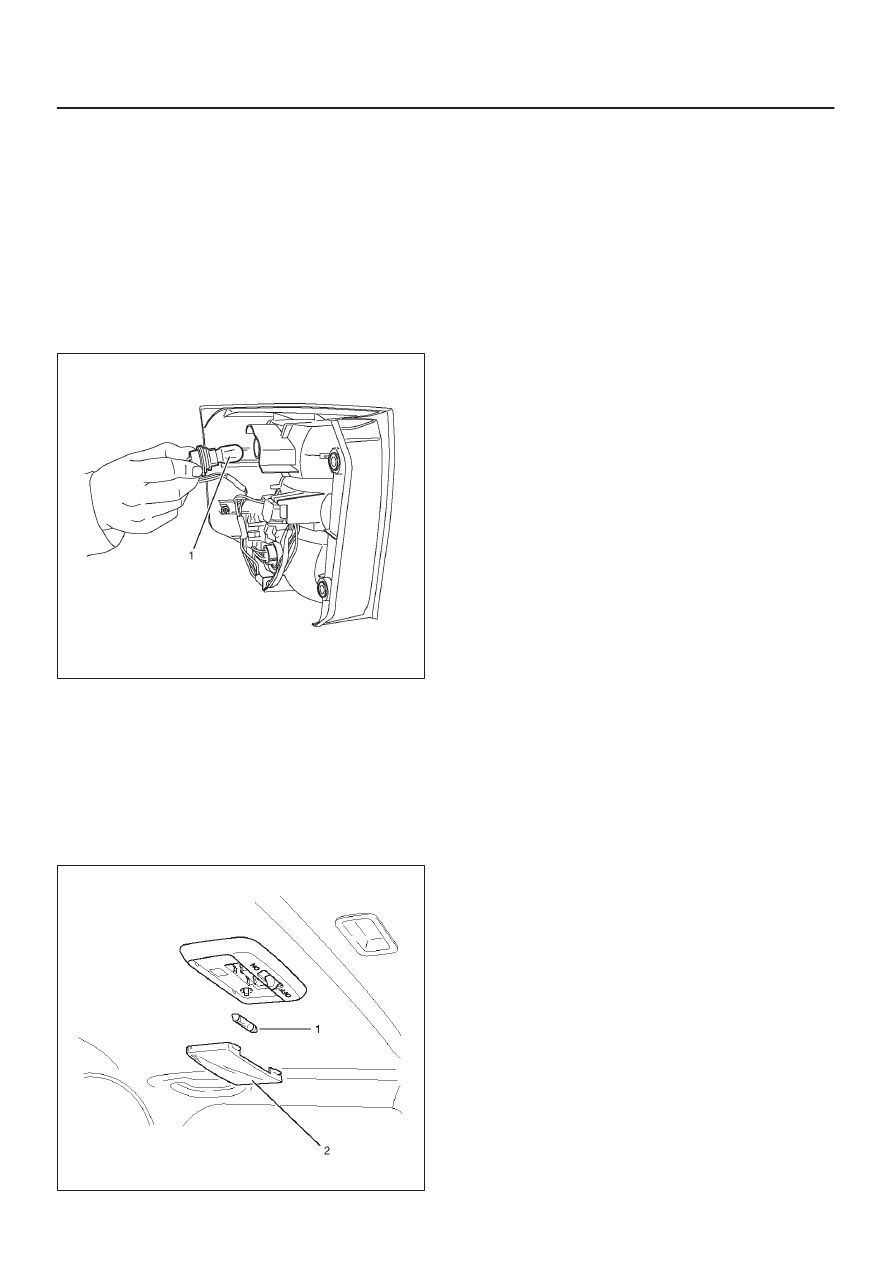

Rear Turn Signal Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly.

D

Refer to

Taillight Bulb in this section.

3. Remove the bulb (1).

D

Remove the rear turn signal light socket by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

803R200006

Installation

To install, follow the removal steps in the reverse order.

Dome Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

D

Pull out the bulb.

825RW075

Installation

To install, follow the removal steps in the reverse order.

8A–12

LIGHTING SYSTEM

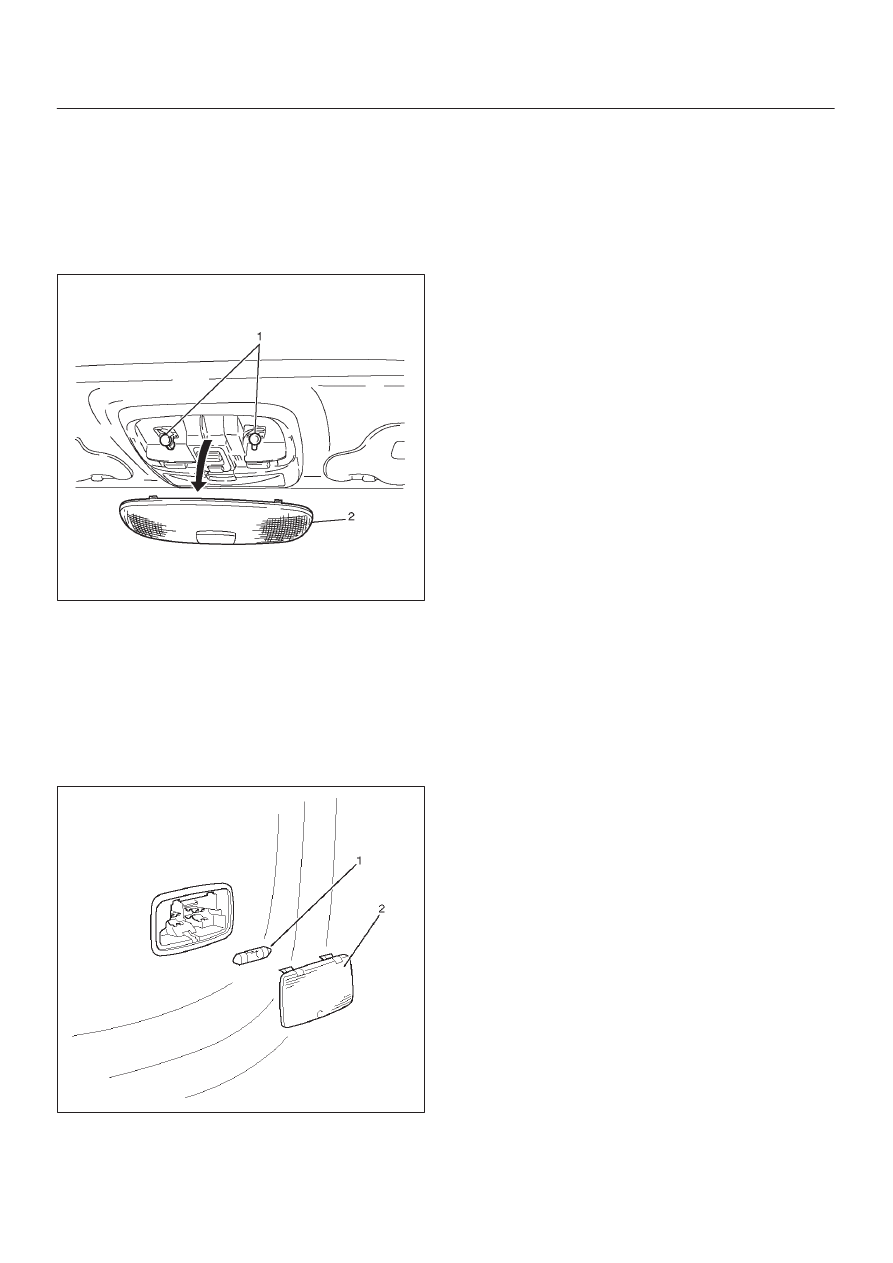

Map Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

D

Pull out the bulb.

805R200002

Installation

To install, follow the removal steps in the reverse order.

Courtesy Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

D

Pull out the bulb.

825RW076

Installation

To install, follow the removal steps in the reverse order.
