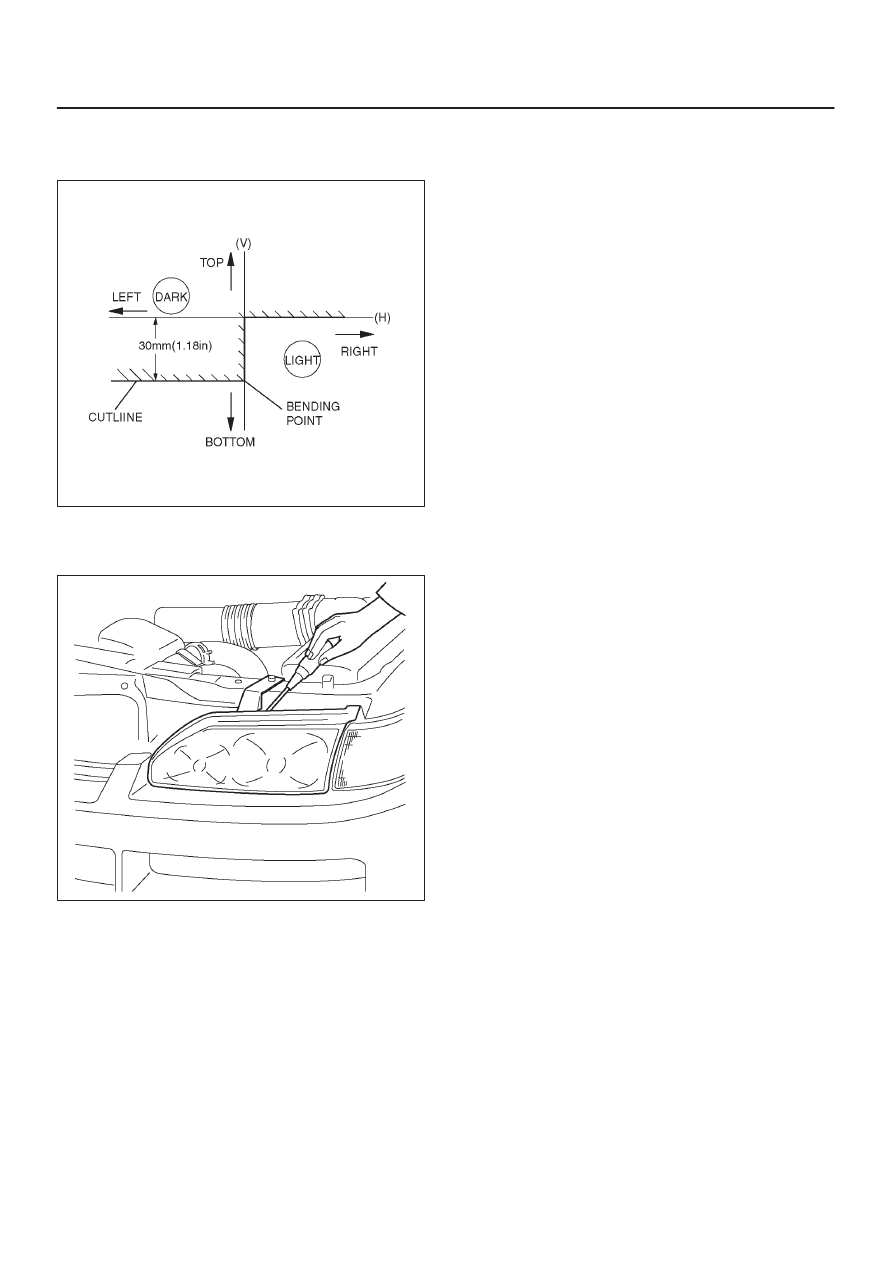

6. Turn the headlight low beam on.
7. Adjust the CUTLINE 30 mm (1.18 in) below the

horizontal line (H).

801R200011

Vertical Adjustment

Use a screwdriver for vertical adjustment.

801R200012

8A–6

LIGHTING SYSTEM

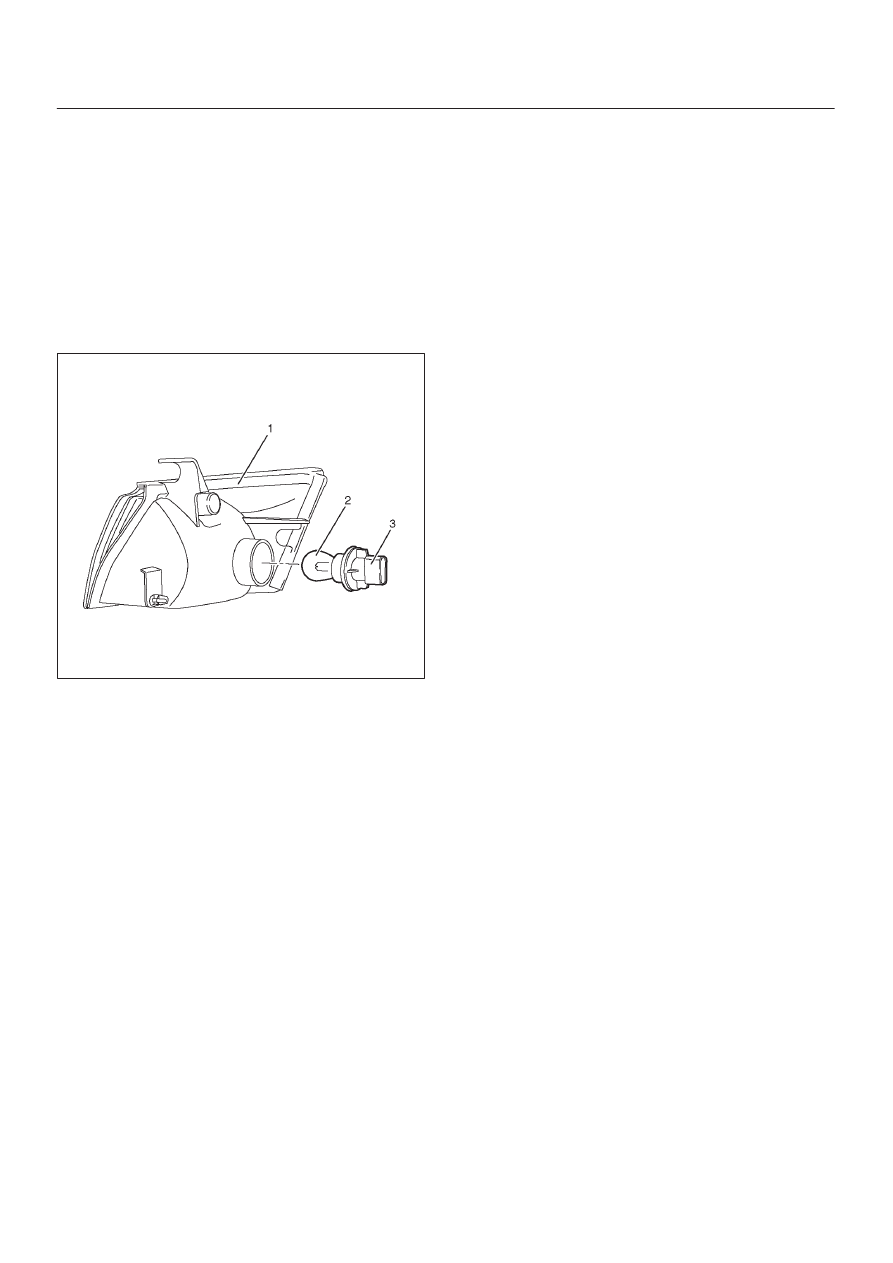

Side Marker Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the front combination light (1).

D

Remove the screw.

3. Remove the bulb (2).

D

Remove the side marker light socket (3) by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

801R200013

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–7

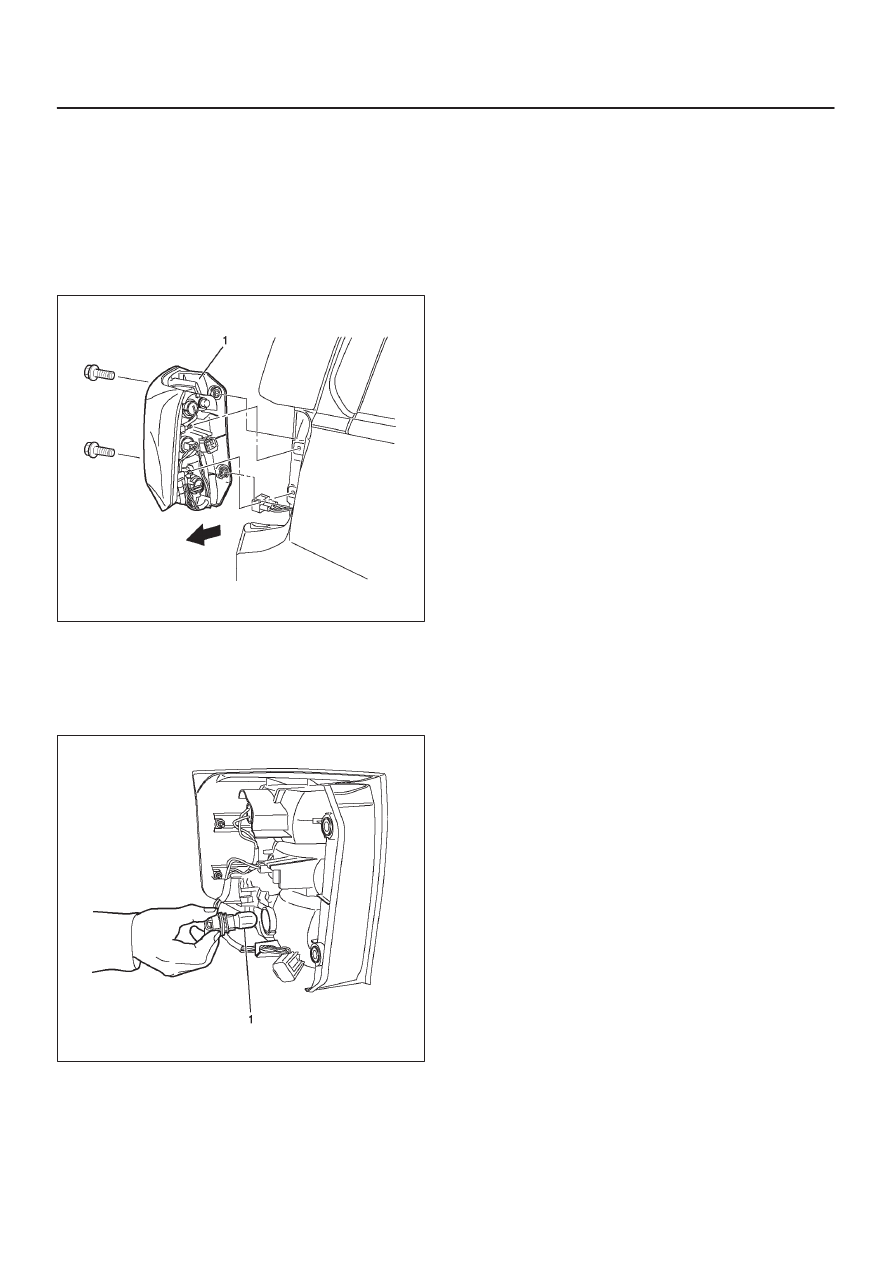

Taillight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly (1).

D

Remove two screws.

D

Pull out the rear combination light assembly
outside.

803R200011

3. Remove the bulb (1).

D

Remove the taillight socket by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

803R200002

Installation

To install, follow the removal steps in the reverse order.

8A–8

LIGHTING SYSTEM

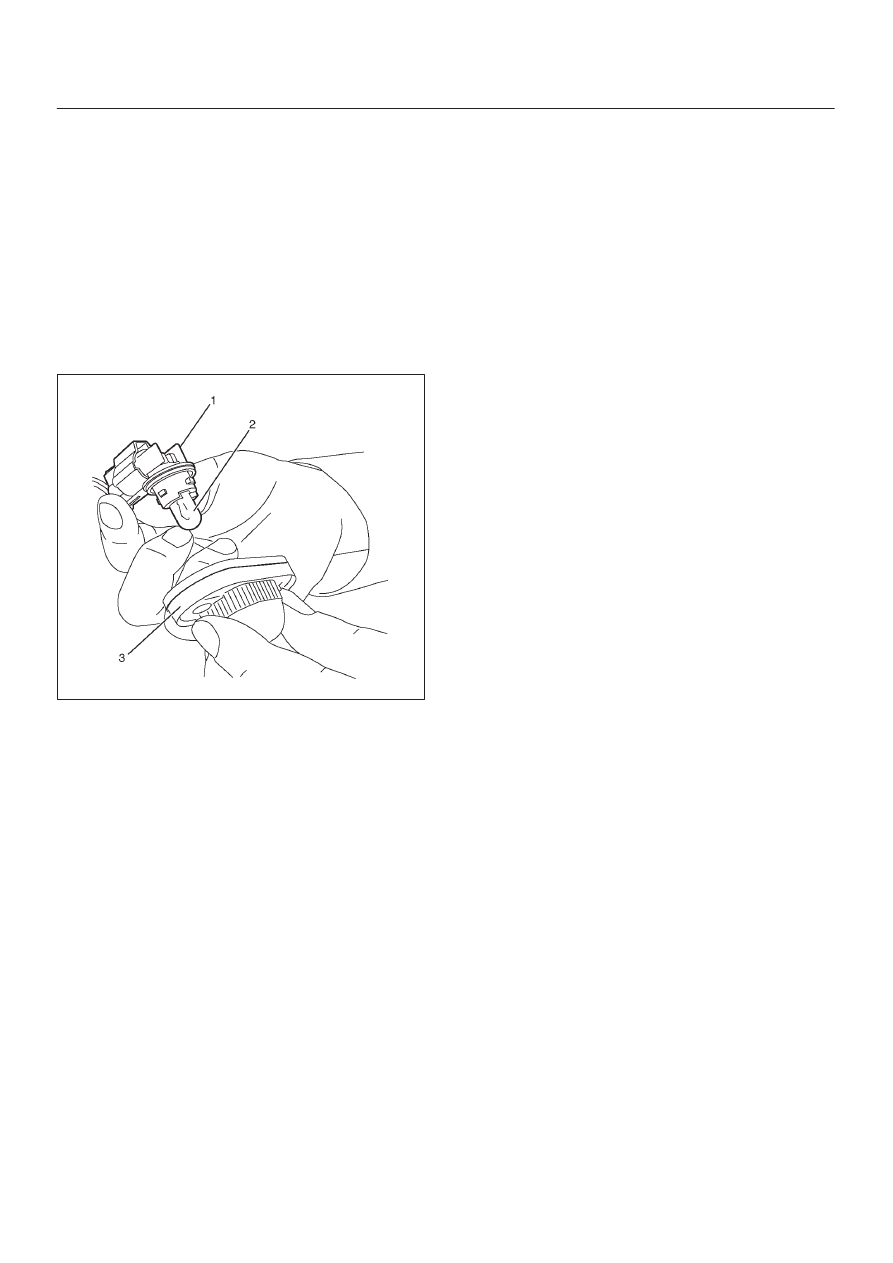

License Plate Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the license plate light garnish.

D

Remove the three screws.

3. Remove the lens cover (3).

D

Remove two screws.

4. Remove the license plate light socket by turning it

counterclockwise.

5. Remove the bulb (2).

D

Pull out the bulb from the socket (1).

803R200003

Installation

To install, follow the removal steps in the reverse order.

Stoplight Bulb

Removal and Installation

Refer to

Taillight Bulb in this section.
