7A1–86 TRANSMISSION CONTROL SYSTEM (4L30–E)

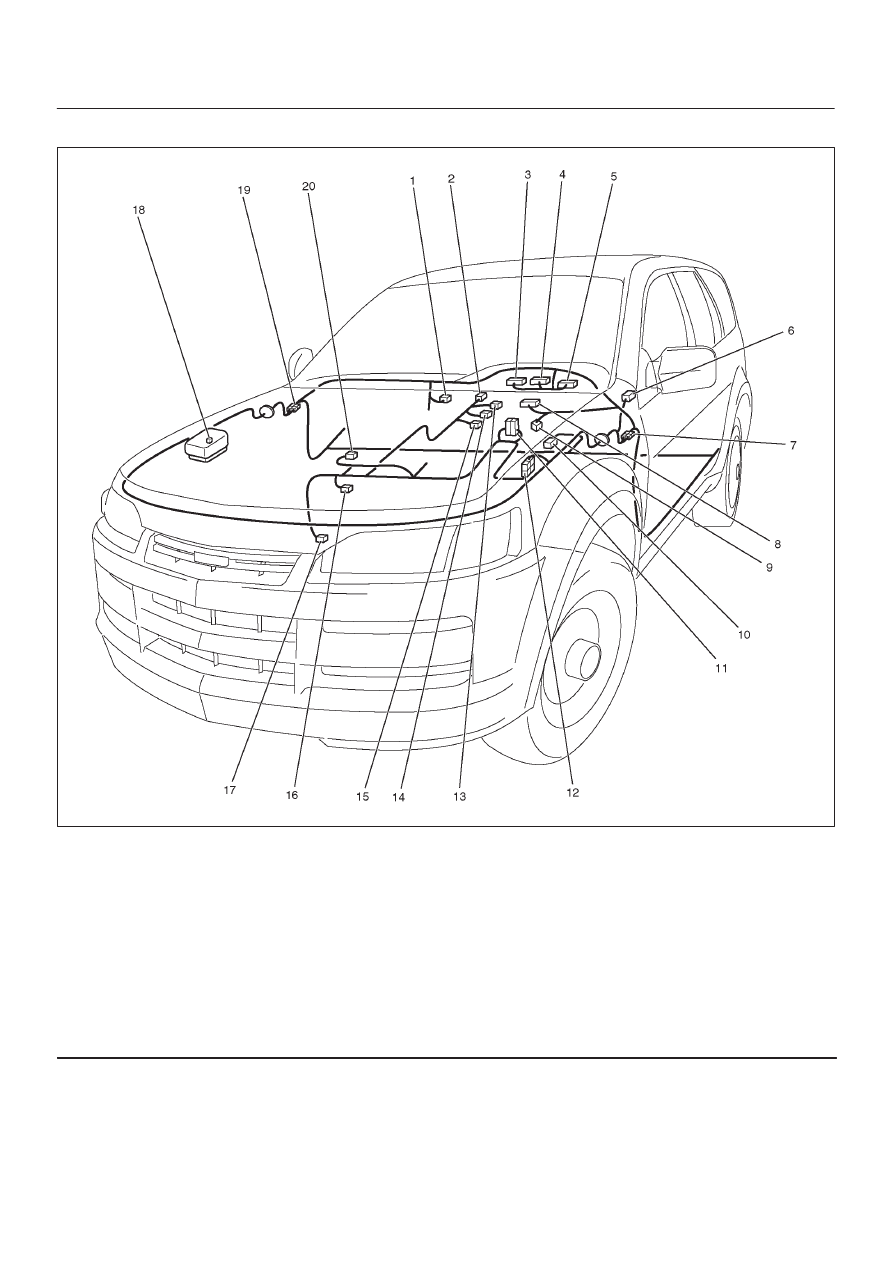

Parts Location

D07R200014

Legend

(1) Connector I–10
(2) Connector E–44
(3) Connector I–22
(4) Connector I–23
(5) Connector I–24
(6) Data Link Connector C–39
(7) Connector H–9, H–11, H–16
(8) Connector I–32
(9) Connector I–31

(10) Connector B–16

(11) Powertrain Control Module (PCM) Connector

E–34, E–35

(12) Connector H–3, H–5, H–6
(13) Connector E–42
(14) Connector E–41
(15) Connector E–40
(16) Connector E–11
(17) Connector E–33
(18) Connector X–11
(19) Connector H–8, H–14, H–17, H–18
(20) Connector E–7

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–87

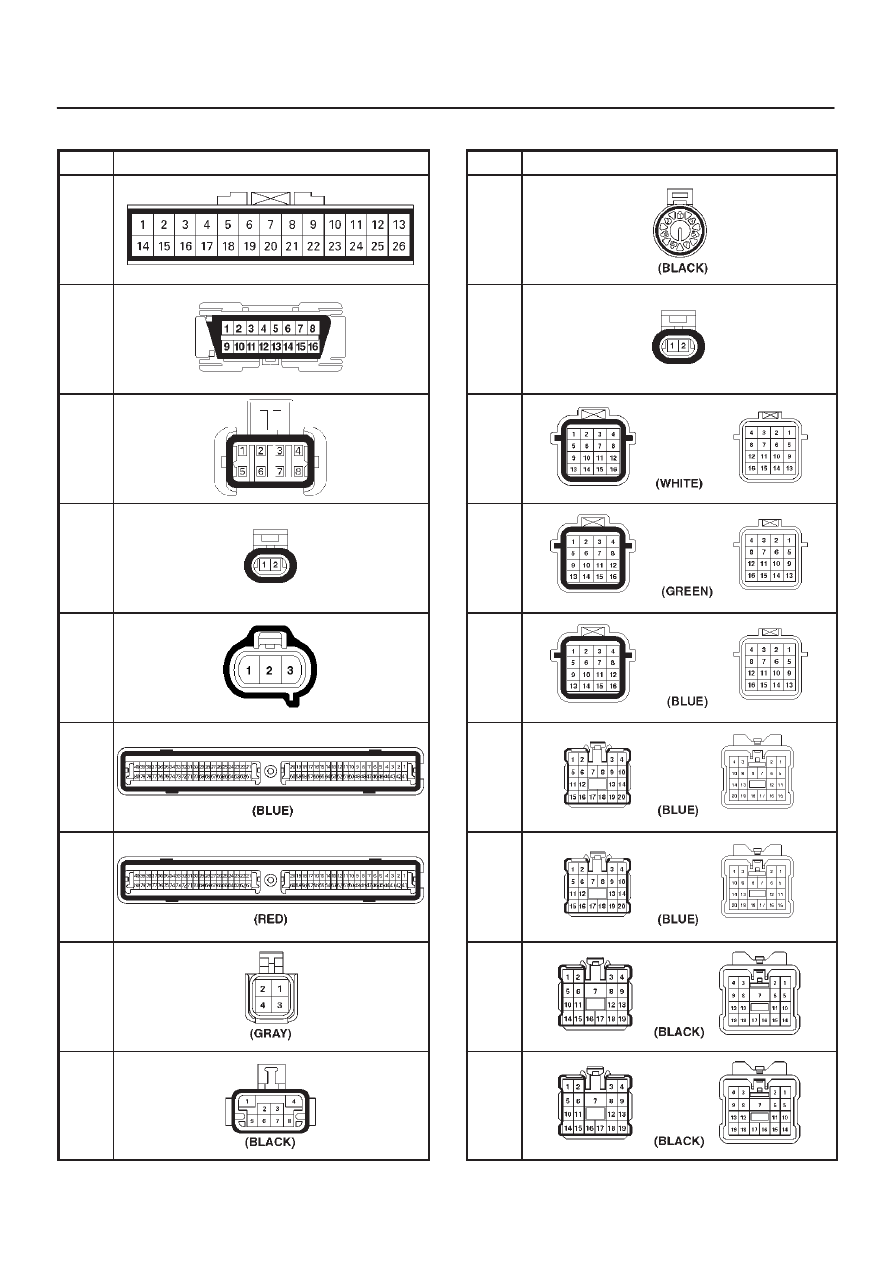

Harness Connector Faces

No.

Connector face

B-16

C-39

E-7

E-11

E-33

E-34

(J1)

E-35

(J2)

E-40

E-41

No.

Connector face

E-42

E-44

H-3

H-5

H-6

H-8

H-9

H-11

H-14

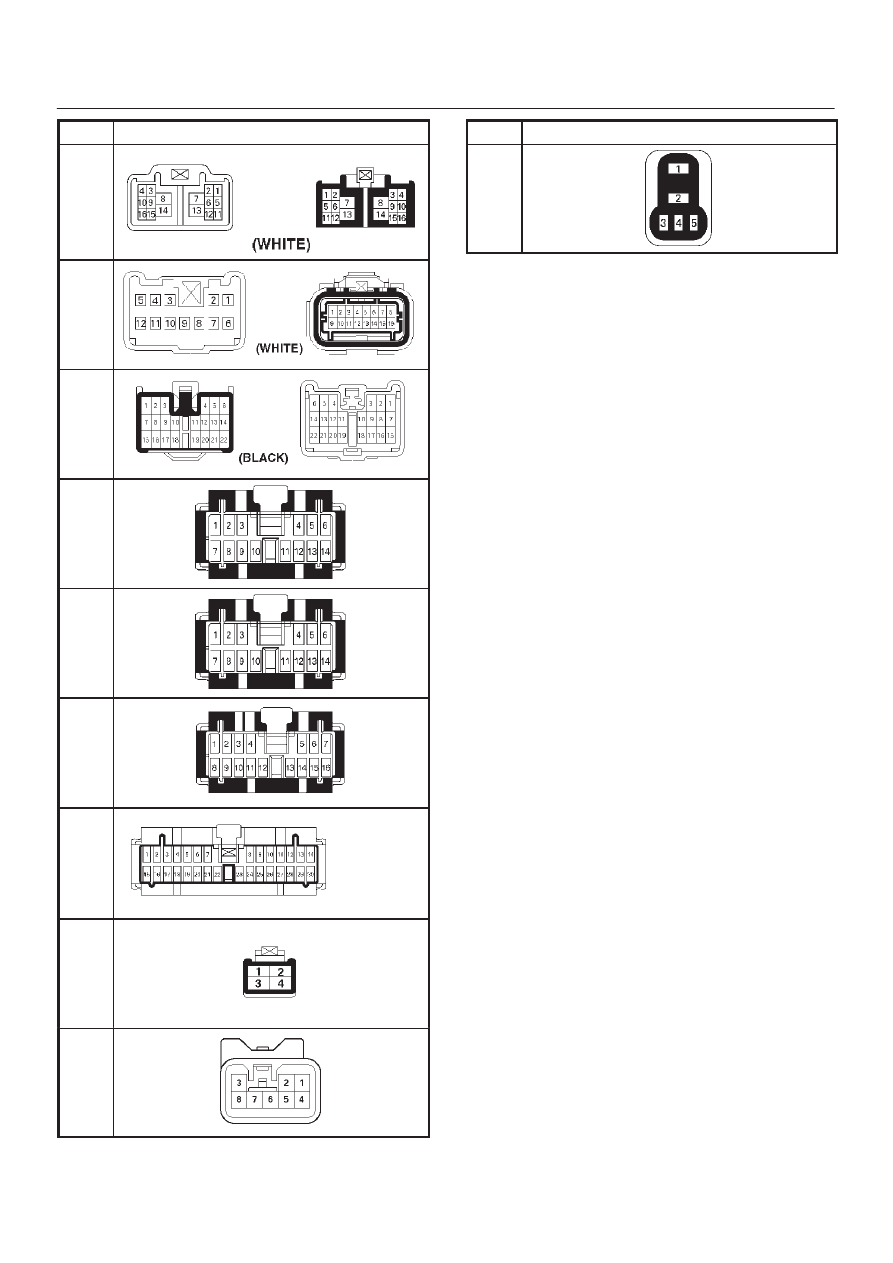

7A1–88 TRANSMISSION CONTROL SYSTEM (4L30–E)

No.

Connector face

H-16

H-17

H-18

I-10

I-22

I-23

I-24

I-31

I-32

No.

Connector face

X-11

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–89

Transmission Fluid Temperature (TFT) Sensor Specifications

Temperature

Temperature

Minimum

Resistance

Nominal

Resistance

Maximum

Resistance

Signal

°

F

°

C

W

W

W

Volts

-40

-40

600500

664200

731100

5.00

-22

-30

319800

350400

382400

4.65

-4

-20

177400

192700

208600

4.41

14

-10

102200

110100

118300

4.00

32

0

60870

65110

69450

3.52

50

10

37410

39750

42120

2.98

68

20

23660

24980

26300

2.40

86

30

15270

16120

16970

1.85

104

40

10040

10660

11290

1.43

122

50

6758

7211

7673

4.29

140

60

4645

4980

5324

4.04

158

70

3255

3506

3765

3.69

176

80

2323

2513

2710

3.34

194

90

1685

1831

1982

3.04

212

100

1242

1355

1472

2.58

230

110

929

1017

1109

2.24

248

120

704

773

846

1.97

266

130

540

595

653

1.67

284

140

419

464

511

1.42

302

150

329

365

403

1.16
