LIGHTING SYSTEM

8A–1

AXIOM

BODY AND ACCESSORIES

CONTENTS

Lighting System

8A

. . . . . . . . . . . . . . . . . . . . . . . . .

Wiper / Washer System

8B

. . . . . . . . . . . . . . . . . .

Entertainment

8C

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiring System

8D

. . . . . . . . . . . . . . . . . . . . . . . . . .

Meter and Gauge

8E

. . . . . . . . . . . . . . . . . . . . . . .

Body Structure

8F

. . . . . . . . . . . . . . . . . . . . . . . . . .

Seats

8G

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Security and Locks

8H

. . . . . . . . . . . . . . . . . . . . . .

Sunroof / Convertible Top

8I

. . . . . . . . . . . . . . . .

Exterior / Interior Trim

8J

. . . . . . . . . . . . . . . . . . . .

LIGHTING SYSTEM

CONTENTS

Service Precaution

8A–2

. . . . . . . . . . . . . . . . . . . . . .

Headlight Bulb

8A–3

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Assembly

8A–4

. . . . . . . . . . . . . . . . . . . . .

Removal

8A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Adjustment

8A–4

. . . . . . . . . . . . . . . . . .

Side Marker Light Bulb

8A–6

. . . . . . . . . . . . . . . . . . .

Removal

8A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Taillight Bulb

8A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

License Plate Light Bulb

8A–8

. . . . . . . . . . . . . . . . . .

Removal

8A–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stoplight Bulb

8A–8

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8A–8

. . . . . . . . . . . . . . .

High Mounted Stoplight Assembly

8A–9

. . . . . . . . .

Removal

8A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Mounted Stoplight Bulb

8A–9

. . . . . . . . . . . . . .

Removal

8A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Backup Light Bulb

8A–10

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Turn Signal Light Bulb

8A–10

. . . . . . . . . . . . . .

Removal and Installation

8A–10

. . . . . . . . . . . . . . .

Rear Turn Signal Light Bulb

8A–11

. . . . . . . . . . . . . .

Removal

8A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dome Light Bulb

8A–11

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Map Light Bulb

8A–12

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Courtesy Light Bulb

8A–12

. . . . . . . . . . . . . . . . . . . . . .

Removal

8A–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage Room Light Bulb

8A–13

. . . . . . . . . . . . . . . .

Removal

8A–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shift Lever Illumination Light Bulb (A/T)

8A–13

. . . .

Removal

8A–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Vanity Mirror Illumination Light Bulb

8A–14

. . . . . . . .

Removal

8A–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Switch Unit Assembly Illumination
 Light Bulb (Power/Winter & Intelligent
 Suspension Switch)

8A–14

. . . . . . . . . . . . . . . . . . . . .

Removal

8A–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOD Switch Illumination Light Bulb

8A–15

. . . . . . . .

Removal

8A–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cruise Control Main Switch Illumination
 Light Bulb

8A–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper and Washer Switch Illumination
 Light Bulb

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seat Heater Switch Illumination Light Bulb

8A–16

. .

Removal

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starter Switch

8A–17

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8A–17

. . . . . . . . . . . . . . .

Lighting Switch (Combination Switch)

8A–17

. . . . . .

SECTION

8A–2

LIGHTING SYSTEM

Removal and Installation

8A–17

. . . . . . . . . . . . . . .

Dimmer·Passing Switch
 (Combination Switch)

8A–17

. . . . . . . . . . . . . . . . . . .

Removal and Installation

8A–17

. . . . . . . . . . . . . . .

Front Door Switch

8A–17

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Switch

8A–18

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8A–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Lock Switch

8A–18

. . . . . . . . . . . . . . . . . . . . .

Removal

8A–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Key Remind Switch (Starter Switch)

8A–19

. . . . . . .

Removal and Installation

8A–19

. . . . . . . . . . . . . . .

Hazard Warning Light Switch

8A–19

. . . . . . . . . . . . .

Removal

8A–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stoplight Switch

8A–20

. . . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8A–20

. . . . . . . . . . . . . . .

Turn Signal Light Switch
 (Combination Switch)

8A–20

. . . . . . . . . . . . . . . . . . .

Removal and Installation

8A–20

. . . . . . . . . . . . . . .

Illumination Controller

8A–20

. . . . . . . . . . . . . . . . . . . .

Removal

8A–20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8A–20

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8A–21

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

LIGHTING SYSTEM

8A–3

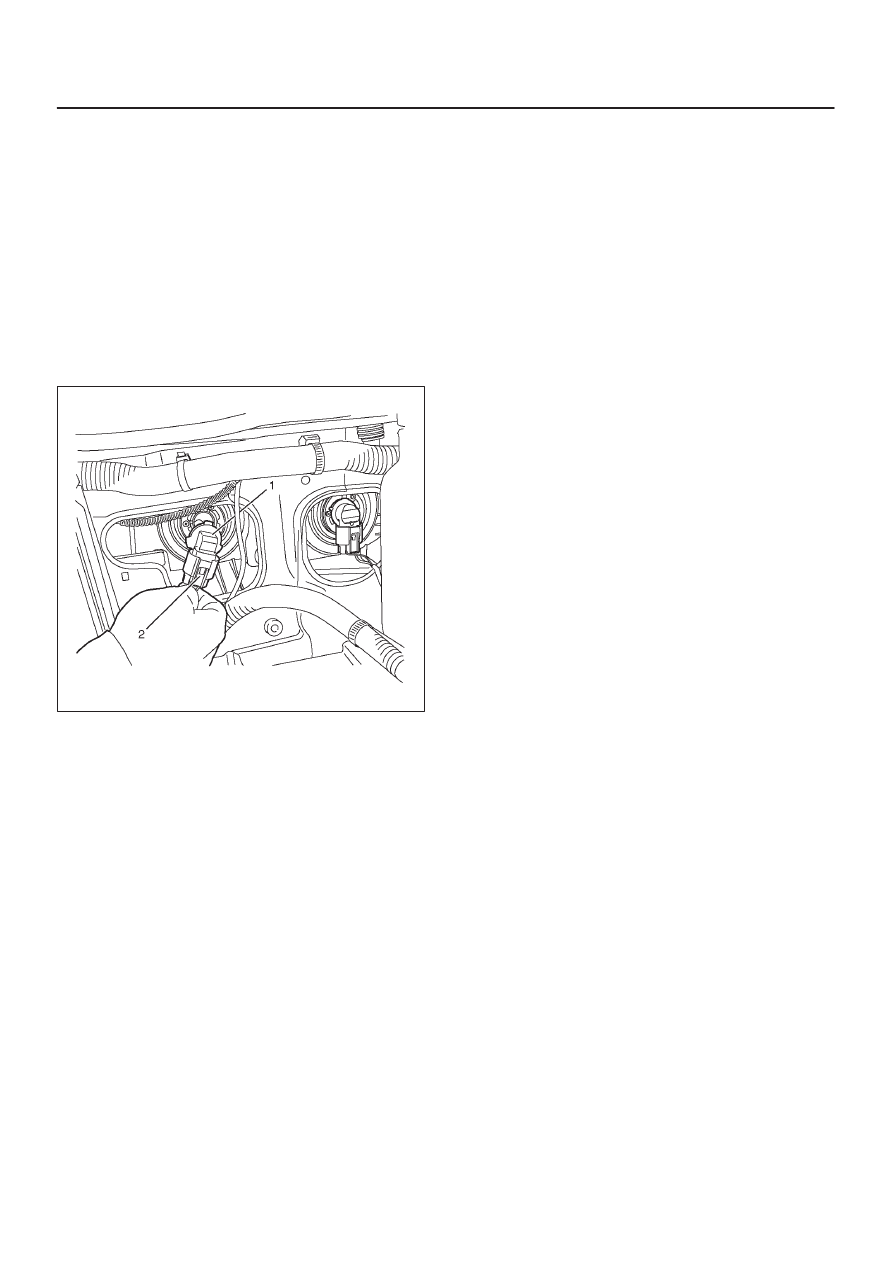

Headlight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the headlight bulb.

D

Disconnect the connector (2).

D

Remove the socket (1) by turning it
counterclockwise.

CAUTION: Do not touch the headlight bulb with
your fingers. The oil on your fingers will leave a
residue which will shorten the life of the halogen
bulb. In order to prevent this problem, clean the bulb
lens before installing the headlight bulb.

801R200021

Installation

To install, follow the removal steps in the reverse order.
noting the following point:

1. Make sure to set the retaining ring and the bulb cover.

If the set is incomplete, there is a possibility that the
water comes in the light.

8A–4

LIGHTING SYSTEM

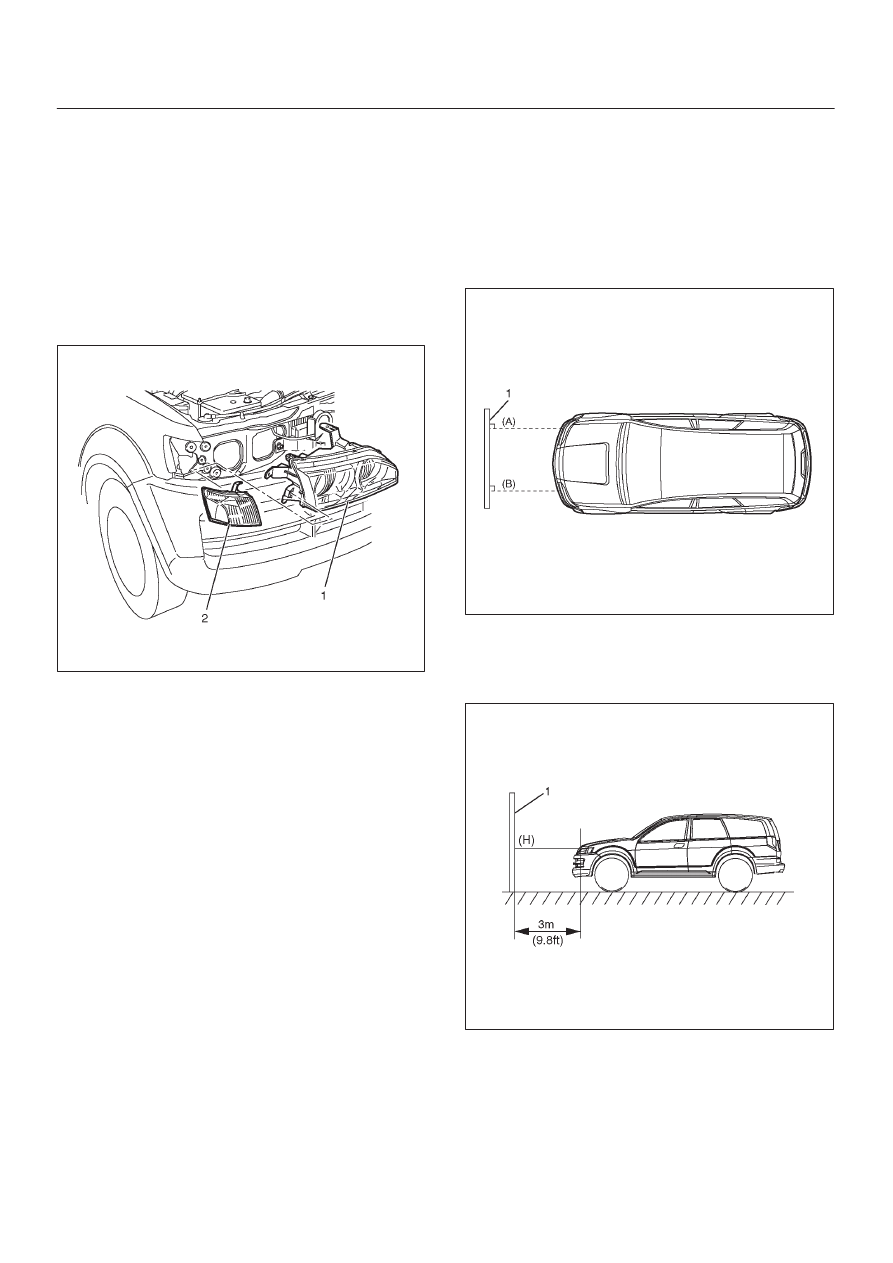

Headlight Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the front combination light (2).

D

Remove the screw.

D

Disconnect the connector.

3. Remove the headlight assembly (1).

D

Disconnect the connector.

D

Remove four screws.

801R200022

Installation

To install, follow the removal steps in the reverse order.
noting the following point:

1. After installing the headlight, be sure to adjust the

headlight aim.

Headlight Adjustment

Preparation

Place the vehicle with 1 person in driver seat on a level
surface and check to see if the inflation pressure of the
tires is correct, the lenses are clean, the battery is
sufficiently charged, and adjust to place vehicle by using
the screen.

1. Set a vertical screen on a level surface.
2. Toward the screen (1) from the bulb center mark of

the headlight, extend parallel lines to the floor. Mark
point (A) and (B) on the screen at the intersection of
parallel line and the screen.

3. Draw vertical lines through point (A) and (B) on the

screen.

801R200019

4. Keep the vehicle (2) 3m (9.8 ft) apart from the screen

(1).

5. Draw a horizontal line through point (A) and (B) on the

screen (1).

801R200009
