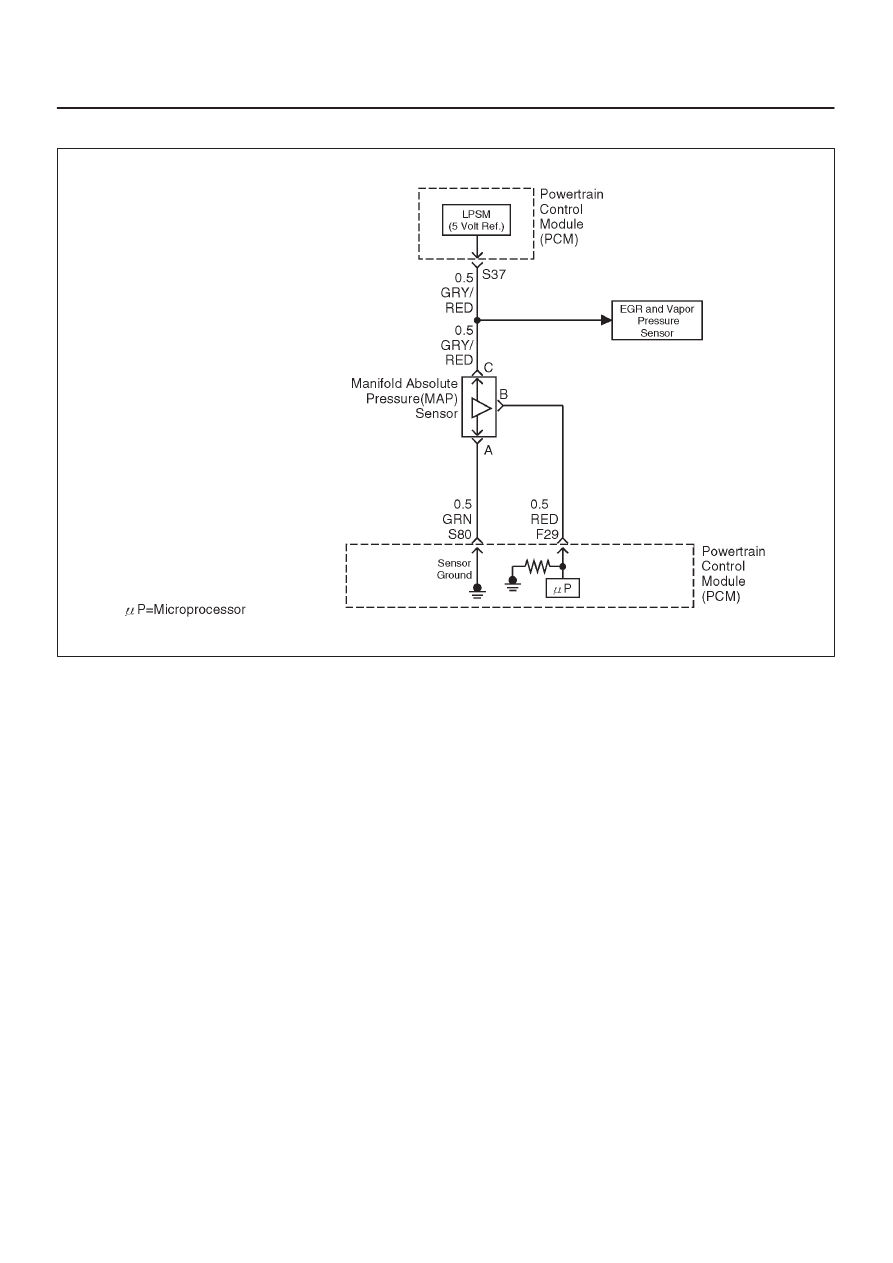

6E–142 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS DTC P0106 – MAP System Performance (Cont'd) Step No Yes Value(s) Action 8 1. Check the 5 volt reference circuit for high resistance, an open between the PCM and the MAP 2. If a problem is found, repair as necessary. Was a problem found? — Verify repair Go to Step 10 9 1. Ignition “OFF”. signal circuit for high resistance, an open, a short to 3. If a problem is found, repair as necessary. Was a problem found? — Verify repair Go to Step 10 10 1. Check the MAP sensor signal circuit for a poor connection at the PCM. 2. If a problem is found, repair as necessary. Did the terminal require replacement? — Verify repair Go to Step 14 11 1. Check for a poor connection at the MAP sensor. Was a problem found? — Verify repair Go to Step 12 12 Replace the MAP sensor. Is the action complete? — Verify repair — 13 1. Ignition “OFF”, disconnected the PCM. short to voltage or a short to the 5 volt reference 3. If a problem is found, repair as necessary. Was a problem found? — Verify repair Go to Step 14 14 Replace the PCM. IMPORTANT: The replacement PCM must be On-Vehicle Service in Powertrain Control Module and Sensors for And also refer to latest Service Bulletin. Check to see if the Latest software is released or not. Is the action complete? — Verify repair — |
