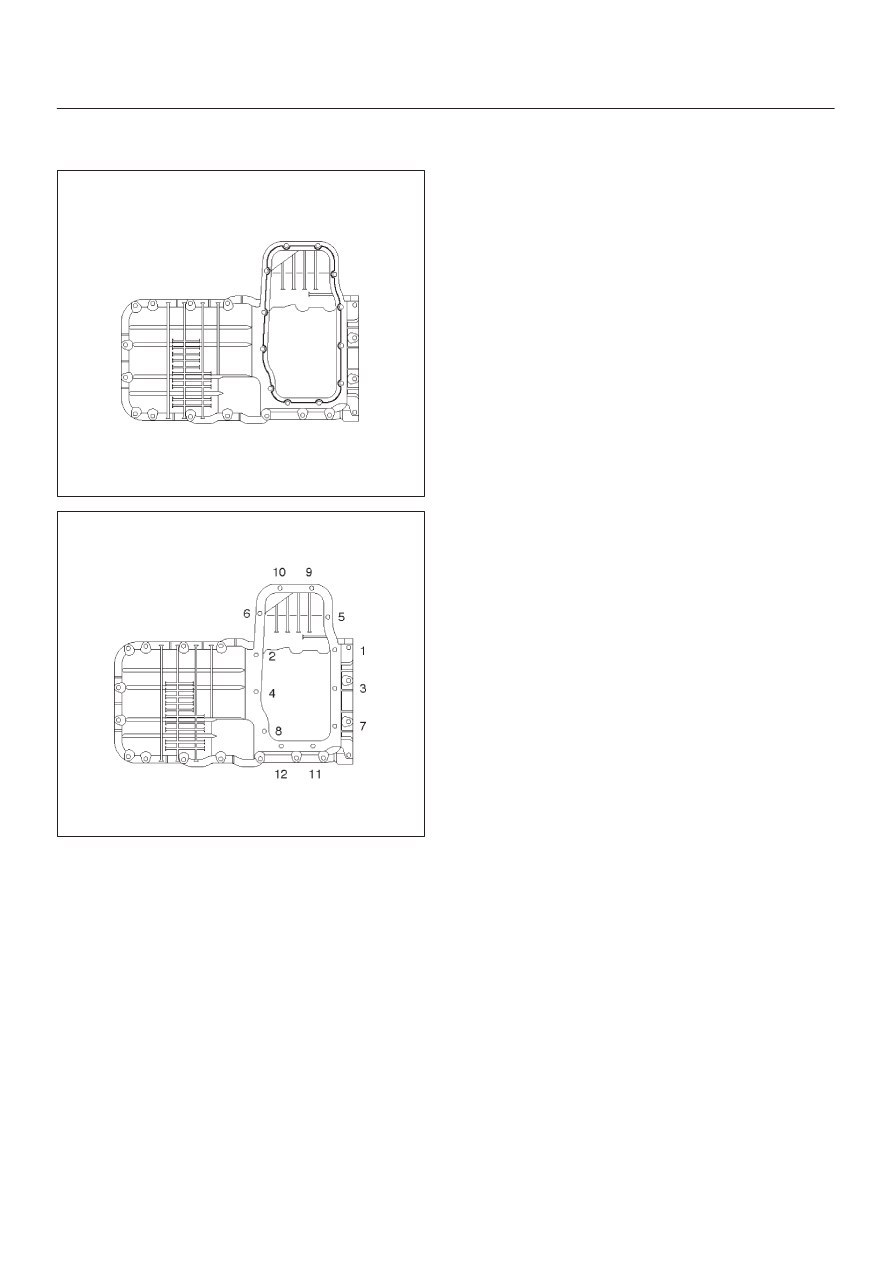

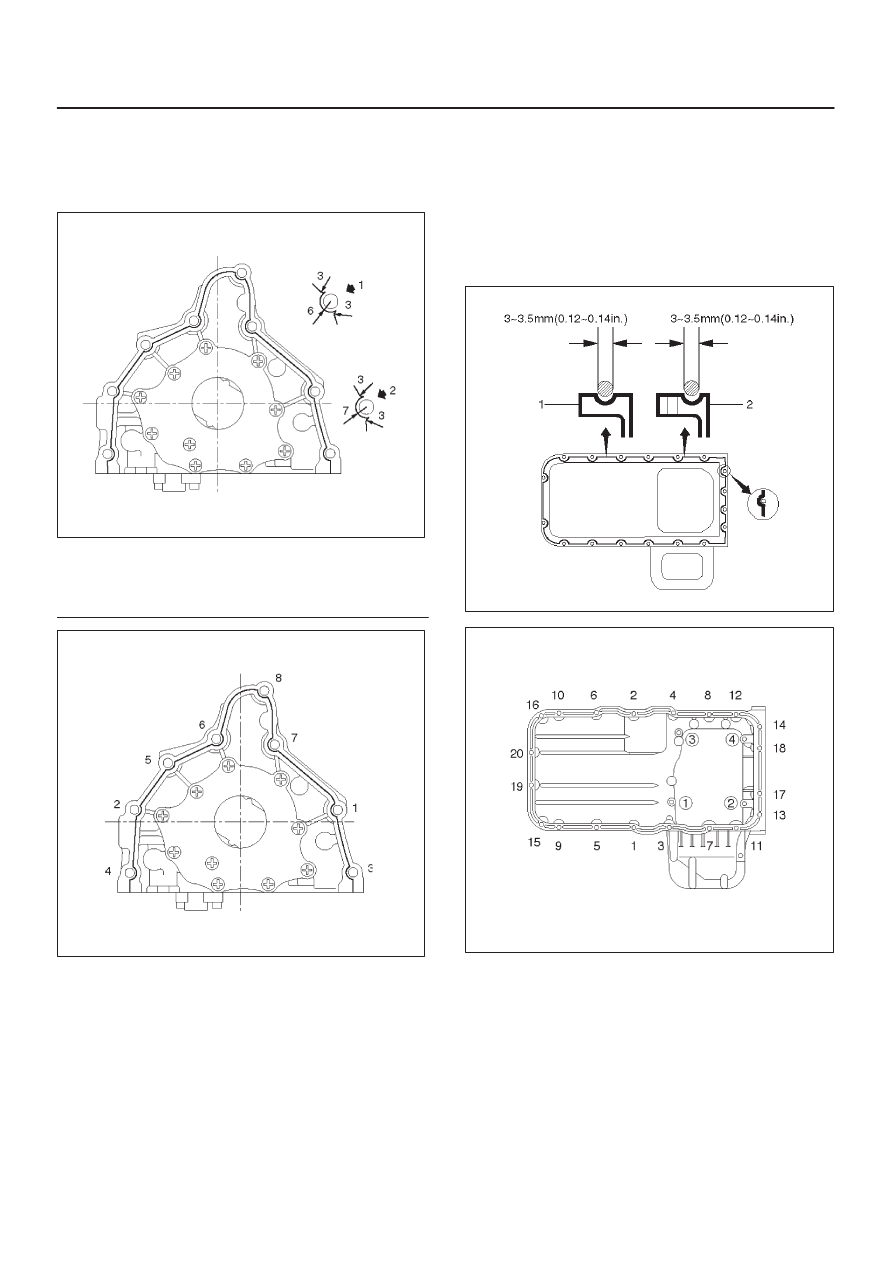

6A–43 ENGINE MECHANICAL (6VE1 3.5L) D Apply engine oil to oil seal lip. D Install oil pump in the cylinder block and tighten Torque : 25 N·m (18 lb ft) 051RW002 Legend (1) Around Bolt Holes 051RW001 9. Install oil strainer with O-ring, tighten to the specified torque. Torque : 25 N·m (18 lb ft) 10. Install oil pipe with O-ring, tighten fixing bolts to the specified torque. Torque : 25 N·m (18 lb ft) 11. Install crankcase. D Remove oil on crankcase mounting surface and dry D Properly apply a 4.5 mm (0.7 in) wide bead of D The crankcase must be installed within 5 minutes D Tighten fixing bolts to the specified torque. Torque : 10 N·m (87 lb in) 013RW010 013RW004 12. Install oil pan D Remove oil on oil pan mounting surface and dry the D Properly apply a 4.5 mm (0.7 in) wide bead of D The oil pan must be installed within 5 minutes after |
