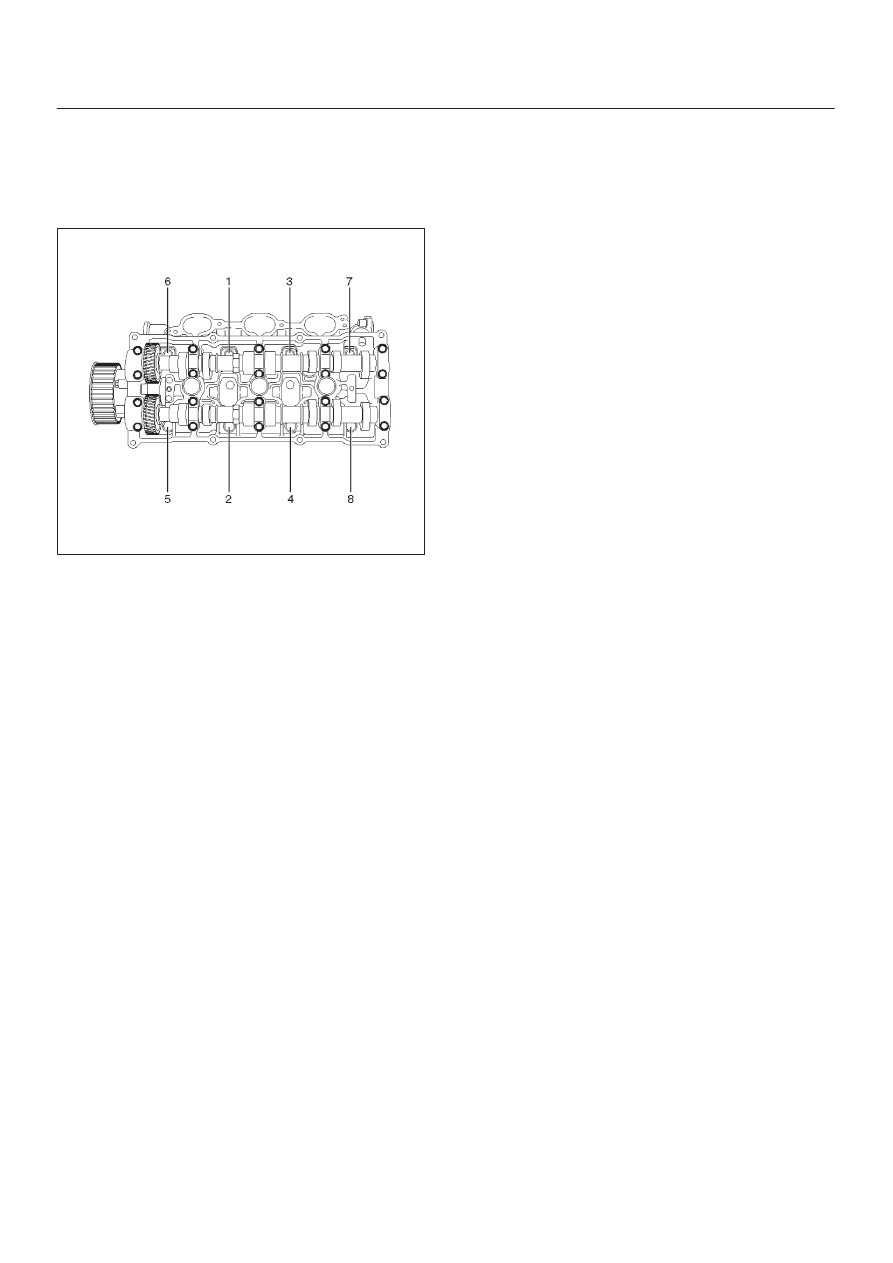

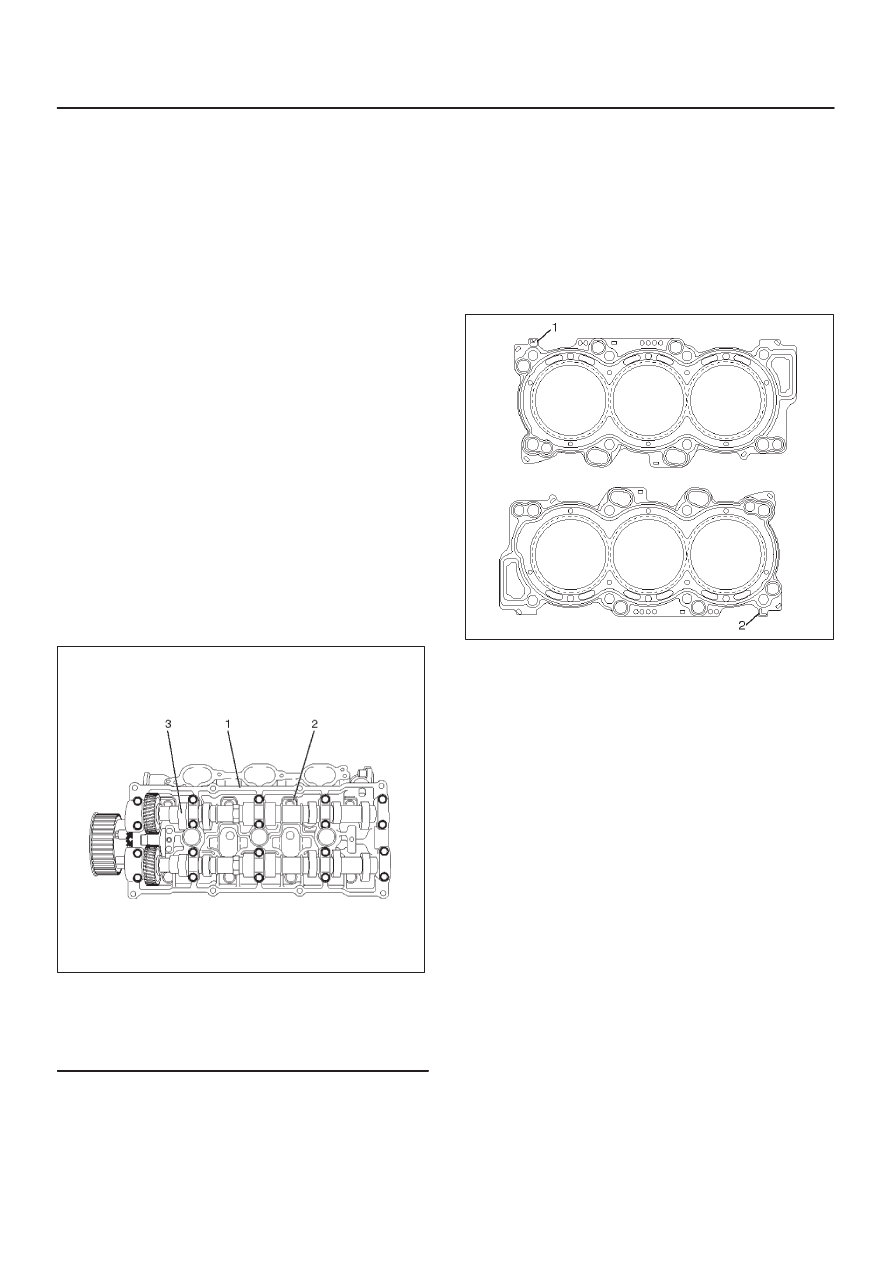

6A–35 ENGINE MECHANICAL (6VE1 3.5L) Cylinder Head Removal 1. Remove engine hood. D Refer to removal procedure for Crankshaft Pulley in 6. Remove timing belt. D Refer to removal procedure for Timing Belt in this 7. Remove cylinder head cover LH. D Refer to removal procedure for Cylinder Head 8. Remove cylinder head cover RH. D Refer to removal procedure for Cylinder Head 9. Remove common chamber. D Refer to removal procedure for Common Chamber 10. Remove cylinder head assembly. 1. Loosen head bolts in reverse of tightening sequence. 2. Remove cylinder head assembly. 014RW028 Legend (1) Cylinder Head Installation 1. Install cylinder head assembly to cylinder block. A. Put cylinder head gasket on the cylinder block. NOTE: There is discrimination mark “R” for right bank 011RW005 B. Align dowel pin hole to dowel pin on the cylinder block. C. Position cylinder head on the cylinder block. the cylinder head assembly from moving. E. Using J-24239-01 cylinder head bolt wrench, tighten bolts in numerical order as shown in the |
