SECURITY AND LOCKS

Rear Door Lock Assembly

Rear Door Lock Assembly and Associated Parts

655R100004

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the rear corner garnish.

• Pull the corner garnish to disconnect the retaining

clip.

3. Remove the window regulator handle.

• Remove the clip on the rear side of the regulator

handle using a wire.

651RW003

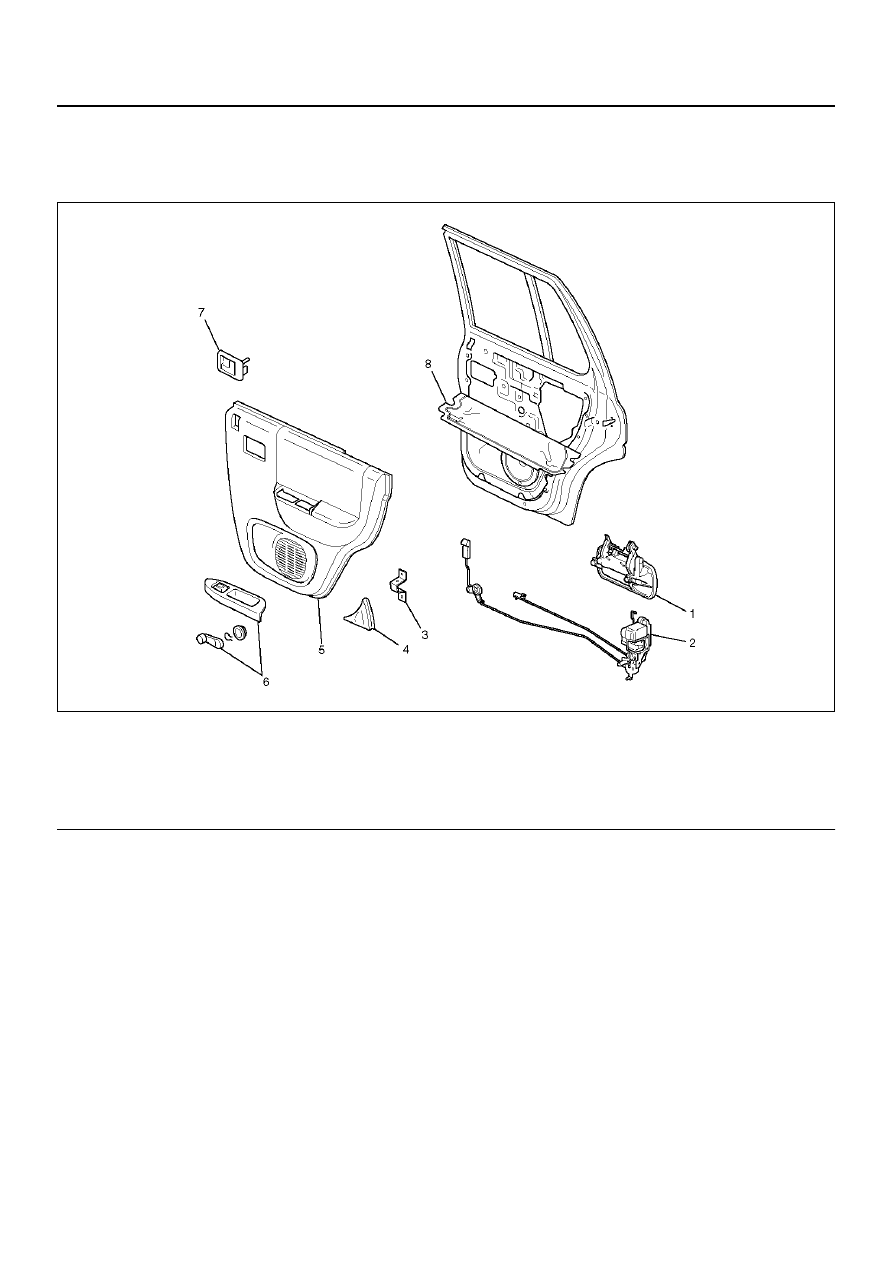

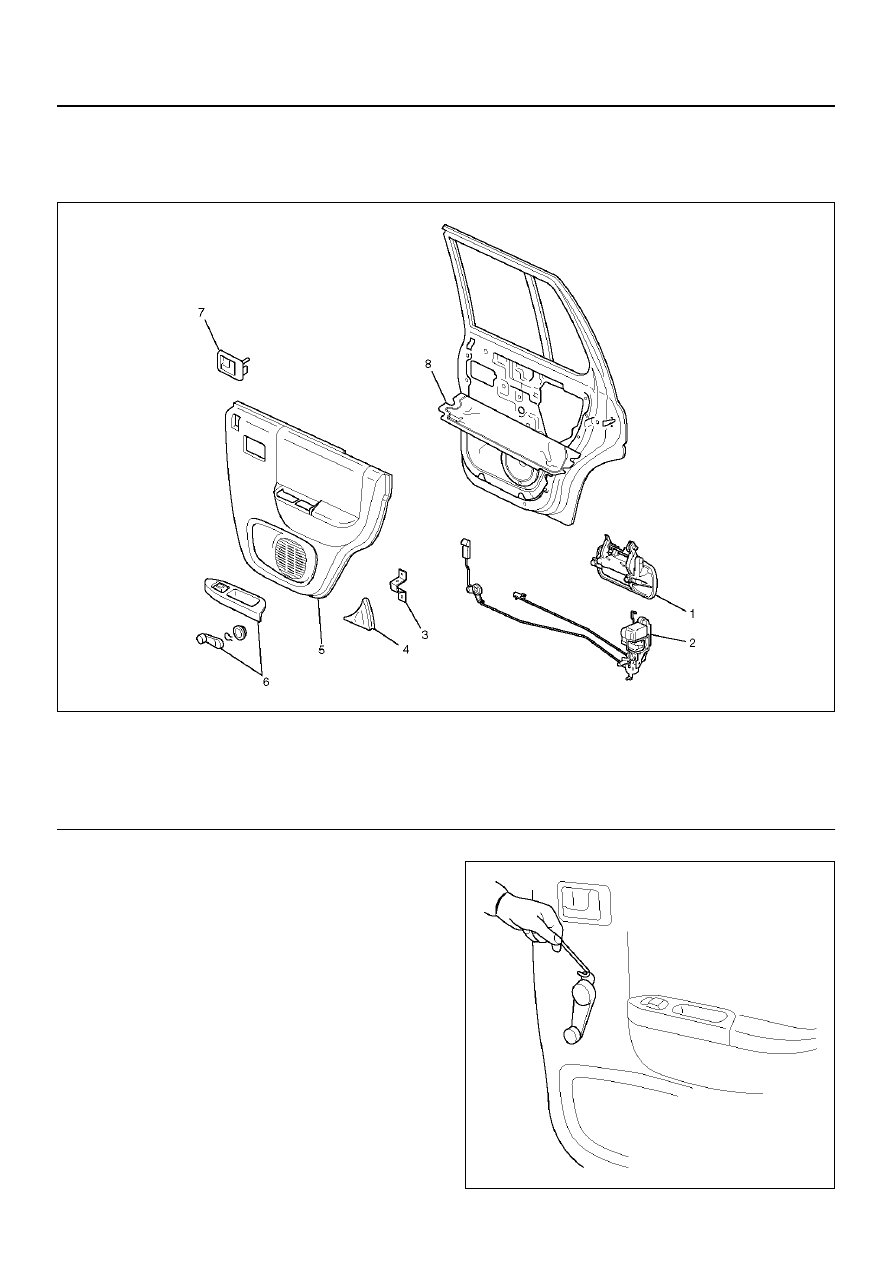

Legend

(1) Outside Handle
(2) Door Lock Assembly
(3) Bracket
(4) Rear Corner Garnish

(5) Door Trim Panel
(6) Power Window Switch and Pull Case/Window

Regulator Handle

(7) Inside Handle
(8) Waterproof Sheet

SECURITY AND LOCKS

8H–7

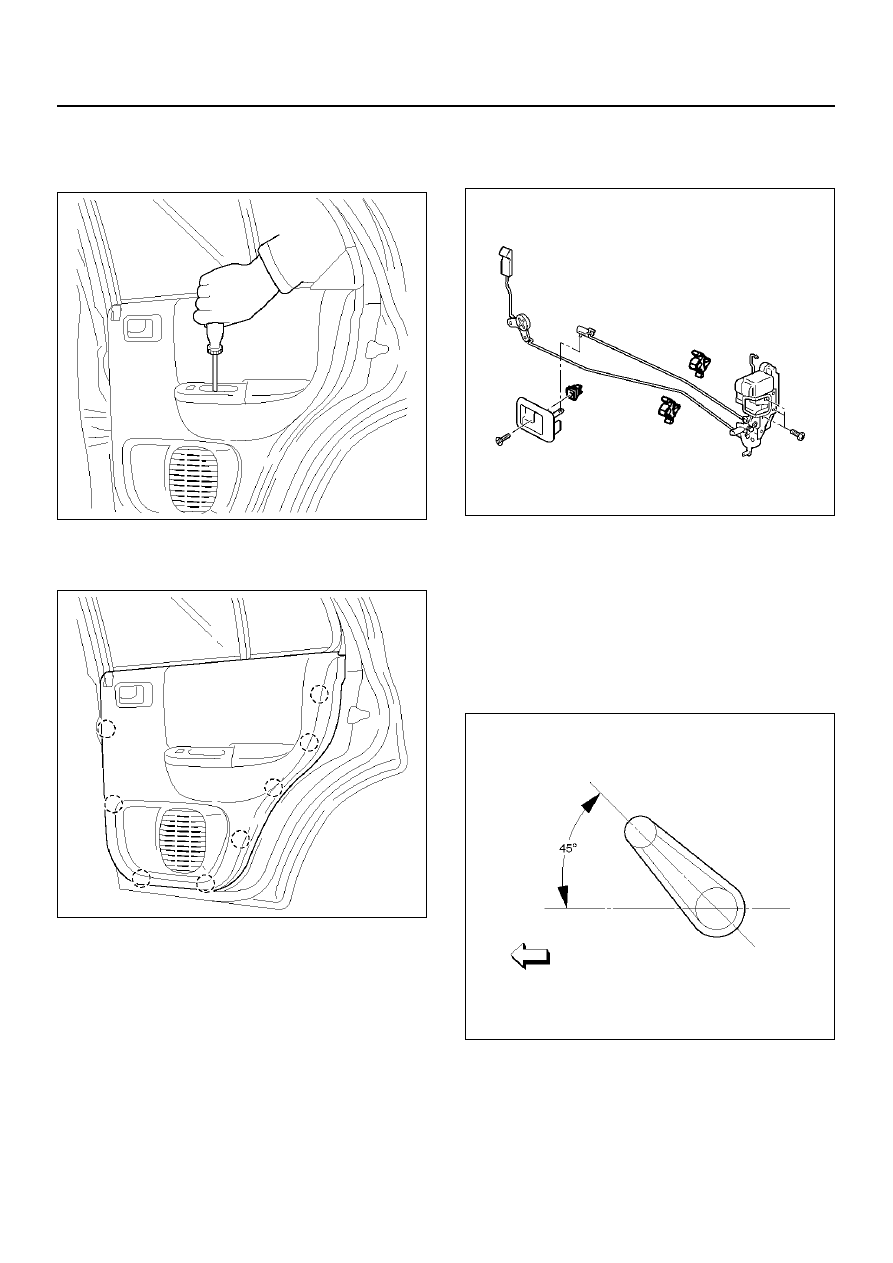

4. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

5. Remove the screw at the pull case.

655R100002

6. Pull out the trim panel at the 8 clip positions.

• Disconnect the power window switch connector.

655R100003

7. Remove the bracket.

8. Peel the upper half of the waterproof sheet.

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

9. Disconnect the locking links and remove the door

lock assembly fixing screws to remove the door lock
assembly.

652RW002

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the lock assembly and

striker moving surface.

2. Install the regulator handle as shown in the

illustration, if equipped without power windows.

631RW005

3. Tighten the door lock assembly fixing screws to the

specified torque.

Torque 7 N·m (61 Ib in)

4. Check that the door lock operates smoothly.

8H–8

SECURITY AND LOCKS

Rear Outside Handle

Rear Outside Handle and Associated Parts

655R100004

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the door trim panel.

• Refer to Rear Door Lock Assembly in this

section.

3. Peel the upper half of the waterproof sheet.

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

4. Disconnect the locking link and remove fixing bolts

to remove the outside handle.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Check that the outside handle operates smoothly.

2. Tighten the outside handle fixing bolts to the

specified torque.

Torque 9 N·m (78 Ib in)

Legend

(1) Outside Handle
(2) Door Lock Assembly
(3) Bracket
(4) Rear Corner Garnish

(5) Door Trim Panel
(6) Power Window Switch and Pull Case/Window

Regulator Handle

(7) Inside Handle
(8) Waterproof Sheet

SECURITY AND LOCKS

8H–9

Tailgate Lock and Hatchgate Lock (LWB)

Tailgate Lock, Hatchgate Lock and Associated Parts

681RW005

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the tailgate trim cover assembly (3).

• Remove the 2 screws (2) holding the hatchgate

lock assembly (1) first, and pull up the trim cover
while detaching the clips from tailgate panel.

683RW001

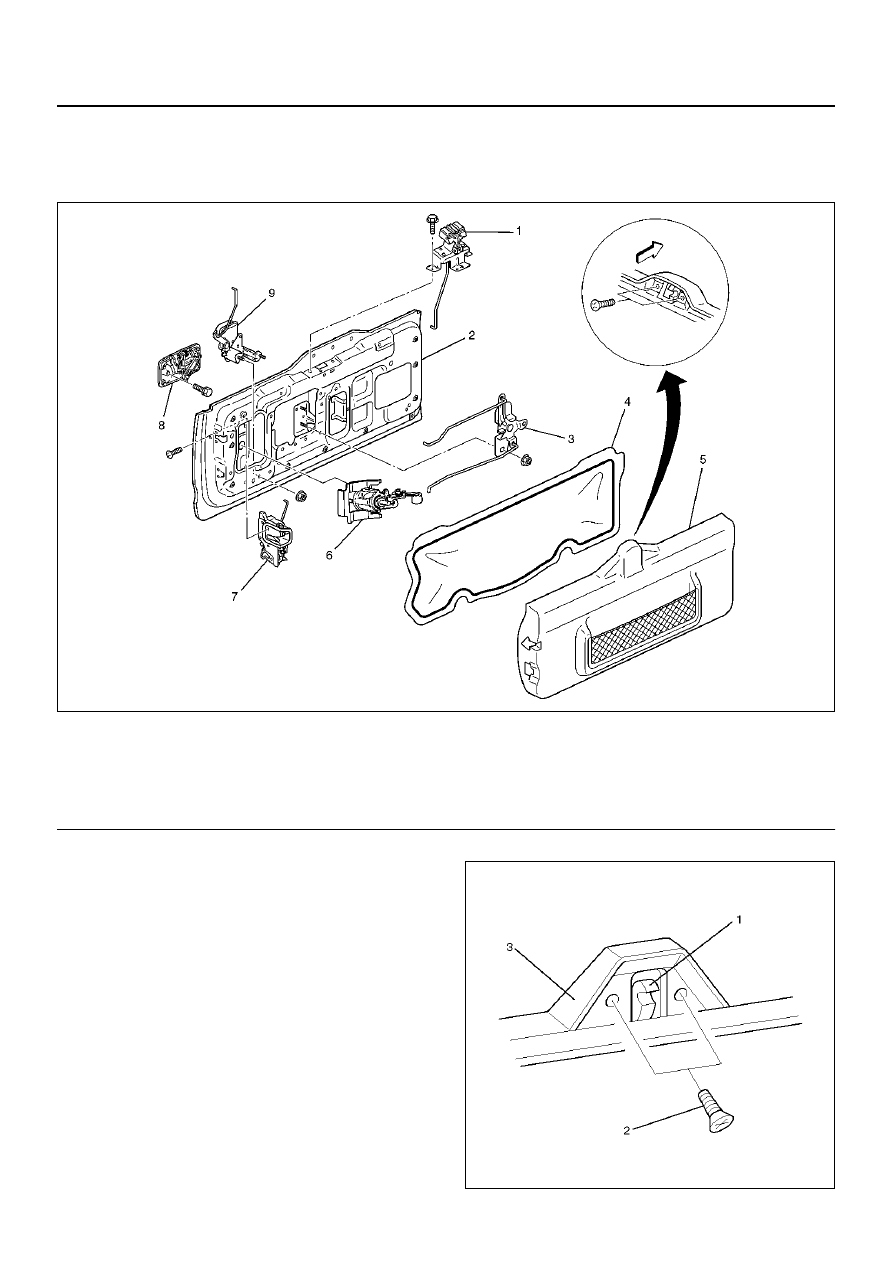

Legend

(1) Hatchgate Lock Assembly
(2) Tailgate Assembly
(3) Tailgate Lock Relay Lever
(4) Waterproof sheet

(5) Trim Cover Assembly
(6) Key Cylinder
(7) Tailgate Lock Assembly
(8) Ouside Handle
(9) Hatchgate Lock Actuator Assembly
