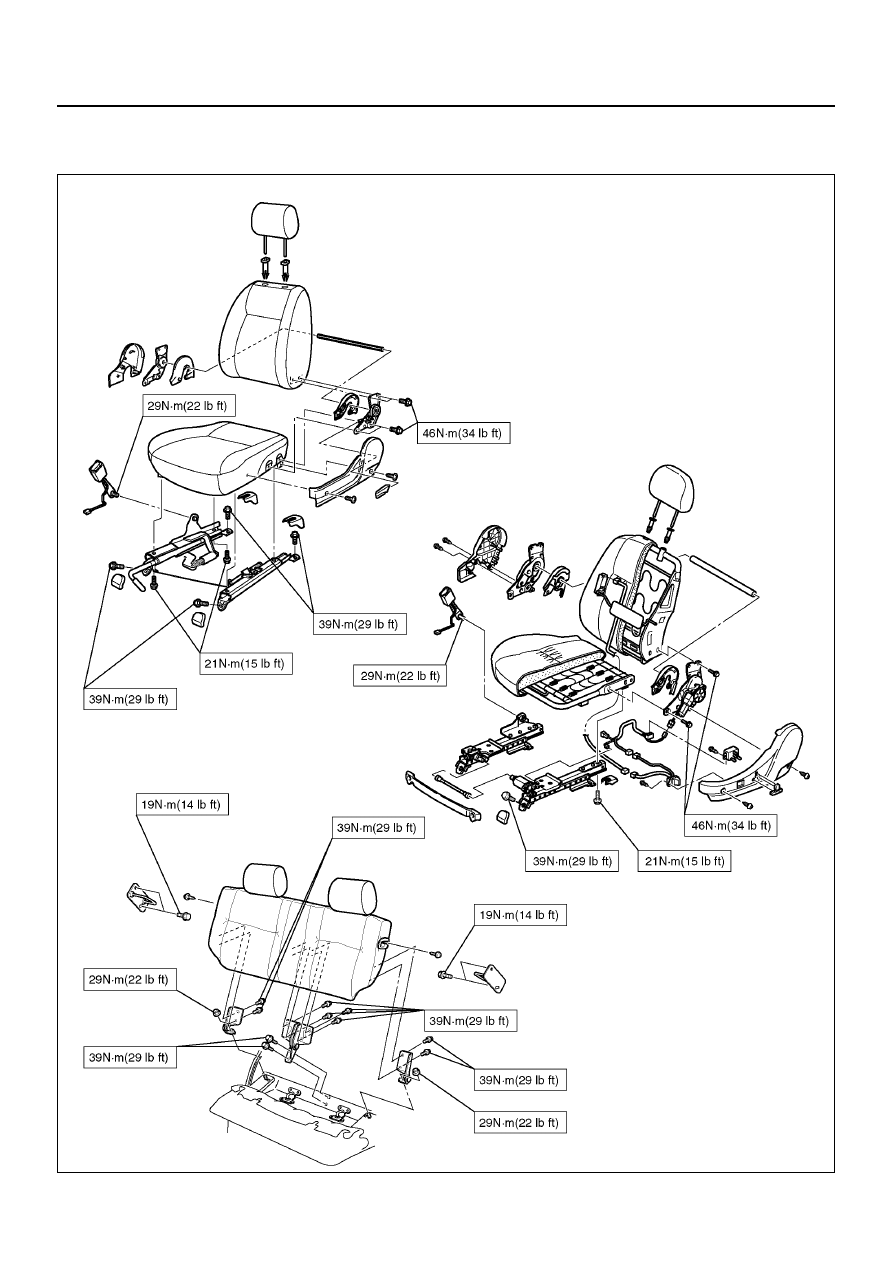

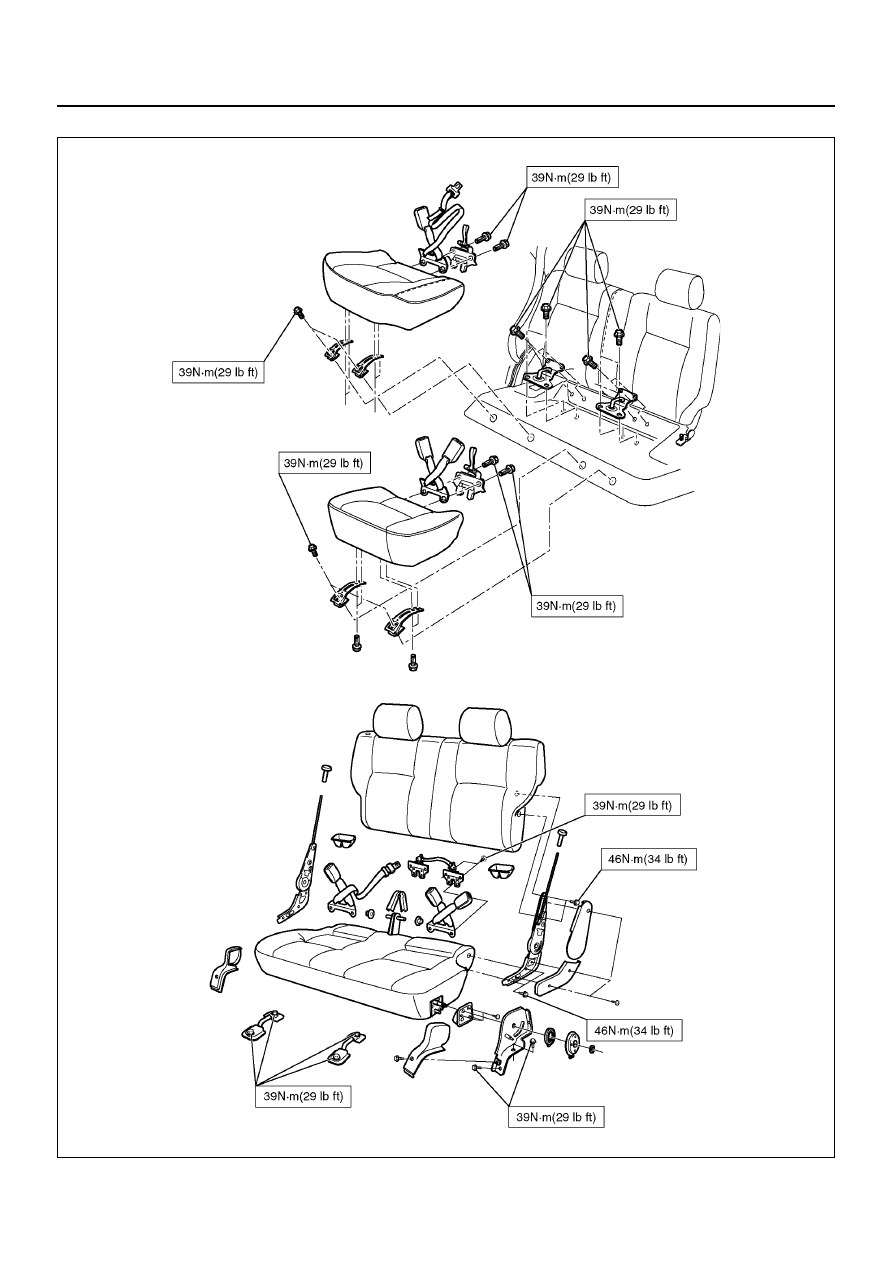

SEATS 8G–13 Removal 1. Fold the rear seat backs forward. • Pull up on the left and right release knobs. 2. Remove the rear seat leg covers. • Remove the screw and clip from each. 3. Remove the rear seat assembly. • Remove both left and right seat assembly fixing screws, and pull the seat lock strap to release the 4. Remove the device covers (left and right). • Remove the three screws from each. 5. Remove the release knobs (left and right). 6. Remove the rear seat back assemblies (left and right). • Remove both reclining device fixing bolts from the sides of the seat backs. 7. Remove the headrests. 8. Remove the trim covers. 9. Remove the guide holders. 10. Remove the reclining devices. • Remove the both reclining device fixing bolts from the sides of the seat cushions. 11. Remove the rear seat legs (left and right). • Remove the rear cushion dampers and spiral springs, after removing the push nuts. 12. Remove the support covers (left and right). • Remove the three screws from each support cover. 13. Remove the seat lock covers (left and right). 14. Remove the seat lock assemblies and the rear seat belt buckle assemblies (left and right). • Remove the fixing bolts. 15. Remove the free hinge cover. Installation To install, follow the removal steps in the reverse order, 1. Tighten the seat lock assemblies and the rear seat belt buckle assemblies to the specified torque. Torque: 39 N·m (29 lb ft) 2. Tighten the reclining devices to the specified torque. Torque: 46 N·m (34 lb ft) 3. Tighten the rear seat assembly fixing bolts to the specified torque. Torque: 39 N·m (29 lb ft) |
