WIPER/WASHER SYSTEM

8B–13

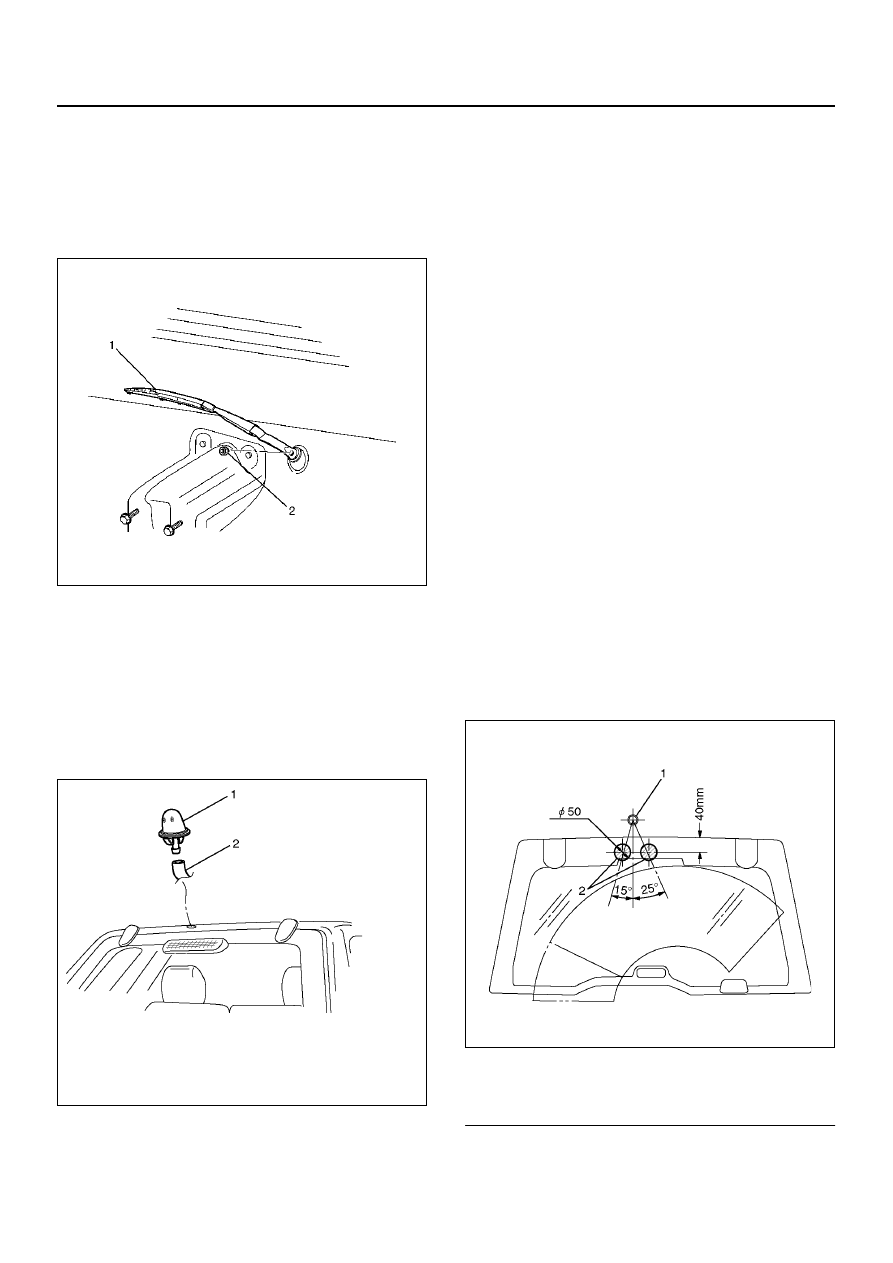

Rear Wiper Arm/Blade (Resin Top Model)

 Removal

1. Remove the arm nut (2).

2. Remove the wiper arm/blade (1).

885RX003

Installation

Refer to Rear Wiper Motor in this section.

Rear Washer Nozzle

 Removal

1.  Remove the washer nozzle(1).

•  Pull out the washer nozzle from the washer hose

(2).

885R100003

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Spray Pattern

885R100002

EndOFCallout

Legend

(1) Washer Nozzle
(2) Spray Target

8B–14

WIPER/WASHER SYSTEM

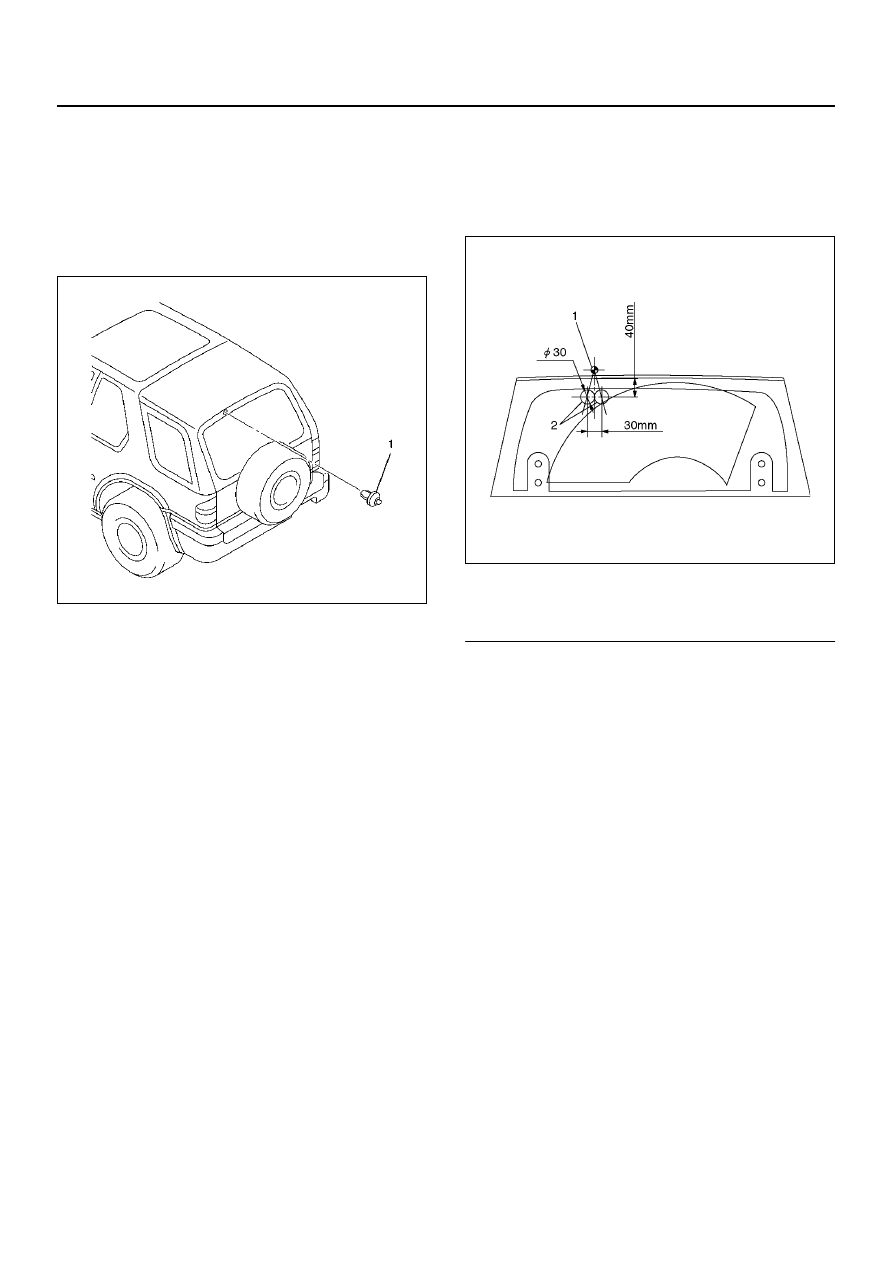

Rear Washer Nozzle (Resin Top Model)

 Removal

1. Remove the washer nozzle (1).

• Pull out the washer nozzle and disconnect the

washer hose.

885RX001

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Spray Pattern

To install, follow the removal steps in the reverse order.

885R100005

EndOFCallout

Legend

(1) Washer Nozzle
(2) Spray Target

WIPER/WASHER SYSTEM

8B–15

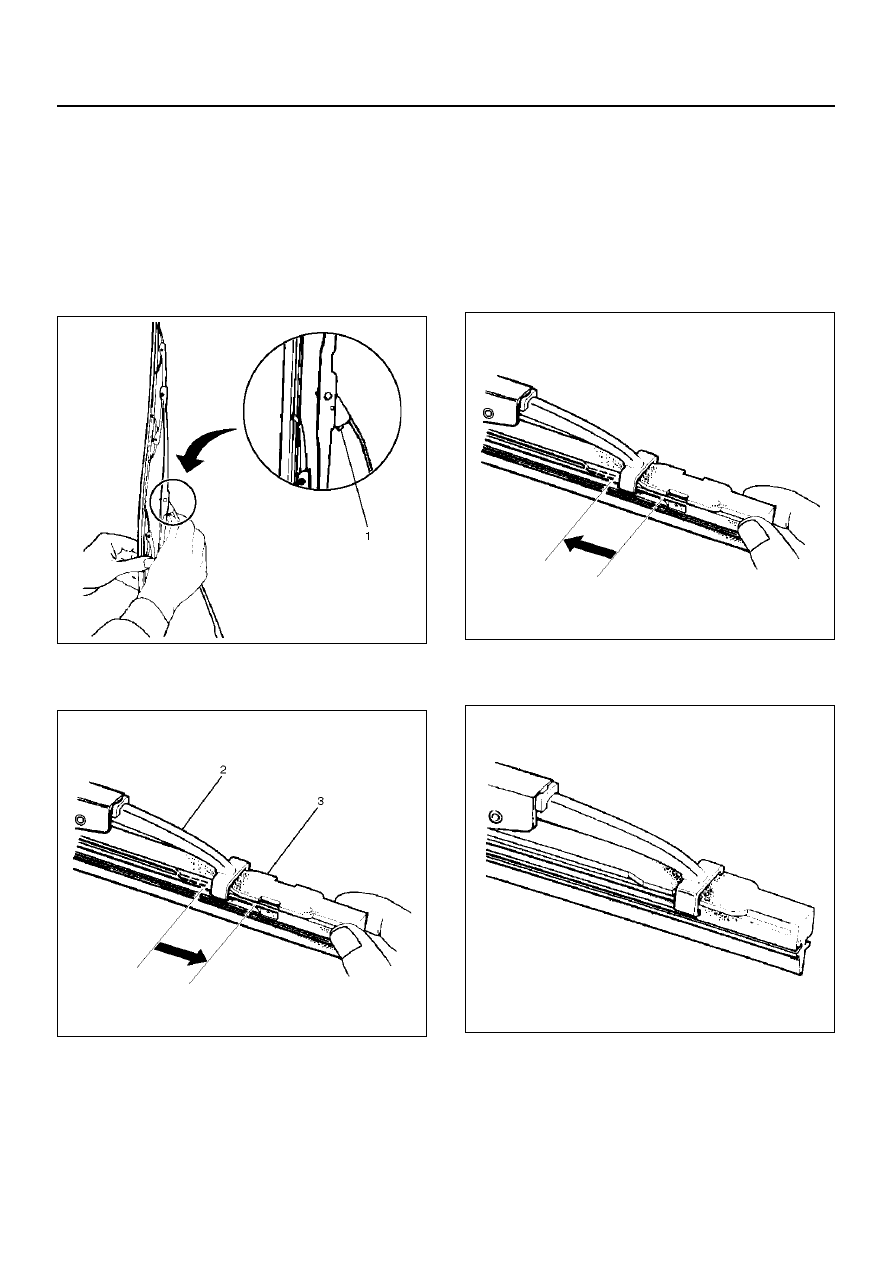

Rear Wiper Blade Rubber (Spare Tire Storage-Tailgate Mounted)

Removal

1. Remove the wiper blade from the wiper arm.

2. Push out the wiper rubber from the wiper blade by

sliding it horizontally while holding down the rubber
on the wiper blade convex (1) side.

CAUTION:  When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.

880RW022

Installation

1. Install the wiper blade rubber.

• Insert the tip of wiper rubber (2) from the opposite

side of removal in the arrow direction.

880RX001

• Check if the convex part (3) of wiper blade is

installed in the groove of the wiper rubber.

880RX002

8B–16

WIPER/WASHER SYSTEM

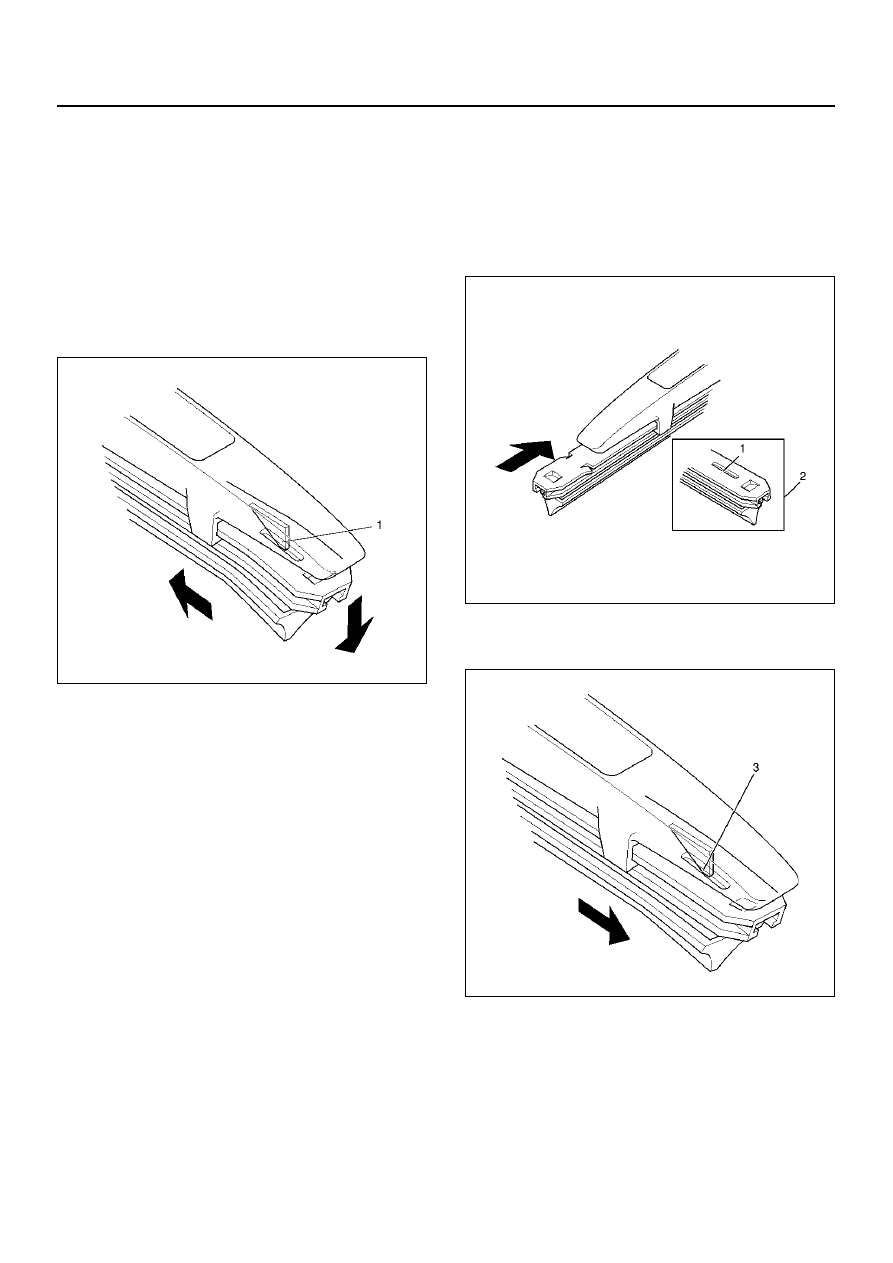

Rear Wiper Blade Rubber (Spare Tire Storage-Under Floor)

Removal

1. Push the wiper blade lock(1) while pulling the wiper

blade in the arrow direction as shown in the figure.

CAUTION:  When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.

880RS011

2. Pull the end of rubber and remove the projection(3)

from the click of the blade stay (2).

880RS010

3. Pull the rubber out in the same direction.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Install the click of the blade stay in the groove of the

new rubber and slide it in. Complete wiper blade
installation by pushing the click.

885RS002

2. Finally, check that the click of the stay has caught in

the hole of the rubber.

885RS001
