Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 1622





WIPER/WASHER SYSTEM

8B–5

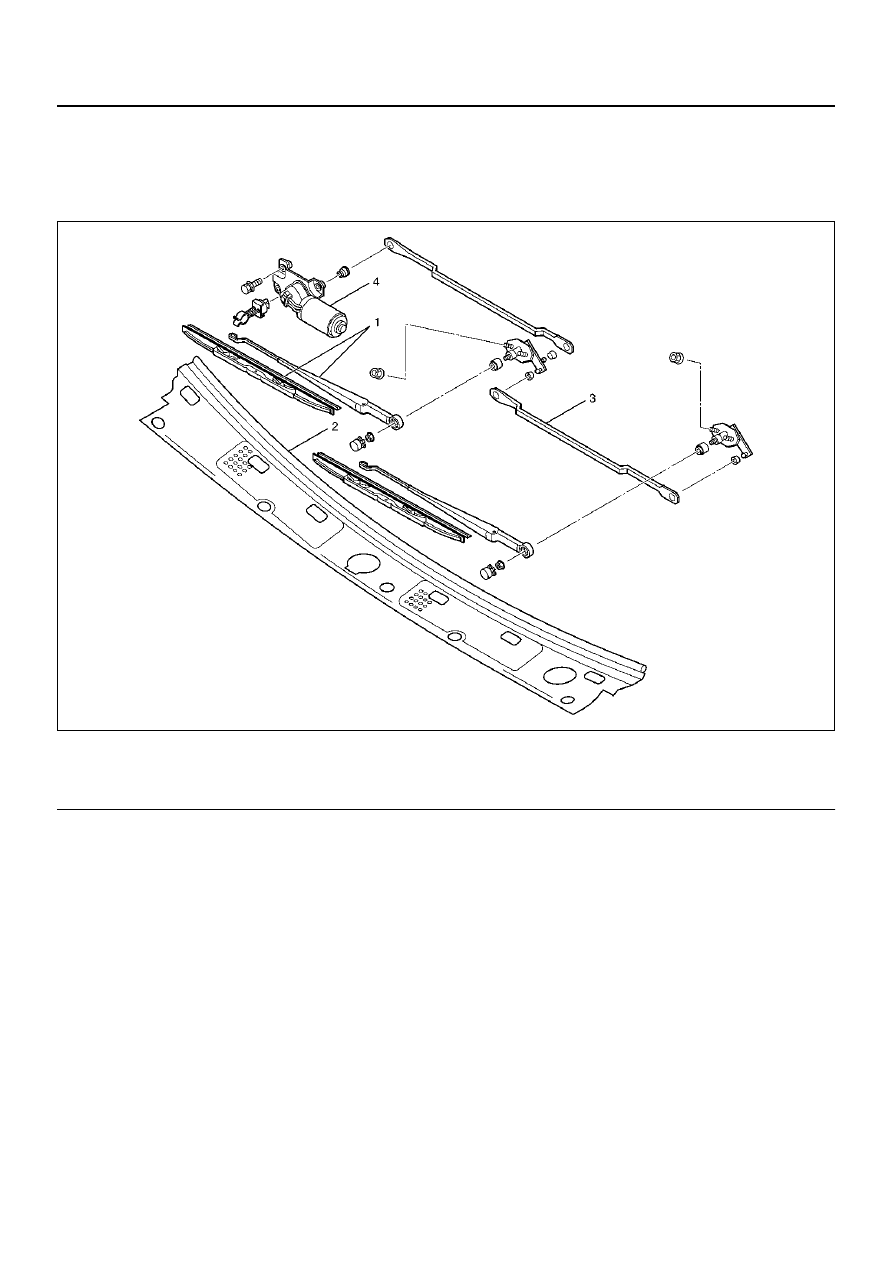

Windshield Wiper Linkage

Windshield Wiper Linkage and Associated Parts

880RW004

EndOFCallout

 Removal

1. Disconnect the battery ground cable.

2. Remove the windshield wiper arm/blade.

3. Remove the vent cowl cover.

4. Remove the windshield wiper motor.

5.  Remove the pivot assembly mounting nuts, fixing

screws.

6. Take out the windshield wiper linkage assembly

from the opening of the cowl.

Installation

To install, follow the removal steps in the reverse order.

Legend

(1) Windshield Wiper Arm/Blade
(2) Vent Cowl Cover

(3) Windshield Wiper Linkage Assembly
(4) Windshield Wiper Motor

8B–6

WIPER/WASHER SYSTEM

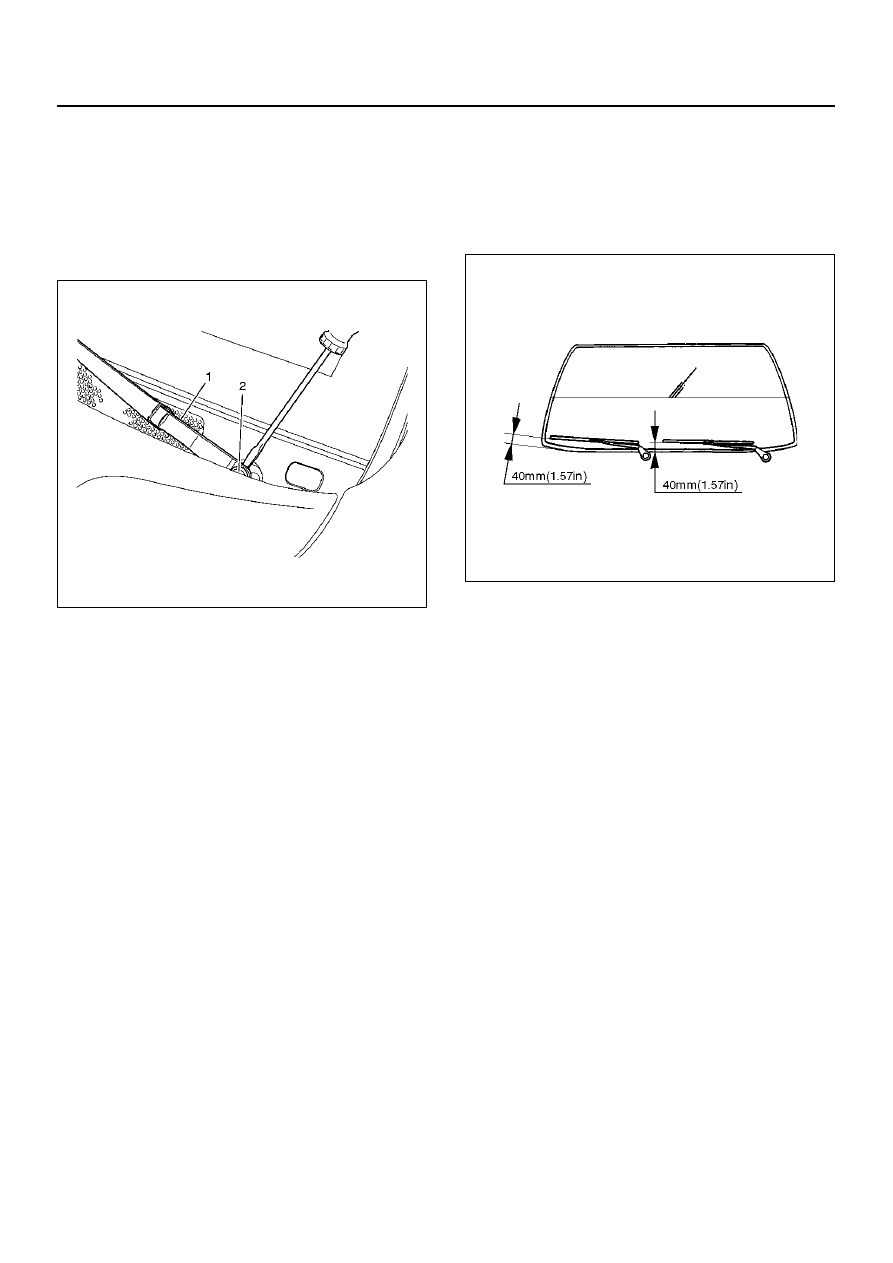

Windshield Wiper Arm/Blade

Removal

1. Dry the cap(2) off with the tip of a screwdriver.

2. Remove the nut.

3. Remove the wiper arm/blade(1).

880RW003

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

880RW006

1.  Before installing the wiper arm/blade to the shaft,

confirm that the motor stops at the autostop
position.

2.  Set the wiper arm/blade so that the tips of both

blades are positioned about 40 mm (1.57in)   from
the upper edge of the cowl cover as shown in the
figure.

3.  Tighten the nuts to the specified torque.

Torque: 23 N·m (17 lb ft)

WIPER/WASHER SYSTEM

8B–7

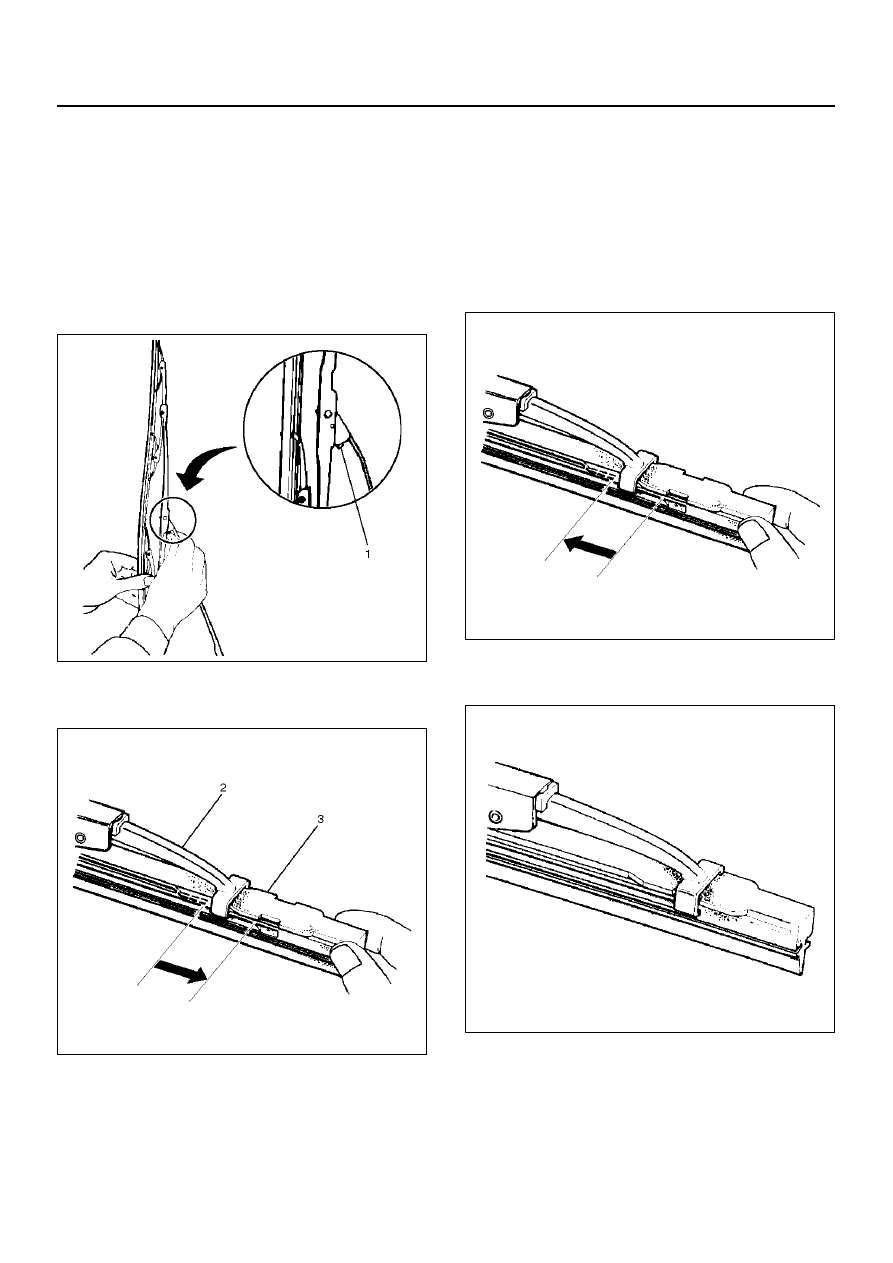

Windshield Wiper Blade Rubber

 Removal

1.  Push the wiper blade lock(1) while pulling the wiper

blade in the arrow direction as shown in the figure.

CAUTION:   When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.
CAUTION:

880RS011

2.  Pull the end of rubber and remove the projection(3)

from the click of the blade stay (2).

880RS010

3.  Pull the rubber out in the same direction.

 Installation

 To install, follow the removal steps in the reverse order,
noting the following points:

1.  Install the click of the blade stay in the groove of the

new rubber and slide it in. Complete wiper blade
installation by pushing the click.

885RS002

2.  Finally, check that the click of the stay has caught in

the hole of the rubber.

885RS001

8B–8

WIPER/WASHER SYSTEM

Rear Wiper/Washer System

 General Description

 The circuit consists of the starter switch, rear wiper &
washer switch, rear wiper motor, rear washer motor and
Alarm & relay control unit.
 When the rear wiper & washer switch is turned on with

the starter switch on, the battery voltage is applied to
the wiper motor to activate the wiper.
 The washer motor squirts glass cleaning fluid while the
washer switch is being pushed. The alarm & relay
control unit is used to control motion of the wiper.

Rear Wiper and Washer Switch

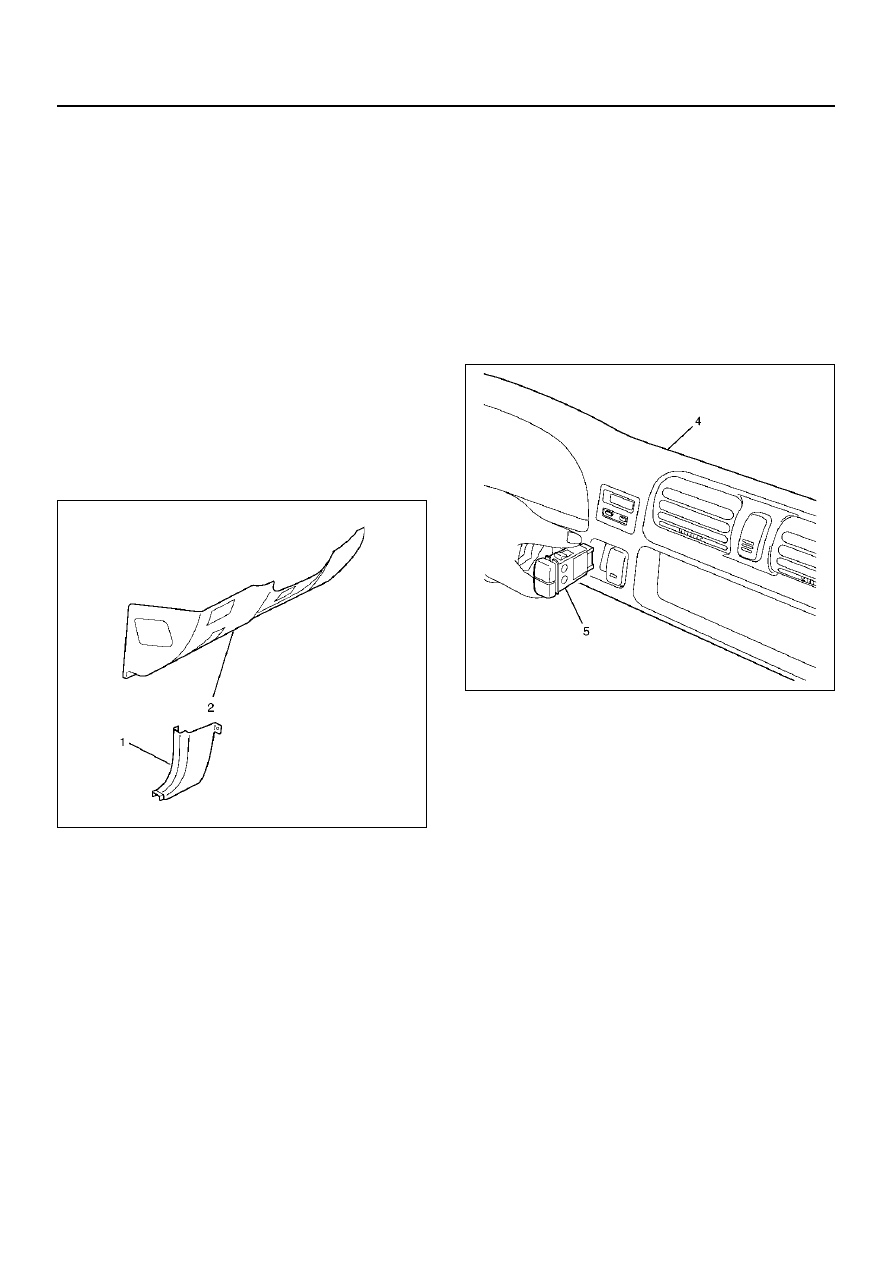

Removal

1.  Disconnect the battery ground cable.

2.  Remove the dash side trim panel(1).

3.  Remove the lower cover assembly(2).

• Refer to Instrument panel Assembly in Body

Structure section.

821RW254-1

4.  Remove the meter cluster assembly(4).

5. Remove the rear wiper & washer switch (5).

• Disconnect the connector.

• Push the lock from the back side of the meter

cluster assembly.

825RW090

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Push the switch with your fingers until it locks

securely.
