7A–48

AUTOMATIC TRANSMISSION (4L30–E)

Installation

1. Slowly raise transmission jack until front of the

transmission is aligned with rear of the engine. Attach
the transmission to the engine.

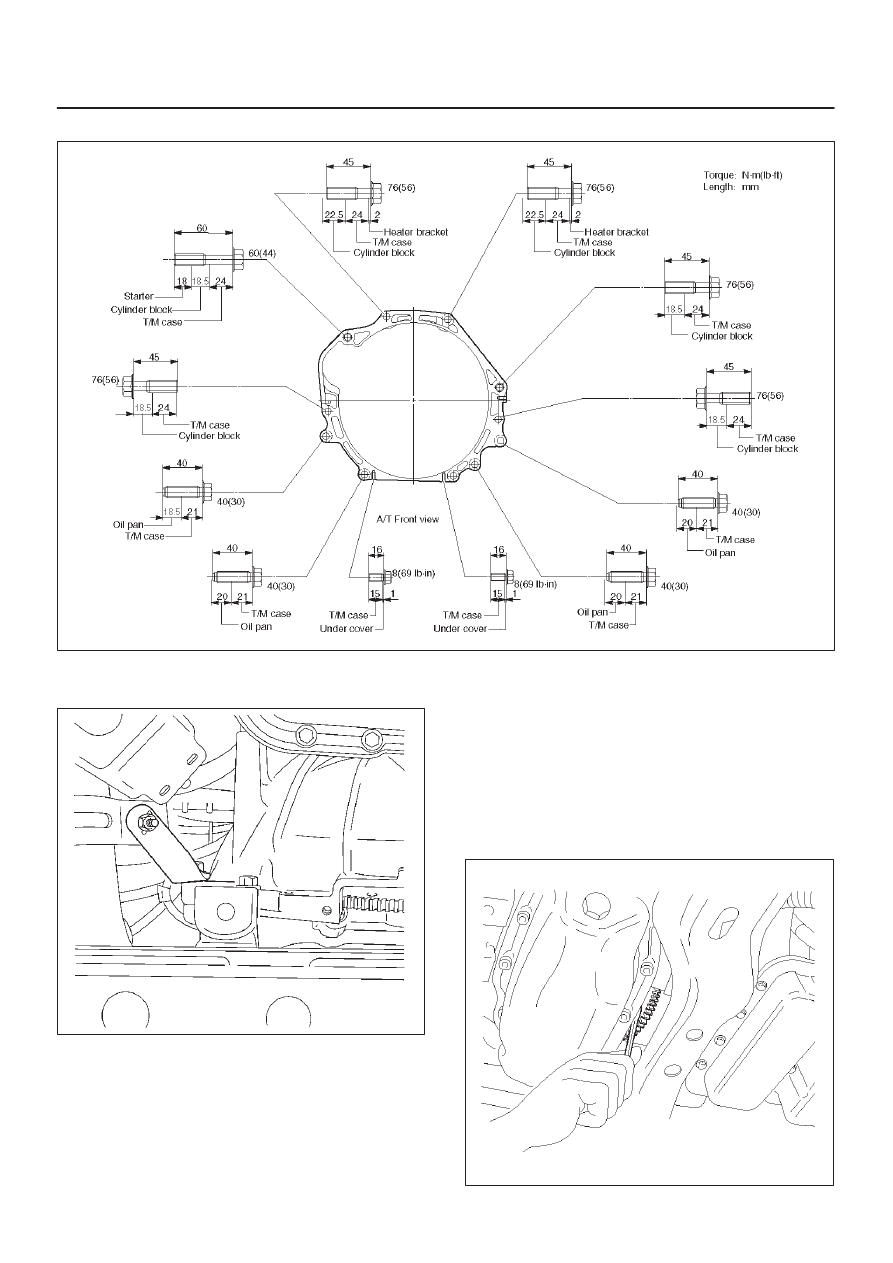

2. Tighten engine transmission bolts as shown in the

figure.

(V6)

F07RY001

7A–49

AUTOMATIC TRANSMISSION (4L30–E)

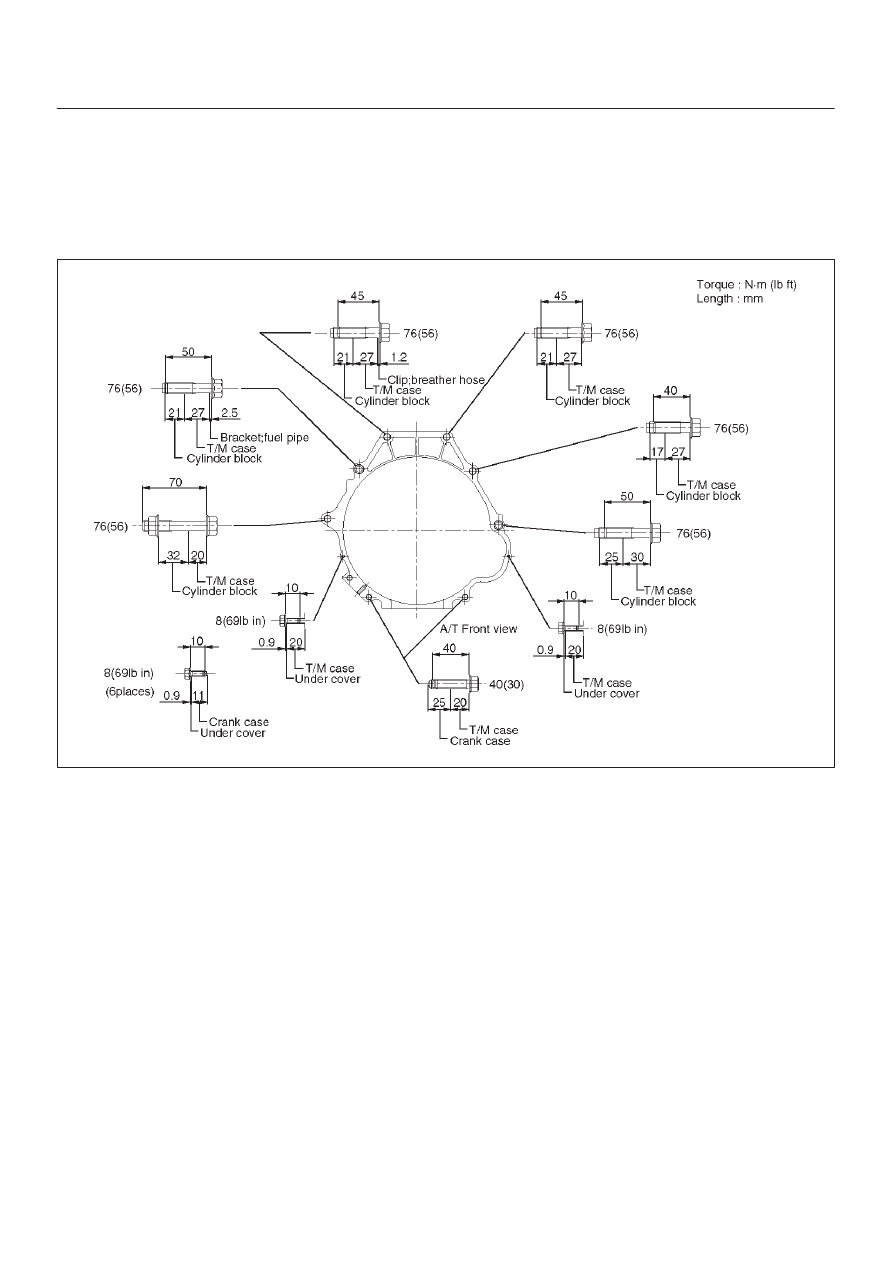

(HEC)

F07R100006

D

Install exhaust pipe bracket to converter housing
and exhaust pipe (HEC).

150R100009

3. Align the flex plate torque converter bolt boss with flex

plate hole by turning the torque converter. Install flex
plate torque converter bolts (6 pieces) by turning the
crankshaft.

Torque:

54 N

•

m (40 lb ft) (V6)

:

29 N

•

m (22 lb ft) (HEC)

NOTE: Do not reuse the flex plate torque converter bolt.

(V6)

240RW005

7A–50

AUTOMATIC TRANSMISSION (4L30–E)

(HEC)

240R100004

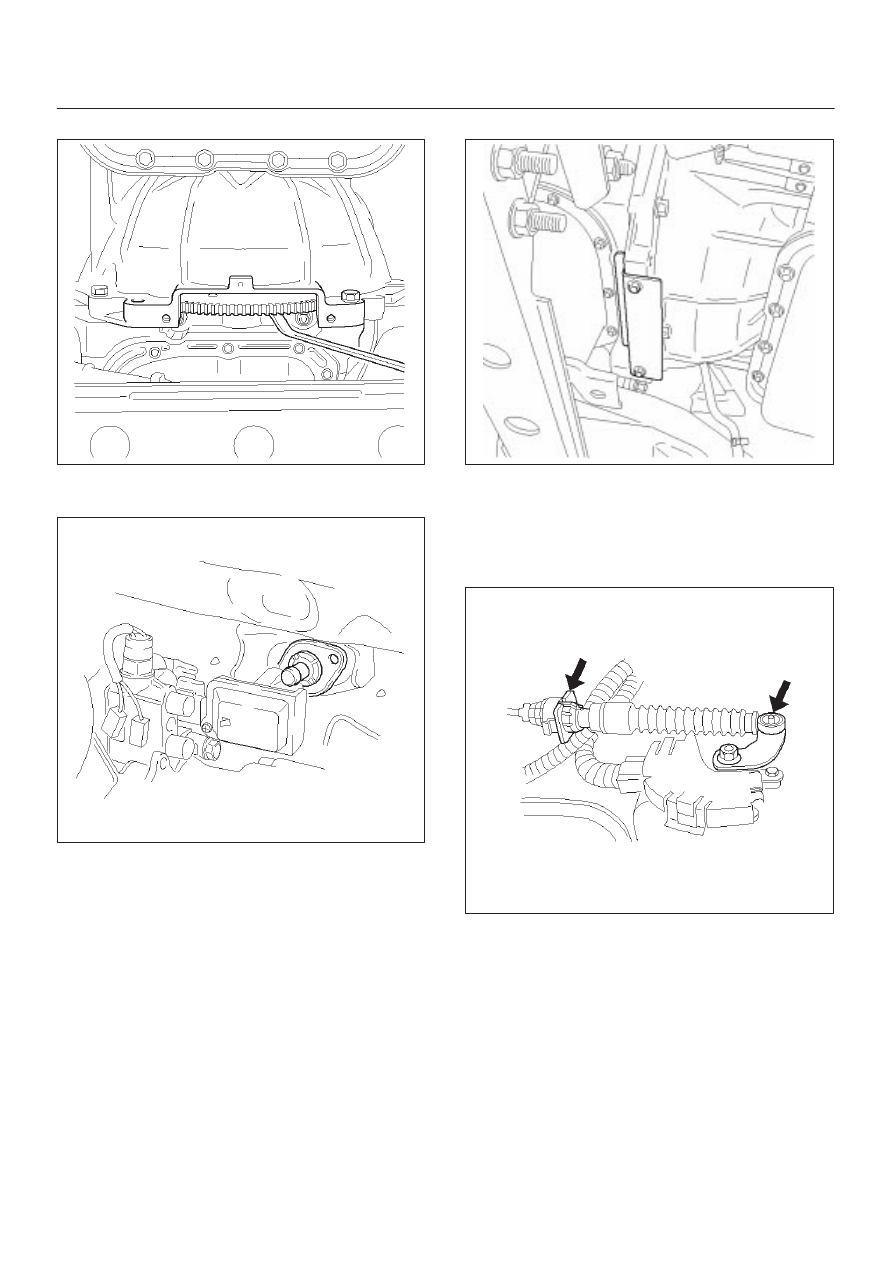

4. Install transfer control lever on the transfer case (V6,

4

×

4).

262RW015

5. Install under covers to the transmission and engine.

(HEC)

240R100005

Torque: 8 N

•

m (69 lb in) (V6 / HEC)

6. Install starter (V6).

Torque: 40 N

•

m (30 lb ft)

7. Install select cable by connecting inner cable to select

lever and installing outer cable with bracket.

256RW025

7A–51

AUTOMATIC TRANSMISSION (4L30–E)

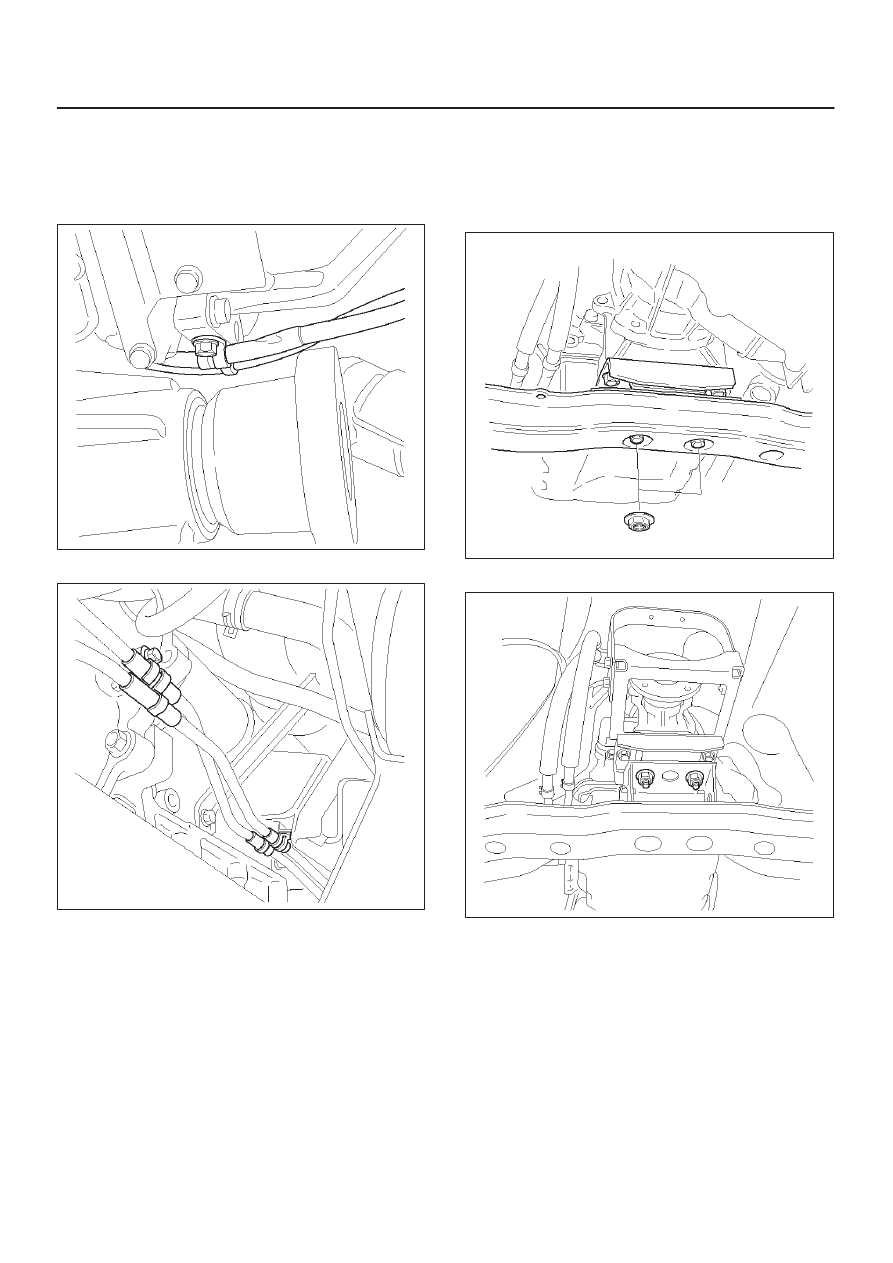

8. Connect transmission oil cooler pipes to A/T.

Torque: 44 N

•

m (33 lb ft)

9. Install oil cooler pipe clamp and bracket to the

converter housing.

(V6, 4

×

4)

253RY001

(HEC)

253R100001

10. Tighten oil cooler pipe clamp bolt at the engine mount

side.

11. Install third crossmember.

Torque: 76 N

•

m (56 lb ft)

12. Install rear mount nuts.

Torque: 50 N

•

m (37 lb ft)

(4

×

4)

F07RW008

(4

×

2)

F07R100005
