7A–44

AUTOMATIC TRANSMISSION (4L30–E)

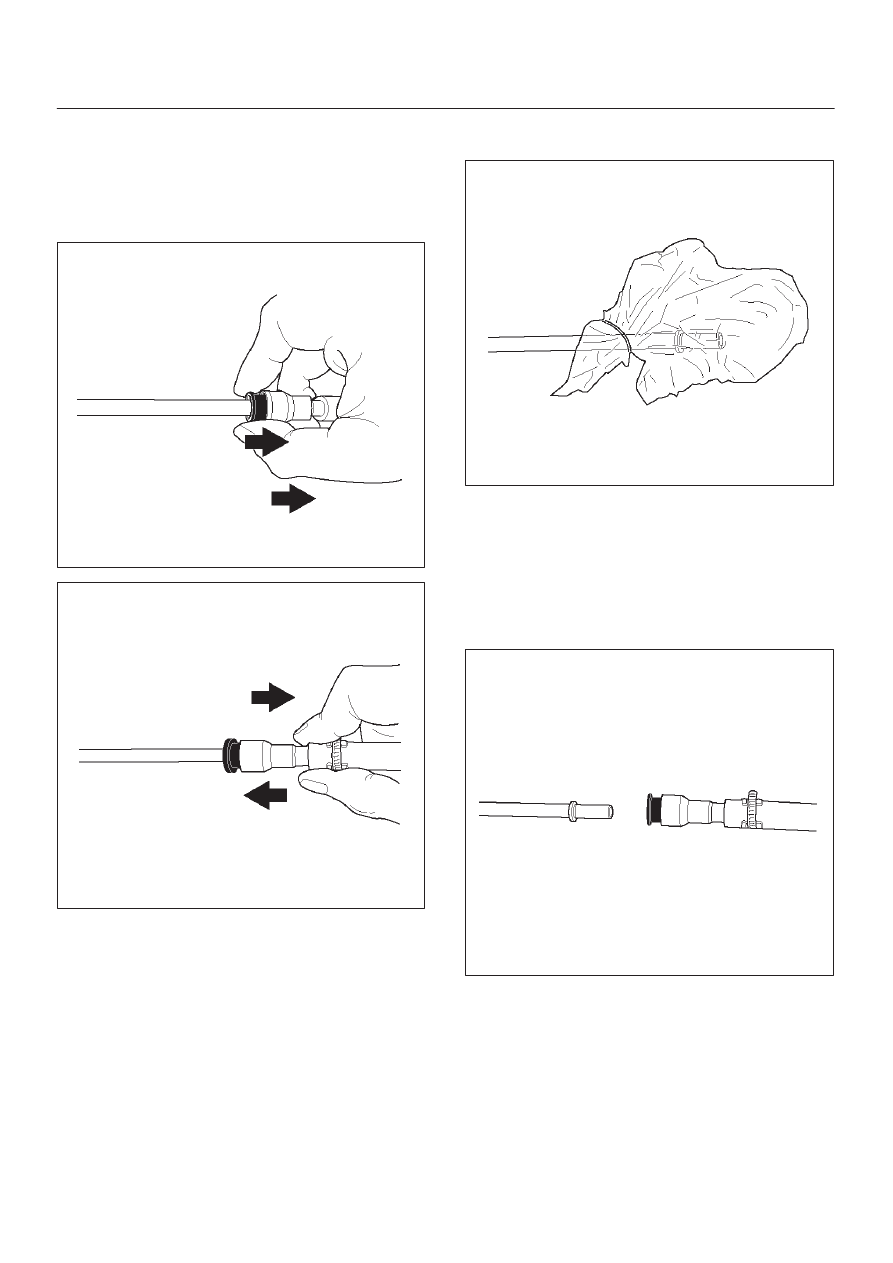

2. Pull the black plastic piece toward the

connector. Hold the piece near the connector.
Pull the connector from the fuel pipe.
If the connector and fuel pipe are stuck
together, jiggle the connector back and forth to
loosen the connector. Do not yank the
connector from the fuel pipe.

141RY00002

141RY00003

3. Tie a vinyl bag around the connector and fuel

pipe to protect them from dirt.

141RY00004

2. Joining the connector and fuel hose

1. Remove the vinyl bag from the connector and

fuel hose. Check that the contact surfaces are
undamaged and free of dirt and other foreign
material. Clean if necessary.

2. Align the axis of the fuel pipe and connector.

Push the connector into the fuel pipe until a
distinct click is heard.

141RY00005

7A–45

AUTOMATIC TRANSMISSION (4L30–E)

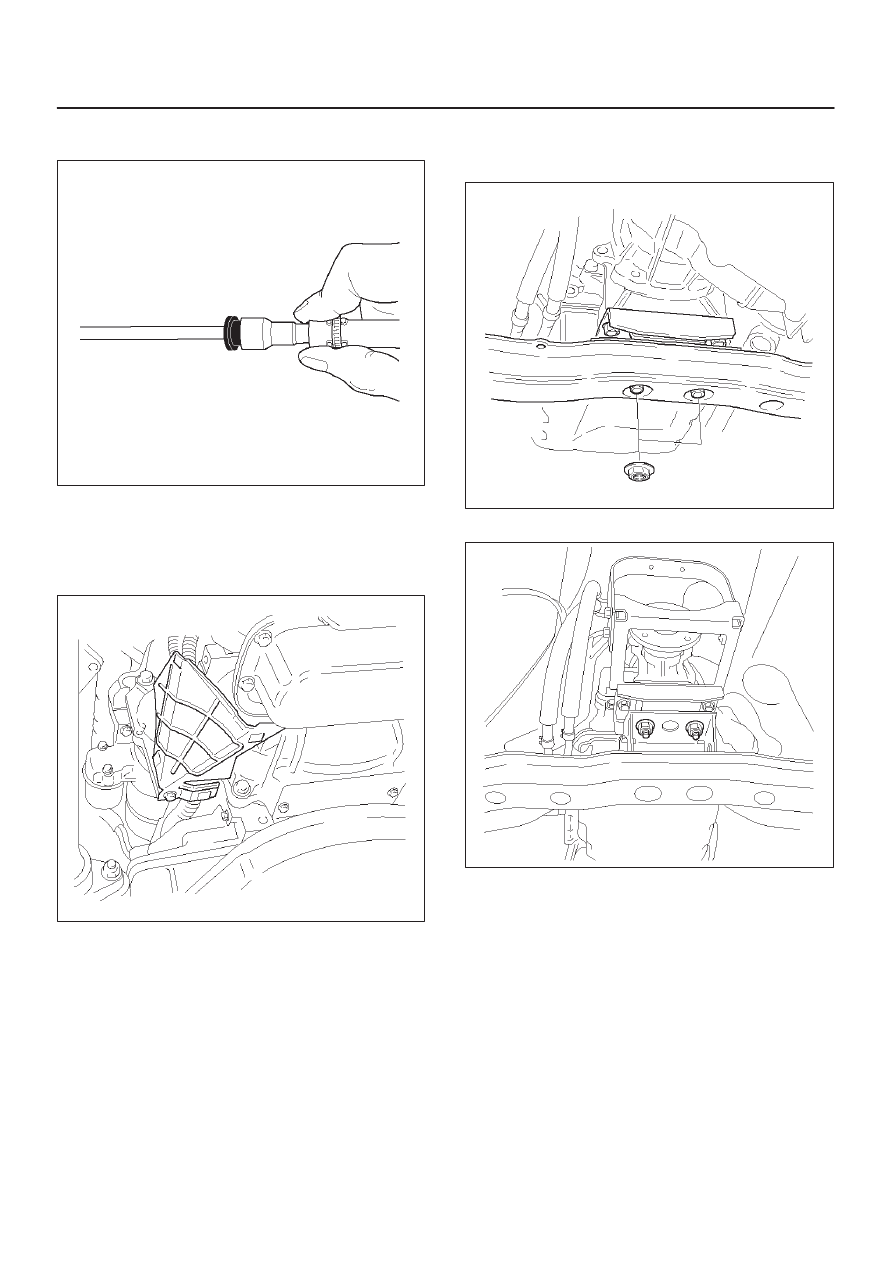

3. Gently pull on the connector to check that it is

securely latched.

141RY00006

8. Disconnect transmission harness connector and clip.

Connector : Adapter case, mode switch, main case,
magnetic sensor, transfer switch (4

×

4), 2–4 actuator

(4

×

4) and car speed sensor.

9. Remove harness heat protector (V6).

815RW002

10. Support transmission with a jack.

Remove rear mount nuts from third crossmember.

(4

×

4)

F07RW008

(4

×

2)

F07R100005

11. Remove third crossmember.

7A–46

AUTOMATIC TRANSMISSION (4L30–E)

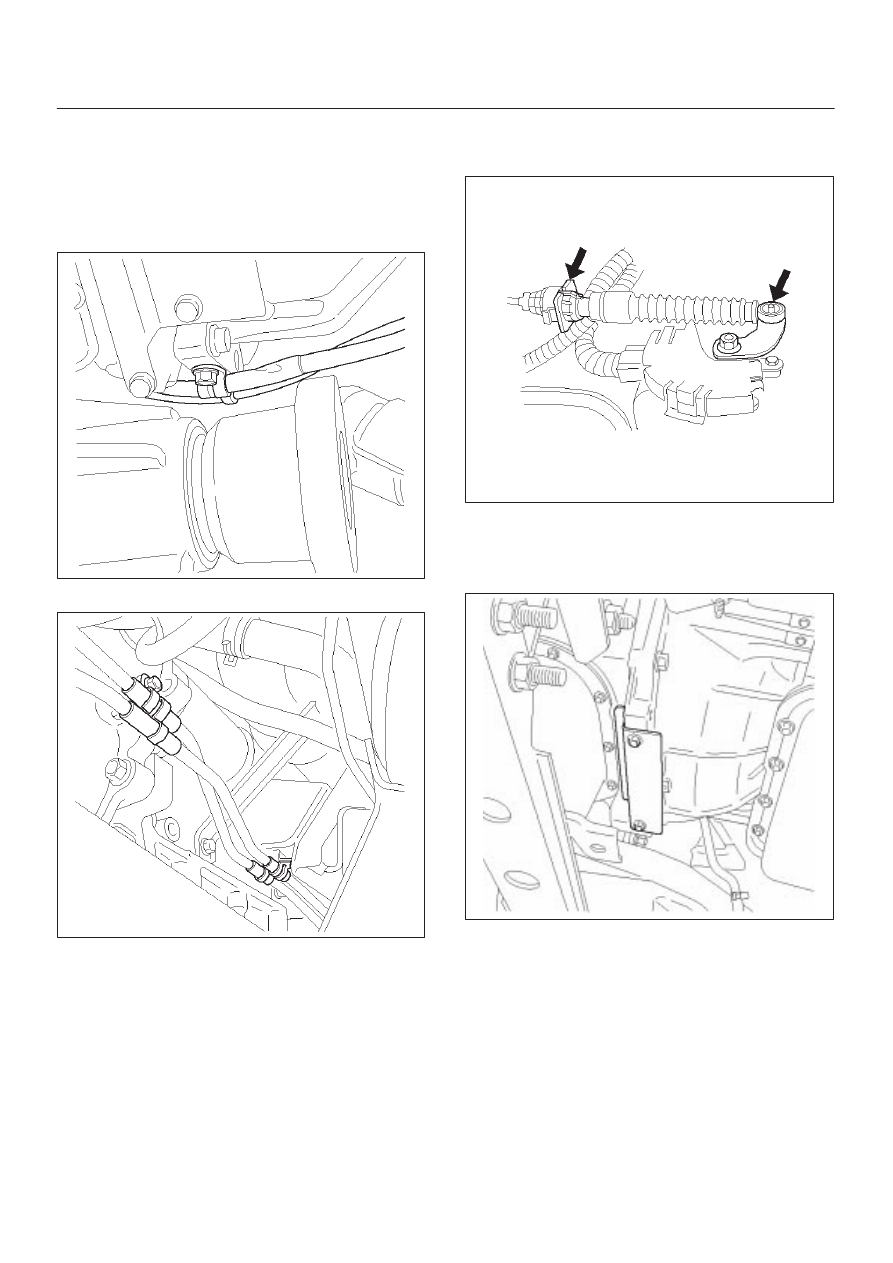

12. Disconnect transmission oil cooler pipes from A/T

side.

13. Remove oil pipe clamp and bracket from the

converter housing.

14. Loosen oil cooler pipe clamp bolt at the engine mount

side.

(V6, 4

×

4)

253RY001

(HEC)

253R100001

15. Remove select cable by disconnecting inner cable

from select lever and removing outer cable with
bracket.

256RW025

16. Remove starter (V6).
17. Remove under covers from the transmission and

engine.

(HEC)

240R100005

7A–47

AUTOMATIC TRANSMISSION (4L30–E)

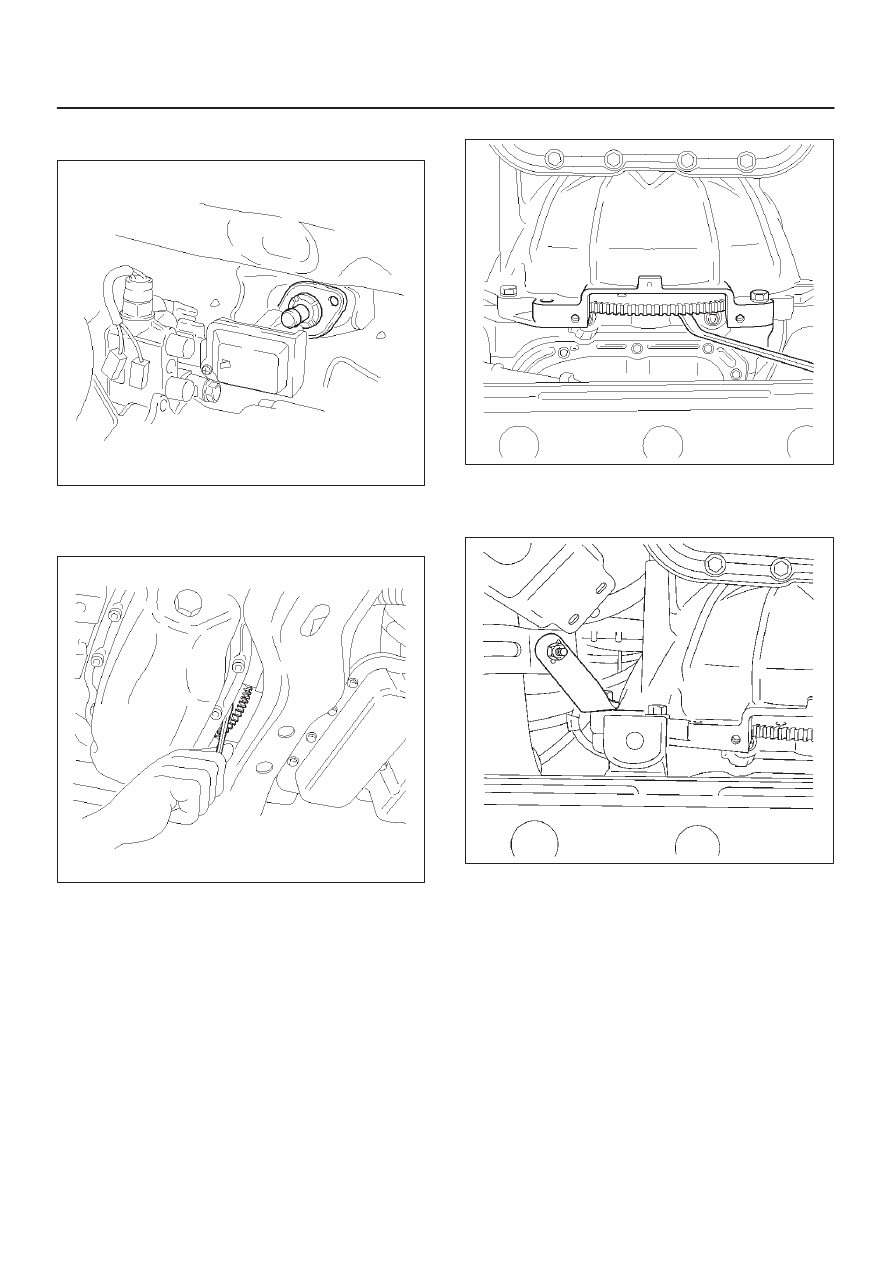

18. Remove transfer control lever fixing bolts and push up

transfer control lever (V6, 4

×

4).

262RW015

19. Remove flex plate torque converter fixing bolts (6

pieces) by turning crankshaft.

(V6)

240RW005

(HEC)

240R100004

20. Remove engine transmission fixing bolts.
21. Remove exhaust pipe bracket from converter

housing and exhaust pipe (HEC).

150R100009

22. Pull out transmission from the engine.
23. Remove the rear mount rubber and propeller

protector assembly if required (4

×

2).
