Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 1550

7A–40

AUTOMATIC TRANSMISSION (4L30–E)

(HEC Model)

240R100007

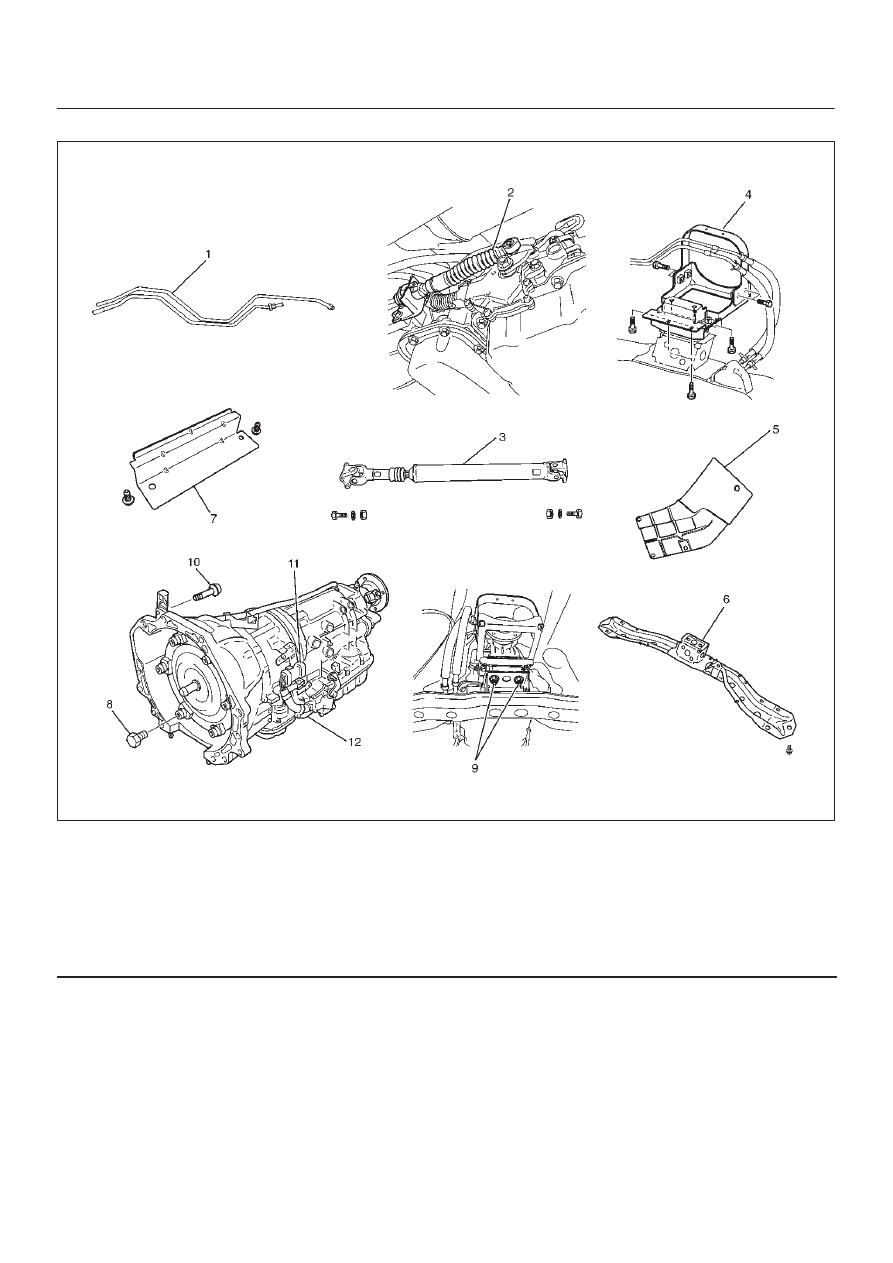

Legend

(1) Transmission Oil Cooler Pipe
(2) Select Cable
(3) Rear Propeller Shaft
(4) Rear Mount Rubber and Propeller Protector

Assembly

(5) Fuel Pipe Heat Protector

(6) Third Crossmember
(7) Under Cover
(8) Torque Converter Bolt
(9) Rear Mount Nut

(10) Engine-Transmission Bolt

(11) Harness Connector

(12) Transmission Assembly

7A–41

AUTOMATIC TRANSMISSION (4L30–E)

Removal

NOTE: Before removing transmission and transfer
assembly from vehicle, change the transfer mode to 2WD
using push button on dash panel (V6, 4

×

4).

1. Disconnect battery ground cable.
2. Remove transfer protector (4

×

4) and fairing plate

(V6).

150RW006

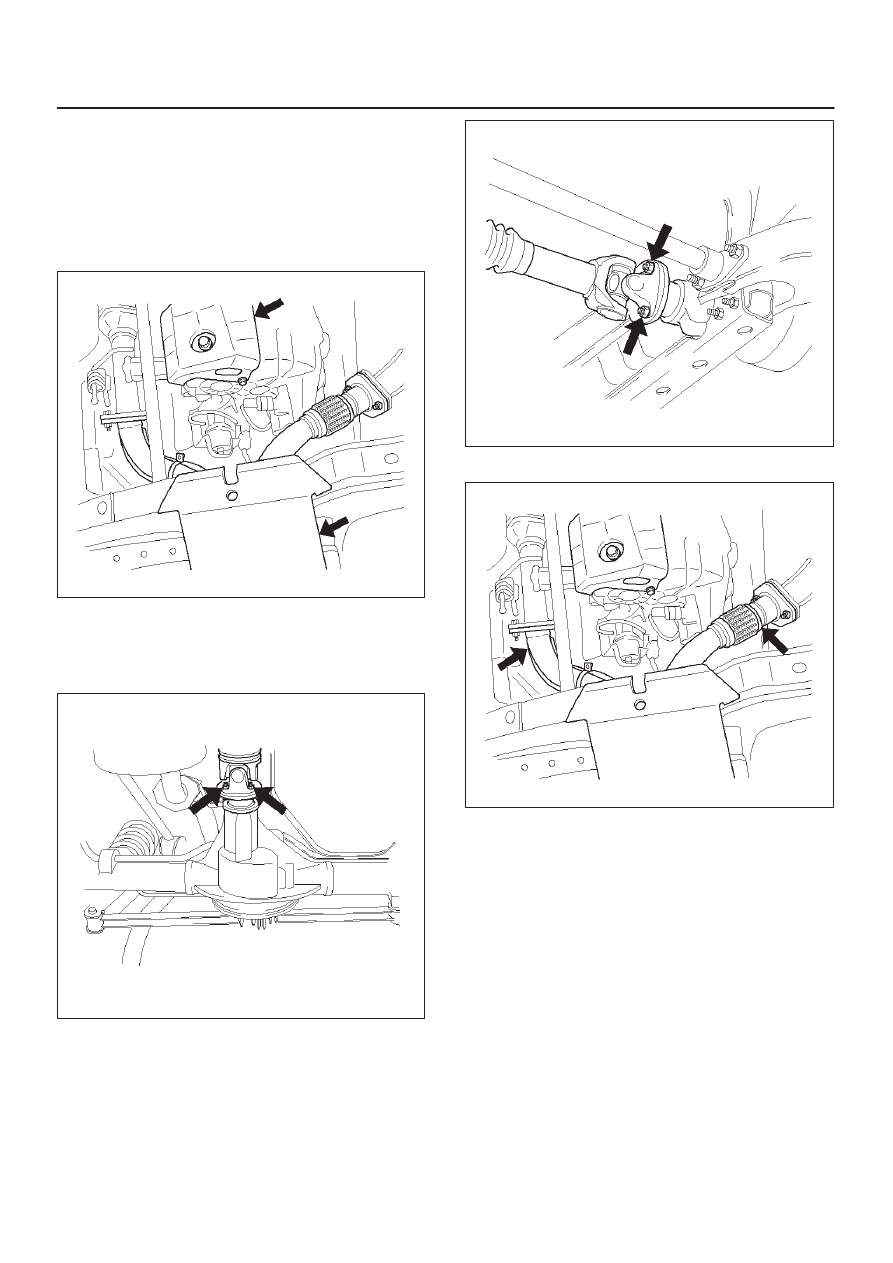

3. Remove rear propeller shaft and front propeller shaft

(4

×

4).

NOTE: Apply alignment marks on the flange at both front
and rear sides.

401RW008

401RW007

4. Remove center exhaust pipe (V6, 4

×

4).

150RW008

7A–42

AUTOMATIC TRANSMISSION (4L30–E)

5. Remove fuel pipe heat protector and clip.
6. Disconnect fuel pipe bracket from third crossmember.

141RW004

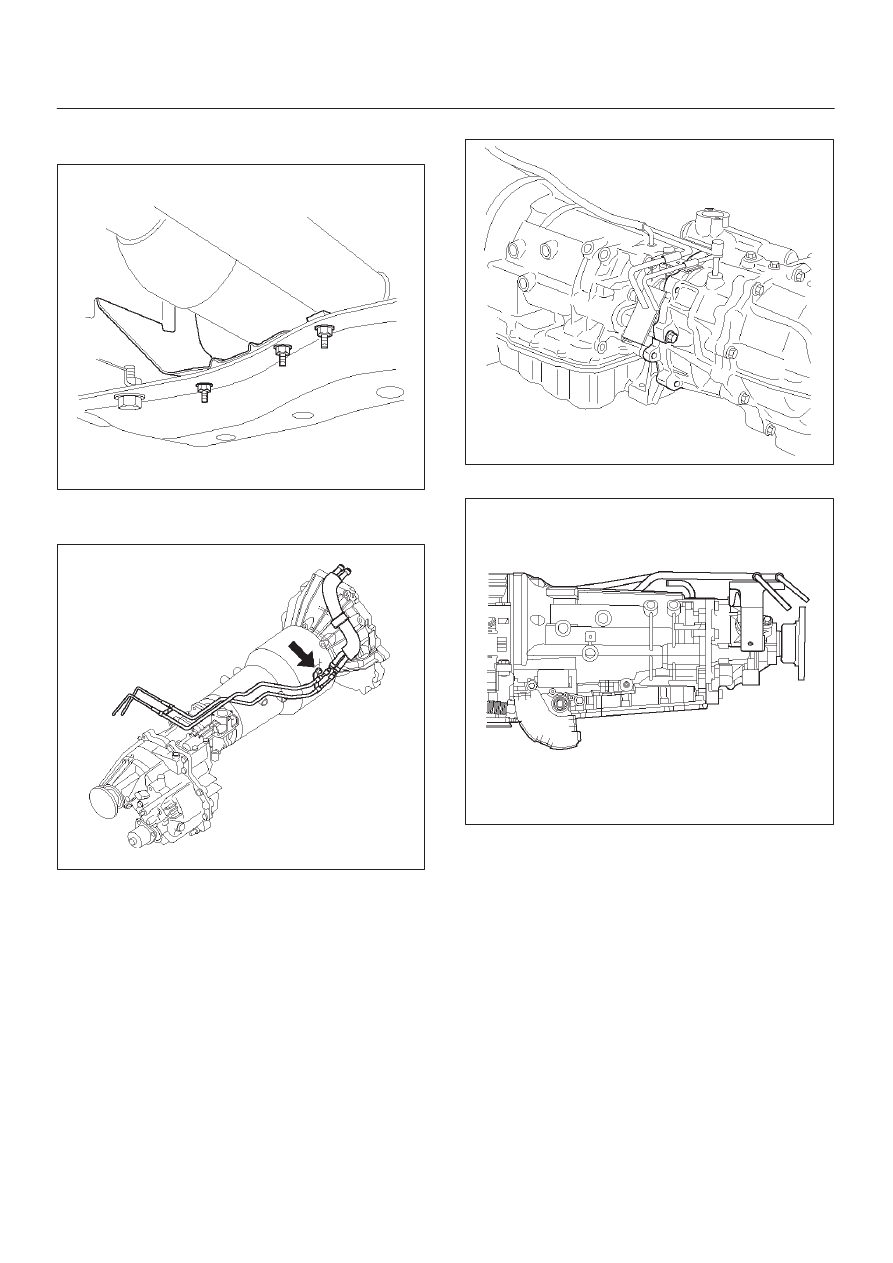

7. Disconnect fuel pipe bracket from transmission side.

(V6, 4

×

4)

141R100004

(V6, 4

×

4)

240RW014

(V6, 4

×

2)

141RW006

7A–43

AUTOMATIC TRANSMISSION (4L30–E)

(HEC)

253R100002

(HEC)

141R100003

Fuel hose connector removal procedure
If removal of the fuel hose connector is required for
transmission servicing and/or replacement, follow the
steps below.

141RY00007

NOTE:

D

An O-ring is used as a seal between the fuel pipe and
the connector. Take care not to damage the contact
surfaces during the removal procedure. Do not allow
the surface to become contaminated with dirt or other
foreign material.

D

Perform the entire removal procedure with your
hands. Do not use tools.
1. Separating the connector and fuel pipe

1. Clean the fuel pipe and connector to remove

mud and other dirt.
